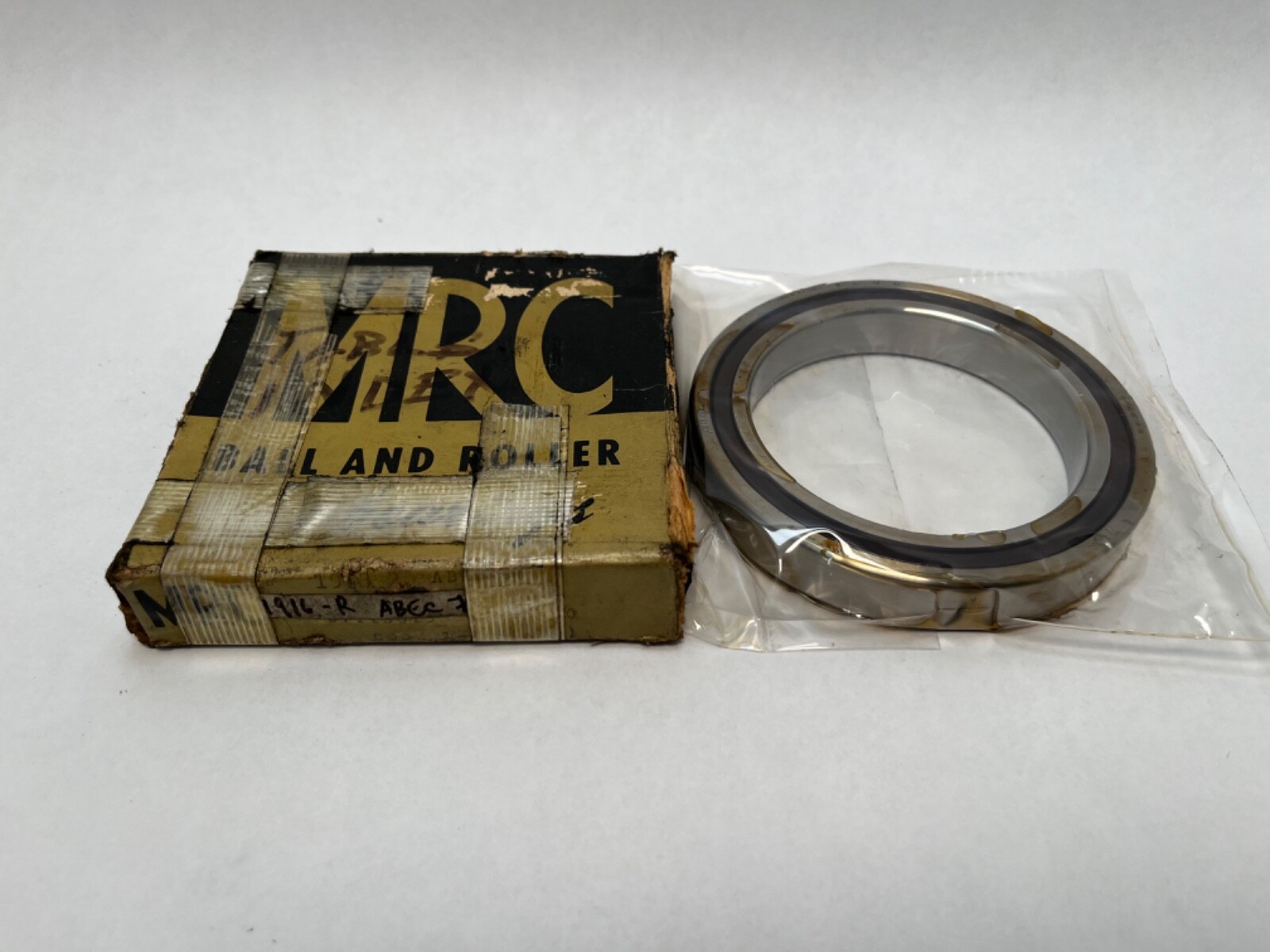

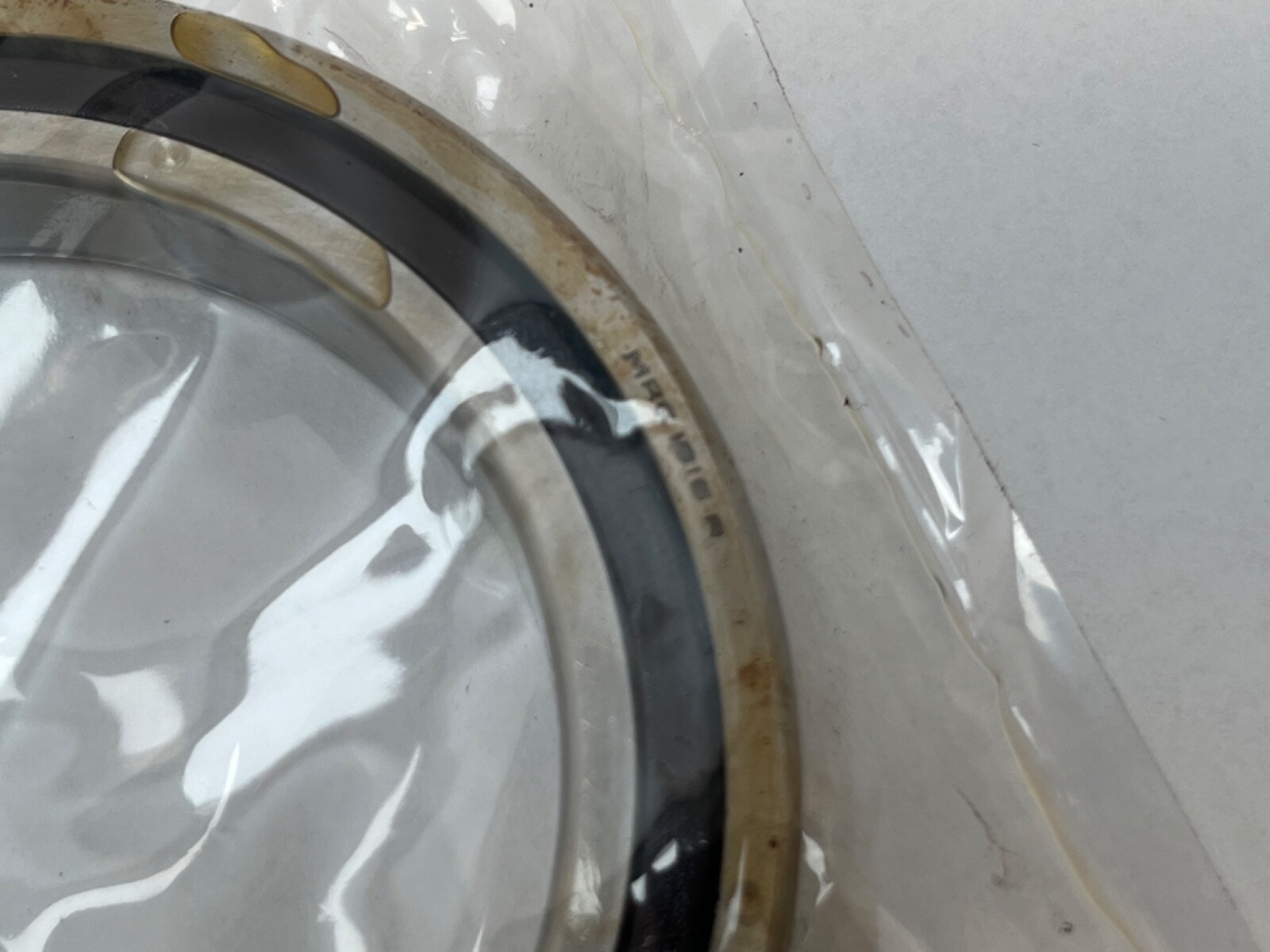

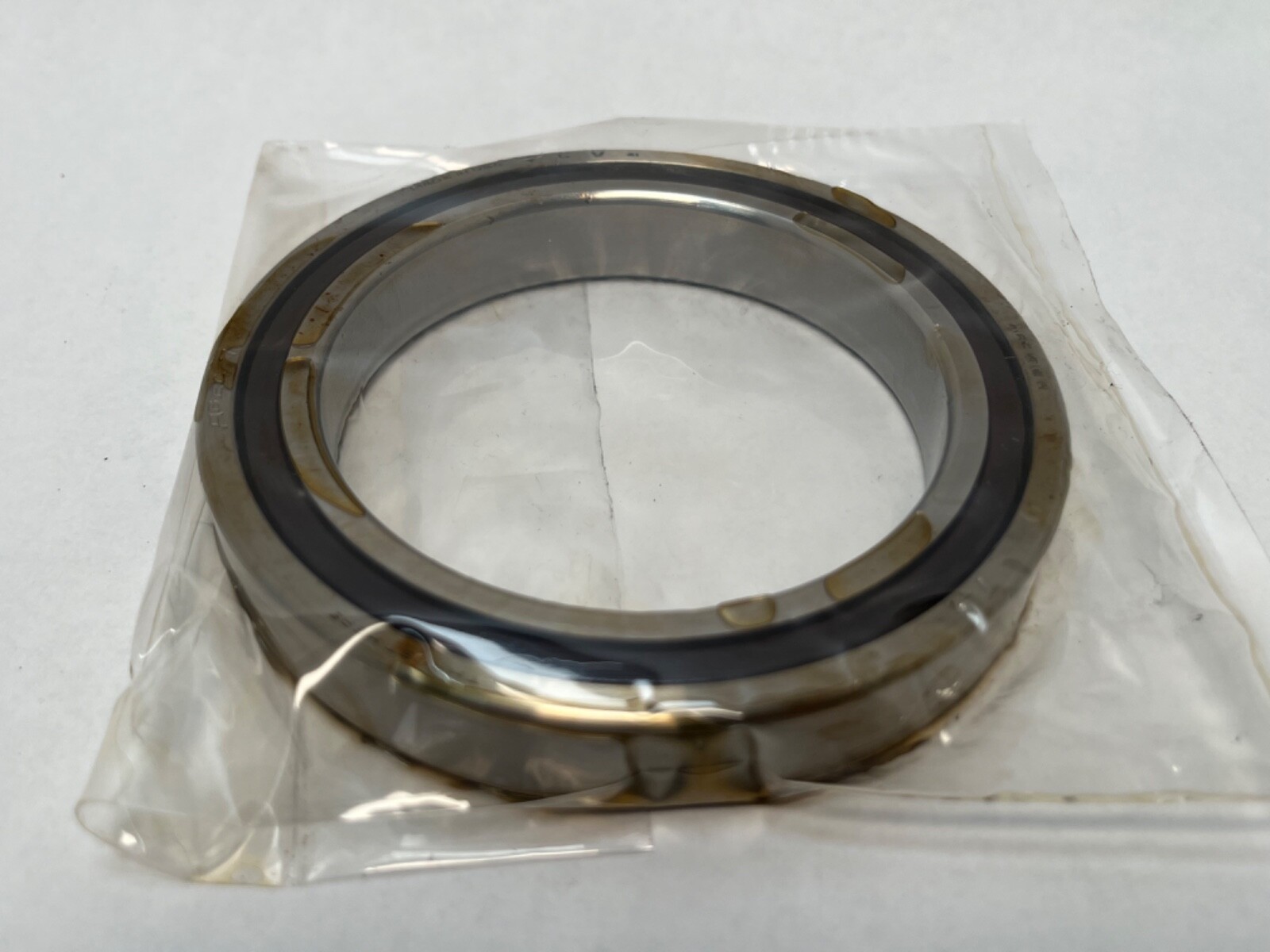

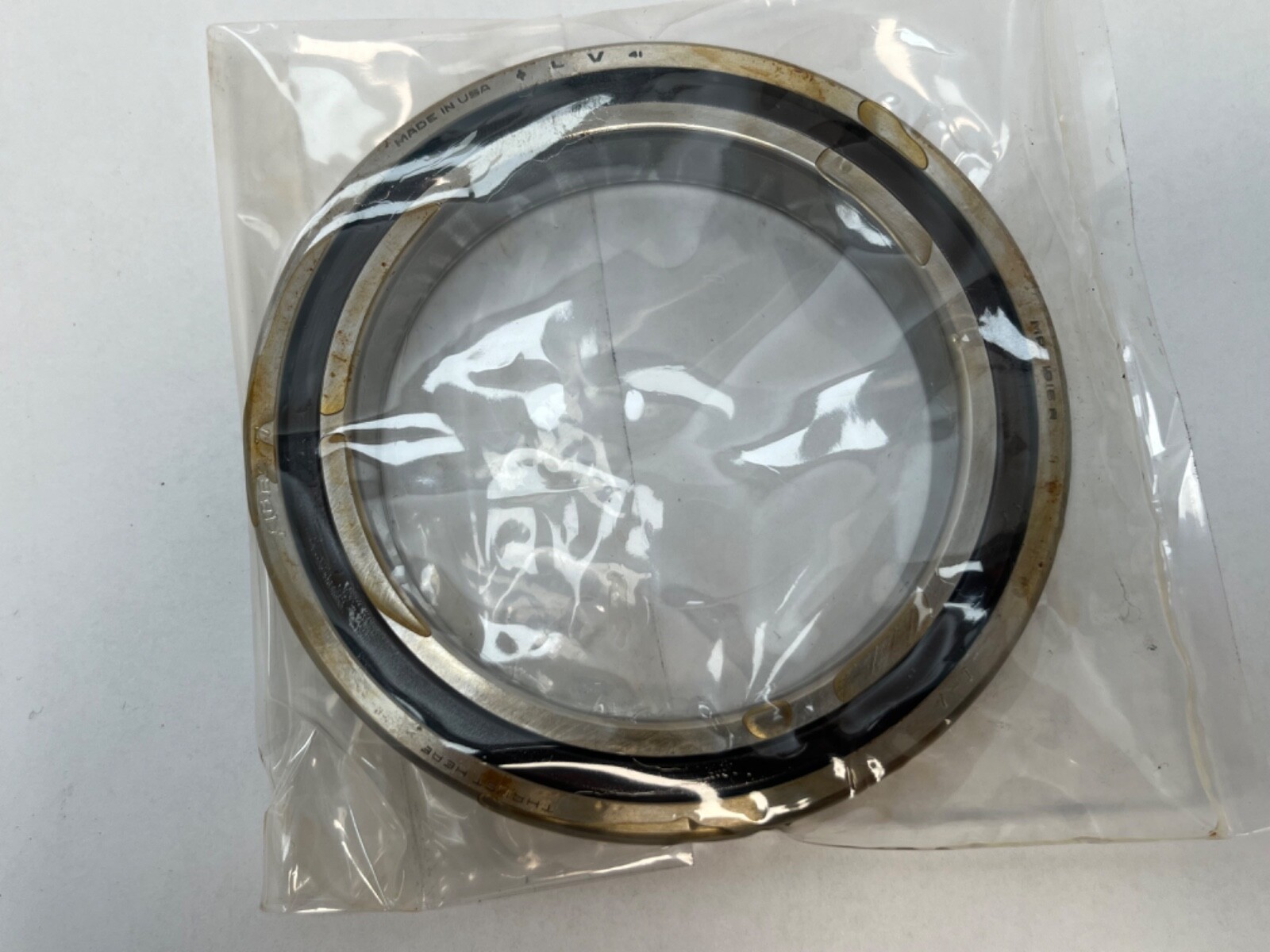

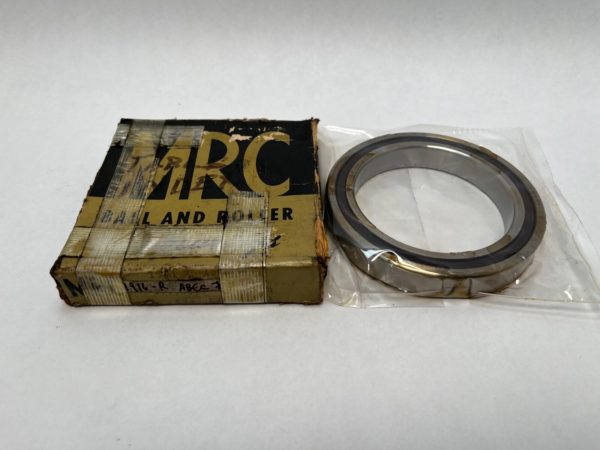

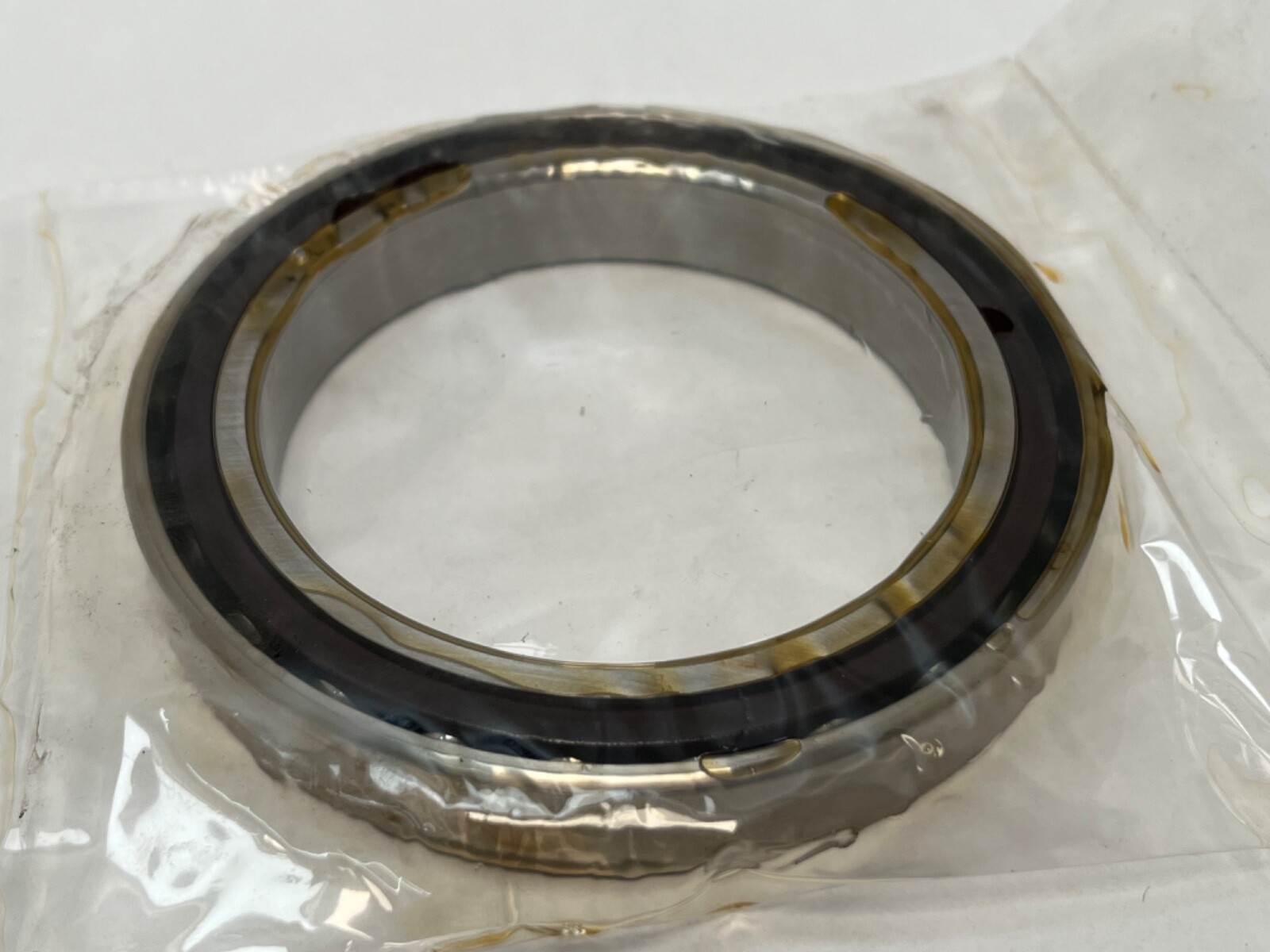

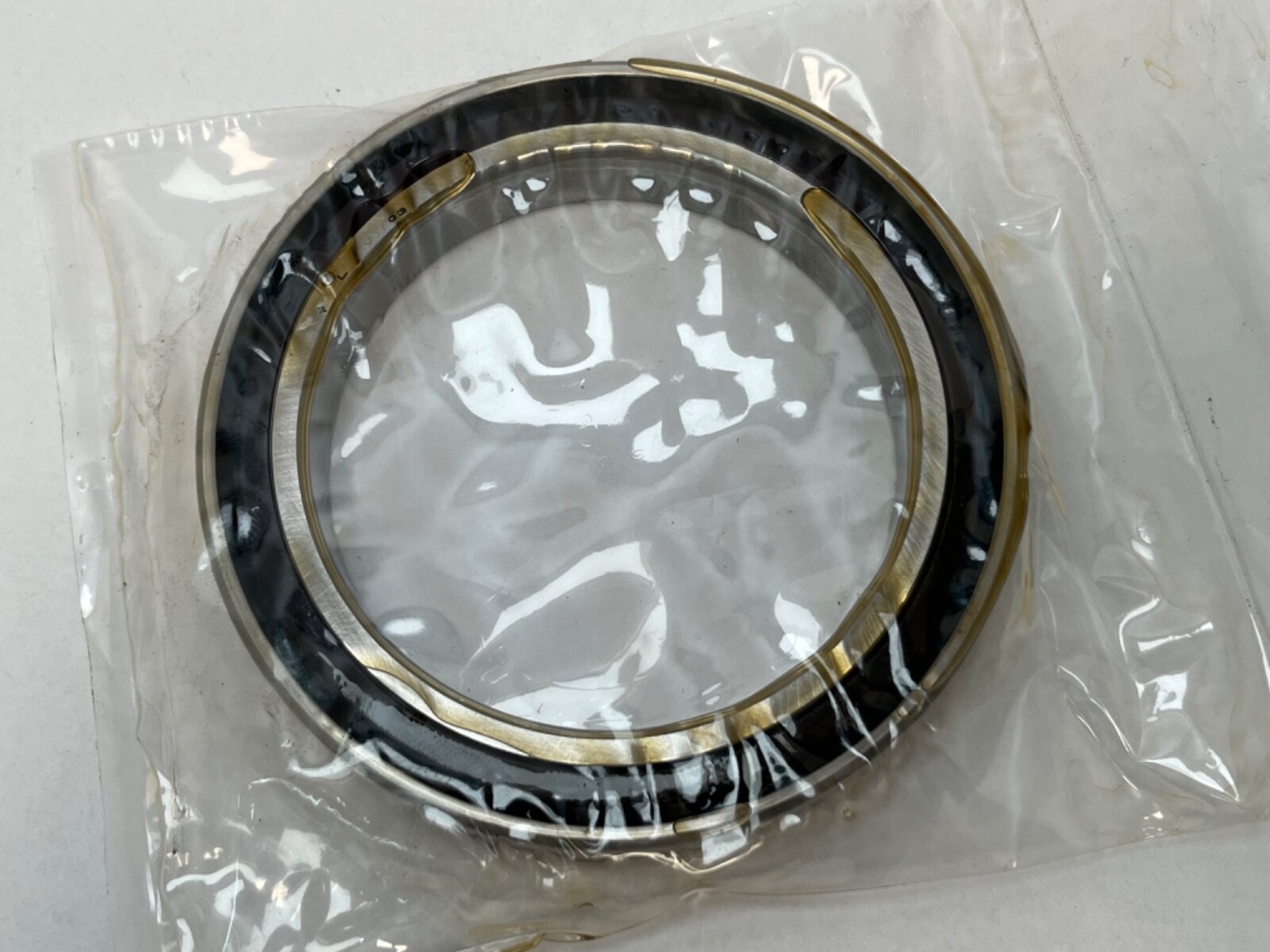

MRC1916RAngular Contact Ball Bearing – 80 mm ID, 110 mm OD, 16 mm Width, Straight Bore, Open, 15 Degree, Extra-Light 1900 Series

Condition: New
Condition Note: Made In USA, New Old Stock

Availability:

1 in stock

Angular contact ball bearing, 80 x 110 x 16 mm, 15° contact angle, counterbored outer ring, thin-section 1900 series, open both faces, straight bore.

Same day shipment

List Price

$56.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandMRC
MPN1916R
Model1915 R
Bearing TypeAngular Contact Ball Bearing, Open
ID80 mm
OD110 mm
Width16 mm

Technical Specifications

SeriesMRC 1900 extra-light (ISO 719 dimension series)
MaterialBearing Steel
Base Number1916R (ISO 71916 envelope)
Industry TermsAngular contact ball bearing; thin section spindle bearing; extra-light series bearing; Marlin Rockwell; 71916
Common Misspellings1916-R; 1916 R; MCR 1916R; 1916RA
Bore Shaft Size80 mm
Mpn Variants1916R; 1916-R; 1916 R; 1915R; 1915-R
Rolling ElementsBall
Number Of Rows1
Bore TypeStraight, counterbored outer ring
Harmonization Code8482.10.50
Contact Angle15°
Part Number1916R
Application TypesMachine tool spindles; Indexing heads; Precision instruments; High-speed shafts

Cross-References

Cross Reference 1SKF 71916 CD (15° contact angle)
Cross Reference 2FAG B71916-C (15° contact angle)
Cross Reference 3NSK 71916C (15° contact angle)
Seller Part Number: B-AG6B5#DYD3WQ

Product Description

What this part is:

MRC 1916R single-row angular contact ball bearing with a counterbored outer ring and a 15° contact angle. Bore: 80 mm. Outside Diameter: 110 mm. Overall Width: 16 mm. Open on both faces, straight bore.

Decoding the designation:

19 — MRC 1900 extra-light series, the thinnest standard angular contact section, matching the ISO 719 dimension series.

16 — bore code giving Bore: 80 mm.

R — R-type execution, counterbored outer ring, Contact Angle: 15°.

Specifications:

Bearing Type: Angular contact ball bearing. Bore Diameter: 80 mm. Outside Diameter: 110 mm. Overall Width: 16 mm. Contact Angle: 15°. Bore Type: Straight, counterbored outer ring. Closure Type: Open, both faces. Number Of Rows: 1. Rolling Elements: Ball. Series: MRC 1900 extra-light (ISO 719 dimension series). Country of Origin: United States. Unit Quantity: 1 Pc.

Dimensions and mounting:

The 80 x 110 x 16 mm envelope is the ISO 71916 seat. The high shoulder is the thrust face and the low face carries the counterbore.

Compatibility and replacement:

15° crosses in the C-suffix executions: SKF 71916 CD, FAG B71916-C and NSK 71916C. A 71916 ACD or other 25° execution shares the same seats at a steeper contact angle and is a related size.

Frequently asked questions:

What size is the MRC 1916R?

80 mm bore, 110 mm outside diameter, 16 mm width.

What is the contact angle of the MRC 1916R?

15°. The R marks a counterbored outer ring with a 15° contact angle.

Which ISO bearing is the same size as the 1916R?

ISO 71916, in the 719 extra-light dimension series.
