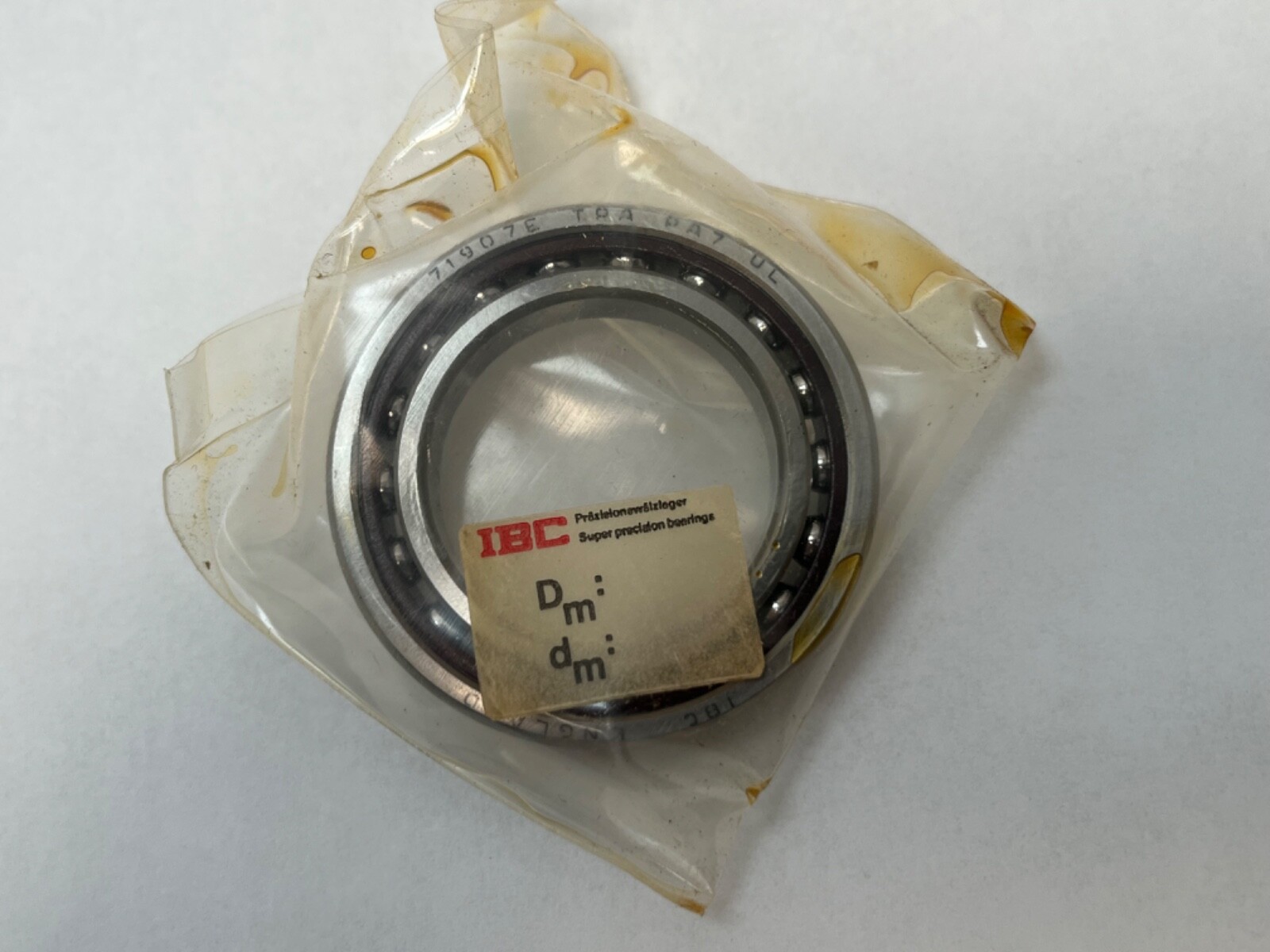

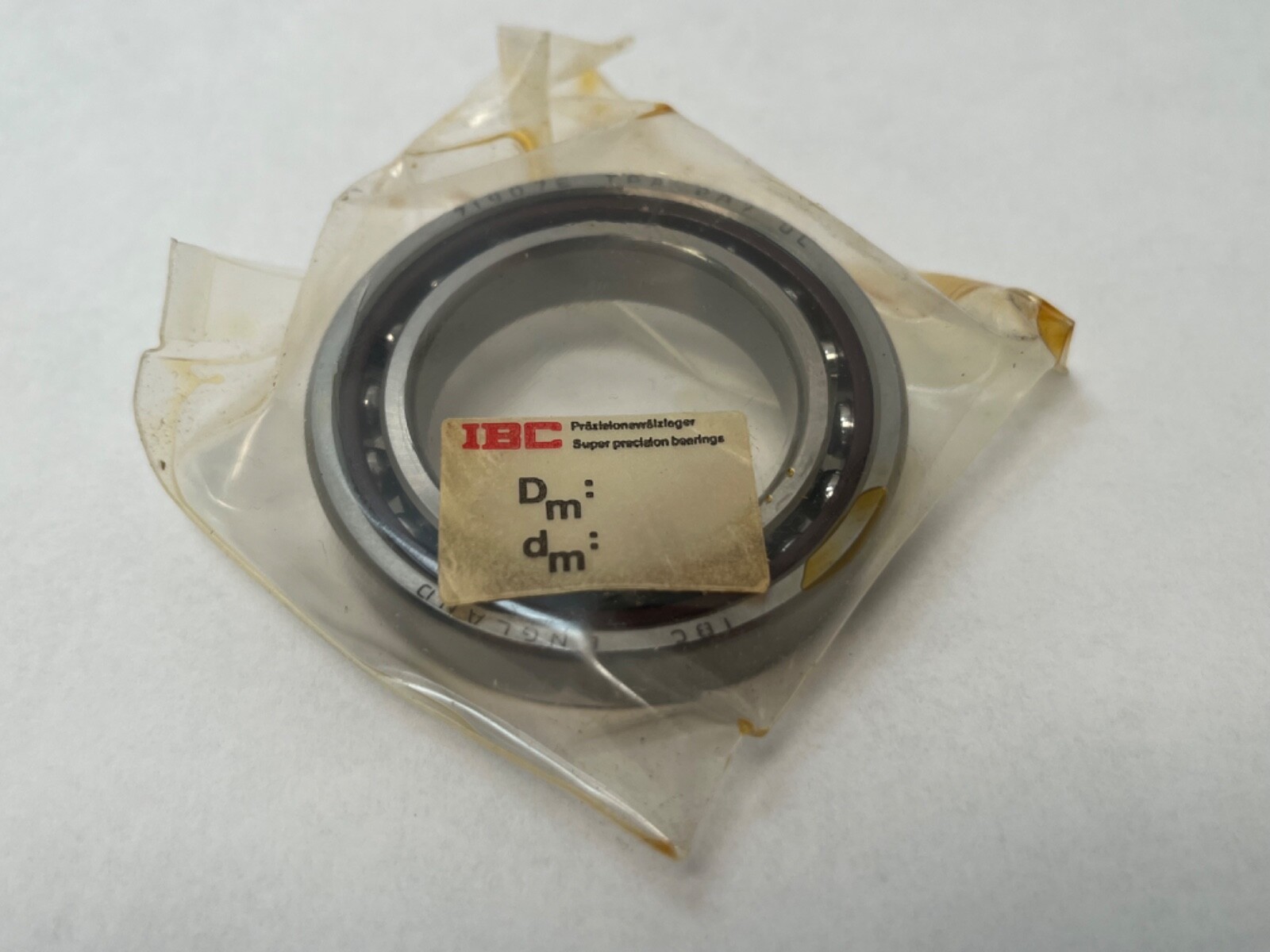

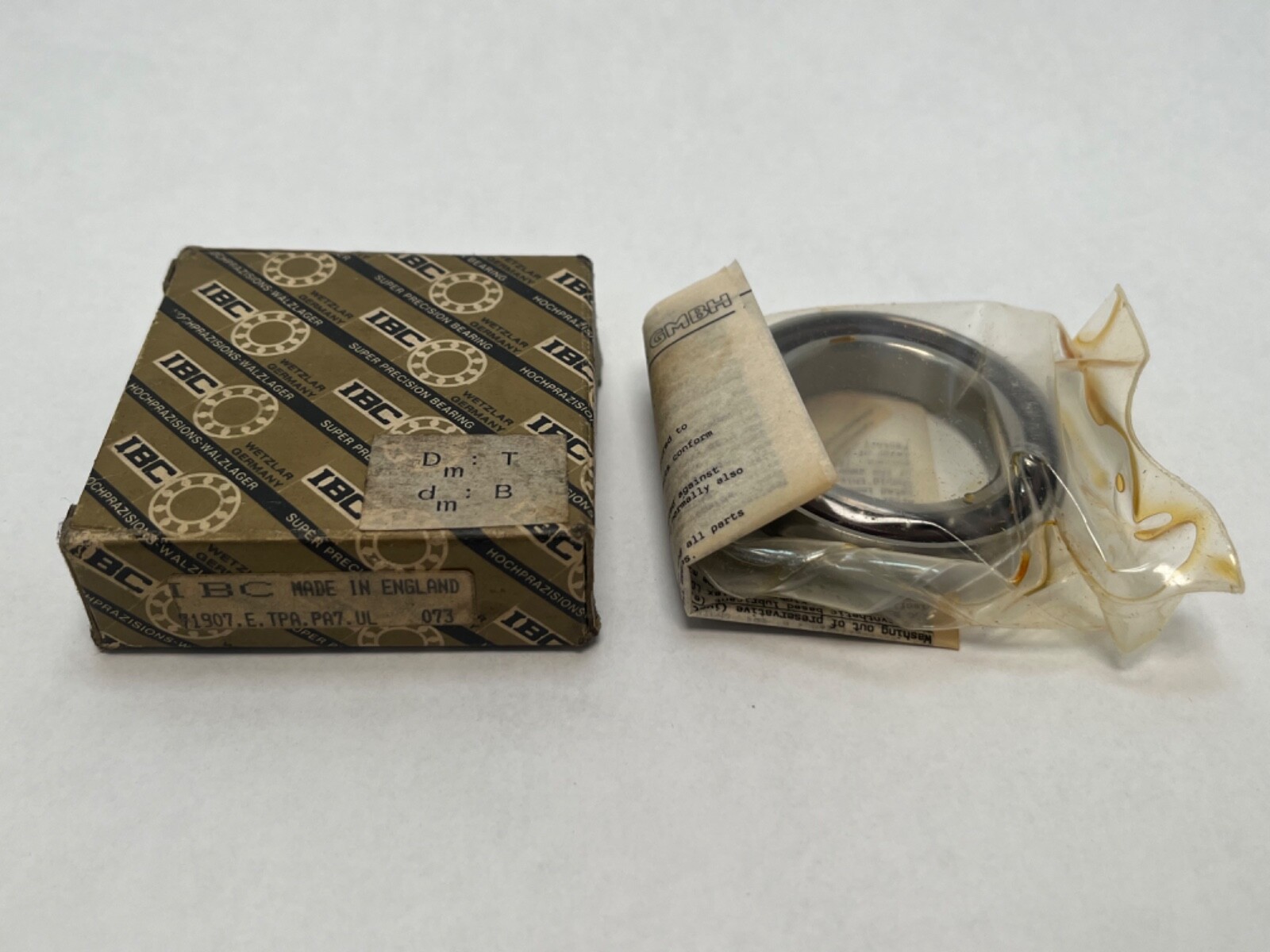

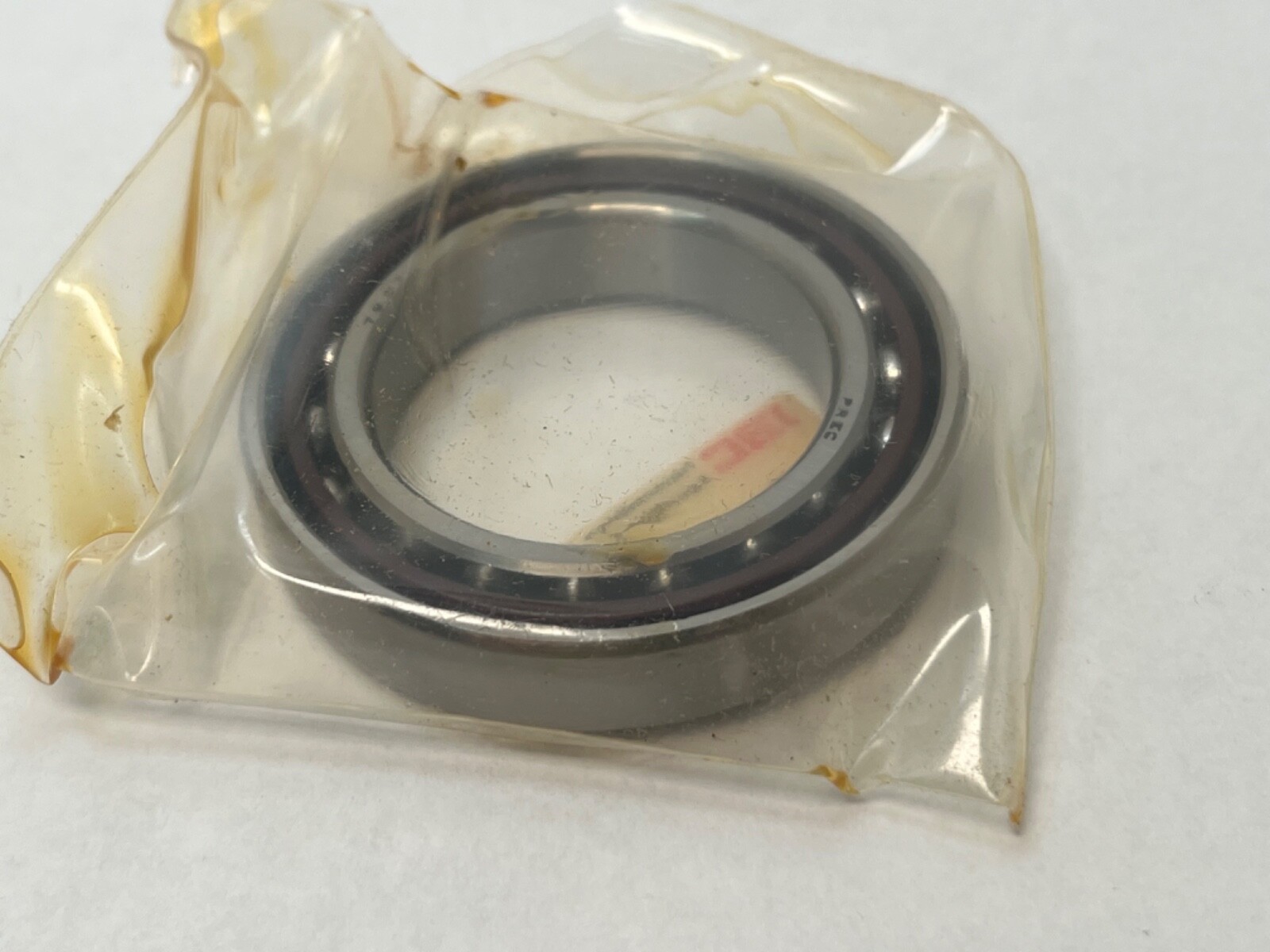

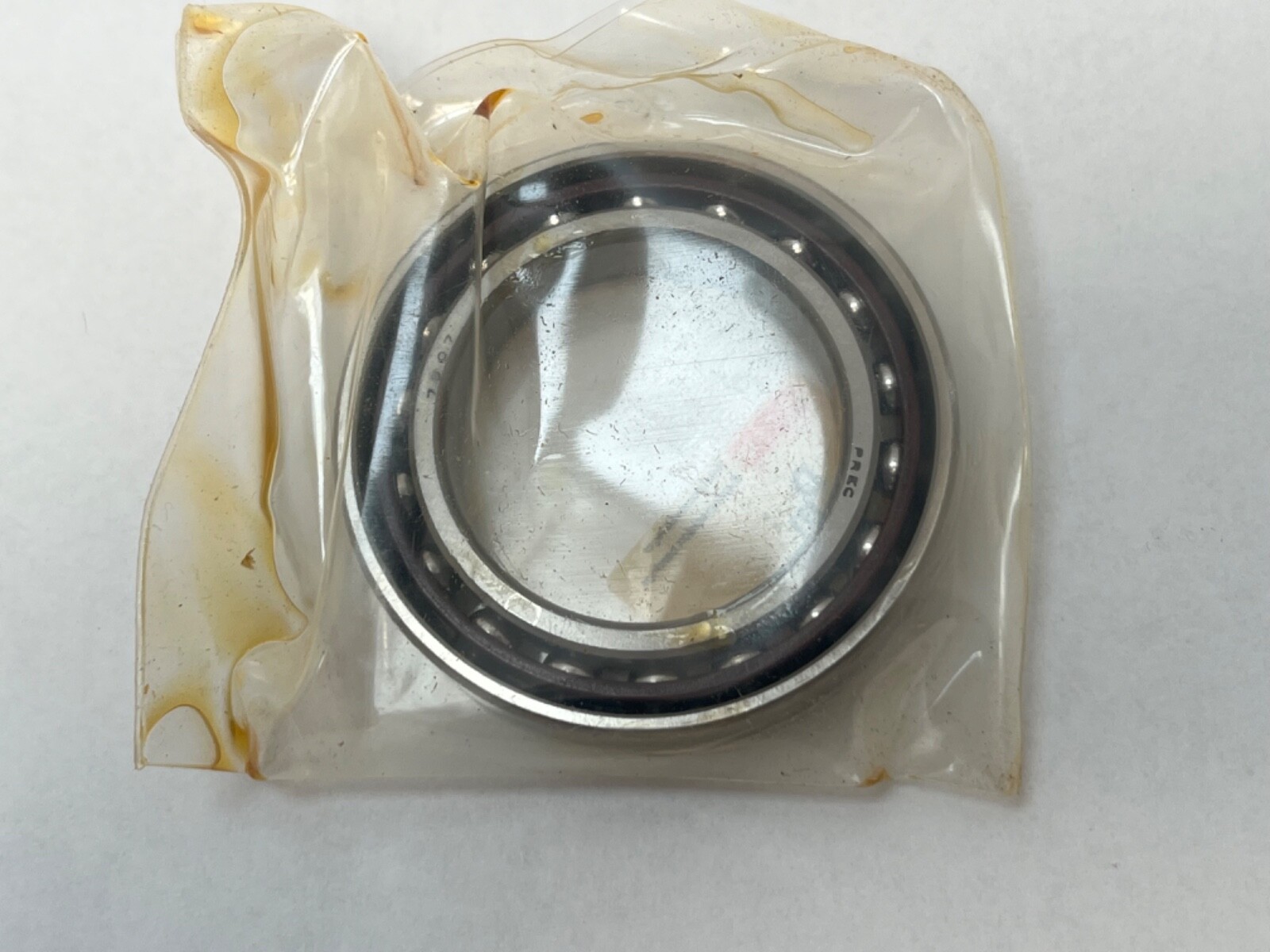

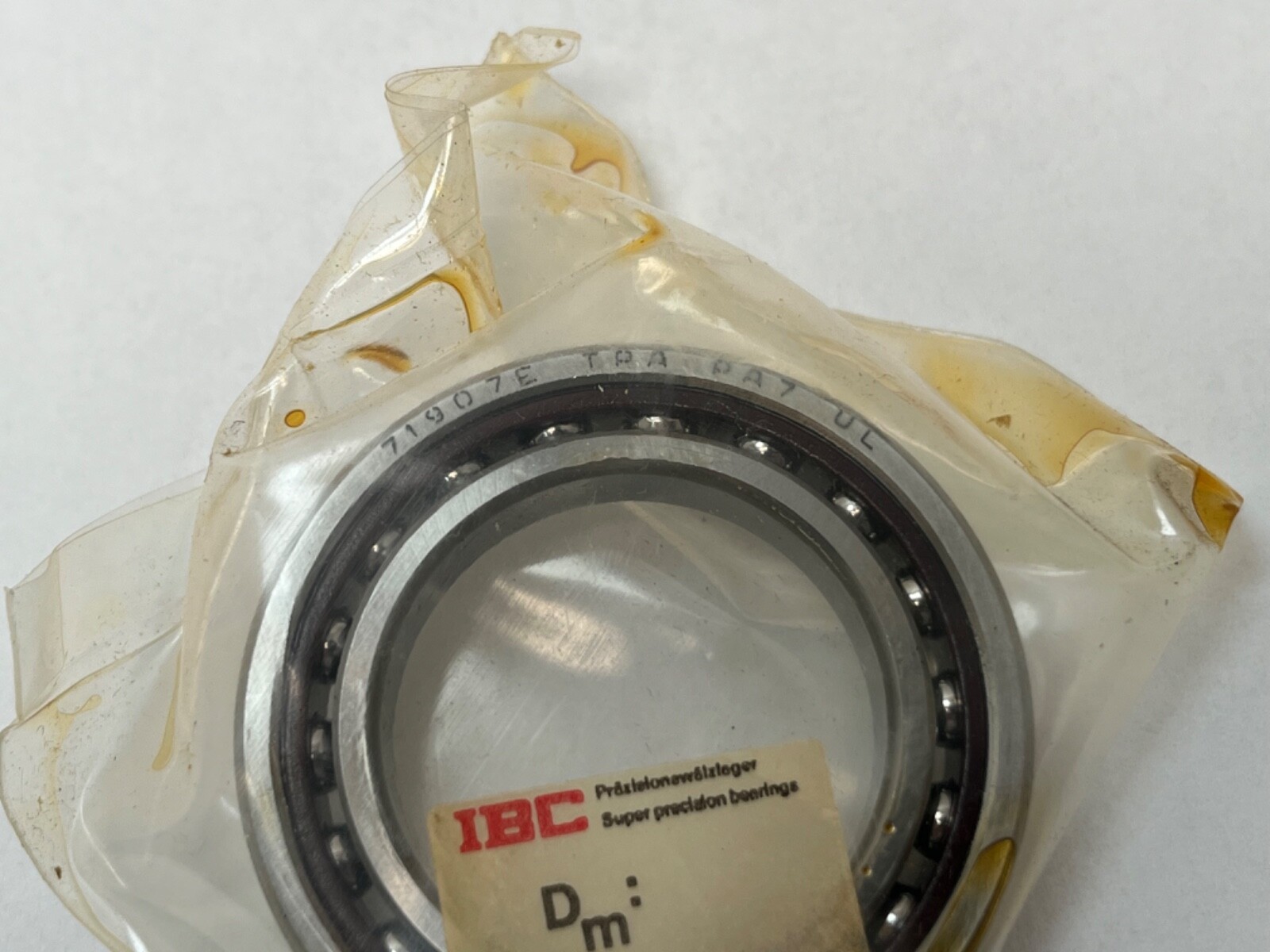

IBC 71907-E-TPA-PA7-UL angular contact ball bearing, 35 x 55 x 10 mm, 25° contact angle, phenolic cage, universal light preload. Extra-light 719 series.
List Price
$91.75
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | IBC |
|---|---|
| Model | 71907-E-TPA-PA7-UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 55 mm |
| Width | 10 mm |
| Series | 71900 |
|---|---|
| Condition | New |
| Preload | Light (universal) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Industry Terms | spindle bearing, super precision angular contact bearing, machine tool bearing |
| Common Misspellings | 71907ETPAP7UL, 7190ETPAPA7UL, 71907-ETPA-PA7UL |
| Application Types | machine tool spindles, high-speed spindles, precision rotary assemblies |
| Mpn Variants | 71907ETPAPA7UL, 71907-E-TPA-PA7-UL, 71907 E TPA PA7 UL, 7907E, 7907A5/ACD |
| Cross Reference 1 | FAG B71907-E-T-P4S-UL |
|---|---|
| Cross Reference 2 | SKF 71907 ACD/P4A |
| Cross Reference 3 | Timken Fafnir 3MM9307WI |
| Cross Reference 4 | SNR 71907HG1UJ74 |
| Cross Reference 5 | NSK 7907A5 |
The IBC 71907-E-TPA-PA7-UL is a single-row angular contact ball bearing in the ISO 719 extra-light series, for machine tool spindles and other high-speed, precision assemblies carrying combined radial and one-direction axial load.
Bore Diameter: 35 mm. Outside Diameter: 55 mm. Overall Width: 10 mm. Contact Angle: 25°. Cage Material: Phenolic. Preload: Light (universal). Closure Type: Open. Rolling Elements: Ball.
719 — ISO extra-light series 19 angular contact ball bearing.
07 — 35 mm bore.
E — 25° contact angle.
T — phenolic cage.
UL — universally ground for any duplex arrangement, light preload.
The 25° angle gives higher axial load capacity and axial stiffness than a 15° bearing of the same envelope. Universal grinding lets two or more of these bearings be mounted back-to-back, face-to-face or tandem with a defined light preload.
Unit Quantity: 1 Pc. Single universally ground bearing.
25° parts from other makers, 35 x 55 x 10 mm: FAG B71907-E-T-P4S-UL, SKF 71907 ACD/P4A, Timken Fafnir 3MM9307WI, SNR 71907HG1UJ74, NSK 7907A5. Precision class and preload labelling differ between makers.
