Availability:
1 in stock
Angular contact spindle bearing pair, 45 mm bore x 85 mm OD x 19 mm, 15°, PEEK TXM cage, ABEC 7 / P4, universal light preload 230 N. GMN S 6209 C TXM A7 DUL, 2 Pcs.
List Price
$96.31
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S-6209-C-TXM-ABEC7-DUL |
| Model | S-6209-C-TXM-ABEC7-DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | S 62 |
| Preload | L (light), 230 N |
| Cage Type | TXM, moulded, outer-ring guided, ball retaining |
| Dynamic Load Rating | 45,500 N |
| Static Load Rating | 33,500 N |
| Rolling Elements | Ball |
| Item Weight | 0.416 kg (0.92 lb) per bearing |
| Cage Material | PEEK, carbon-fibre reinforced |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Limiting Speed | 19,500 rpm grease; 26,000 rpm oil |
| Overall Width | 19 mm |
| Mpn Variants | S-6209-C-TXM-ABEC7-DUL, S-6209-C-TXM-P4-DUL, S6209CTXMA7DUL, S 6209 C TXM A7 DUL, 7209C |
| Arrangement Configuration | DUL — universal matched pair (DB, DF or DT) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Bearing design: S, two lands on inner ring, non-separable; Balls: 14 x 12.7 mm; Axial rigidity (pair, light preload): 71 N/µm; Cage max operating temperature: 250 °C |
| Lubricant | Grease |
| Cross Reference 1 | 7209 C T DUL P4 |
|---|---|
| Cross Reference 2 | 2MM209WI CR DUL |
| Cross Reference 3 | B 7209 C TPA P4 DUL |
| Cross Reference 4 | 7209CTPAP4UL |
| Cross Reference 5 | Barden 209H |
GMN S 6209 C TXM A7 DUL super-precision angular contact spindle bearing set, two bearings universally matched with light preload. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm per bearing. Contact Angle: 15°. Cage Material: PEEK, carbon-fibre reinforced. Cage Type: Moulded, outer-ring guided, ball retaining. Precision Class: ABEC 7 / P4. Preload: L (light), 230 N. Rolling Elements: Ball, 14 x 12.7 mm.
S — GMN standard spindle bearing, two lands on the inner ring, non-separable.
6209 — dimension series 02, bore code 09: 45 x 85 x 19 mm, the ISO 7209 size.
C — 15° nominal contact angle.
TXM — moulded PEEK cage, carbon-fibre reinforced, outer-ring guided and ball retaining, rated to 250 °C and optimised for grease lubrication.
ABEC7 — ABEC 7 tolerance class per ABMA, corresponding to P4.
D — set of two bearings.
UL — universal matching, light preload. The pair mounts back-to-back, face-to-face or in tandem.
Dynamic Load Rating: 45,500 N. Static Load Rating: 33,500 N. Limiting Speed: 19,500 rpm grease; 26,000 rpm oil. Item Weight: 0.416 kg per bearing. Axial rigidity at light preload: 71 N/µm per pair. The 02-series section carries heavier loads than the 10-series at the same bore. Lubricant: Grease. Closure Type: Open. Snap Ring: No.

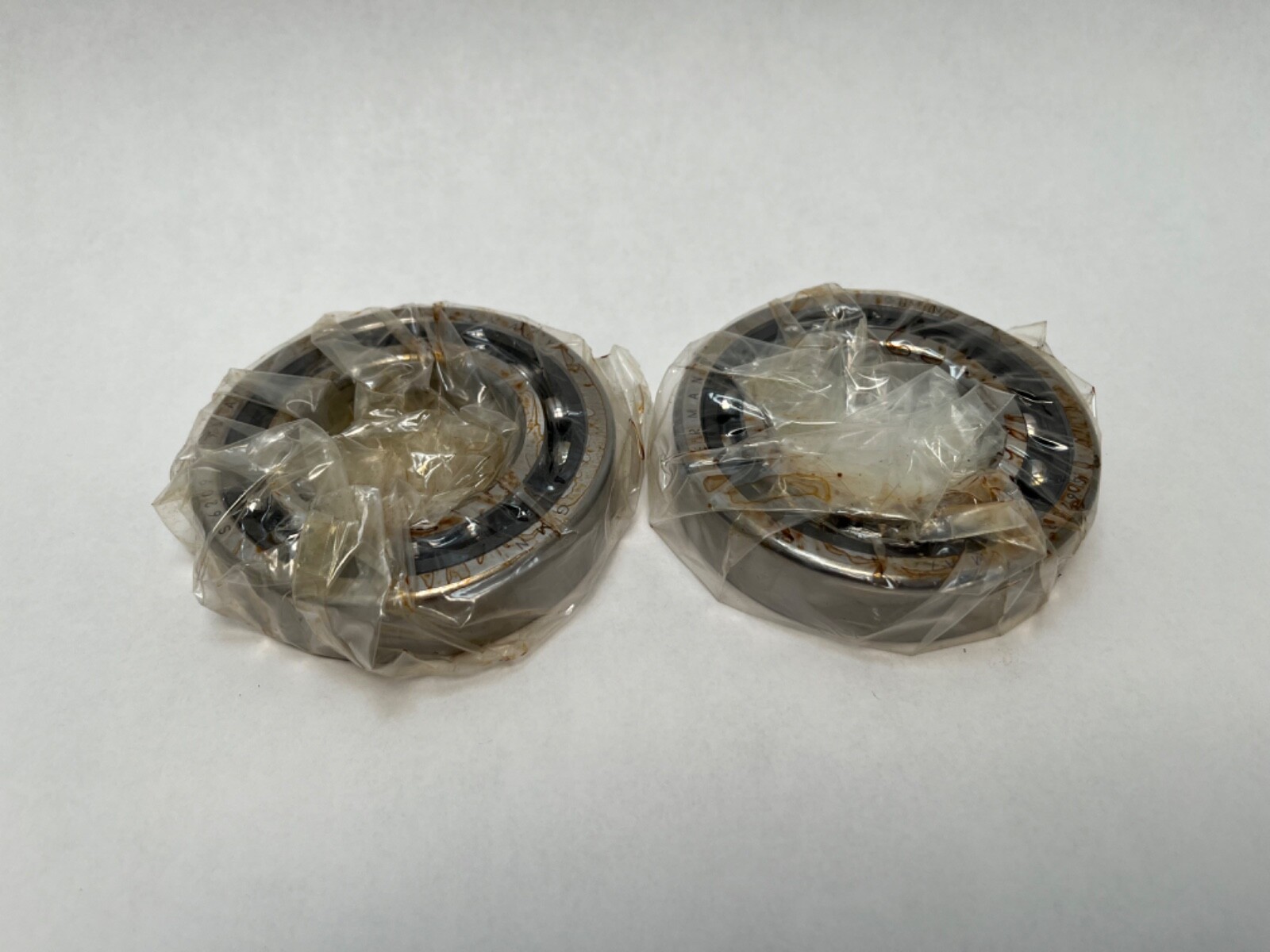

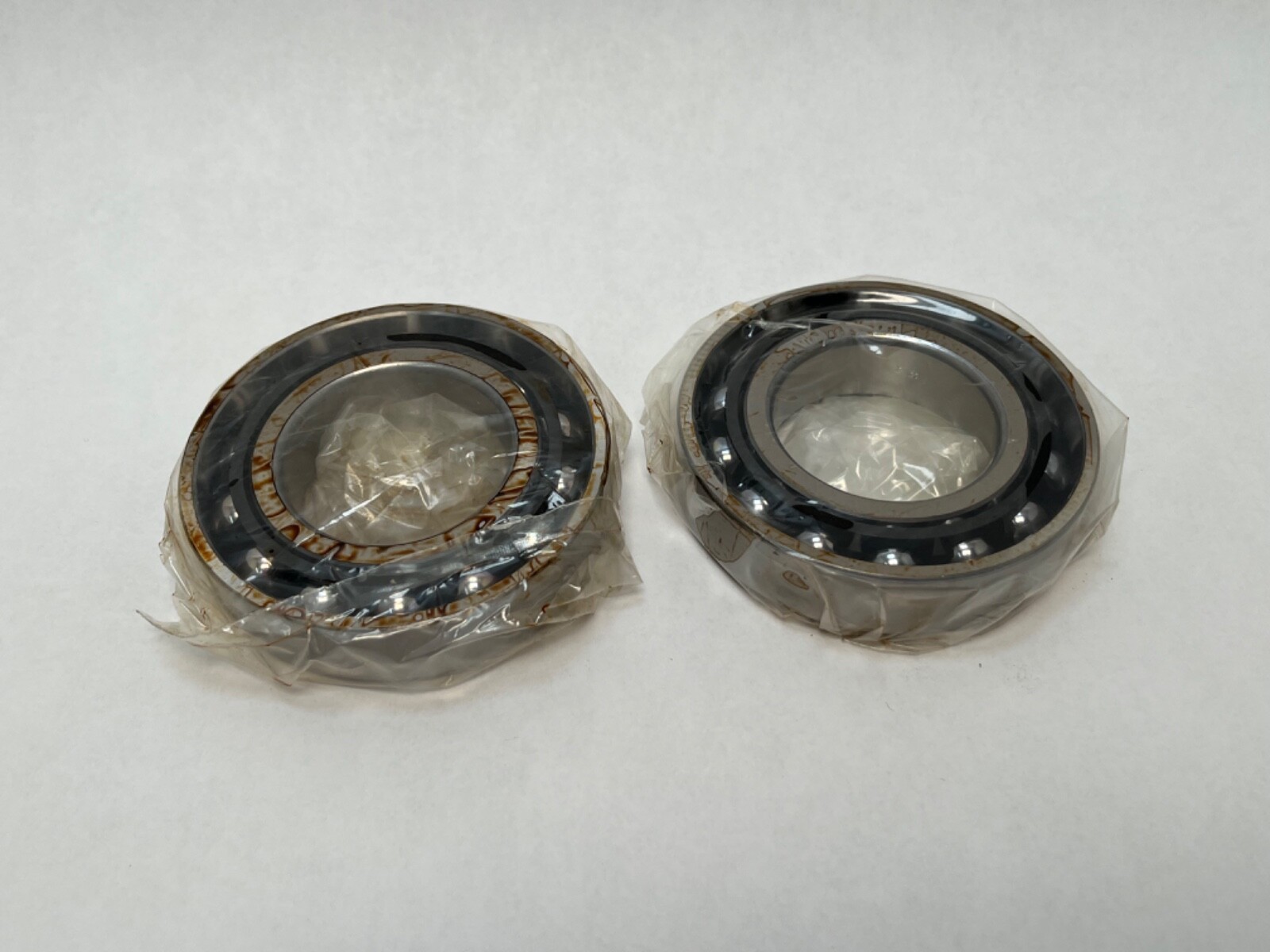

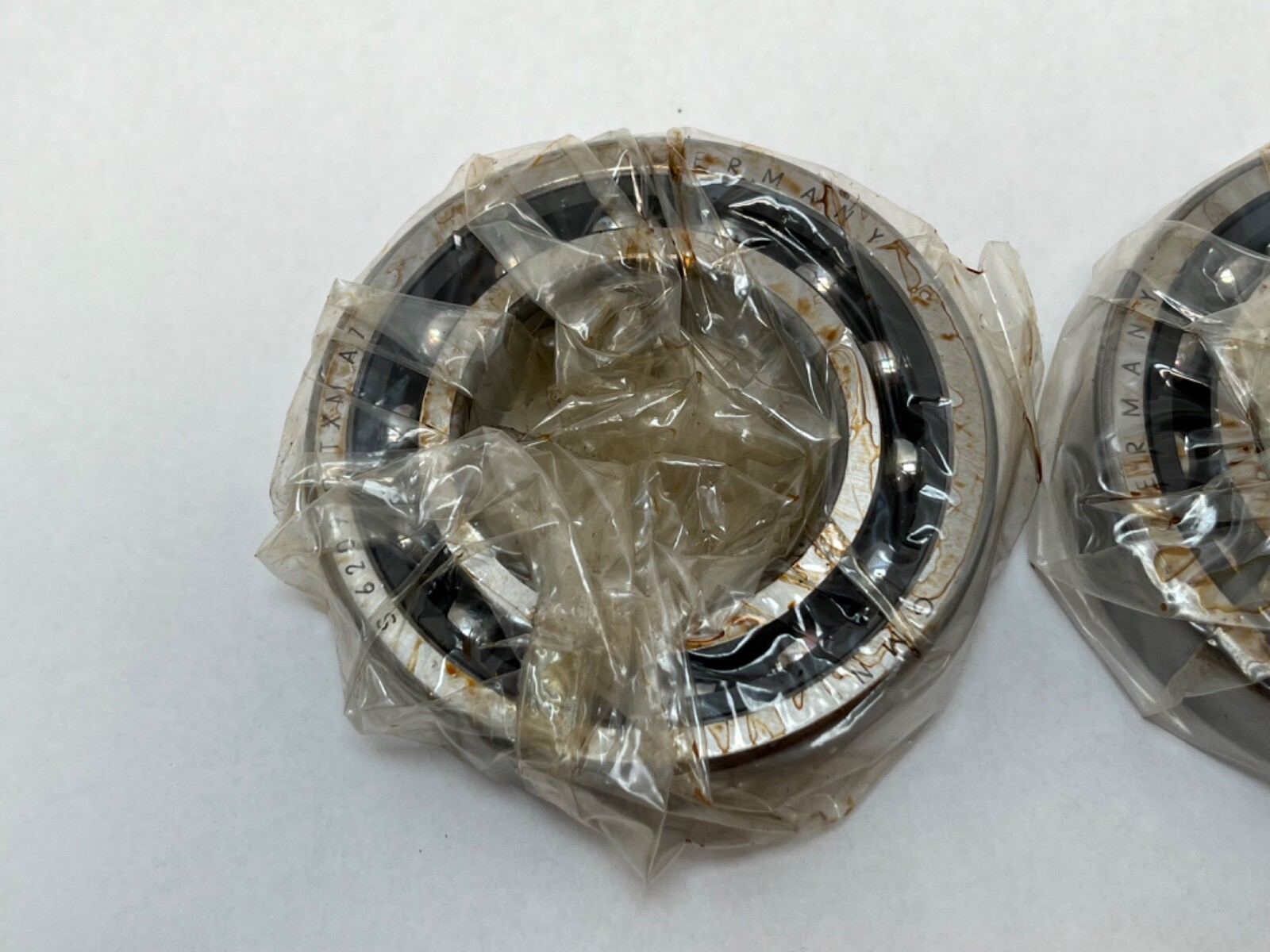

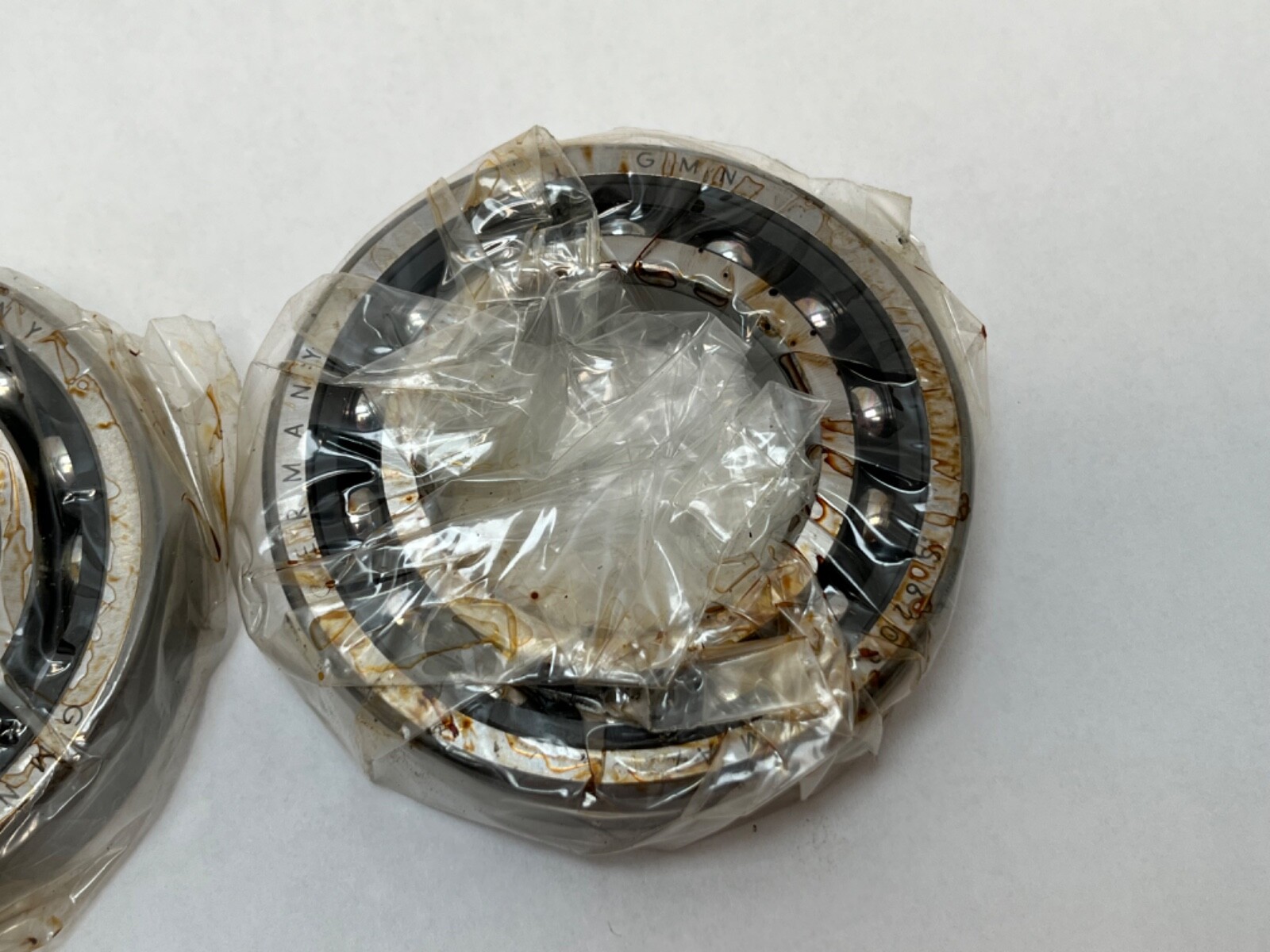

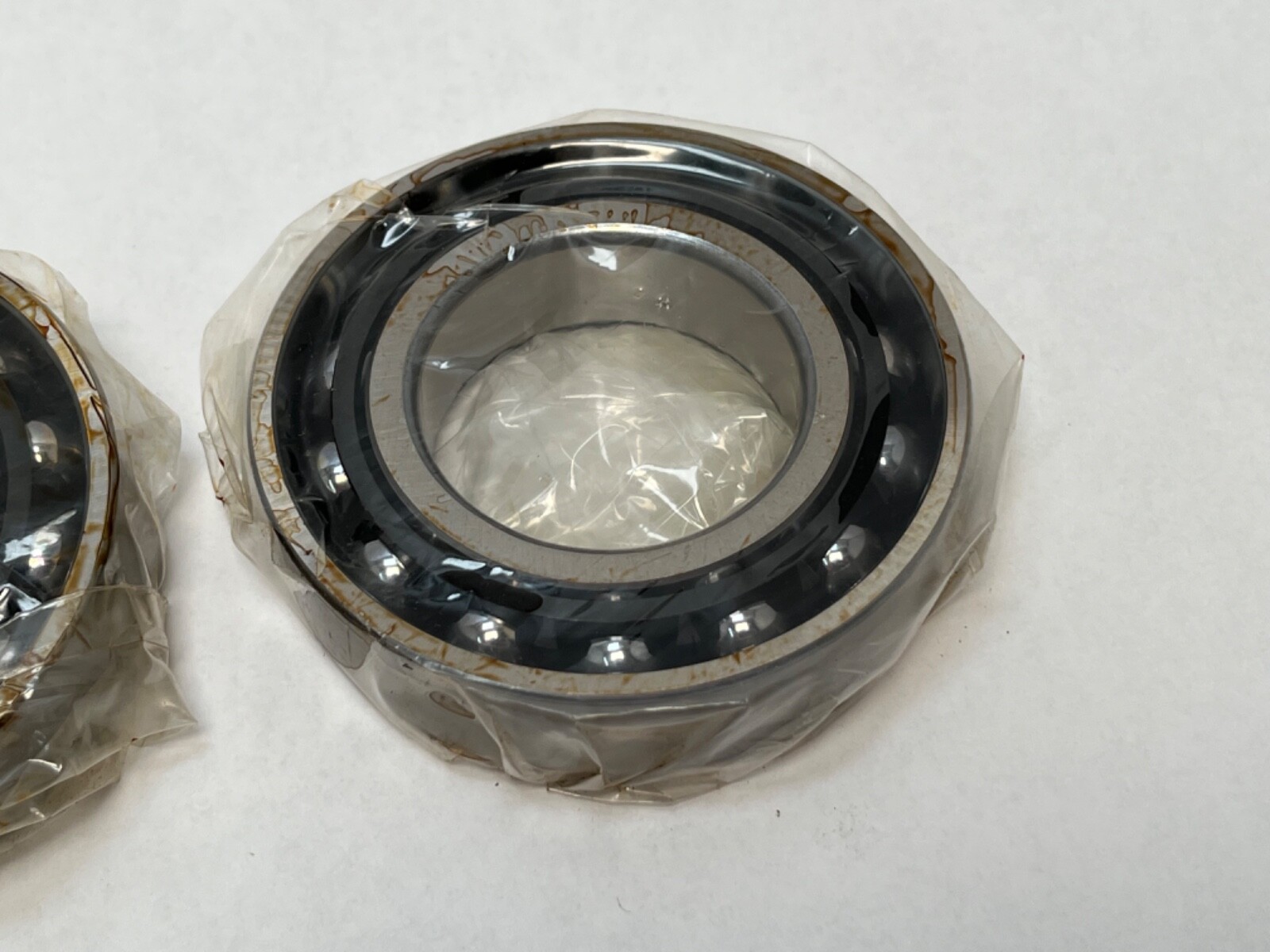

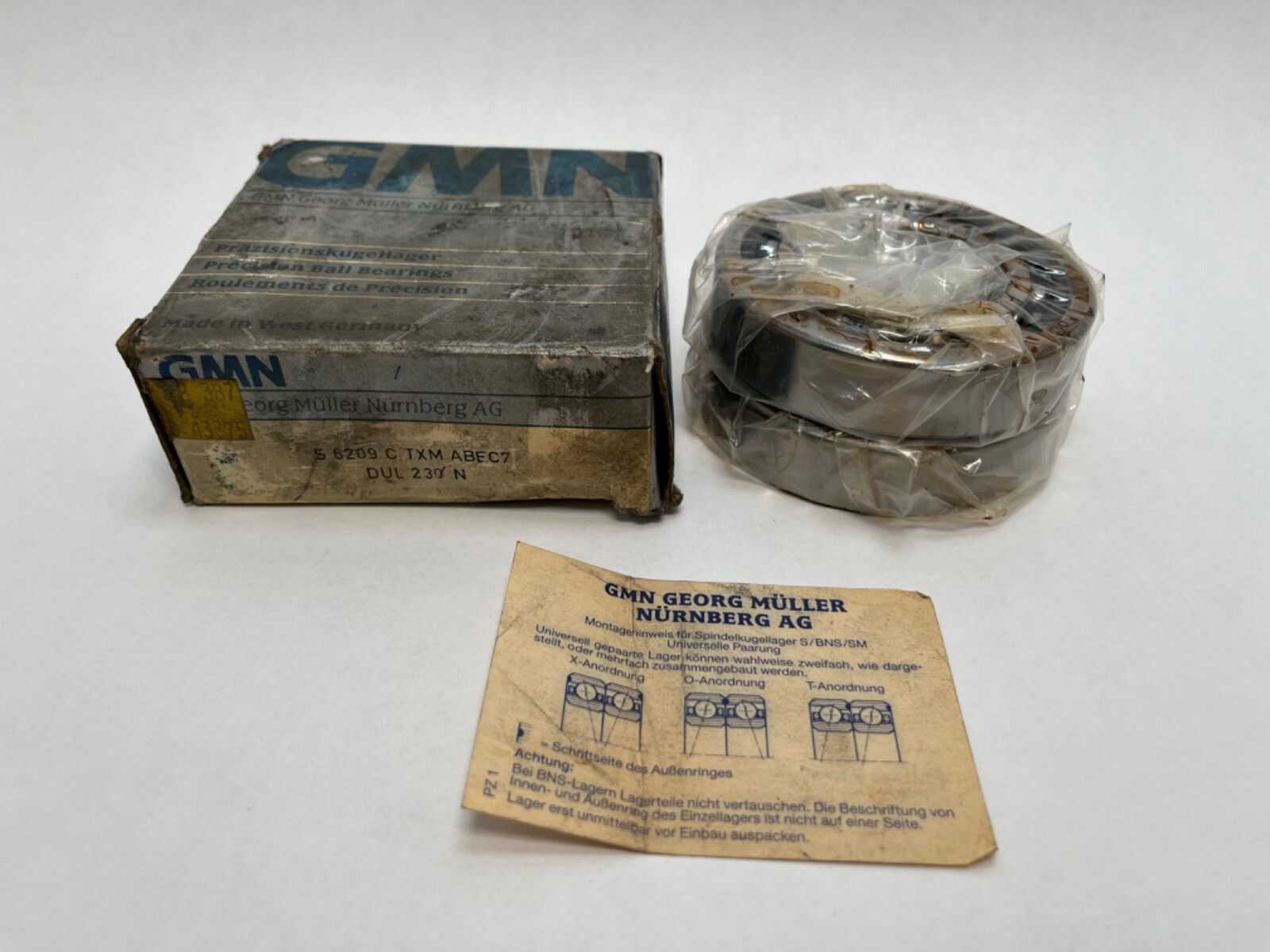

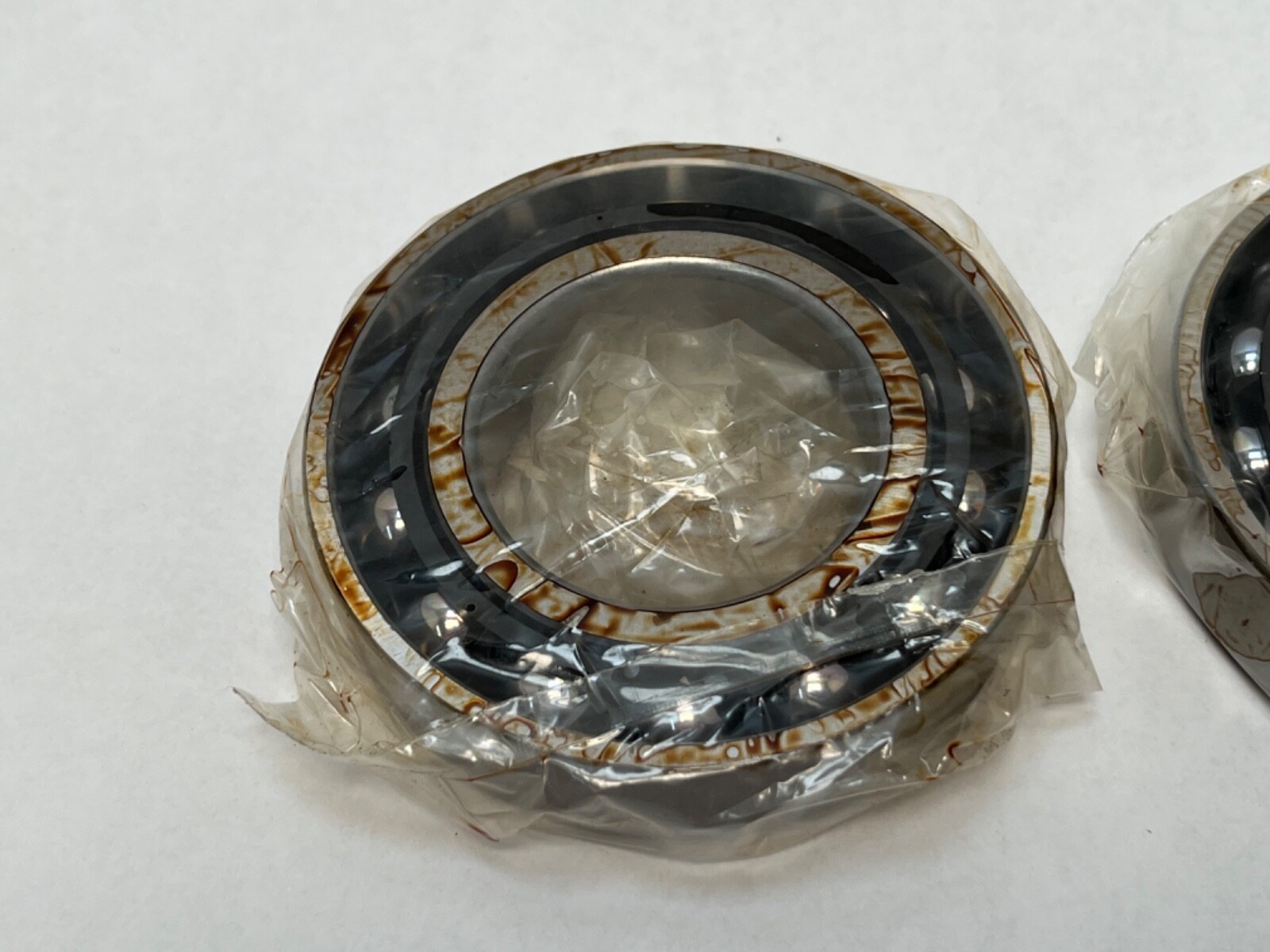

Unit Quantity: 2 Pcs. One factory duplex set. Condition: New old stock, open box; grease has dried.
Same 45 x 85 x 19 mm envelope and 15° angle: Fafnir 2MM209WI, FAG B7209-C-T, SKF 7209 CD, RHP 7209 X2TA, Barden 209H. Cage material differs by maker.
