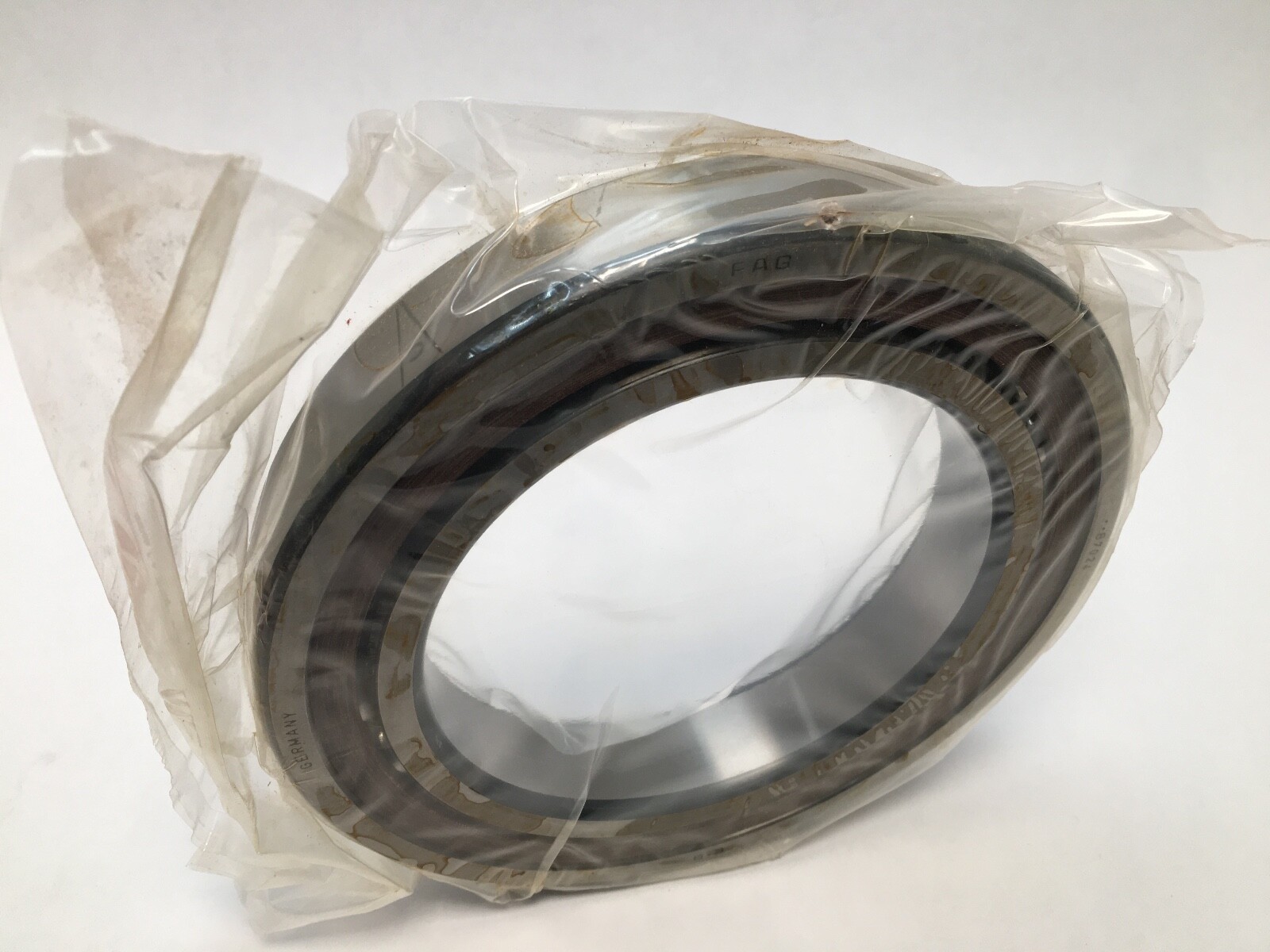

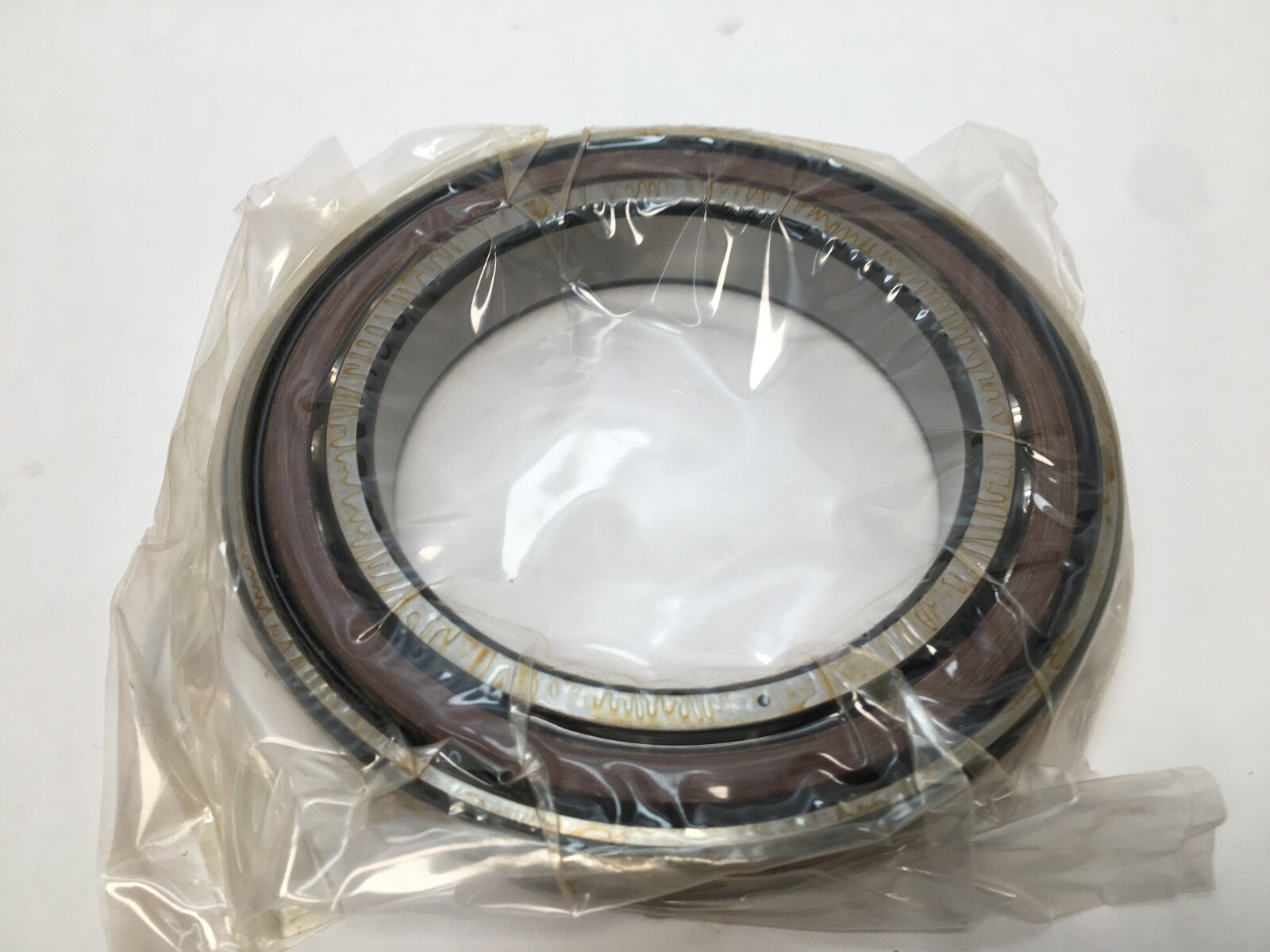

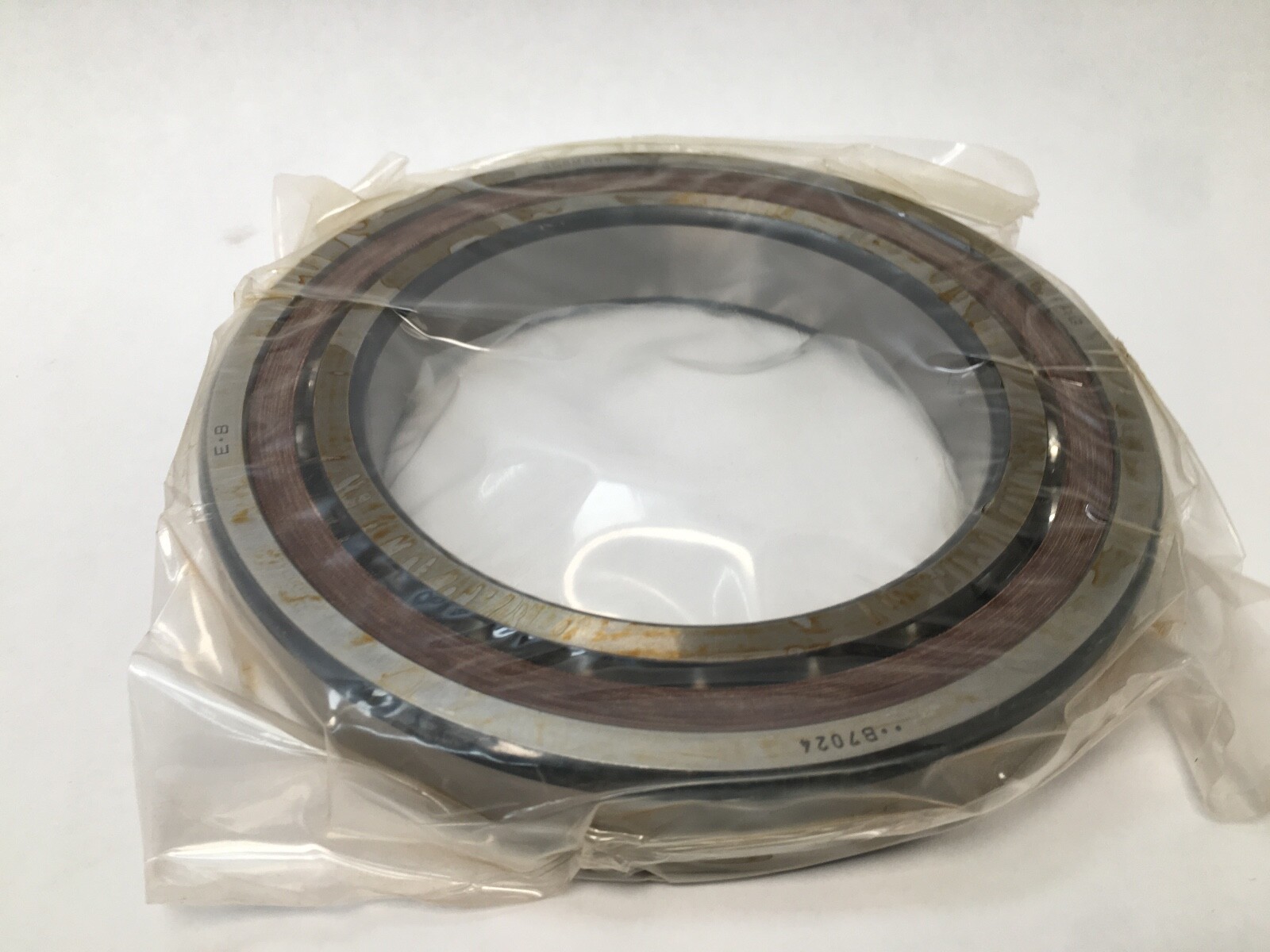

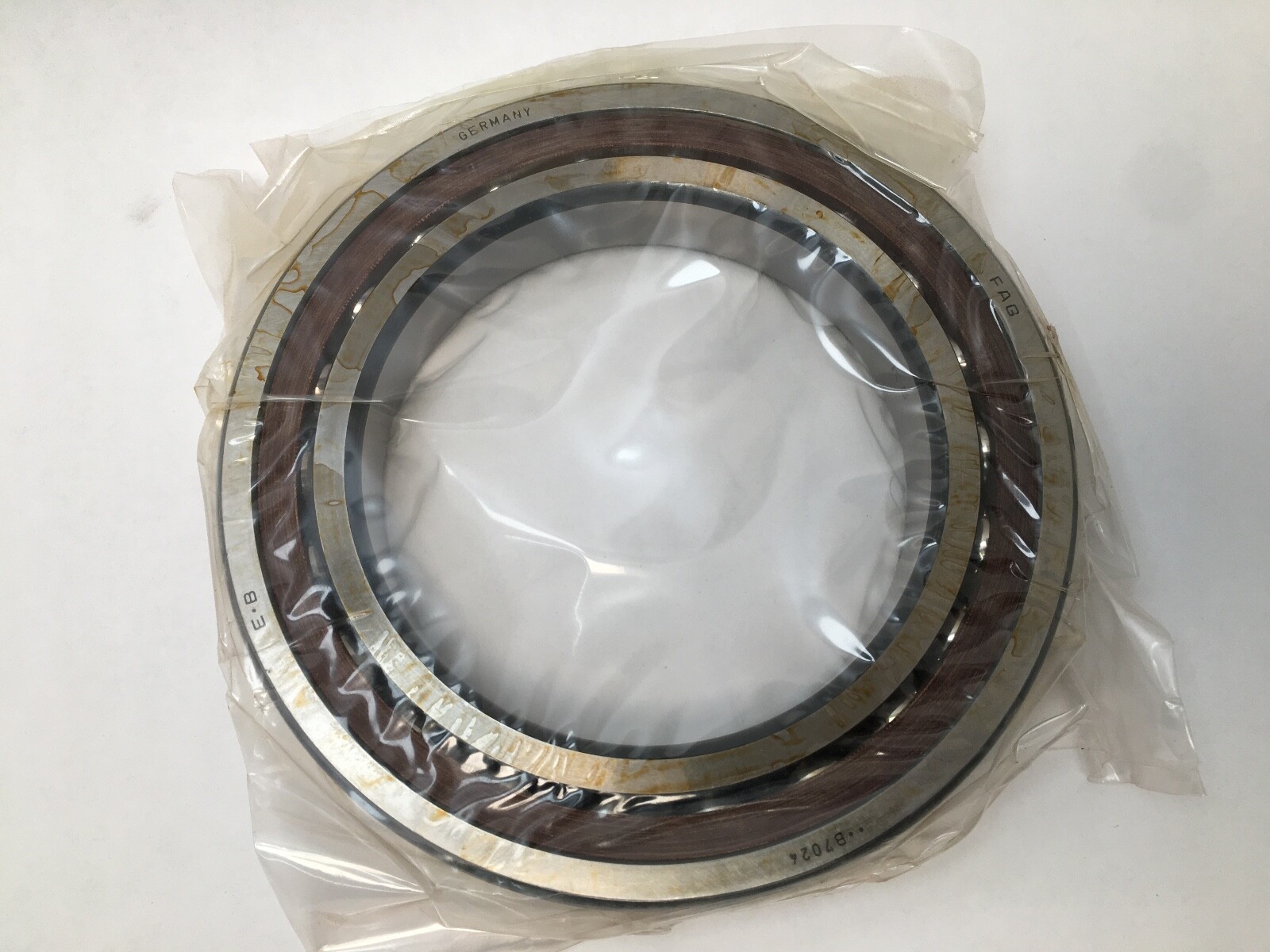

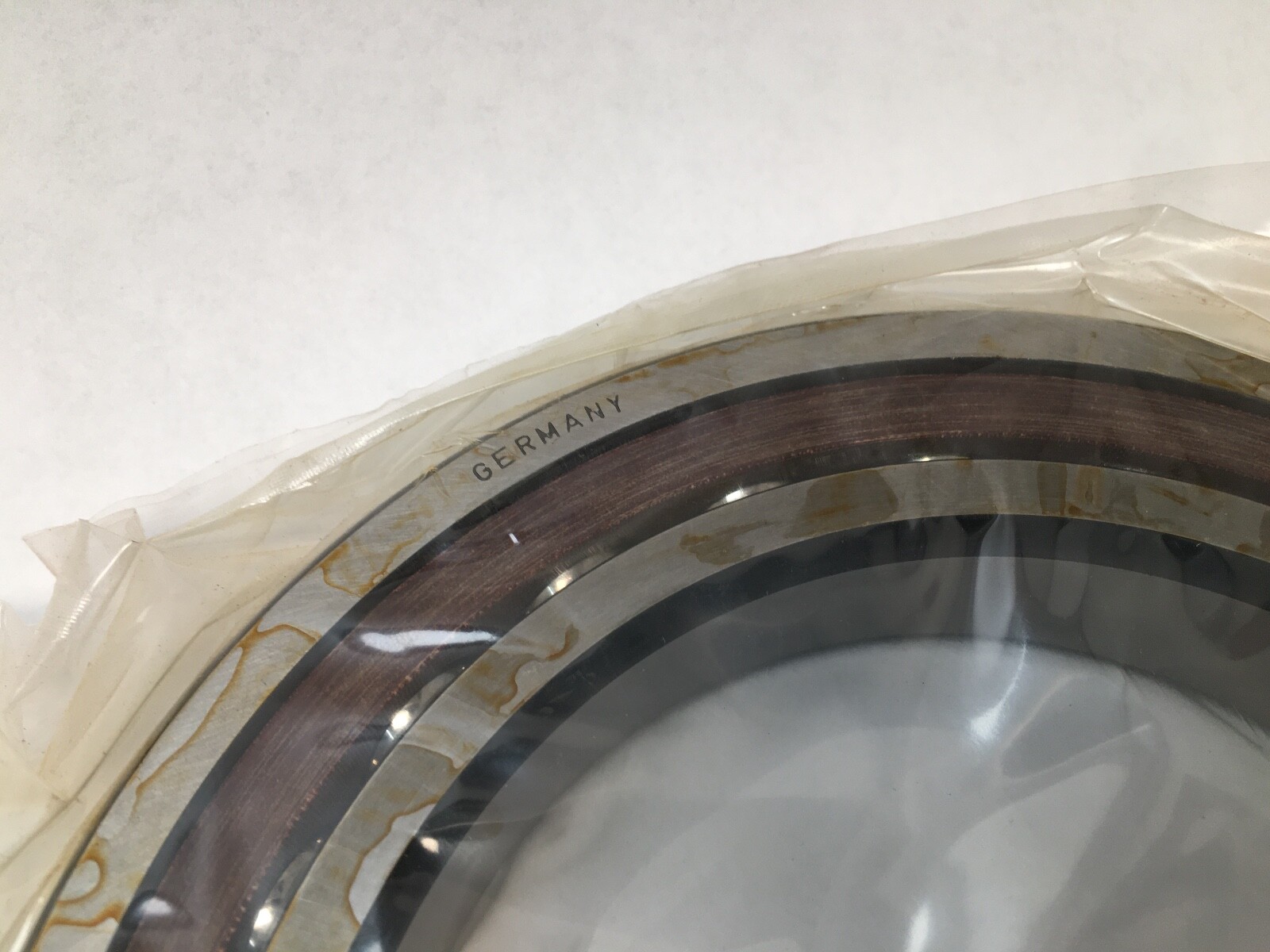

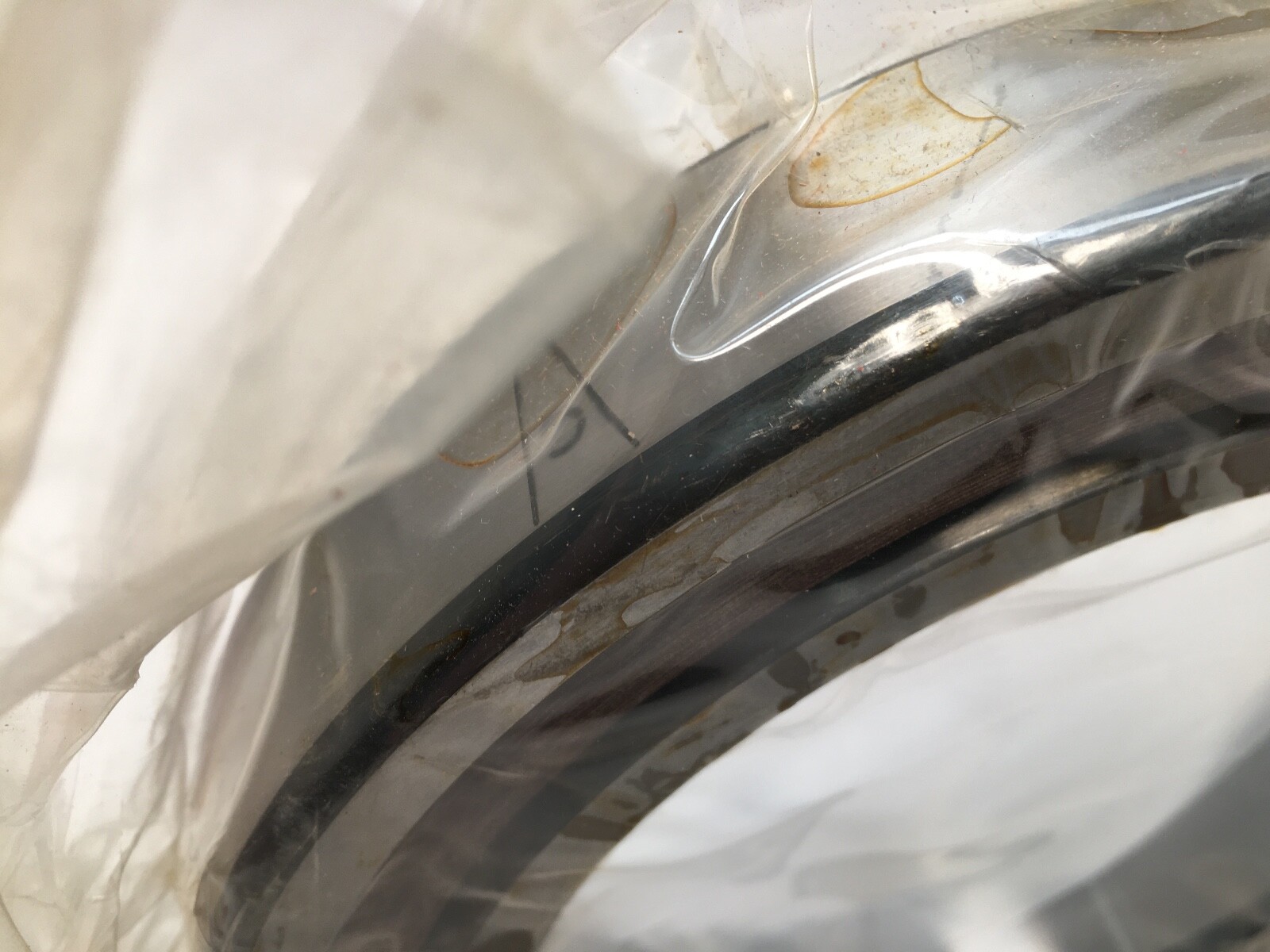

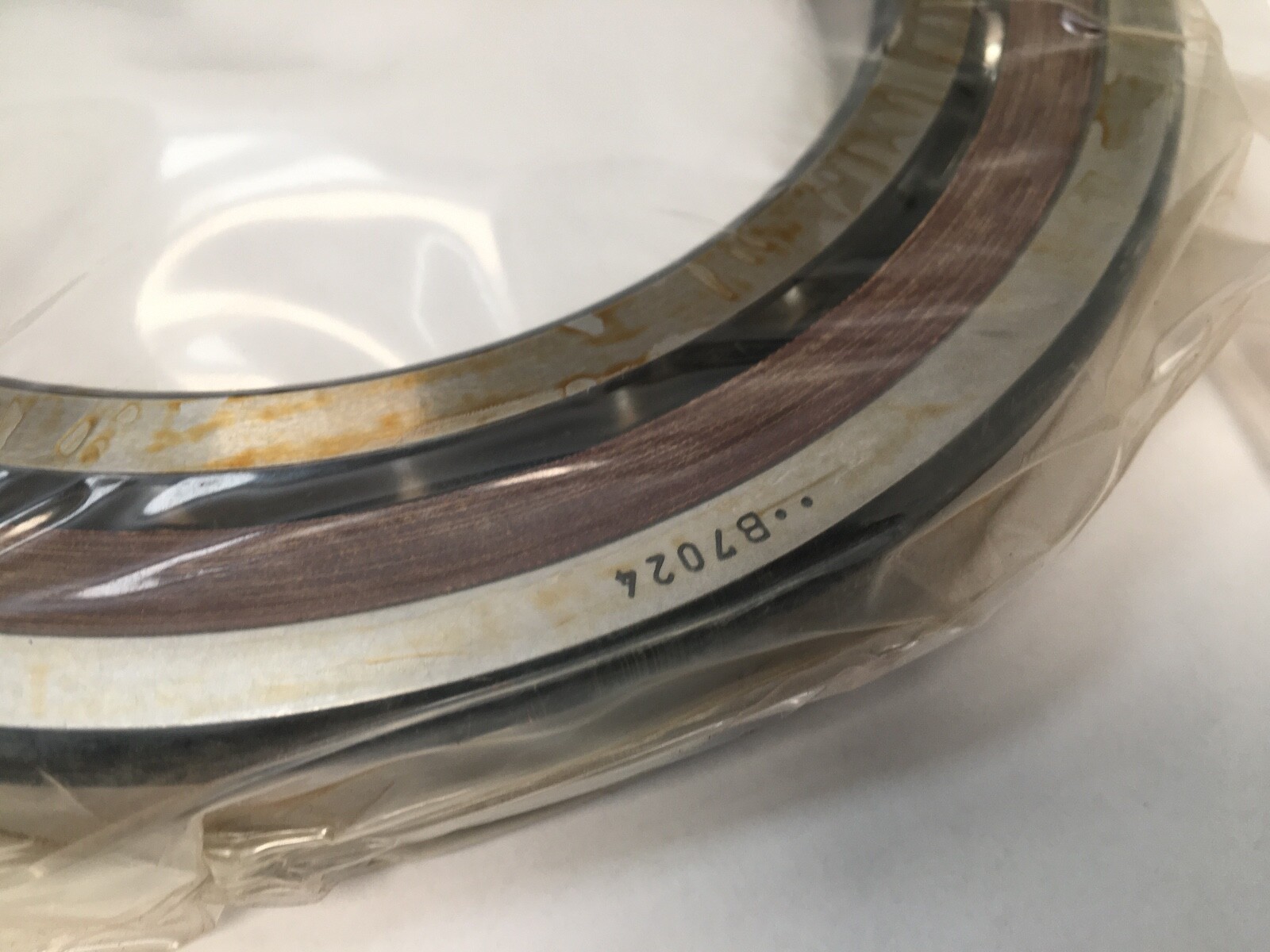

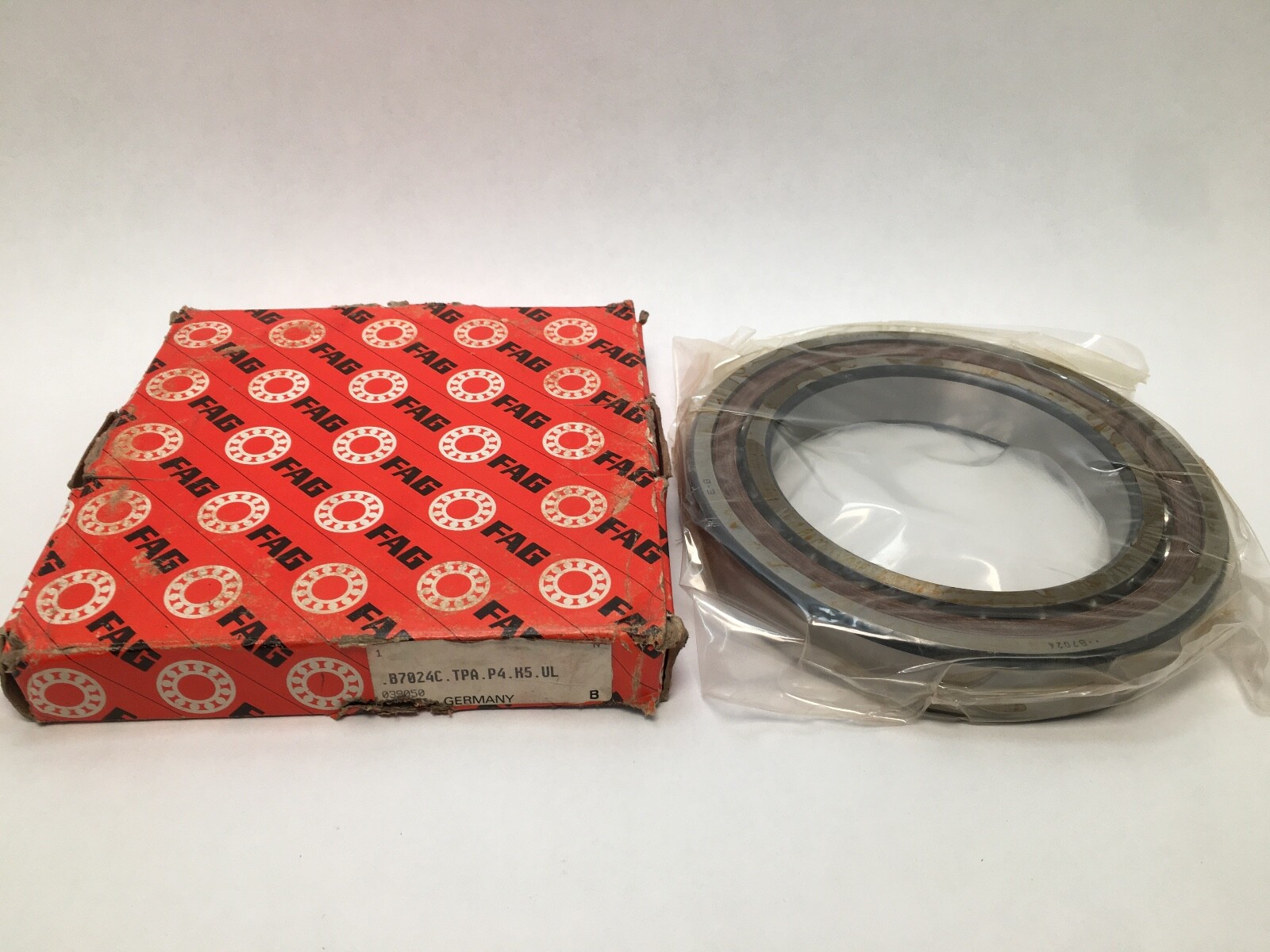

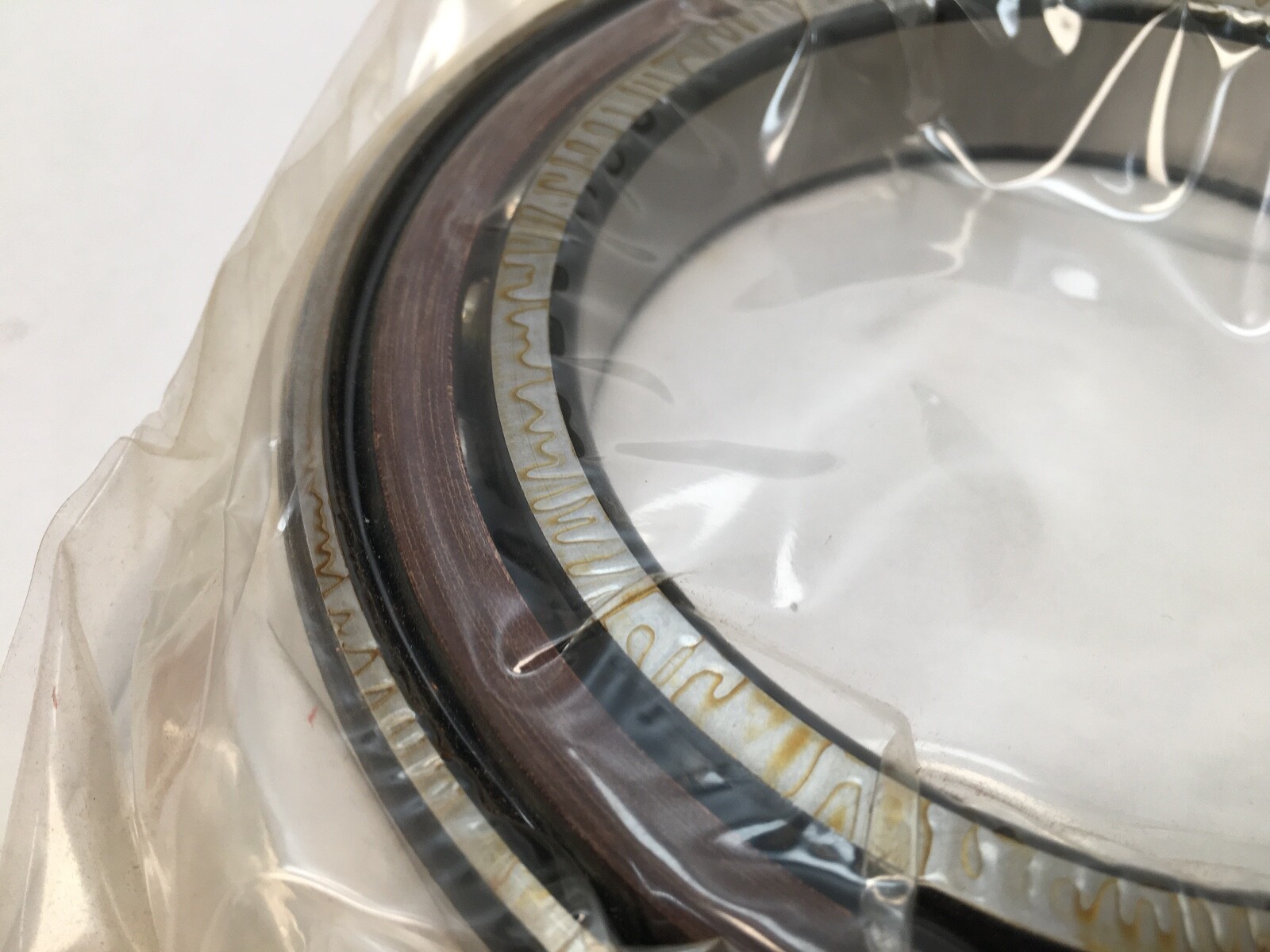

FAGB7024C.TPA.P4S.ULSuper Precision Angular Contact Spindle Bearing – 120 mm ID, 180 mm OD, 28 mm Width, Open, 15° Contact Angle, Light Preload, P4S

Condition: New

Availability:

3 in stock

Super-precision angular contact spindle bearing, 120 x 180 x 28 mm, 15° contact angle, phenolic cage, P4S, light preload, 12,000 rpm on oil.

Same day shipment

List Price

$559.99

3 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

3 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNB7024C.TPA.P4S.UL

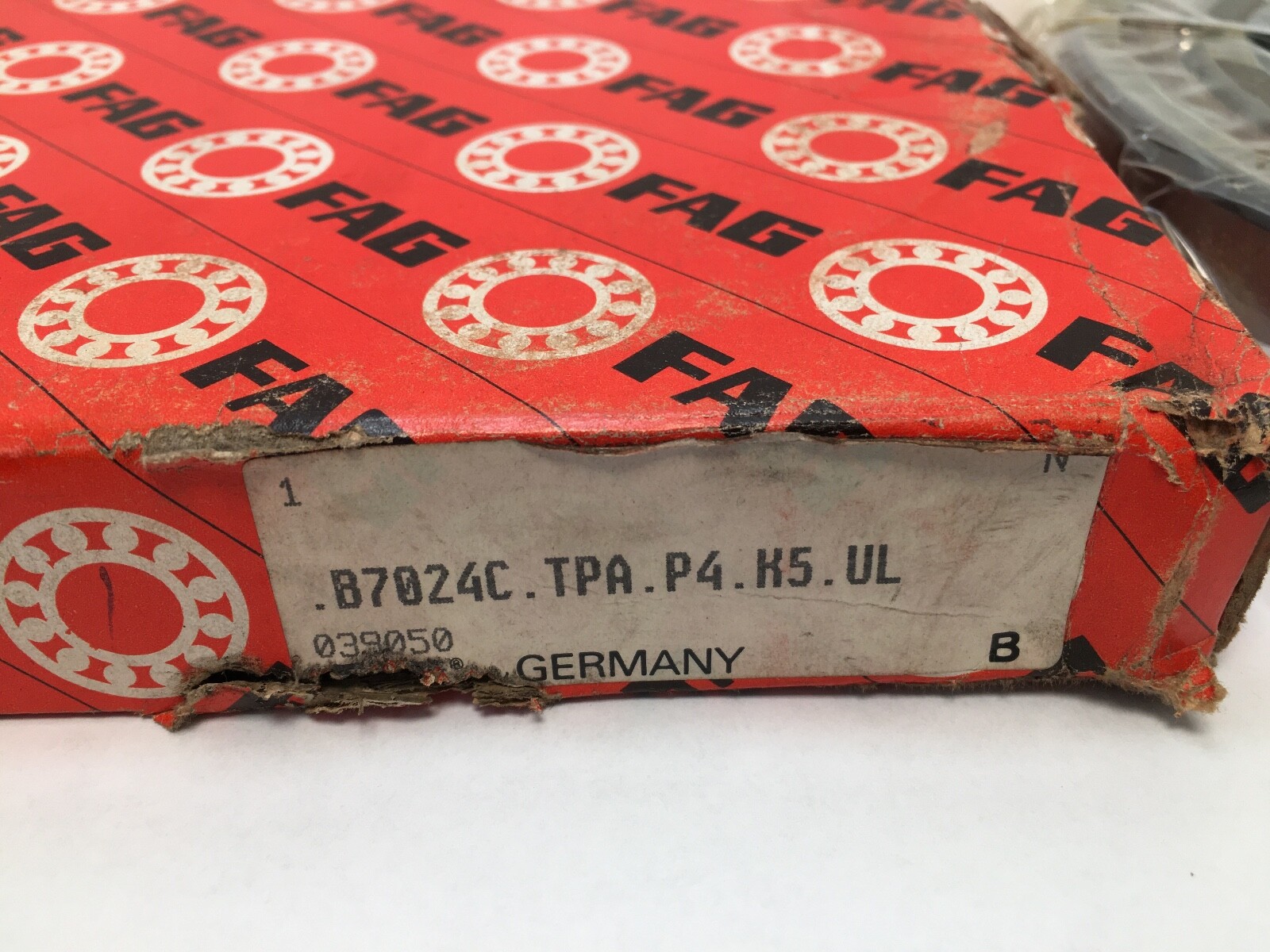

Model7024-TG-P4 / B7024C.TPA.P4.K5.UL / 7024CDP4ADGA / 2MM9124WI
Bearing TypeAngular Contact Ball Bearing, Open
ID120 mm
OD180 mm
Width28 mm

Technical Specifications

MaterialChrome steel
SeriesB70
PreloadLight
Base NumberB7024
Industry Termssuper precision spindle bearing, machine tool spindle bearing, 15 degree angular contact, universally matchable, P4S ABEC 7
Common MisspellingsB7024CTPAP4UL, B 7024 C TPA P4 UL, B7024CTPA, B7024-C-TPA-P4S-UL
Bore Shaft Size120 mm
Mpn VariantsB7024C.TPA.P4S.UL, B7024C.TPA.P4.K5.UL, B7024-C-T-P4S-UL, B7024C.T.P4S.UL, B7024CTPAP4K5UL, B-7024-C-TPA-P4-K5-UL, 7024-TG-P4, B7024C
Compatible With ReplacesB7024-C-T-P4S-UL replaces B7024C.T.P4S.UL and B7024C.TPA.P4.UL
Precision ClassP4S
Dynamic Load Rating115,000 N
Static Load Rating82,000 N
Rolling ElementsBalls
Item Weight2.07 kg (4.56 lb)
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Limiting Speed7,500 rpm grease; 12,000 rpm oil
Harmonization Code8482.10.50.28
Contact Angle15°
Part NumberB7024C.TPA.P4S.UL

Cross-References

Cross Reference 1Fafnir 2MM9124WI
Cross Reference 2FAG B7024-C-T-P4S-UL
Cross Reference 3FAG B7024-E-T-P4S-UL - 25 deg vs 15 deg
Seller Part Number: B-DC2#5OTFYW

Product Description

What this part is:

FAG B7024C.TPA.P4S.UL super-precision single-row angular contact spindle bearing, 120 x 180 x 28 mm, one bearing per unit, universally ground (UL). 15° contact angle, phenolic cage, P4S tolerance class, light preload, open.

Decoding the designation:

B70 — spindle bearing series.

C — 15° contact angle.

TPA — machined fabric-base laminate phenolic cage.

P4S — tolerance class P4S.

U — universally ground single bearing.

L — light preload, 653 N.

2MM9124WI — Fafnir carton cross-reference, 15° on the same envelope.

Specifications:

Bore Diameter: 120 mm. Outside Diameter: 180 mm. Width: 28 mm. Contact Angle: 15°. Dynamic Load Rating: 115,000 N. Static Load Rating: 82,000 N. Fatigue Load Limit: 7,100 N. Limiting Speed: 7,500 rpm grease; 12,000 rpm oil. Precision Class: P4S. Preload: Light, 653 N. Axial Rigidity: 123 N/µm. Cage Material: Phenolic. Item Weight: 2.07 kg (4.56 lb). Operating Temperature: -30 °C to 100 °C. Rolling Elements: Balls. Closure Type: Open. Series: B70. Unit Quantity: 1 Pc. Country of Origin: Germany.

Dimensions and mounting:

Shaft shoulder diameter: 131 mm to h12. Housing shoulder diameter: 169 mm to H12. Maximum recess radius: 2 mm. Minimum chamfer dimension: 2 mm. Distance between pressure cone apexes: 34.1 mm. Grease injection pitch diameter: 138.6 mm to 145.1 mm.

Compatibility and replacement:

Cross-Reference 1: Fafnir 2MM9124WI. Cross-Reference 2: FAG B7024-C-T-P4S-UL, Schaeffler’s current designation, which replaces B7024C.T.P4S.UL and B7024C.TPA.P4.UL. Cross-Reference 3: FAG B7024-E-T-P4S-UL, 25° contact angle instead of 15°. MPN forms: B7024C.TPA.P4S.UL, B7024-C-T-P4S-UL, B7024C.T.P4S.UL, B7024C.

Frequently asked questions:

What are the dimensions of the FAG B7024C.TPA.P4S.UL?

Bore 120 mm, outside diameter 180 mm, width 28 mm.

What are the load ratings and speed of the FAG B7024C.TPA.P4S.UL?

Dynamic load rating 115 kN, static load rating 82 kN, limiting speed 7,500 rpm on grease and 12,000 rpm on oil, per Schaeffler.

What contact angle and cage does the FAG B7024C.TPA.P4S.UL have?

15° contact angle (C) and a phenolic cage (TPA).
