| MFR / Brand | FAG |
|---|---|
| MPN | B7009C.TPA.P4A.UL |
| Model | B 7009 C TPA P4A UL / 2MM9109WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Series | 7000 |
|---|---|
| Condition | New – Open box |
| Lubricant | Oil |
| Preload | Light |
| Material | Bearing Steel |
| Condition Note | Made In Germany, New Old Stock |
| Min Temp | -30 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 24.5 kN |
| Static Load Rating | 16 kN |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 0.53 lbs |
| Cage Material | Phenolic Resin |
| Limiting Speed | 20000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.1 |
| Contact Angle | 15° |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 7009 CD/P4 |
|---|---|
| Cross Reference 2 | NSK 7009A5TYNSULP4 |
| Cross Reference 3 | RHP 7009CTDULP4 |

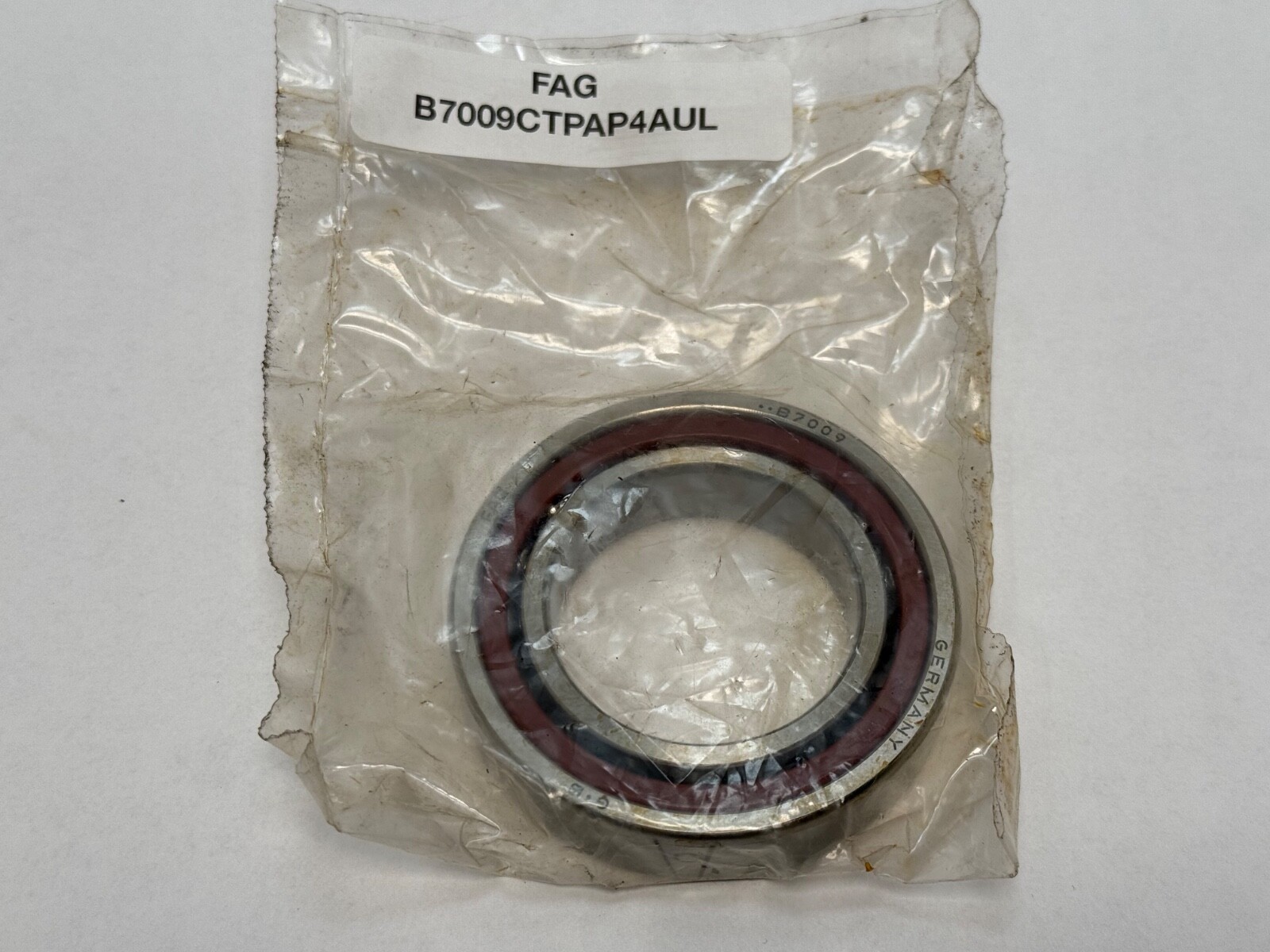

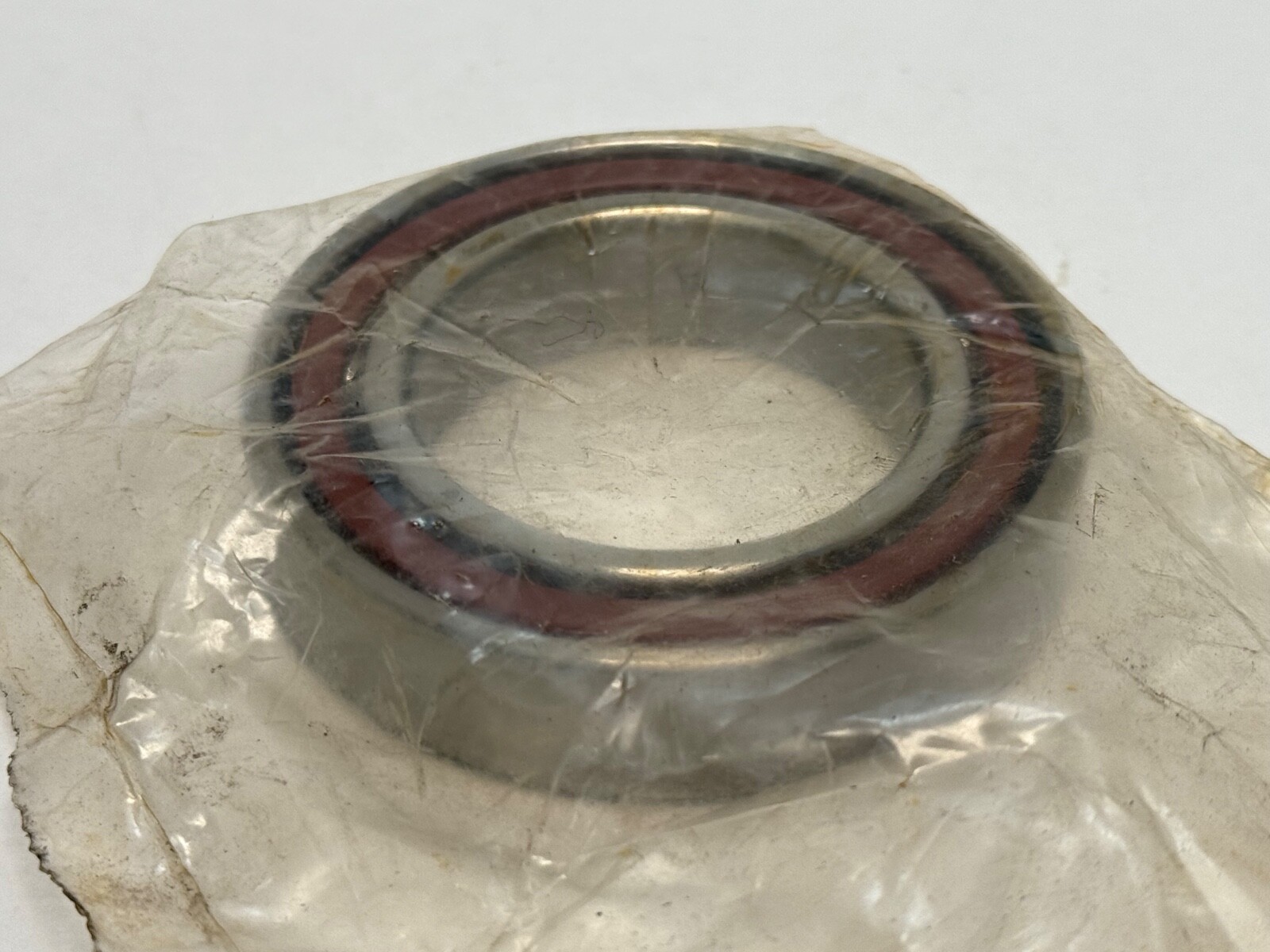

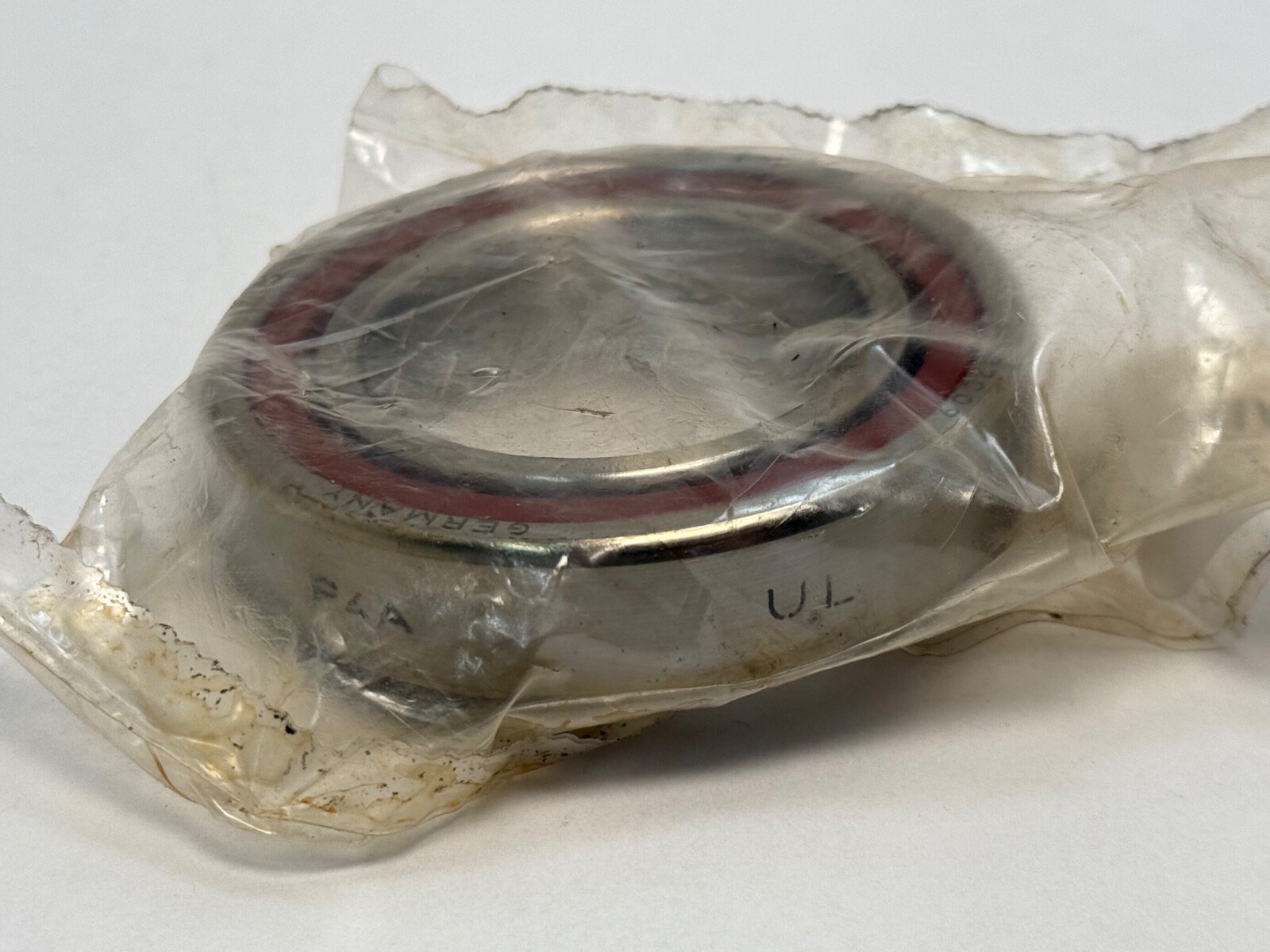

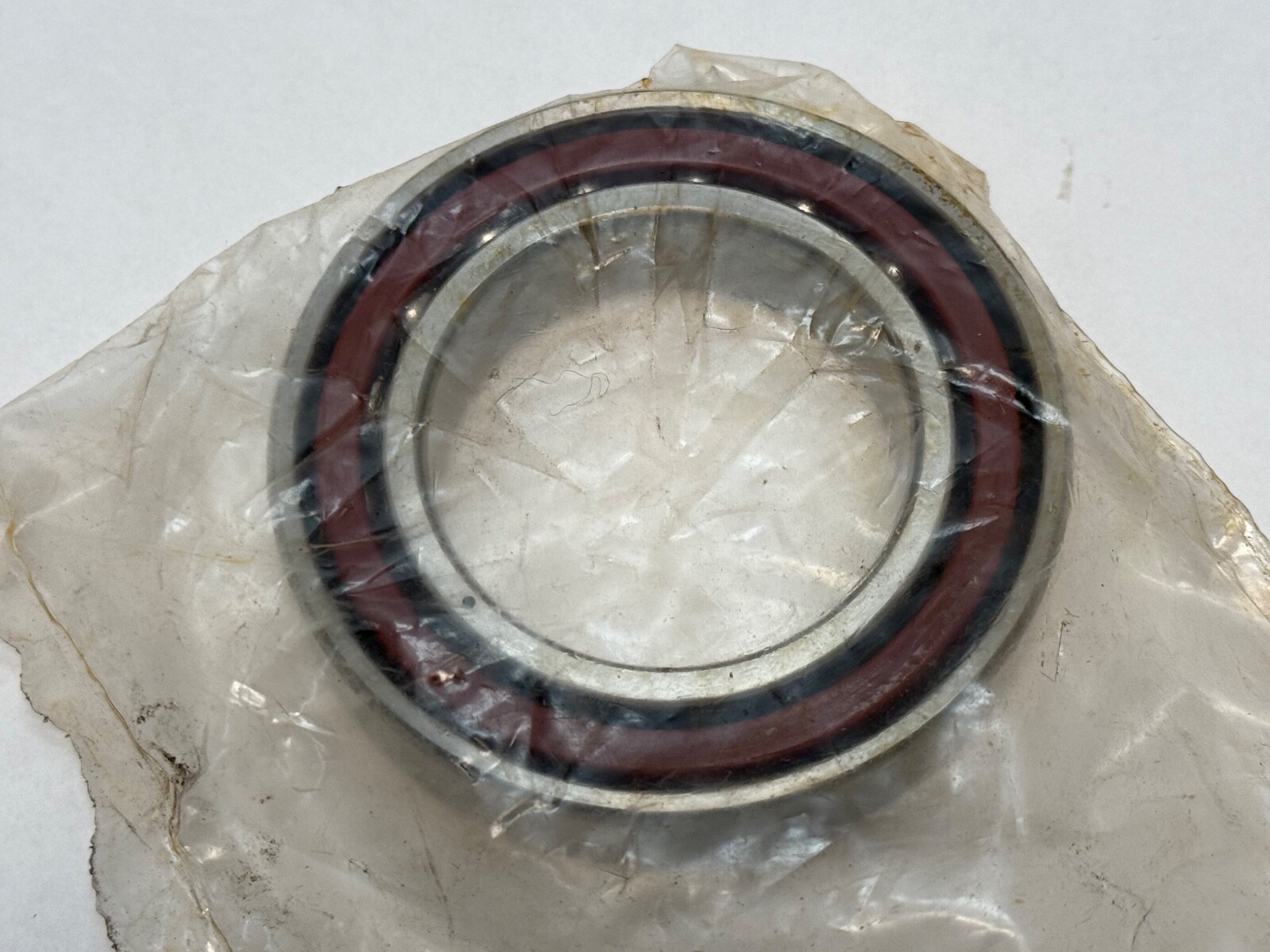

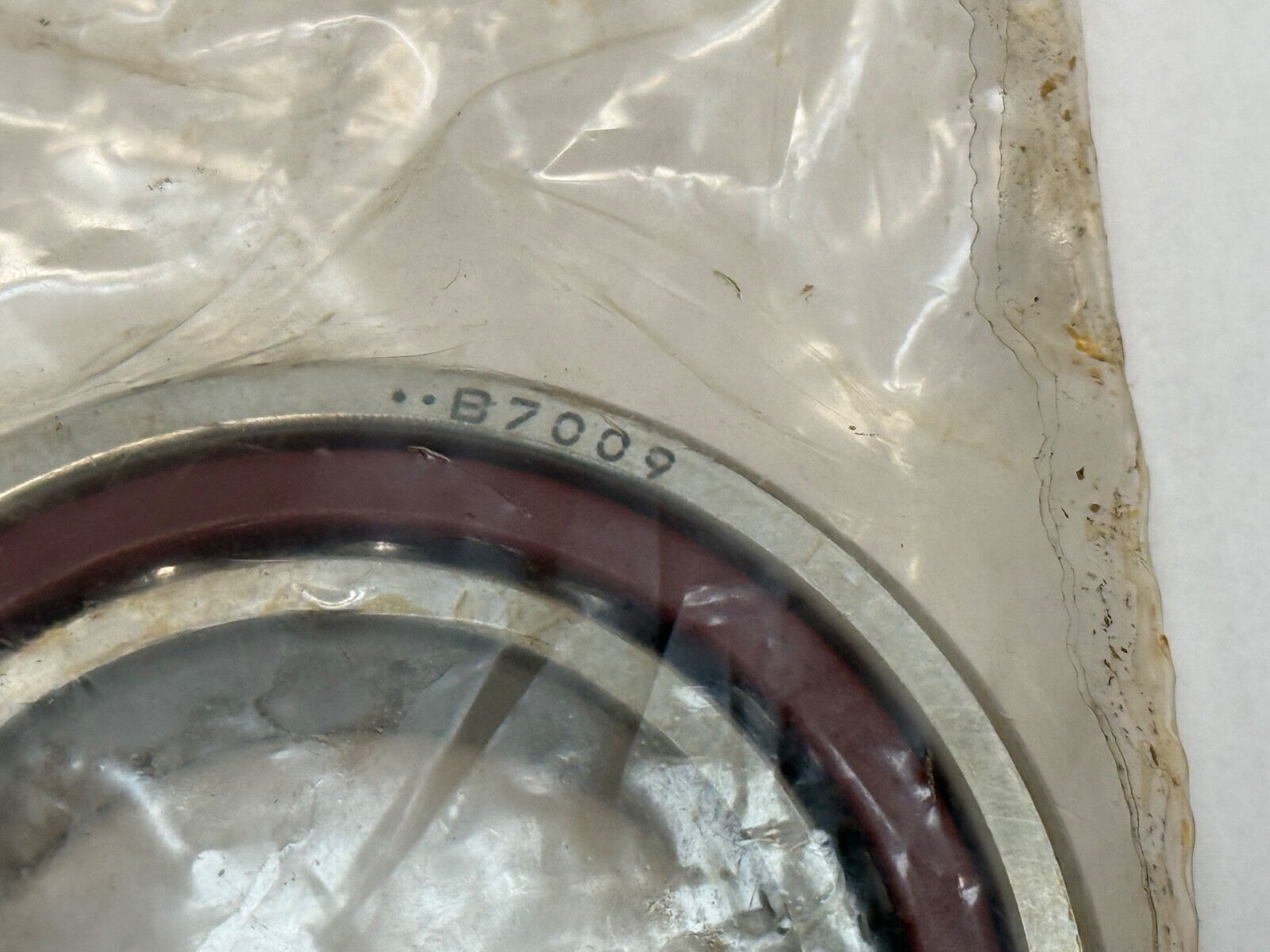

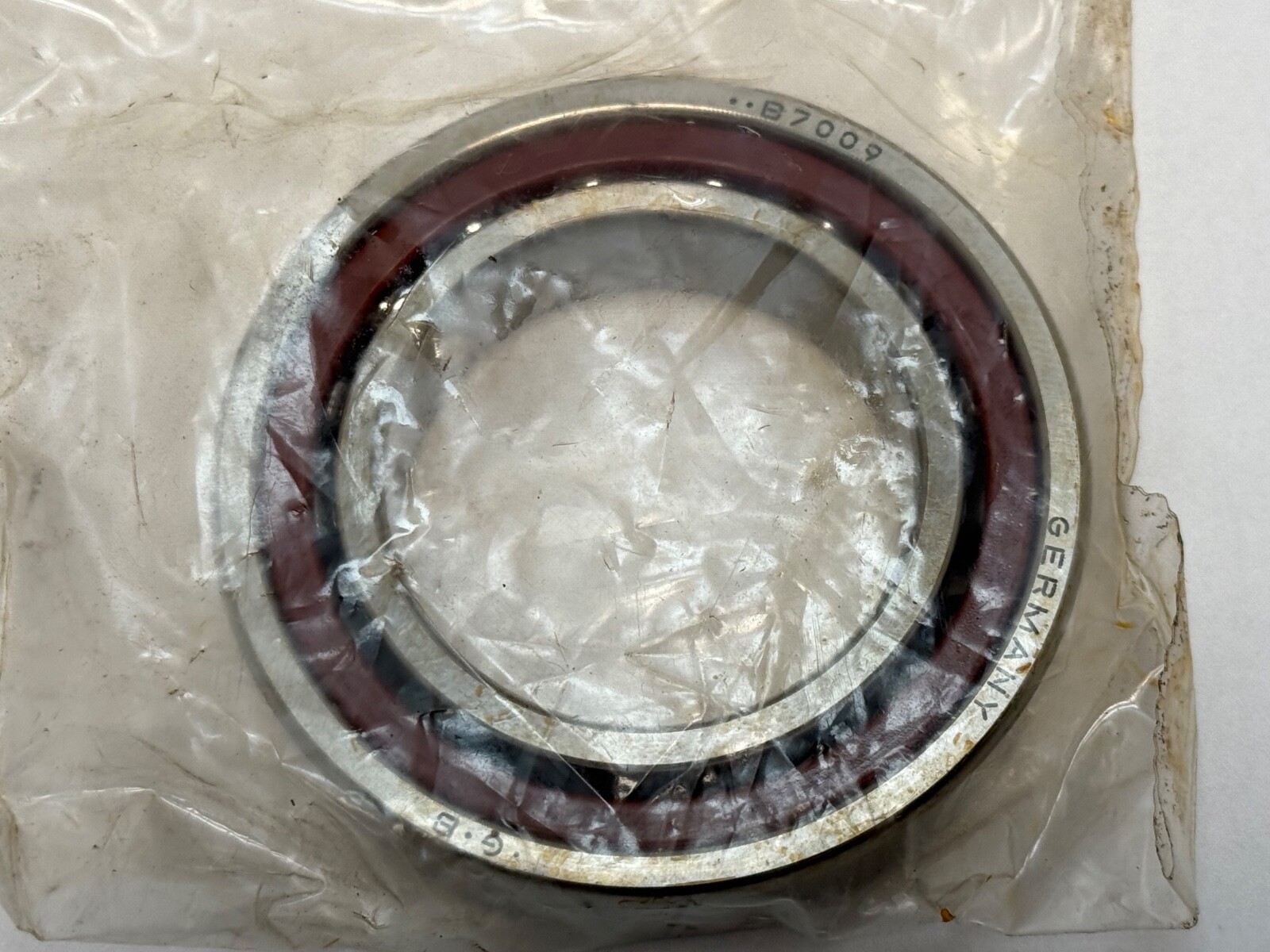

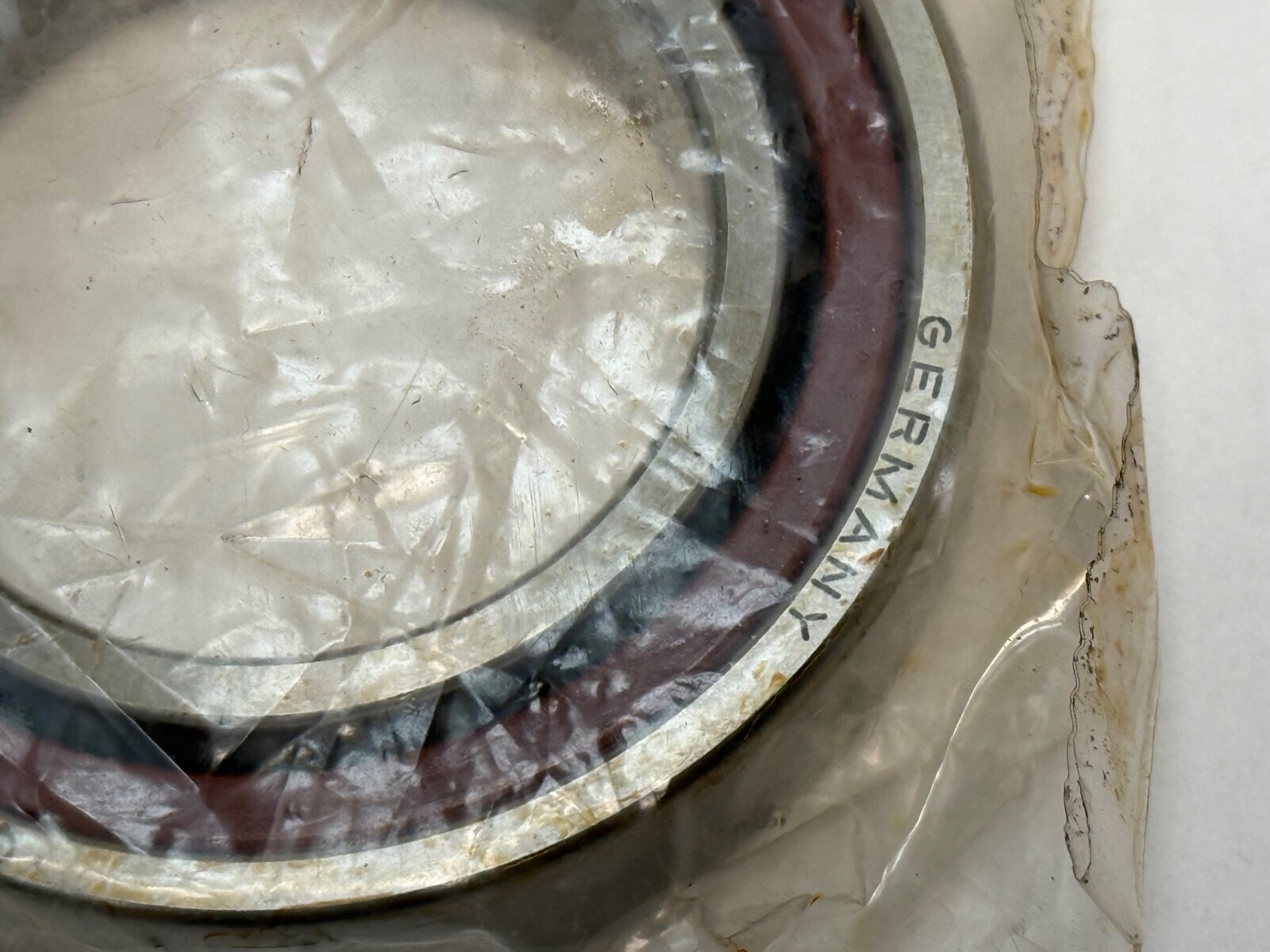

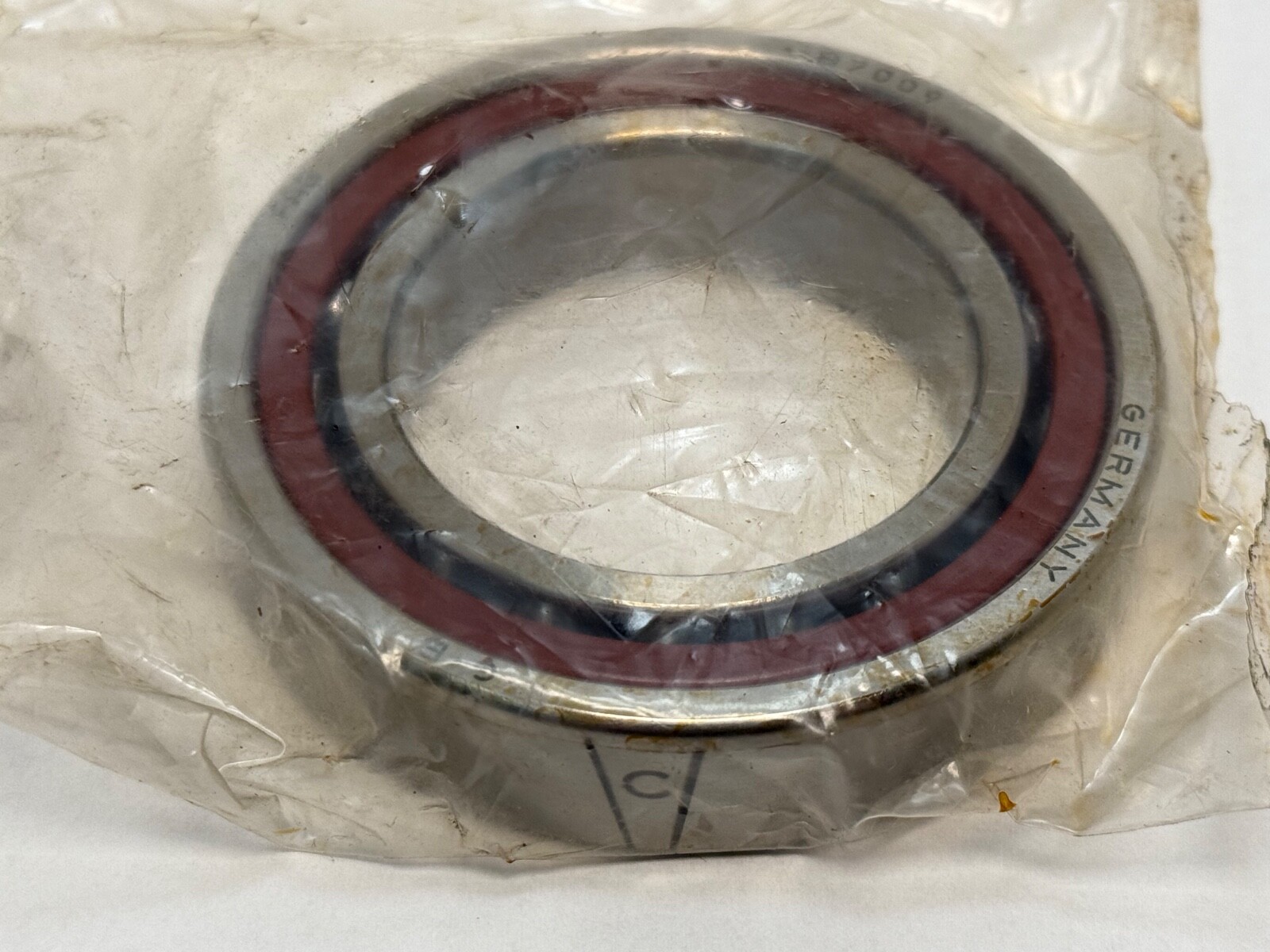

Angular Contact Ball Bearing – Straight Bore, 45 mm ID, 75 mm OD, 16 mm Width, Open, 15° Contact Angle.
