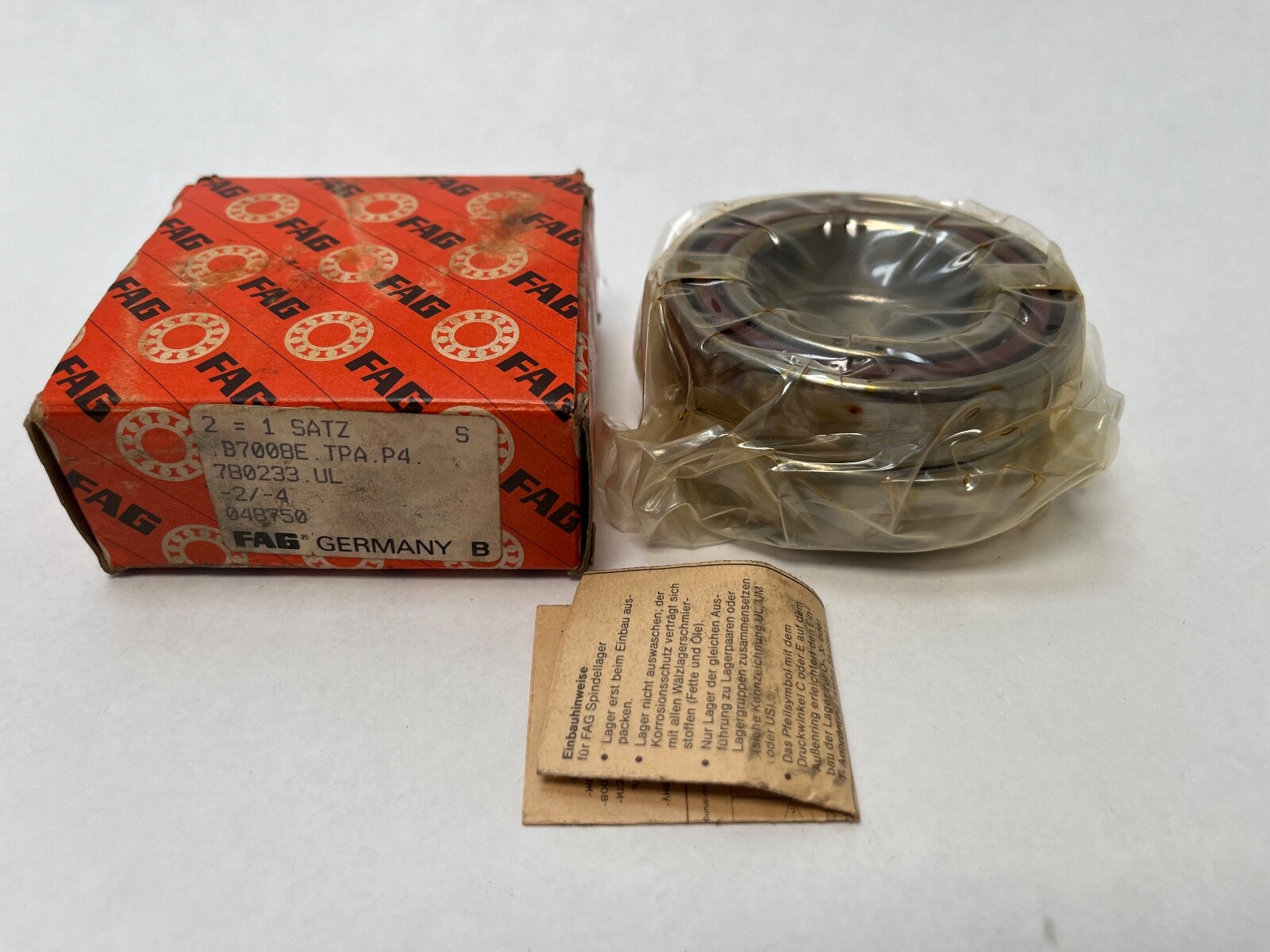

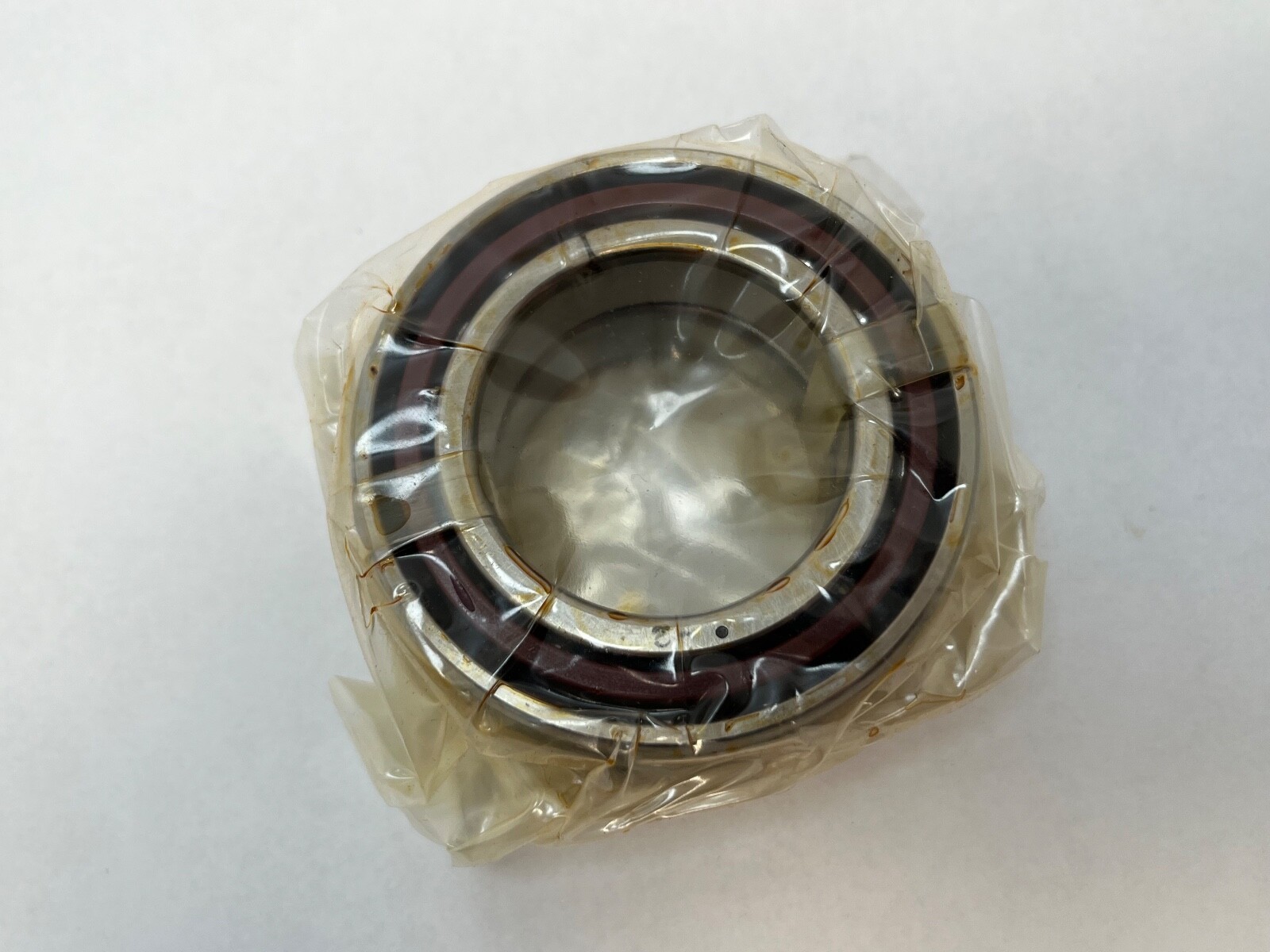

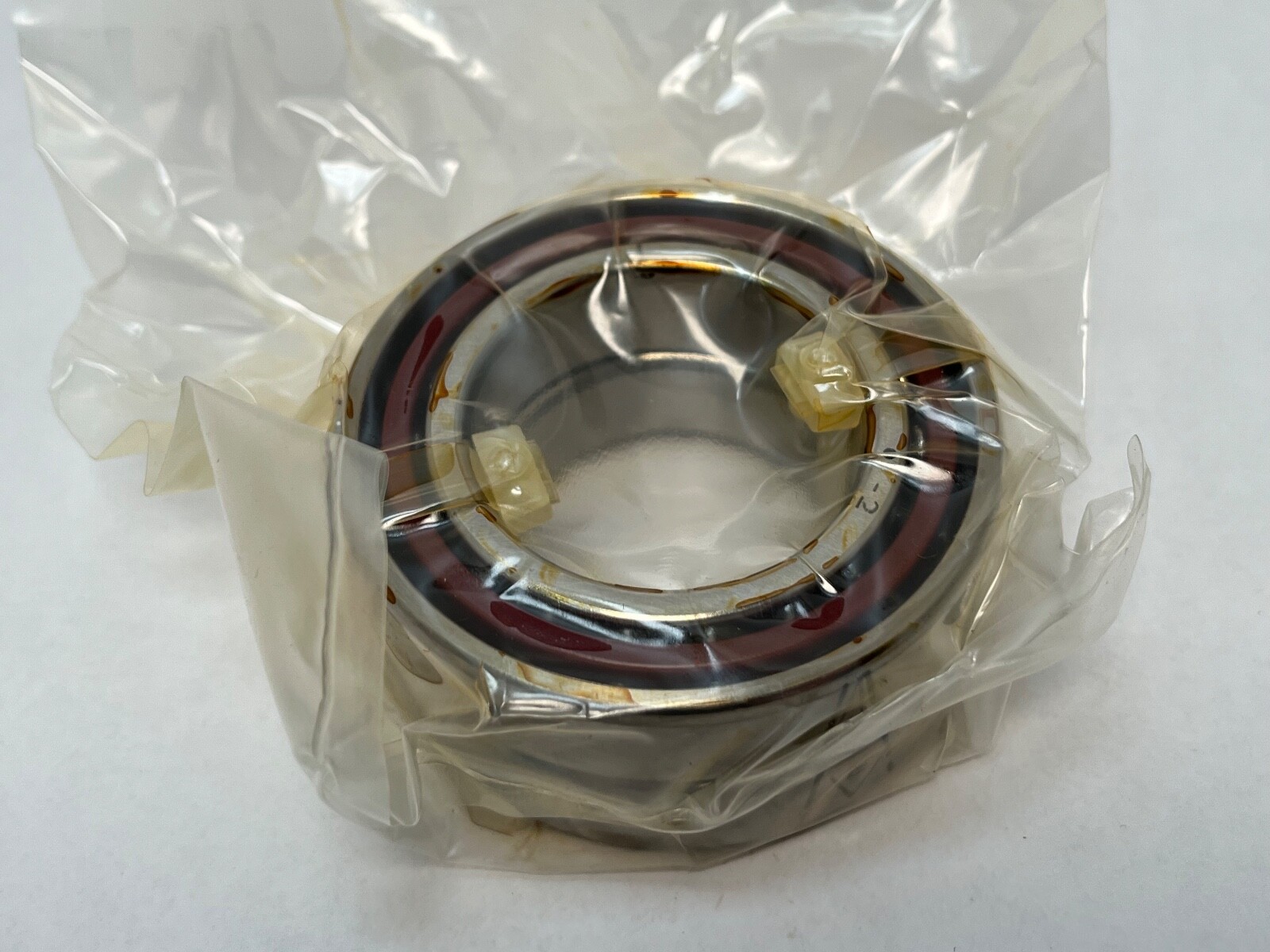

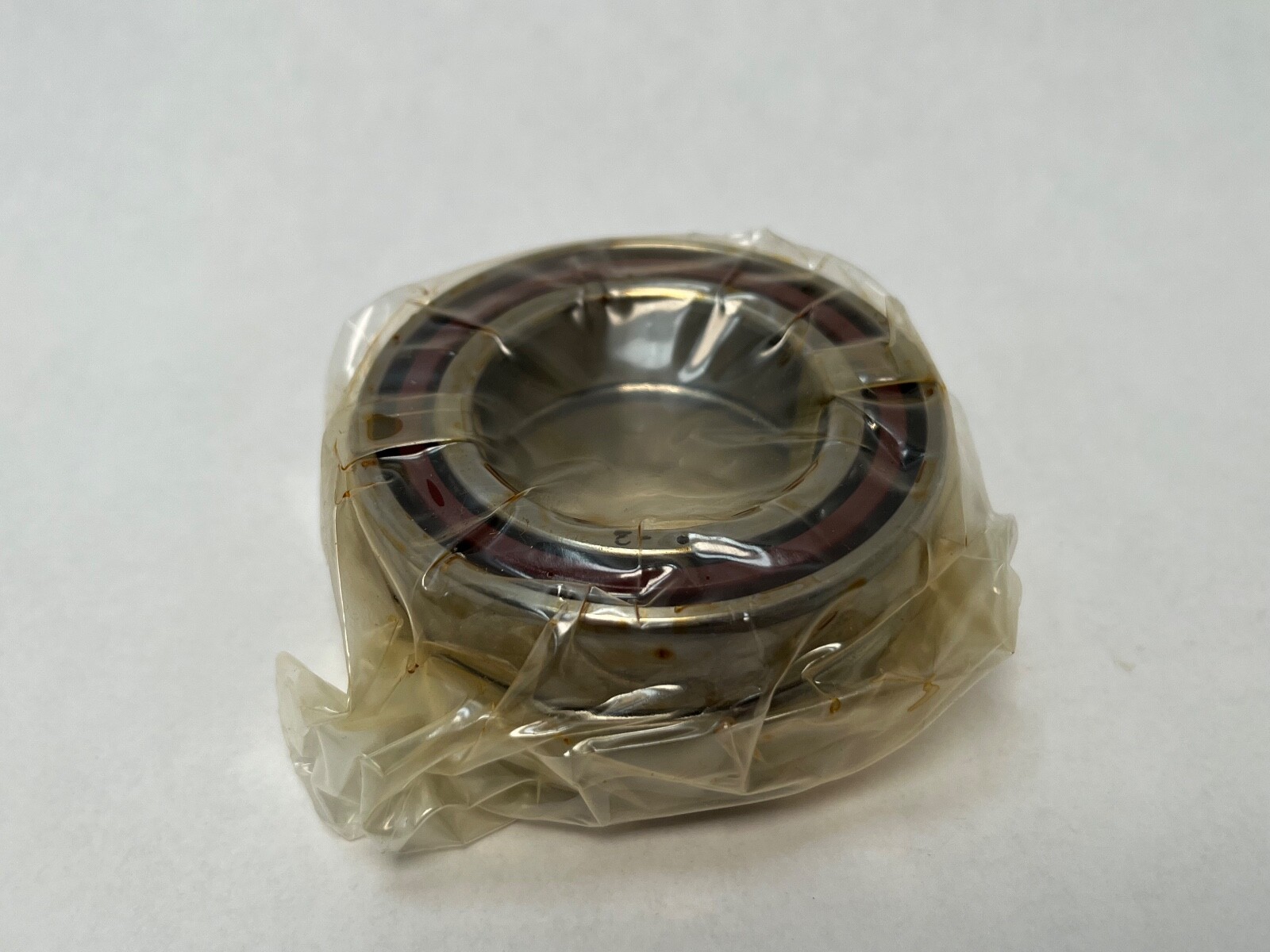

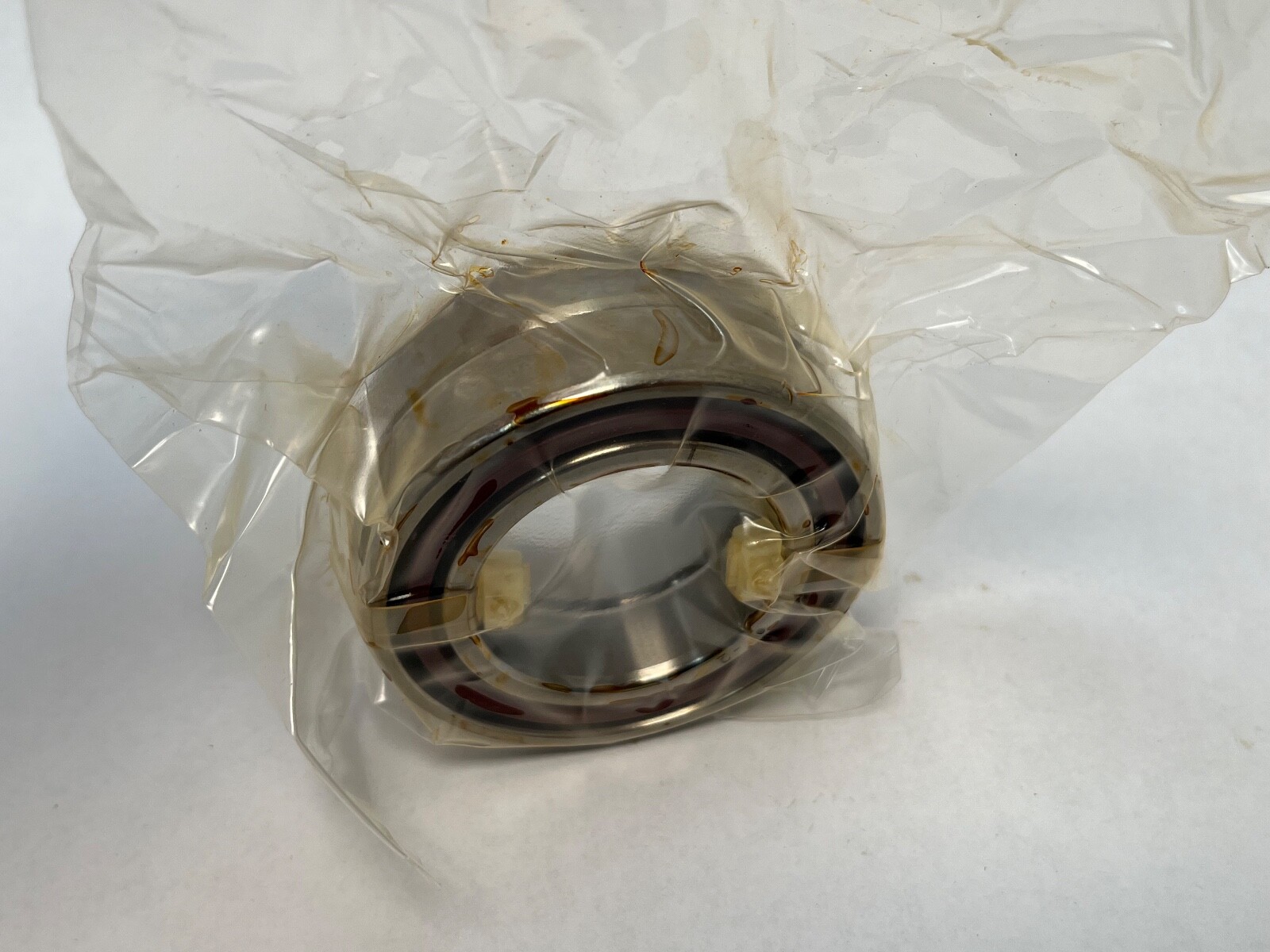

FAGB7008E.TPA.P4.DULAngular Contact Ball Bearing Matched Pair – 40 mm ID, 68 mm OD, 15 mm Width, Open, 25°, ABEC 7 / P4, Phenolic Cage

Condition: New

Availability:

1 in stock

Matched pair of super-precision angular contact ball bearings, 40 x 68 x 15 mm, 25° contact angle, phenolic cage, ABEC 7 / P4. FAG B7008E.TPA.P4.DUL, 2 Pcs.

Same day shipment

List Price

$173.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNB7008E.TPA.P4.DUL
ModelB 7008 E TPA P4 DUL / 3MM9108WI CR DUL
Bearing TypeAngular Contact Ball Bearing, Open
ID40 mm
OD68 mm
Width15 mm

Technical Specifications

MaterialChrome steel
SeriesB70
PreloadUniversally matchable; light 141 N, medium 543 N, heavy 1,170 N per pair
Base NumberB7008
Total Width30 mm
Mpn VariantsB7008E.TPA.P4.DUL; B7008ETPAP4DUL; B-7008-E-TPA-P4-DUL; B 7008 E TPA P4 DUL; B7008-E-T-P4S-UL; 7008E
Arrangement ConfigurationDUL — matched duplex set, universal grinding
Precision ClassABEC 7 / P4
Min Temp-30 °C
Cage TypeMachined
Dynamic Load Rating19,900 N
Static Load Rating10,600 N
Precision RatingABEC 7 / P4
Rolling ElementsBall
Max Temp100 °C
Item Weight0.38 kg (0.83 lb)
Cage MaterialPhenolic
Limiting Speed20,000 rpm grease; 30,000 rpm oil
Number Of Rows1
Bore TypeStraight
LubricantGrease or oil
Harmonization Code8482.10.50
Contact Angle25°
Mounting ArrangementUniversal — back-to-back, face-to-face or tandem
Bearing MaterialChrome steel
Part NumberB7008E.TPA.P4.DUL
Closure TypeOpen

Cross-References

Cross Reference 1SKF 7008 ACD/P4ADGA - 25 deg, extra light preload
Cross Reference 2NSK 7008A5DB - 25 deg, preload class differs
Seller Part Number: B-AJ1B1#S336Q8

Product Description

What this part is:

FAG B7008E.TPA.P4.DUL is a matched pair of super-precision spindle angular contact ball bearings, supplied as one universally ground duplex set of 2 pieces. Open bearings, 25° contact angle, machined phenolic cage.

Decoding the designation:

B70 — Schaeffler’s spindle bearing series in the light 70 section.

7008 — ISO size code. Bore 40 mm, outside diameter 68 mm, width 15 mm.

E — Contact angle 25°. On a B70 or B719 designation the E is an angle code.

TPA — Fabric-base laminate phenolic cage, machined.

P4 — Precision Class: ABEC 7 / P4.

DUL — Duplex set of two bearings, universally ground, supplied matched.

Specifications:

Bore Diameter: 40 mm.

Outside Diameter: 68 mm.

Overall Width: 15 mm per bearing.

Contact Angle: 25°.

Number Of Rows: 1 per bearing.

Rolling Elements: Ball.

Bore Type: Straight.

Closure Type: Open.

Bearing Material: Chrome steel.

Item Weight: 0.19 kg (0.42 lb) per bearing, 0.38 kg (0.83 lb) for the pair.

Dynamic Load Rating: 19,900 N per bearing.

Static Load Rating: 10,600 N per bearing.

Limiting Speed: 20,000 rpm grease; 30,000 rpm oil.

Fatigue load limit, radial: 1,130 N.

Precision Class: ABEC 7 / P4.

Cage Material: Phenolic.

Cage Type: Machined.

Lubricant: grease or oil.

Operating temperature range: -30 °C to +100 °C.

Series: B70. Base Number: B7008.

Unit Quantity: 2 Pcs.

Dimensions and mounting:

Preload per matched pair: light 141 N, medium 543 N, heavy 1,170 N.

Mounting Arrangement: Universal — the pair mounts back-to-back (O), face-to-face (X) or tandem and reaches the published preload on assembly without shims. The set is preload-adjusted rather than clearance-set.

Compatibility and replacement:

25° duplex sets in the 40 x 68 x 15 mm size: SKF 7008 ACD/P4ADGA (extra light preload), NSK 7008A5DB (preload class differs). Also marked B7008E.TPA.P4.DUL, B7008ETPAP4DUL, B-7008-E-TPA-P4-DUL, B 7008 E TPA P4 DUL, B7008-E-T-P4S-UL, 7008E.

Frequently asked questions:

What are the bore, outside diameter and width?

Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm per bearing.

What are the load ratings and speed?

Dynamic Load Rating: 19,900 N per bearing. Static Load Rating: 10,600 N per bearing. Limiting Speed: 20,000 rpm grease; 30,000 rpm oil.

What does the DUL suffix mean?

DUL marks a duplex set of two bearings, universally ground, supplied matched. Unit Quantity: 2 Pcs.
