Super-precision angular contact ball bearing, 60 x 95 x 18 mm, 15° contact angle, open, phenolic land-riding cage, P4 class, flush-ground faces.
List Price
$81.95
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7012 TG P/4 |
| Model | 7012 TG P/4 / B-7012-C-T-P4-UL 2MM9112WI SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 70 |
| Lubricant | Oil |
| Base Number | 7012 |
| Industry Terms | Spindle bearing, machine tool bearing, super precision angular contact, phenolic cage bearing |
| Application Types | Machine tool spindles, grinding spindles, high-speed precision rotating equipment |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 7012TGP4, 7012-TG-P4, 7012 TG P/4, B7012-C-T-P4-UL, B7012C.T.P4S, SUL |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Part Number | 7012 TG P/4 |
| Cross Reference 1 | FAG B7012-C-T-P4S (current designation form) |
|---|---|
| Cross Reference 2 | SKF 7012 CD/P4A |
| Cross Reference 3 | Fafnir 2MM9112WI |
| Cross Reference 4 | NSK 7012CTYNSULP4 |
| Cross Reference 5 | FAG B7012-E-T-P4S - 25 deg vs 15 deg |

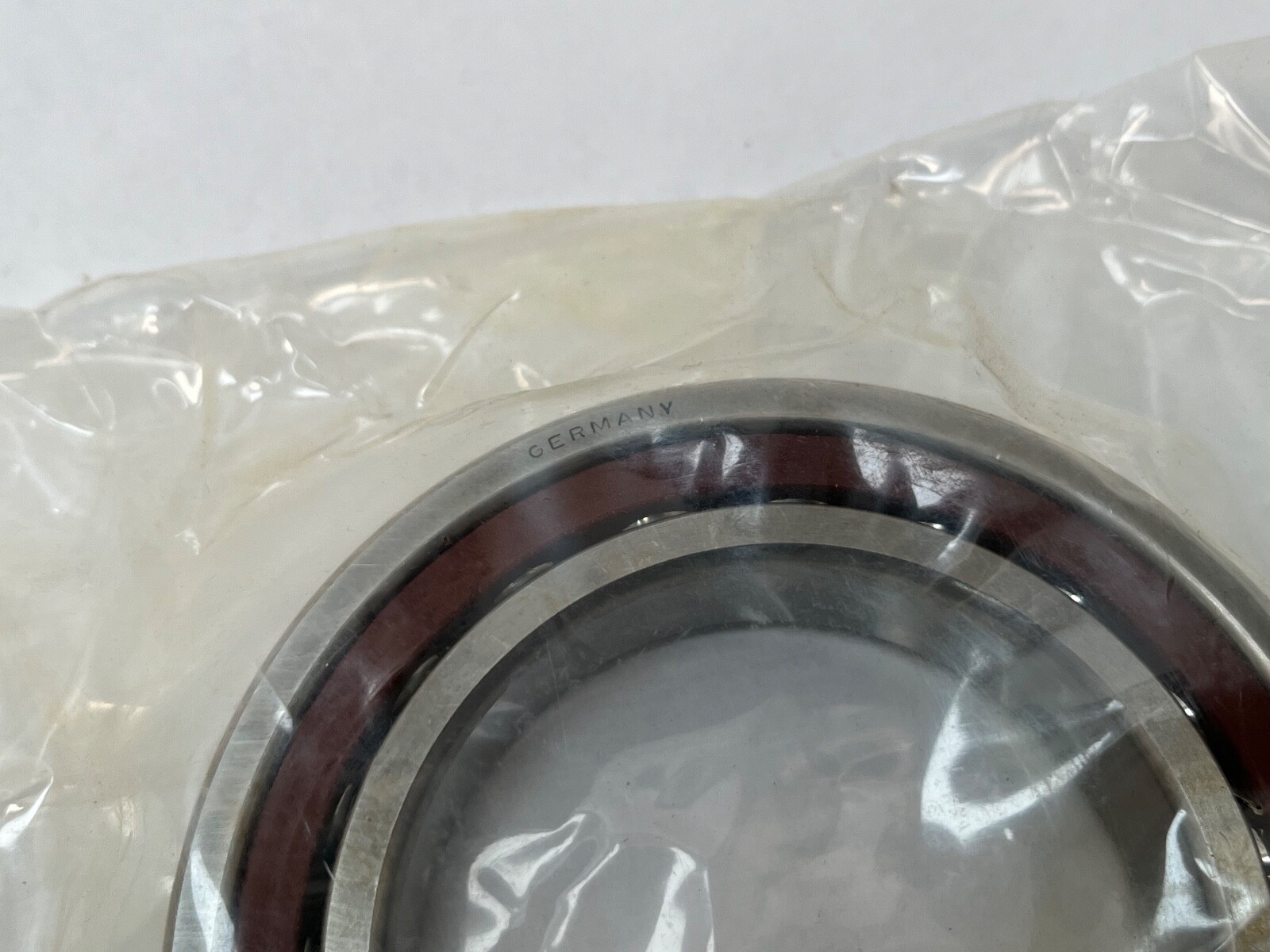

FAG 7012 TG P/4 single-row super-precision angular contact ball bearing. Series: 70. Bore: 60 mm. Outside diameter: 95 mm. Width: 18 mm. Contact Angle: 15°. Open on both faces. Country of origin: Germany. Searchable forms include 7012TGP4, 7012-TG-P4 and 7012 TG P/4.

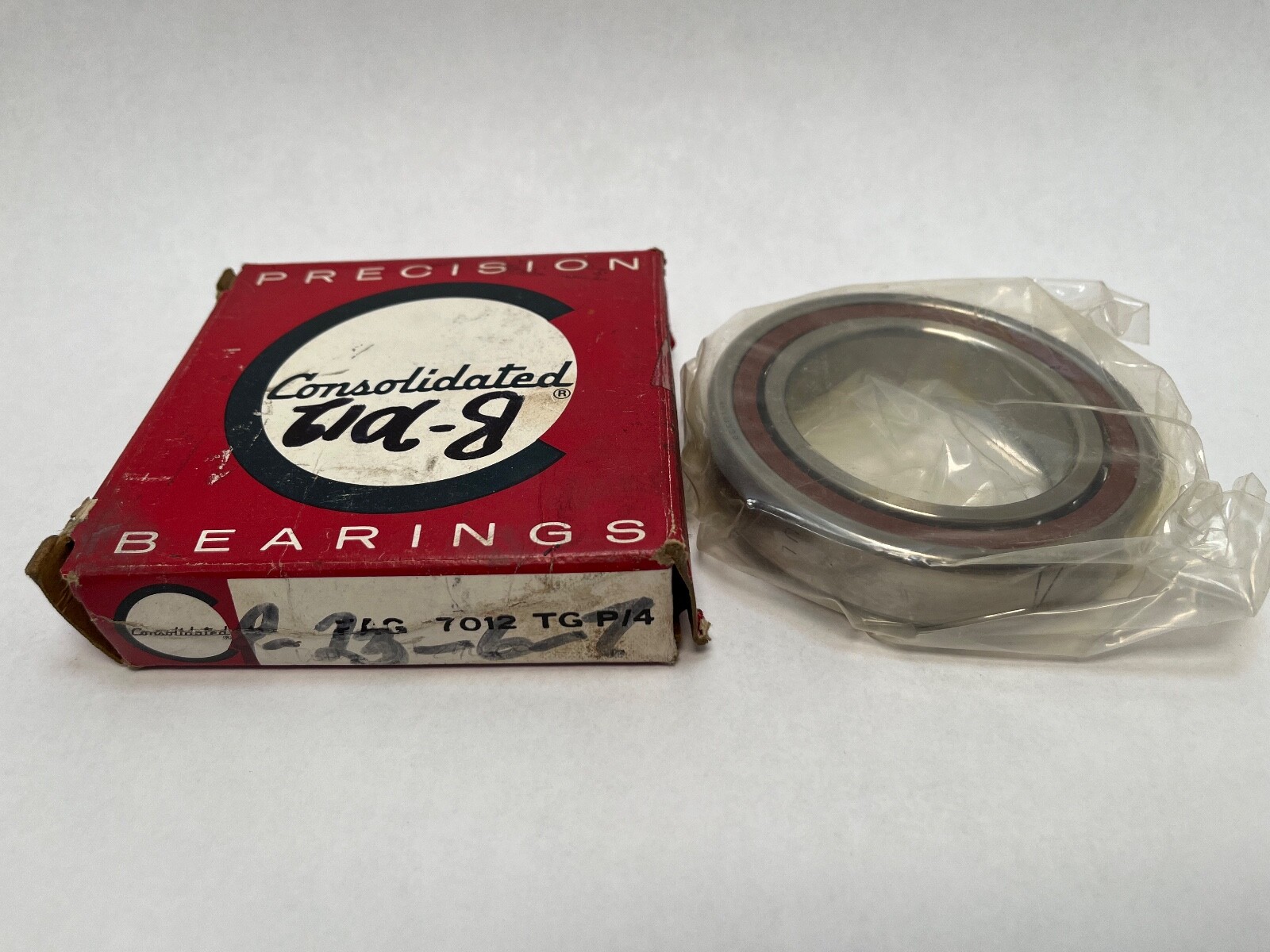

TG: machined phenolic cage, land-riding on the outer ring, with universally flush-ground faces so bearings of the same designation mount back-to-back, face-to-face or in tandem. P4: ABEC 7 precision. The carton also carries the current FAG form B7012-C-T-P4-UL and the Fafnir equivalent 2MM9112WI SUL.
Dynamic Load Rating: 28.5 kN. Static Load Rating: 27 kN. Limiting Speed: 16,000 rpm. A 15° contact angle favours speed and radial stiffness and takes thrust in one direction. An outer-ring land-riding phenolic cage is light and runs on a lubricated land rather than on the balls, which keeps cage-generated heat and noise low at spindle speeds. Flush-ground faces mean a second or third bearing of this designation stacks against it without shims.
Universally matchable execution. Bearings of this designation combine back-to-back, face-to-face or in tandem, and the carton marking SUL records the single universal light-preload build.
Straight bore on a cylindrical shaft seat. Lubricant: oil. Operating range: -30 °C to 120 °C.
Base number: 7012. Current FAG form: B7012-C-T-P4S. SKF equivalent: 7012 CD/P4A. NSK equivalent: 7012CTYNSULP4. Fafnir equivalent: 2MM9112WI. FAG B7012-E-T-P4S carries a 25° contact angle on the same 60 x 95 x 18 mm envelope and is a related size rather than a direct substitution.
