Double-direction axial angular contact ball bearing, 150 x 225 x 90 mm, 60° contact angle, machined brass cage, SP restricted tolerances, FAG 234430-M-SP.
List Price
$2,539.78
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 234430-M-SP |
| GTIN | 4012801193597 |
| Model | 234430M-SP |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 150 mm |
| OD | 225 mm |
| Width | 90 mm |
| Series | 2344 |
|---|---|
| Lubricant | Grease or oil |
| Industry Terms | Axial angular contact ball bearing; double direction thrust bearing; spindle axial bearing; ball screw support bearing |
| Mpn Variants | 234430MSP; 234430 M SP; 234430-M-SP; 234430M; 234430 |
| Precision Class | SP (restricted tolerances) |
| Additional Attributes | Fatigue load limit axial 34,500 N; axial rigidity 1,183 N/um; lift-off force 3,764 N; preload force 1,320 N; shaft shoulder da 181 mm; housing shoulder Da 211.5 mm; r min 2.1 mm; r1 min 0.6 mm; ra max 2.1 mm; ra1 max 0.6 mm |
| Min Temp | -30 °C |
| Dynamic Load Rating | 143,000 N |
| Static Load Rating | 510,000 N |
| Precision Rating | SP (restricted tolerances) |
| Rolling Elements | Ball |
| Max Temp | 150 °C |
| Item Weight | 10.81 kg (23.83 lb) |
| Cage Material | Machined brass |
| Limiting Speed | 2,600 rpm grease; 3,600 rpm oil |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 60° |
| Total Width | 90 mm |
| Cross Reference 1 | SKF BTW 150 CTN9/SP - polyamide cage |
|---|

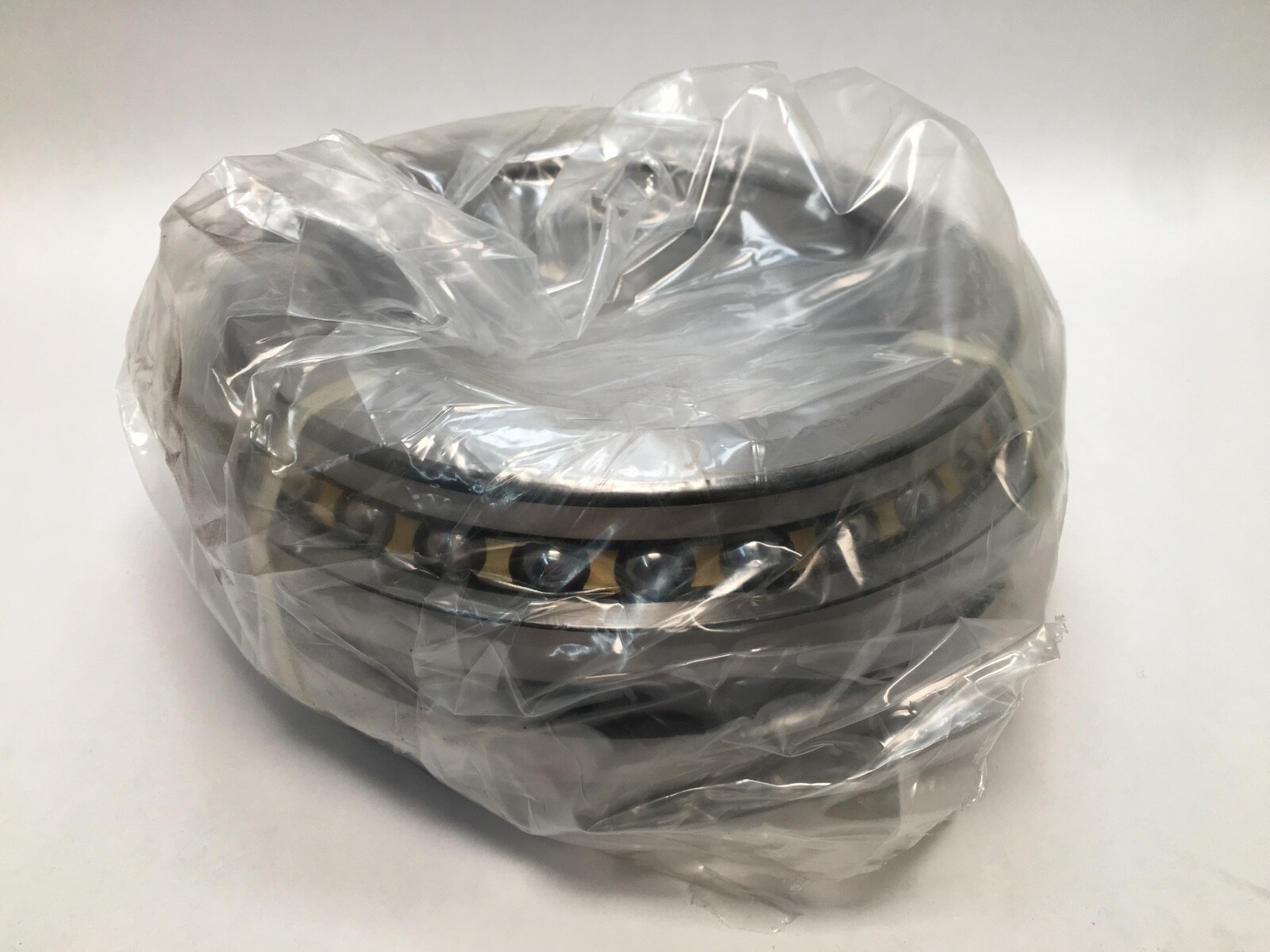

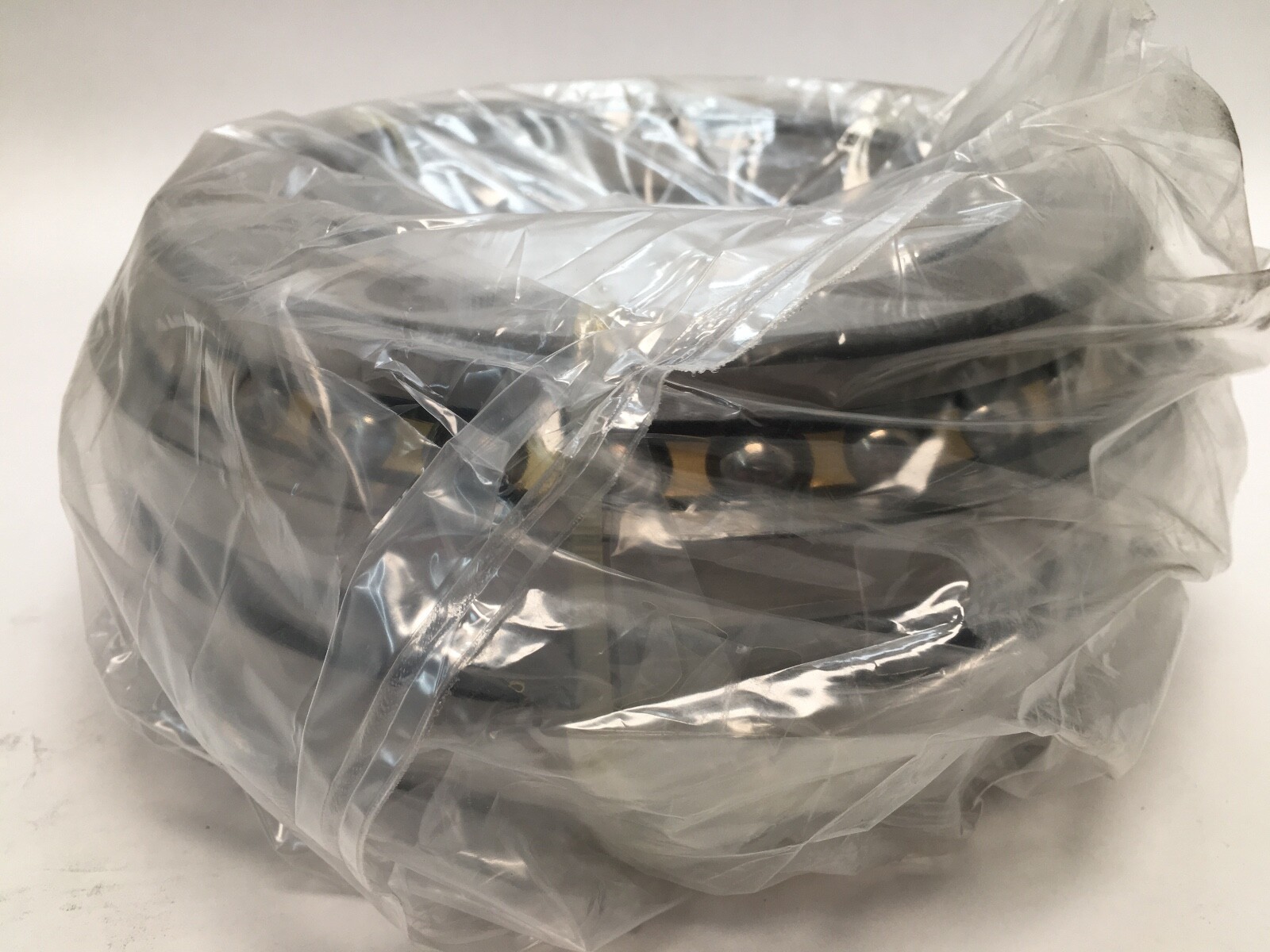

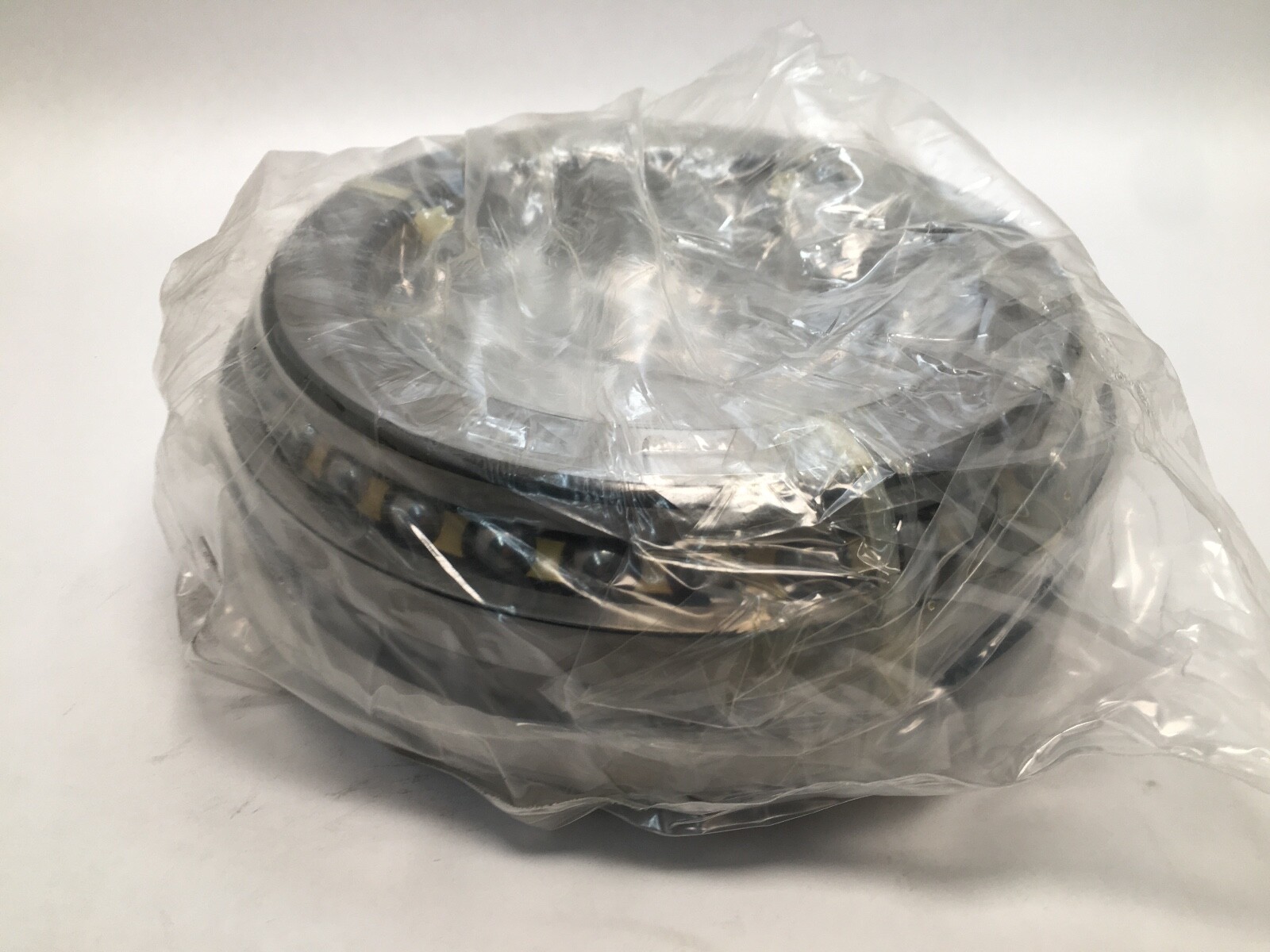

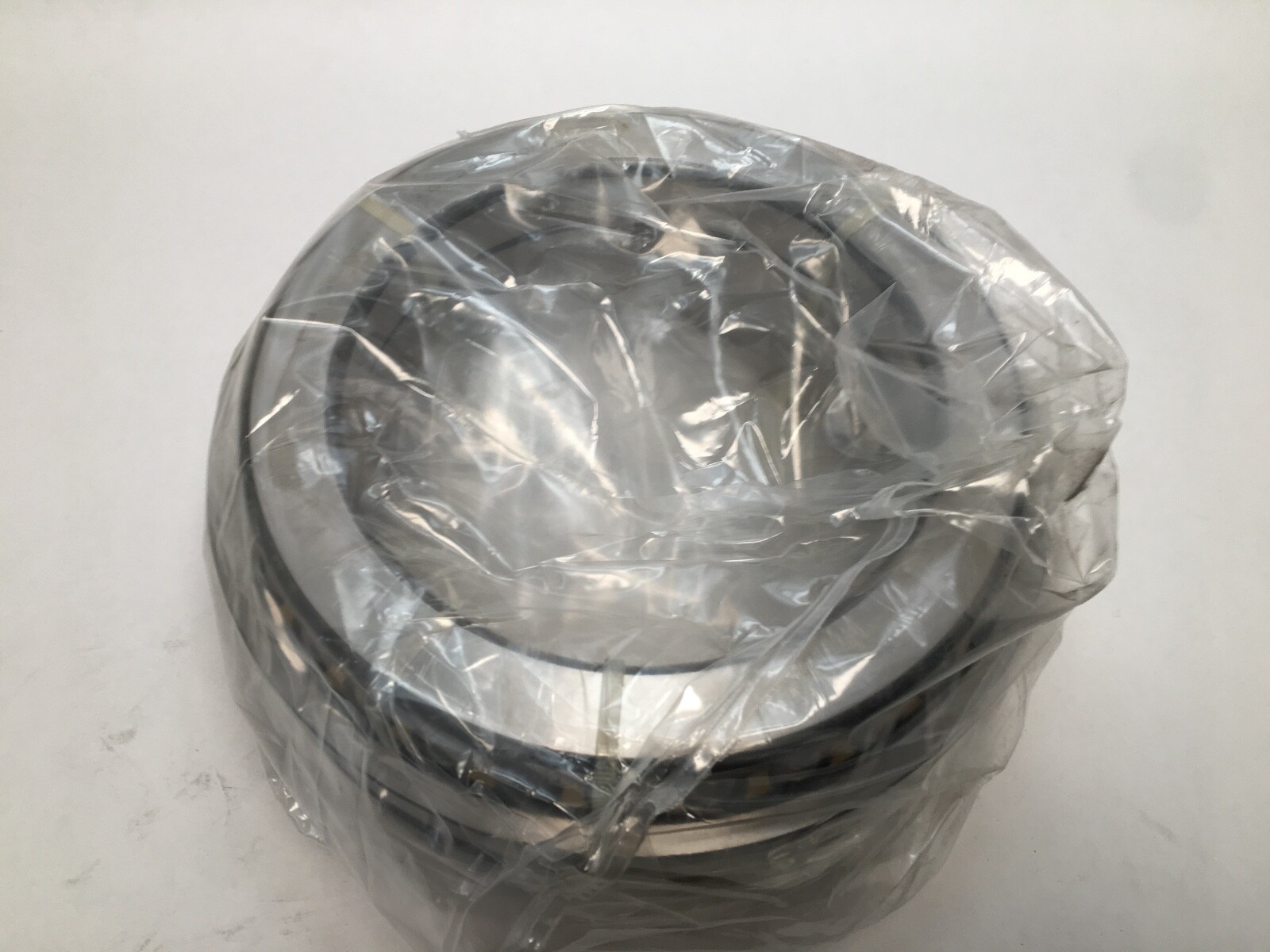

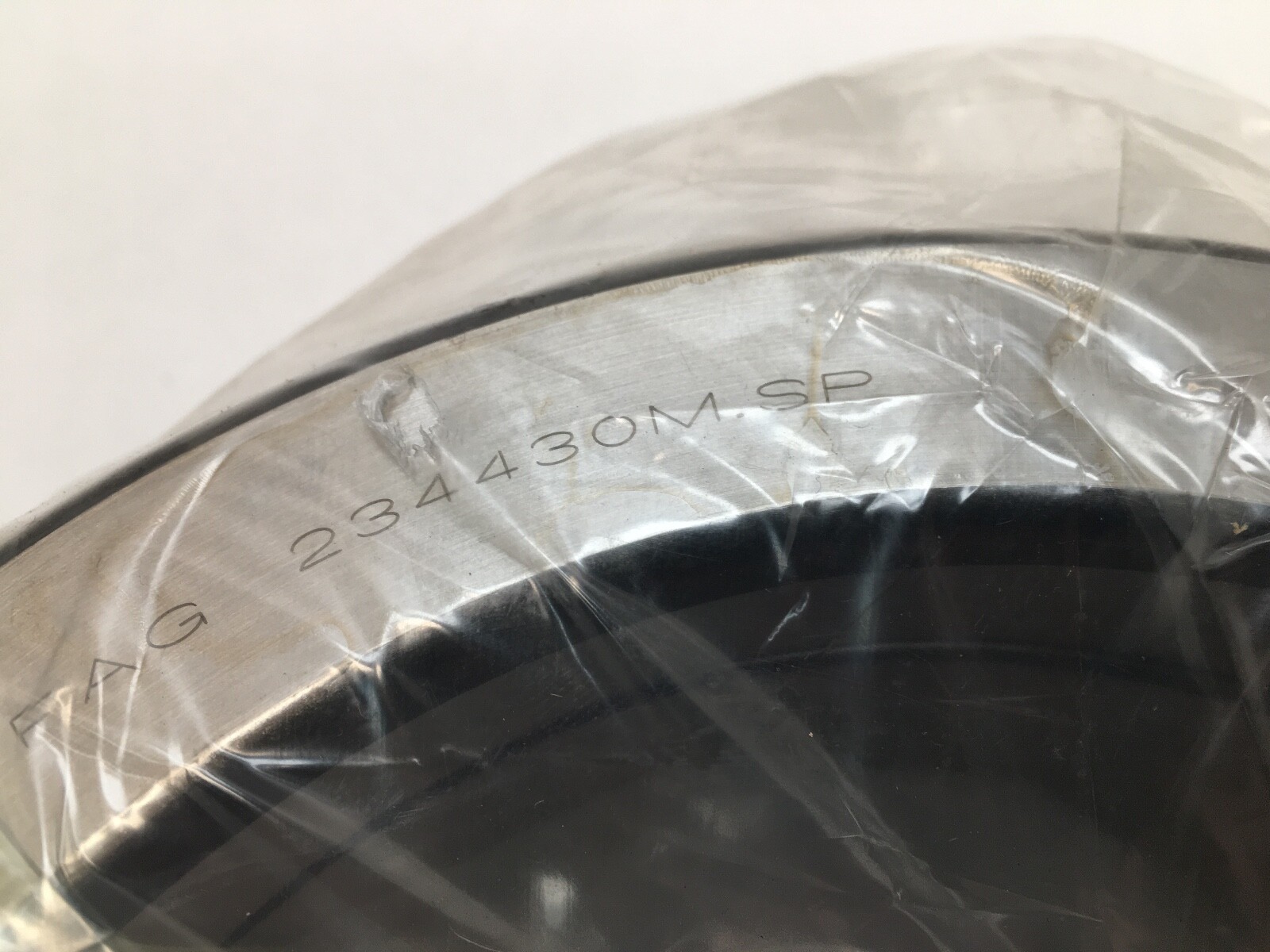

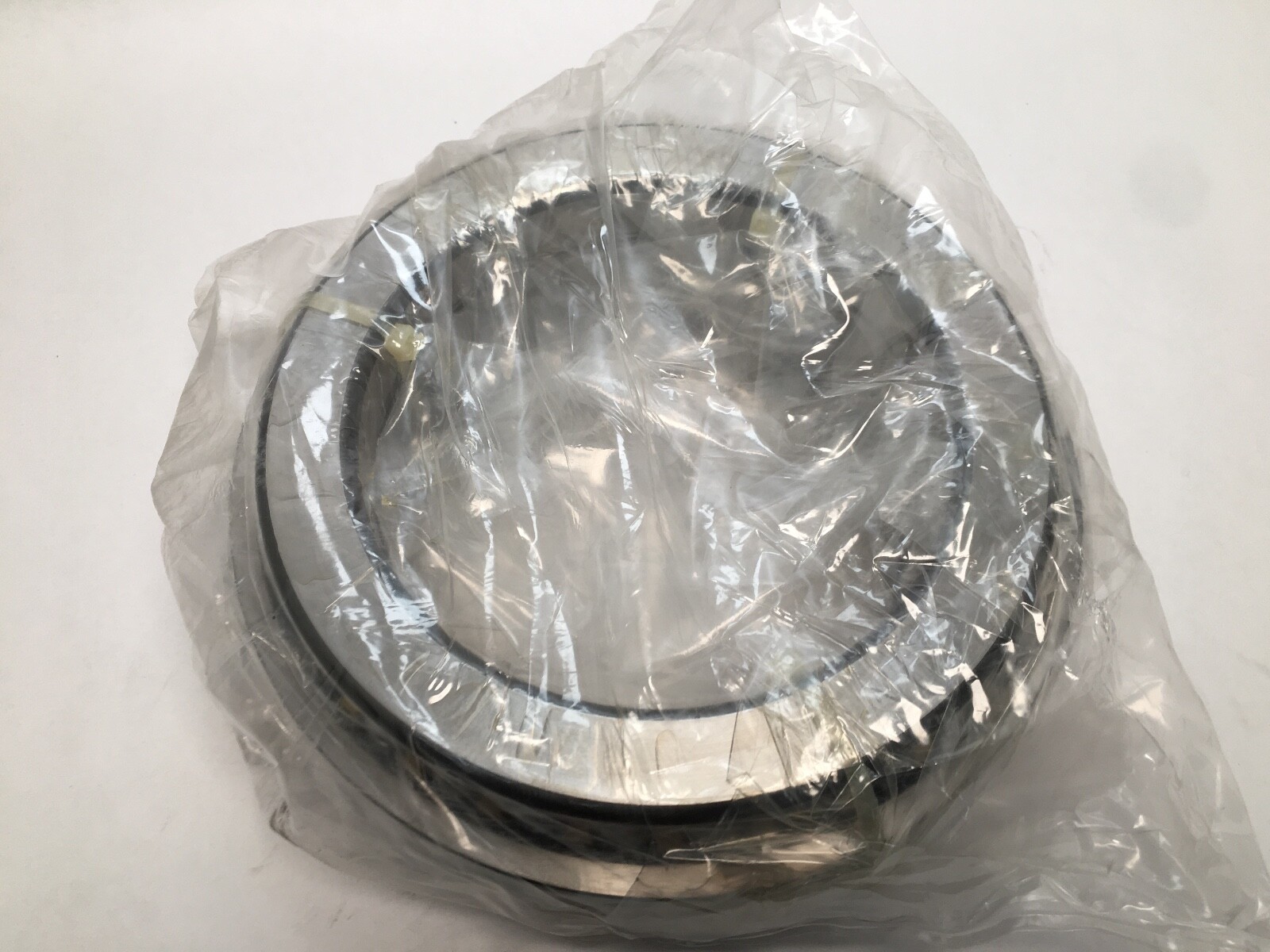

FAG 234430-M-SP double-direction axial angular contact ball bearing, series 2344, separable, restricted tolerances. Bore 150 mm, outside diameter 225 mm, width 90 mm. Two ball rows, 60° contact angle, machined brass cage, open.
2344 — double-direction axial angular contact ball bearing series.
30 — bore code, 30 x 5 = 150 mm bore.
M — machined brass cage.
SP — restricted tolerances, Schaeffler special precision.
Bore Diameter: 150 mm. Outside Diameter: 225 mm. Width: 90 mm. Contact Angle: 60°. Dynamic Load Rating: 143,000 N (axial). Static Load Rating: 510,000 N (axial). Fatigue Load Limit: 34,500 N (axial). Limiting Speed: 2,600 rpm grease; 3,600 rpm oil. Operating Temperature: -30 °C to 150 °C. Item Weight: 10.81 kg (23.83 lb). Precision Class: SP (restricted tolerances). Cage Material: Machined brass. Number Of Rows: 2. Closure Type: Open. Series: 2344. Unit Quantity: 1 Pc. Country of Origin: Germany.
Outer ring width C: 45 mm. Shaft washer rib diameter d1: 200 mm. Minimum chamfer r min: 2.1 mm; r1 min: 0.6 mm. Shaft shoulder diameter da: 181 mm. Housing shoulder diameter Da: 211.5 mm. Maximum recess radius ra max: 2.1 mm; ra1 max: 0.6 mm. Axial rigidity: 1,183 N/µm. Lift-off force: 3,764 N. Preload force: 1,320 N.
SKF BTW 150 CTN9/SP is the SKF double-direction 60° angular contact thrust bearing in the same 150 x 225 x 90 mm size. Searchable forms of the designation: 234430MSP, 234430 M SP, 234430-M-SP, 234430M, 234430.
Dynamic Load Rating is 143,000 N and Static Load Rating is 510,000 N, both axial, per Schaeffler.
Limiting Speed is 2,600 rpm with grease and 3,600 rpm with oil, per Schaeffler.
Contact Angle is 60°, double direction, with two ball rows.
