Availability:
1 in stock
Single row angular contact ball bearing, 25 x 80 x 21 mm, heavy 7400 series. Open, straight bore, CN clearance, 53,300 N dynamic load rating.
List Price
$50.92
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 7405W |
| GTIN | 087796046948 |
| Model | 7405-W |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 80 mm |
| Width | 21 mm |
| Condition | New – Open box |
|---|---|
| Base Number | 7405 |
| Common Misspellings | FANFIR 7405W; Fafner 7405W; Faffnir 7405W; 7405 w bearing |
| Total Width | 21 mm |
| Condition Note | New Old Stock, Made In USA. |
| Overall Width | 21 mm |
| Mpn Variants | 7405W; 7405 W; 7405-W; 7405WSU; 7405W SU |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Maximum shaft fillet radius 1.5 mm; shaft backing shoulder diameter 34.00 mm; housing backing shoulder diameter 71.10 mm; dimensionally interchangeable with 200-series deep groove ball bearings |
| Cage Type | One-piece, ball-guided |
| Dynamic Load Rating | 53,300 N |
| Static Load Rating | 25,900 N |
| Precision Rating | ABEC 1 / P0 |
| Series | 7400 |
| Rolling Elements | Ball |
| Item Weight | 0.925 kg (2.04 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 3,800 rpm grease; 5,700 rpm oil |
| Internal Clearance | CN |
| Material | Bearing Steel |
| Cross Reference 1 | SKF 7405 BM (same 25 x 80 x 21 mm envelope) |
|---|---|
| Cross Reference 2 | FAG 7405-B-XL-MP (same 25 x 80 x 21 mm envelope) |
| Cross Reference 3 | NSK 7405 B (same 25 x 80 x 21 mm envelope) |
| Cross Reference 4 | NTN 7405 B (same 25 x 80 x 21 mm envelope) |
| Cross Reference 5 | Timken / Fafnir 7405W SU (universally ground execution) |
| Cross Reference 6 | Koyo 7405 B (same 25 x 80 x 21 mm envelope) |
| Cross Reference 7 | MRC 7405 (same 25 x 80 x 21 mm envelope) |
| Cross Reference 8 | RHP 7405 B (same 25 x 80 x 21 mm envelope) |
| Cross Reference 9 | Nachi 7405 B (same 25 x 80 x 21 mm envelope) |

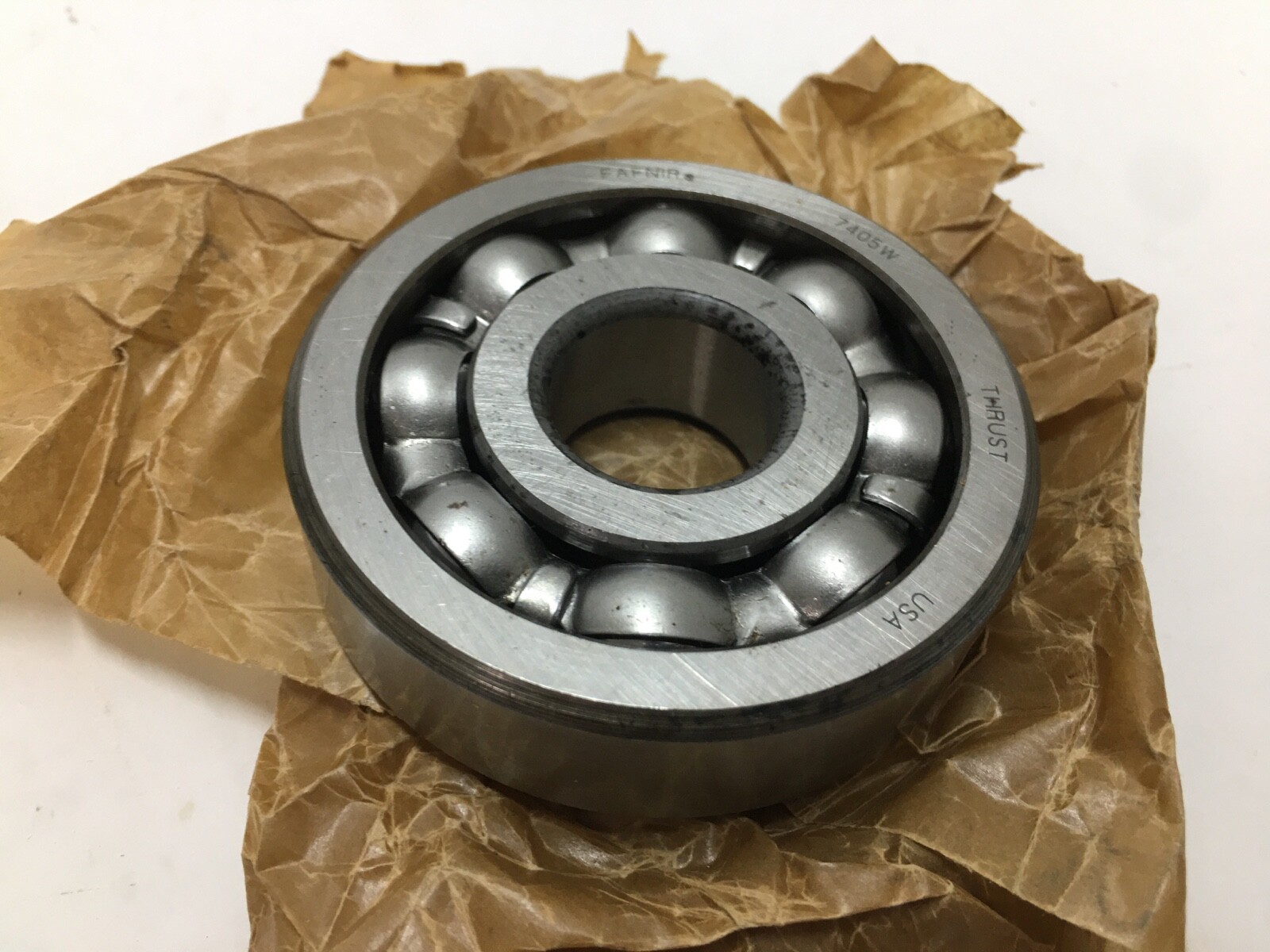

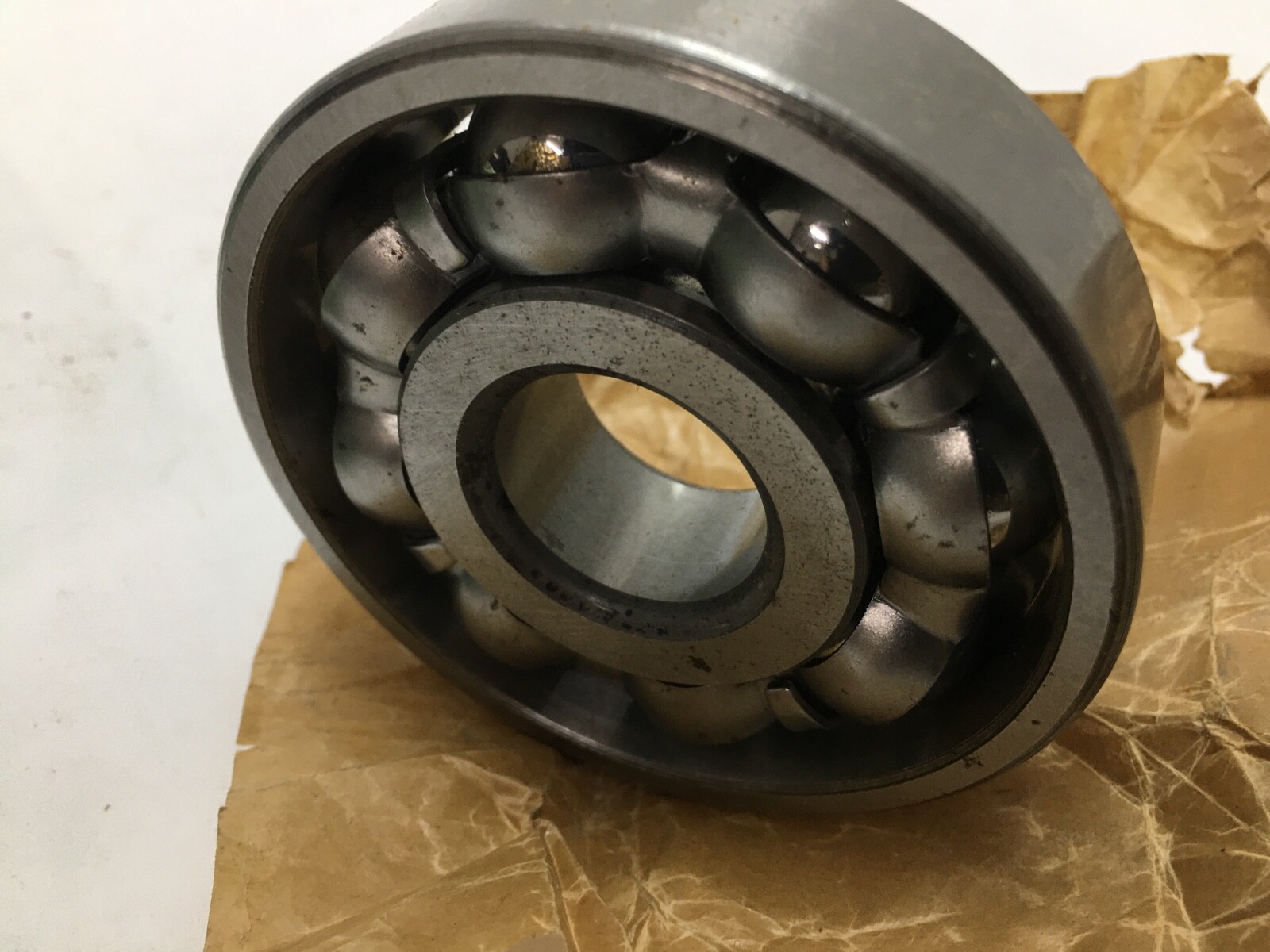

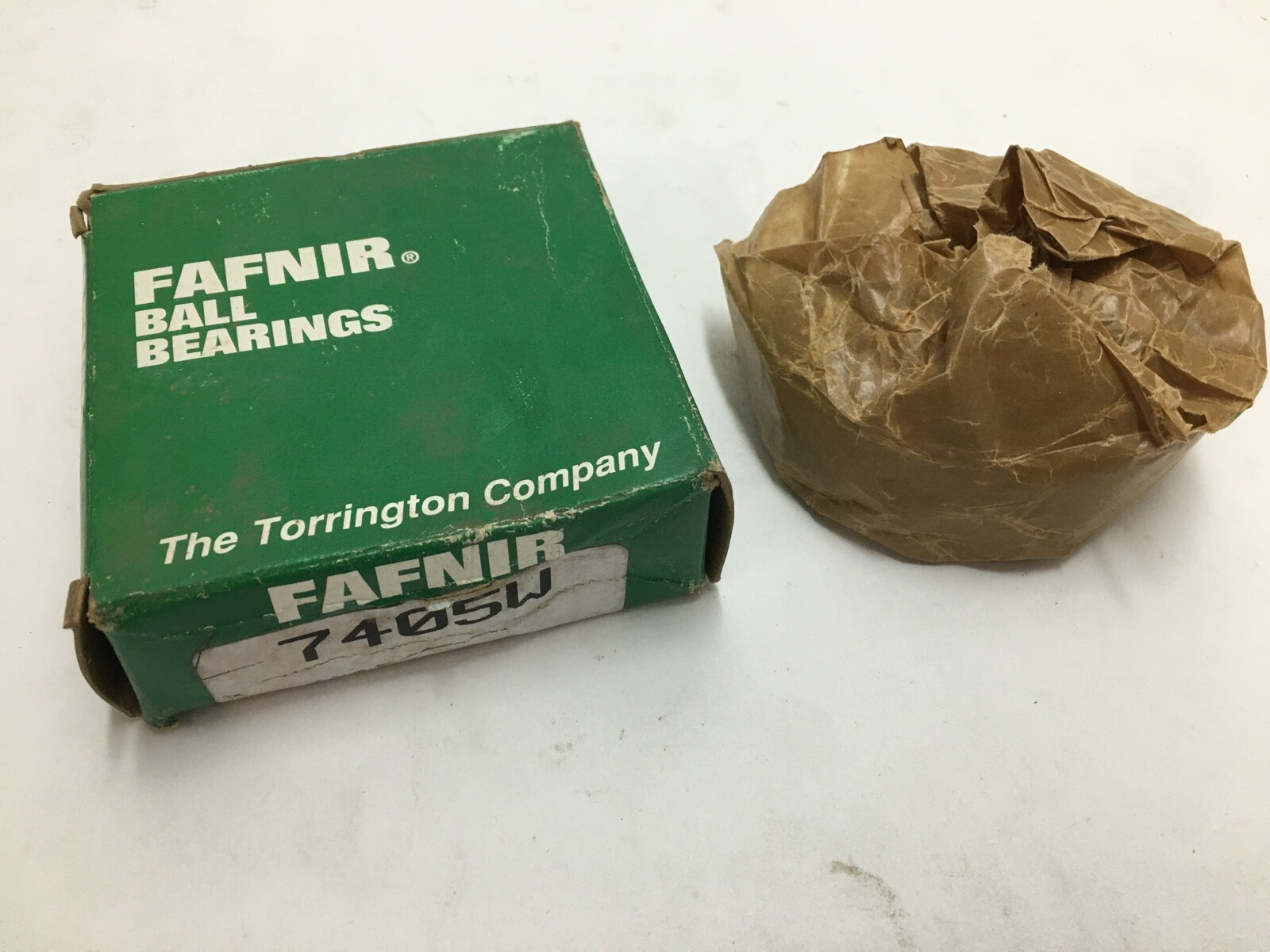

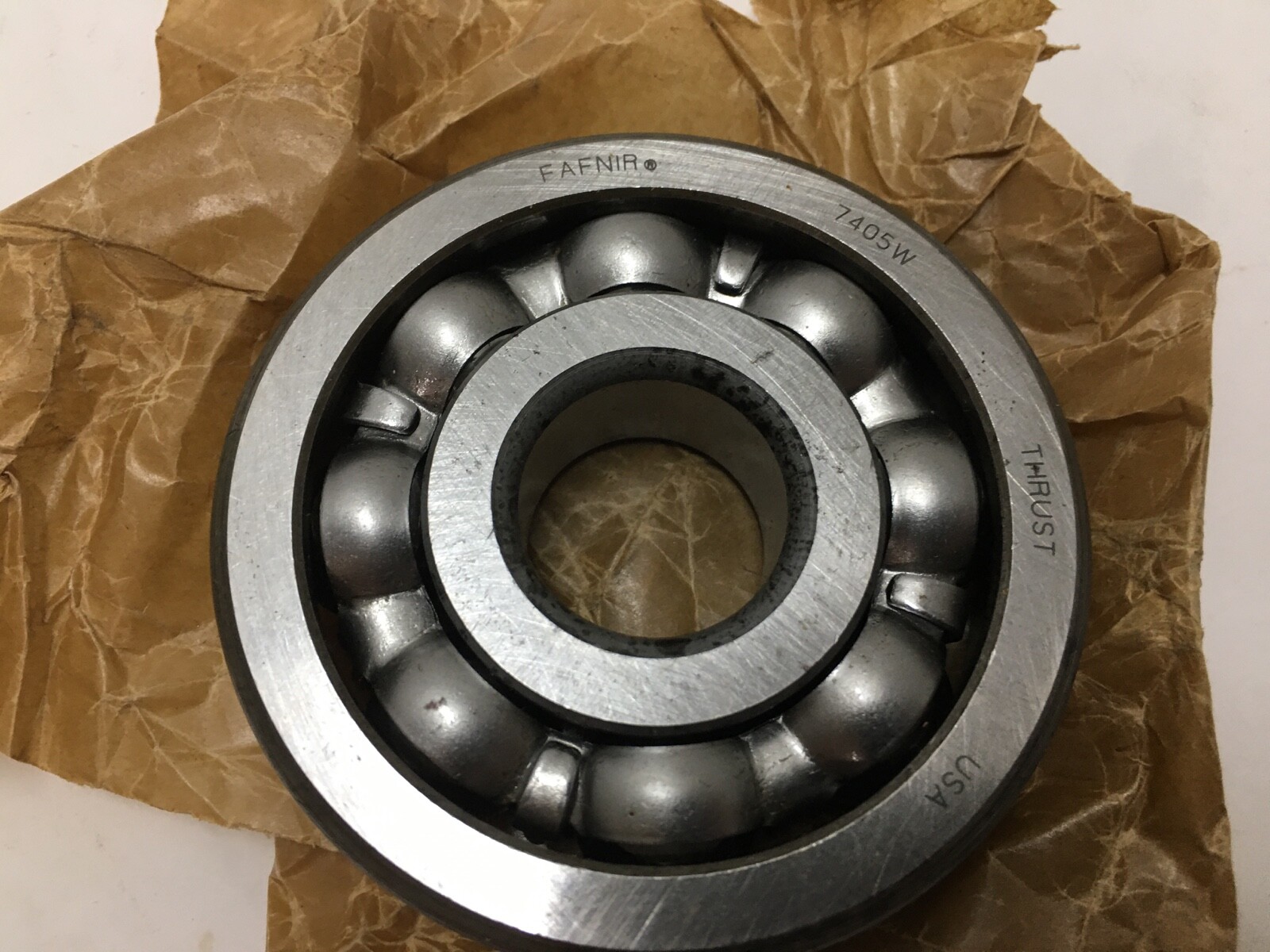

Fafnir 7405W, a single row angular contact ball bearing built by The Timken Company. Bore Diameter: 25 mm. Outside Diameter: 80 mm. Overall Width: 21 mm. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Series: 7400. Base Number: 7405. Precision Class: ABEC 1 / P0. Internal Clearance: CN. Cage Type: One-piece, ball-guided. Item Weight: 0.925 kg (2.04 lb).
7400 — Fafnir heavy single-row angular contact series. Its 25 x 80 x 21 mm envelope is dimensionally interchangeable with the 200-series deep groove ball bearings.
05 — bore code. Bore code multiplied by five gives the bore in millimetres: 25 mm.
W — maximum-capacity angular contact execution with a low outer ring shoulder, which admits a fuller ball complement and raises radial capacity.
No clearance suffix — normal internal clearance, CN.
Dynamic Load Rating: 53,300 N. Static Load Rating: 25,900 N. Limiting Speed: 3,800 rpm grease; 5,700 rpm oil.
A single row angular contact bearing takes thrust in one direction only, and the low outer shoulder of the W execution is what lets the extra balls into the raceway. The result is a bearing that carries a heavy combined radial and one-way thrust load in a 21 mm width.
Precision Class: ABEC 1 / P0 — standard tolerance class, the general-purpose grade for pumps, gearboxes and industrial shafting.
Item Weight: 0.925 kg (2.04 lb).
Maximum shaft fillet radius: 1.5 mm. Shaft backing shoulder diameter: 34.00 mm. Housing backing shoulder diameter: 71.10 mm.
Straight bore, so the bearing mounts directly on a cylindrical shaft seat. Thrust is taken through the high shoulder, so the bearing is fitted with the high-shoulder face toward the thrust load.
Unit Quantity: 1 Pc. One single row bearing, open on both faces.
Parts sharing the 25 x 80 x 21 mm heavy 7400-series envelope: SKF 7405 BM, FAG 7405-B-XL-MP, NSK 7405 B, NTN 7405 B, Koyo 7405 B, MRC 7405, RHP 7405 B and Nachi 7405 B. The Timken 7405W SU is the same bearing supplied universally ground for matched-set mounting. Check the contact angle published by the replacement maker against the application before swapping.
Searchable variants of the number: 7405W, 7405 W, 7405-W, 7405WSU, 7405W SU.
