Availability:
8 in stock
Super-precision angular contact ball bearing, 150 x 225 x 35 mm, 15° contact angle, ABEC 7 / P4. Matched duplex pair, light preload, phenolic cage. ISO 7030.
List Price
$2,027.98
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9130WICRDUL |
| GTIN | 087796255289 |
| Model | 2MM9130WIDUL 7030CTRDULP4 7030CD/P4ADGA |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 150 mm |
| OD | 225 mm |
| Width | 35 mm |
| Base Number | 2MM9130WI |
|---|---|
| Industry Terms | Super-precision angular contact ball bearing; spindle bearing; matched duplex pair; machine tool bearing |
| Common Misspellings | 2MM9130WL-DUL; 2MM9130WI-DLU; 2MM 9130 WI DUL; Fafner 2MM9130WI; 2MM9130WICRDLU |
| Application Types | Machine tool spindles; grinding spindles; milling and turning spindles; precision gearboxes; high-speed rotary tables |
| Total Width | 70 mm |
| Overall Width | 35 mm |
| Mpn Variants | 2MM9130WI-DUL; 2MM9130WICRDUL; 2MM9130-WI-CR-DUL; 2MM9130WIDUL; 2MM9130WI CR DUL |
| Precision Class | ABEC 7 / P4 |
| Series | 9100WI |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Contact Angle | 15° |
| Preload | Light |
| Mounting Arrangement | Universal duplex (DB, DF or DT) |
| Cross Reference 1 | SKF 7030 CD/P4ADGA |
|---|---|
| Cross Reference 2 | FAG B7030-C-T-P4S-UL |
| Cross Reference 3 | NSK 7030CTRDULP4 |
| Cross Reference 4 | NTN 7030CDB/GLP4 |
| Cross Reference 5 | RHP 7030CTDULP4 |
| Cross Reference 6 | Koyo 7030CDB |
| Cross Reference 7 | SNR 7030CVDUJ74 |
| Cross Reference 8 | Timken 2MM9130WICRDUL |

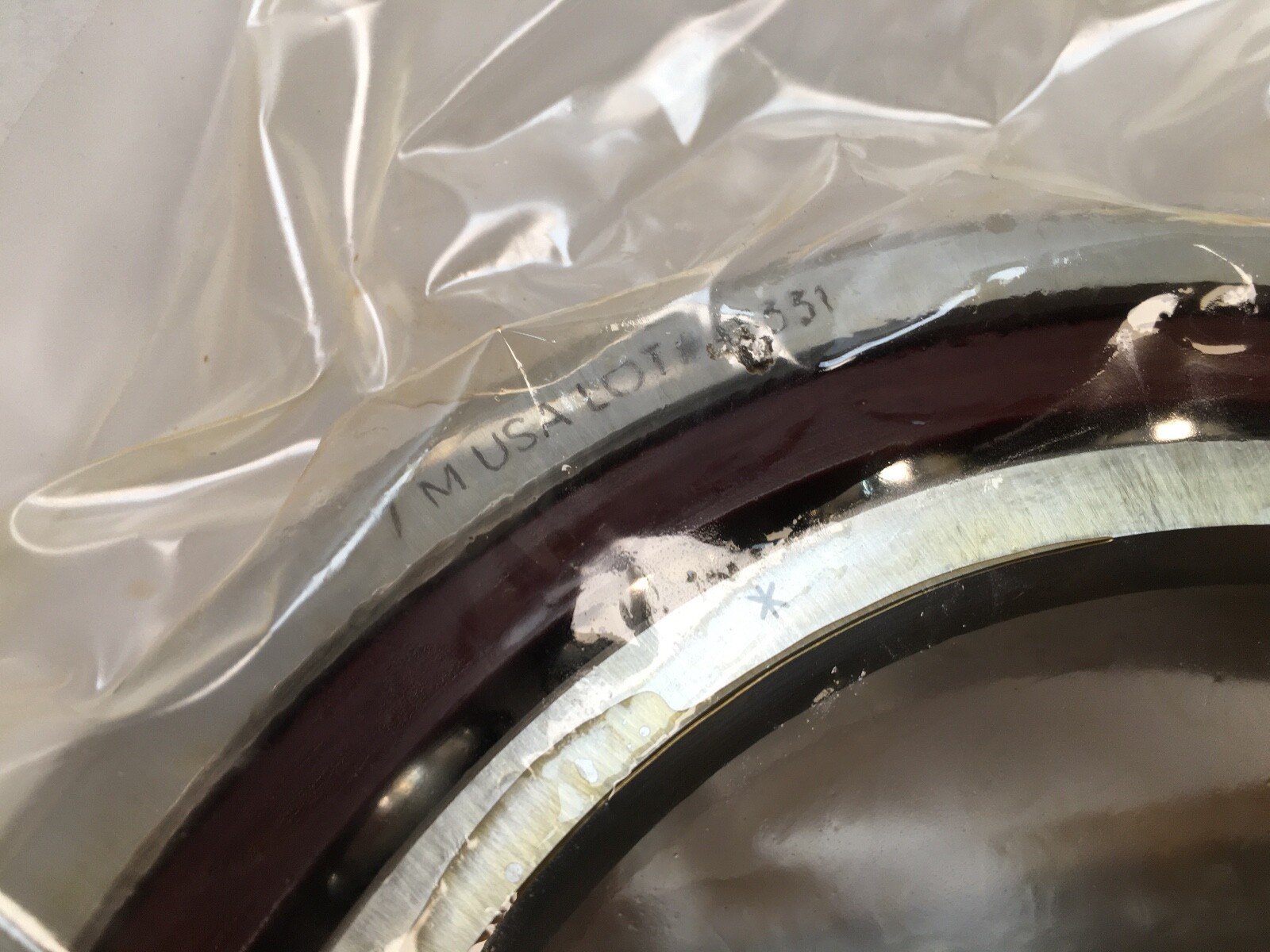

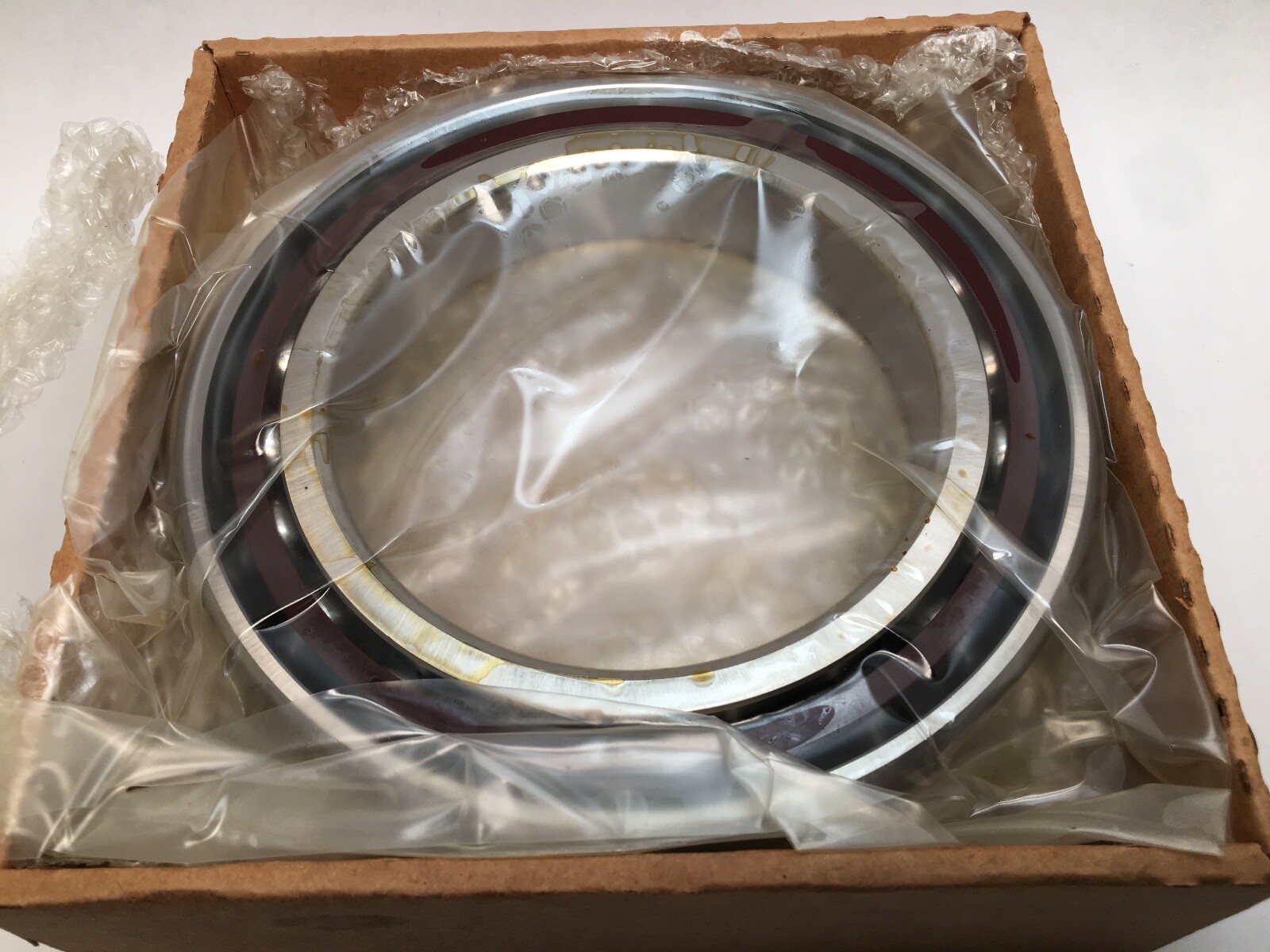

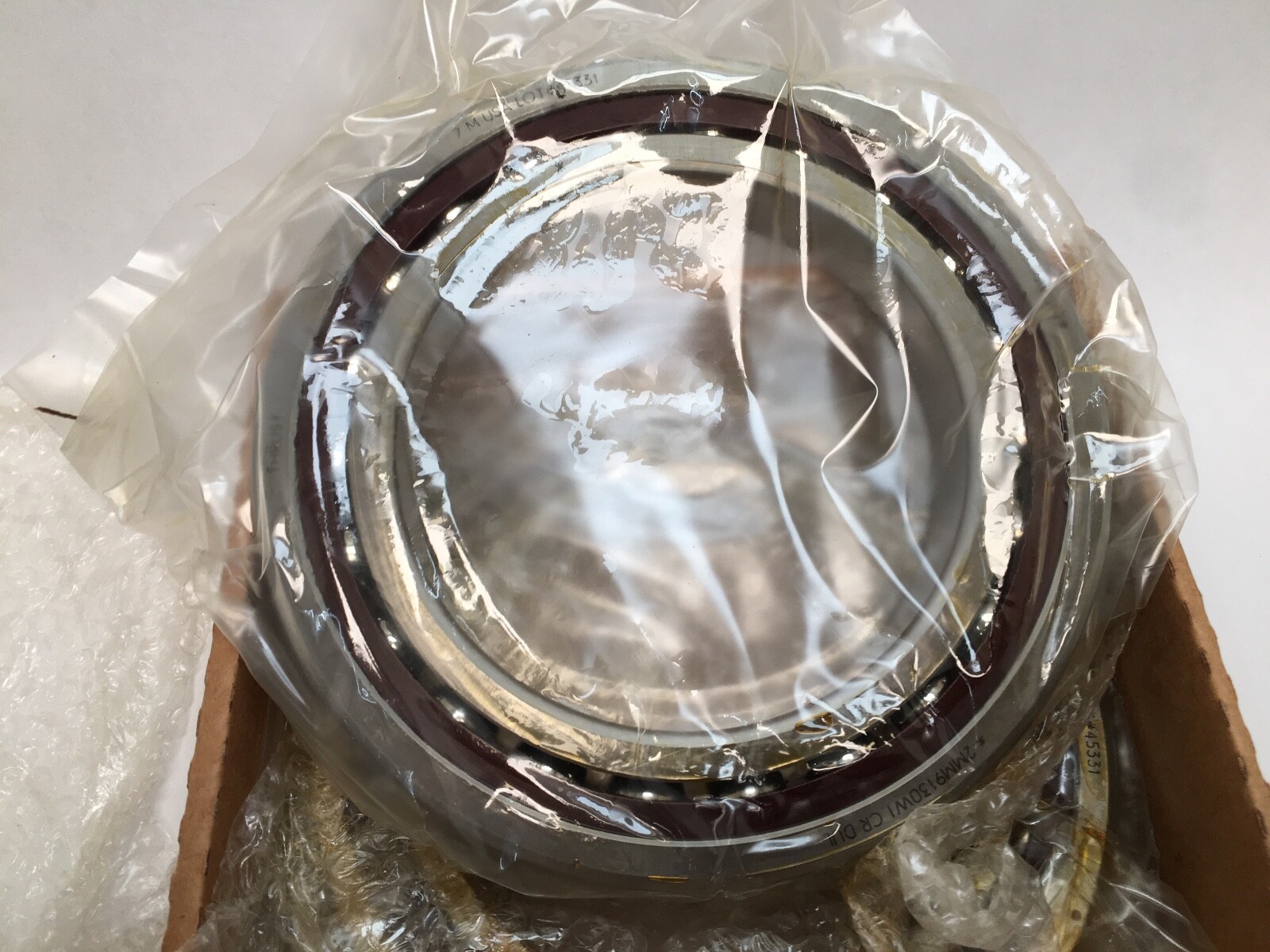

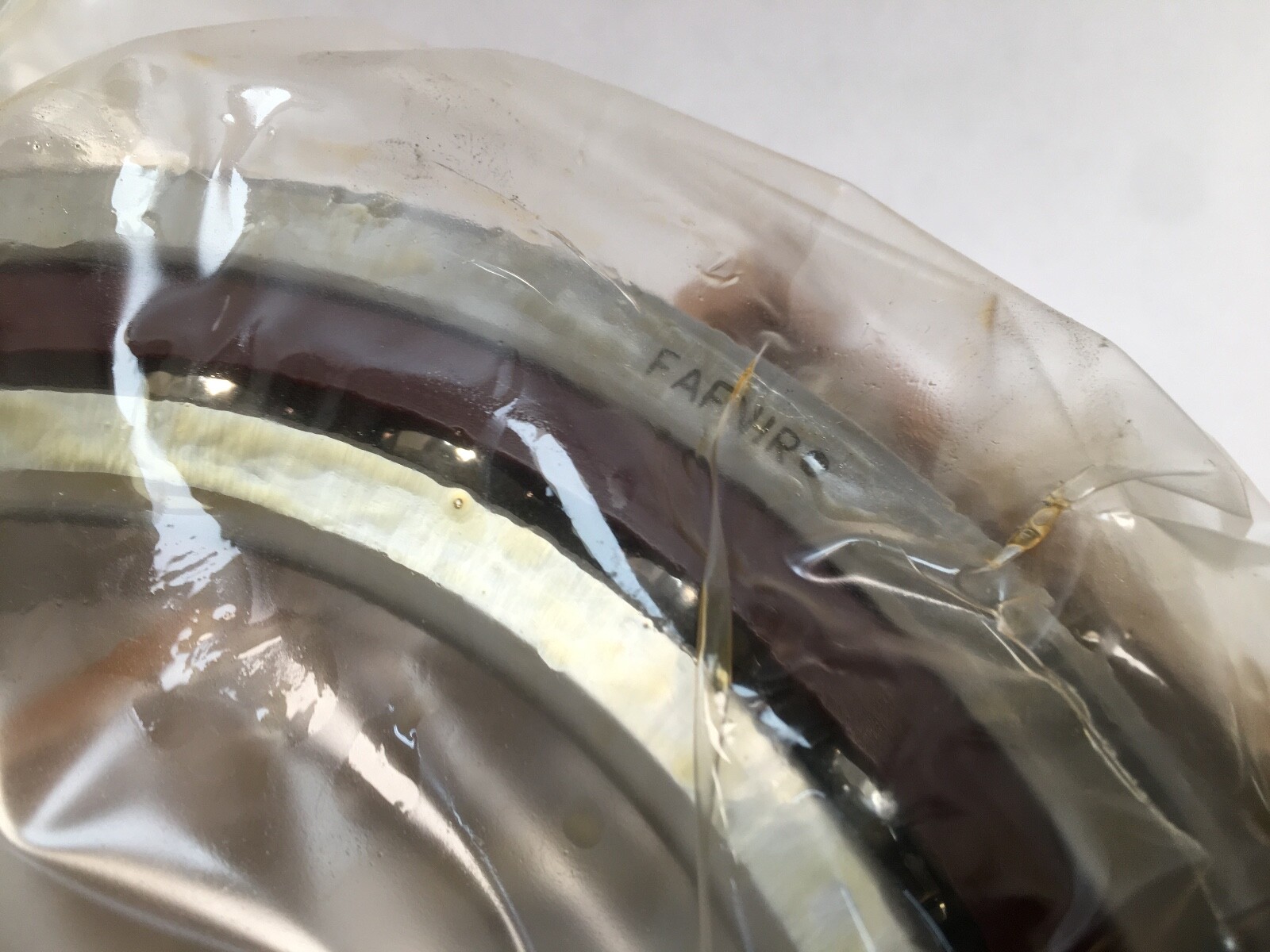

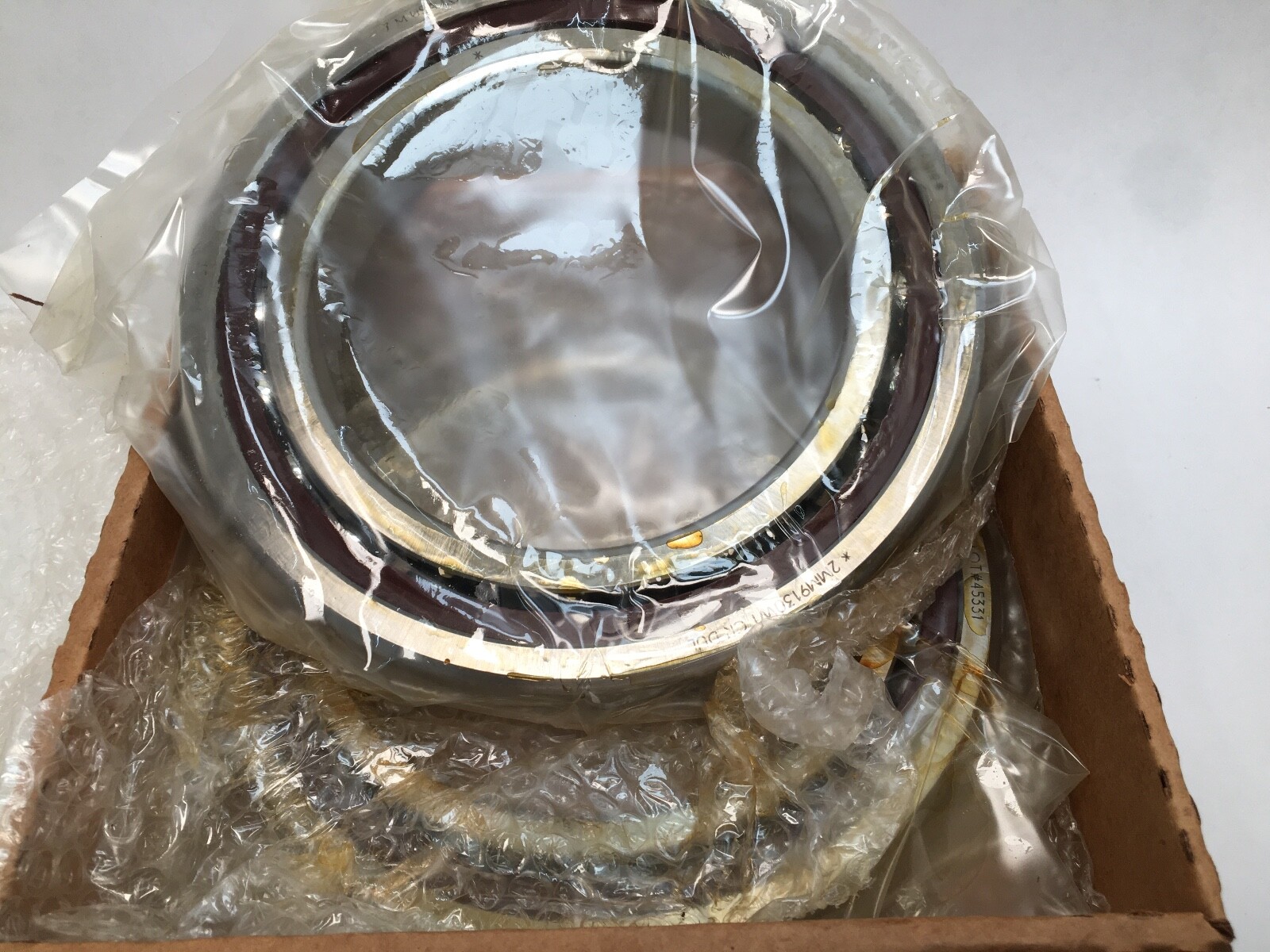

Fafnir 2MM9130WI-DUL super-precision angular contact ball bearing, supplied as a universally ground duplex pair. Bore Diameter: 150 mm (5.906 in). Outside Diameter: 225 mm (8.858 in). Overall Width: 35 mm (1.378 in) per bearing. Total Width: 70 mm across the mounted pair. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Preload: Light. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. The ISO size equivalent is 7030. Country of Origin: United States.

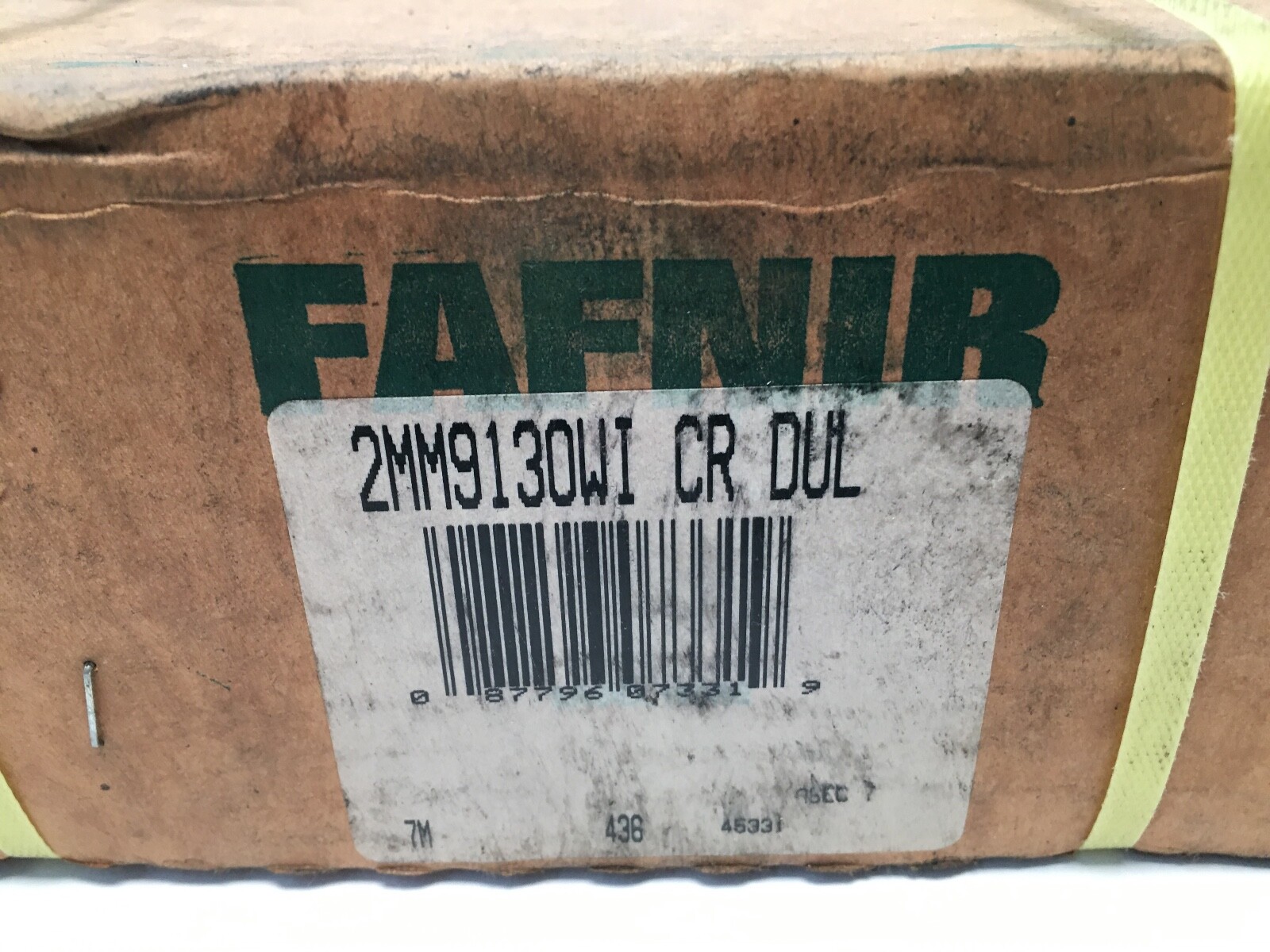

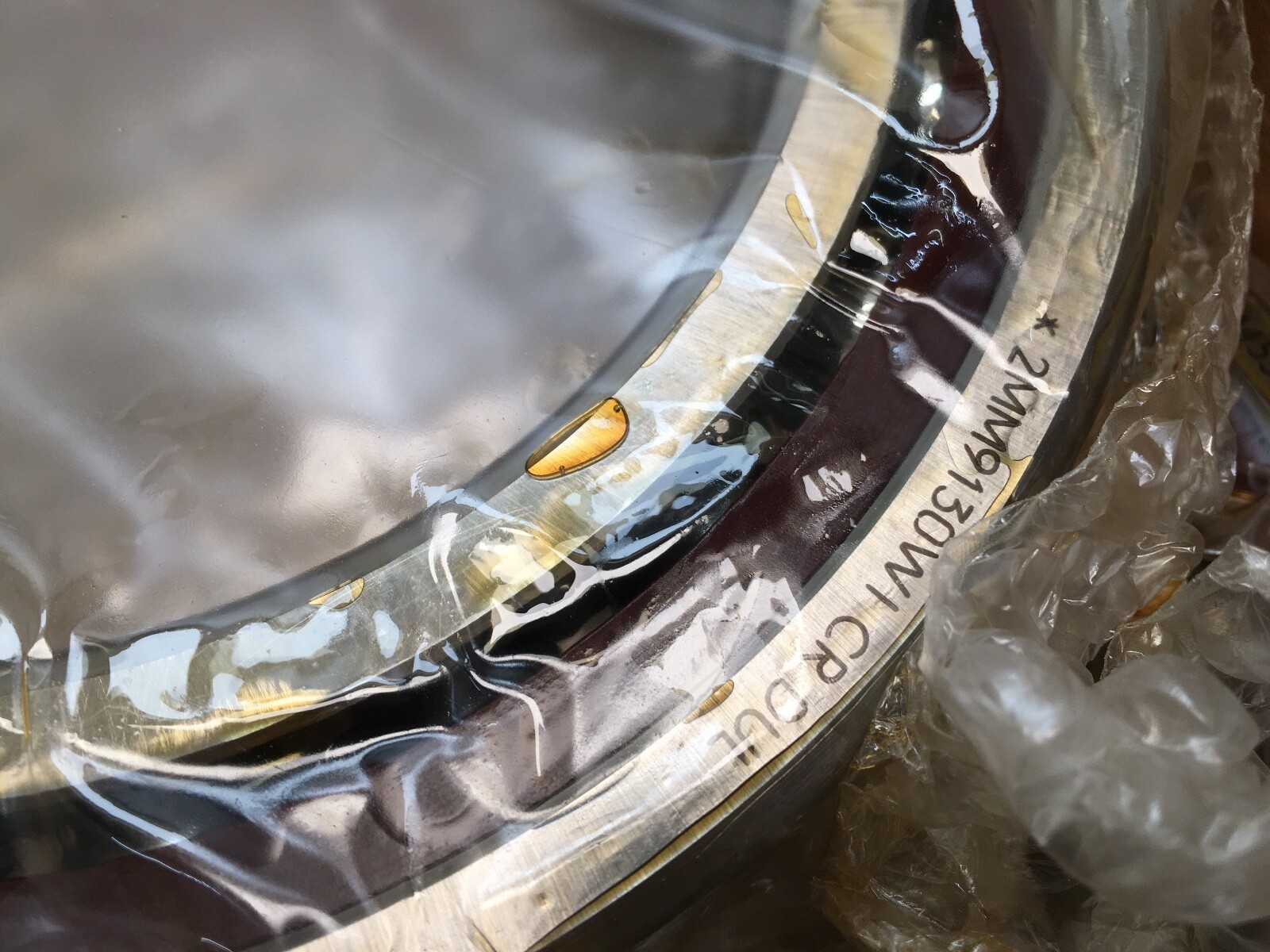

2MM — 15° contact angle, ABEC 7 / ISO P4 tolerance class.
9130 — Fafnir’s number for the ISO 7030 envelope, 150 x 225 x 35 mm.
WI — low shoulder on both rings, the duplex grinding form.
CR — one-piece machined phenolic cage.
DUL — duplex, universally ground, light preload. Two single-row bearings ground as a matched set. Not a double-row bearing.
A 15° contact angle puts most of the load path radial. That buys speed and radial stiffness, and it is the angle used on machine tool spindles where the cutting load is predominantly radial.
The phenolic cage is light, self-lubricating and quiet at speed. Phenolic is the standard cage material across the Fafnir super-precision spindle range.
ABEC 7 / P4 sets bore, outside diameter, width and running accuracy to ISO P4 tolerances.

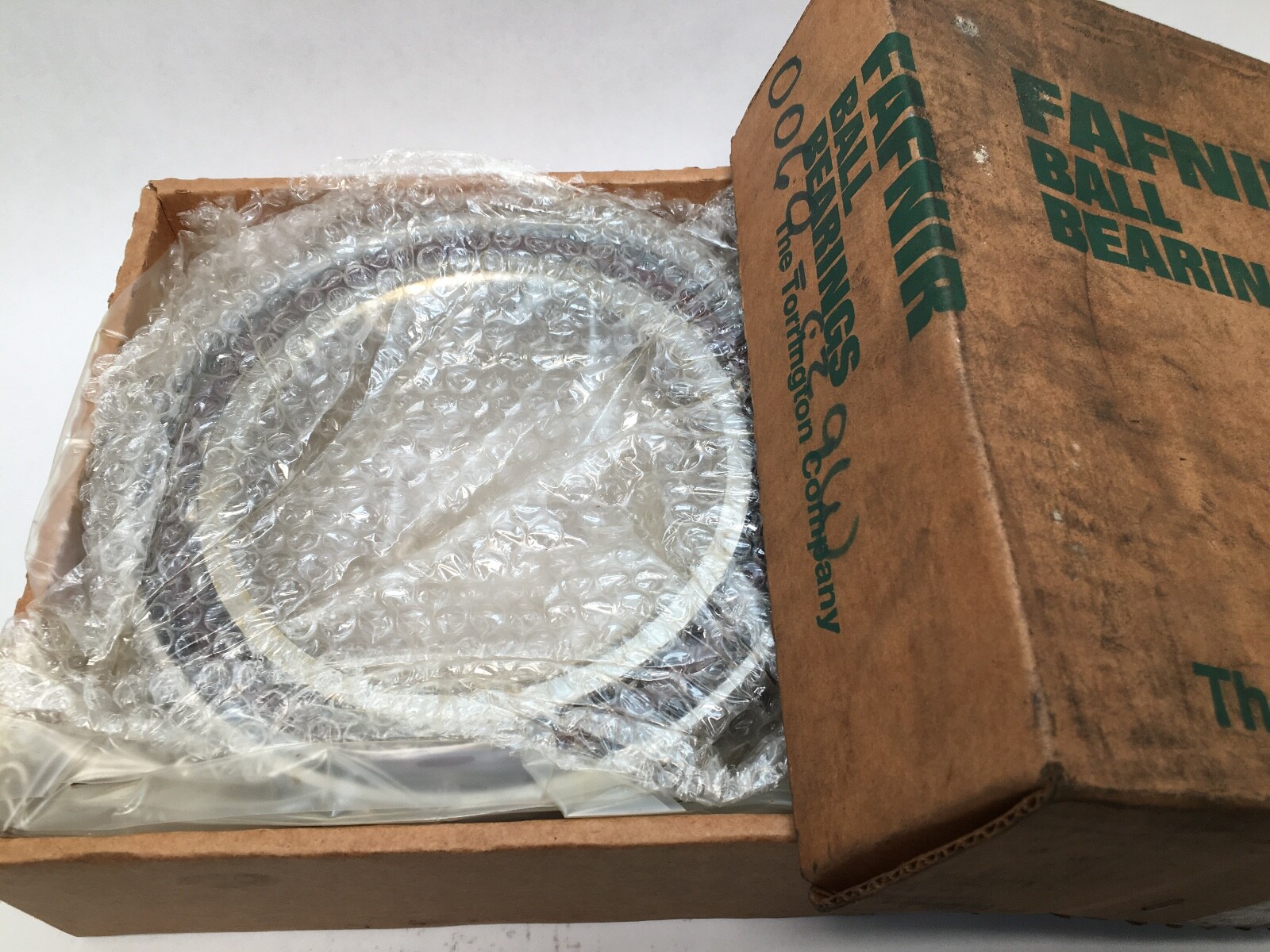

Unit Quantity: 2 Pcs. The two bearings are a factory-matched duplex set, universally ground so the pair stacks back-to-back (DB), face-to-face (DF) or in tandem (DT). Light preload is built into the ground ring faces; the pair runs preload-set and carries no internal clearance code.
Bore Diameter: 150 mm. Outside Diameter: 225 mm. Overall Width: 35 mm per bearing, 70 mm for the pair stacked. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1 per bearing.
Same envelope, 15° contact angle and super-precision class: SKF 7030 CD/P4ADGA, FAG B7030-C-T-P4S-UL, NSK 7030CTRDULP4, NTN 7030CDB/GLP4, RHP 7030CTDULP4, Koyo 7030CDB, SNR 7030CVDUJ74. The current Timken catalogue designation is 2MM9130WICRDUL.
GTIN: 087796255289.
