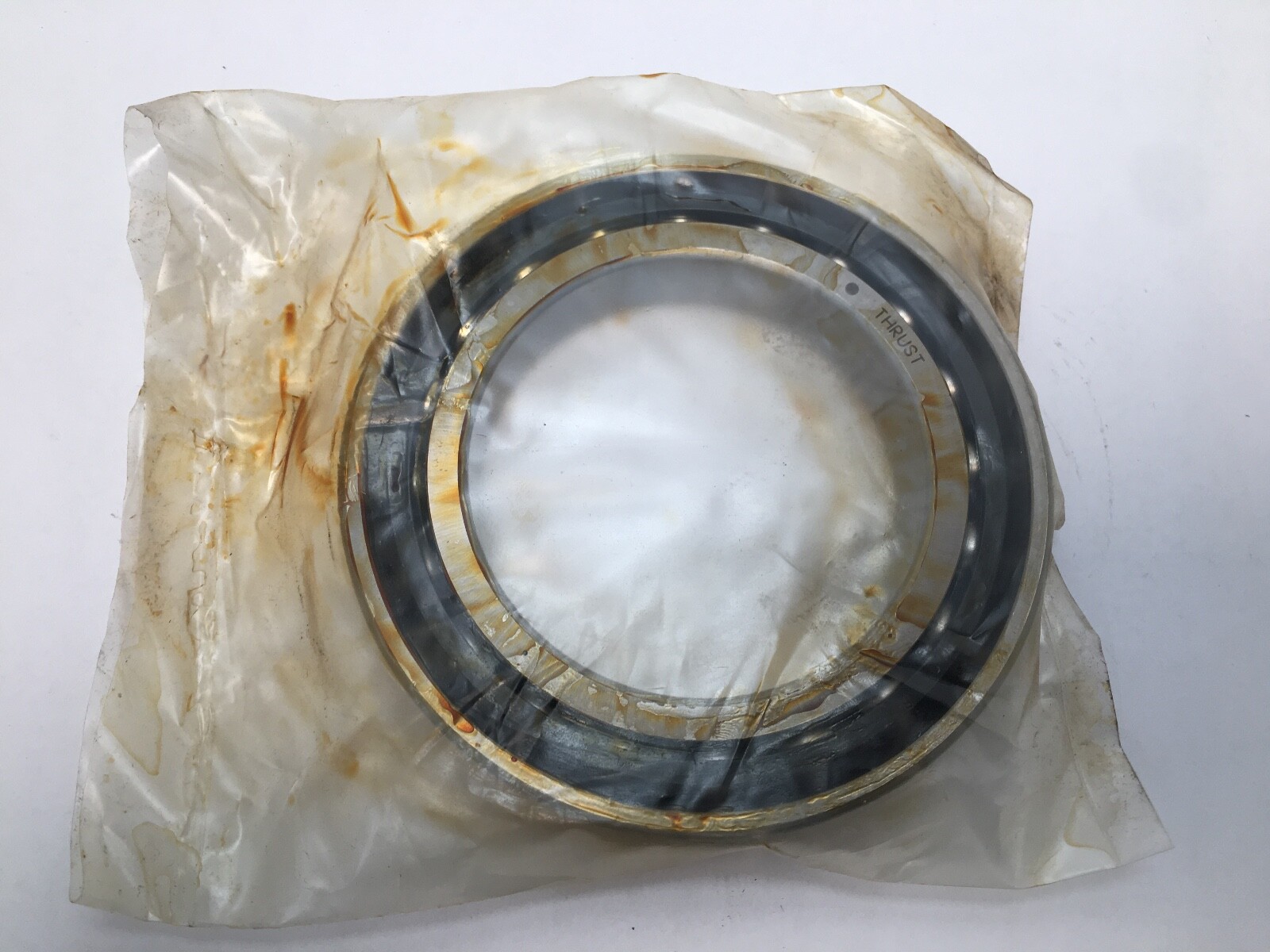

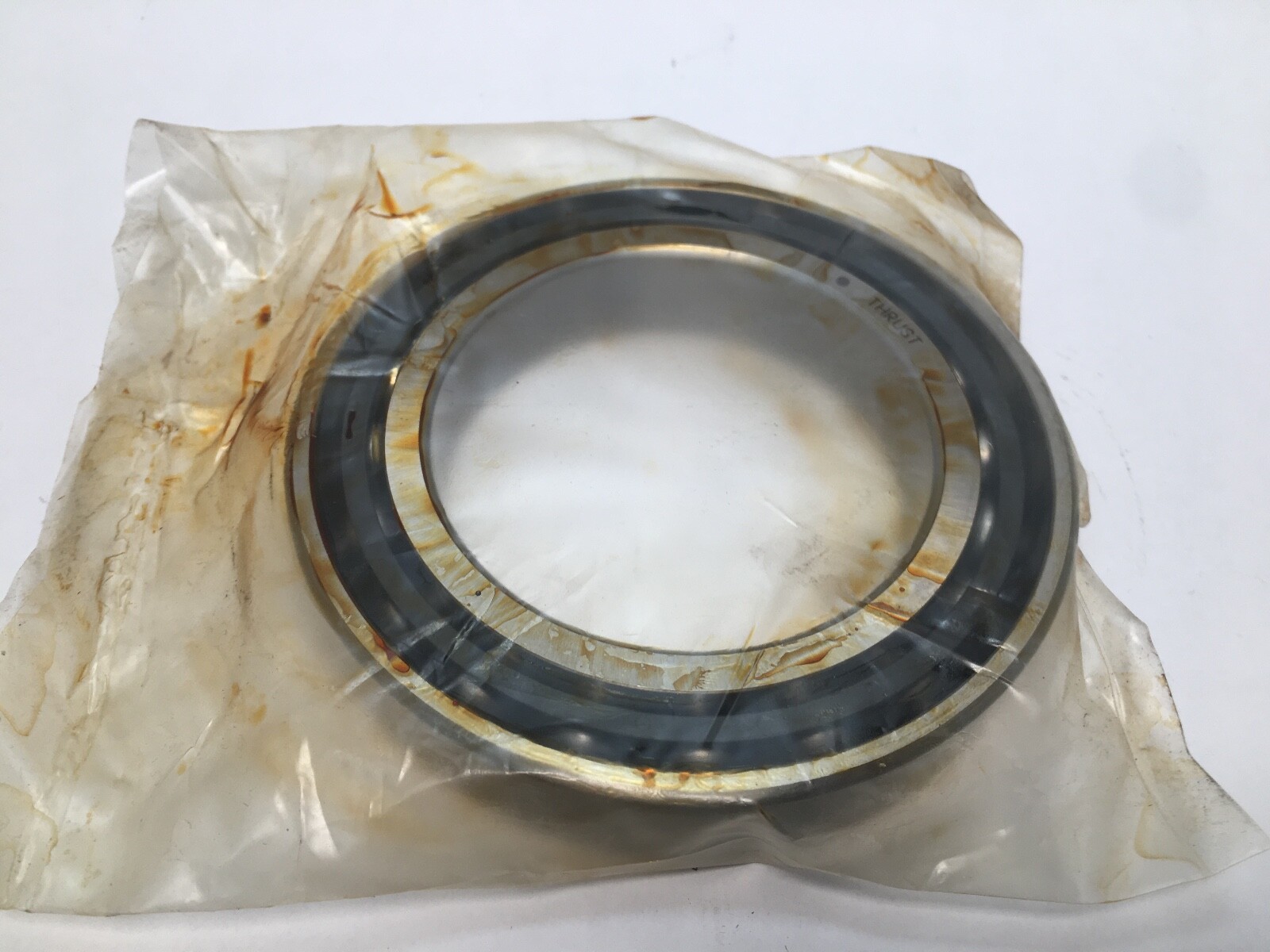

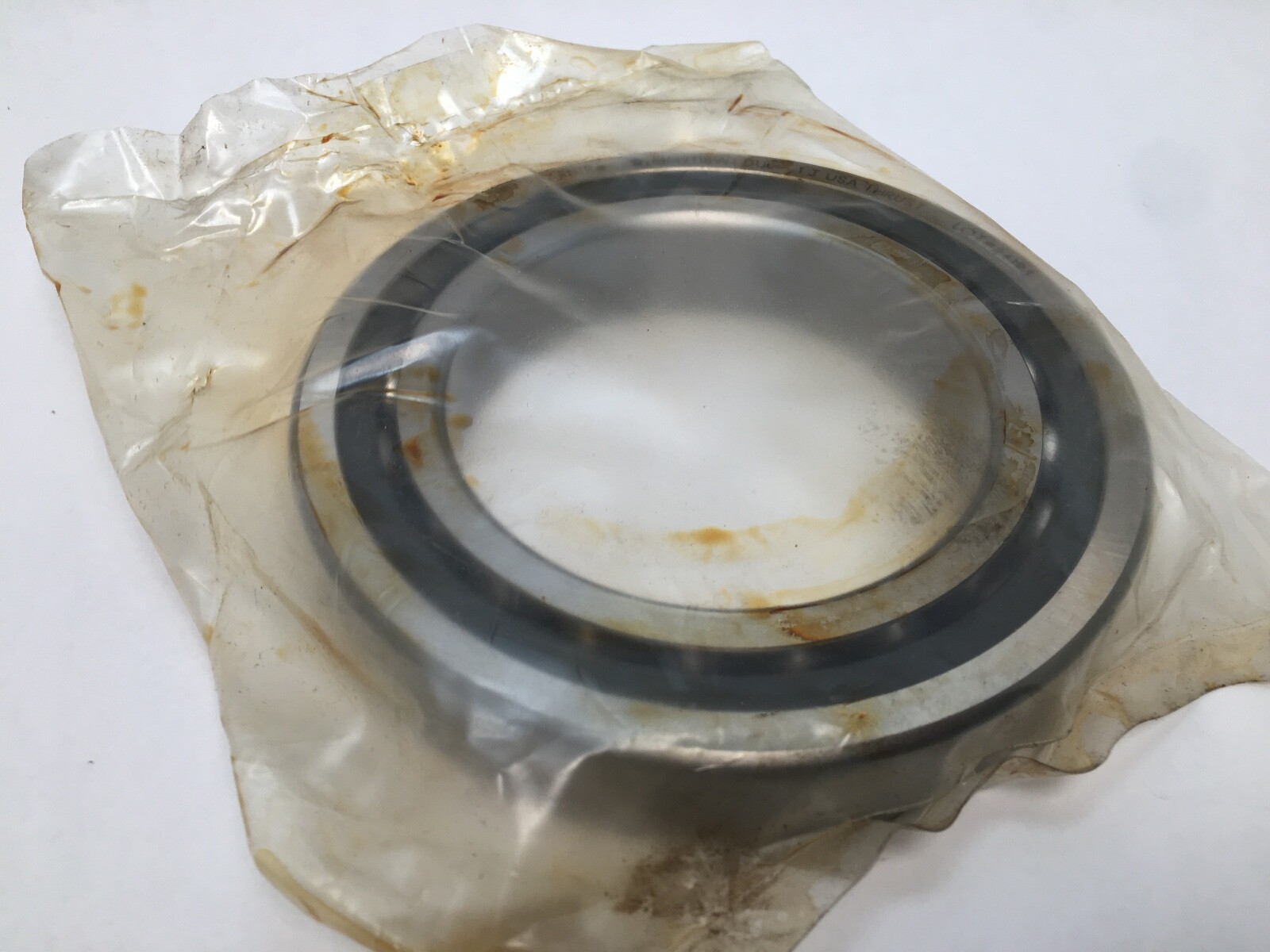

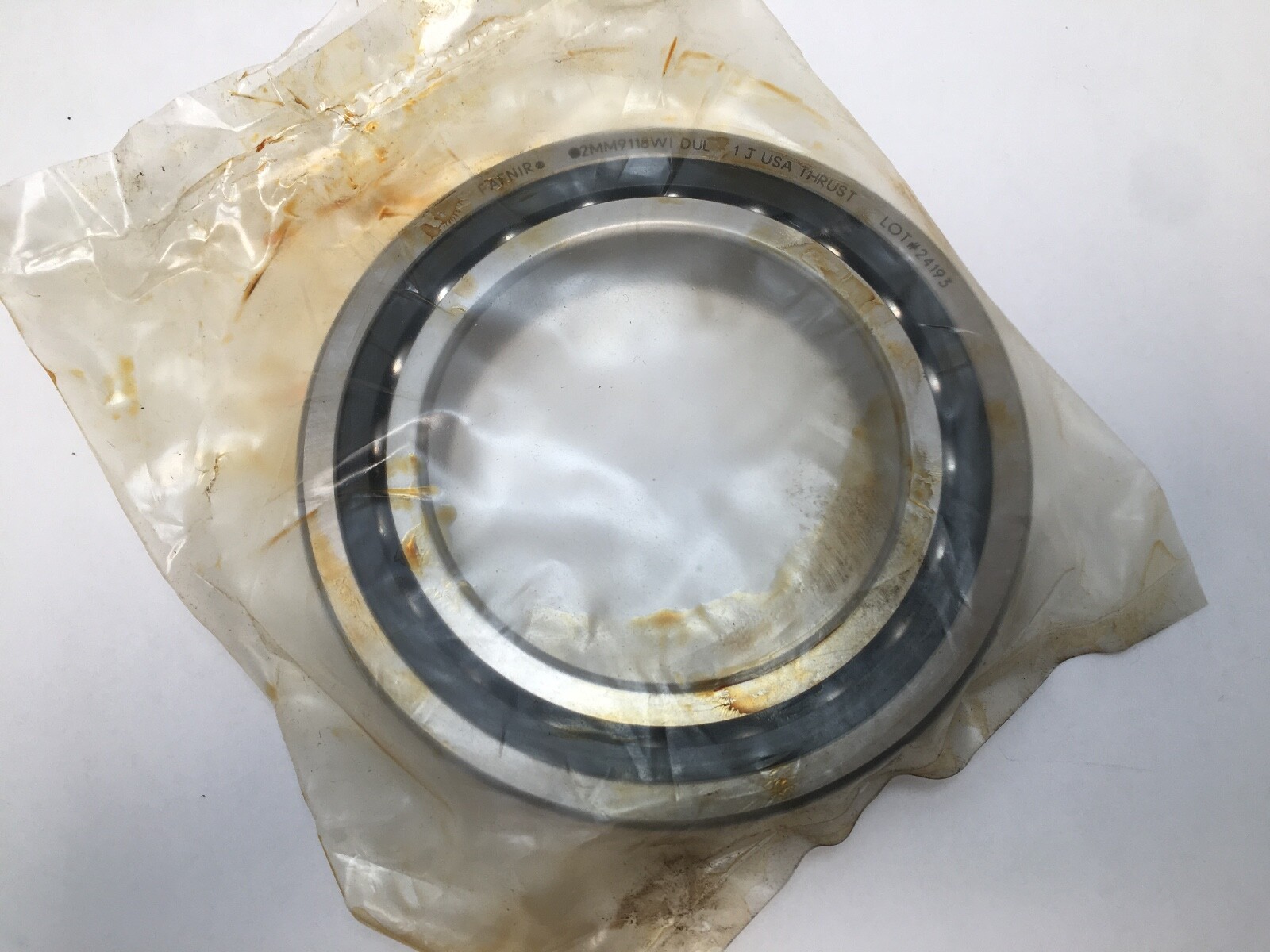

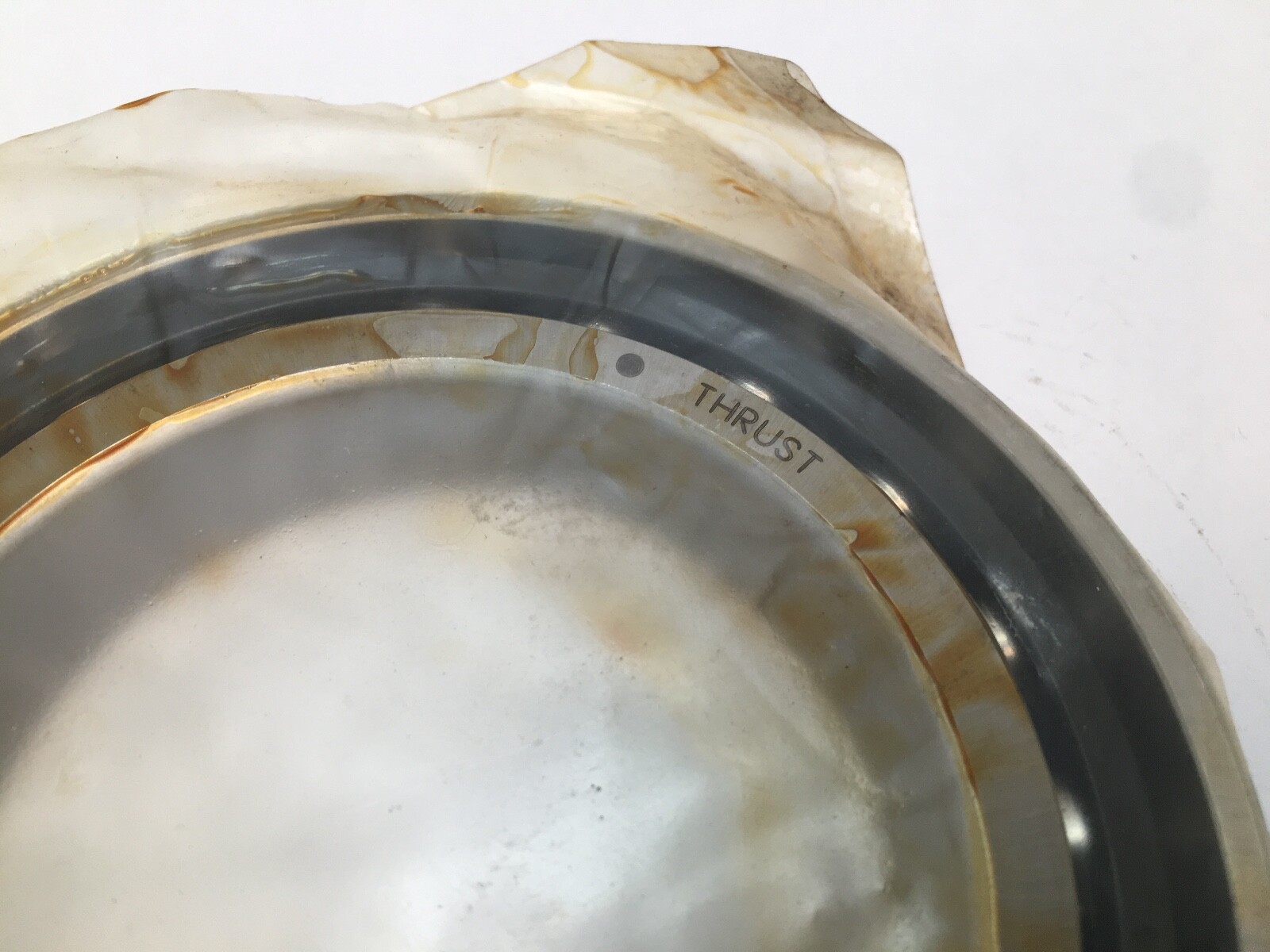

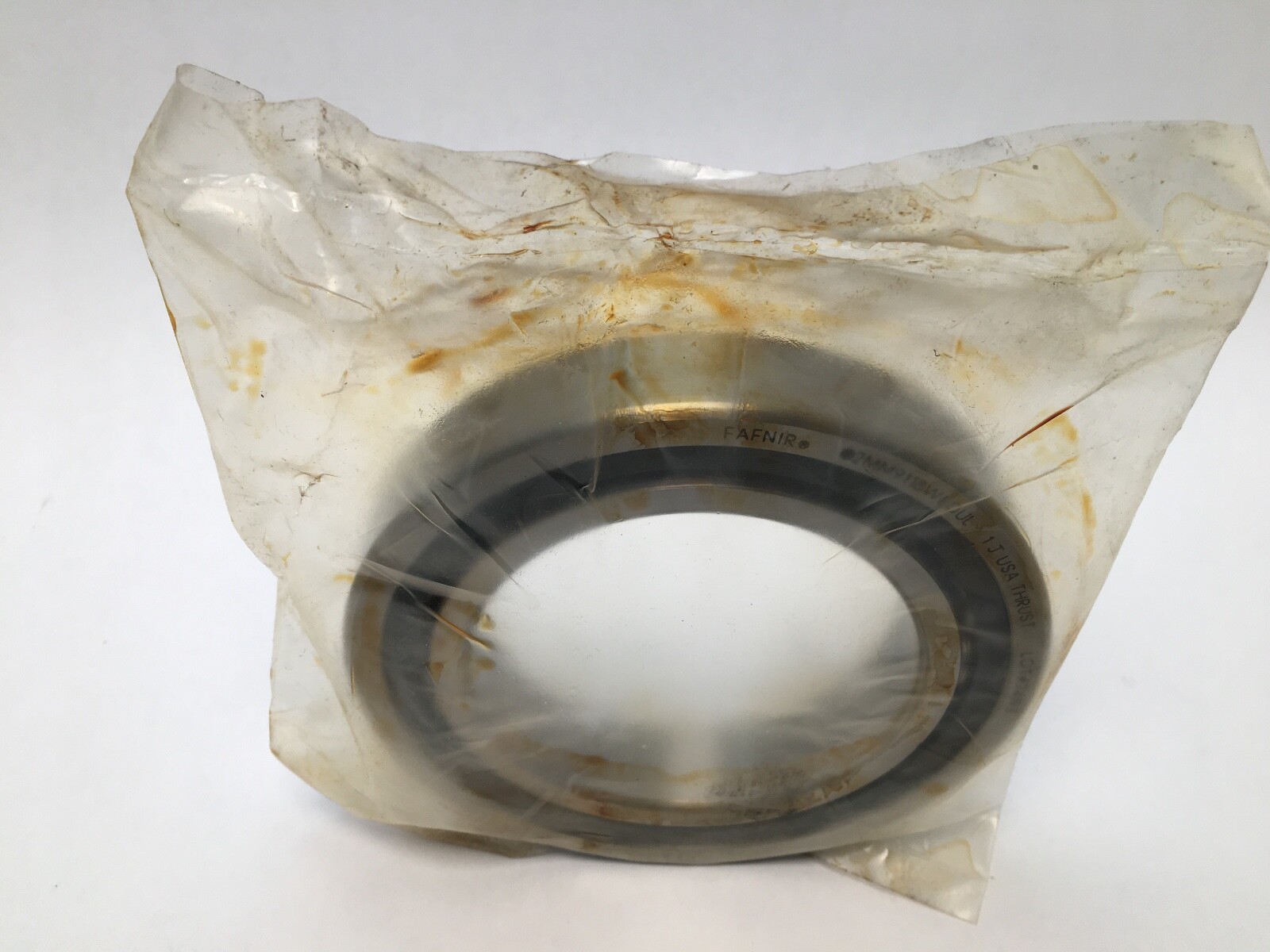

Super-precision angular contact ball bearing, 90 x 140 x 24 mm, 15° contact angle, light preload, phenolic outer-land-riding cage, ABEC 7/9.
List Price
$296.94
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9118WIDUM |
| Model | 118 7018 2MM 9118 WI DUM ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 140 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 |
| Condition | New |
| Lubricant | Oil |
| Preload | Light |
| Base Number | 2MM9118WI |
| Total Width | 24 mm |
| Bore Shaft Size | 90 mm |
| Mpn Variants | 2MM9118WI-SUL, 2MM9118WISUL, 2MM9118WICRSUL, 2MM-9118-WI-CR-SUL, 2MM9118WI DUL |
| Arrangement Configuration | Single universally ground |
| Precision Class | ABEC 7/9 (ISO P4S) |
| Dynamic Load Rating C1 | 79,600 N |
| Additional Attributes | Ball type: steel. Shaft backing shoulder diameter: 99.7 mm. Housing backing shoulder diameter: 130.9 mm. Maximum shaft fillet radius: 1.5 mm. Outer ring to-clear radius: 1.5 mm. ISO dynamic radial rating per row: 72,200 N. |
| Cage Type | CR – Phenolic Outer Land Riding Cage |
| Dynamic Load Rating | 79,600 N |
| Static Load Rating | 68,900 N |
| Precision Rating | ISO P4S (ABEC 7/9) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Limiting Speed | 9,200 rpm grease / 18,400 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally ground single – stackable back-to-back, face-to-face or tandem |
| Bearing Material | Chrome steel |
| Cross Reference 1 | 7018C-T-P4S-SUL |
|---|

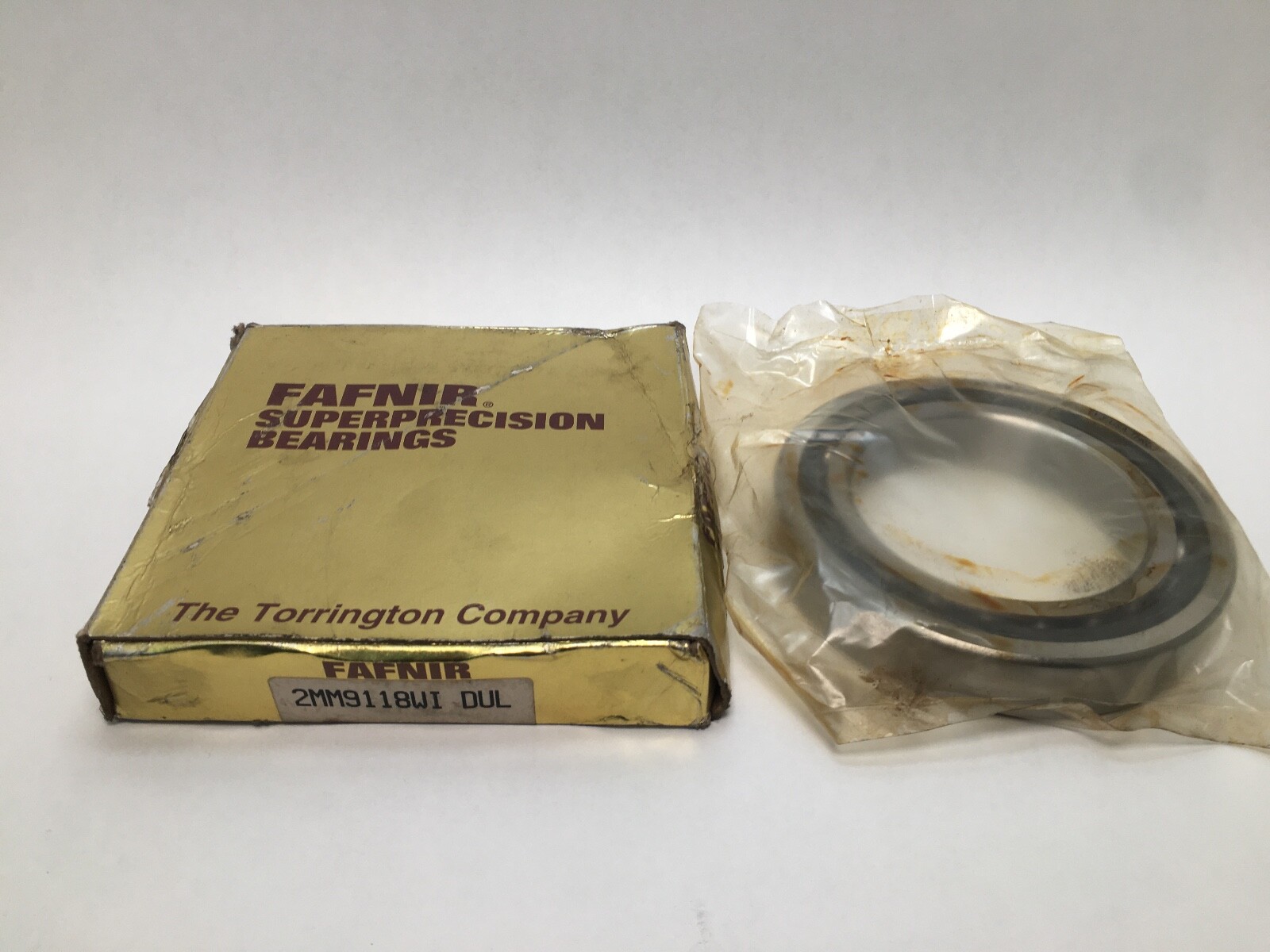

Fafnir 2MM9118WI-SUL super-precision angular contact ball bearing, built by Timken. Bore: 90 mm. Outside Diameter: 140 mm. Bearing Width: 24 mm. Total Width: 24 mm. Contact Angle: 15°. Precision Class: ISO P4S (ABEC 7/9). Preload: Light. Cage Material: Phenolic. Cage Type: outer-ring land riding, machined. Rolling Elements: steel balls. Closure Type: Open. Number of Rows: 1. Series: 9100. Bore Type: Straight.
2MM — Fafnir super-precision spindle execution at a 15° contact angle, ground to ISO P4S.
9118 — the 9100WI size series, ISO 7018 envelope, 90 x 140 x 24 mm.
WI — low shoulder on both rings.
CR — phenolic outer land riding cage.
SUL — single universally ground bearing, light preload. Faces are ground so any two pieces of the same number stack to the rated preload in any arrangement.
Dynamic Radial Load Rating (C1): 79,600 N. Static Radial Load Rating (C0): 68,900 N. ISO dynamic radial rating per row: 72,200 N. Limiting Speed: 9,200 rpm on grease, 18,400 rpm on oil. Lubricant: grease or oil.
A 15° contact angle favours speed and radial stiffness over thrust capacity. Light preload is the setting for the highest running speed and the lowest heat generation of the three grades, which is the usual choice for a grinding or high-speed milling spindle. The phenolic cage is light, tolerates high surface speed and holds oil in its fabric base.
Unit Quantity: 1 Pc. Single universally ground bearing, mountable alone or stacked with further pieces of the same number back-to-back, face-to-face or in tandem.
Shaft Backing Shoulder Diameter: 99.7 mm. Housing Backing Shoulder Diameter: 130.9 mm. Maximum Shaft Fillet Radius: 1.5 mm. Outer Ring To-Clear Radius: 1.5 mm.

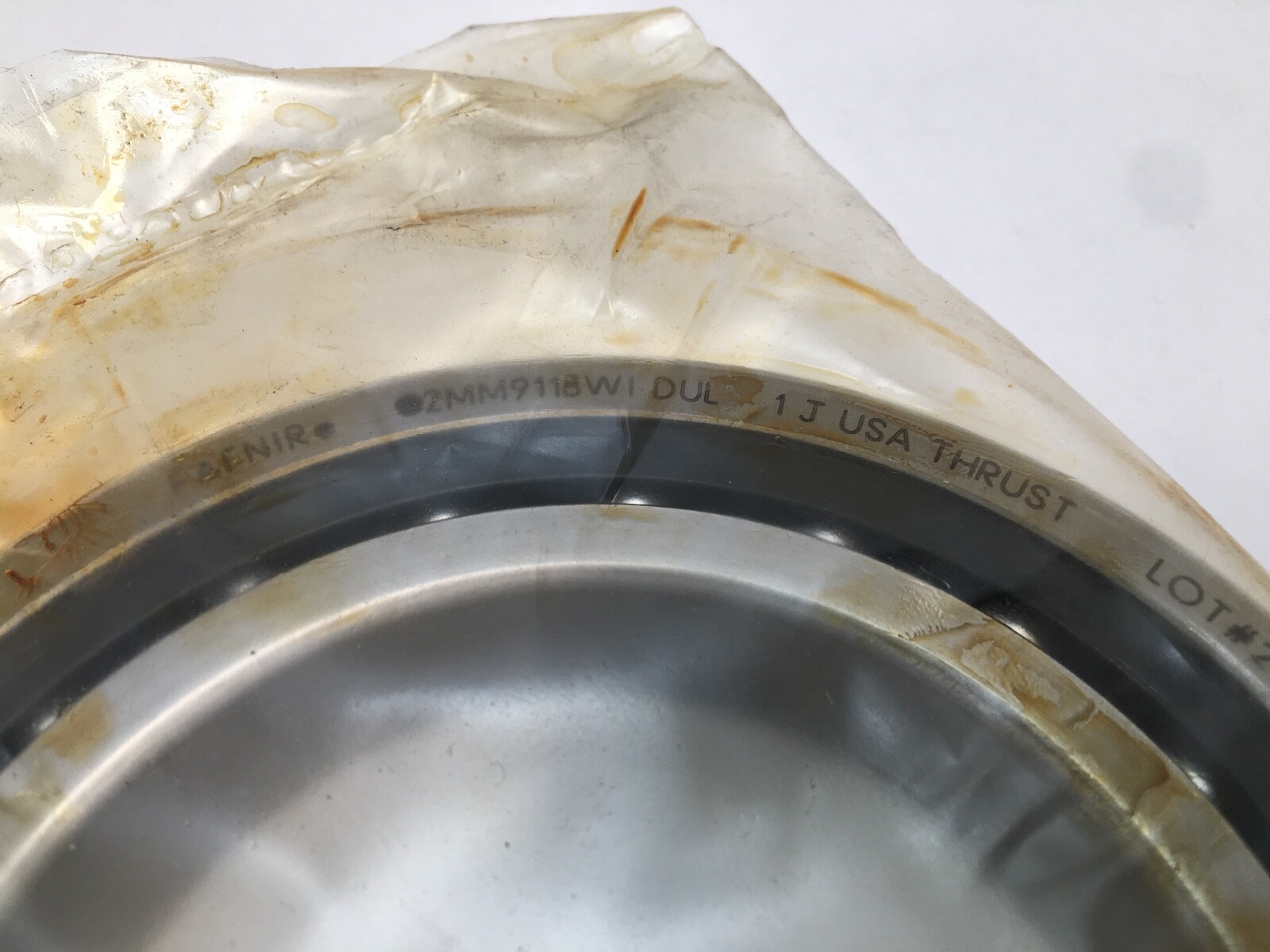

Timken world part number: 7018C-T-P4S-SUL. Manufacturing part number: 2MM9118WI SUL. The same bearing is written 2MM9118WISUL, 2MM-9118-WI-CR-SUL and 2MM9118WICRSUL.
