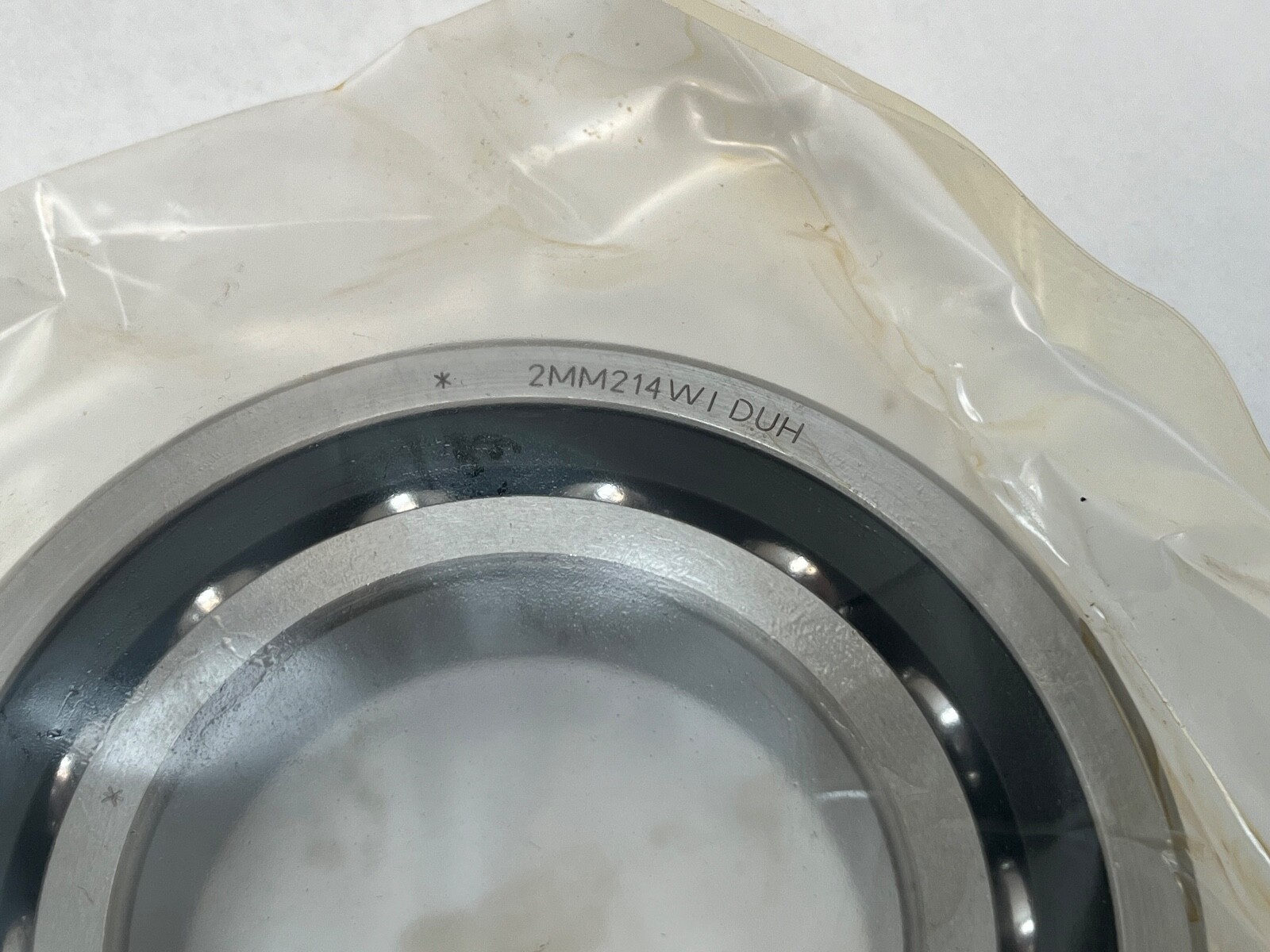

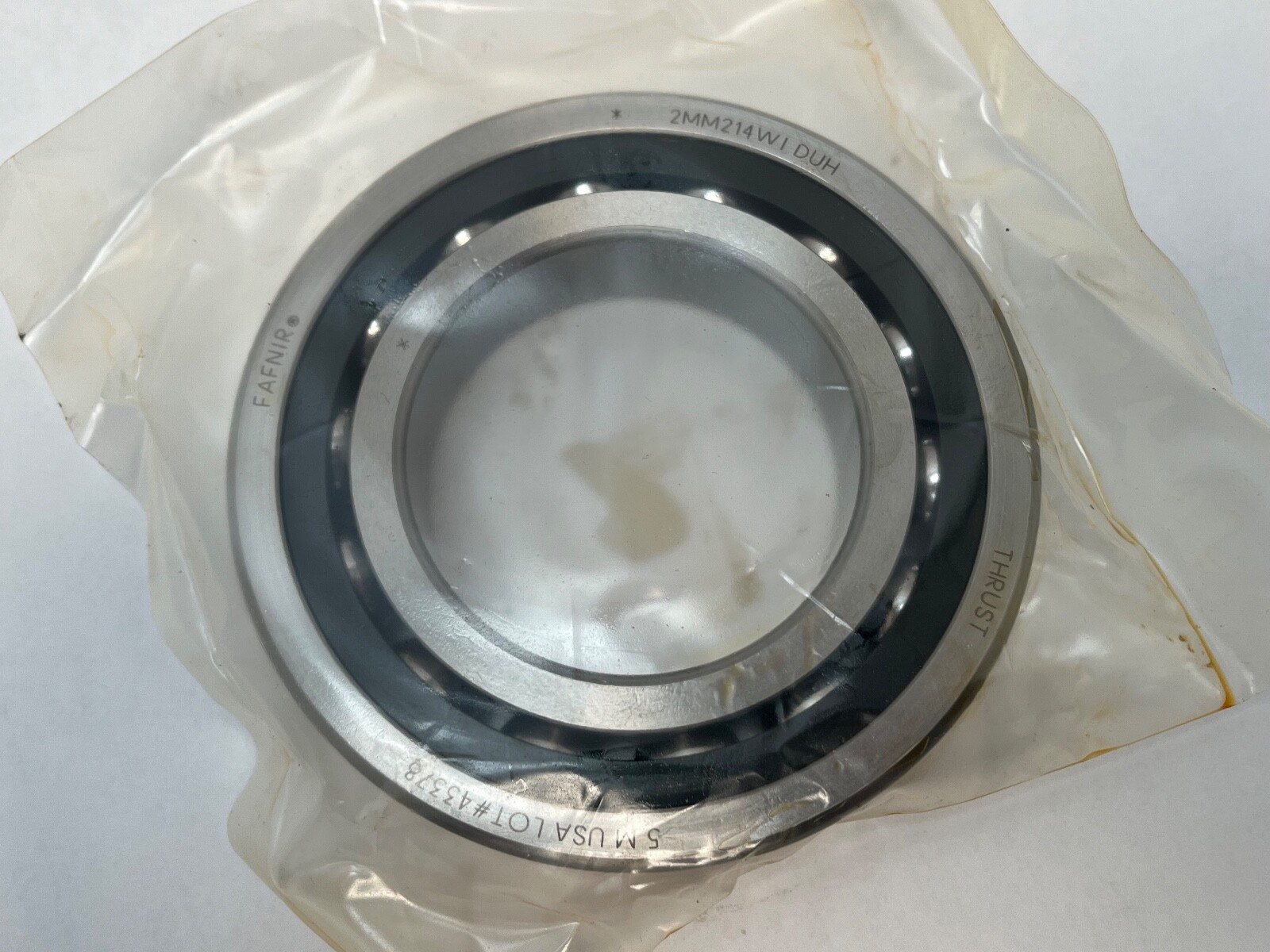

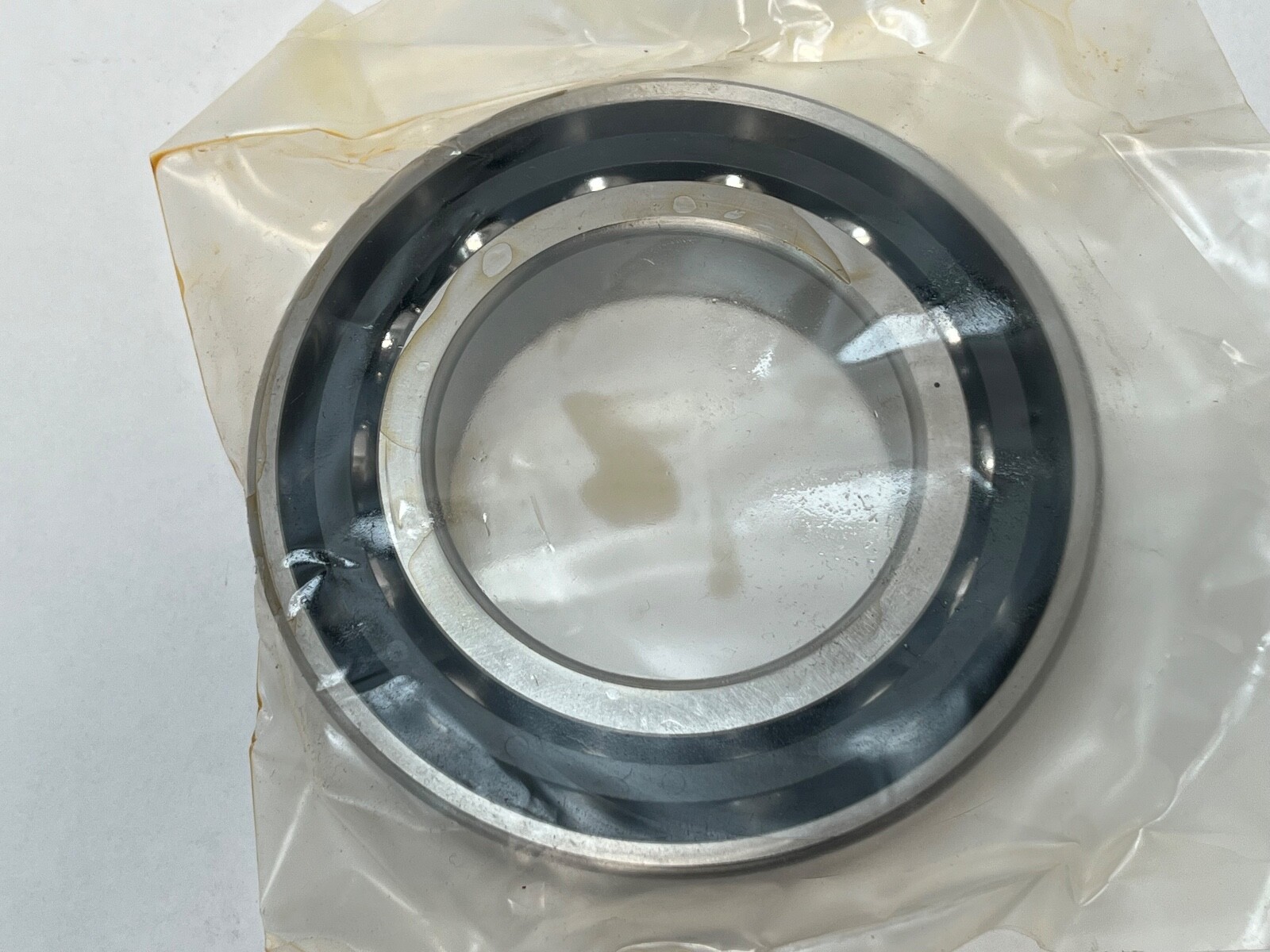

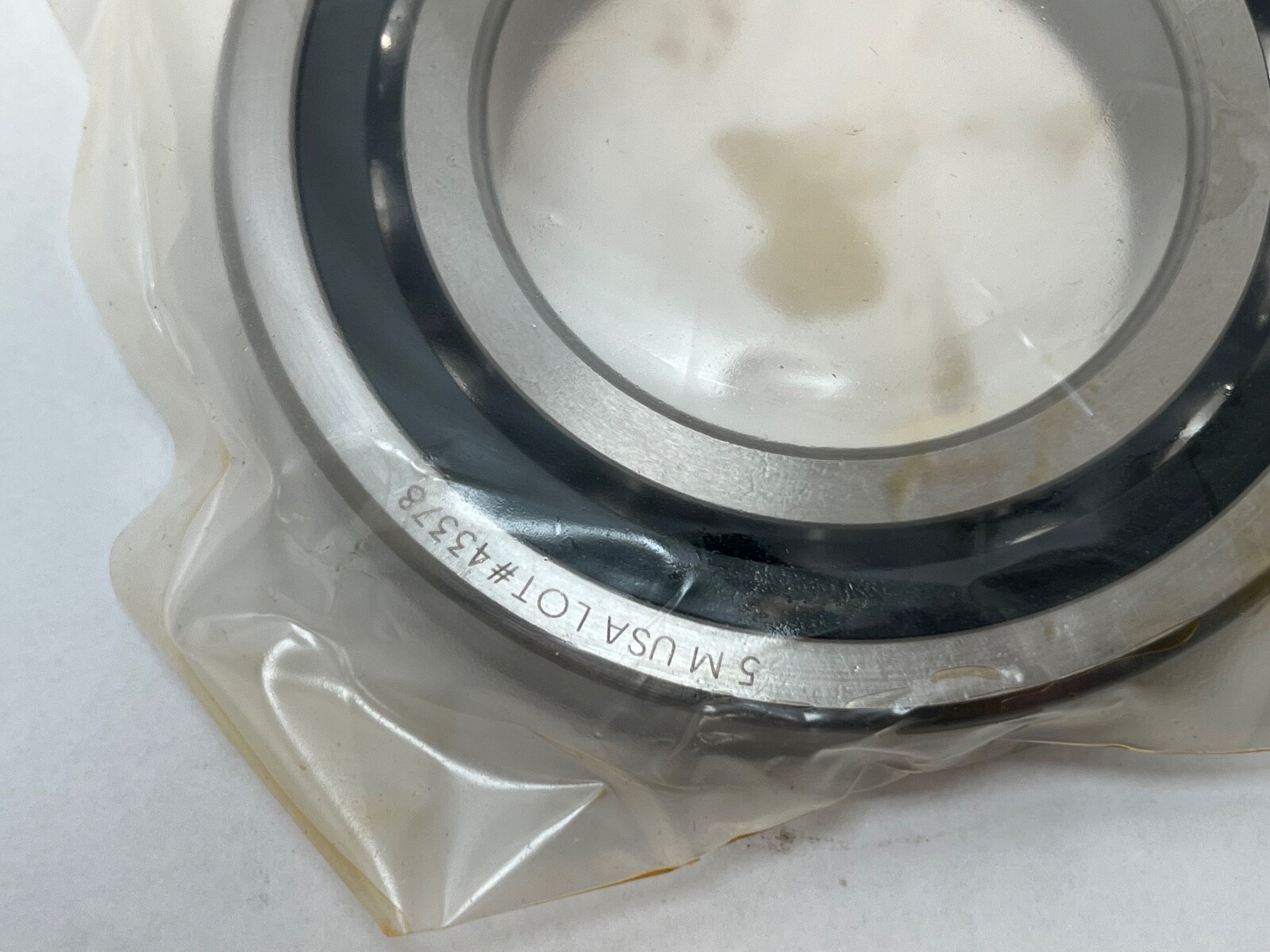

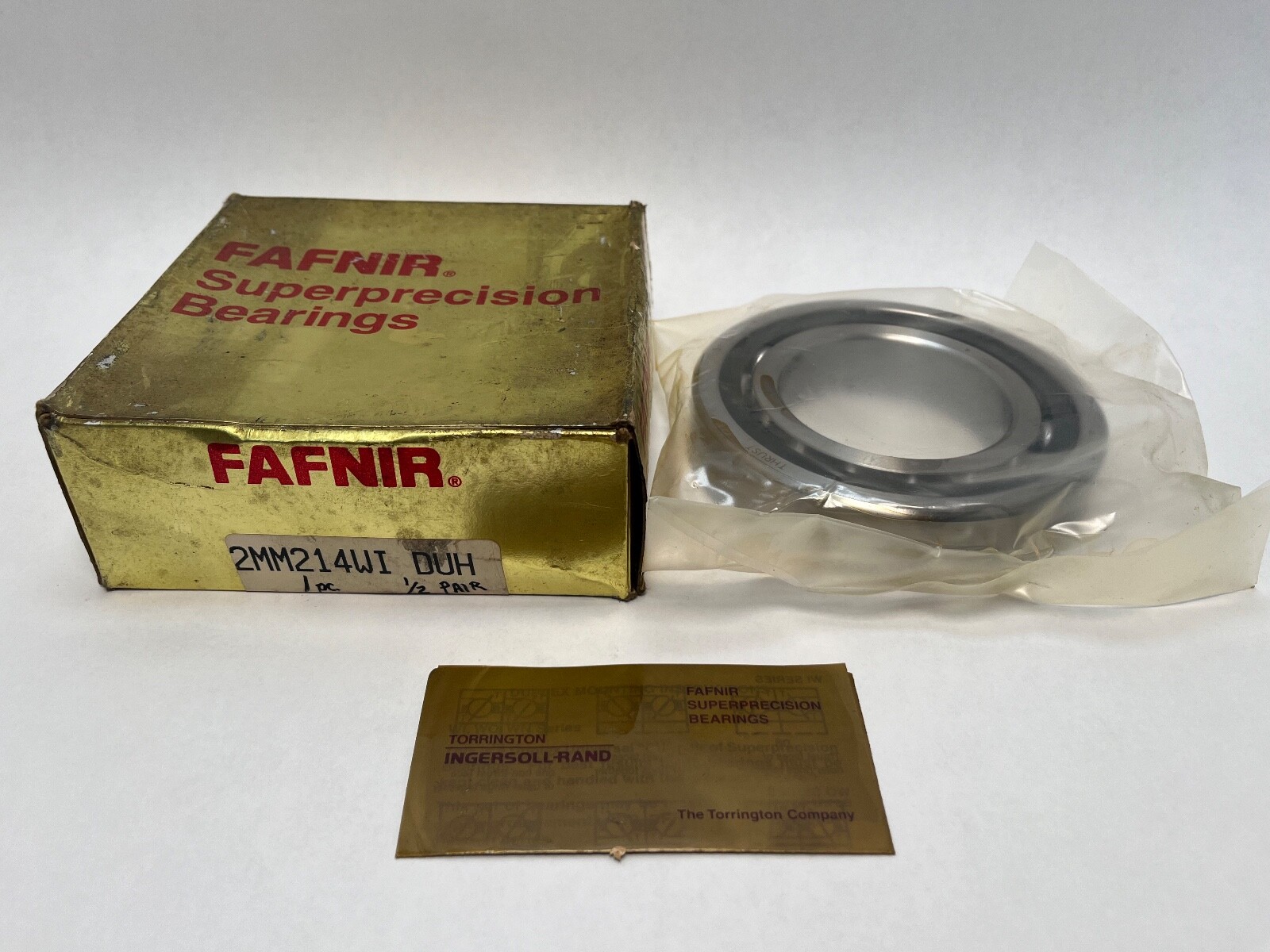

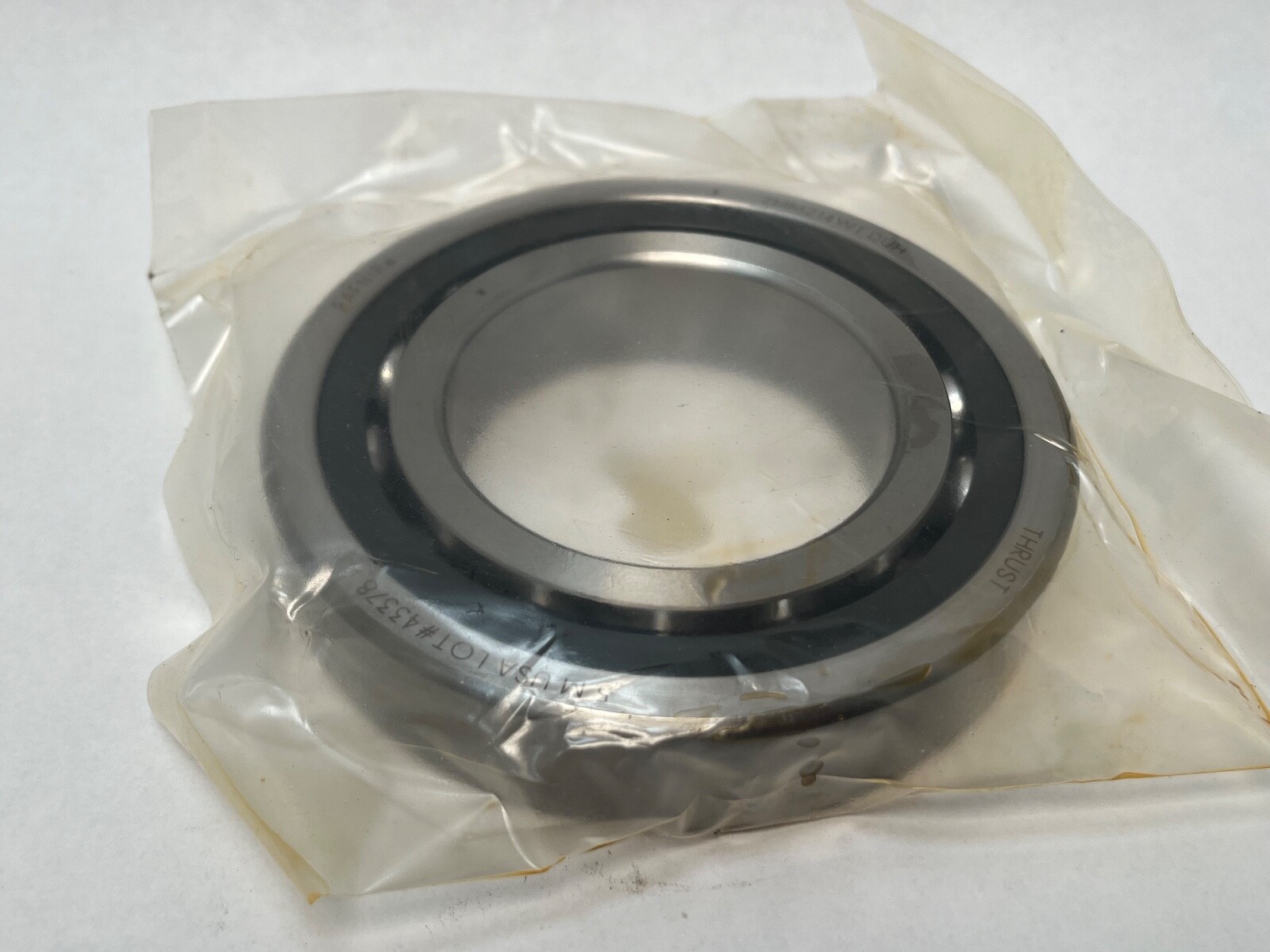

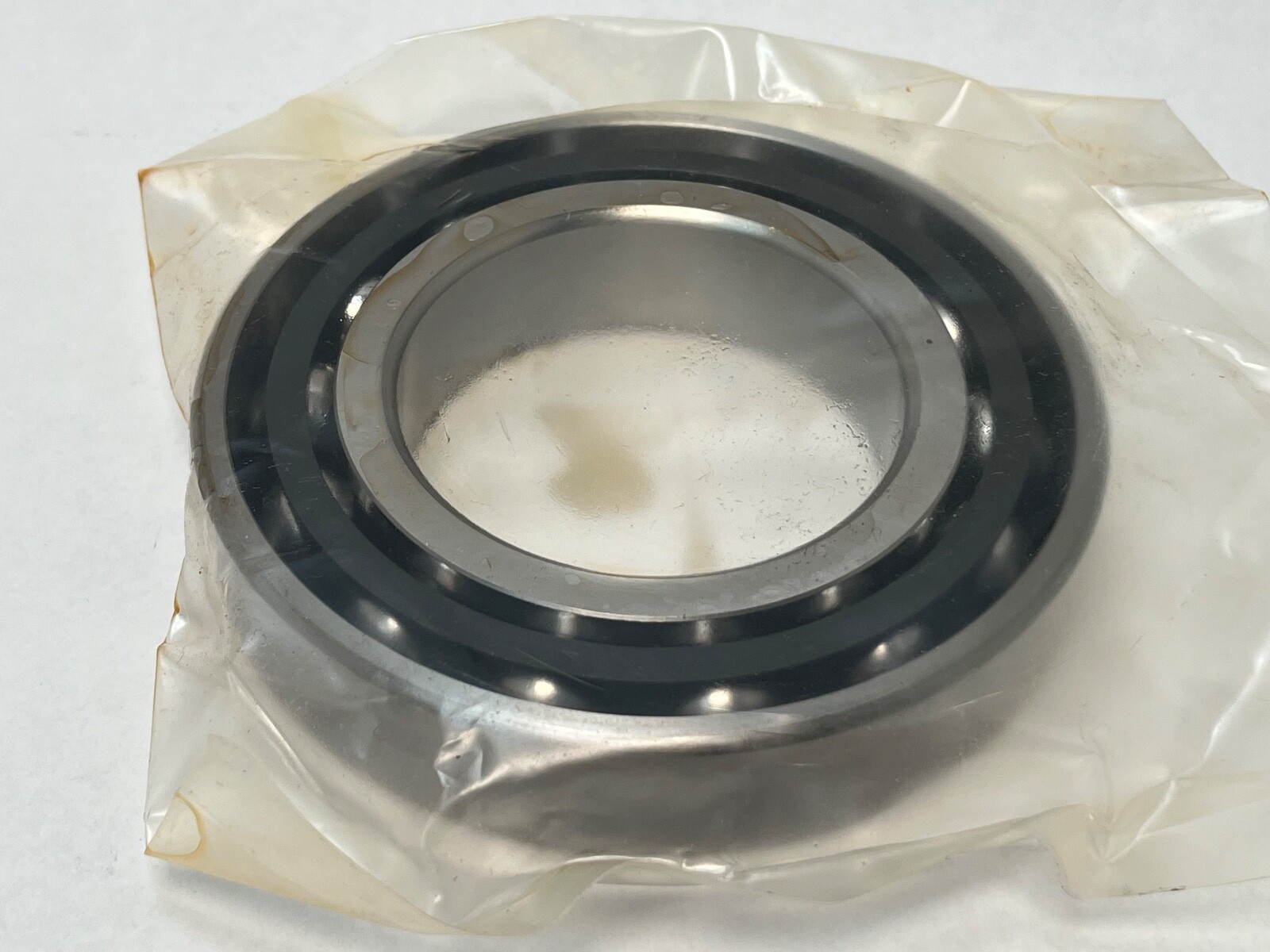

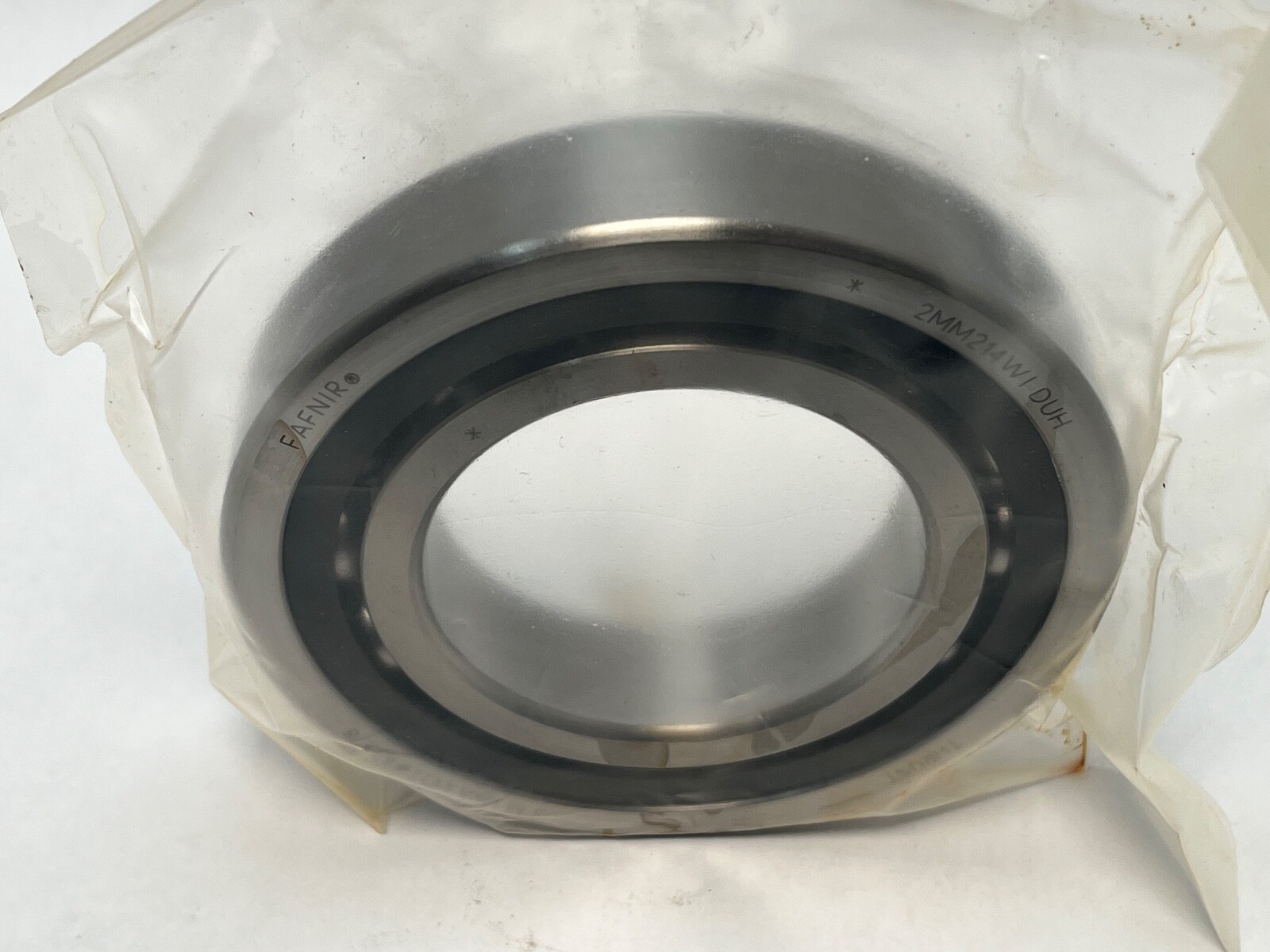

Fafnir2MM214WI SUHSuper Precision Angular Contact Ball Bearing 70 x 125 x 24 mm 15 Degree ABEC 7 Heavy Preload Phenolic Cage

Condition: New

Availability:

1 in stock

Fafnir 2MM214WI-SUH super-precision angular contact ball bearing, 70 x 125 x 24 mm, 15 degree contact angle, heavy preload, phenolic cage, ABEC 7. 1 Pc.

List Price

$190.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFafnir
MPN2MM214WI SUH
GTIN087796070851
Model2 MM 214 WI DUH / 7214 C T DUH P4
Bearing TypeAngular Contact Ball Bearing, Open
ID70 mm
OD125 mm
Width24 mm

Technical Specifications

MaterialBearing Steel
Series2MM200
PreloadHeavy
Unspsc31171504
Base Number7214
Industry Termsspindle bearing, machine tool bearing, super precision bearing, precision angular contact ball bearing, heavy preload spindle bearing
Common MisspellingsFafner 2MM214WI, Faffnir 2MM214WI, Fafnier 2MM214WI, 2MM214W1, 2M214WI, 2MM2I4WI SUH
Application TypesMachine tool spindles, grinding spindles, milling heads, high-speed gearboxes
Bore Shaft Size70 mm (2.7559 in)
Mpn Variants2MM214WI-SUH, 2MM214WISUH, 2MM-214-WI-SUH, 2MM 214 WI SUH, 2MM214WI, 2MM-214-WI-CR-SUH, 2MM214WICRSUH, 2MM214WI-DUH
Precision ClassABEC 7 / P4
Precision RatingABEC 7 / P4
Rolling ElementsBall
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.5028
Contact Angle15°
Part Number2MM214WI-SUH

Cross-References

Cross Reference 1SKF 7214 CD/P4A - P4A class
Cross Reference 2FAG B7214-C-T-P4S-UH - P4S vs P4
Seller Part Number: B-AO2B3#N5TJJI

Product Description

What this part is:

Fafnir 2MM214WI-SUH single-row super-precision angular contact ball bearing in the Fafnir 200WI spindle series. Single bearing, universally ground. Unit Quantity: 1 Pc. GTIN: 087796070851.

Decoding the designation:

2MM — 15° contact angle, Fafnir super-precision spindle bearing.

MM — P4 tolerance class, ABEC 7.

214 — 200 dimension series, bore code 14, giving a 70 mm bore.

WI — spindle angular contact ball bearing, universally ground faces.

SU — single bearing, universally ground for matching.

H — heavy preload.

Specifications:

Contact Angle: 15°. Precision Class: ABEC 7 / ISO P4. Preload: Heavy (H). Number Of Rows: 1. Cage Material: Phenolic. Rolling Elements: Ball. Closure Type: Open, both faces. Bore Type: Straight. Arrangement / Configuration: SU, single, universally ground; stackable back-to-back, face-to-face or in tandem with matching bearings of the same designation. Series: 200WI.

Dimensions and mounting:

Bore Diameter: 70 mm (2.7559 in). Outside Diameter: 125 mm (4.9213 in). Overall Width: 24 mm (0.9449 in). ISO Size: 7214 C.

Compatibility and replacement:

Cross-references: SKF 7214 CD/P4A (P4A class); FAG B7214-C-T-P4S-UH (P4S vs P4). Both 15° single universally ground bearings. MPN variants: 2MM214WI-SUH, 2MM214WISUH, 2MM-214-WI-SUH, 2MM 214 WI SUH, 2MM214WI, 2MM-214-WI-CR-SUH, 2MM214WICRSUH, 2MM214WI-DUH.

Frequently asked questions:

What size is the Fafnir 2MM214WI-SUH?

Bore Diameter: 70 mm (2.7559 in). Outside Diameter: 125 mm (4.9213 in). Overall Width: 24 mm (0.9449 in).

What are the contact angle and preload?

Contact Angle: 15°. Preload: Heavy (H).

What is the GTIN?

GTIN: 087796070851.
