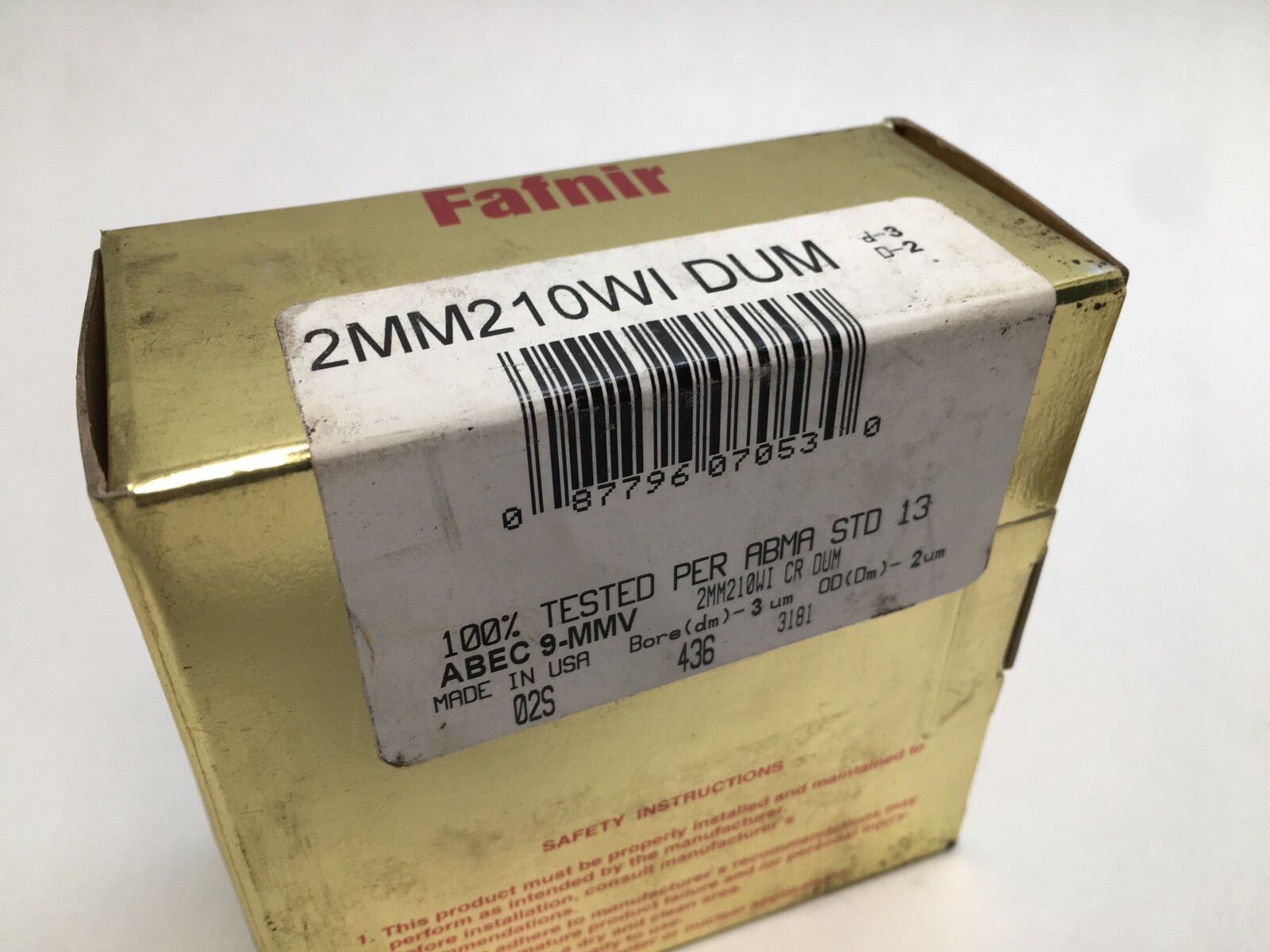

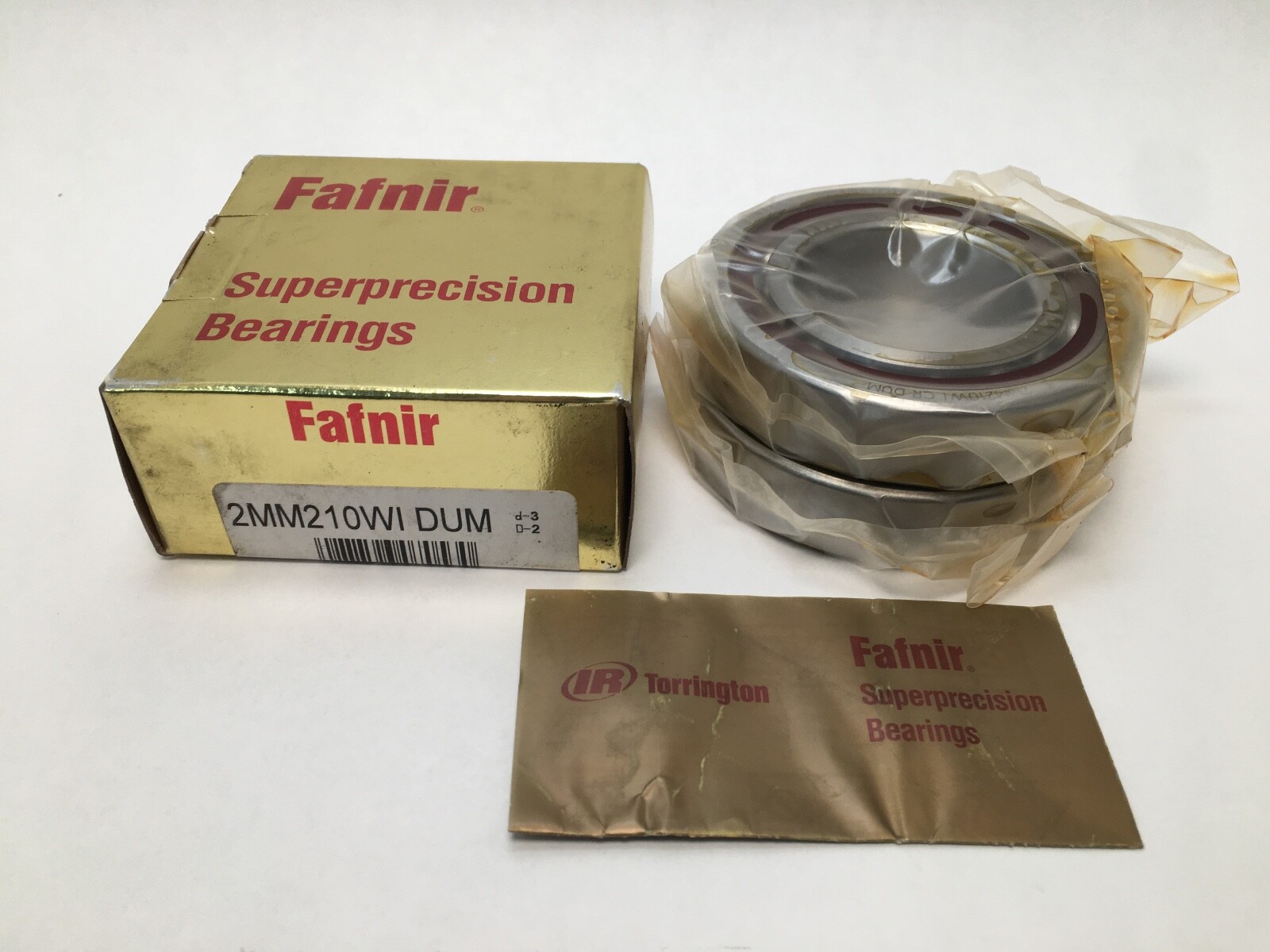

Fafnir2MM210WI CR DUMSuper-Precision Angular Contact Ball Bearing Pair – 50 mm Bore, 90 mm OD, 20 mm Width, 15° Contact Angle, Medium Preload, Open

Condition: New

Availability:

27 in stock

Matched duplex spindle bearing pair, 50 x 90 x 20 mm, 15° contact angle, medium preload, phenolic outer-land-riding cage, open, ABEC 7/9 class.

Same day shipment

List Price

$222.99

27 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

27 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFafnir
MPN2MM210WI CR DUM
Model2MM 210 WI DUM 7210 Q20210
Bearing TypeAngular Contact Ball Bearing, Open
ID50 mm (1.9685 in)
OD90 mm (3.5433 in)
Width20 mm

Technical Specifications

Series2MM200WI (ISO 72 medium series)
LubricantGrease or oil
PreloadMedium (DUM)
Base Number7210
Industry TermsMachine tool spindle bearing; super precision angular contact; duplex matched pair; DUM set; medium preload spindle bearing
Common Misspellings2MM210WIDUM; 2MM210W1DUM; 2MM210WL-DUM; Fafner; Faffnir
Application TypesMachine tool spindles; grinding spindles; boring and milling heads; precision gearboxes
Total Width40 mm (1.5748 in) across the matched pair
Bore Shaft Size50 mm (1.9685 in)
Mpn Variants2MM210WIDUM; 2MM210WI DUM; 2MM210WI-DUM; 2MM210WICRDUM; 2MM210WI CR DUM; 2MM-210-WI-DUM; 2MM 210 WI DUM
Arrangement ConfigurationUniversal duplex pair (DUM), medium preload
Precision ClassABEC 7/9 (ISO P4S)
Cage TypePhenolic, outer-land-riding
Dynamic Load Rating47,400 N (10,700 lbf) per bearing
Static Load Rating31,700 N (7,130 lbf) per bearing
Precision RatingABEC 7/9 (ISO P4S)
Rolling ElementsSteel balls
Limiting Speed16,000 rpm grease / 32,000 rpm oil
Number Of Rows1 per bearing
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.50.28
Contact Angle15°
Part Number2MM210WI CR DUM
Dynamic Load Rating C147,400 N (10,700 lbf) per bearing

Cross-References

Cross Reference 1SKF 7210 CD/P4ADGB
Cross Reference 2FAG B7210-C-T-P4S-DUM
Cross Reference 3NSK 7210CTYNDUMP4
Cross Reference 4Timken 2MM210WI DUL - light preload
Cross Reference 5NSK 7210A5TYNDUMP4 - 25 deg vs 15 deg
Cross Reference 6SKF 7210 ACD/P4ADGB - 25 deg vs 15 deg
Cross Reference 7FAG B7210-E-T-P4S-DUM - 25 deg vs 15 deg
Seller Part Number: B-CG3#N3BMW1

Product Description

What this part is:

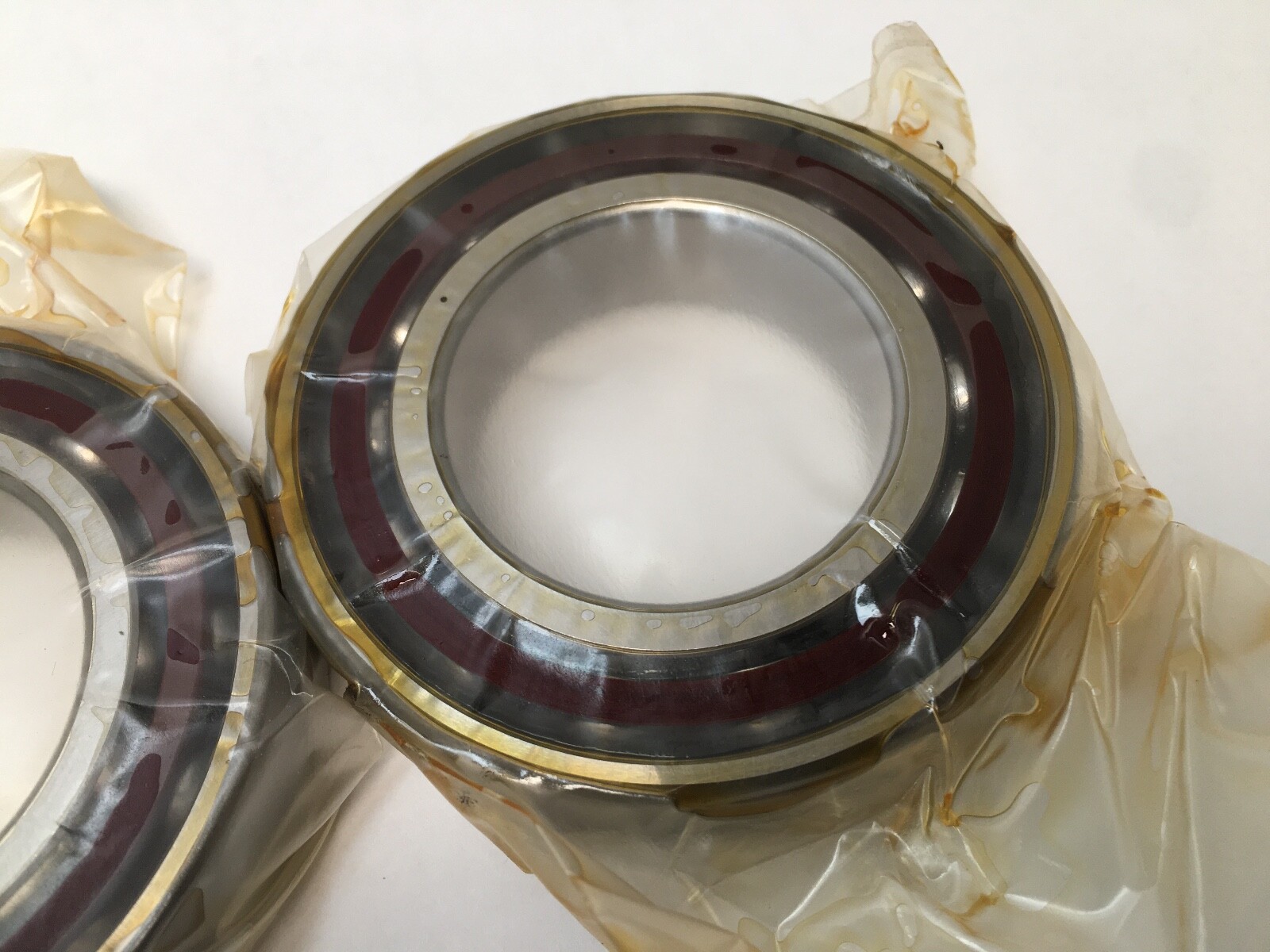

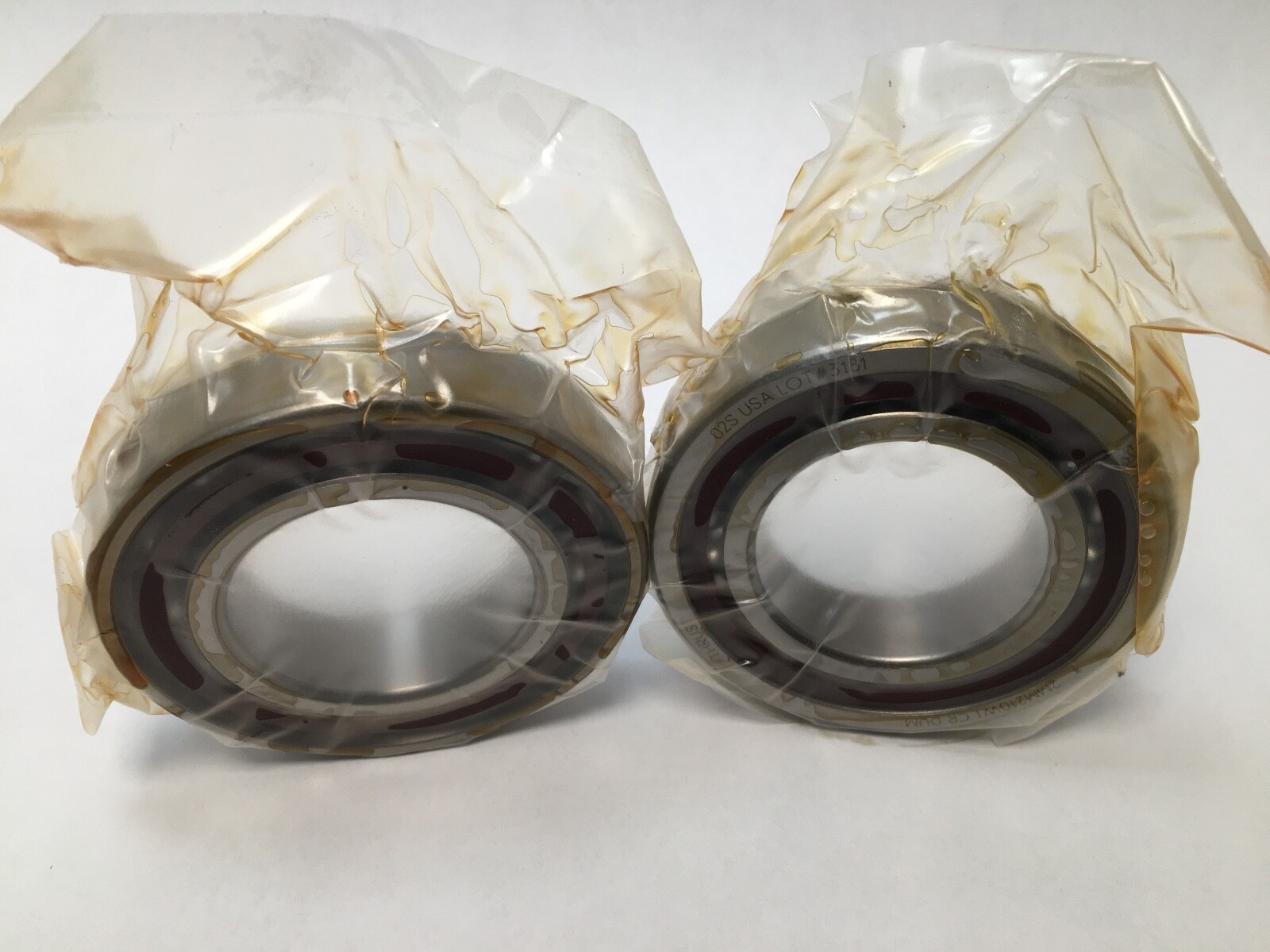

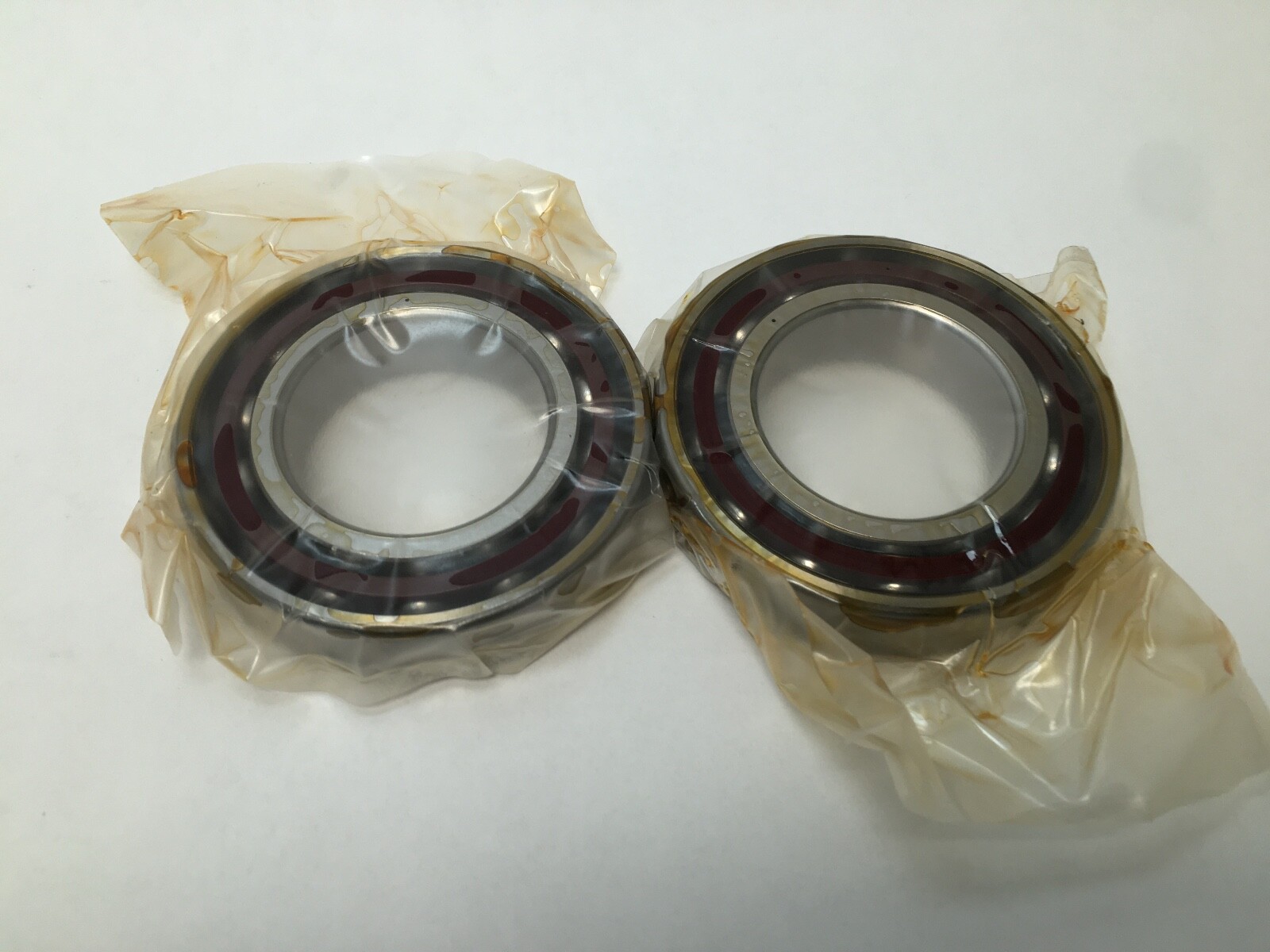

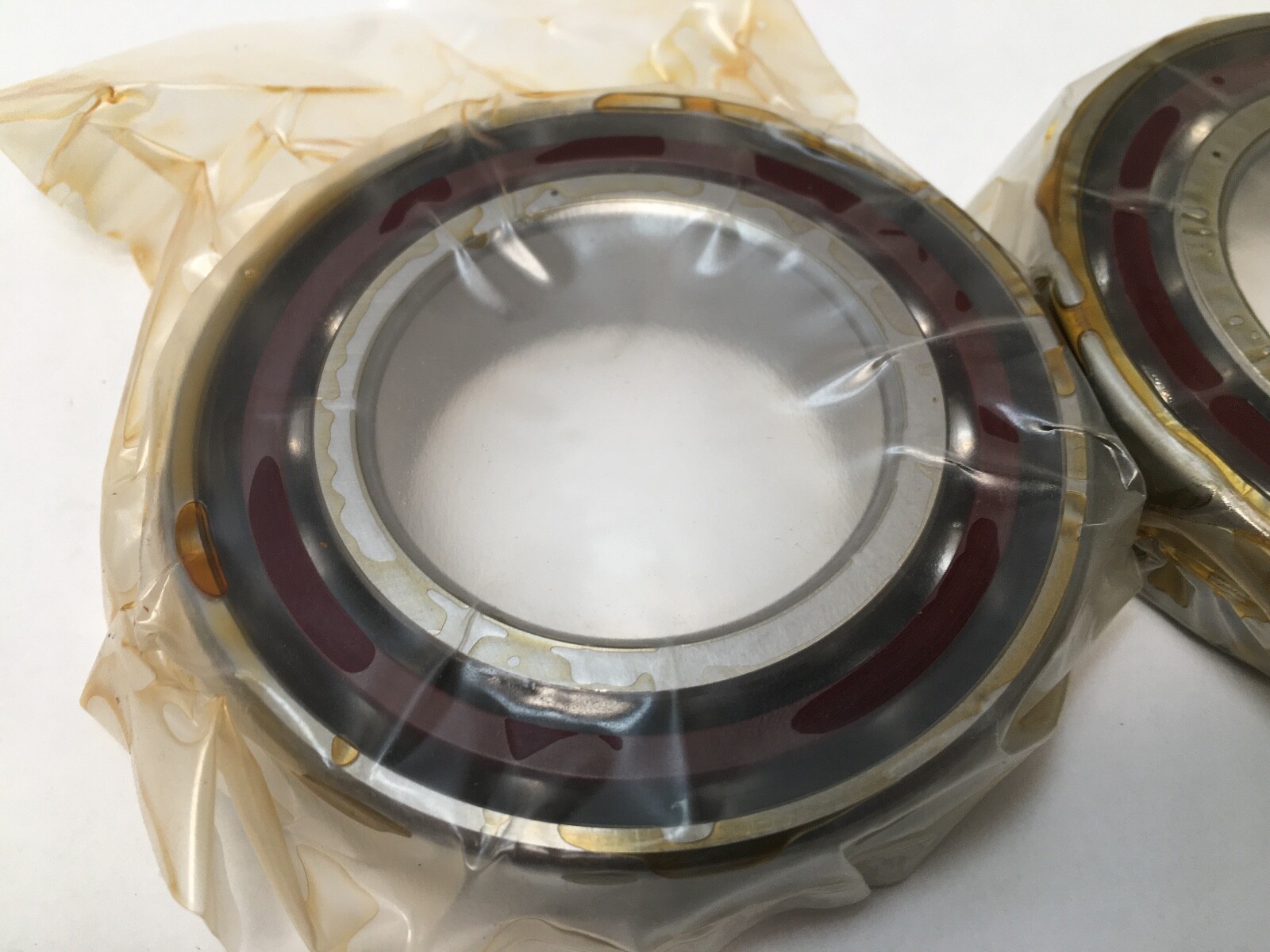

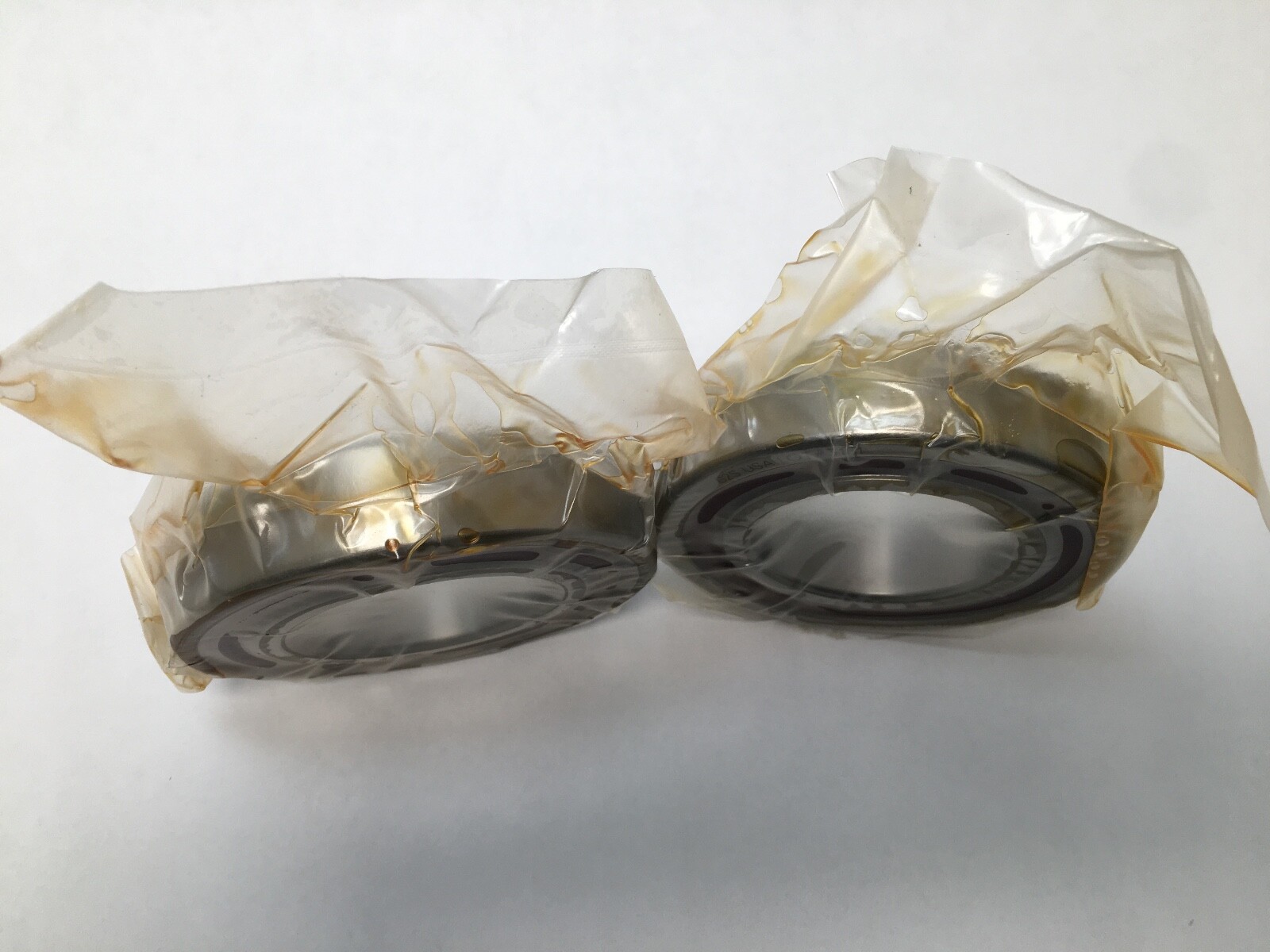

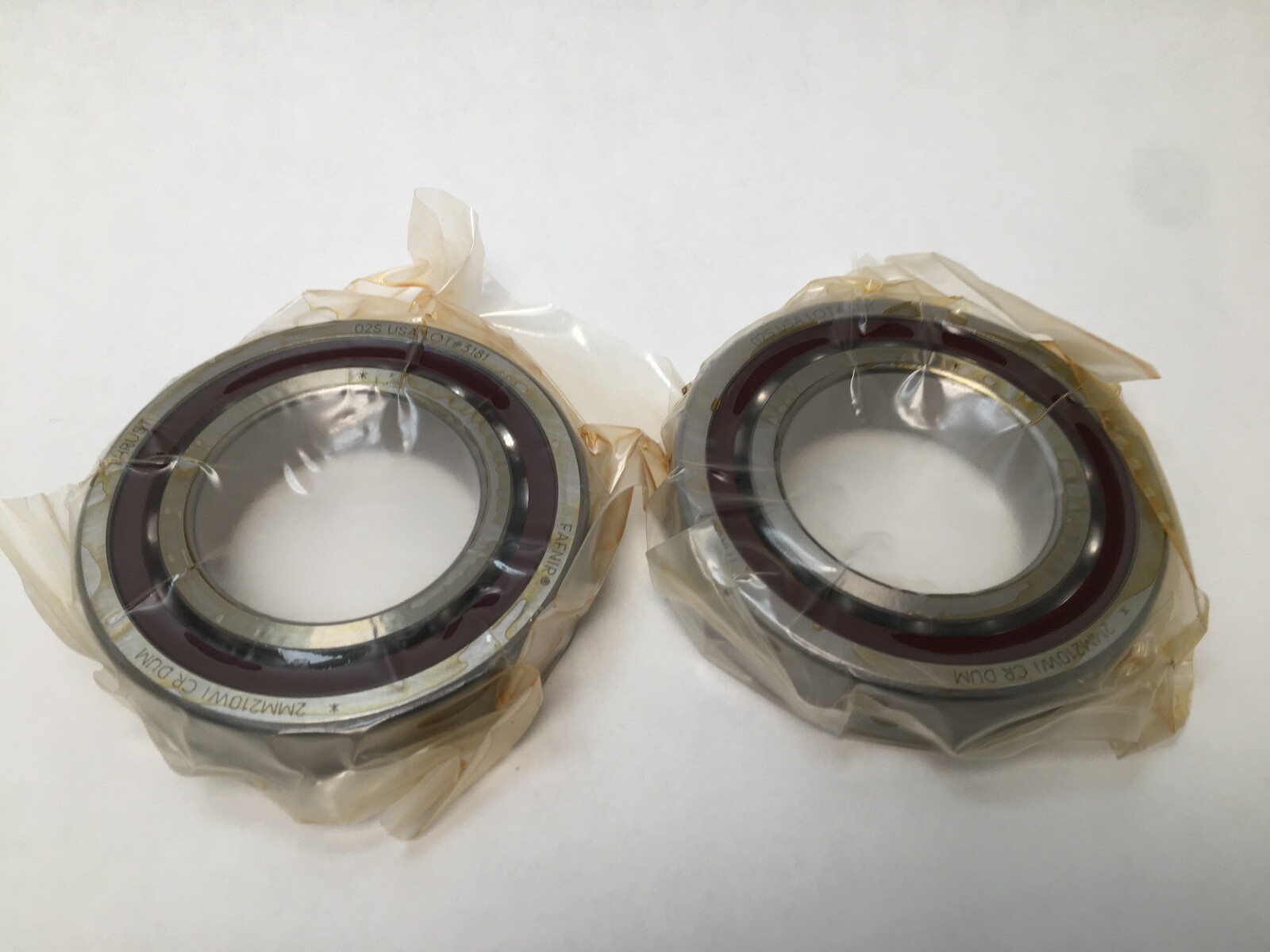

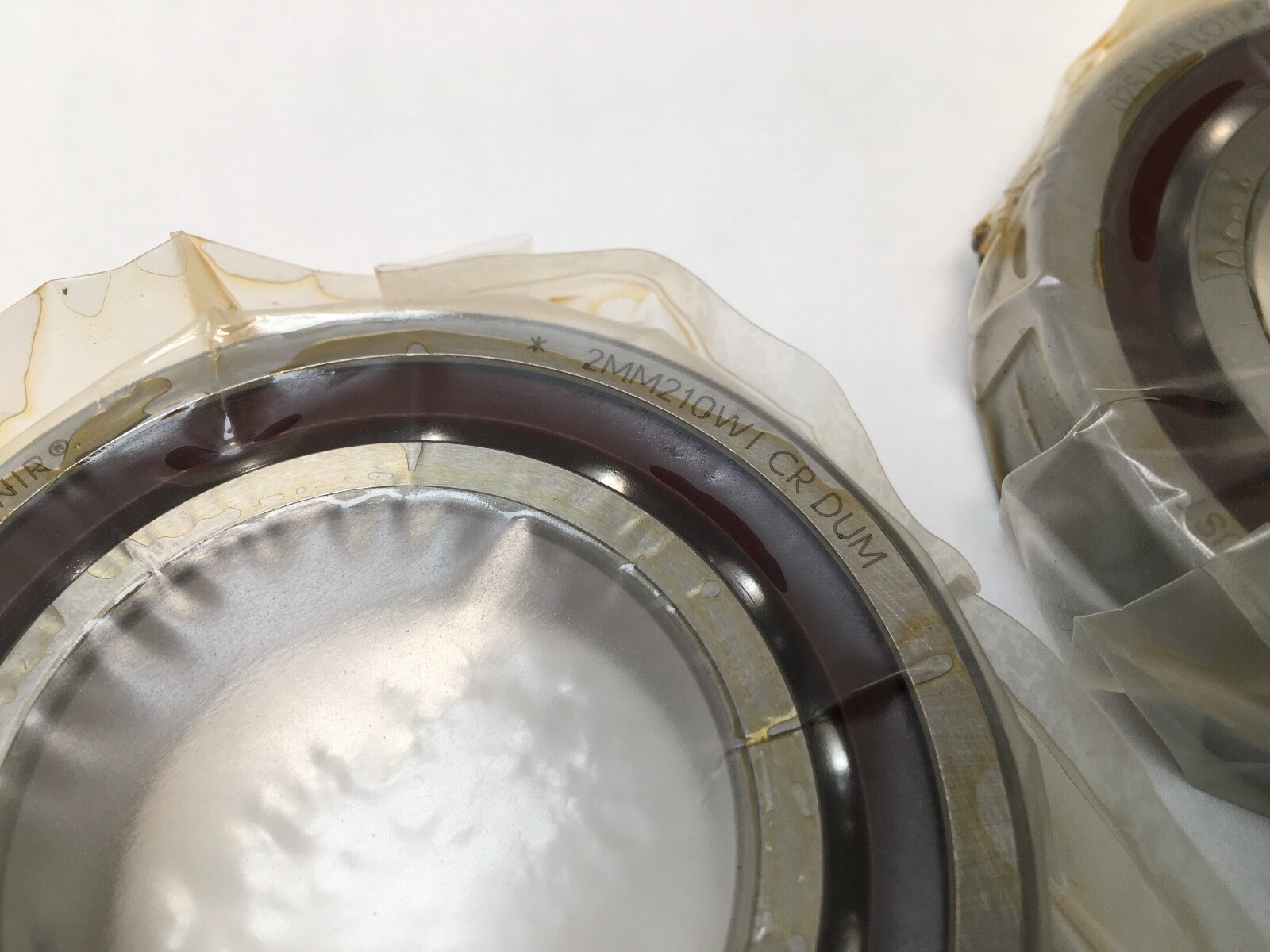

Fafnir 2MM210WI CR DUM super-precision angular contact ball bearings, supplied as a matched duplex pair for machine tool spindles. Open, one row of balls per bearing, 15° contact angle, medium preload, phenolic outer-land-riding cage. Unit Quantity: 2 Pcs (one matched duplex pair).

Decoding the designation:

2MM — 15° contact angle; MM = P4S super-precision class, ABEC 7/9.

210 — ISO 7210 base number, 72 medium dimension series.

WI — super-precision angular contact spindle configuration.

CR — phenolic outer-land-riding cage.

DU — duplex, universally ground.

M — medium preload.

Specifications:

Bore Diameter: 50 mm (1.9685 in). Outside Diameter: 90 mm (3.5433 in). Overall Width: 20 mm (0.7874 in) per bearing. Total Width: 40 mm (1.5748 in) across the pair. Contact Angle: 15°. Preload: Medium (DUM). Precision Class: ABEC 7/9 (ISO P4S). Cage Type: Phenolic, outer-land-riding. Closure Type: Open. Rolling Elements: Steel balls. Bore Type: Straight. Dynamic Load Rating (C1): 47,400 N (10,700 lbf) per bearing. Static Load Rating (C0): 31,700 N (7,130 lbf) per bearing. Limiting Speed: 16,000 rpm grease; 32,000 rpm oil. Lubricant: Grease or oil.

Dimensions and mounting:

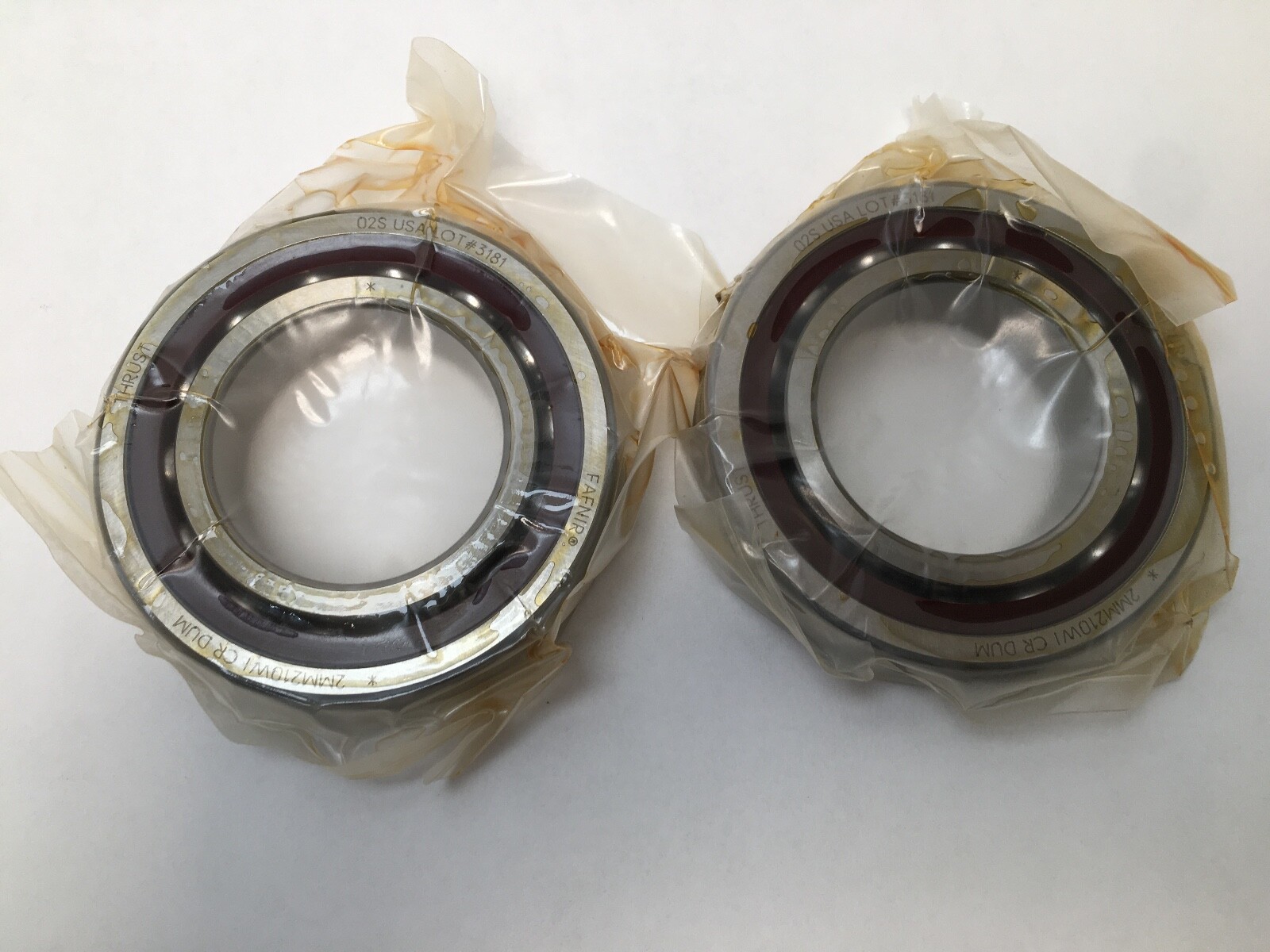

Universal grinding allows back-to-back, face-to-face or tandem mounting. The outer rings carry V marks that identify the intended arrangement. The pair is preloaded, so no internal clearance class applies.

Compatibility and replacement:

Same-specification 15° medium-preload pairs: SKF 7210 CD/P4ADGB; FAG B7210-C-T-P4S-DUM; NSK 7210CTYNDUMP4. Related sizes: Timken 2MM210WI DUL (light preload); NSK 7210A5TYNDUMP4, SKF 7210 ACD/P4ADGB and FAG B7210-E-T-P4S-DUM (25° vs 15°). Ratings sourced from Timken (cad.timken.com, item 2MM210WI).

Frequently asked questions:

What is the contact angle of the Fafnir 2MM210WI CR DUM?

15°; the 2MM prefix denotes a 15° contact angle.

What does DUM mean?

DU is a universally ground duplex pair and M is medium preload.

What are the load ratings?

Dynamic 47,400 N and static 31,700 N per bearing.
