Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Super-precision angular contact ball bearing, 50 x 90 x 20 mm, 15° contact angle, ABEC 7 / P4, light preload, one bearing of a universal duplex pair.
List Price
$125.07
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | E250-7CE1DUL |
| Model | 2MM-210 WI DUL / 7210-C P4 DUL / E 250-7 CE 1 DU L |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | E 200 (ISO 02) |
| Preload | Light |
| Mpn Variants | E250-7CE1DUL-1/2PR, E250-7CE1DUL, E 250 7CE1 DUL, E-250-7-CE-1-DUL |
| Precision Class | ABEC 7 / P4 |
| Closure Type | Open |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 44,900 N |
| Static Load Rating | 34,000 N |
| Rolling Elements | Ball |
| Item Weight | 0.454 kg (1.00 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 16,000 rpm grease; 26,000 rpm oil |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally ground single bearing (back-to-back, face-to-face or tandem) |
| Cross Reference 1 | SKF 7210 CDGA/P4A |
|---|---|
| Cross Reference 2 | SKF 7210 CD/P4A |
| Cross Reference 3 | NSK 7210CTYNSULP4 |
| Cross Reference 4 | FAG B7210-C-T-P4S-UL |
| Cross Reference 5 | Fafnir 2MM210WICRSUL |

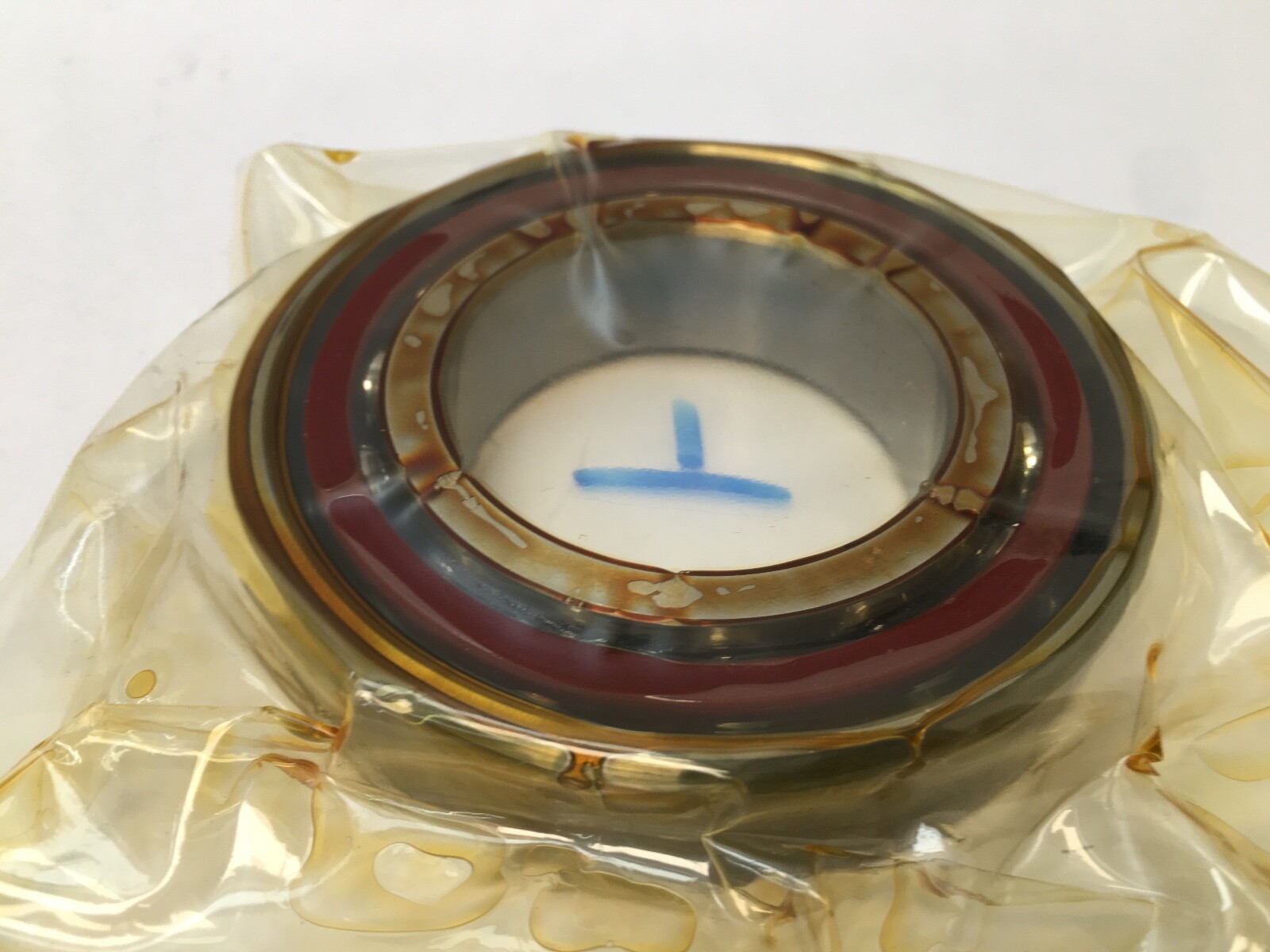

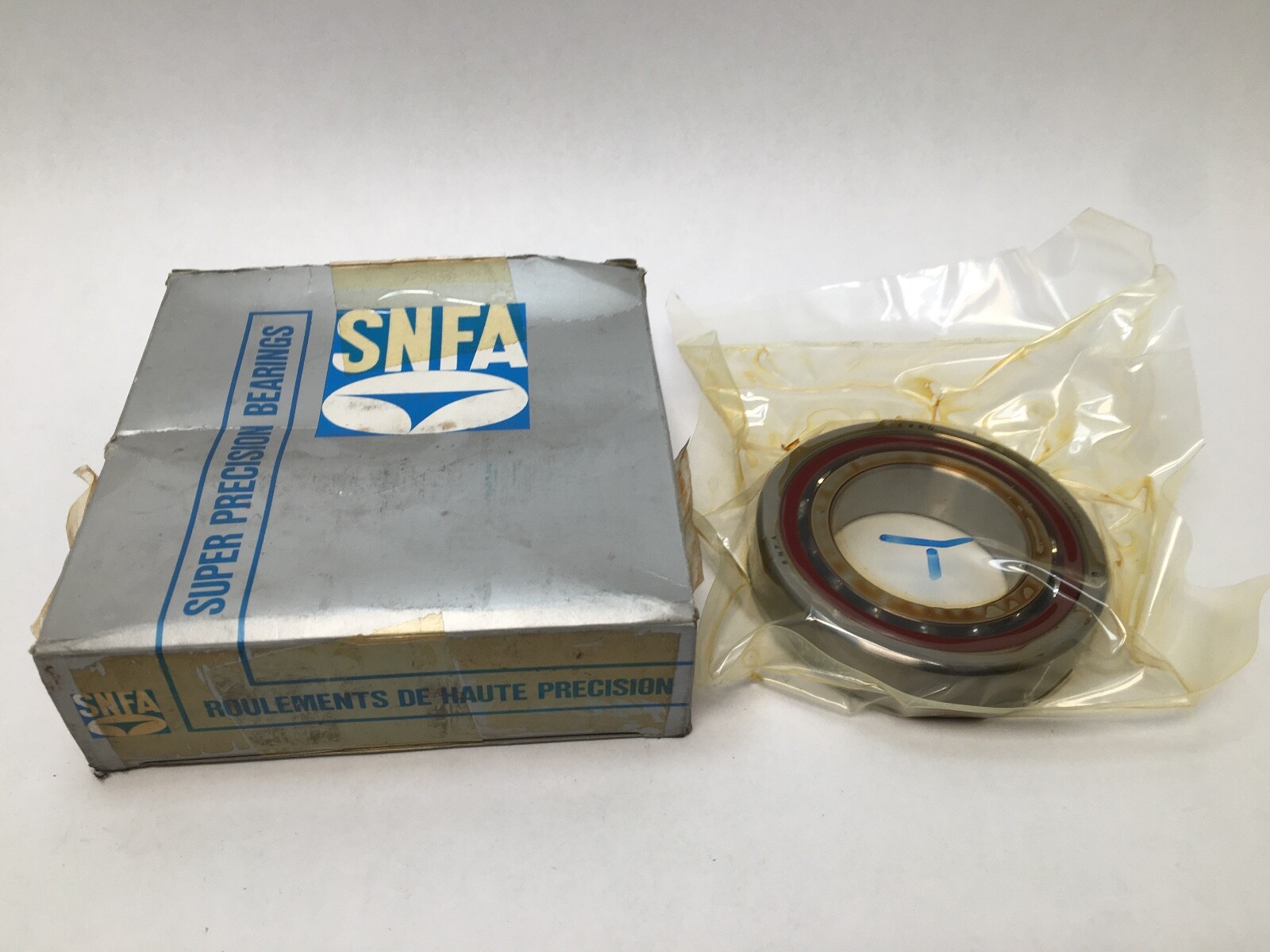

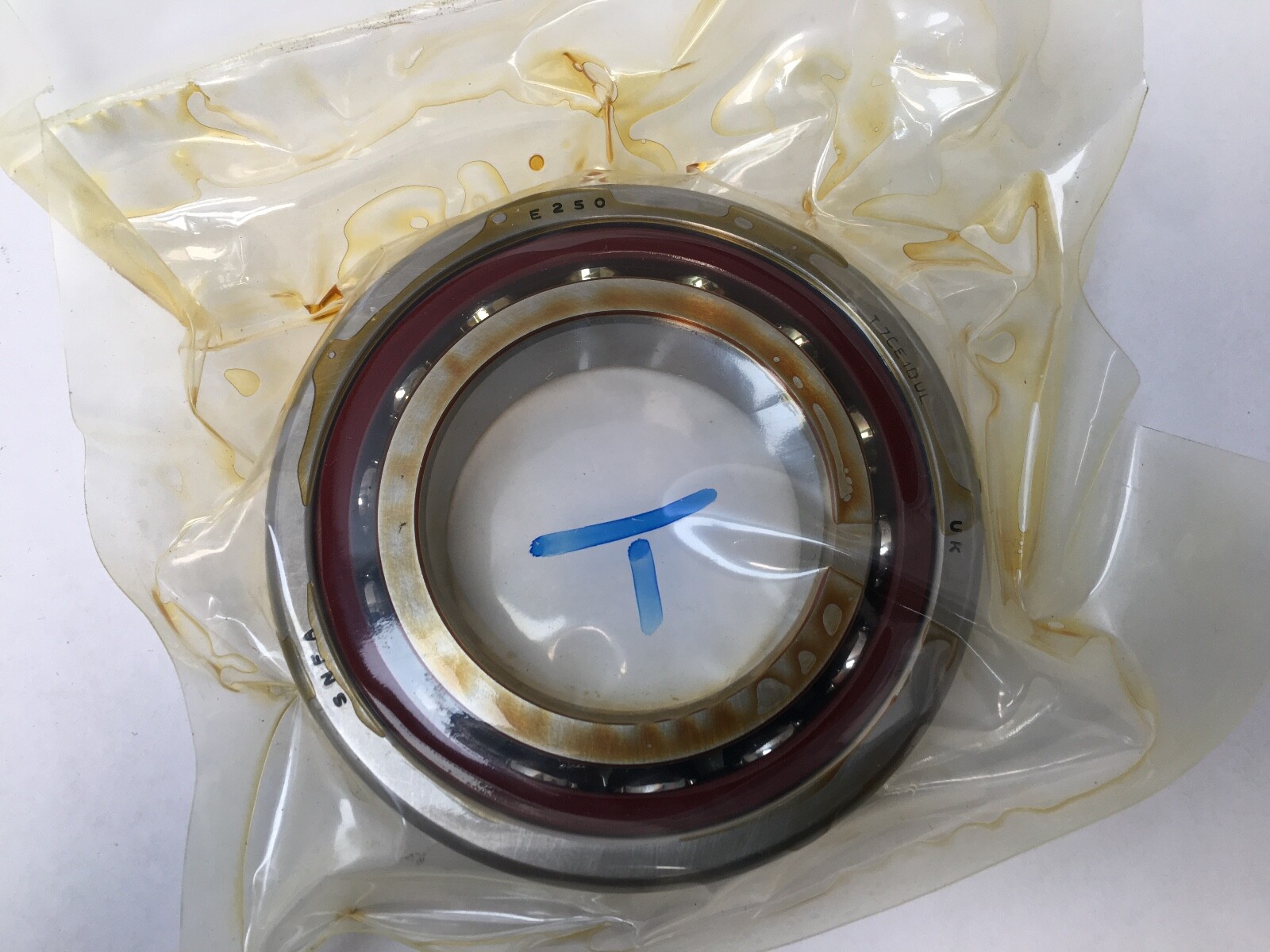

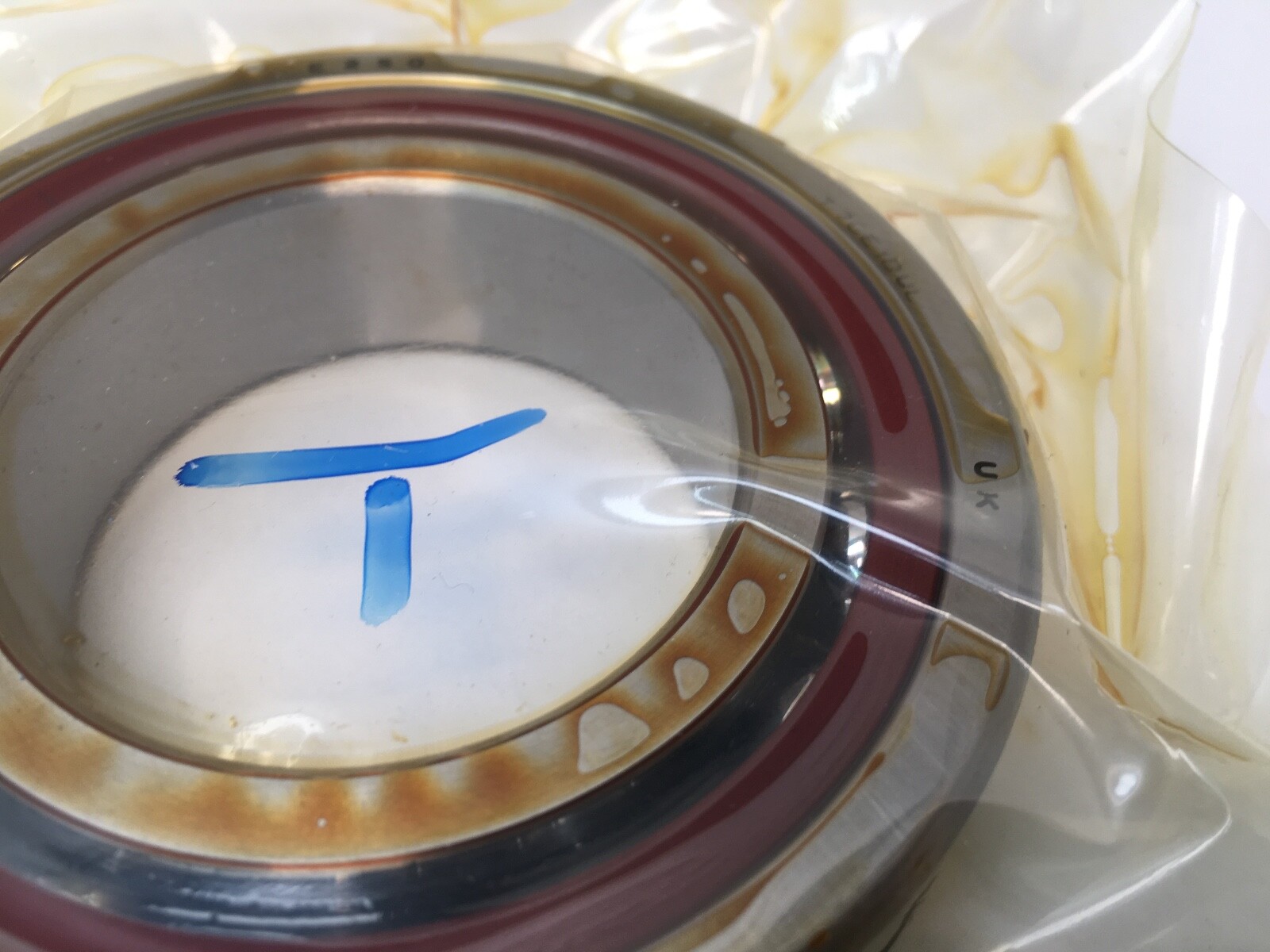

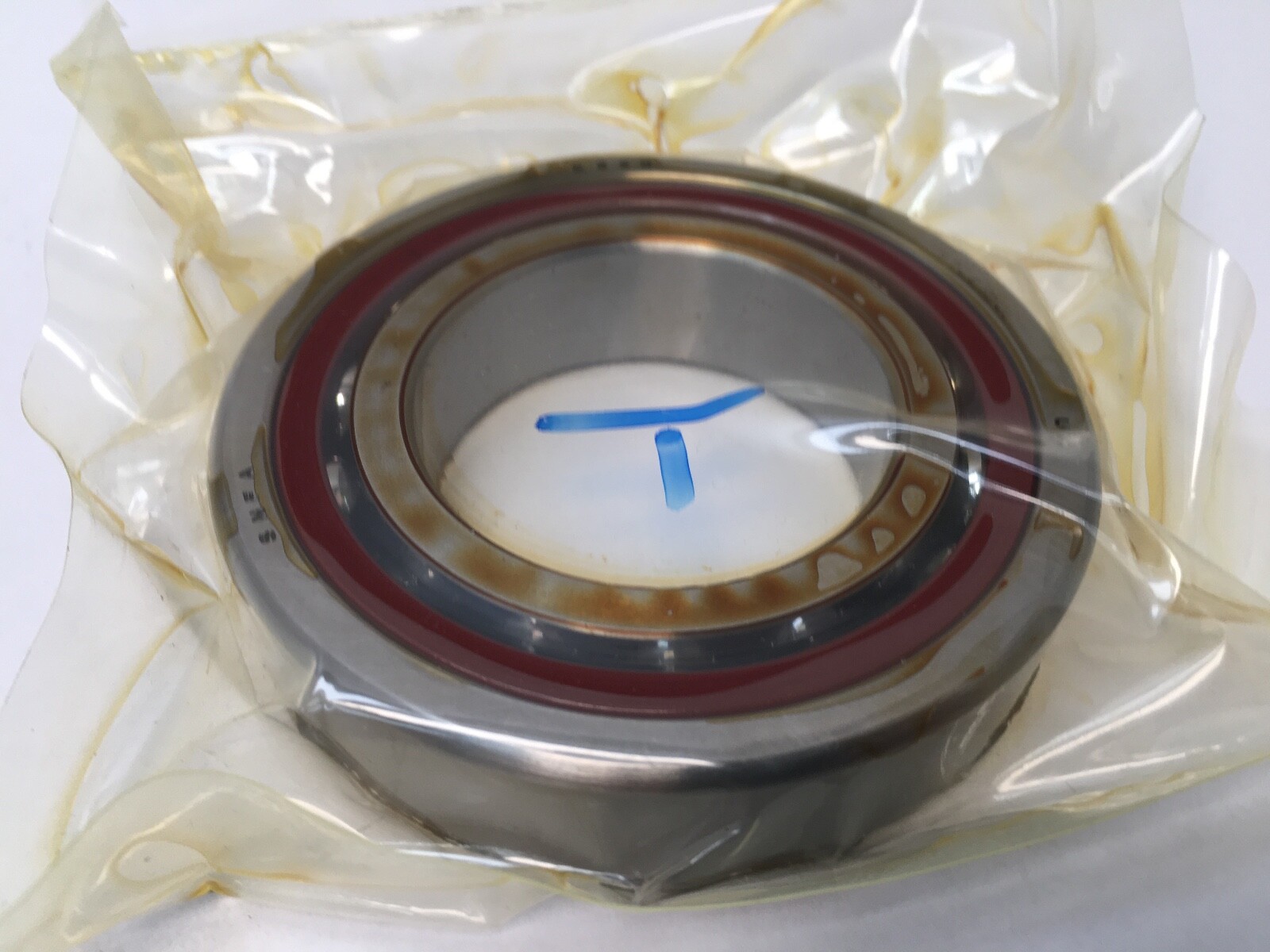

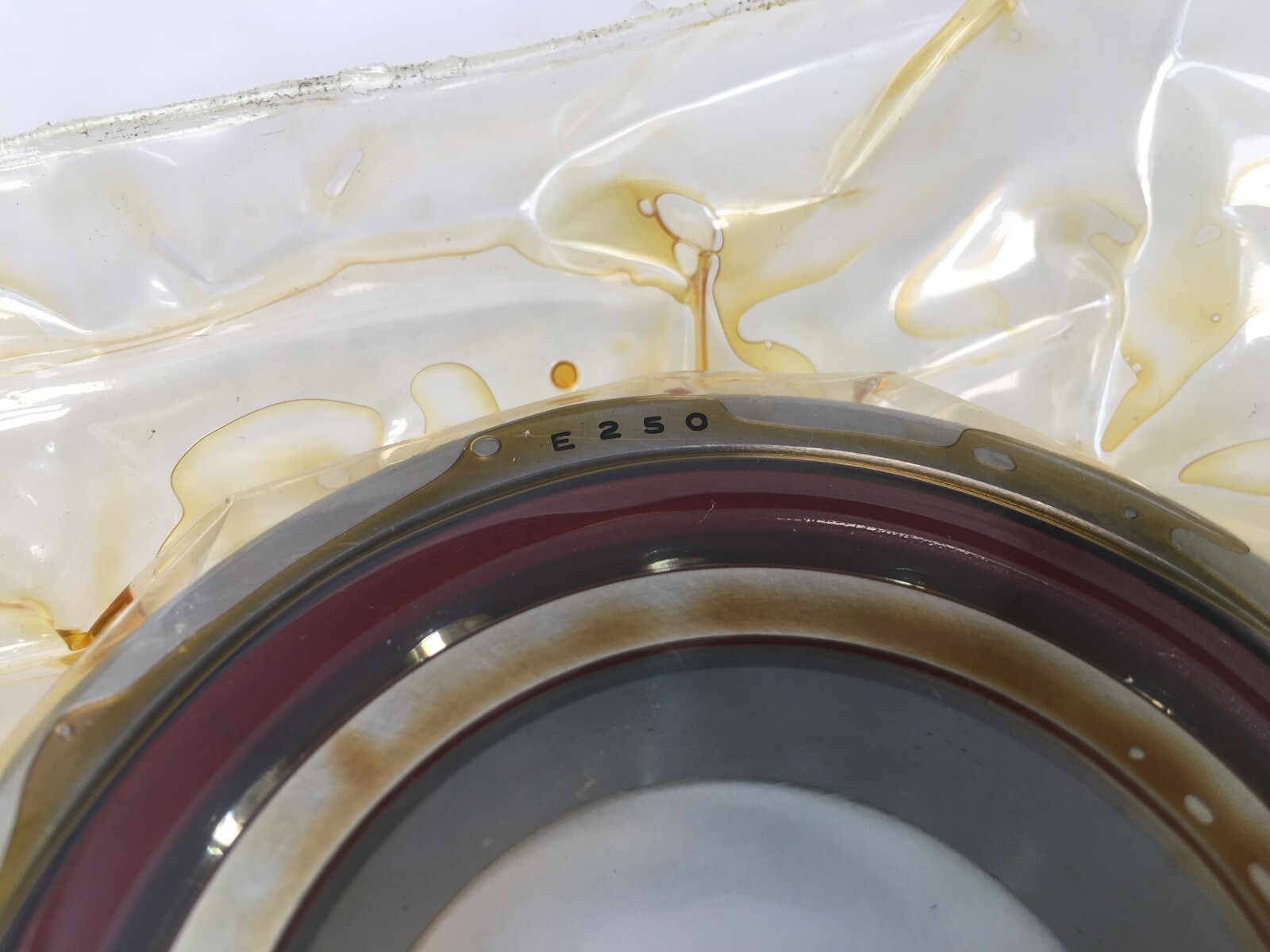

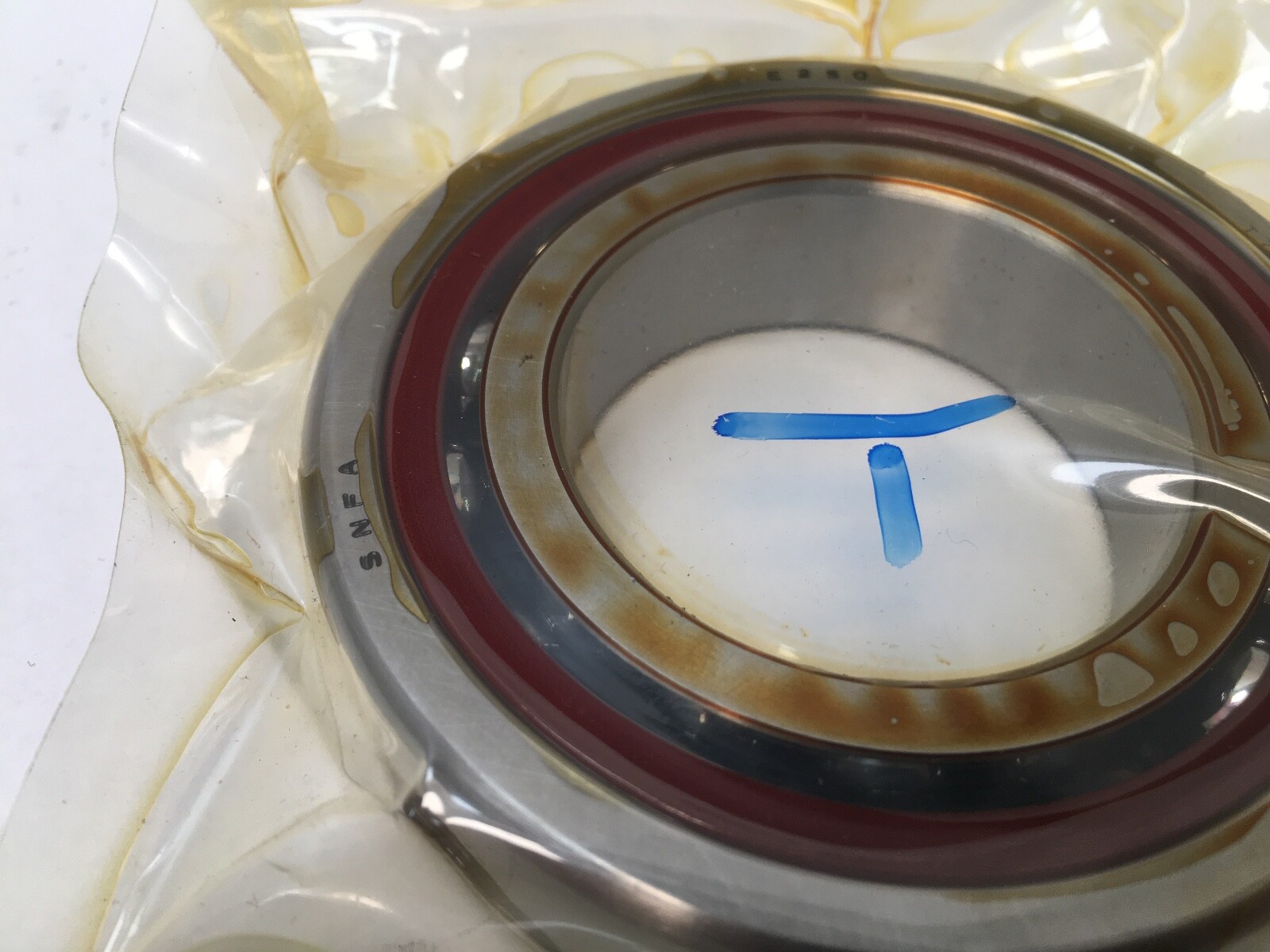

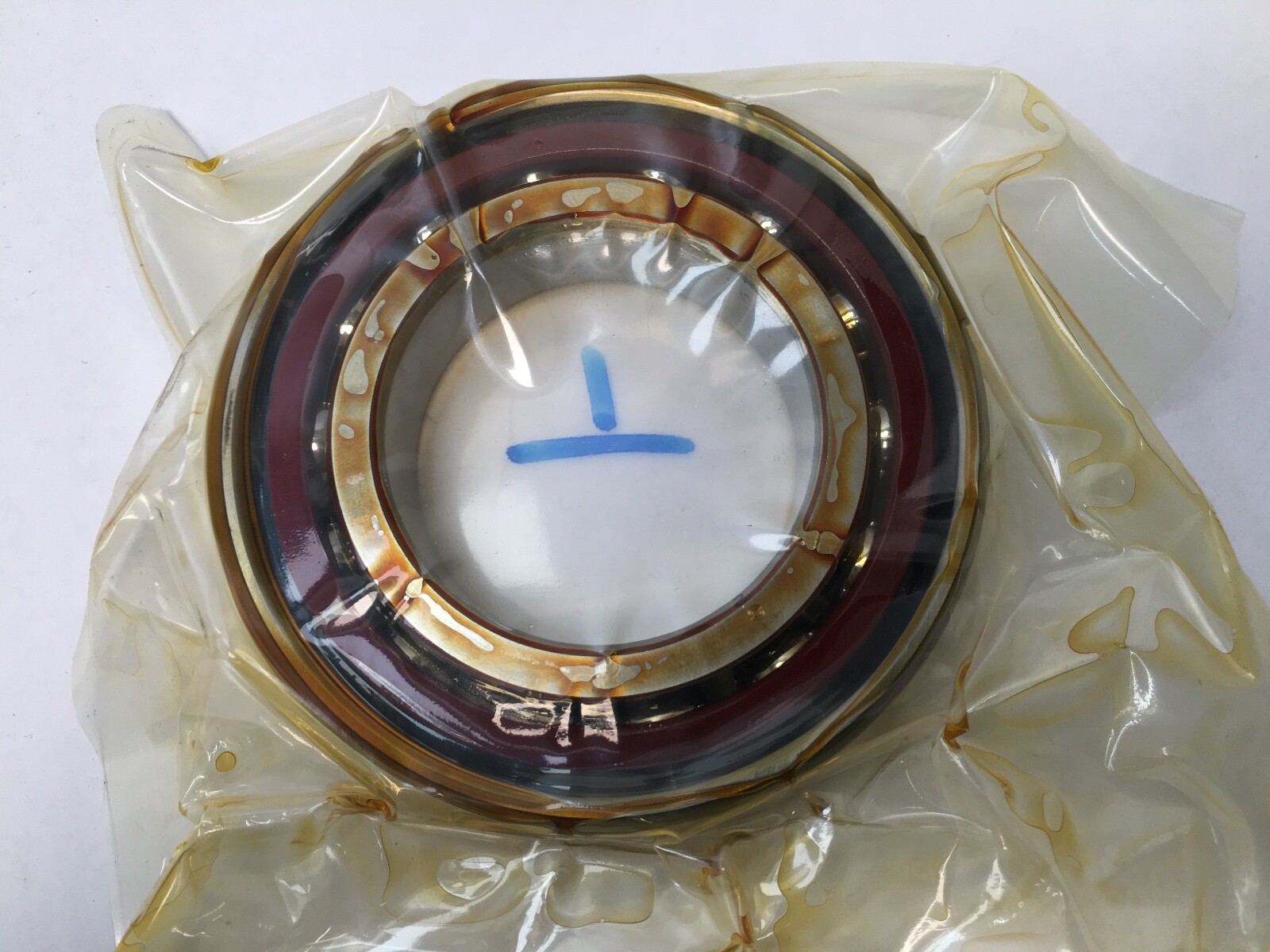

SNFA E250-7CE1DUL-1/2PR is one super-precision single-row angular contact ball bearing from a factory SNFA E250-7CE1DUL universal duplex pair, SNFA E 200 series, ISO dimension series 02. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Width: 20 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. The current SKF equivalent is the 7210 CD/P4A high-capacity D design.
E2 — SNFA E 200 series, ISO dimension series 02 (72xx envelope).
50 — bore diameter in millimetres.
7 — SNFA precision grade, ABEC 7 (ISO P4).
C — phenolic resin cage.
E — cage centred on the outer ring.
1 — 15° contact angle.
DU — universal duplex grinding: the faces are ground for back-to-back, face-to-face or tandem mounting.
L — light preload.
1/2PR — one bearing, half of the matched pair.
Dynamic Load Rating: 44,900 N. Static Load Rating: 34,000 N. Limiting Speed: 16,000 rpm grease; 26,000 rpm oil-air. The 15° angle favours radial stiffness and speed.
Item Weight: 0.454 kg (1.00 lb). Cage Type: Outer-ring guided. Cage Material: Phenolic. Closure Type: Open.
Unit Quantity: 1 Pc. Mounting Arrangement: Universally ground single bearing, pairs with another E250-7CE1DUL bearing. Preload: Light.
SKF owns SNFA and lists the E 200 series as the SNFA equivalent of its 72 .. D range. Cross-references with the same 50 x 90 x 20 mm envelope and 15° contact angle: SKF 7210 CDGA/P4A, SKF 7210 CD/P4A, FAG B7210-C-T-P4S-UL, NSK 7210CTYNSULP4, Fafnir 2MM210WICRSUL.
