SNR7008HG1DUJ84Angular Contact Ball Bearing – 40 mm ID, 68 mm OD, 15 mm Width, Open, 25°, Medium Preload, ABEC 7, Matched Pair

Name: Angular Contact Ball Bearing - 40 mm ID, 68 mm OD, 15 mm Width, Open, 25°, Medium Preload, ABEC 7, Matched Pair
Brand: SNR
SKU: AA2B4#OW1JVP
Price: 51.14 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In France, New Old Stock

Availability:

1 in stock

Categories: Bearings, Angular Contact Ball Bearing

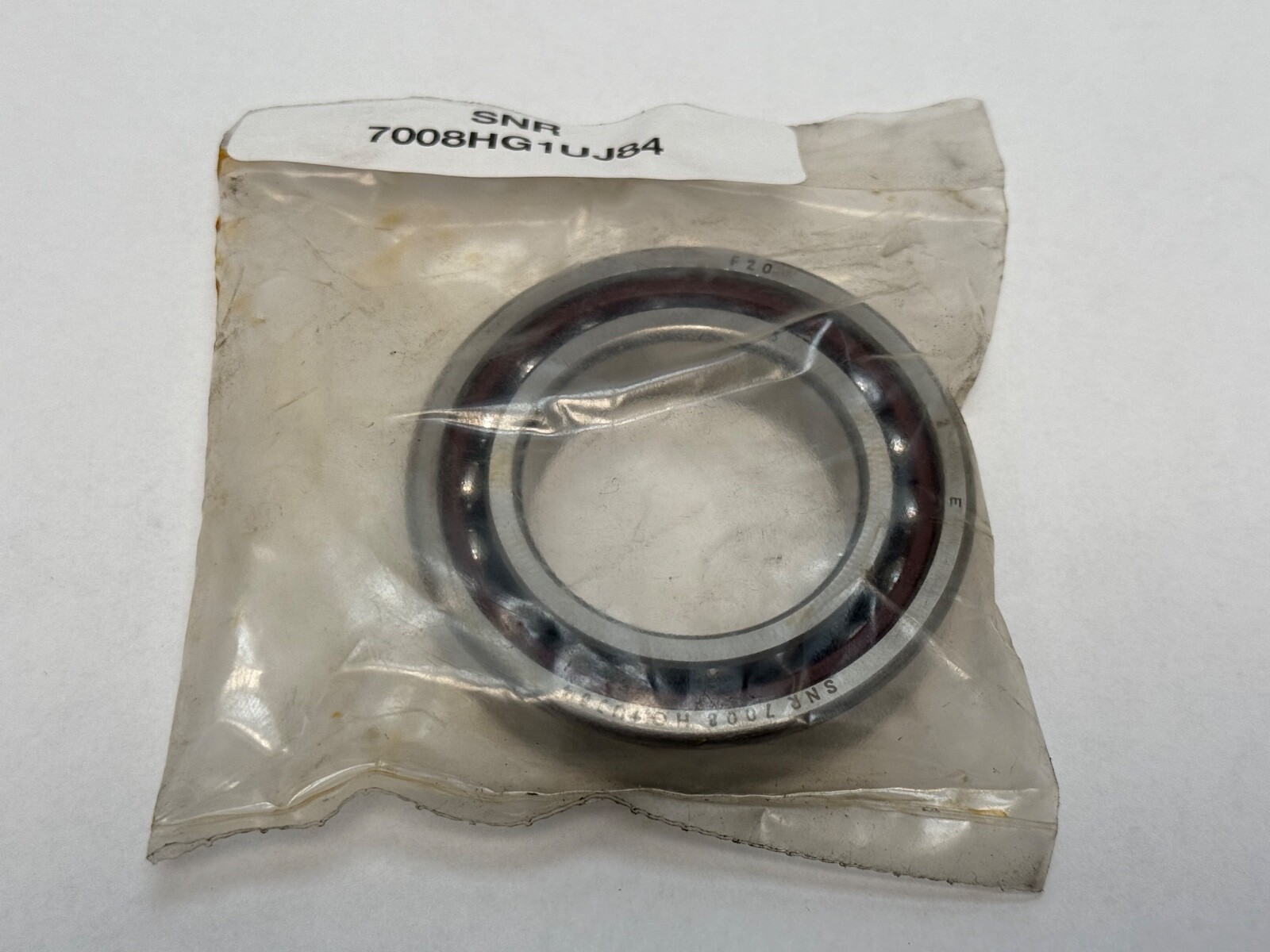

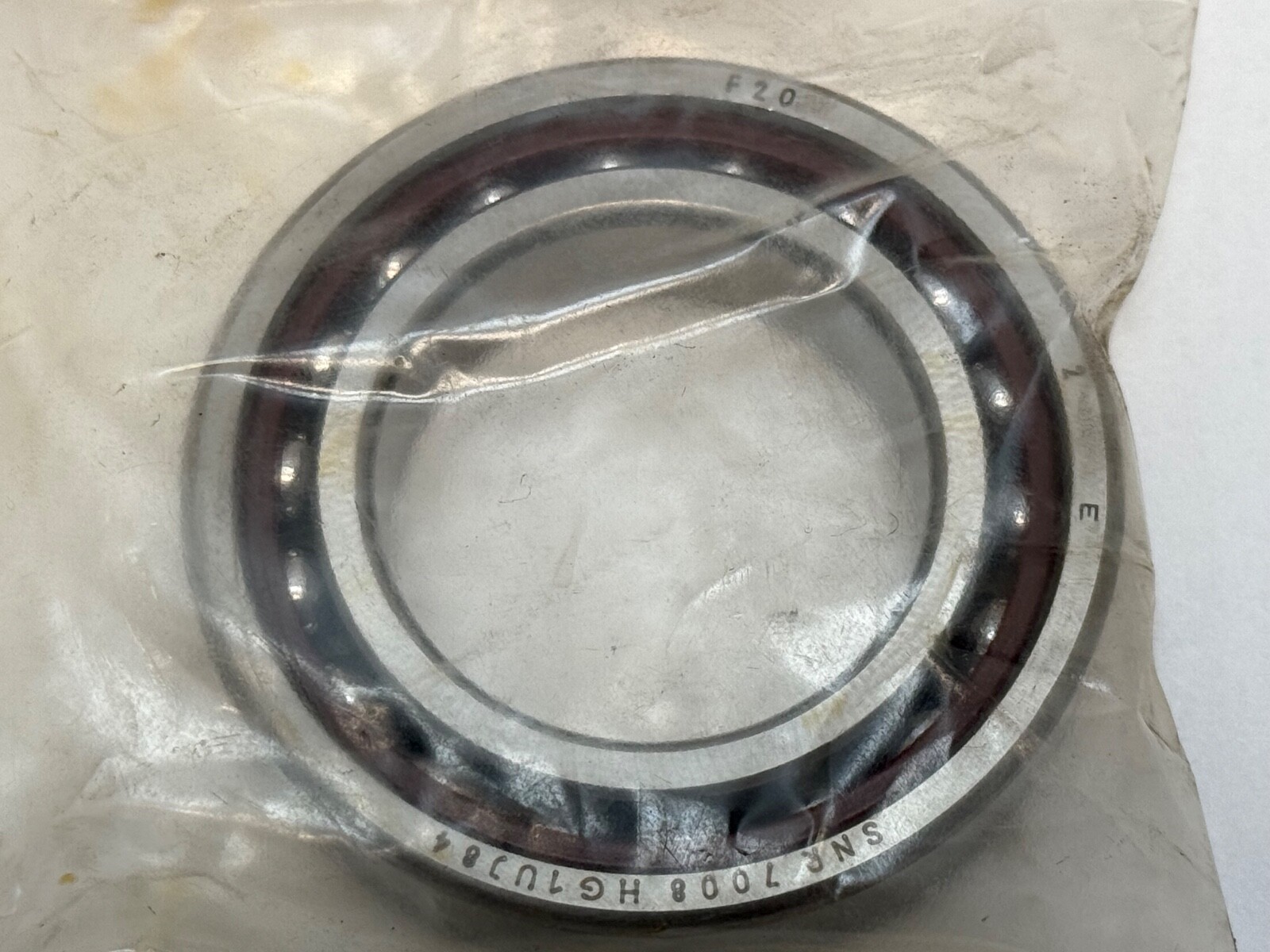

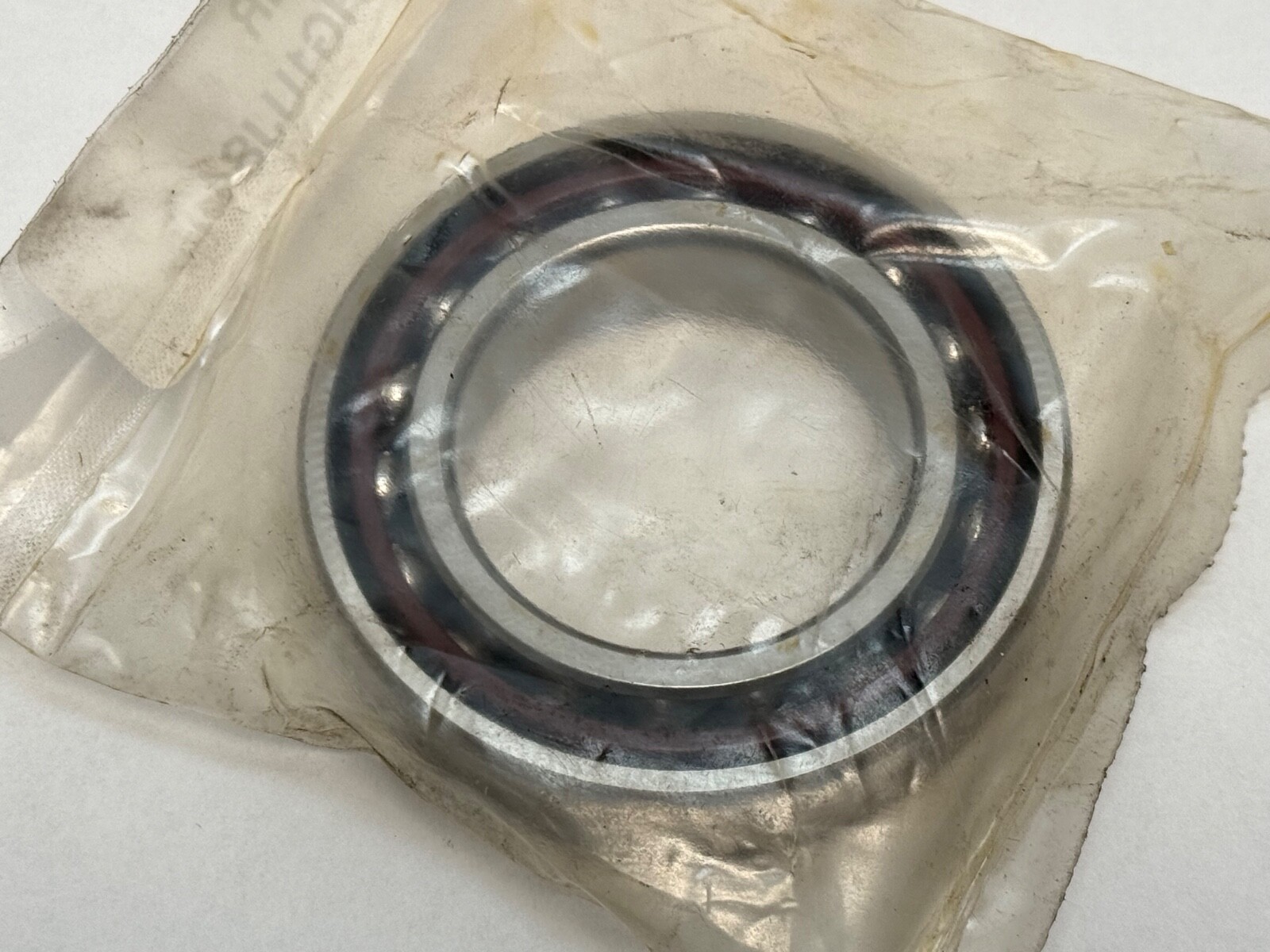

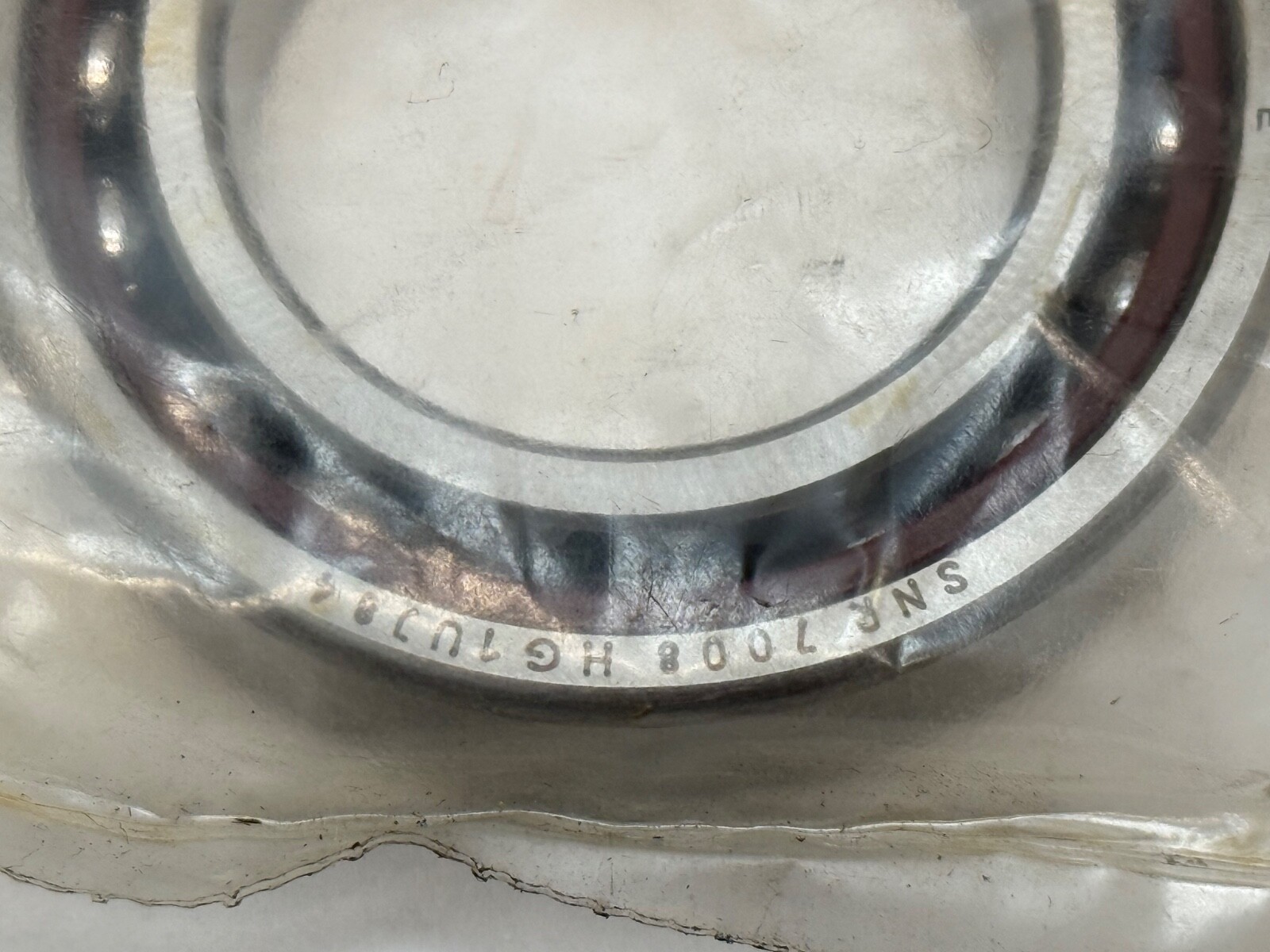

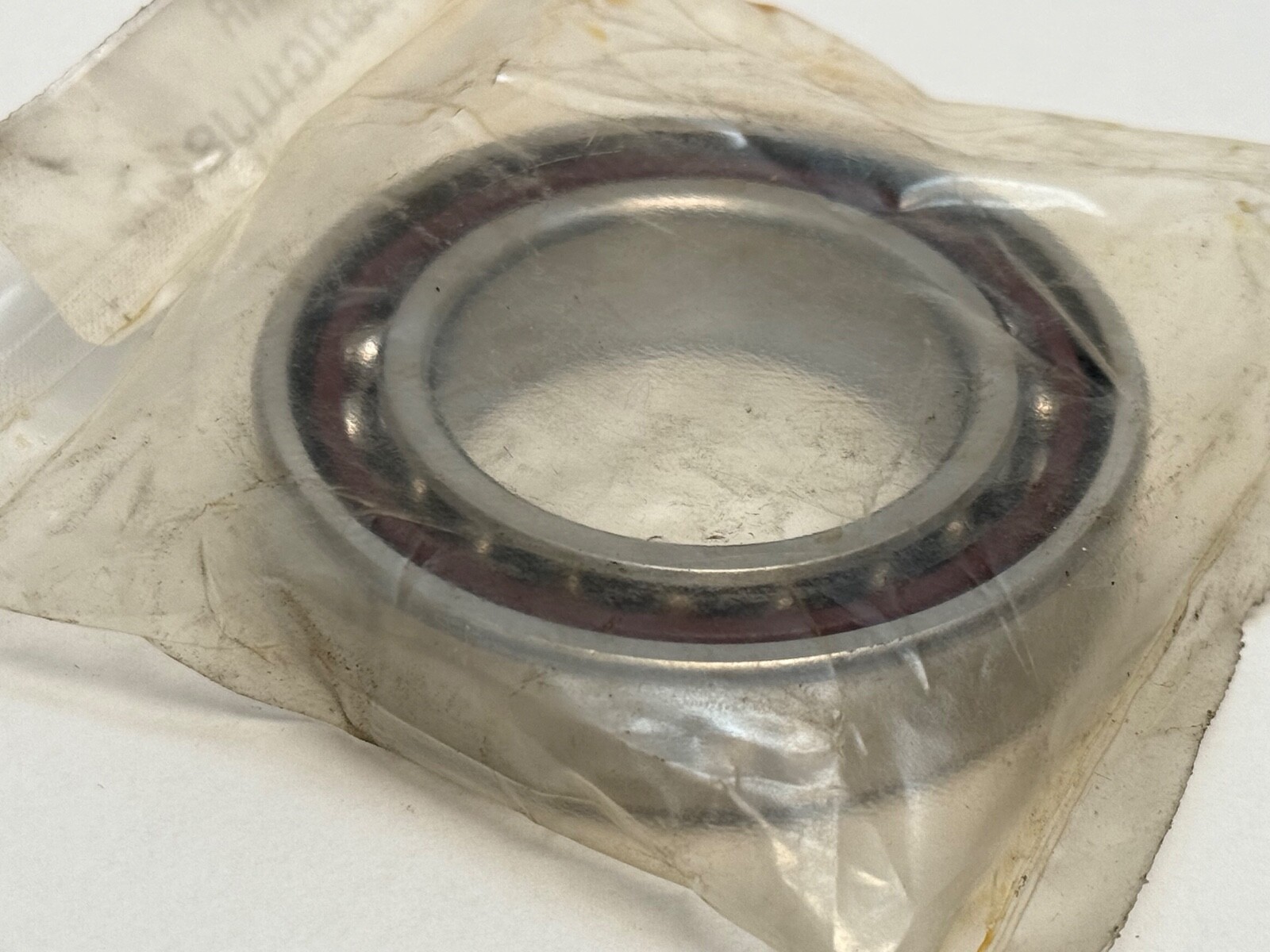

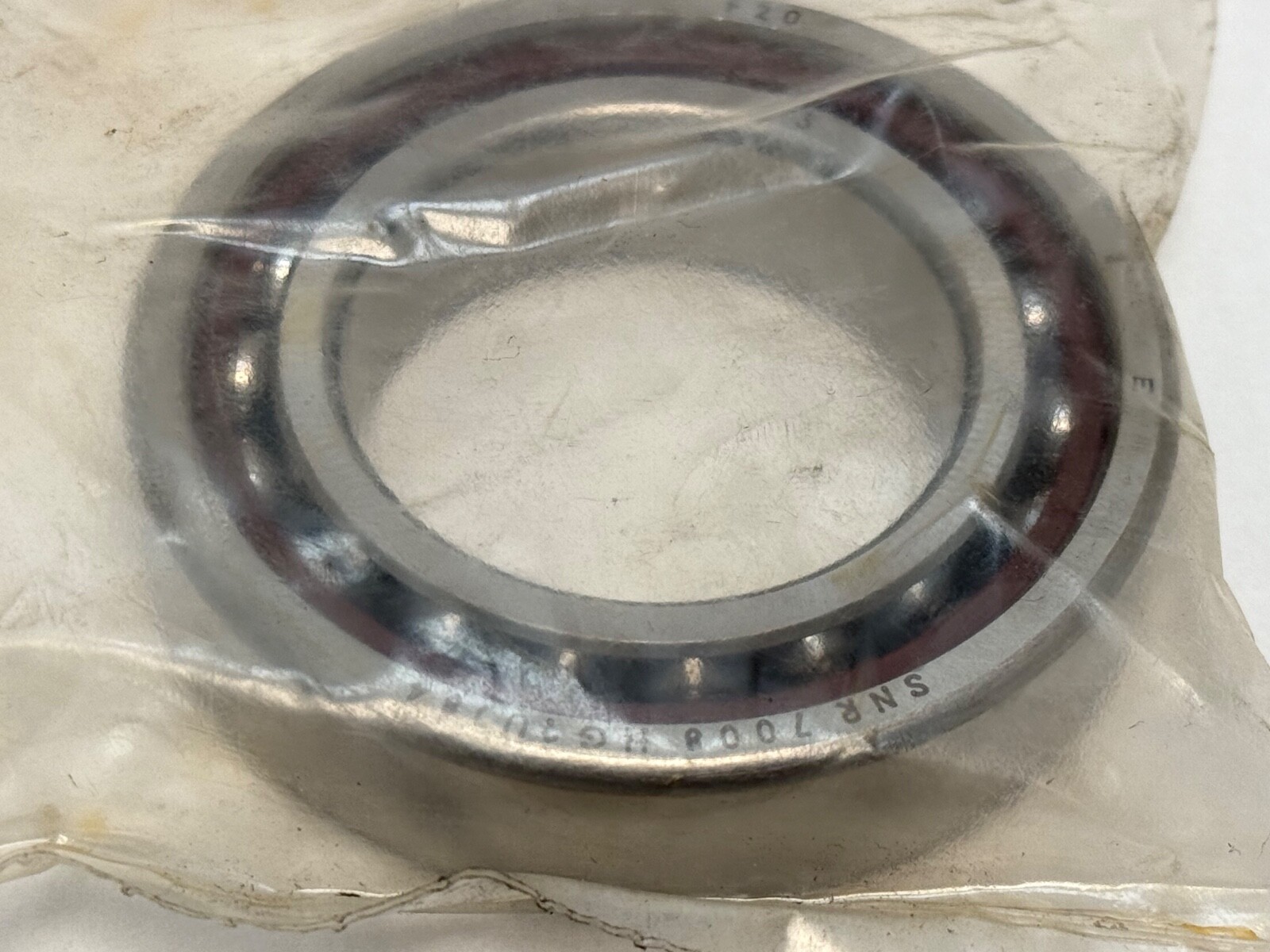

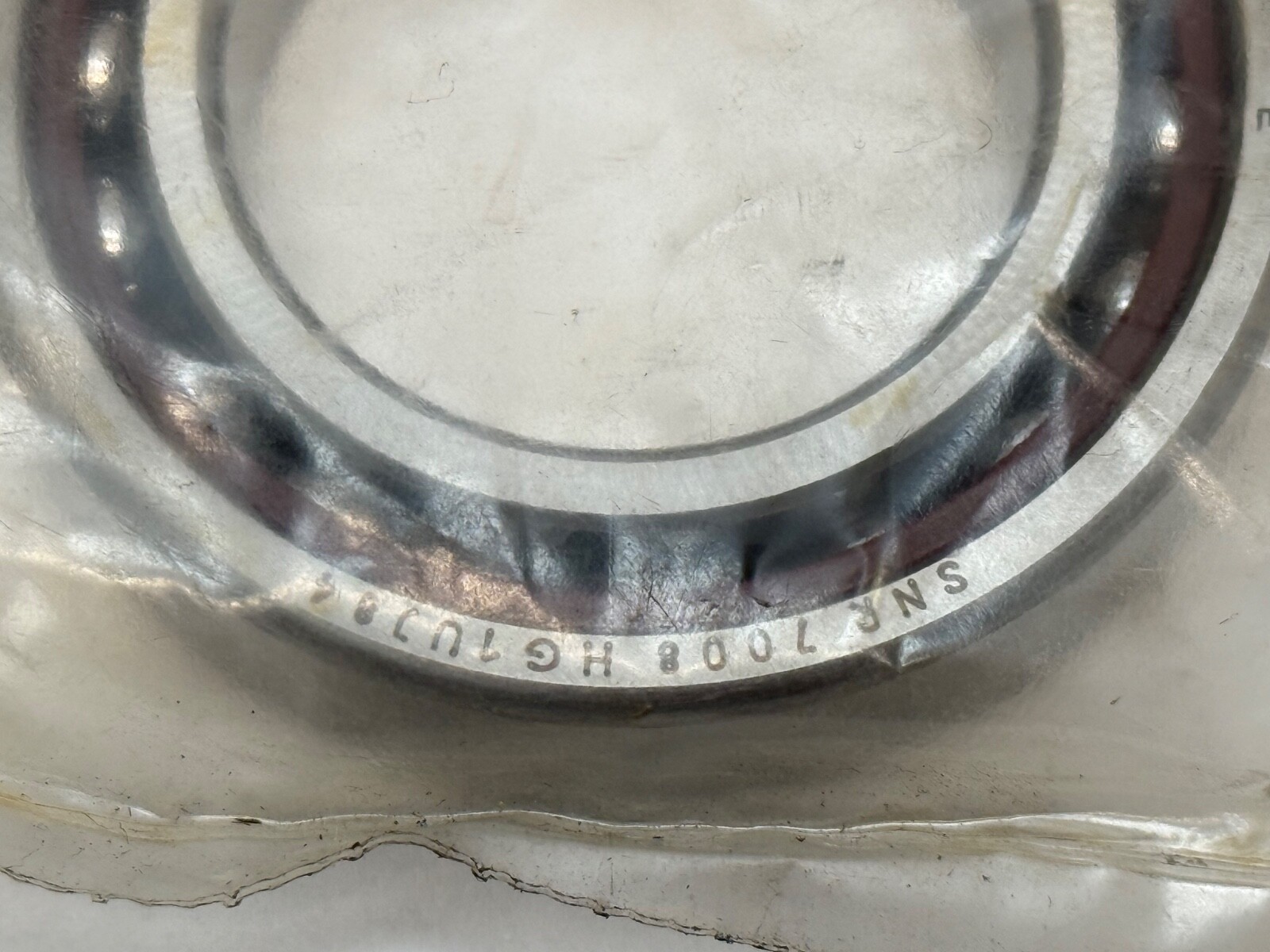

Super-precision angular contact ball bearing pair, 40 x 68 x 15 mm, 25° contact angle, medium preload, open, machined phenolic cage, ABEC 7.

Same day shipment

List Price

$51.14

1 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	SNR
MPN	7008HG1DUJ84
Model	7008A5/ACD 7008E T DUM P4 / 3MM9108WI CR DUM / 7008 H G1 DU J84
Bearing Type	Angular Contact Ball Bearing, Open
ID	40 mm
OD	68 mm
Width	15 mm

Technical Specifications

Material	Steel
Series	7000
Condition	New – Open box
Preload	Medium
Base Number	7008
Condition Note	Made In France, New Old Stock
Bore Shaft Size	40 mm
Mpn Variants	7008-H-G1-DU-J84; 7008 H G1 DU J84; 7008HG1DU J84
Precision Class	ISO Class 4 (ABEC 7 / P4)
Min Temp	-30 °C
Cage Type	Machined, outer-ring centred
Dynamic Load Rating	26 kN / 5850 lbf
Static Load Rating	18.6 kN / 4180 lbf
Precision Rating	ABEC 7 / P4
Rolling Elements	Ball
Max Temp	120 °C
Item Weight	0.42 lbs
Cage Material	Phenolic (laminated resin)
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Not specified
Internal Clearance	N/A
Harmonization Code	8482.10.50
Contact Angle	25°
Mounting Arrangement	Universal (DB, DF or DT)
Design Units	Metric
Part Number	7008HG1DUJ84

Cross-References

Cross Reference 1	SKF 7008 ACD/P4ADGB
Cross Reference 2	Fafnir 3MM9108WI-DUM
Cross Reference 3	FAG 7008E-T-DUM-P4
Cross Reference 4	RHP 7008A5TYNDUMP4

Seller Part Number: AA2B4#OW1JVP

Product Description

What this part is

SNR 7008HG1DUJ84 super-precision angular contact ball bearing, supplied as a universally matchable duplex pair. Brand: SNR (NTN-SNR). Part Number: 7008HG1DUJ84. Bearing Type: Spindle Angular Contact Ball Bearing. Series: 7000. Base Number: 7008. Bore: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Material: Bearing steel. Closure Type: Open. Design Units: Metric. Country of Origin: France. Searchable forms of the number: 7008 H G1 DU J84, 7008-H-G1-DU-J84, 7008HG1DU J84.

Decoding the designation

Contact Angle: 25°. Cage Material: Laminated phenolic resin. Cage Type: Machined, centred on the outer ring. Preload: Medium. Precision Class: ISO Class 4, equivalent to ABEC 7 and DIN P4. Internal Clearance: N/A, because the pair is set to a defined preload rather than to a running clearance. Mounting Arrangement: Universal — the rings are flush ground, so the pair can be set back-to-back, face-to-face or in tandem.

What these specs mean in practice

A 25° contact angle carries more thrust and less speed than a 15° execution, which suits machine-tool spindles and screw drives where axial load dominates. Medium preload holds the balls in defined contact at all times, giving higher axial and radial stiffness and tighter shaft location than a light-preload set. The laminated phenolic cage is light and quiet and tolerates marginal lubrication; centring it on the outer ring keeps it stable at speed. ISO Class 4 tolerance gives closer runout and lower running vibration than Class 5. Item weight: 0.42 lb.

Quantity and configuration

Unit Quantity: 2 Pcs. This is a factory-matched, universally ground pair with the preload built in at the factory.

Interchange guidance

Cross-references carried on the carton: SKF 7008 ACD/P4ADGB, FAG 7008E-T-DUM-P4, RHP 7008A5TYNDUMP4, Fafnir 3MM9108WI-DUM. Each is a 25°, medium-preload, universally matchable pair on the same 40 x 68 x 15 mm envelope. Harmonization Code: 8482.10.50.
