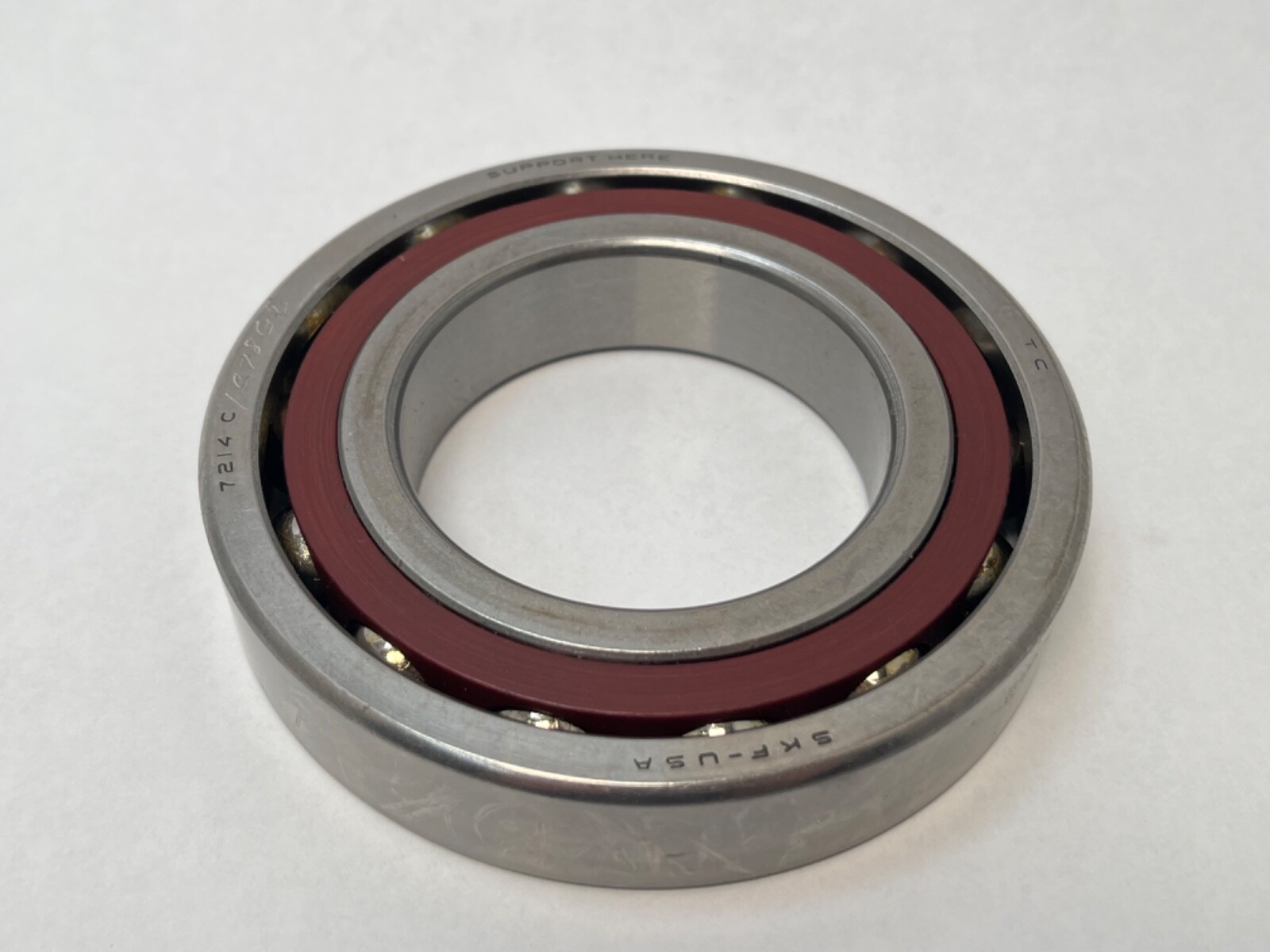

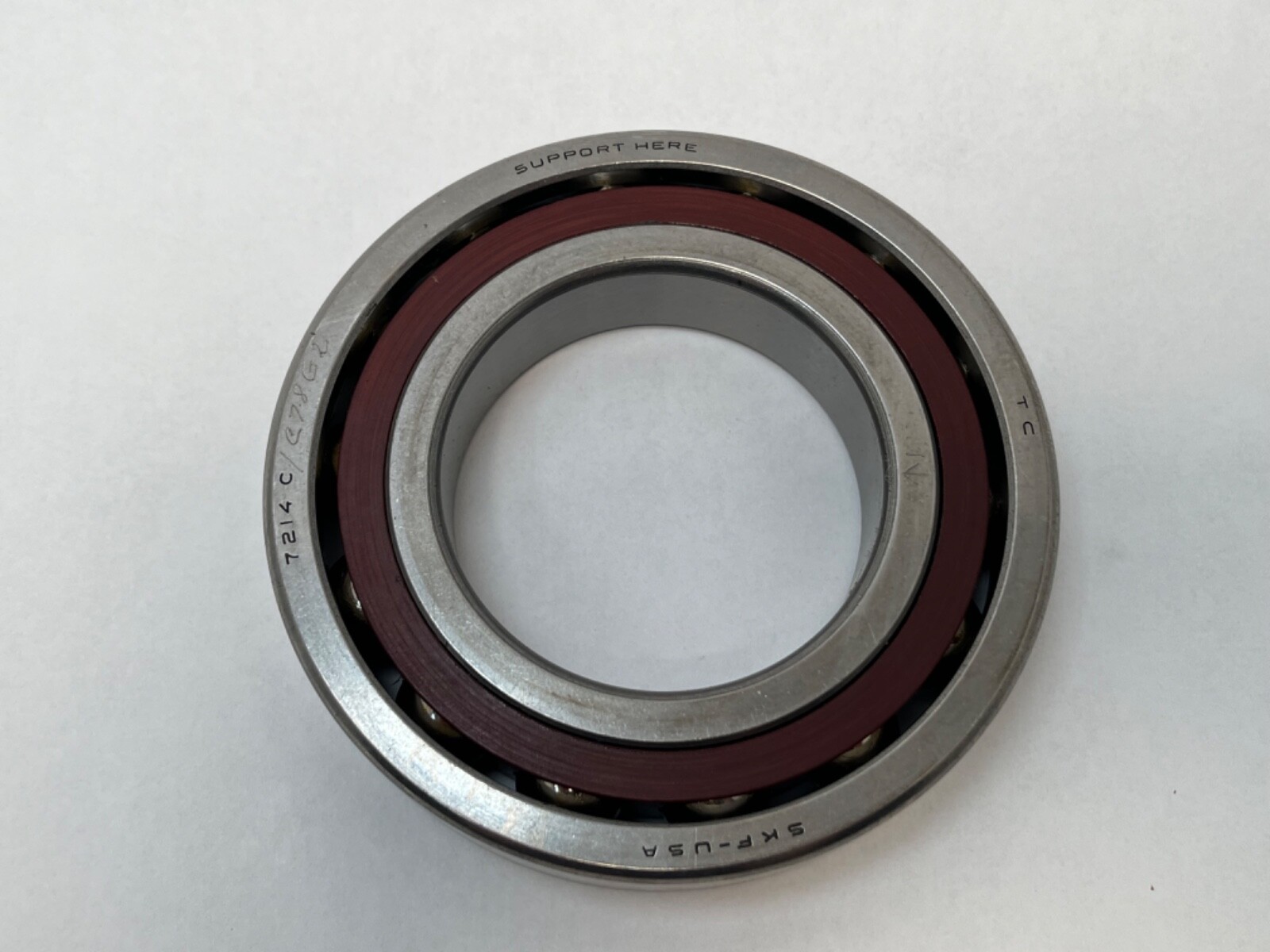

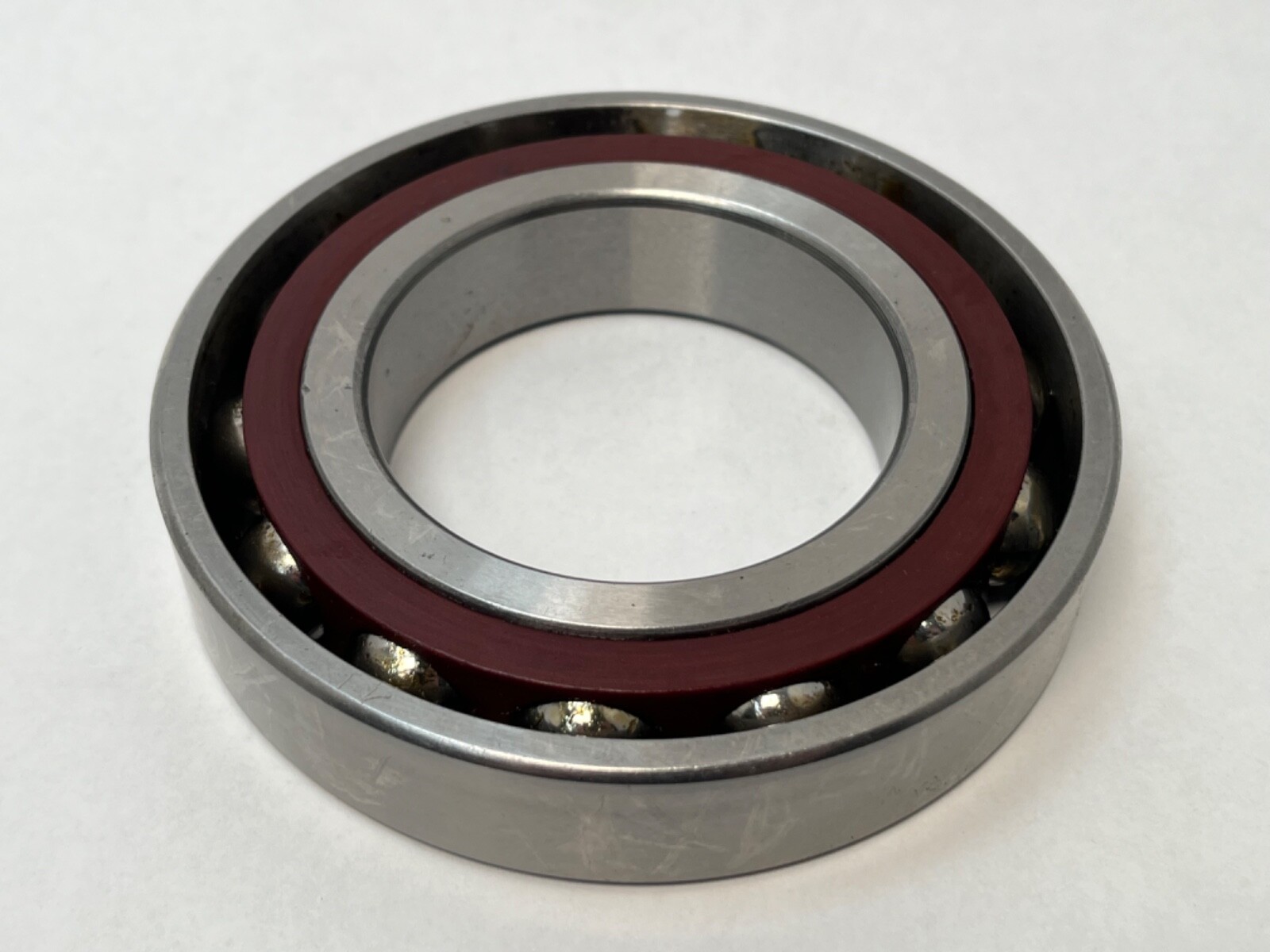

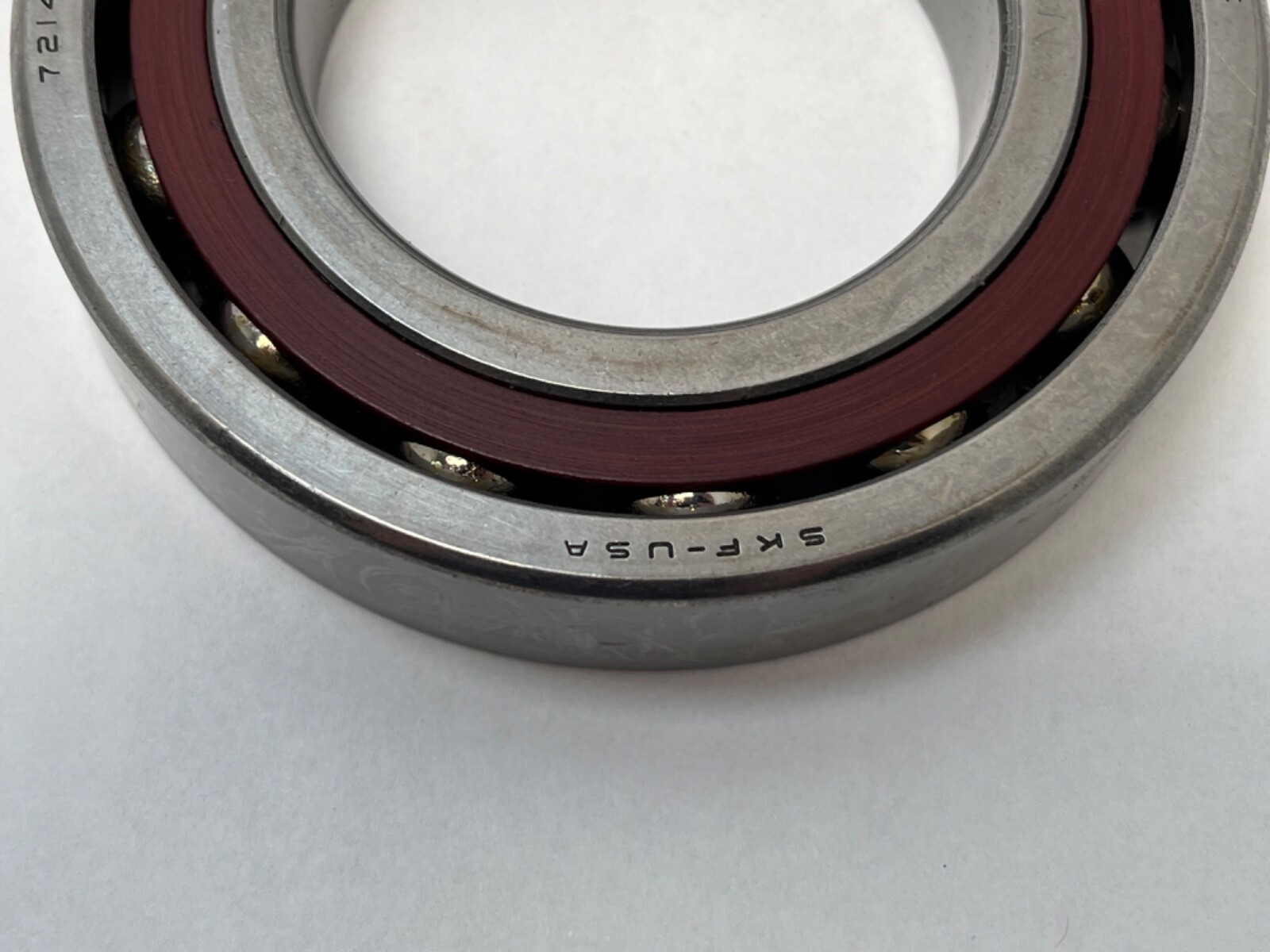

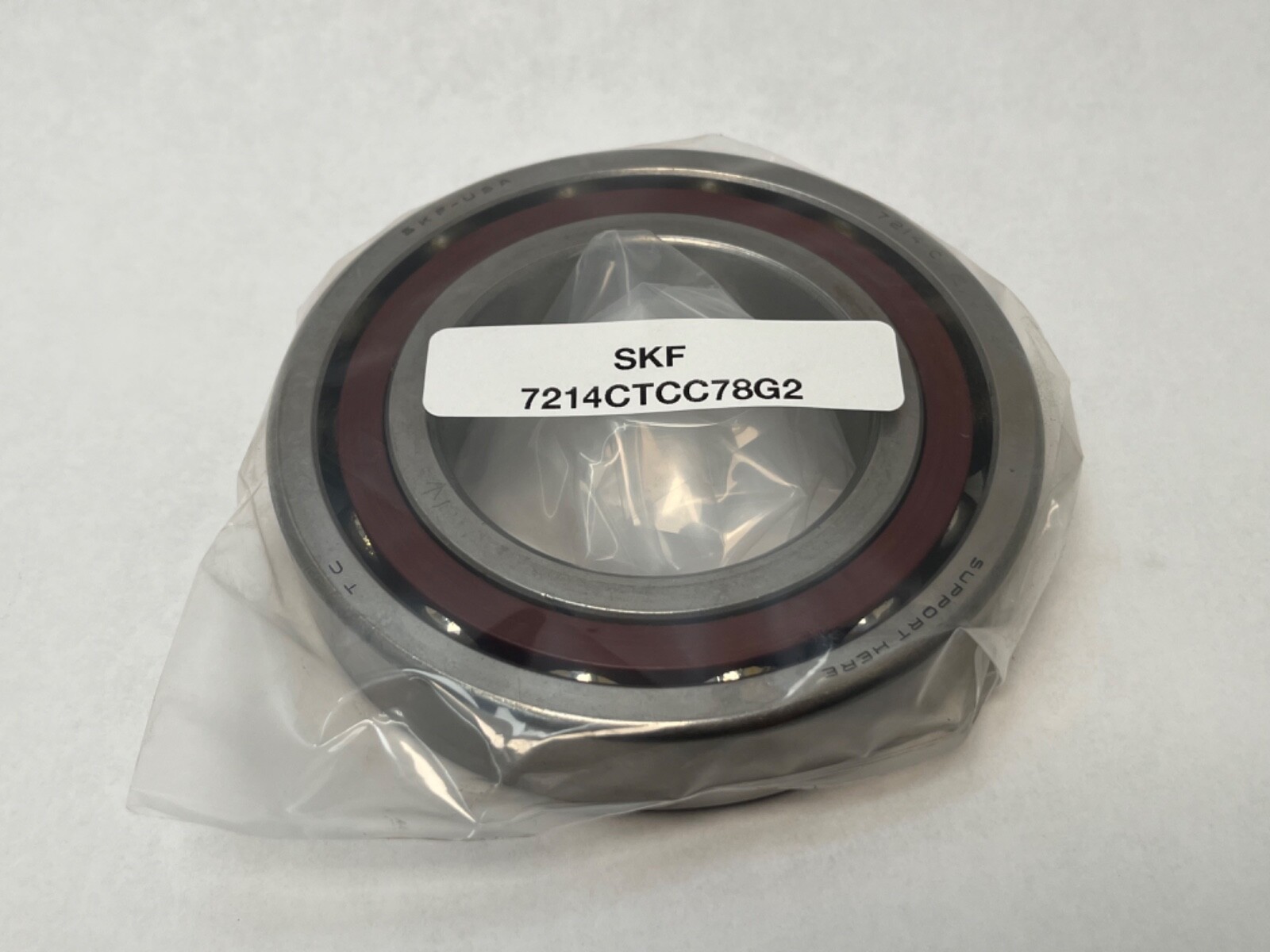

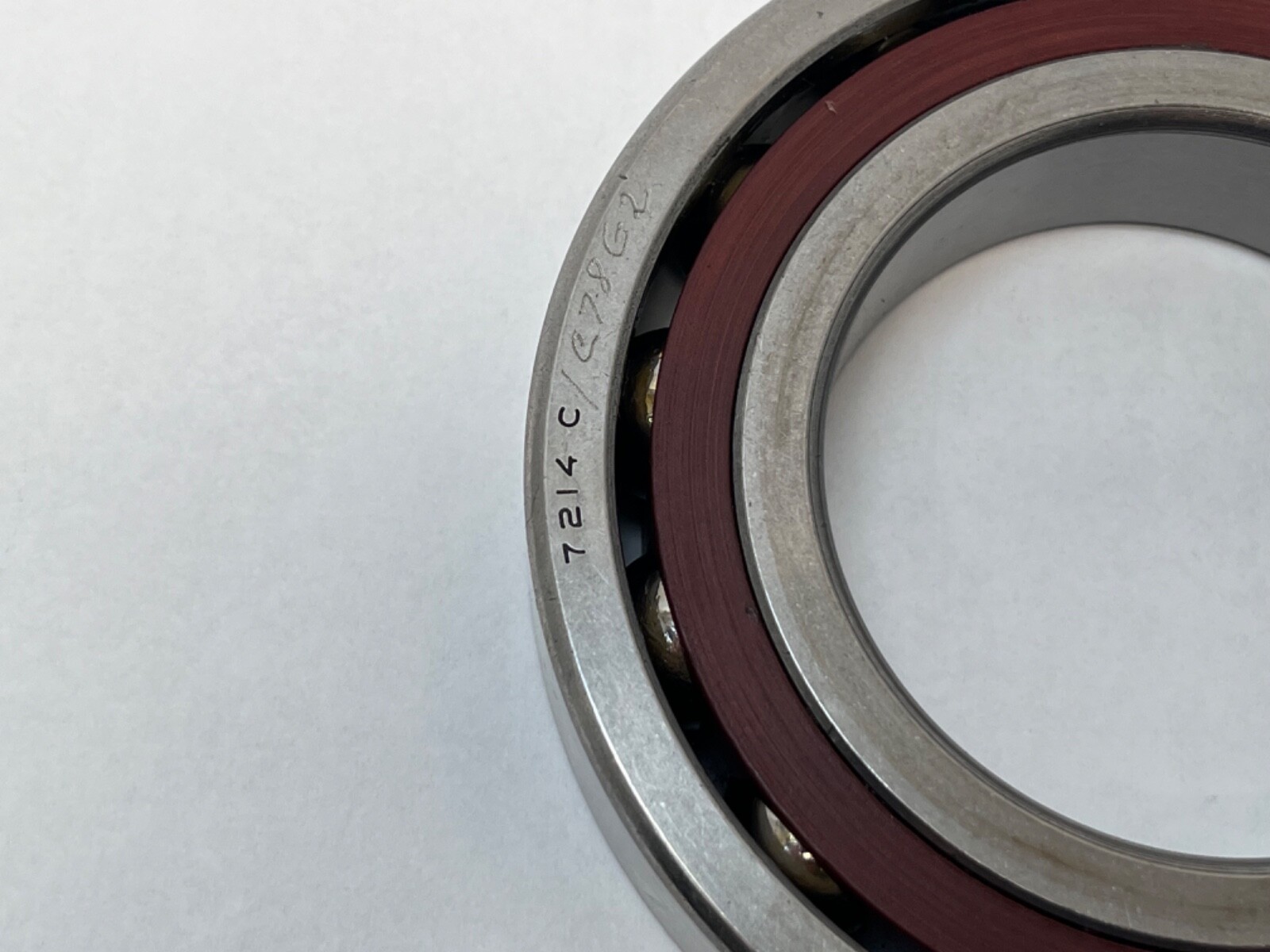

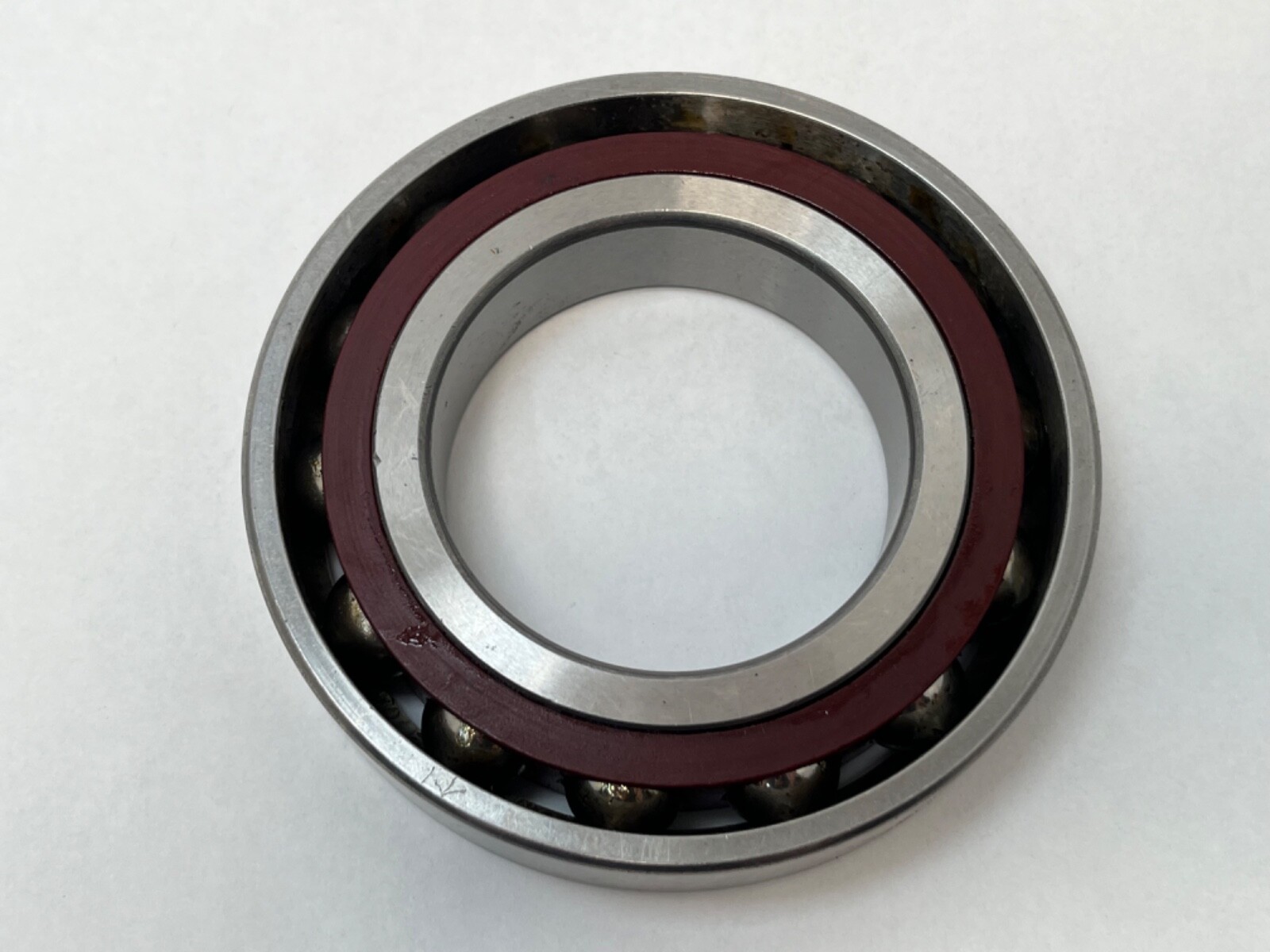

Angular contact ball bearing, 70 x 125 x 24 mm, 15° contact angle, ISO 72 series. SKF 7214 CTC C78 G2 US-designation execution, single row, open.
List Price
$137.14
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, 15° Contact Angle, Light Preload, ABEC 7 / P4$179.75
Super-Precision Angular Contact Ball Bearing - 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Light Preload, Single Universal, ABEC 7$190.49
Super Precision Angular Contact Ball Bearing - Matched Pair, Straight Bore, 70 mm ID, 125 mm OD, 24 mm Width, Open, 15° Contact Angle, Universal Medium Preload, ABEC 5$334.62
Super Precision Angular Contact Ball Bearing Pair — 70 mm Bore, 125 mm OD, 24 mm Width Each, 15° Contact Angle, Ball-Guided Cage, Back-to-Back, P5$351.86| MFR / Brand | SKF |
|---|---|
| MPN | 7214CTCC78G2 |
| Model | 7214 CTC C78 G2 / 2M214WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Normal |
| Mpn Variants | 7214CTCC78G2, 7214-CTC-C78-G2, 7214 CTC C78 G2, 7214C, 2M214WI CR |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
A single row angular contact ball bearing, SKF 7214 CTC C78 G2, in the ISO 72 series. Bore Diameter: 70 mm. Outside Diameter: 125 mm. Overall Width: 24 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open. Bore Type: Straight.
72 — ISO dimension series 02, light section.
14 — bore code, 70 mm bore, giving the 70 x 125 x 24 mm envelope.
C — 15° contact angle.
The 15° contact angle favours speed and radial stiffness while carrying axial load in one direction.
Unit Quantity: 1 Pc. New old stock.
The 7214 envelope is 70 x 125 x 24 mm at 15°. Search designations for this part include 7214CTCC78G2, 7214-CTC-C78-G2, 7214C and 2M214WI CR.
