Availability:
Out of stock

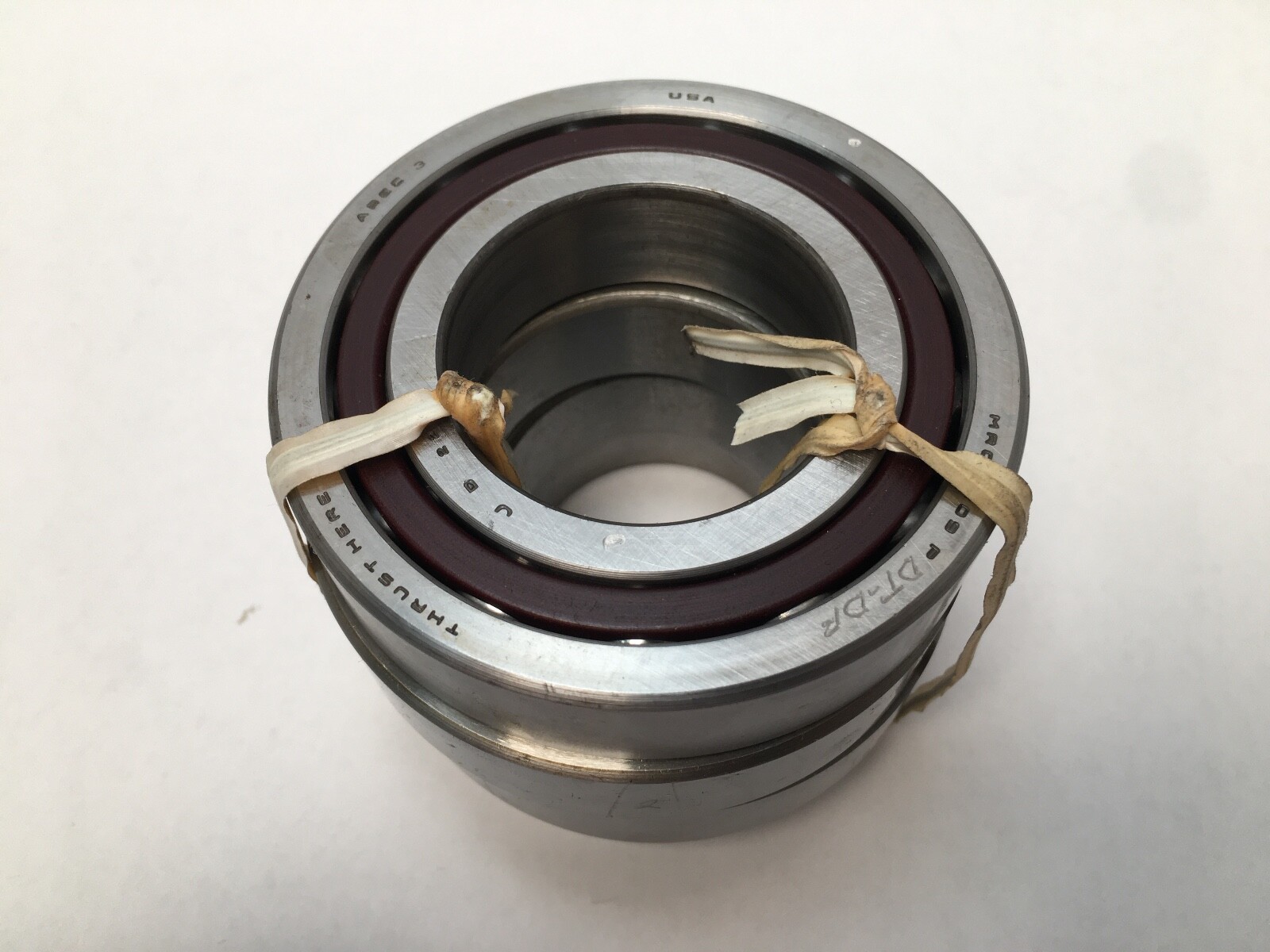

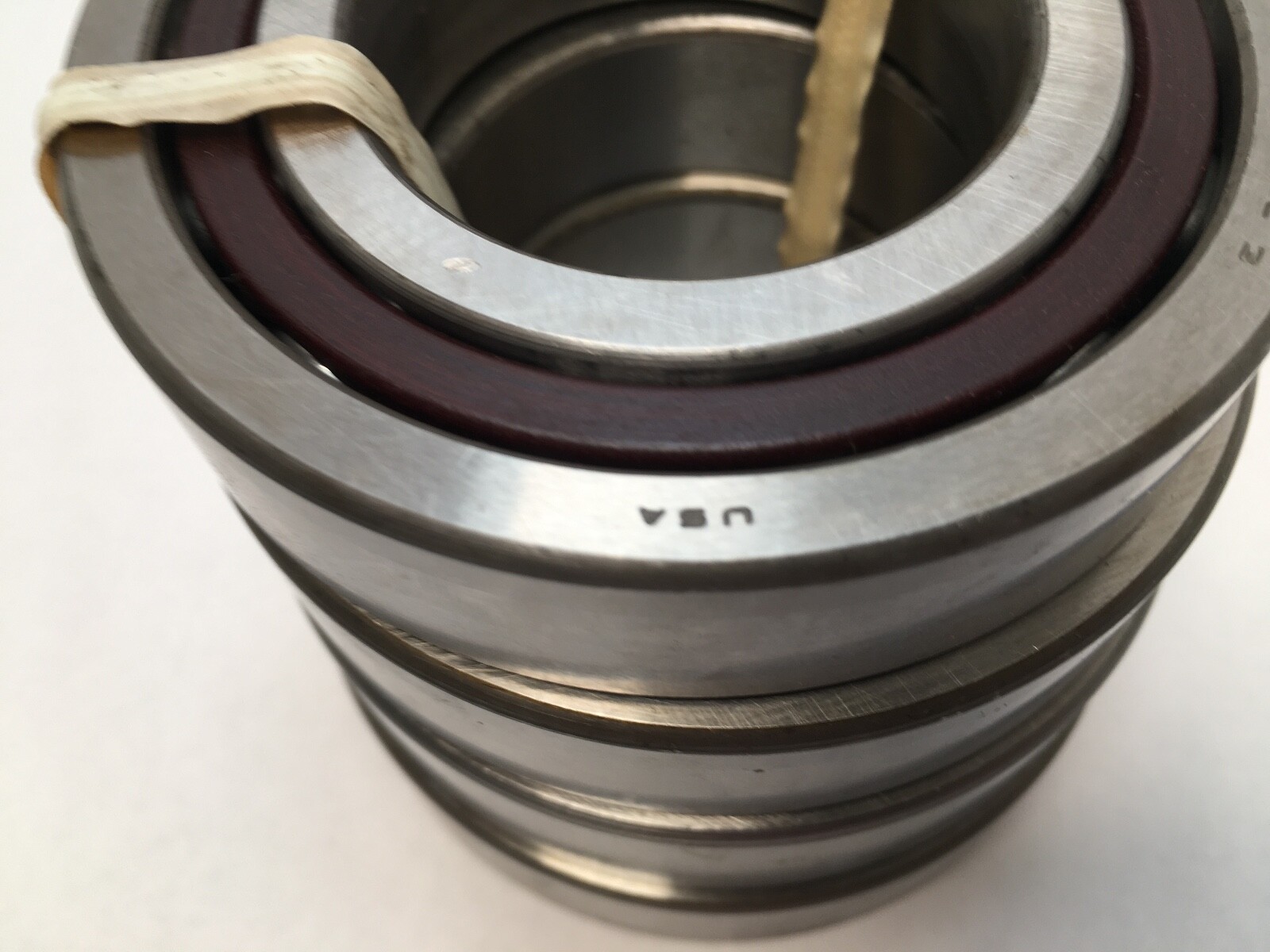

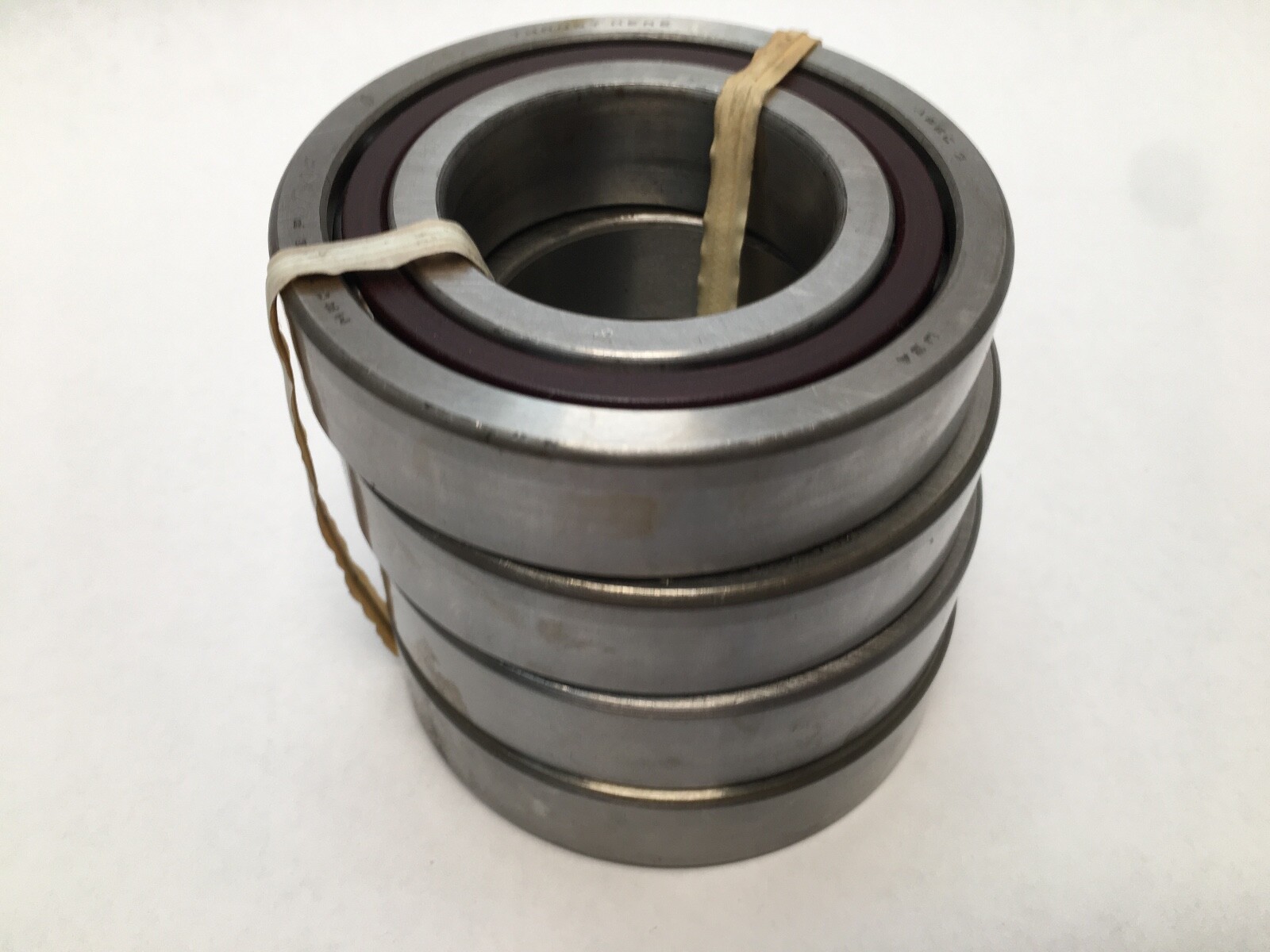

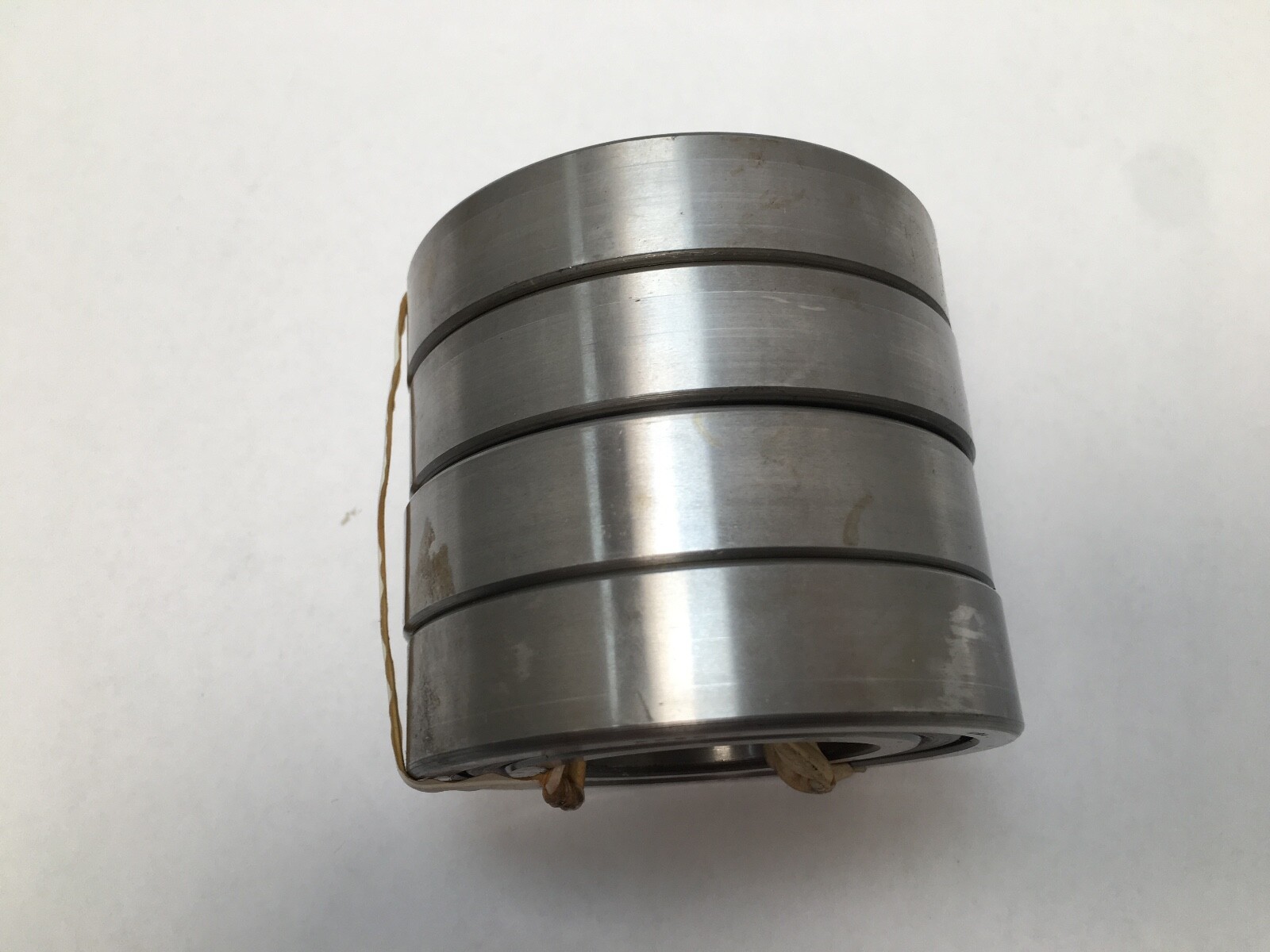

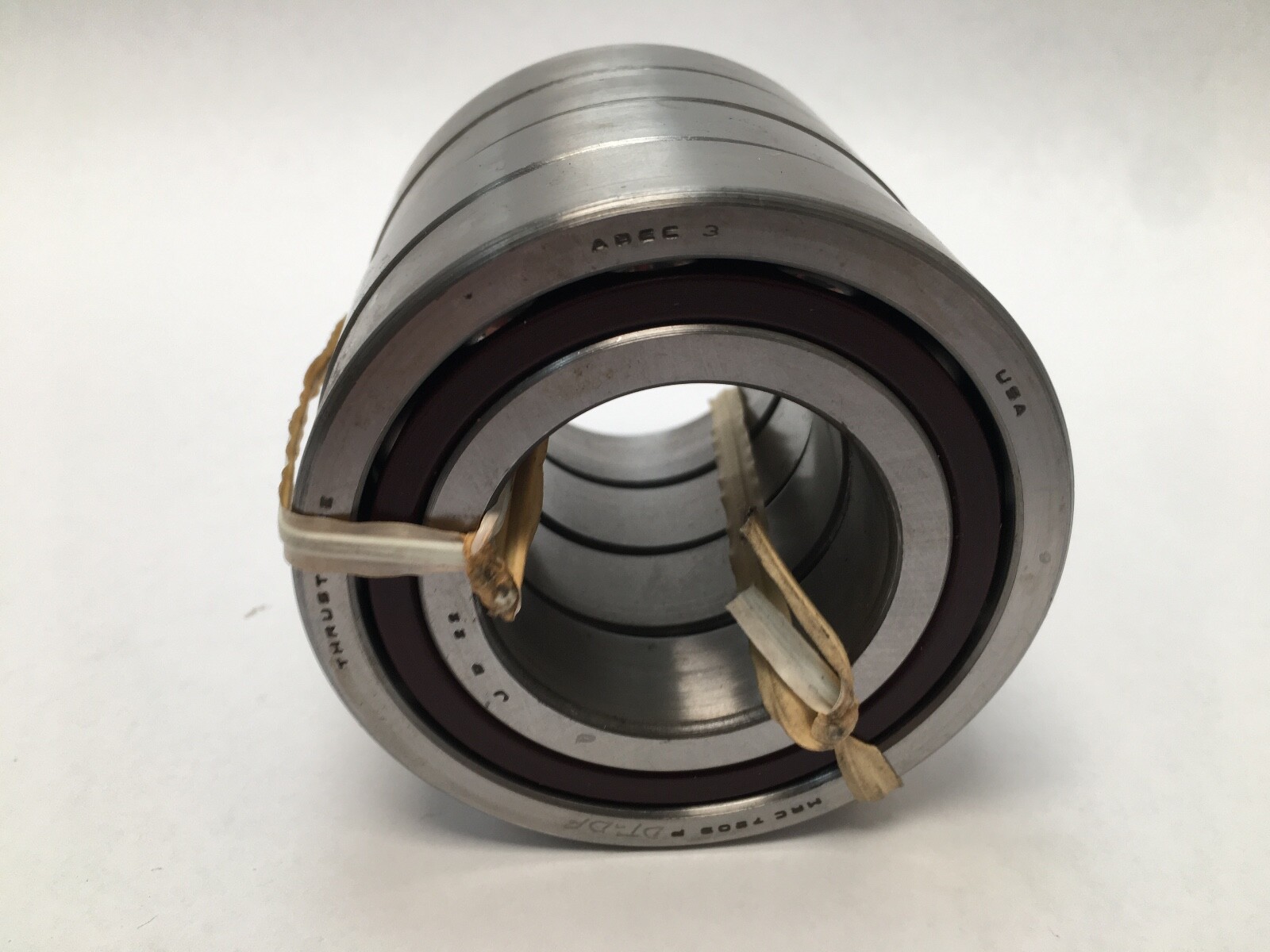

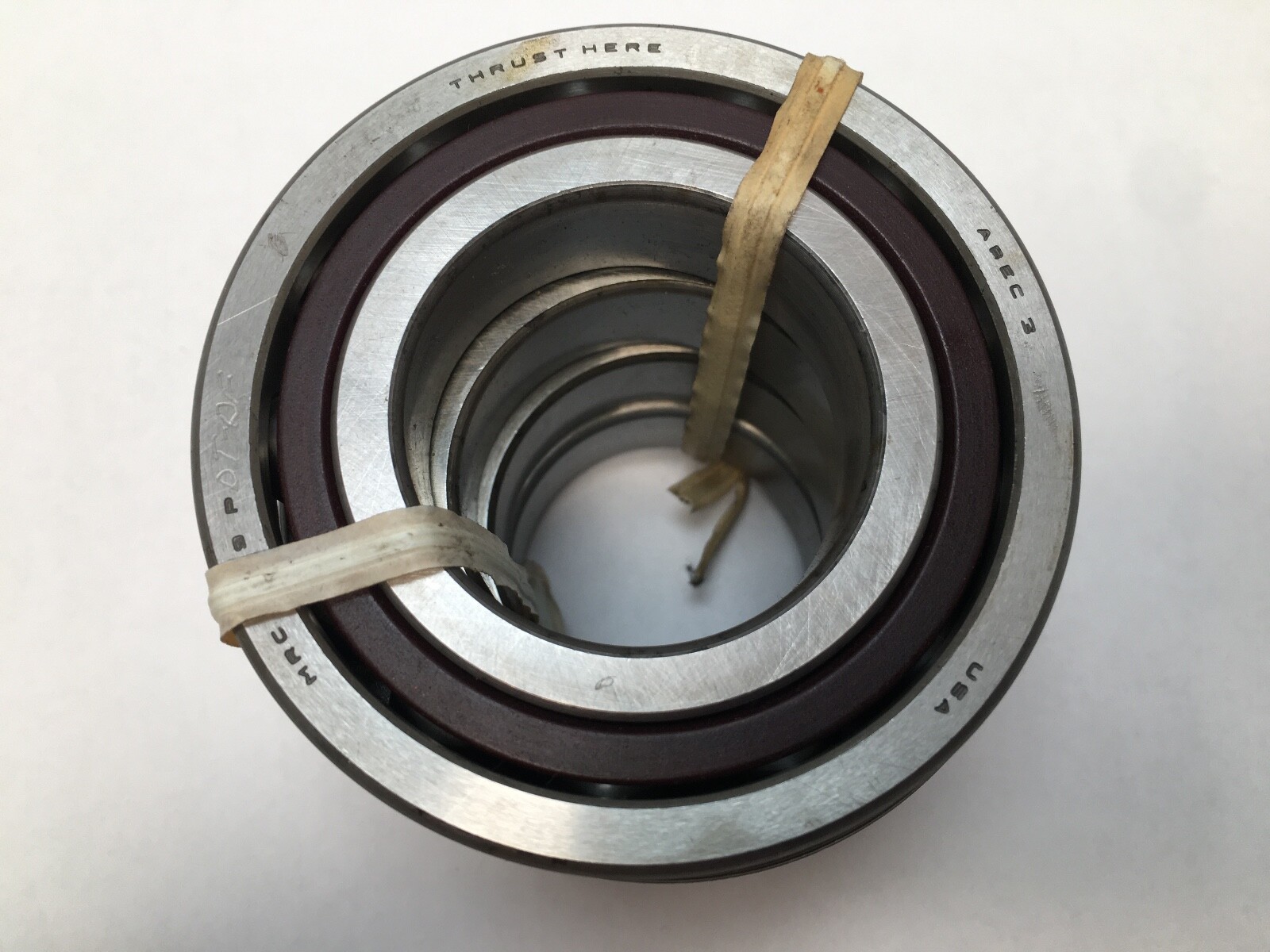

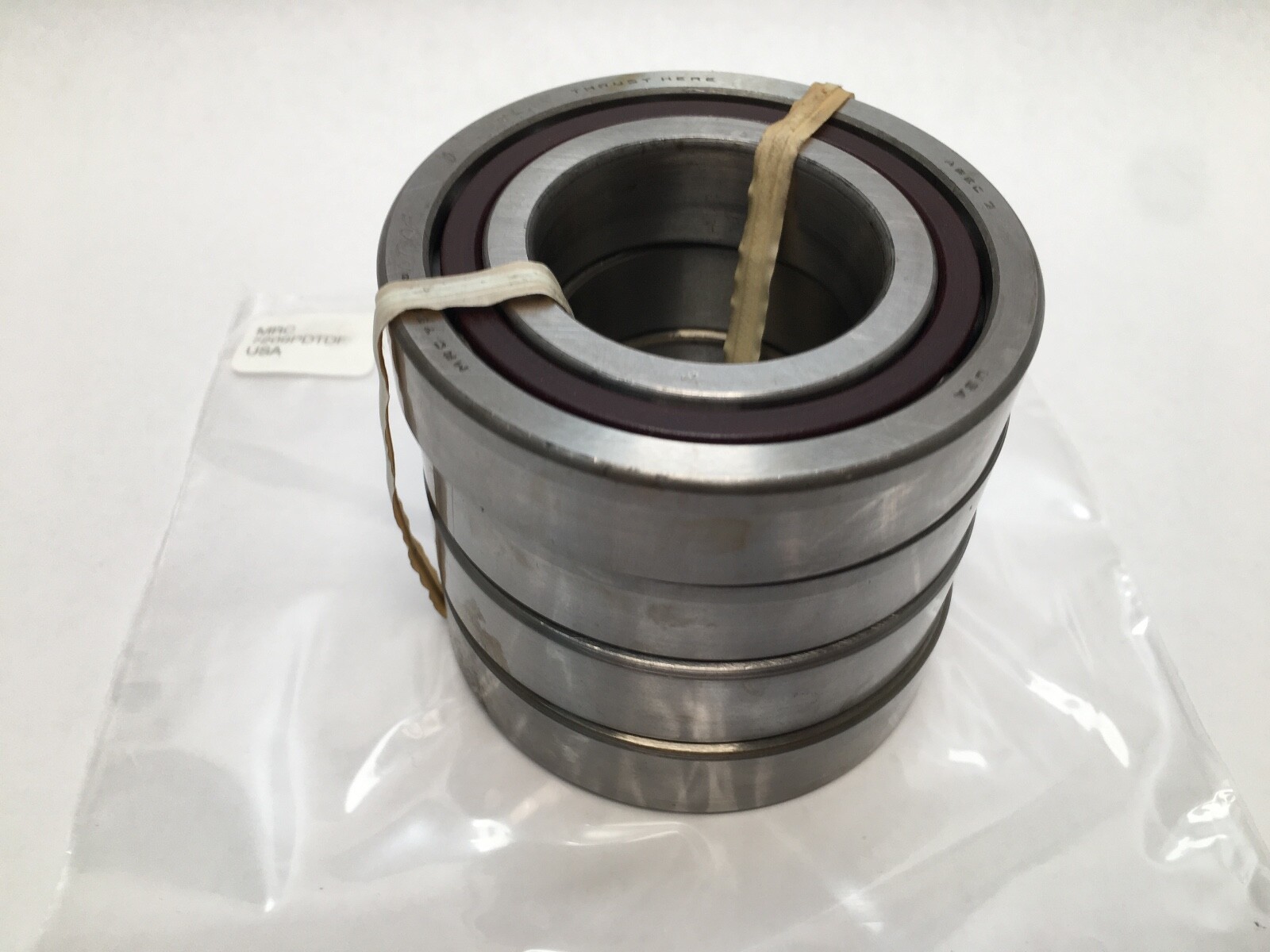

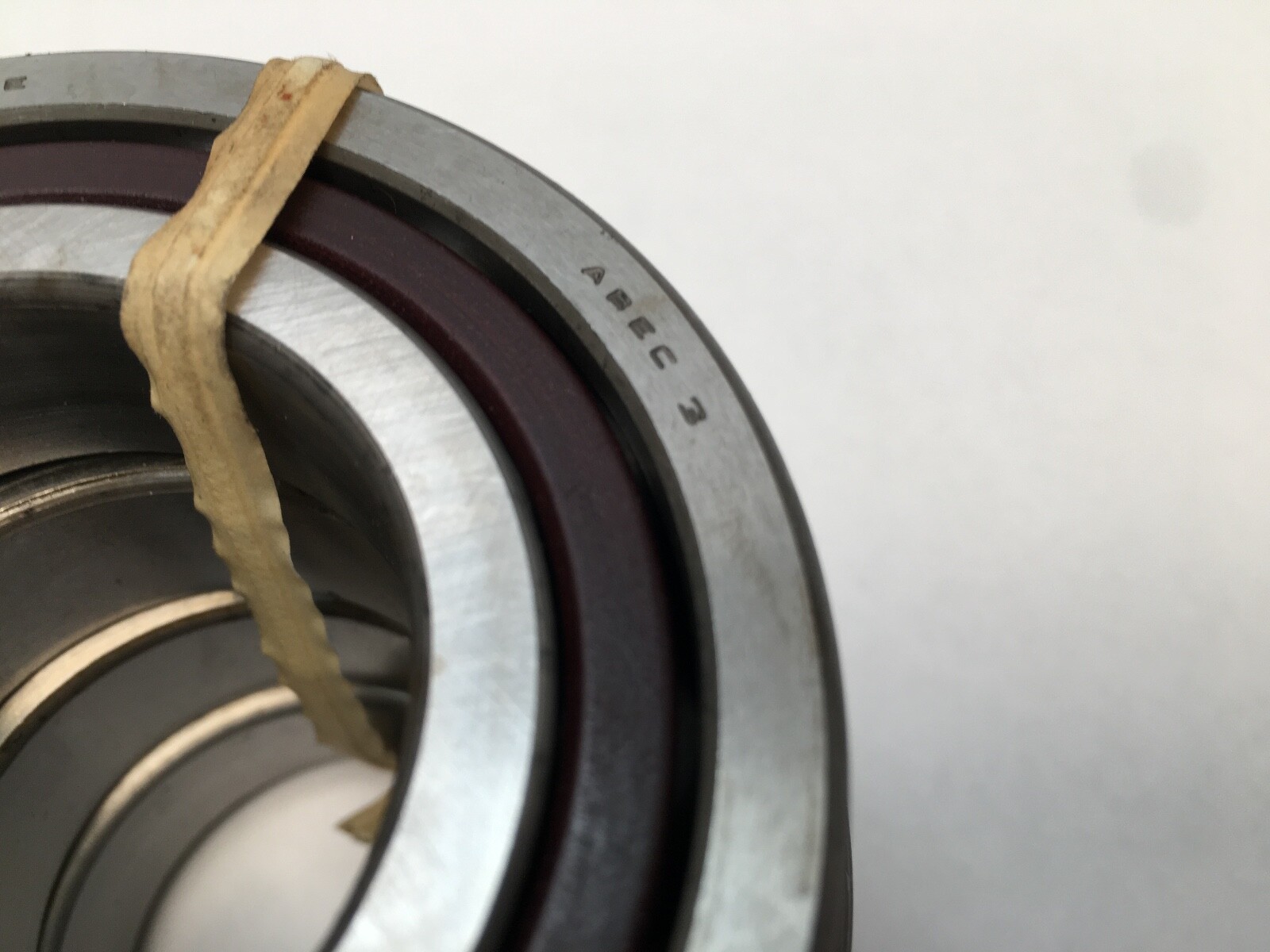

Angular contact ball bearing set, 45 x 85 x 19 mm, 40° contact angle, tandem pair mounted face-to-face, open, straight bore, chrome steel rings.
List Price
$181.39
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing Set - 45 mm ID, 85 mm OD, 19 mm Width, Straight Bore, Open, 40 Degree, ABEC 3, Tandem Pair Face-to-Face$268.50
Angular Contact Ball Bearing 45x85x19 mm 29 Degree Contact Angle Duplex Ground Open$63.06
Matched Angular Contact Ball Bearing Pair – 45 mm Bore x 85 mm OD x 19 mm Width, 29°, Back-to-Back, ABEC 5$91.00
Super-Precision Angular Contact Ball Bearing Matched Pair 45x85x19 mm 29° ABEC 7 Duplex Ground$129.25| MFR / Brand | MRC |
|---|---|
| MPN | 7209PDTDF |
| Model | 7209P DT DF PDTDF |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Base Number | 7209 (ISO 7209 envelope) |
| Industry Terms | Angular contact ball bearing; matched set; tandem pair; face-to-face duplex; high thrust bearing; Marlin Rockwell; 7209 |
| Common Misspellings | 7209 PDTDF; 7209PDTFD; 7209-PDTDF; MCR 7209PDTDF |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 7209PDTDF; 7209 P DT DF; 7209-P-DTDF; 7209PDT; 7209P |
| Manufacturer Status | MRC brand acquired by SKF; designation discontinued |
| Arrangement Configuration | Ground matched set, tandem pair face-to-face |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 19000 rpm |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Mounting Arrangement | Tandem pair mounted face-to-face (DT-DF) |
| Part Number | 7209PDTDF |
| Cross Reference 1 | SKF 7209 BE (same envelope, 40° execution) |
|---|---|
| Cross Reference 2 | FAG 7209-B (same envelope, 40° execution) |
| Cross Reference 3 | NSK 7209B (same envelope, 40° execution) |
MRC 7209PDTDF angular contact ball bearing set. Bearing type: Angular contact ball bearing. Bore: 45 mm. Outside Diameter: 85 mm. Overall Width: 19 mm per bearing. Contact Angle: 40°. Bore Type: Straight. Closure Type: Open, both faces. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Material: Chrome bearing steel. Series: MRC 7200 light, ISO 72 dimension series. Mounting Arrangement: Tandem pair mounted face-to-face (DT-DF).

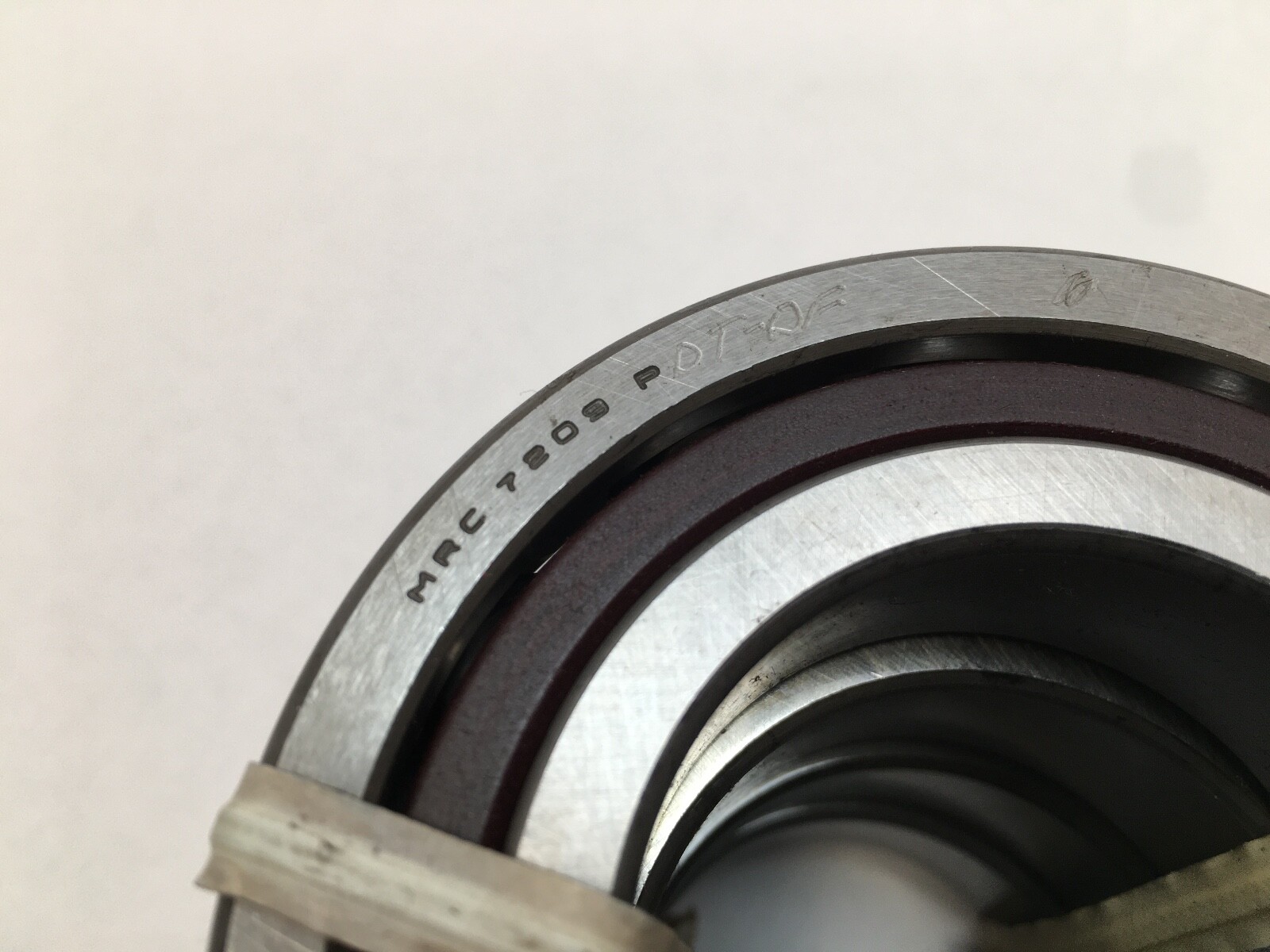

72 — light section angular contact series, matching the ISO 72 dimension series.
09 — bore code giving Bore: 45 mm.
P — Contact Angle: 40°, the high-thrust MRC execution.
DT — matched tandem pair, ground so the two bearings share one direction of thrust equally.
DF — face-to-face, the tandem pair set against an opposing bearing so the assembly takes thrust both ways.
Contact Angle: 40°. The steep angle runs most of the load path along the shaft axis, giving this execution far more thrust capacity than a 15° or 29° bearing in the same envelope, at a lower speed ceiling. A tandem pair doubles that thrust capacity again in its own direction, and setting the pair face-to-face against an opposing bearing gives an assembly heavily loaded one way and located the other. The ground faces set the preload as the set is clamped, so the stiffness is repeatable without a shim stack.
Matched set, ground as a unit and supplied together. Open on both faces, straight bore. The bearings are installed in the orientation the grinding was made for.
Straight bore on an interference-fit shaft seat, outer rings located in a bored housing. The set is clamped through all inner rings and all outer rings together so the ground offsets close and produce the intended preload. The ring faces are marked for orientation and the set is assembled to those marks.
The 45 x 85 x 19 mm envelope is the ISO 7209 seat and at a 40° contact angle corresponds to the 7209 B executions — SKF 7209 BE, FAG 7209-B and NSK 7209B. A 7209 AC at 25° or a 7209 C at 15° shares the same shaft and housing seats at a shallower angle and is a related size rather than an interchange.
