This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Super Precision Angular Contact Ball Bearing — 85 x 130 x 22 mm, 15° Contact Angle, Phenolic Cage, Duplex Heavy Preload, Open$487.79
Super Precision Angular Contact Ball Bearing, Matched Duplex Pair, 85 x 130 x 22 mm, 44 mm Total Width, 15 Degree Contact Angle, Light Preload, Phenolic Outer Land Riding Cage, ISO P4S$487.79
Spindle Angular Contact Ball Bearing - 85 mm ID, 130 mm OD, 22 mm Width, Open, 15° Contact Angle, Medium Preload, Universal Single$243.90
Angular Contact Ball Bearing — 85 mm ID, 130 mm OD, 22 mm Width, 15° Contact Angle, Light Preload, Phenolic Cage, ABEC 7/9$243.90| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9117WIDUH |
| Model | 2MM9117WI DUH 7017 117HDH |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm |
| OD | 130 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | MM9100WI |
| Lubricant | Oil |
| Preload | Heavy |
| Min Temp | -30 °C |
| Dynamic Load Rating | 75.4 kN / 16951 lbf |
| Static Load Rating | 76.5 kN / 17198 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 121 °C |
| Item Weight | 4.85 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 13000 rpm |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7017 ACD/P4ADHA |
|---|---|
| Cross Reference 2 | FAG B7017-E-T-P4S-DUH |
| Cross Reference 3 | NSK 7017A5TYNDUHP4 |

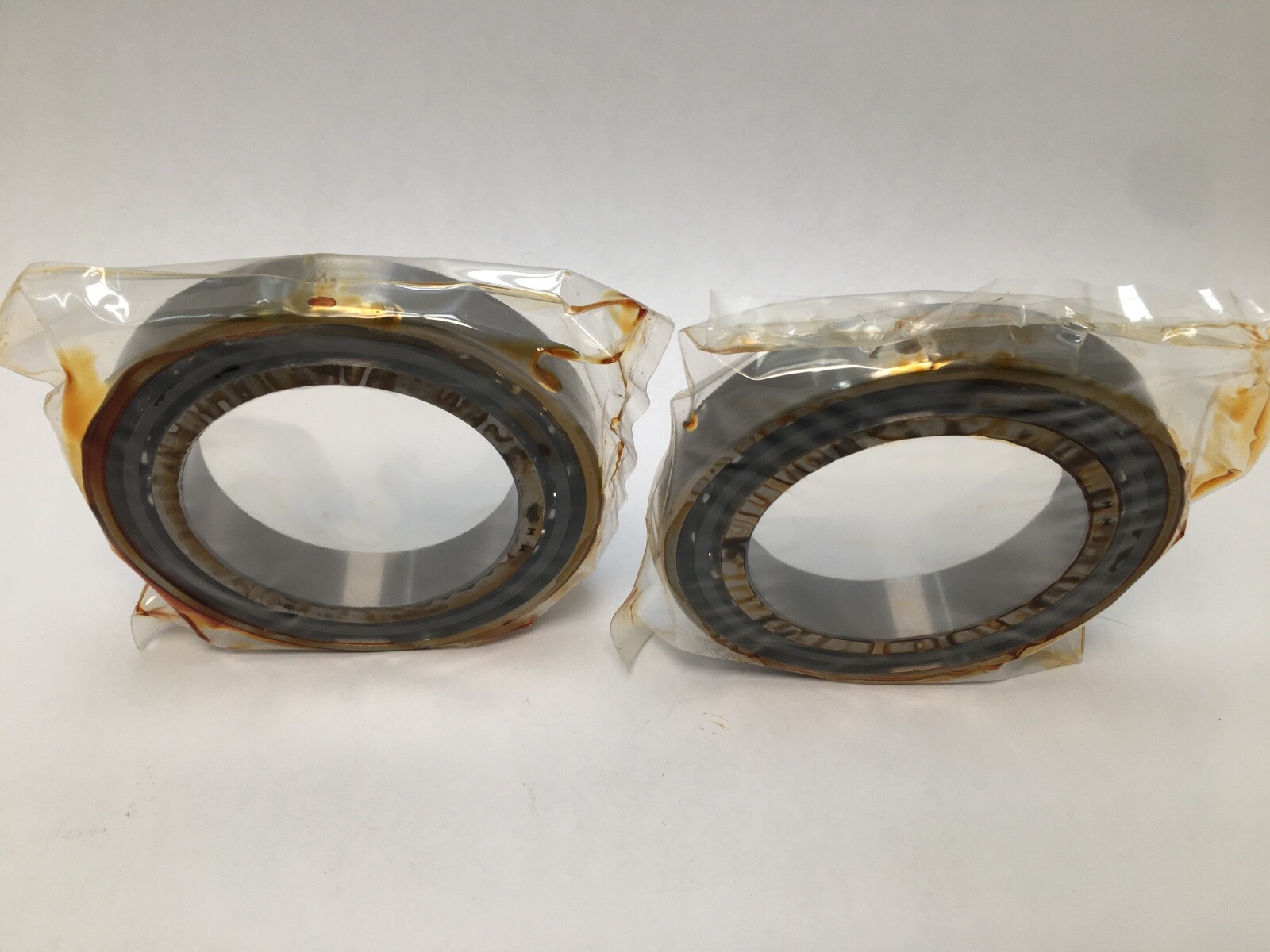

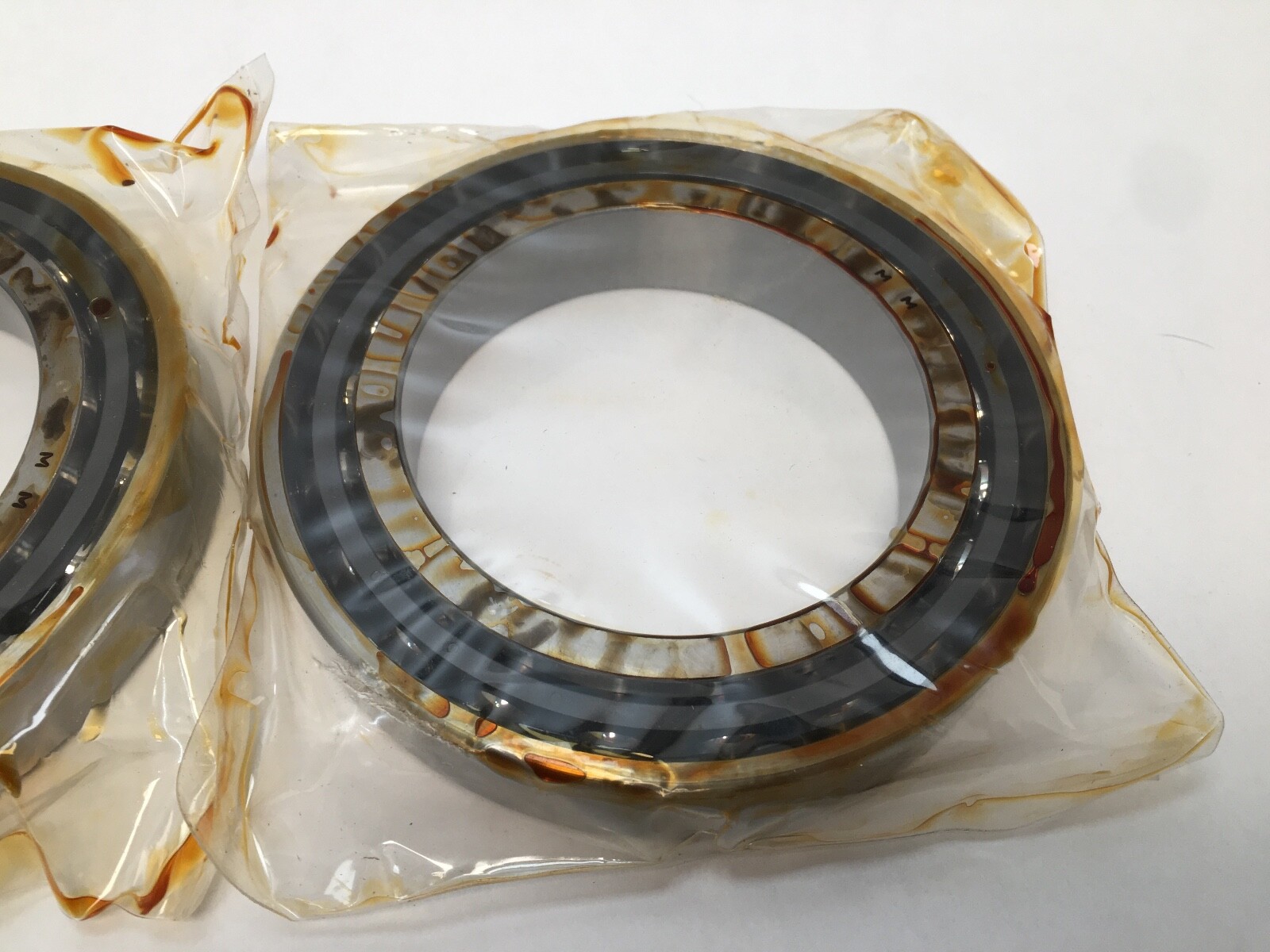

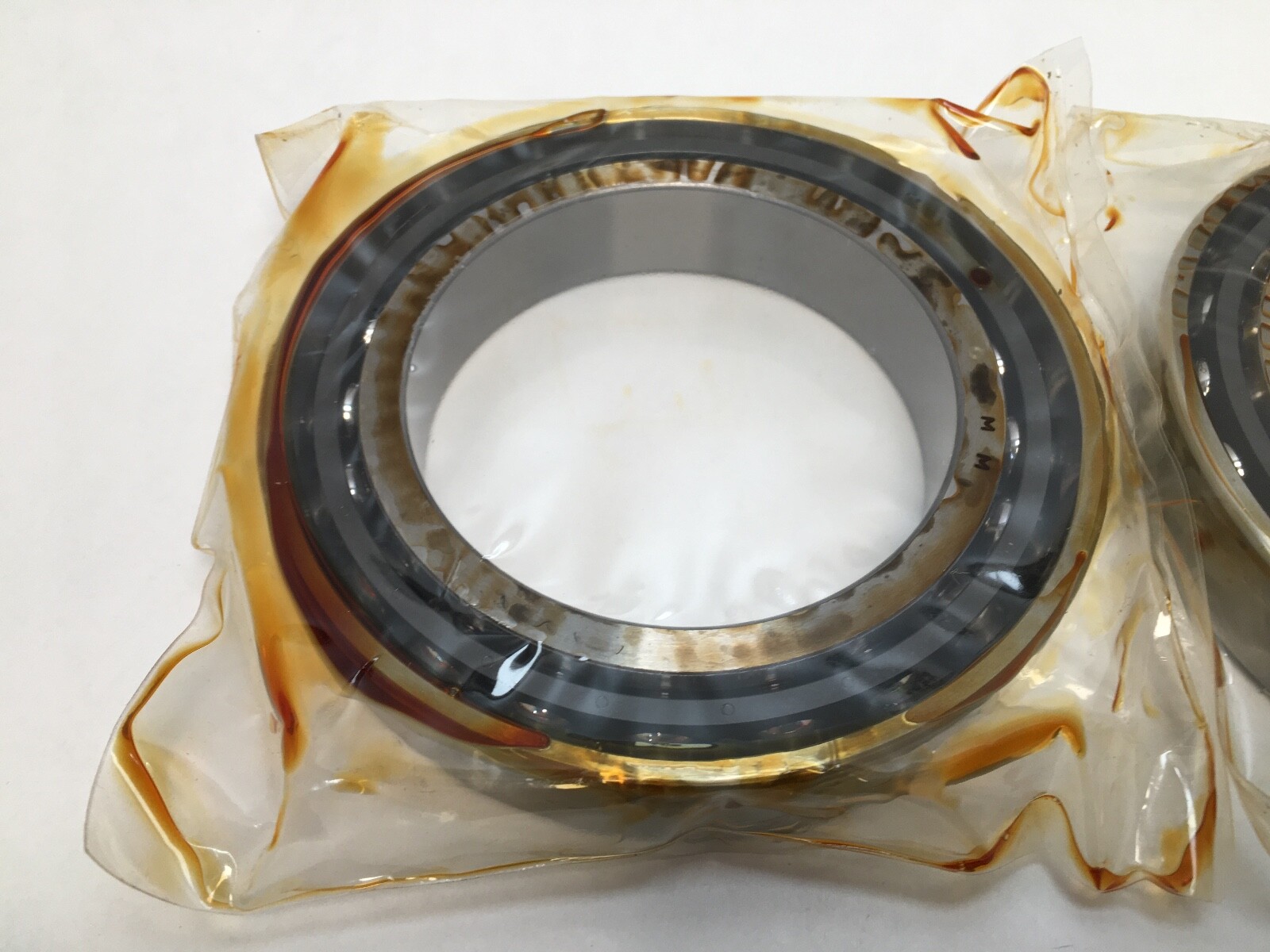

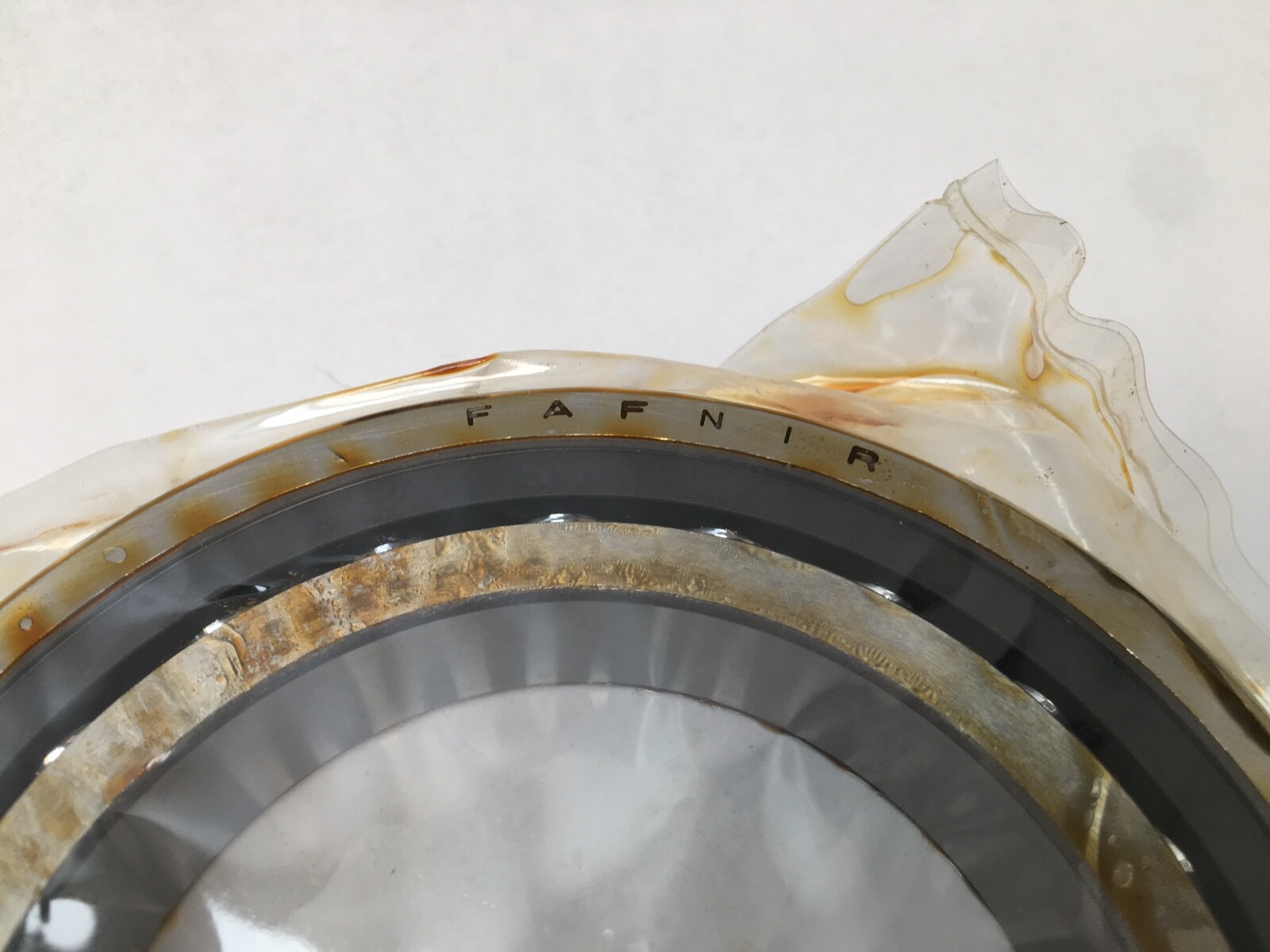

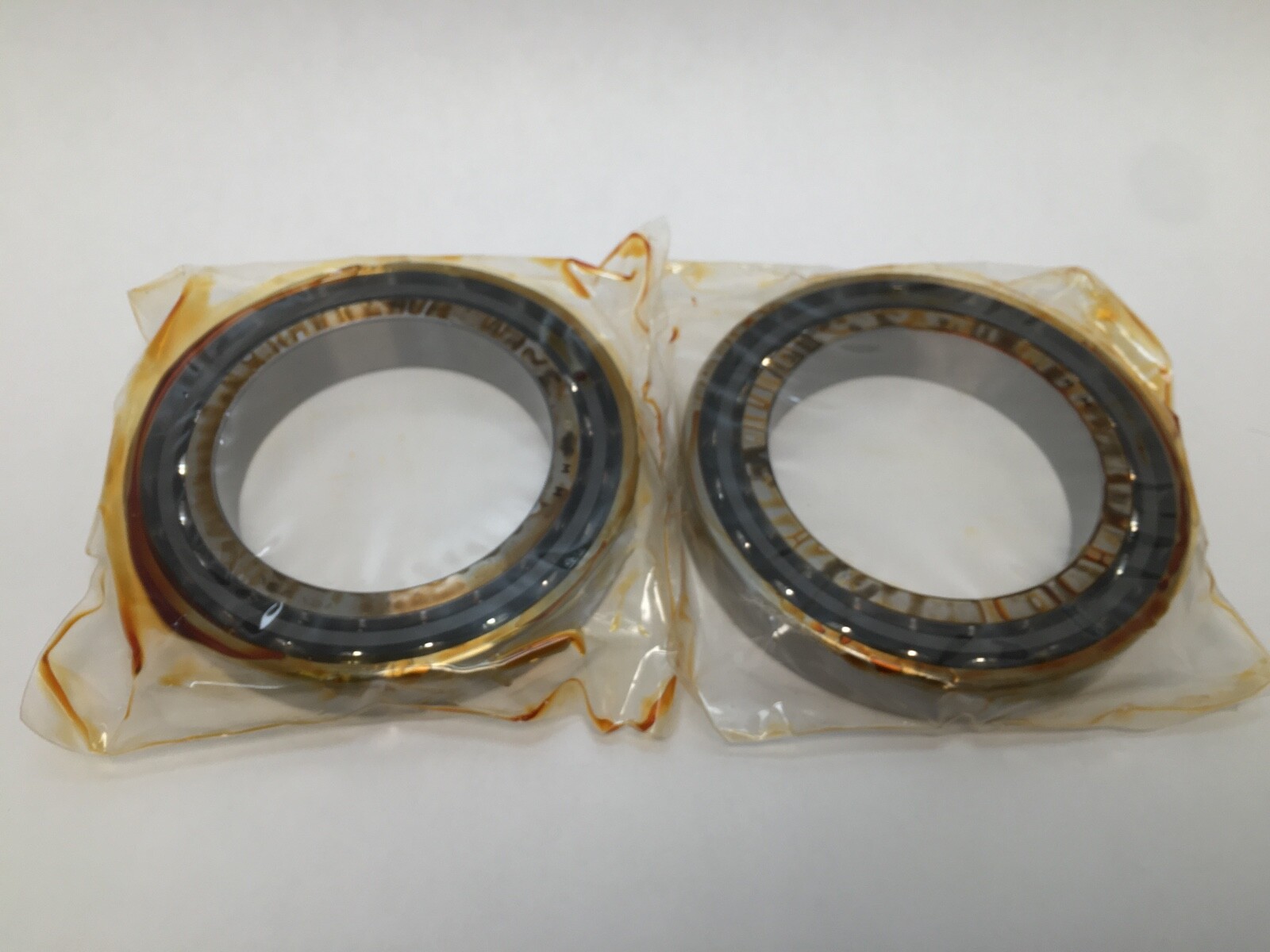

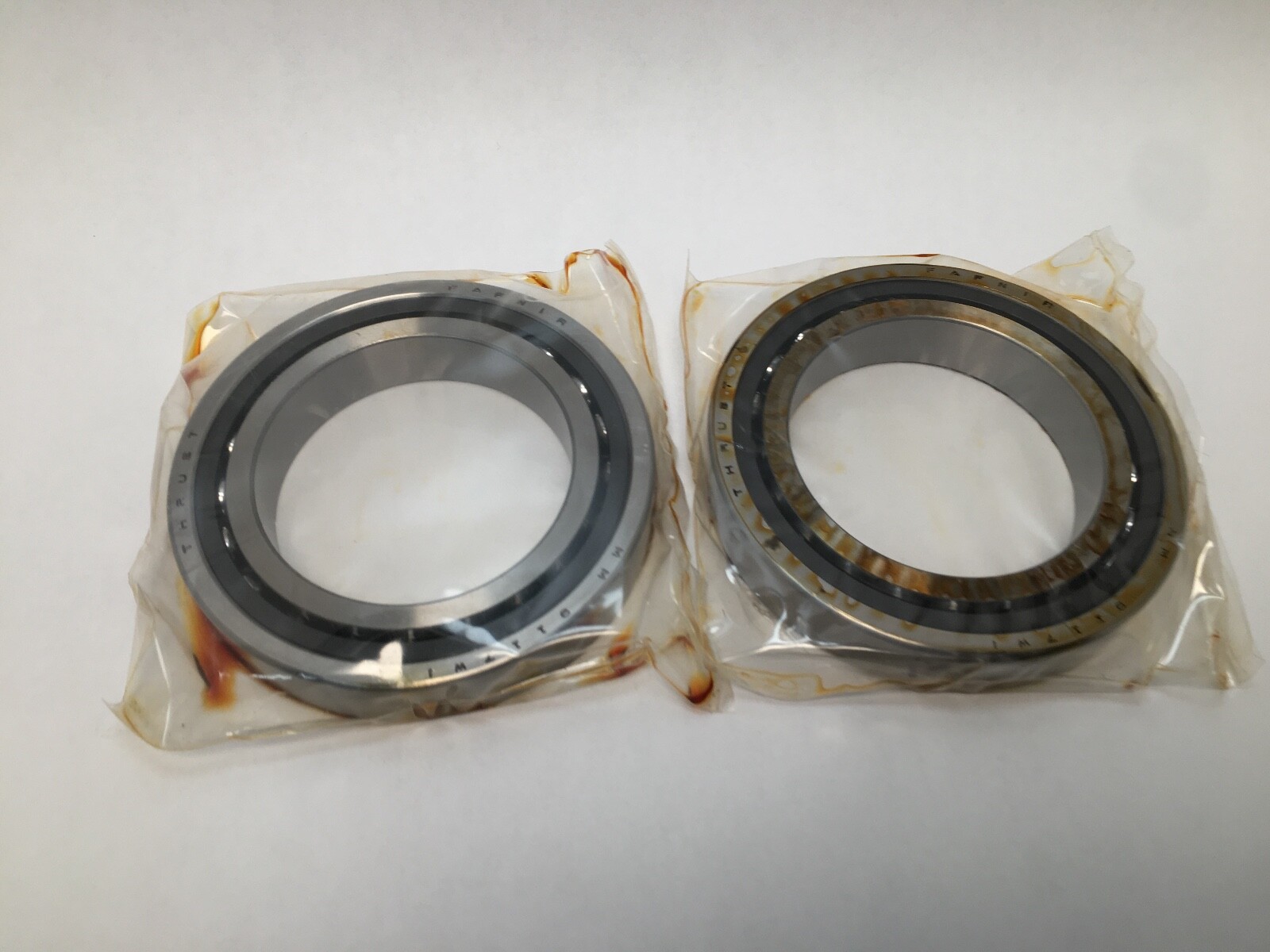

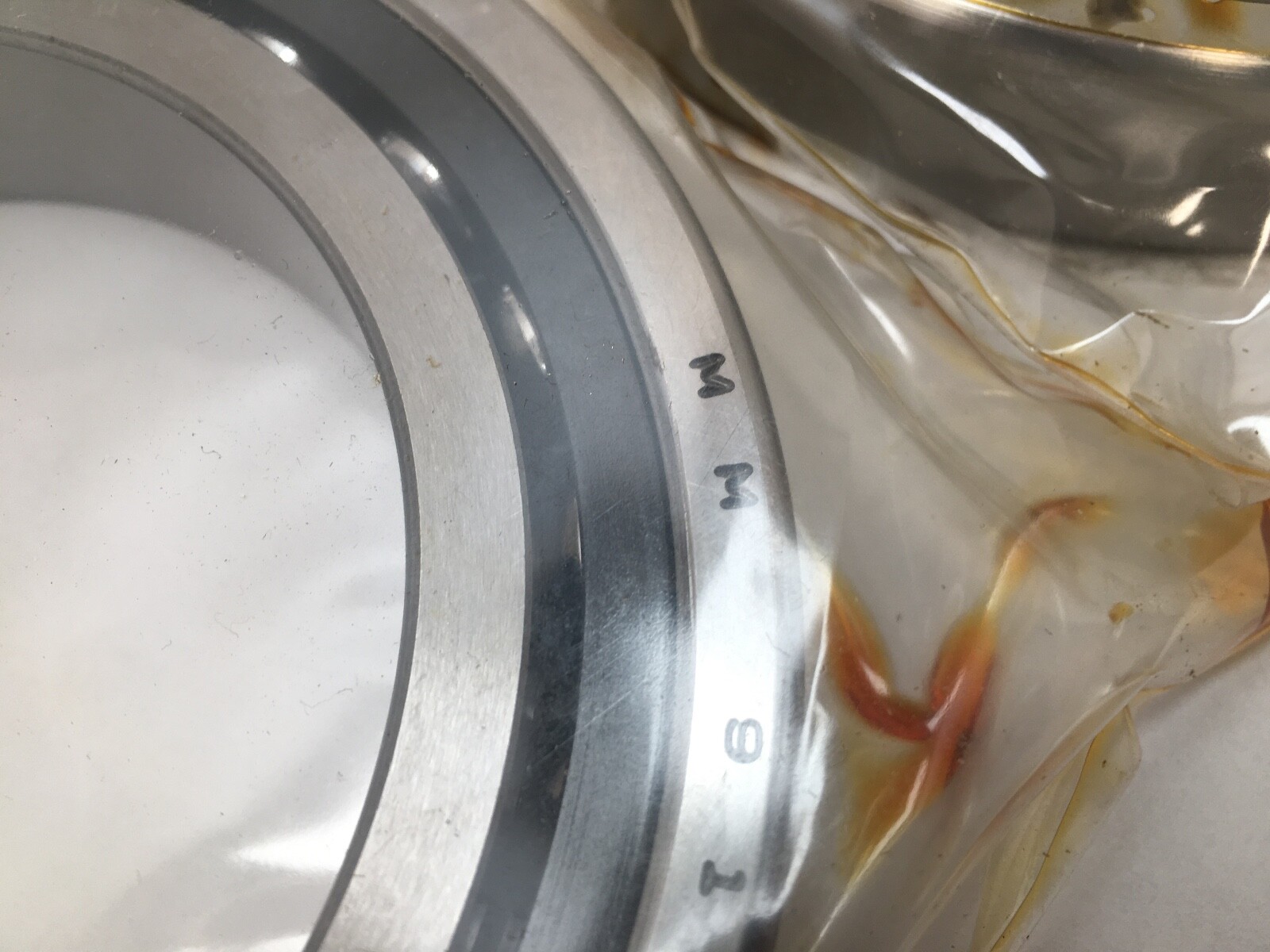

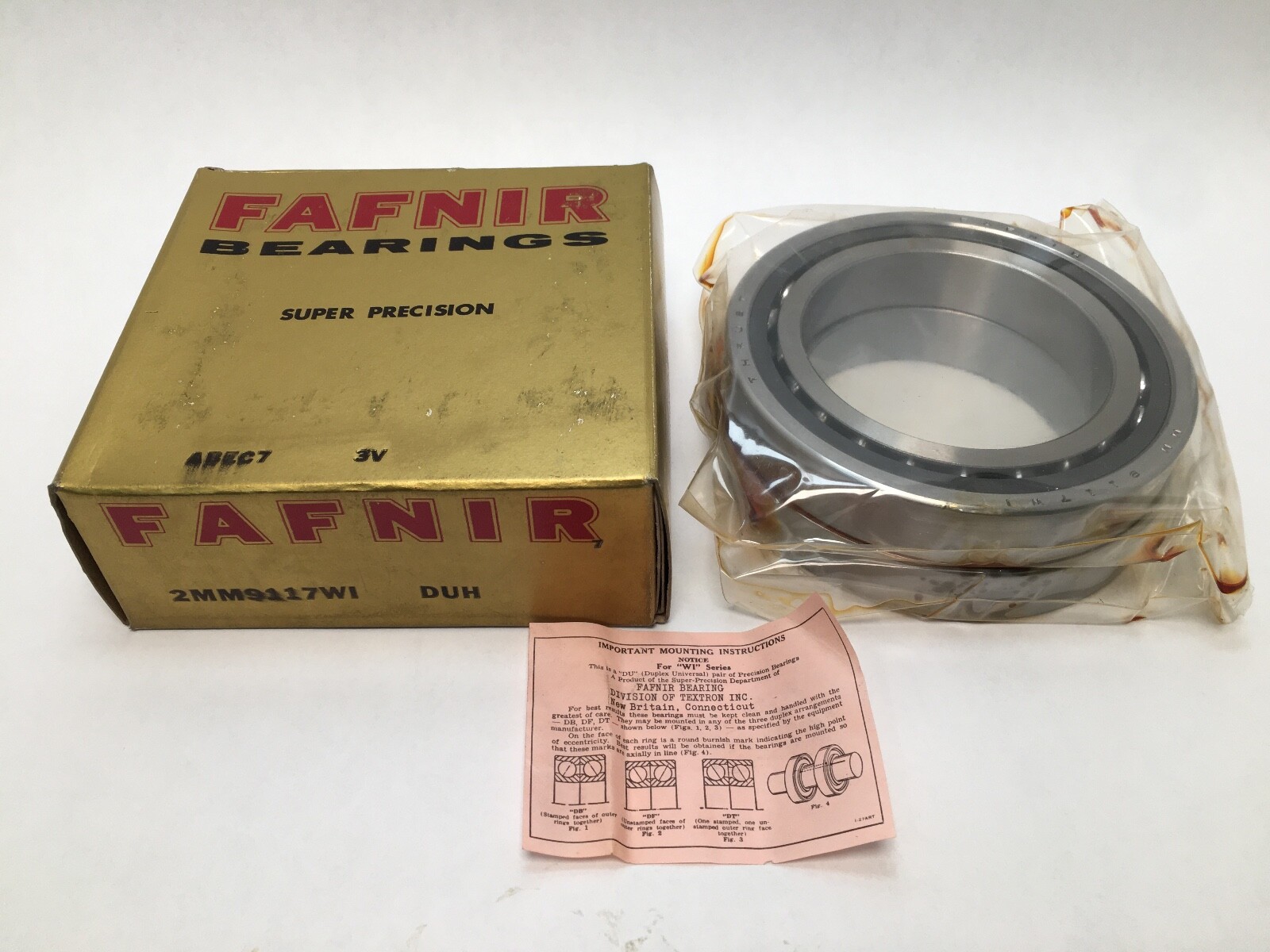

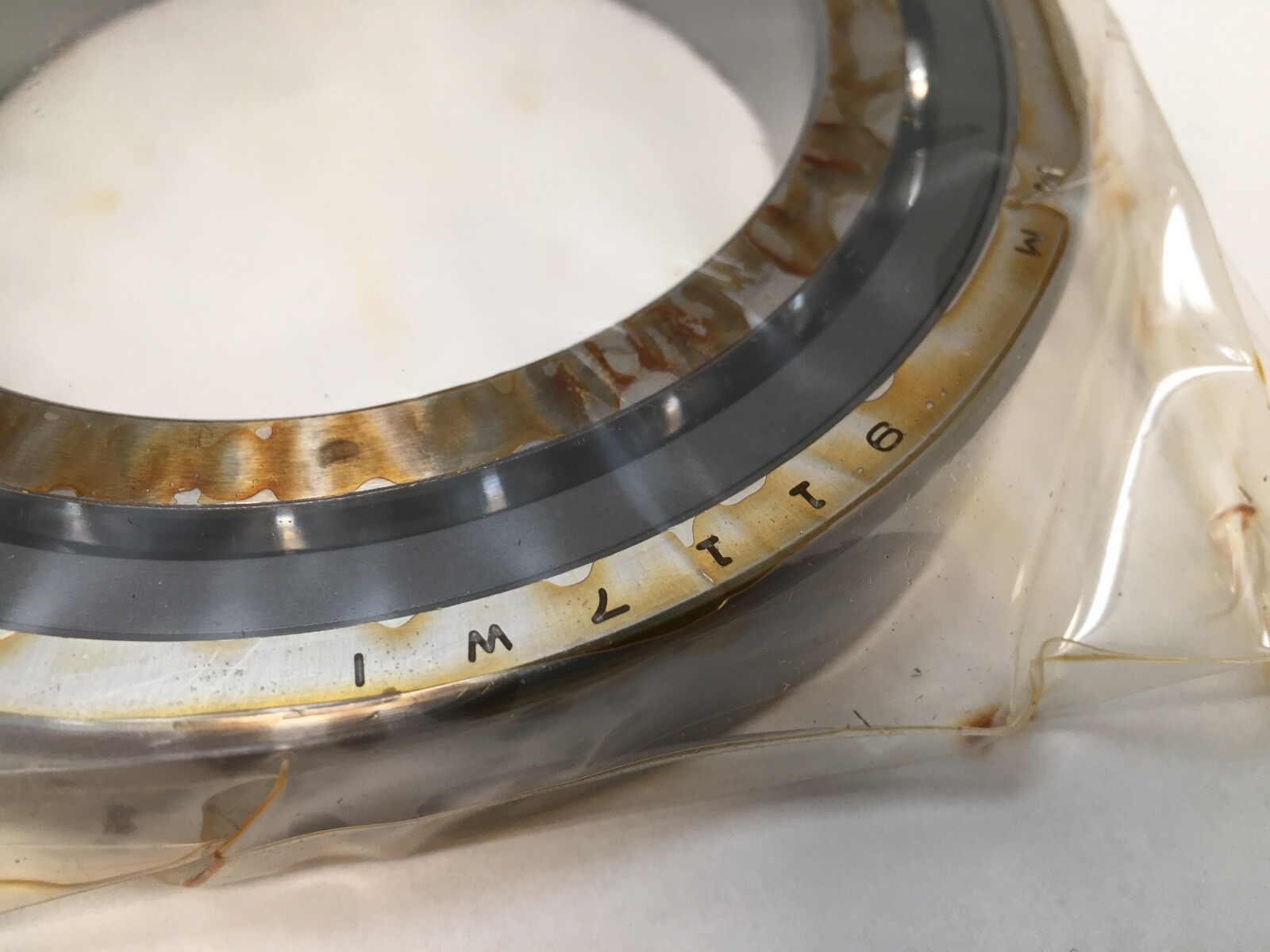

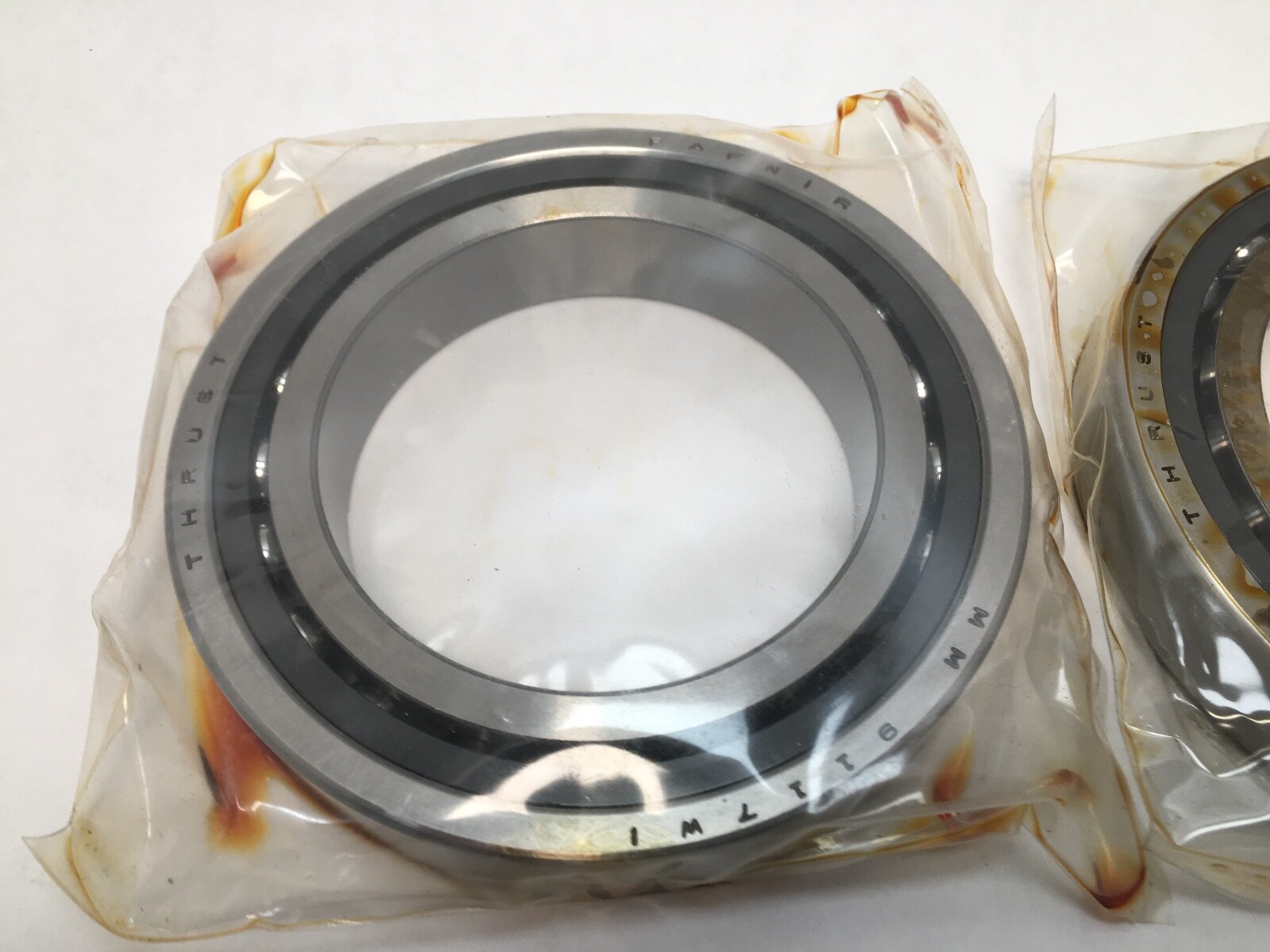

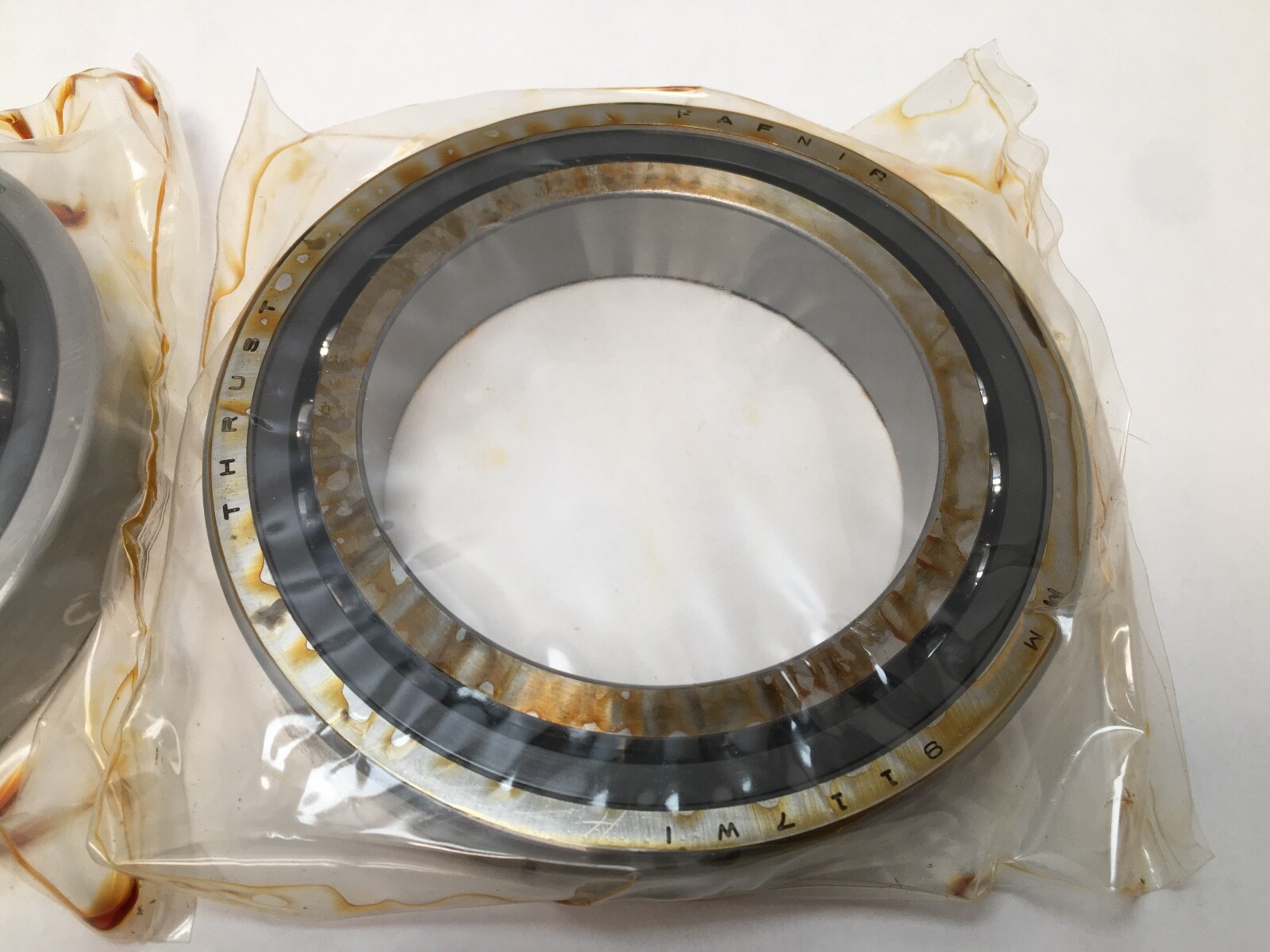

Introducing the Fafnir 2MM9117WI-DUH Bearing – High-Performance Reliability Upgrade your machinery with the Fafnir 2MM9117WI-DUH Bearing, expertly designed as an Angular Contact Ball Bearing to ensure superior performance and durability. Measuring 85x130x22 mm, this bearing offers a perfect fit for various applications, providing optimal support for high-speed and precision operations. Product Features: Brand: FAFNIR Type: Angular Contact Ball Bearing Model: 2MM9117WI DUH 7017 117HDH MPN: 2MM9117WIDUH Country of Manufacture: United Kingdom Condition: New Order with confidence, as we offer competitive prices and can source any parts you may need. With our commitment to customer satisfaction, we provide international shipping on every order, ensuring you receive your items promptly. Enjoy same-day shipping on all items, with next-day delivery options available at checkout. Do not hesitate to reach out if you cannot locate a specific part; we are here to assist you! Invest in reliability and performance with the Fafnir 2MM9117WI-DUH Bearing. Order your set of 2 pieces today, and experience the quality that keeps your equipment running smoothly!
