This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing — 50 mm ID, 80 mm OD, 16 mm Width, 15° Contact Angle, Light Preload, ABEC 7 / P4, Open.$68.82
Angular Contact Ball Bearing - 50 mm ID, 80 mm OD, 16 mm Width, Open, 15°, Light Preload, Universal Duplex Pair$223.18
Angular Contact Bearing - 50 mm ID, 80 mm OD, 16 mm Width, Open, 25° Contact Angle$67.13
Super Precision Angular Contact Ball Bearing Matched Duplex Pair 50 x 80 x 16 mm 15 Degree ABEC 7 Light Preload$204.40| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9110WIDUL |
| Model | 7010 C T DUL P4 / 2 MM 9110 WI DUL / ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | Chrome Steel |
|---|---|
| Series | 9100 |
| Lubricant | Oil |
| Preload | Light Preload |
| Min Temp | -54°C |
| Cage Type | Outer Ring Guided |
| Dynamic Load Rating | 28 kN / 6295 lbf |
| Static Load Rating | 18.5 kN / 4159 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 121°C |
| Item Weight | 0.6 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 14800 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Running Accuracy | High Precision |
| Running Accuracy Radial And Axial Runout | High Precision |
| Cross Reference 1 | SKF 7010 CDGA/P4A |
|---|---|
| Cross Reference 2 | NSK 7010CTRSULP4 |

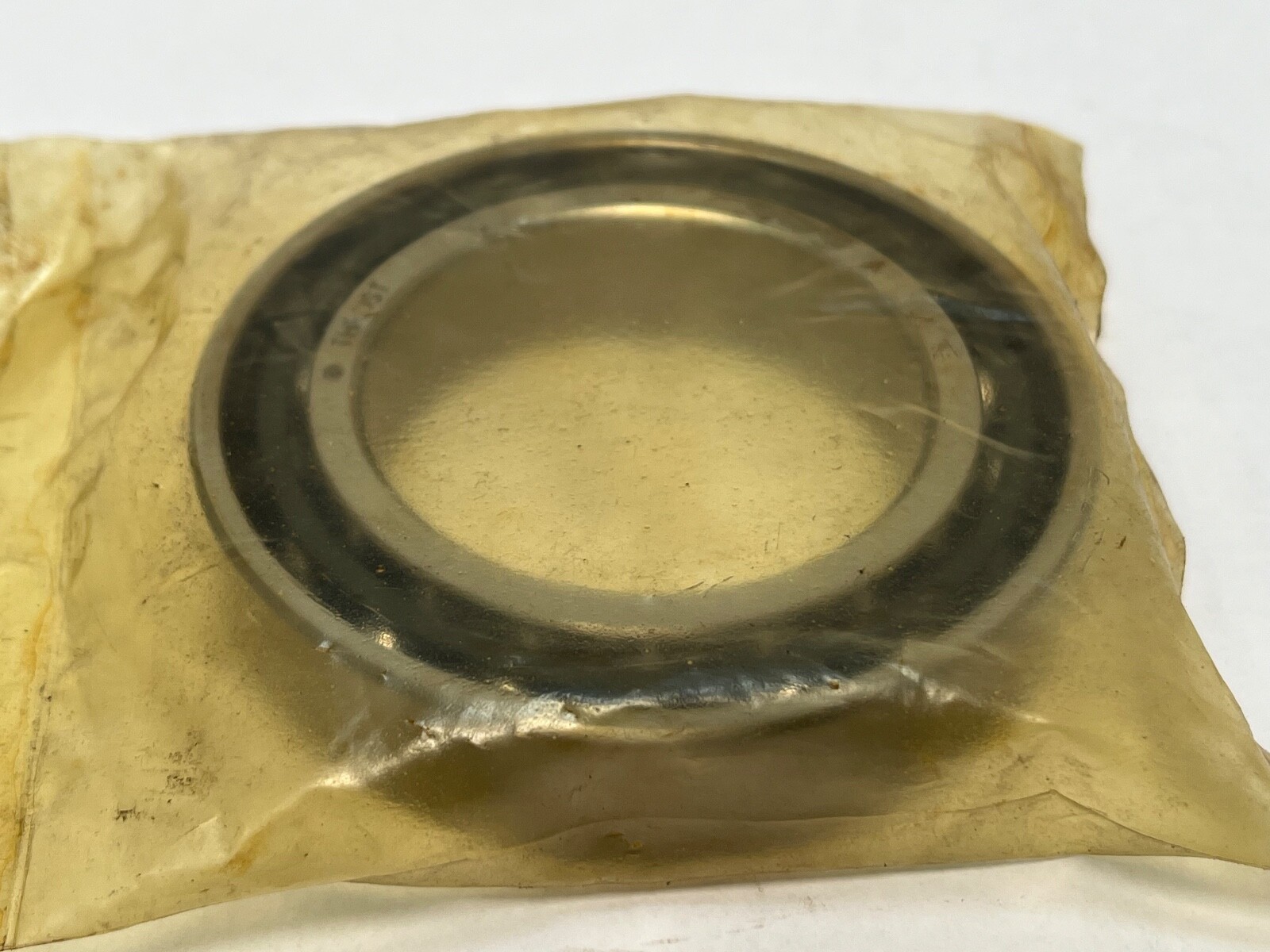

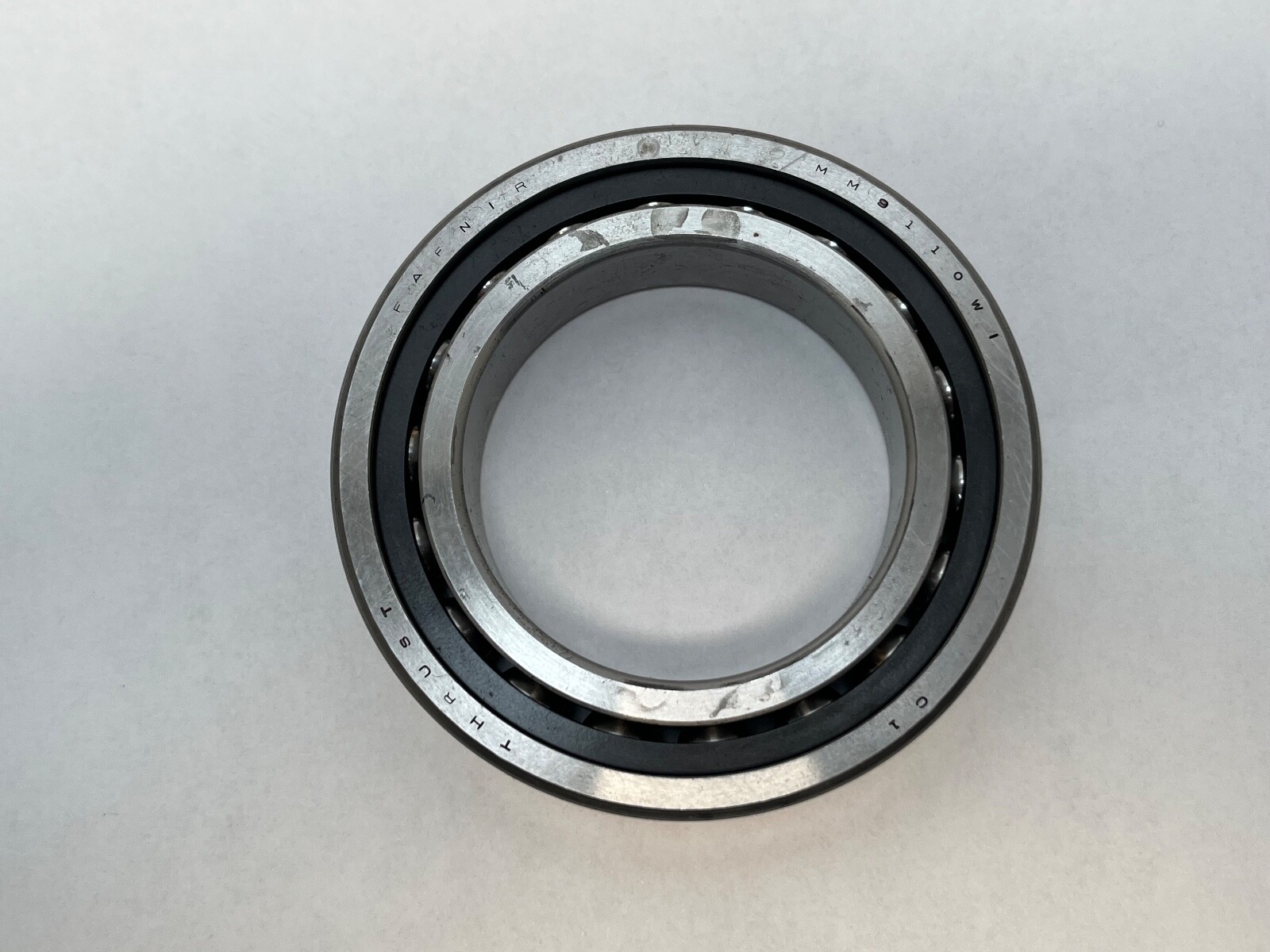

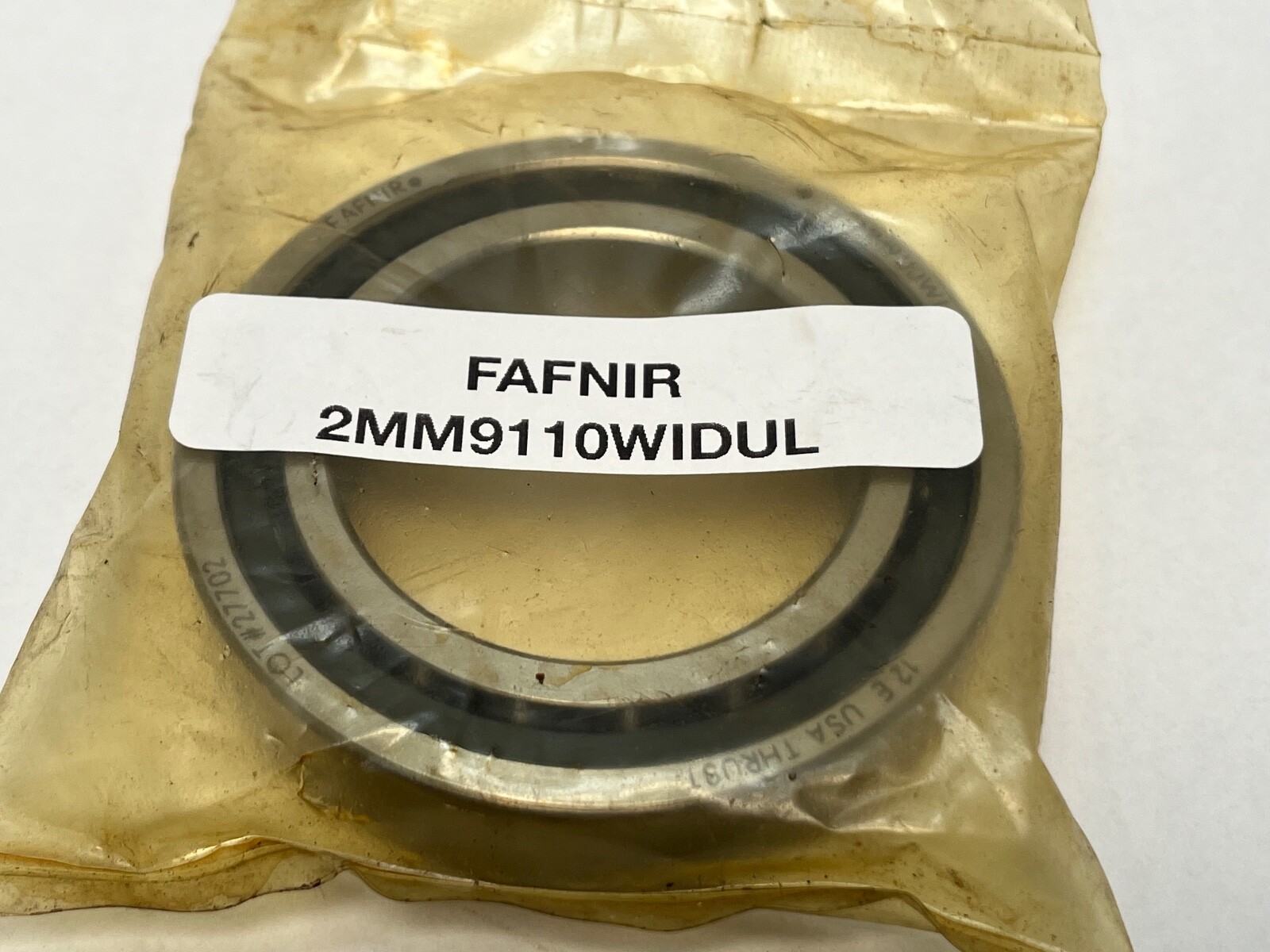

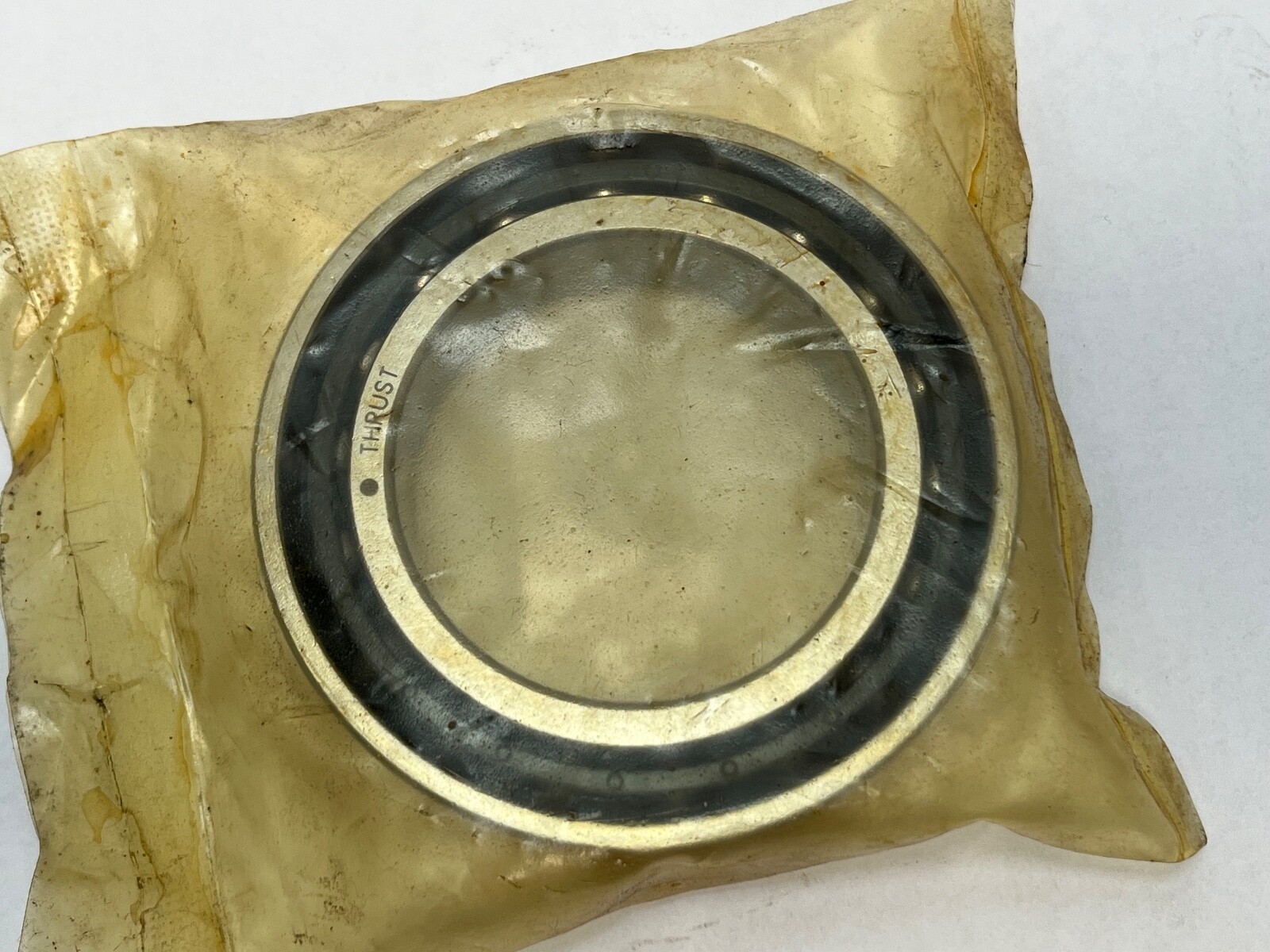

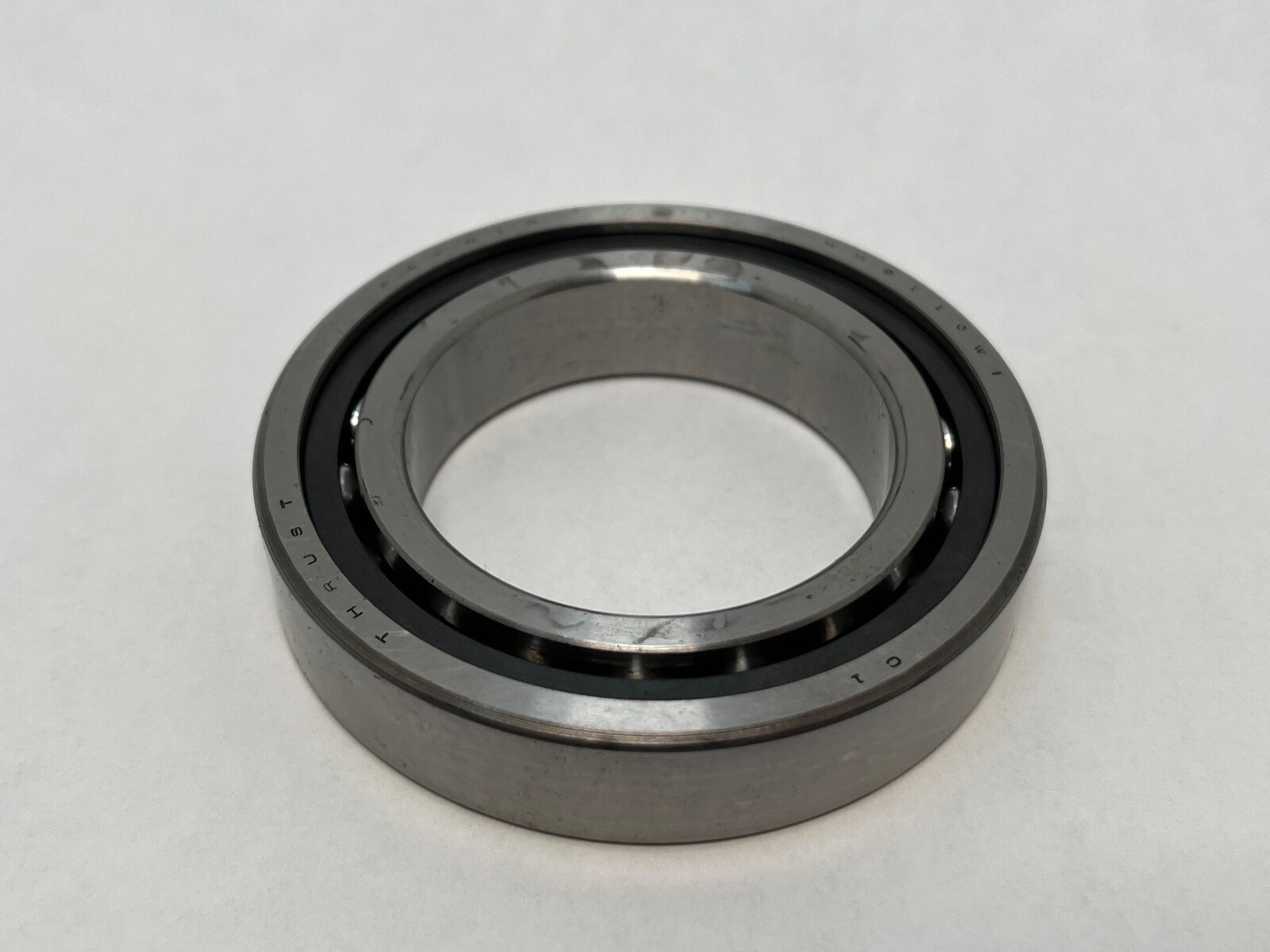

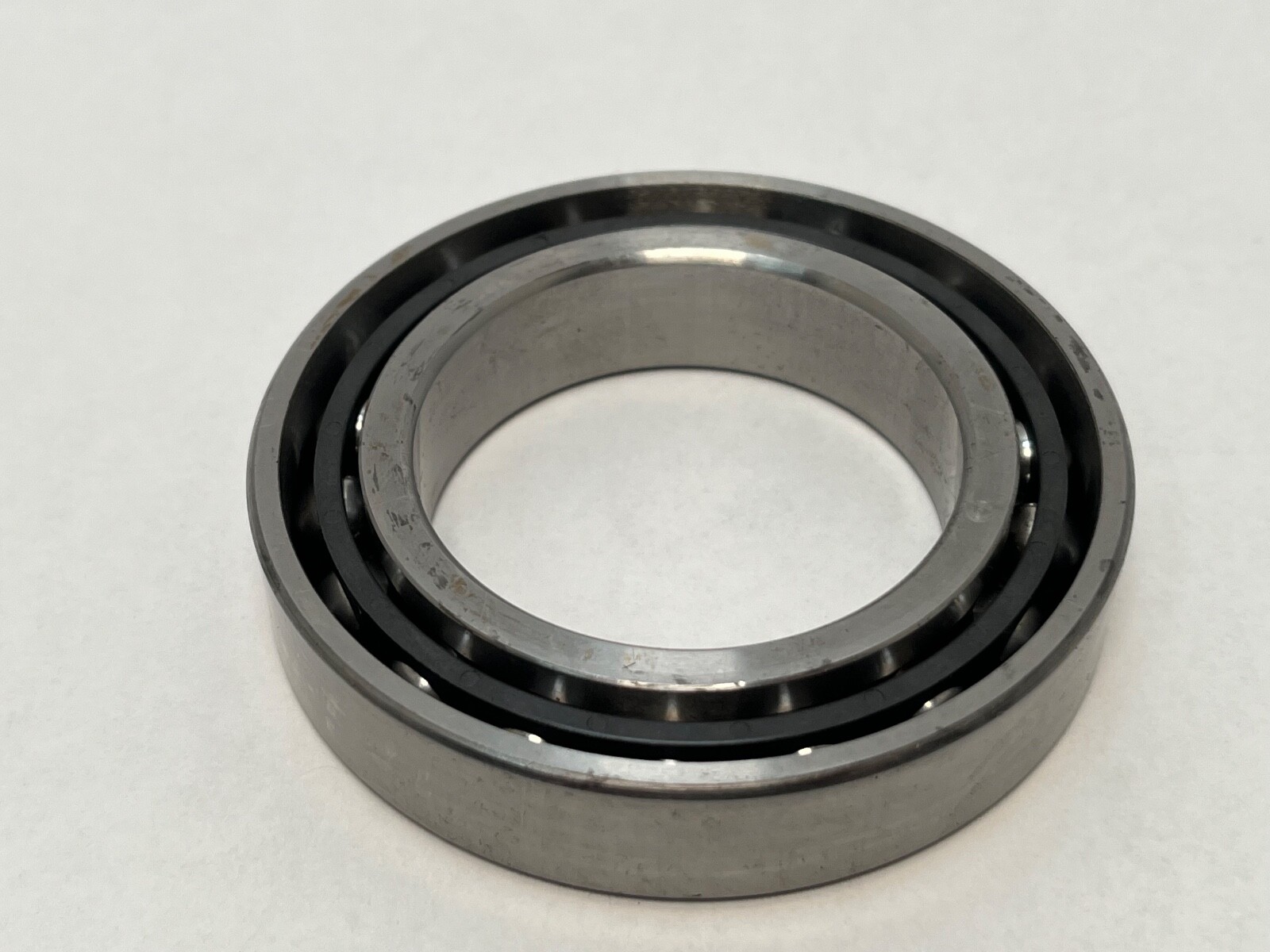

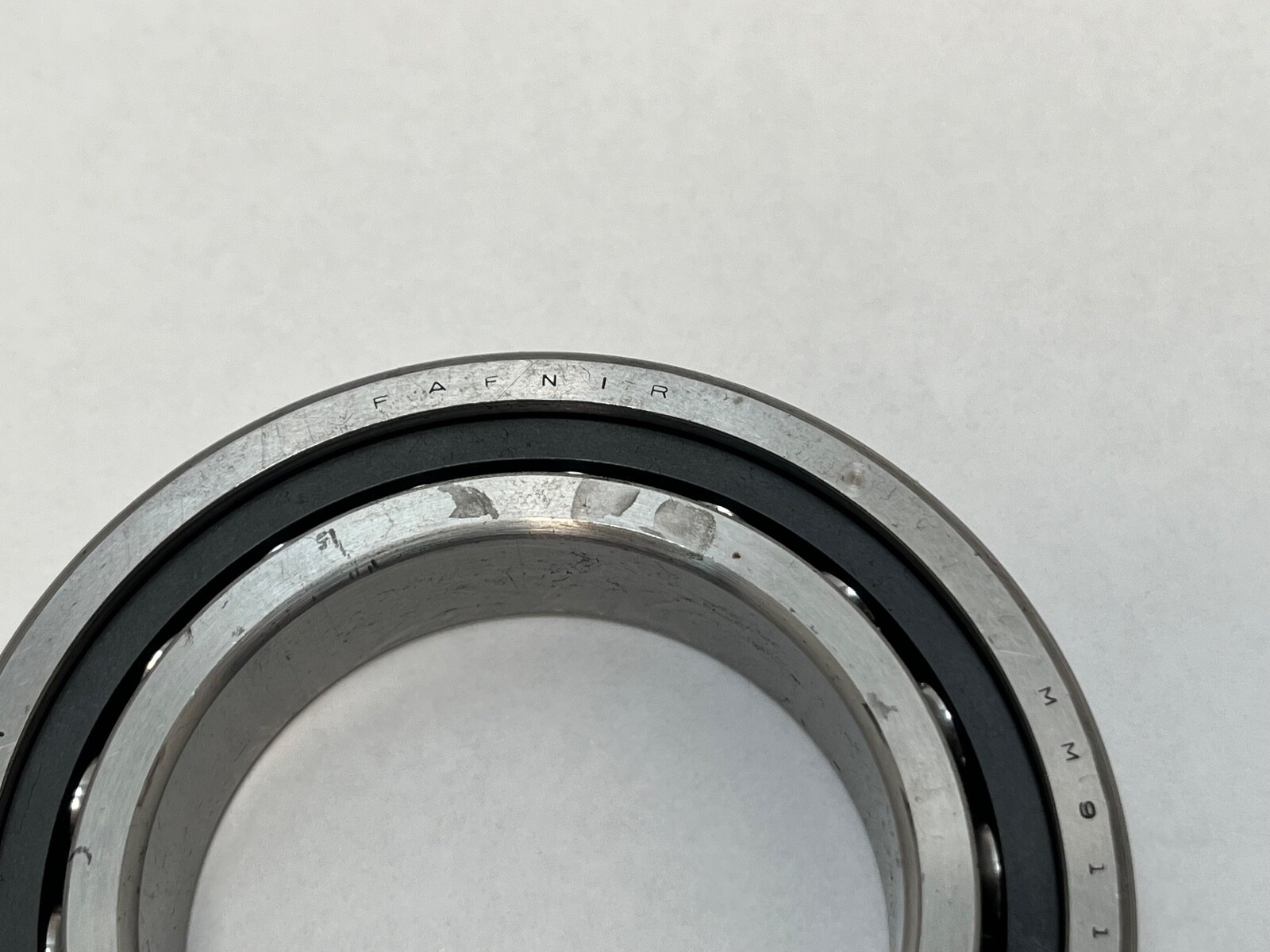

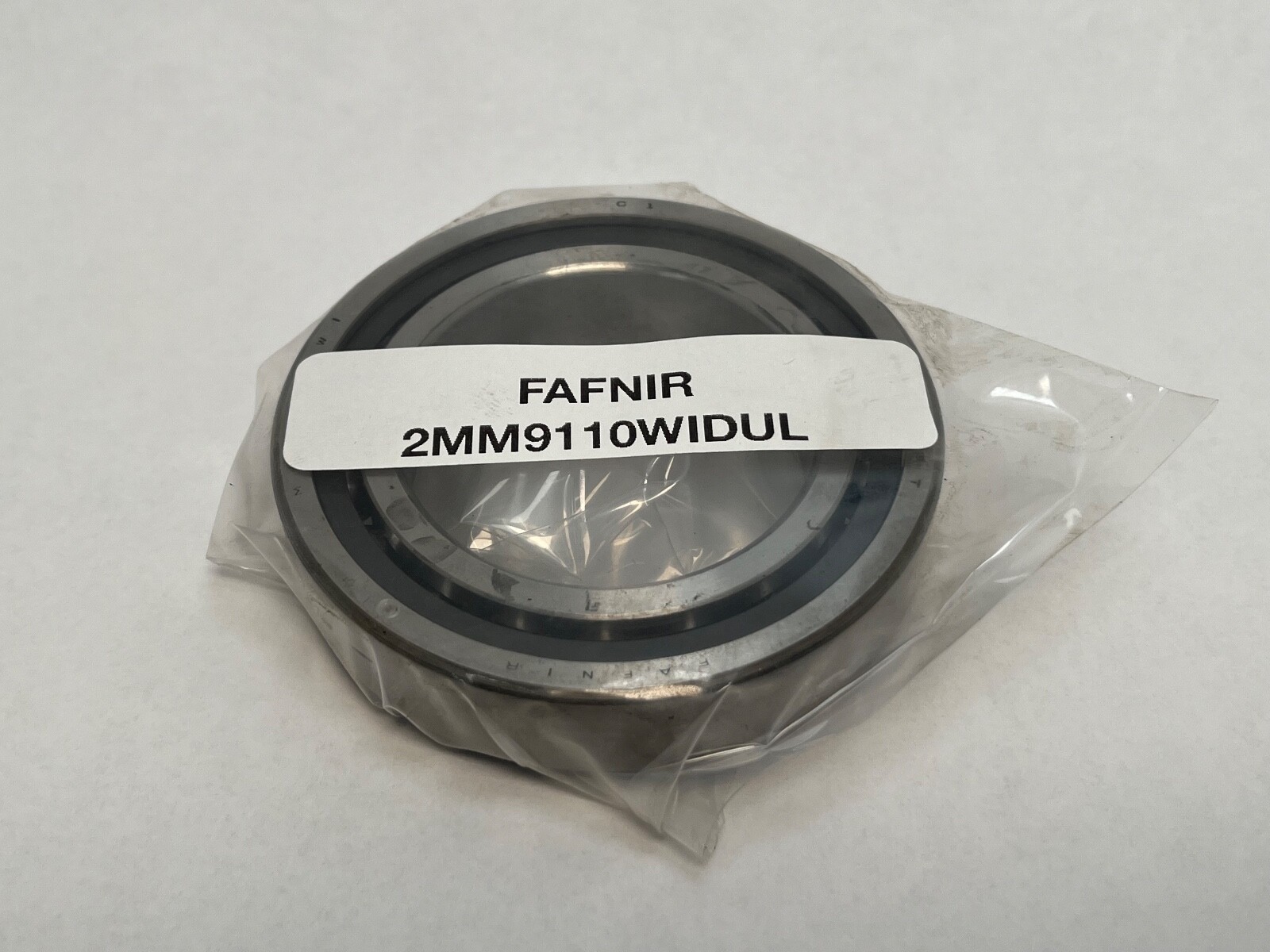

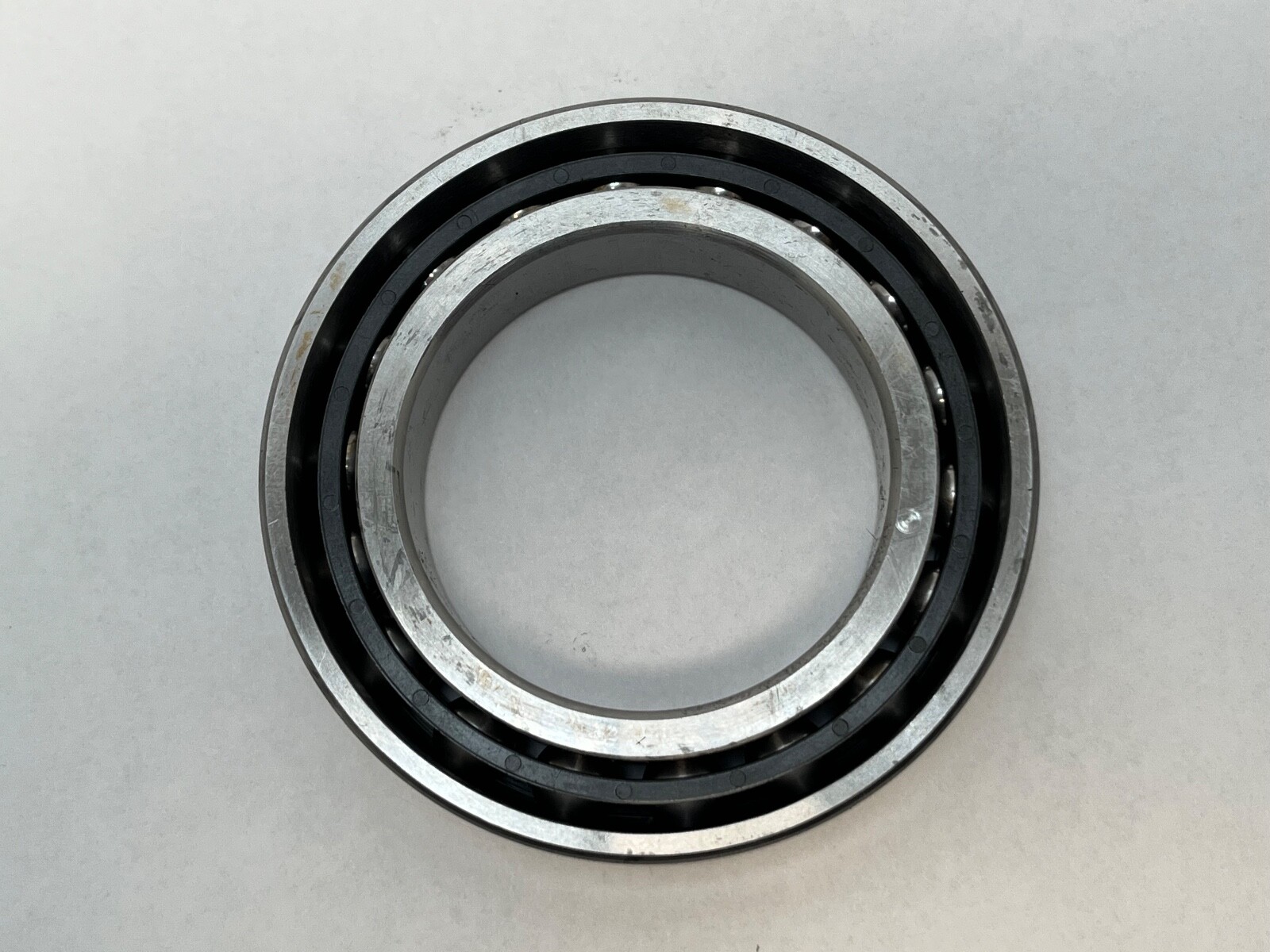

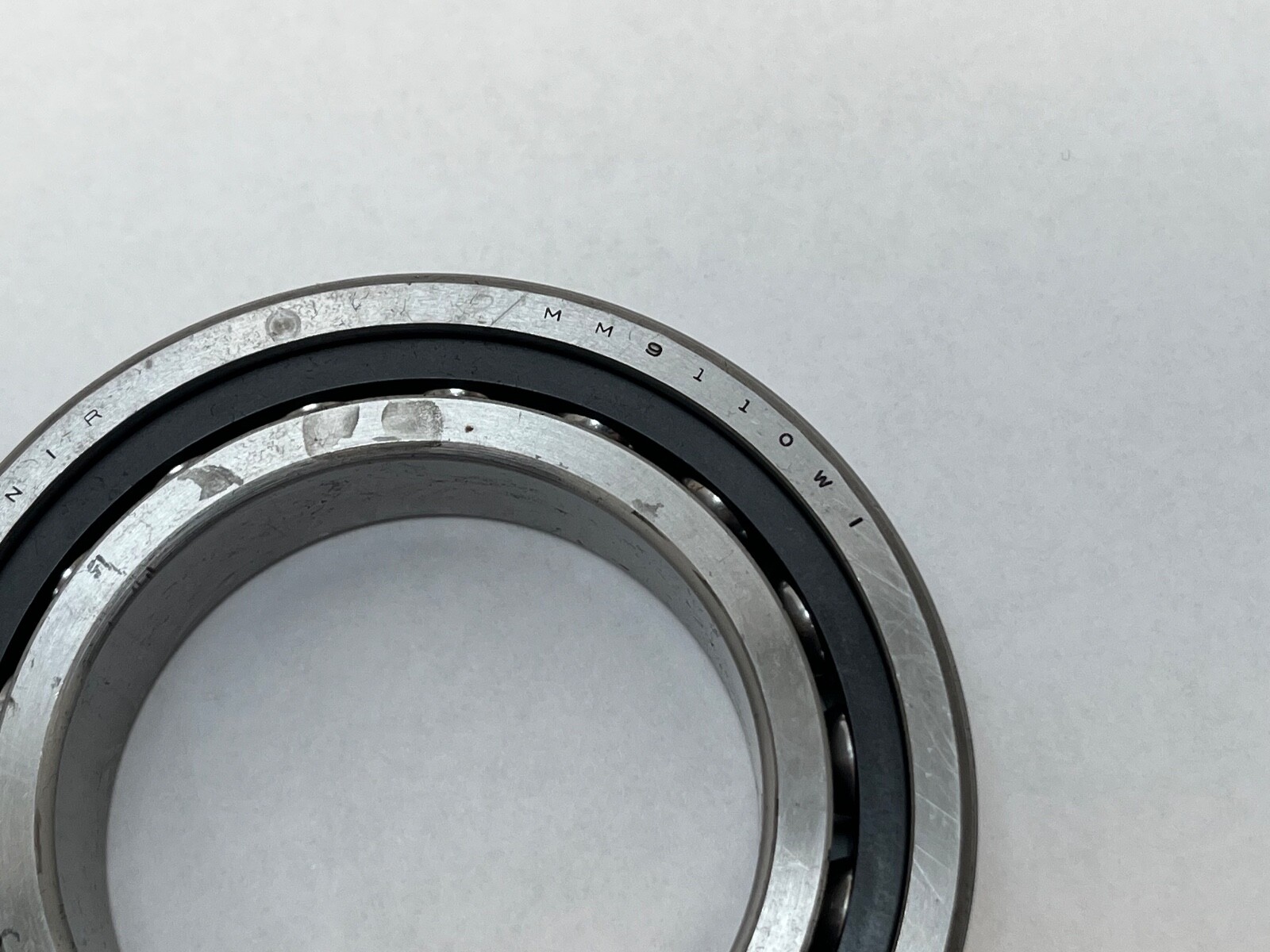

FAFNIR 2MM9110WI-SUL Bearing – Precision Engineering at Its Best Discover the exceptional quality of the Fafnir 2MM9110WI-SUL Bearing, meticulously designed for superior performance in demanding applications. This Angular Contact Ball Bearing features a precision-engineered design with dimensions of 50x80x16 mm and is perfect for high-speed and high-precision operations. Key Features: Model: 7010 C T DUL P4 / 2 MM 9110 WI DUL / ABEC7 MPN: 2MM9110WIDUL Brand: FAFNIR, synonymous with reliability and durability Made in the USA, ensuring quality and precision With our bearing, you can expect optimal load distribution and enhanced stiffness, resulting in increased lifespan and performance. Ideal for various applications in automotive, industrial, and machinery sectors, this bearing meets the highest standards of ABEC7 precision. Order with Confidence: We offer competitive pricing on all parts and provide international shipping on every order. Enjoy the convenience of combined shipping options and collect shipping through UPS, FedEx, DHL, and Freight. We guarantee same day shipping on all items, with next day shipping available at checkout. Upgrade your machinery’s efficiency today with the FAFNIR 2MM9110WI-SUL Bearing!
