RHP7019CTDUMP4-1/2PRSuper Precision Angular Contact Ball Bearing, 95 mm ID, 145 mm OD, 24 mm Width, 15° Contact Angle, ABEC 7, Medium Preload, Phenolic Cage

Product Description

What this part is:

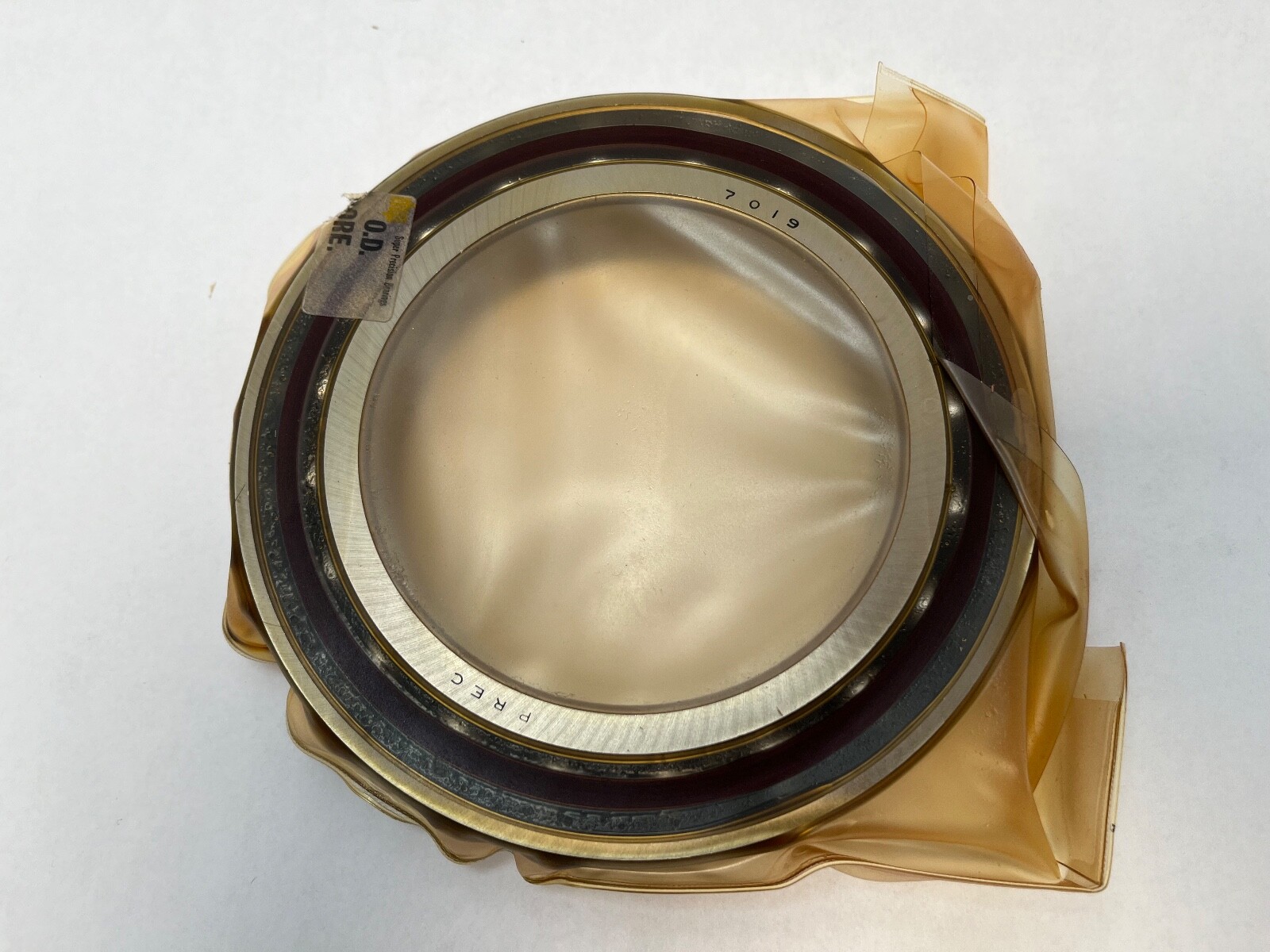

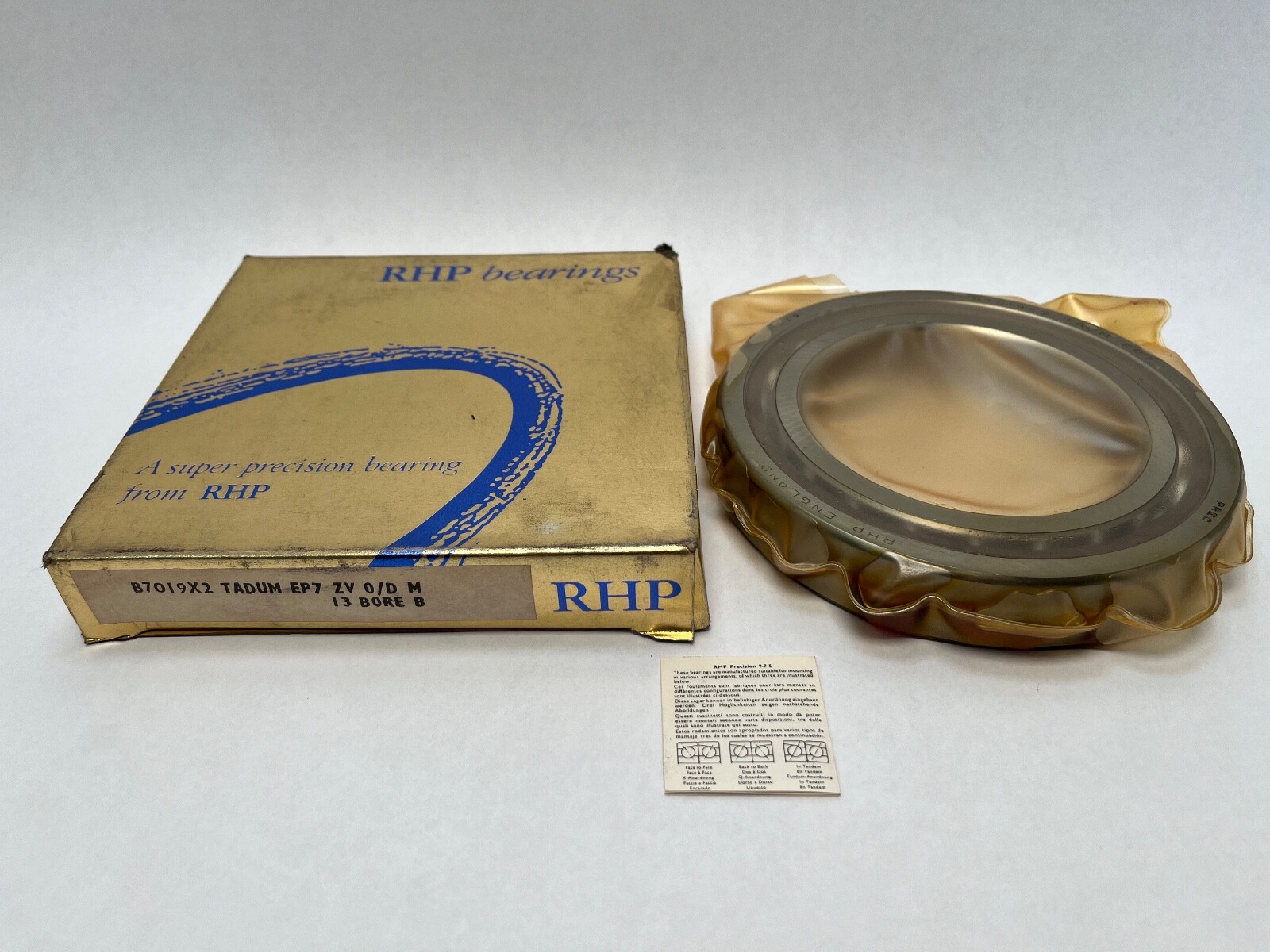

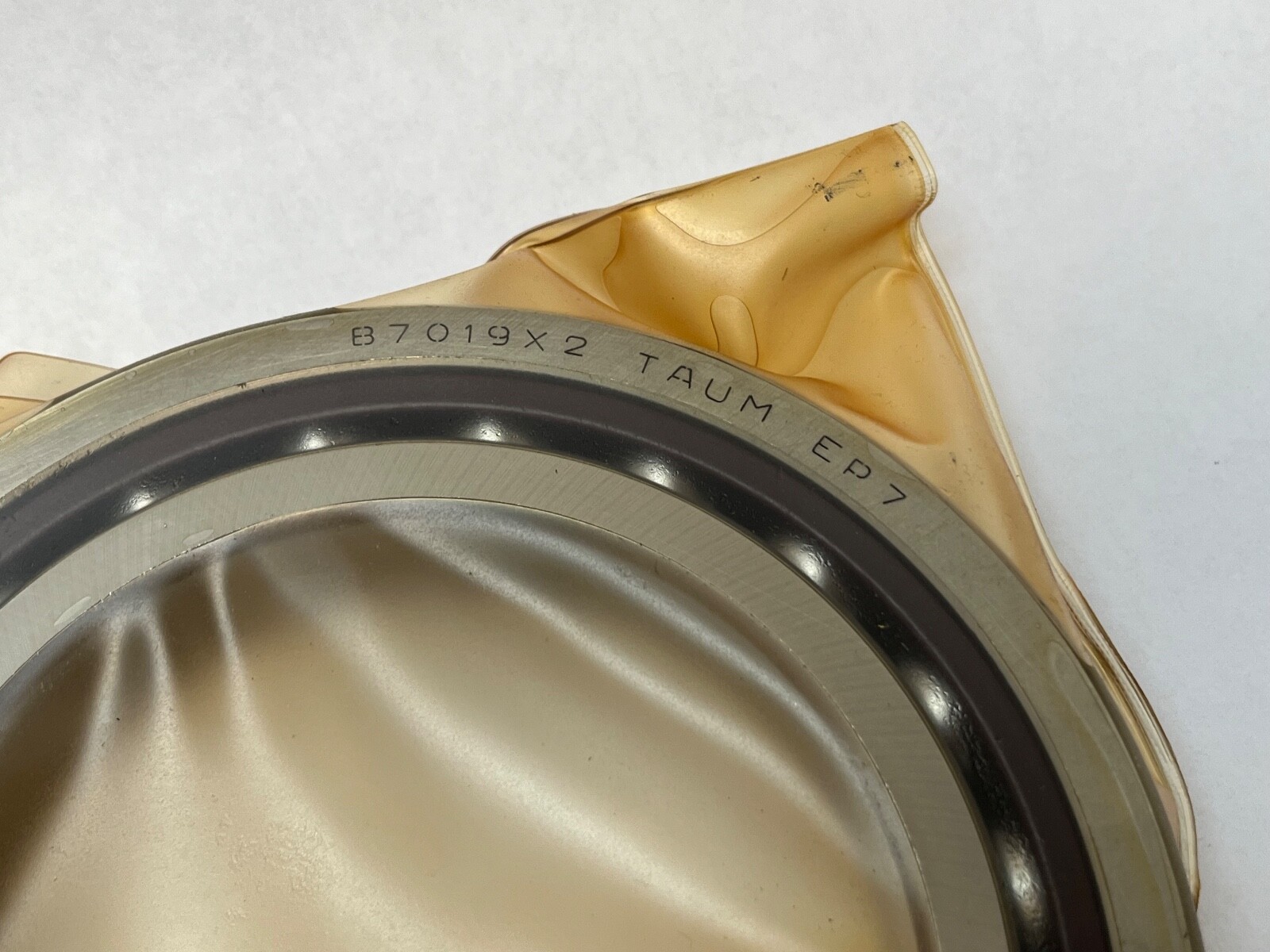

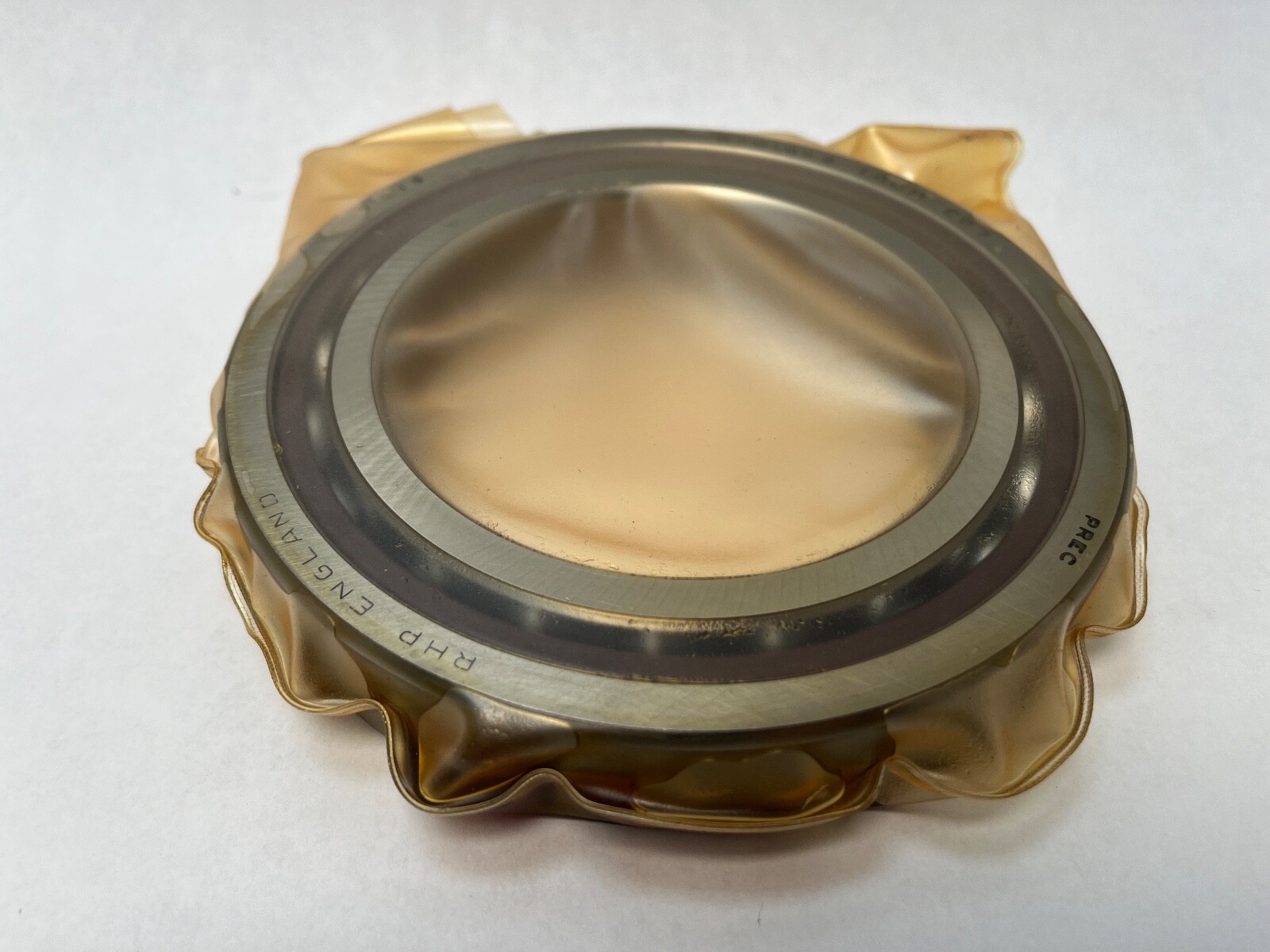

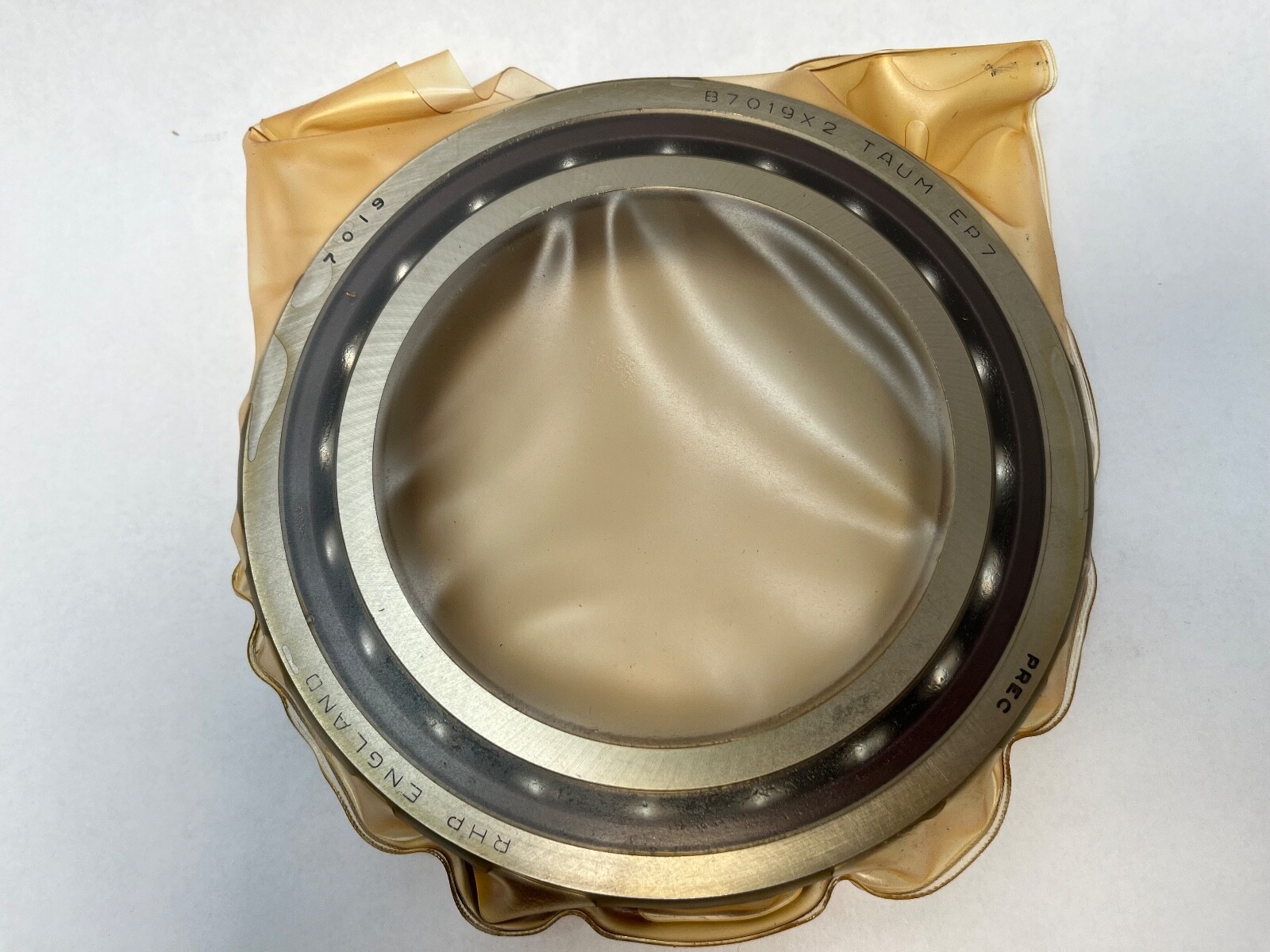

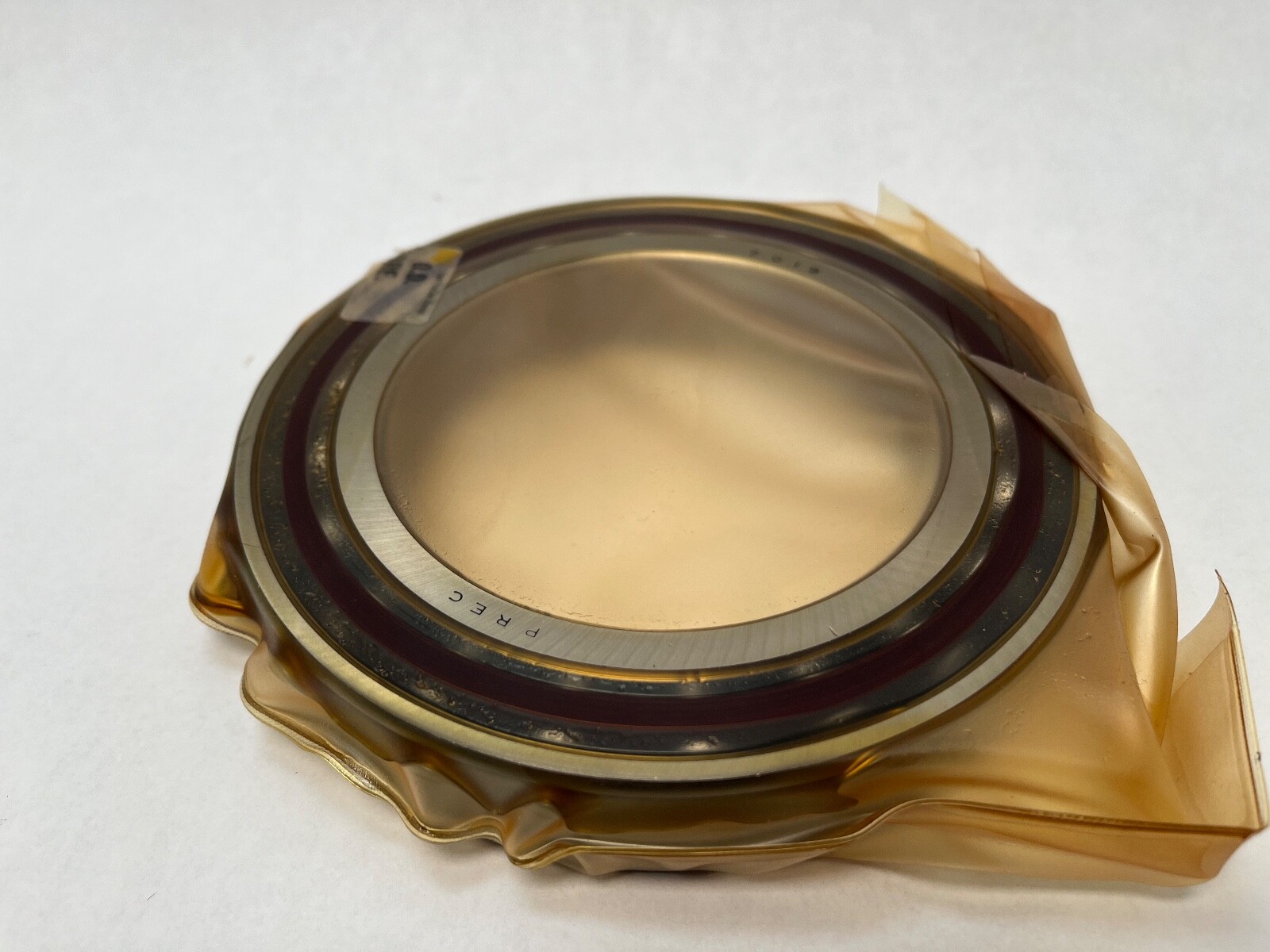

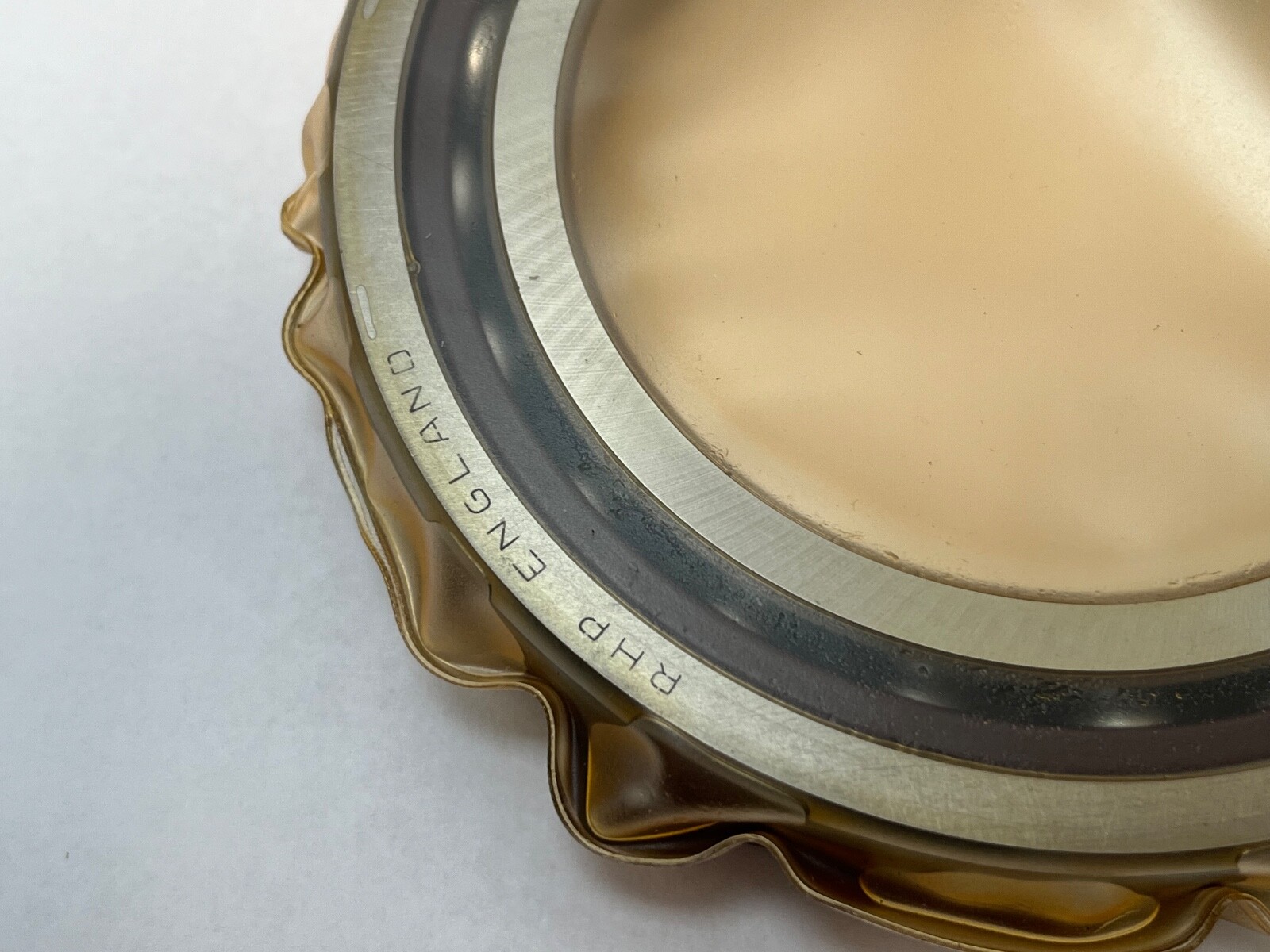

RHP 7019CTDUMP4-1/2PR is a single-row super-precision angular contact ball bearing, 95 x 145 x 24 mm (ISO 7019 size), 15° contact angle, universally ground with medium preload, P4 precision class, straight bore, open on both faces. Sale unit: one bearing (-1/2PR, half of a pair). Quantity 1.

Decoding the designation:

7019 — ISO 70 series, bore code 19, 95 mm bore.

C — 15° contact angle.

T — fabric-base laminate phenolic cage.

DU — universally ground duplex execution, matchable back-to-back, face-to-face or tandem.

M — medium preload.

P4 — ISO Class 4 precision, equivalent to ABEC 7.

-1/2PR — one bearing, half of a pair.

2MM9119WI-CR-DUM — the Fafnir designation; 2MM is the 15° angle, CR the phenolic outer-land-riding cage, and 9119 the ISO 7019 size.

Specifications:

Bore Diameter: 95 mm. Outside Diameter: 145 mm. Width: 24 mm. Contact Angle: 15°. Number of Rows: 1. Dynamic Load Rating (Cr): 73,500 N. Static Load Rating (C0r): 73,000 N. Preload: Medium (M). Precision Class: P4 (ISO Class 4), ABEC 7. Cage Material: phenolic. Closure Type: open. Bore Type: straight. Rolling Elements: ball. Material: chrome bearing steel. Series: ISO 70 series, 7019. Unit Quantity: 1 Pc.

Compatibility and replacement:

Cross-references: Fafnir 2MM9119WI CR DUM, NSK 7019CTYNSUMP4 (polyamide cage, single universal execution) and Fafnir 3MM9119WI (25° contact angle). Also written 7019CTDUMP4, 7019-C-T-DUM-P4, 7019C T DUM P4, 7019C and 2MM9119WICRDUM.

Frequently asked questions:

What are the dimensions of the RHP 7019CTDUMP4-1/2PR?

Bore 95 mm, outside diameter 145 mm, width 24 mm.

What do the C and M in 7019CTDUMP4 mean?

C is the 15° contact angle and M is medium preload.

What does -1/2PR mean?

The sale unit is one bearing, half of a pair.
