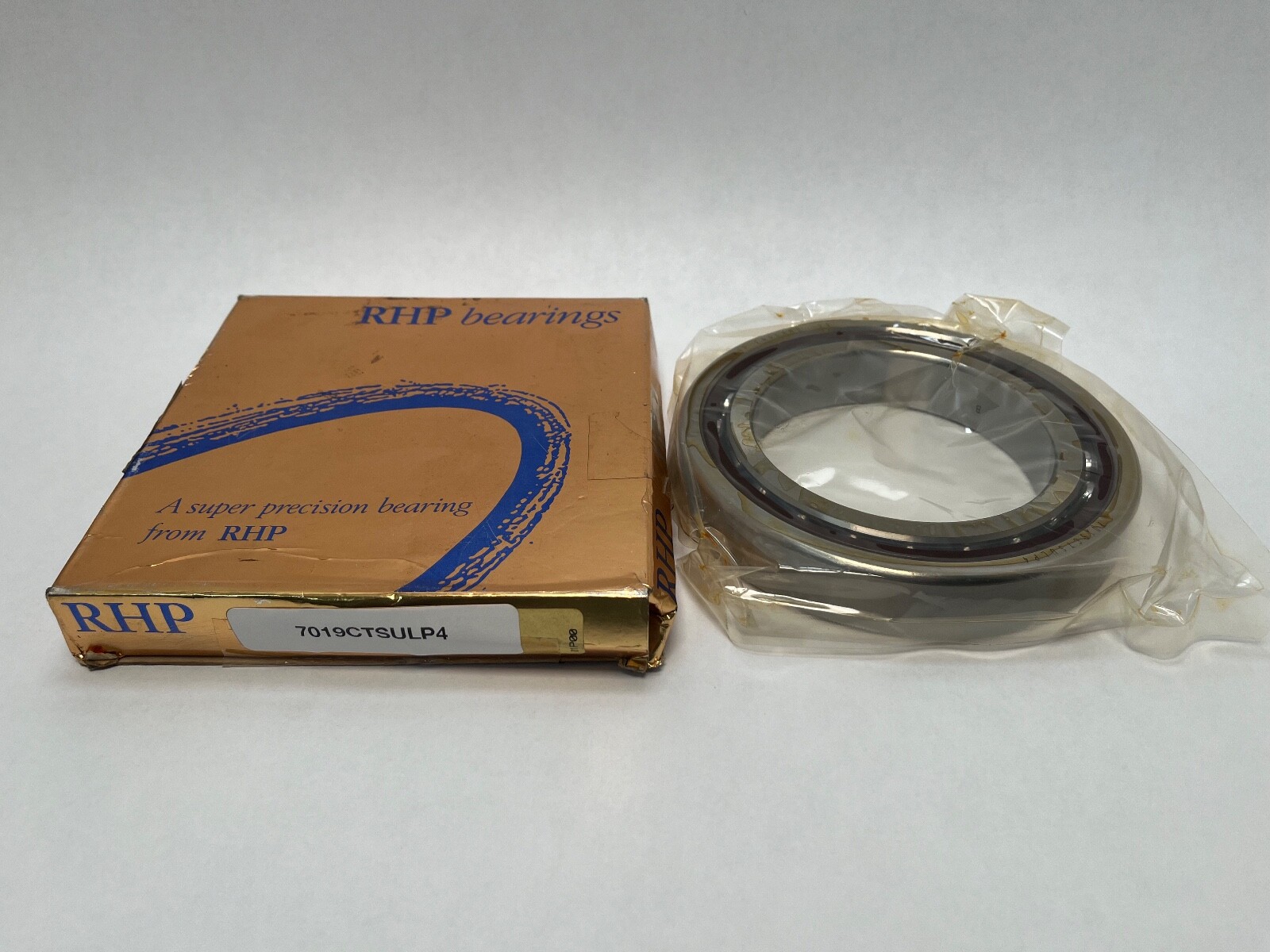

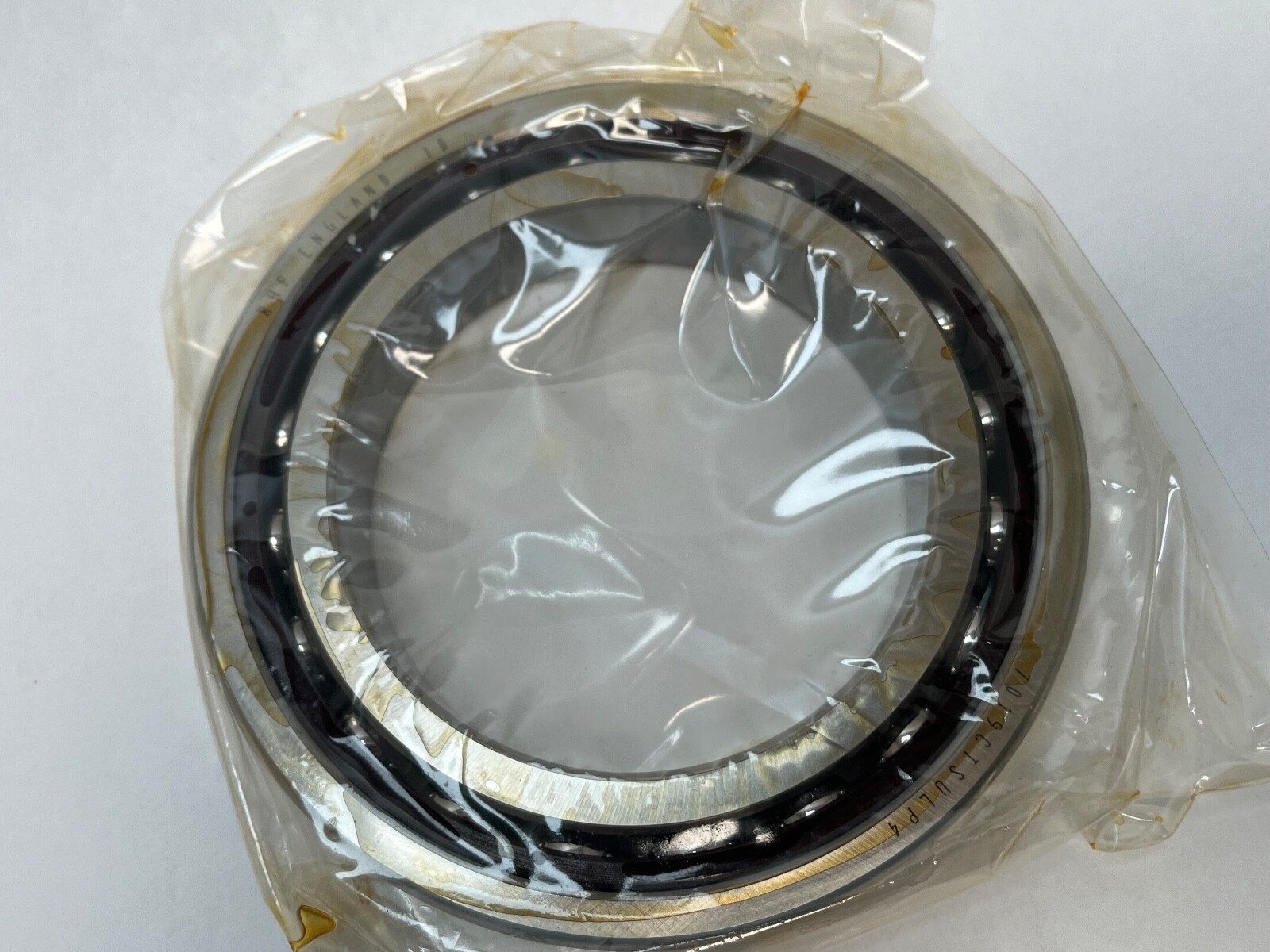

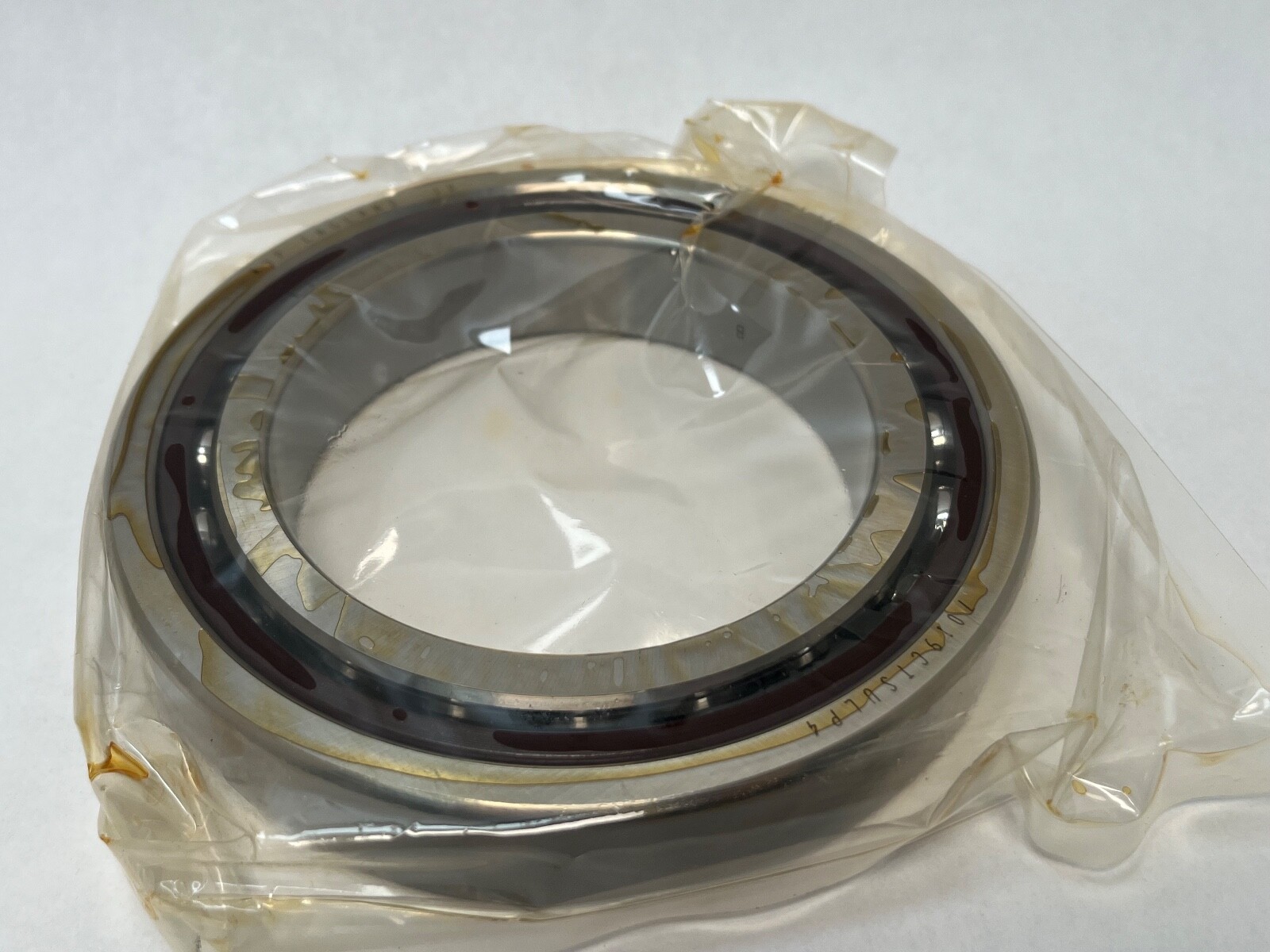

Angular contact ball bearing, 95 mm bore, 145 mm OD, 24 mm wide, 15° contact angle, light preload, duplex ground, ABEC 7 (P4). Half pair, 1 Pc.
List Price
$299.13
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7019CTDULP4-1/2PR |
| Model | 7019C T DUL P4 / 2MM9119WI CR DUL / B7019X2TADULEP7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 95 mm |
| OD | 145 mm |
| Width | 24 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 70 Series |
| Lubricant | Preserved |
| Preload | Light |
| Base Number | 7019 |
| Industry Terms | angular contact bearing, spindle bearing, half pair, duplex ground bearing, precision ball bearing |
| Common Misspellings | 7019CTDULP4 1/2 PR, 7019CTDULP4-12PR, RHP 7019 CTDULP4, 7019CTDUIP4 |
| Application Types | machine tool spindles, grinding spindles, milling heads, precision gearboxes |
| Bore Shaft Size | 95 mm (3.7402 in) |
| Mpn Variants | 7019CTDULP4-1/2PR, 7019CTDULP4, 7019-C-T-DUL-P4, 7019 C T DUL P4, 7019C, 7019CTDUL |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7019CTDULP4-1/2PR |
| Closure Type | Open |

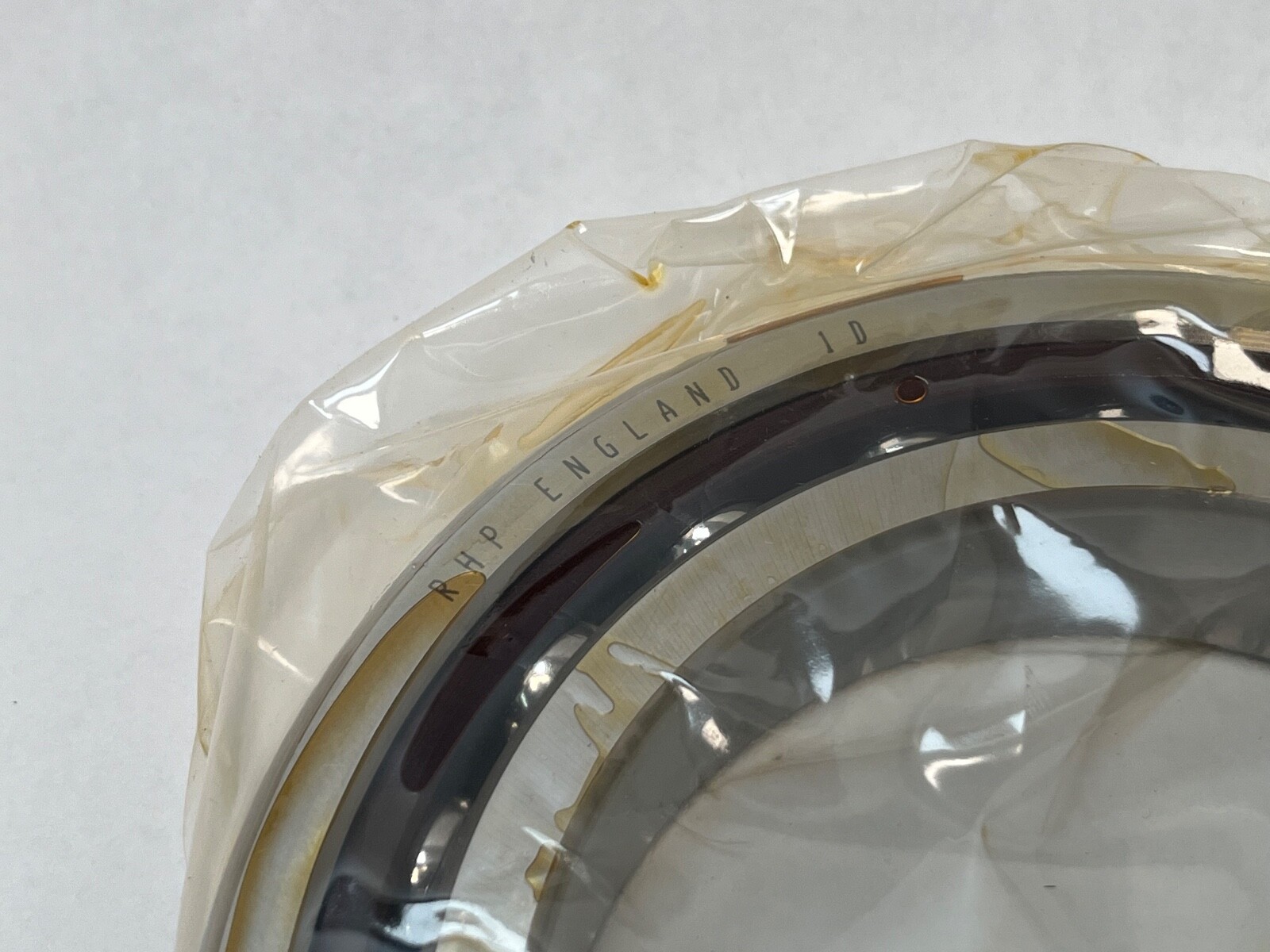

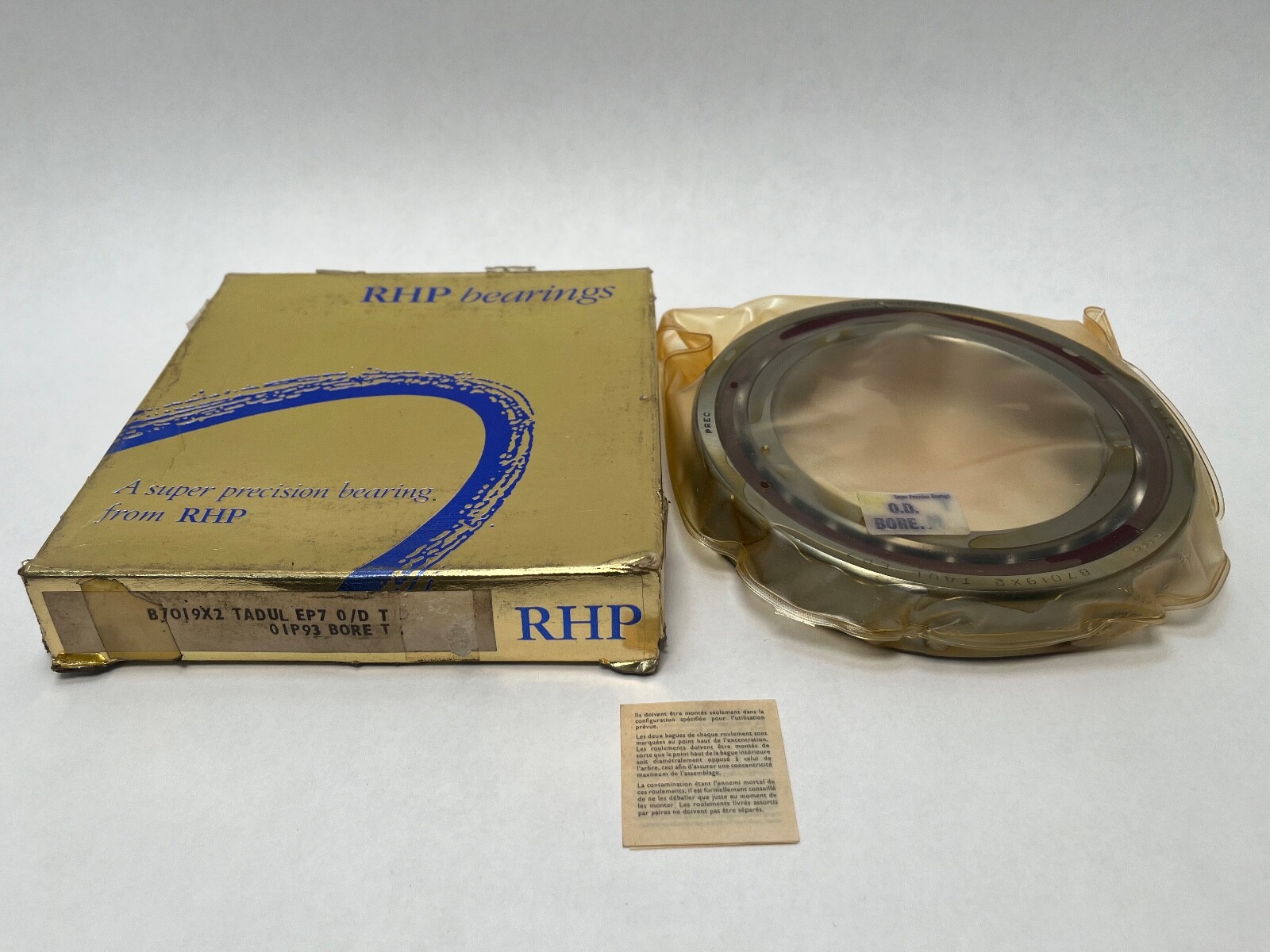

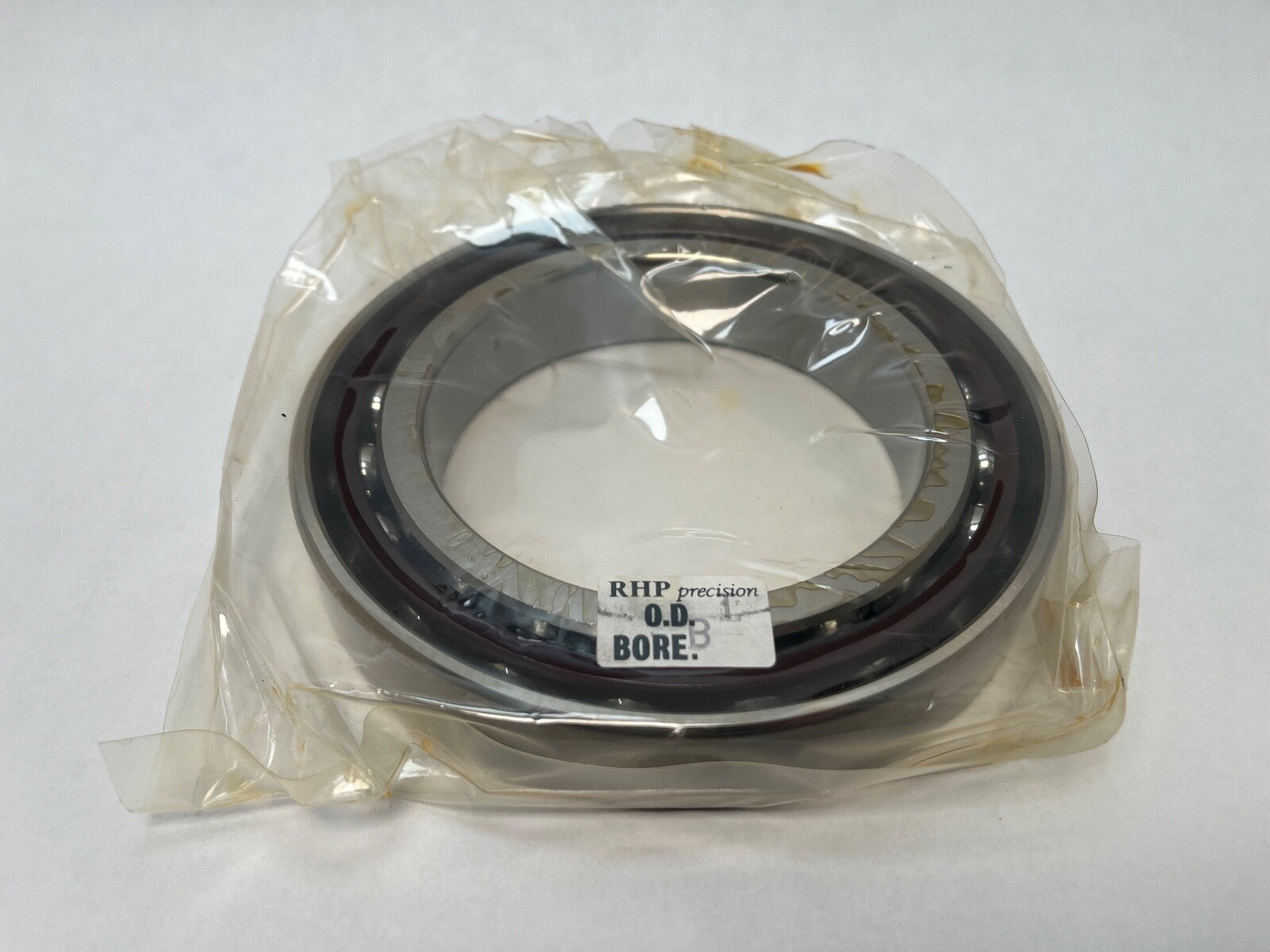

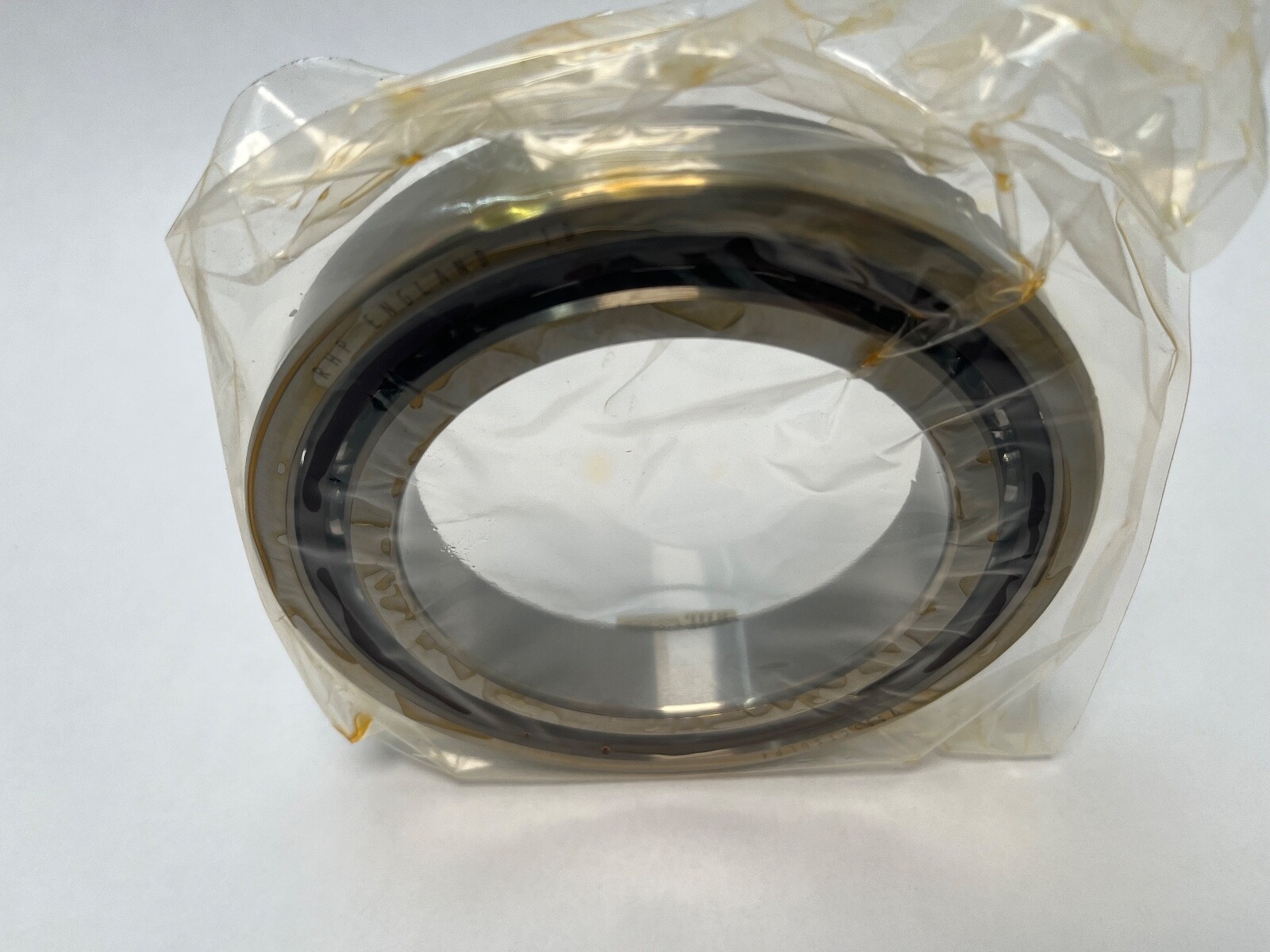

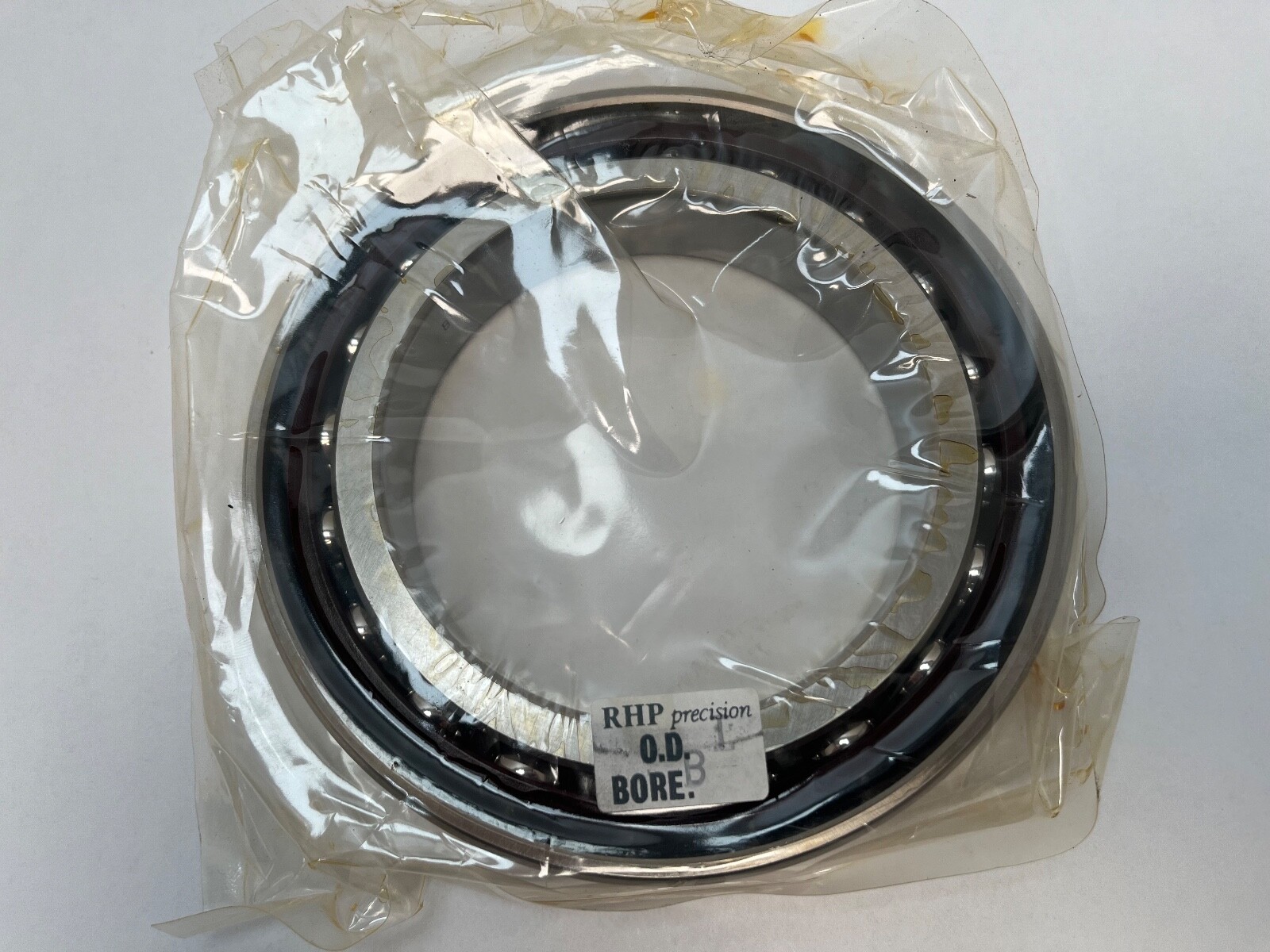

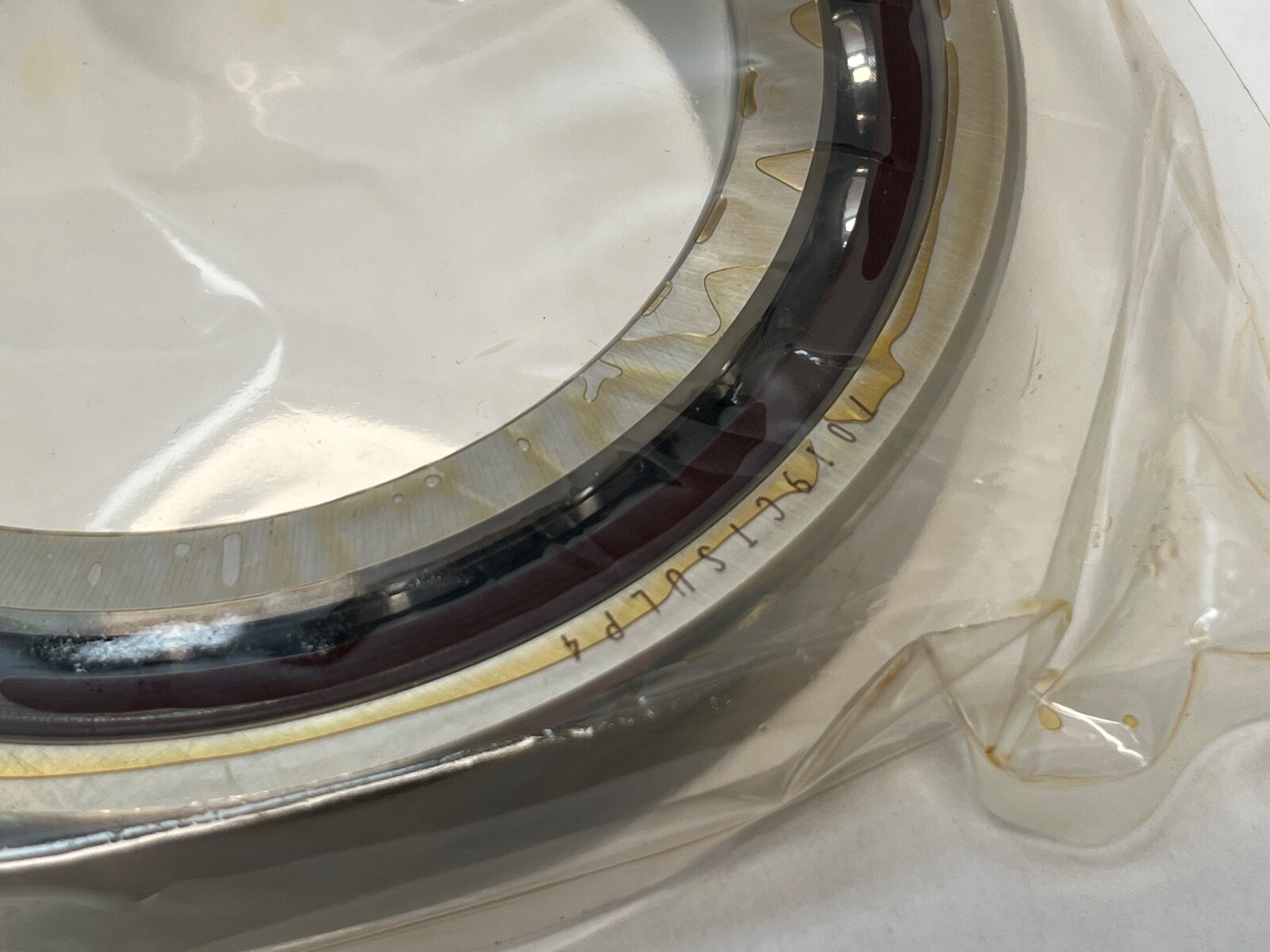

RHP 7019-C-T-DUL-P4 angular contact ball bearing, one bearing (half pair) from a light-preload duplex-ground set. Unit Quantity: 1 Pc. Bore 95 mm, outside diameter 145 mm, width 24 mm.
70 — single-row angular contact ball bearing, ISO dimension series 10.
19 — bore code, 19 × 5 = 95 mm bore.
C — 15° contact angle in the RHP scheme.
T — phenolic cage.
DU — duplex grinding, ring faces ground for pair mounting.
L — light preload.
P4 — ABEC 7 precision class, RHP equivalent EP7.
-1/2PR — half pair, one bearing.
Bore Diameter: 95 mm (3.7402 in). Outside Diameter: 145 mm (5.7087 in). Overall Width: 24 mm (0.9449 in). Contact Angle: 15°. Number Of Rows: 1. Preload: Light. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Closure Type: Open. Unit Quantity: 1 Pc.
Boundary dimensions: 95 × 145 × 24 mm. Ring faces are duplex ground for pair mounting; the L code sets light preload. A single bearing takes thrust in one direction.
Bore 95 mm, outside diameter 145 mm, width 24 mm.
One. The -1/2PR suffix marks a half pair, 1 Pc.
C is a 15° contact angle, T a phenolic cage, DU duplex-ground ring faces, L light preload and P4 the ABEC 7 precision class.
