Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
3 in stock
List Price
$43.59
3 in stock
3 in stock
Get Estimated Arrival Date

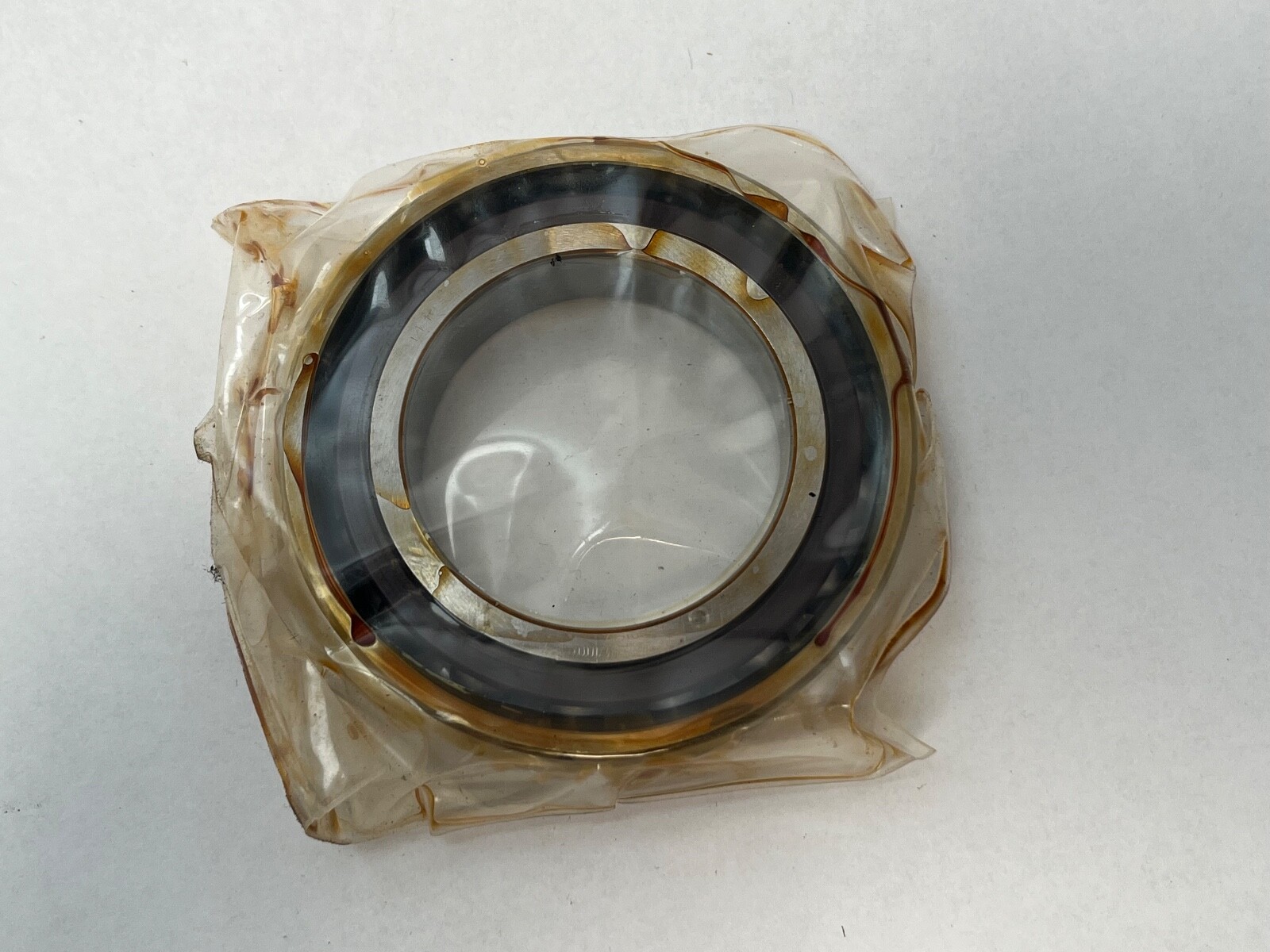

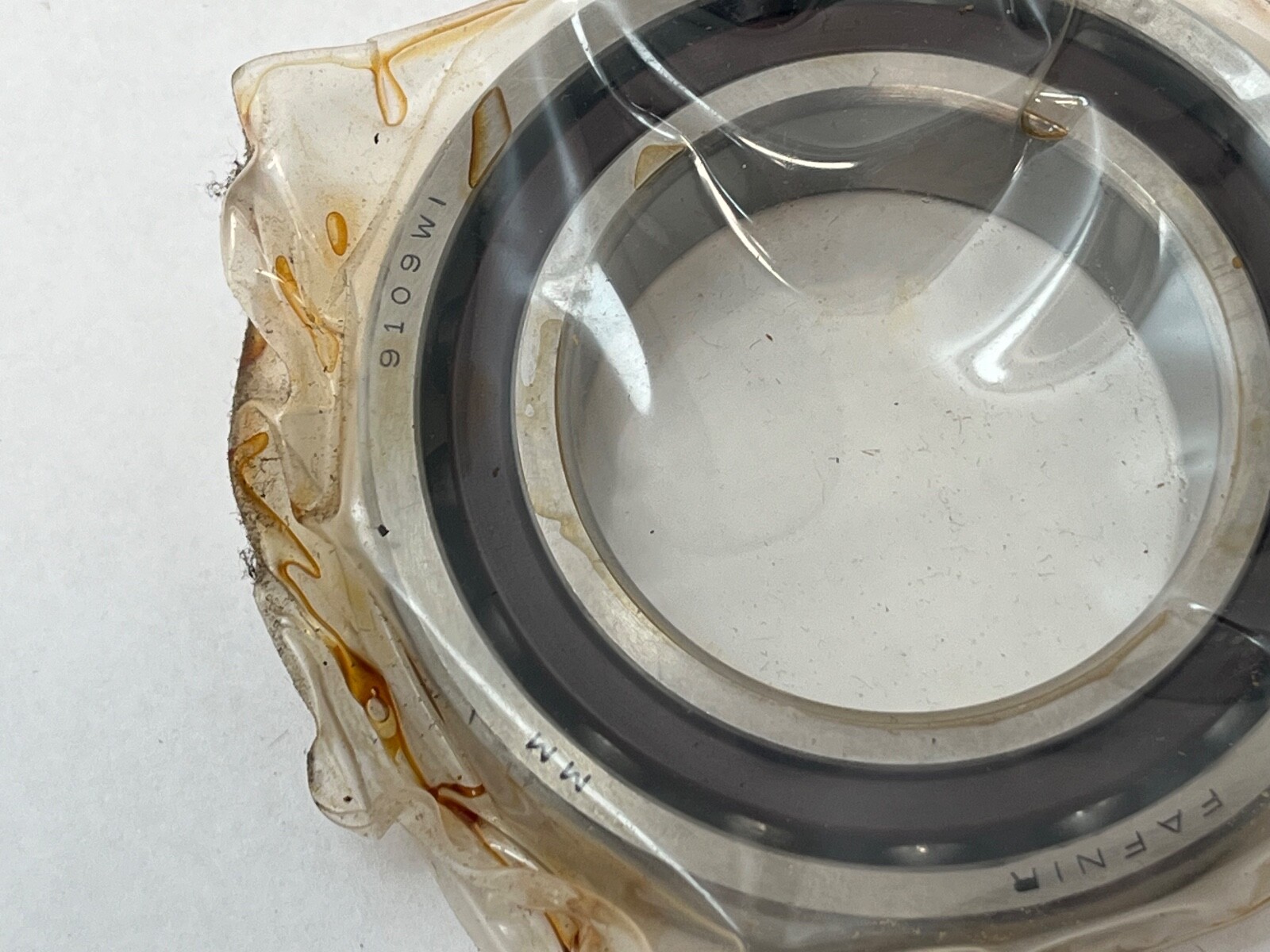

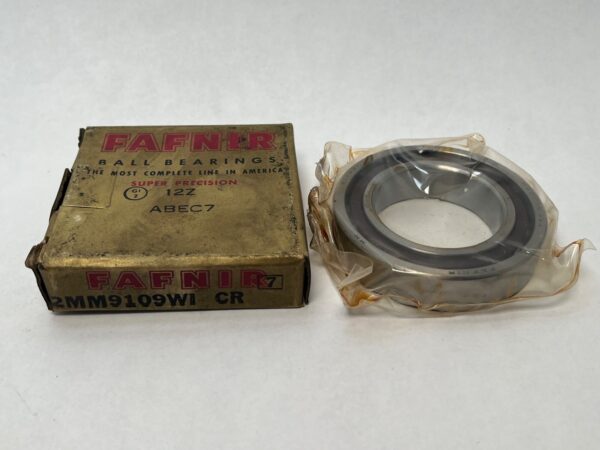

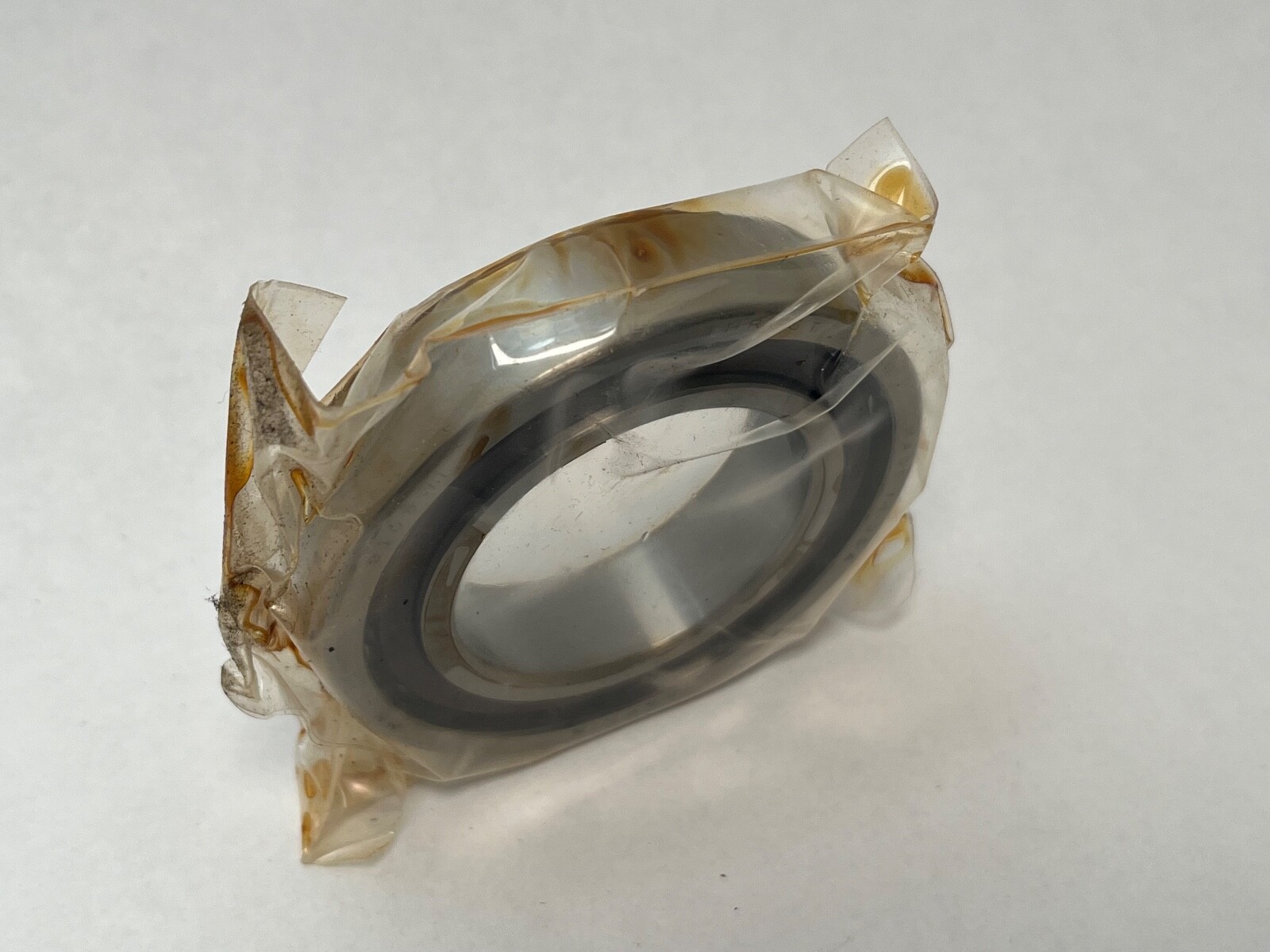

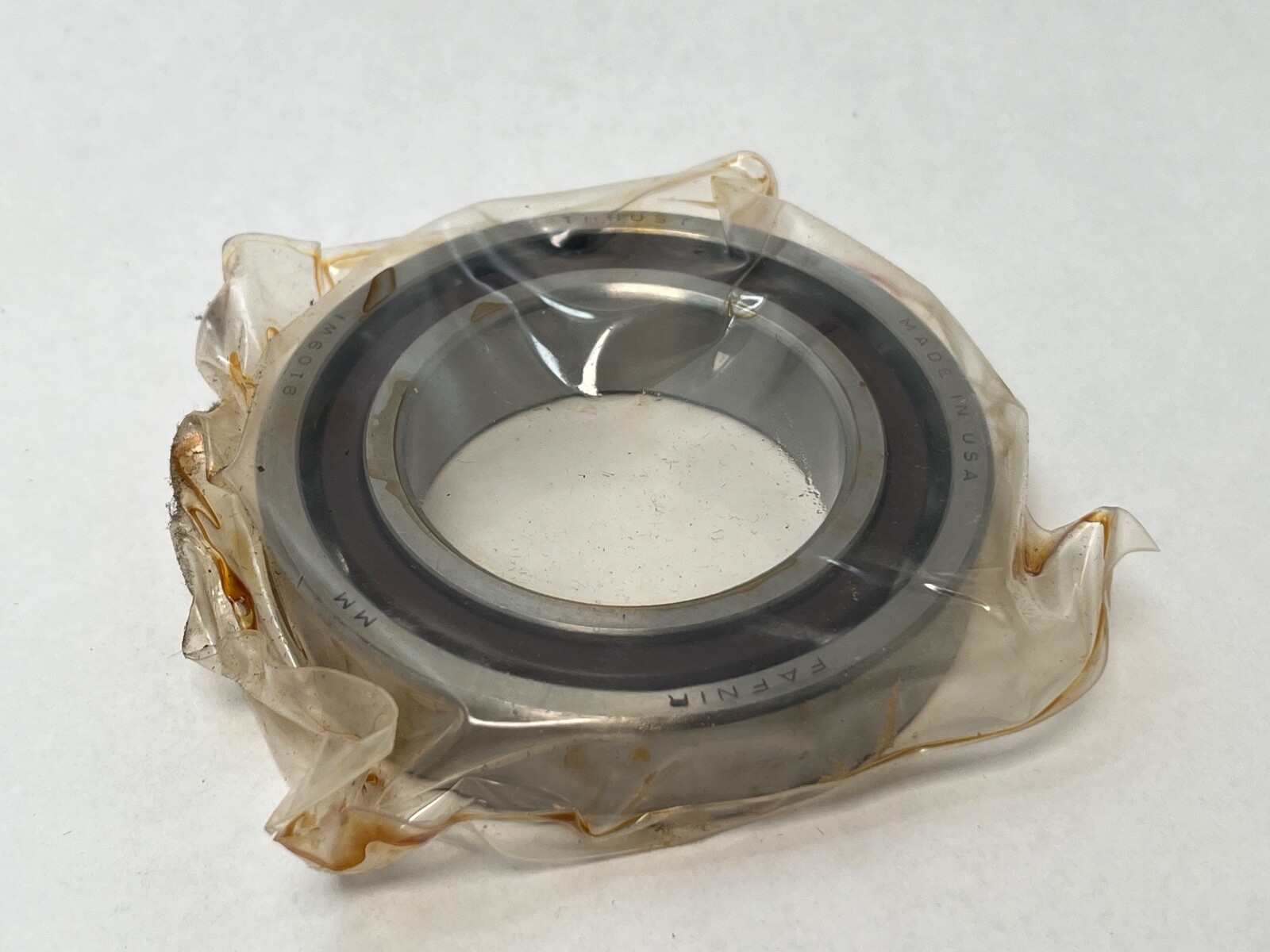

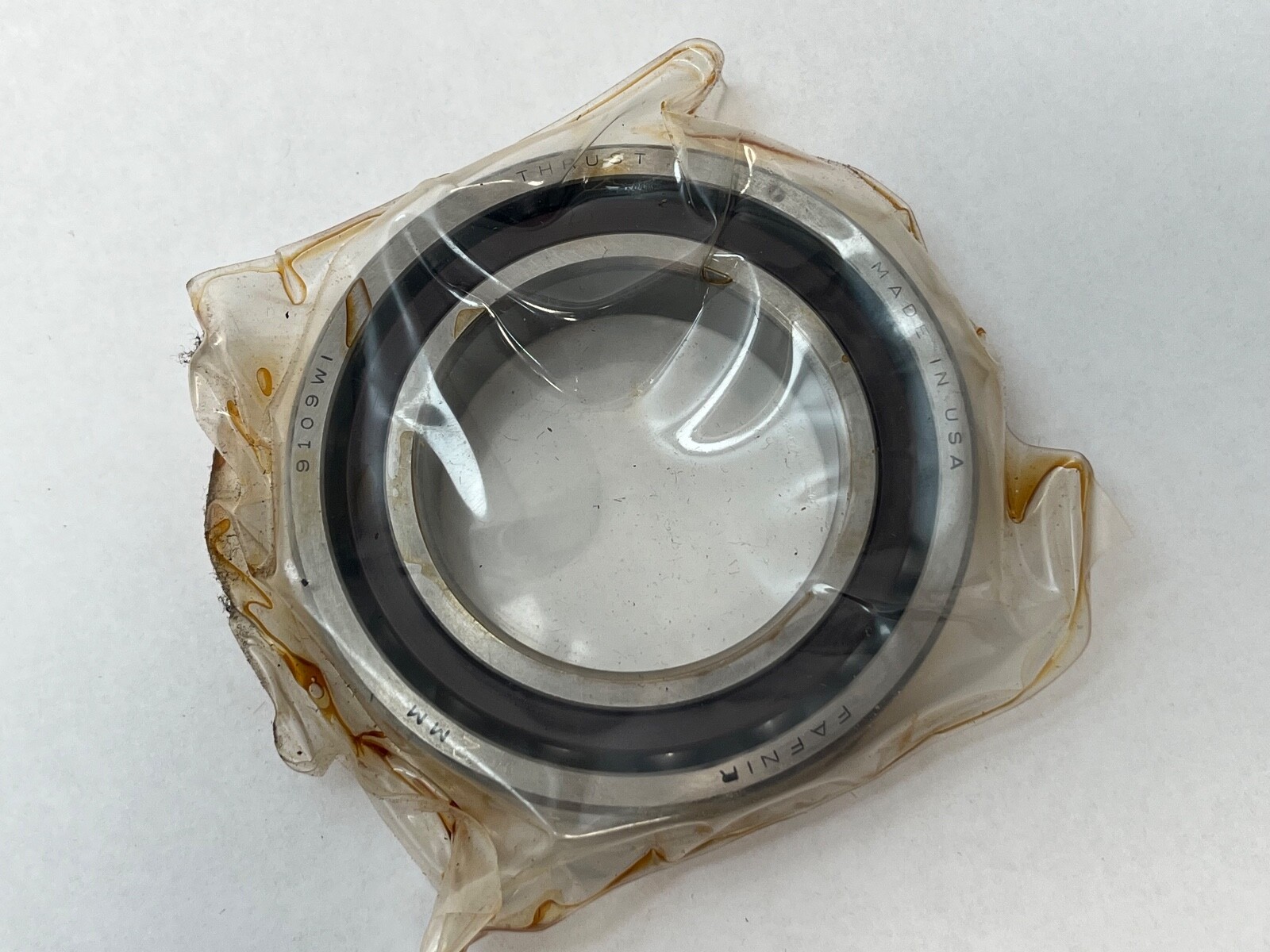

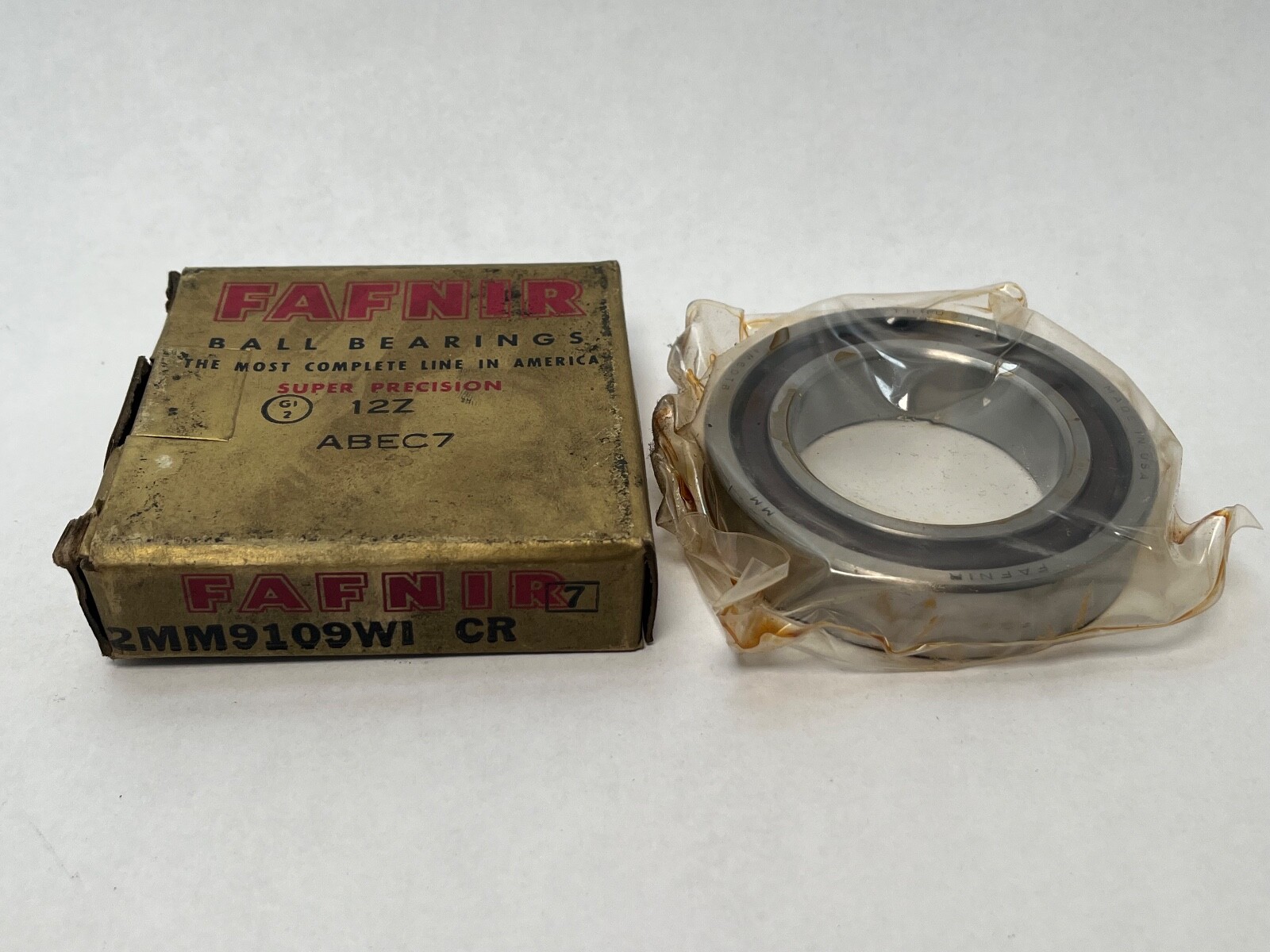

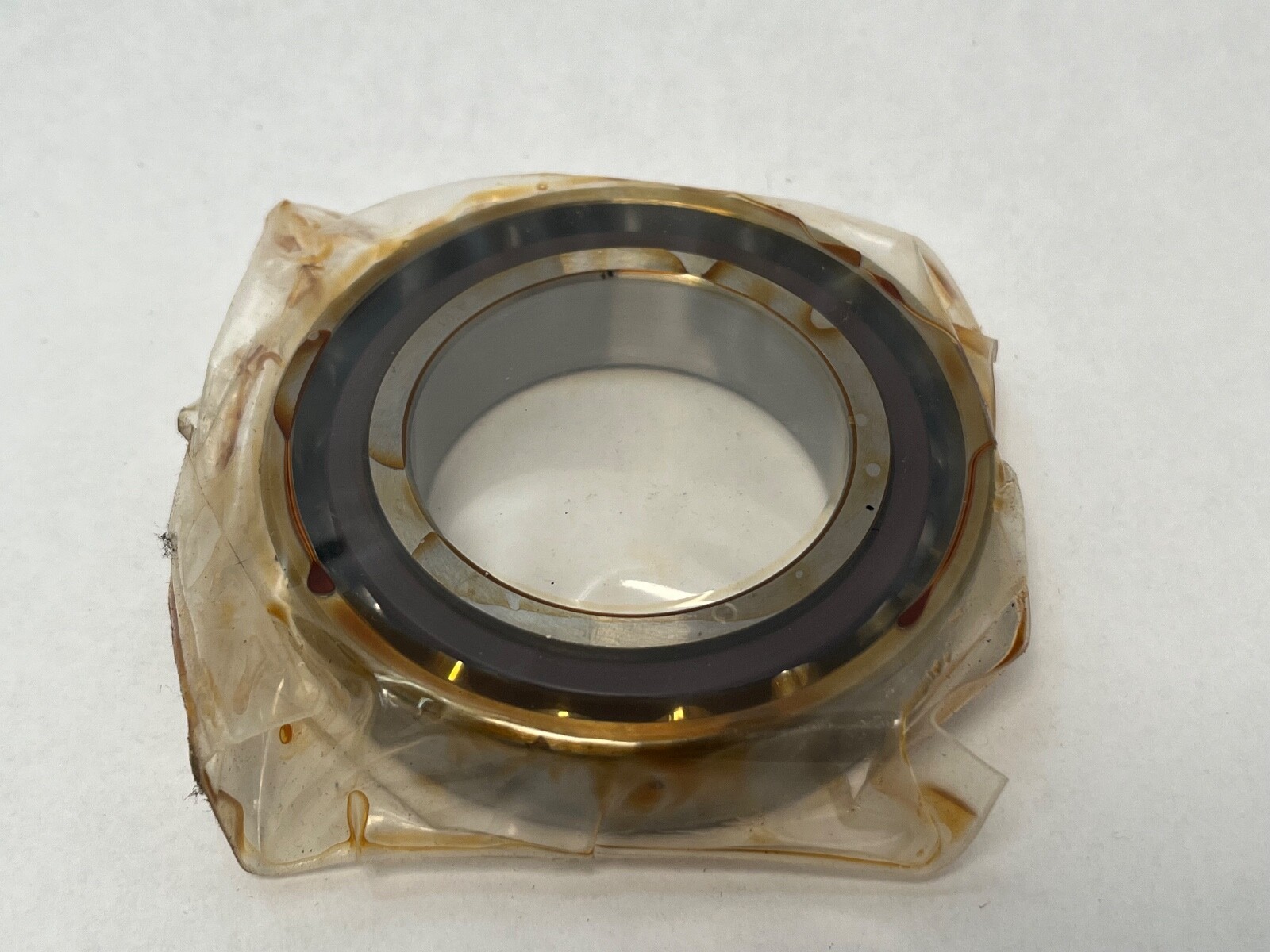

The Fafnir 2MM9109WI Angular Bearing 7009-C is a high-quality steel bearing designed for industrial automation and motion control applications. With a bore diameter of 45mm and an outside diameter of 75mm, this bearing is specifically designed for precision and reliability. Manufactured in the United States by FAFNIR, a trusted brand in bearings, this unit is a key component for ensuring smooth and efficient mechanical power transmission in various systems. Its 16mm width and angular contact ball bearing design make it a versatile and durable choice for a wide range of applications.
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9109WI |
| Model | 2MM 9109 WI CR |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 75 mm |
| Width | 16 mm |
| Material | Chrome Steel |
|---|---|
| Unit Type | Unit |
| Unit Quantity | 1 |
| Min Temp | -20 °C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 27 kN / 6070 lbf |
| Static Load Rating | 17.2 kN / 3867 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 9100 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Condition | New – Open box |
| Item Weight | 0.5 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 21480 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Internal Clearance | C0 |
| Cross Reference 1 | 109HC |
|---|---|
| Cross Reference 2 | 7009 CD P4A |
| Cross Reference 3 | B 7009 C TPA P4 |
| Cross Reference 4 | 7009 C T P4 |
