Photo may not represent actual item. Refer to name and product specs for all details.
Availability:
1 in stock
List Price
$43.95
1 in stock
1 in stock
Get Estimated Arrival Date
| MFR / Brand | Fafnir |
|---|---|
| MPN | 2MM9109WI |
| Model | 2MM 9109 WI CR / 7009 CD P4A / 109 HC |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45mm |
| OD | 75mm |
| Width | 16mm |
| Material | Steel |
|---|---|
| Unit Type | Unit |
| Unit Quantity | 1 |
| Min Temp | -30°C |
| Cage Type | CR - Phenolic |
| Dynamic Load Rating | 27 kN / 6080 lbf |
| Static Load Rating | 19.3 kN / 4330 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 9100 |
| Rolling Elements | Balls |
| Max Temp | 120°C |
| Condition | New – Open box |
| Item Weight | 0.52 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 17900 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Lubricant | Oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Cross Reference 1 | SKF 7009 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7009-C-T-P4S |
| Cross Reference 3 | NSK 7009CTYNSULP4 |
| Cross Reference 4 | NTN 7009C |
| Cross Reference 5 | GMN S6009 C TA P4 |

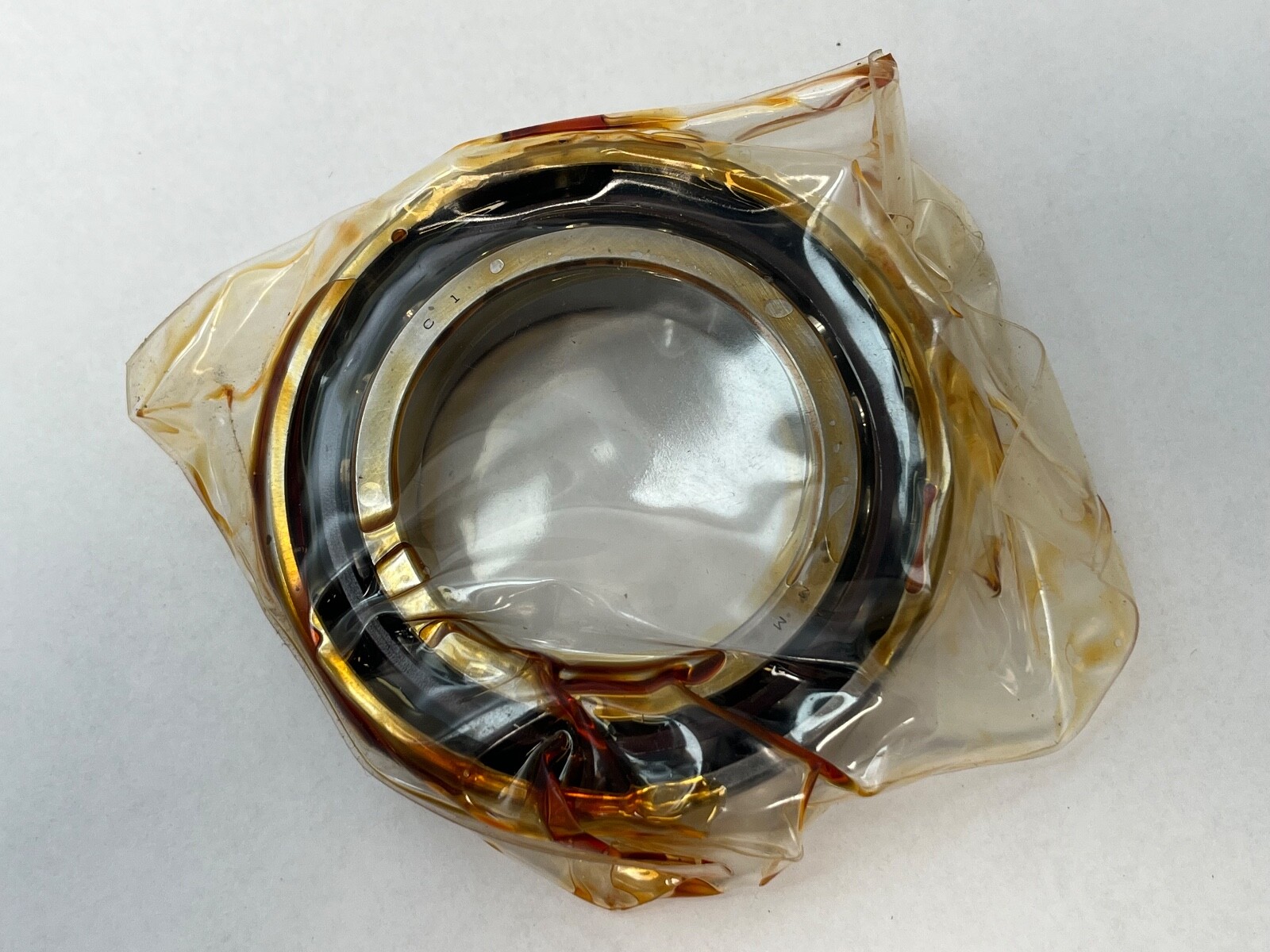

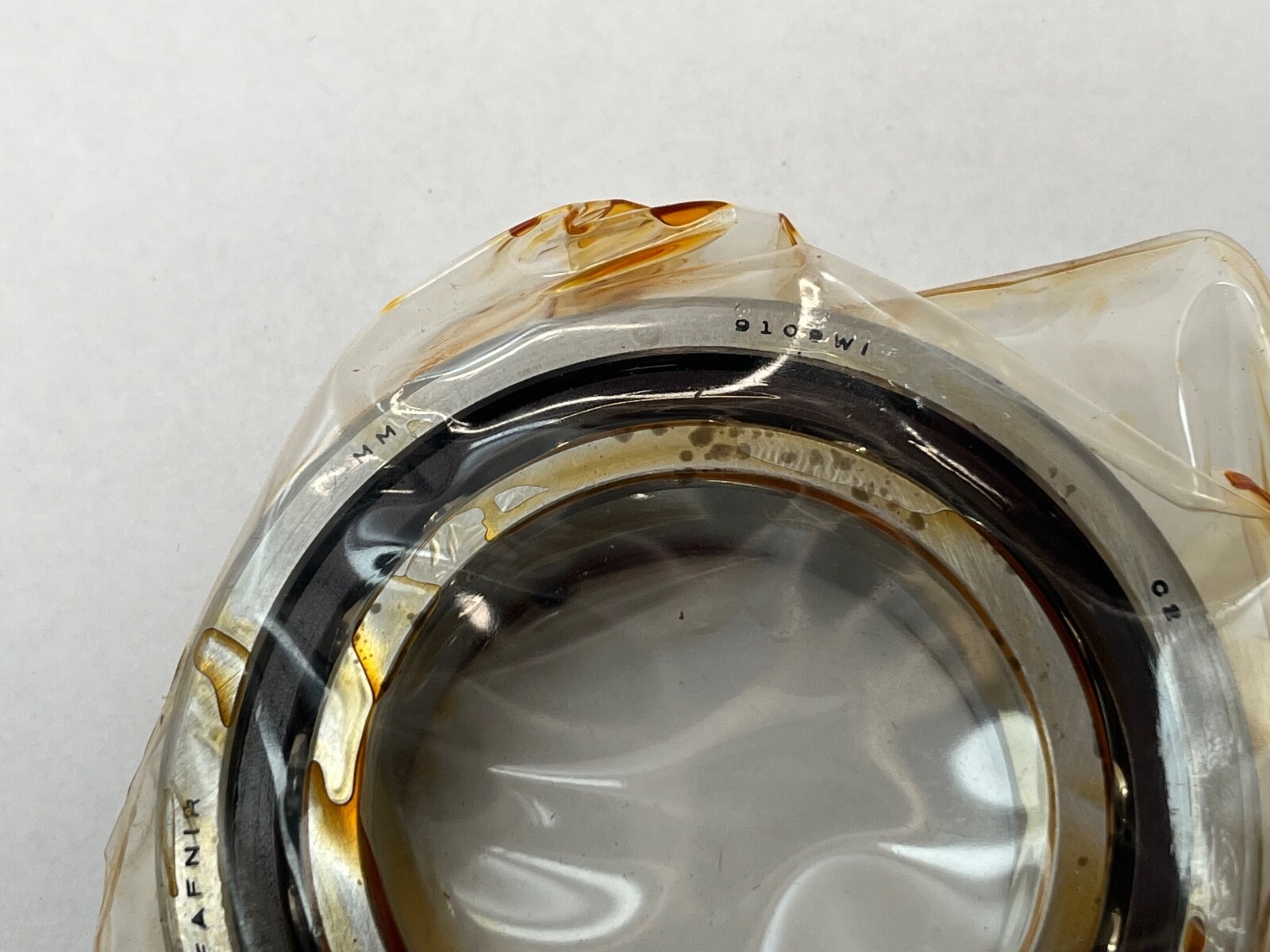

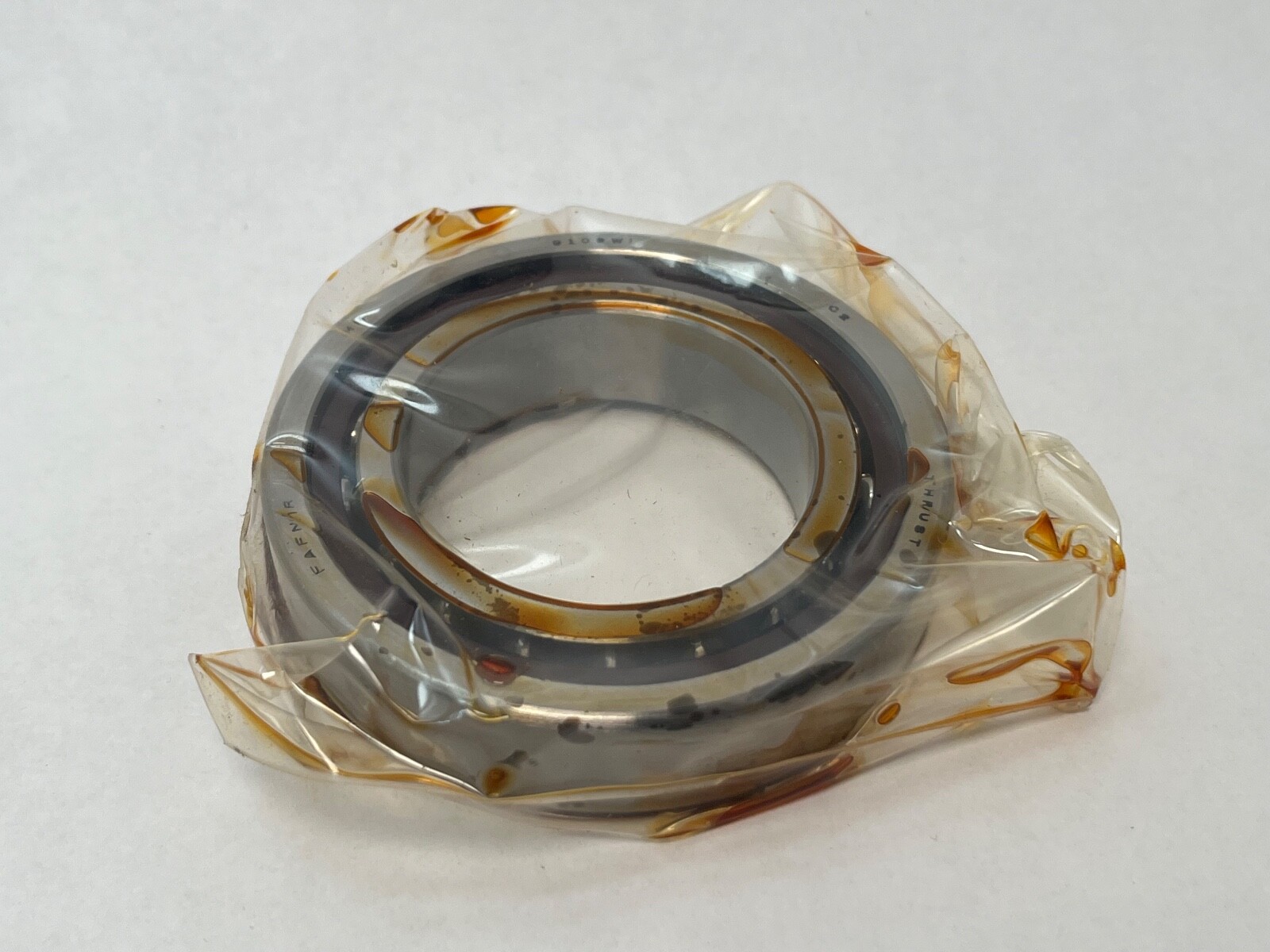

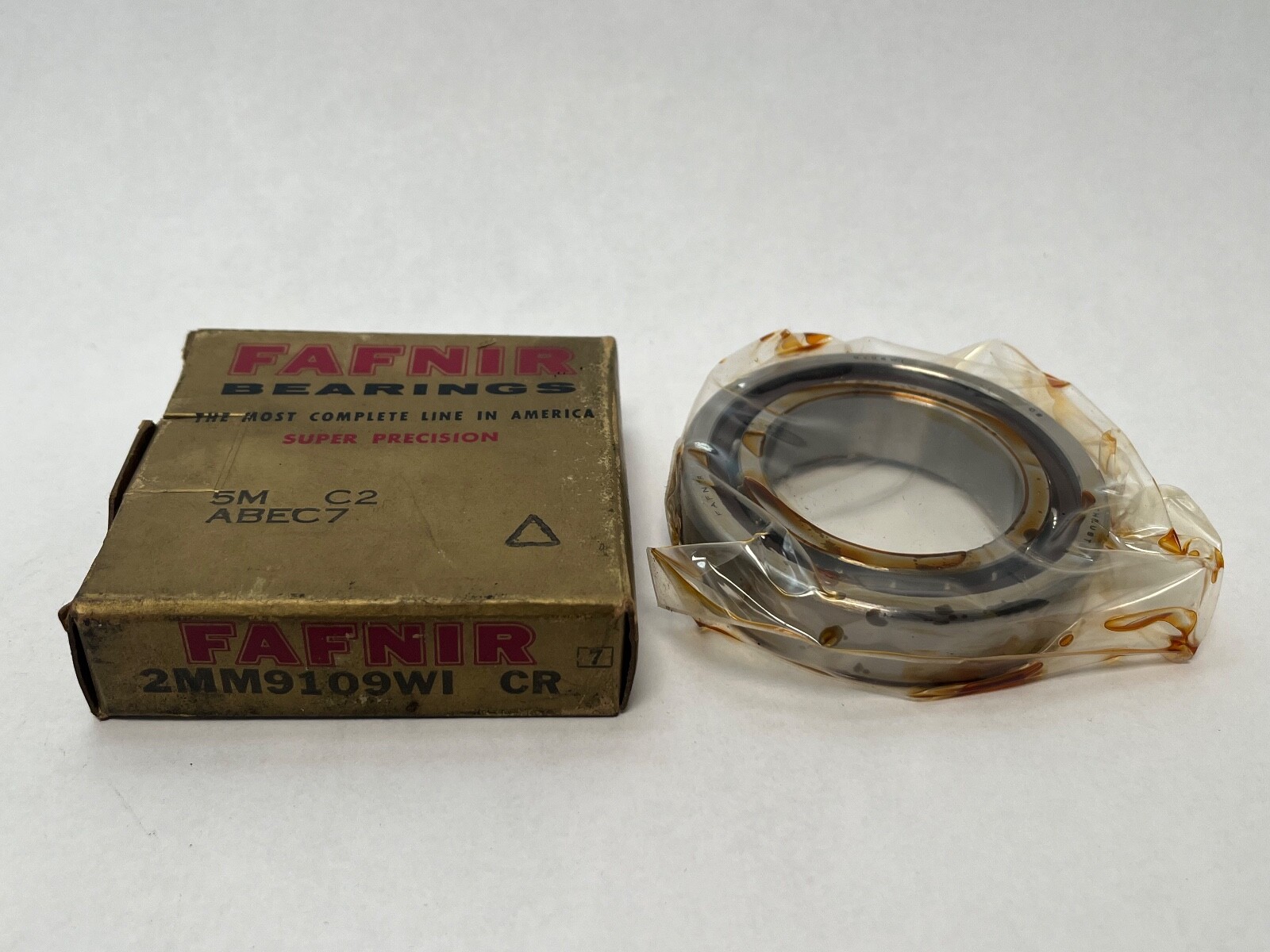

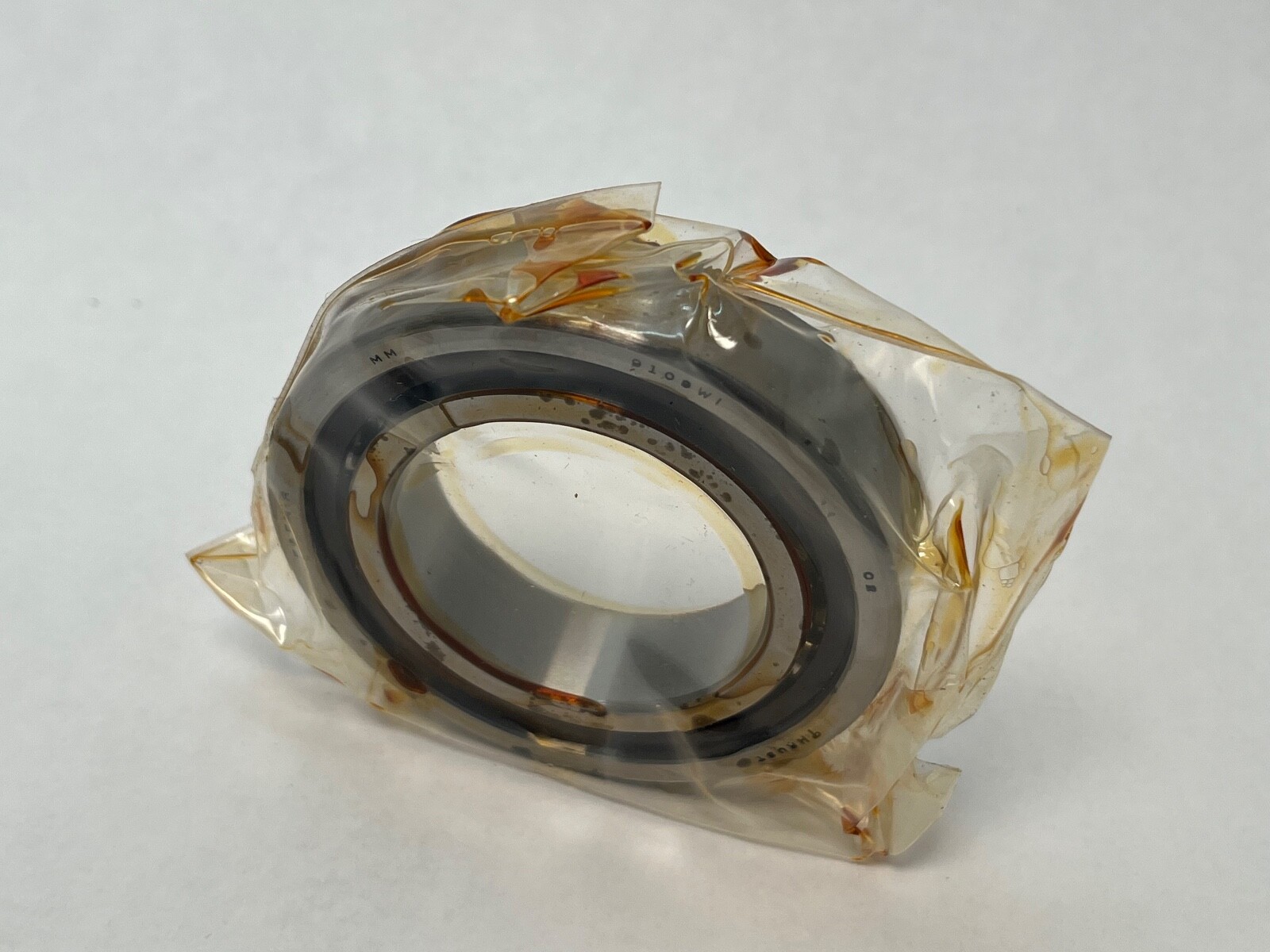

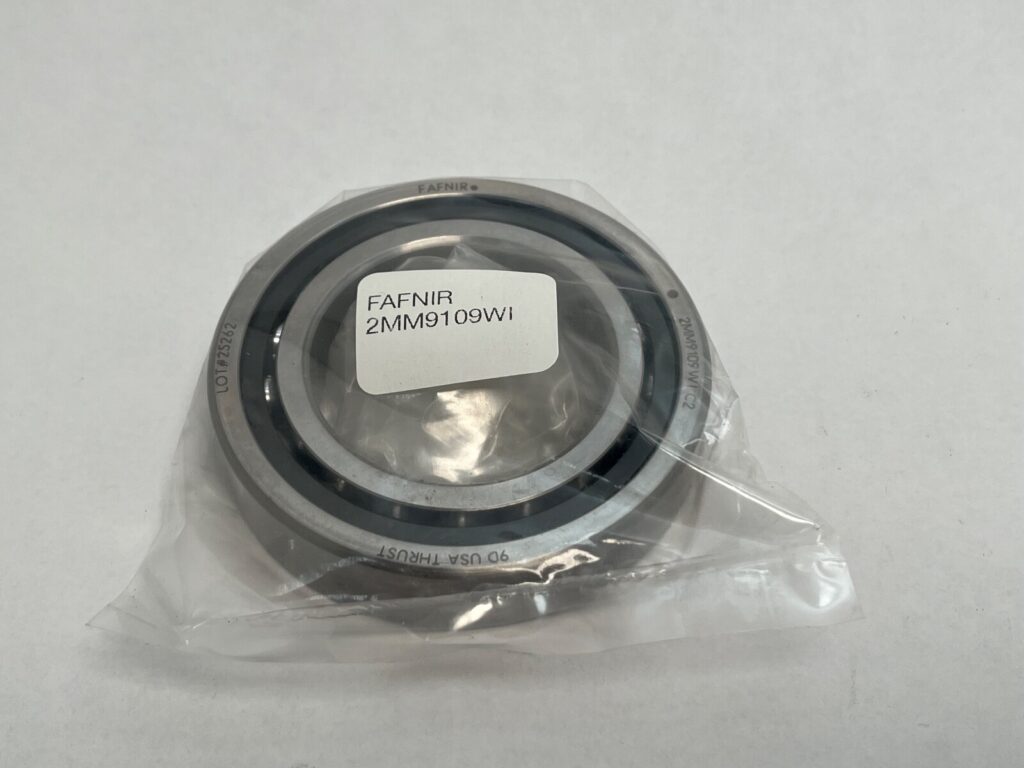

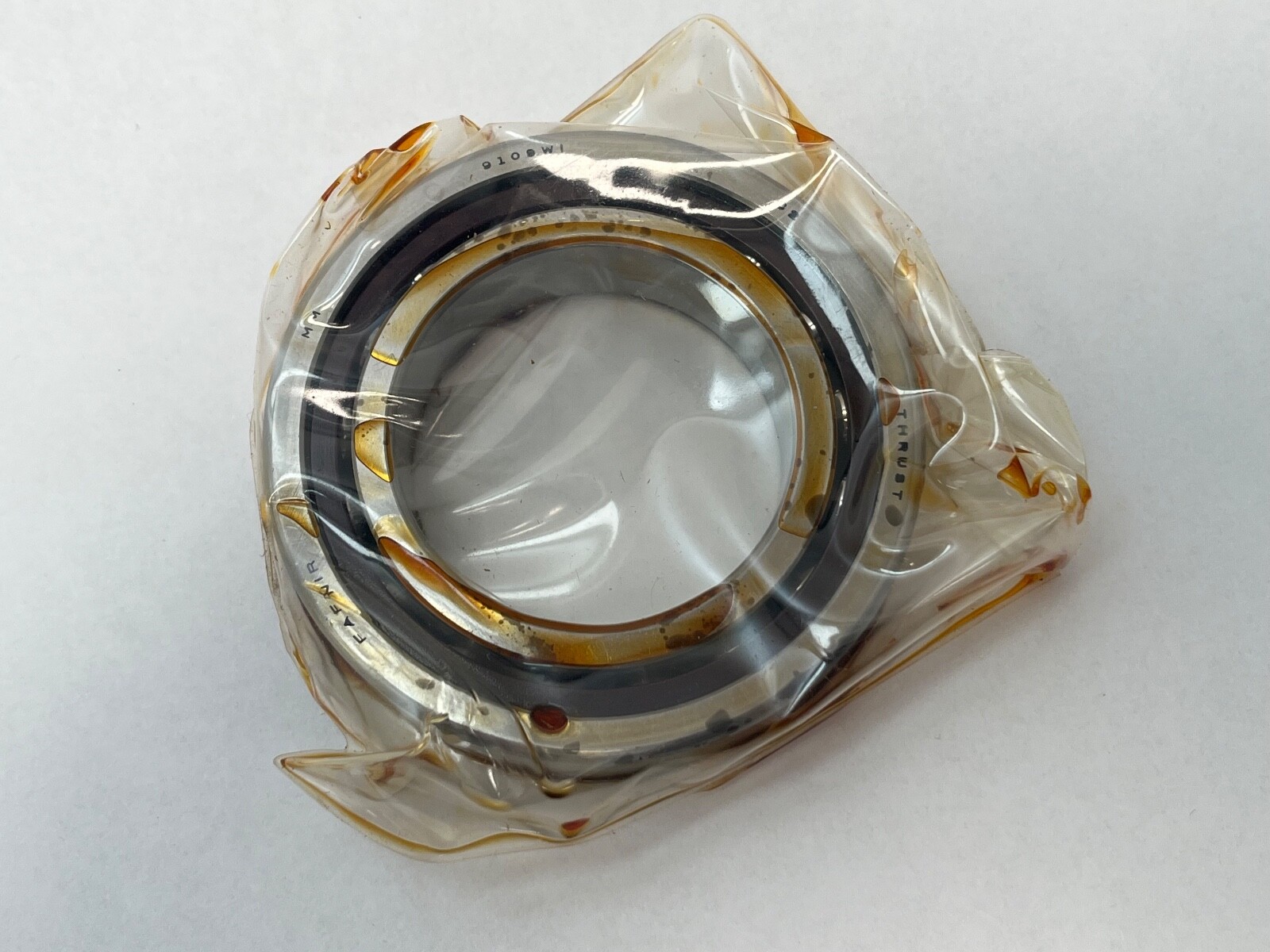

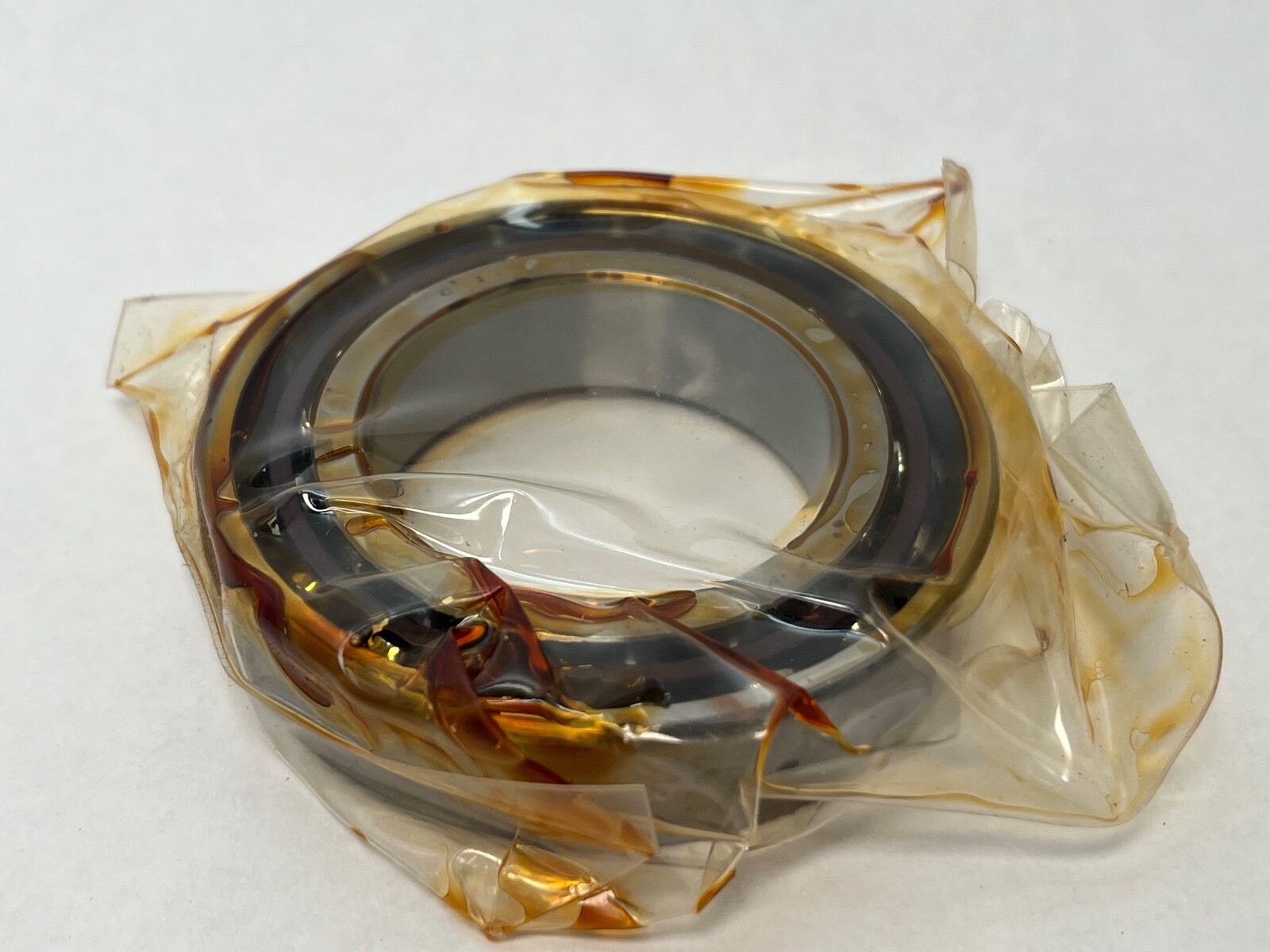

The Fafnir 2MM9109WI Angular Bearing 7009-C is a high-quality steel bearing with a bore diameter of 45mm, outside diameter of 75mm, and width of 16mm. This unit is an Angular Contact Ball Bearing designed for industrial automation and motion control systems. Made in the United States by the reputable brand FAFNIR, this bearing is a reliable and durable component for reducing friction and ensuring smooth operation in various mechanical power transmission applications.
