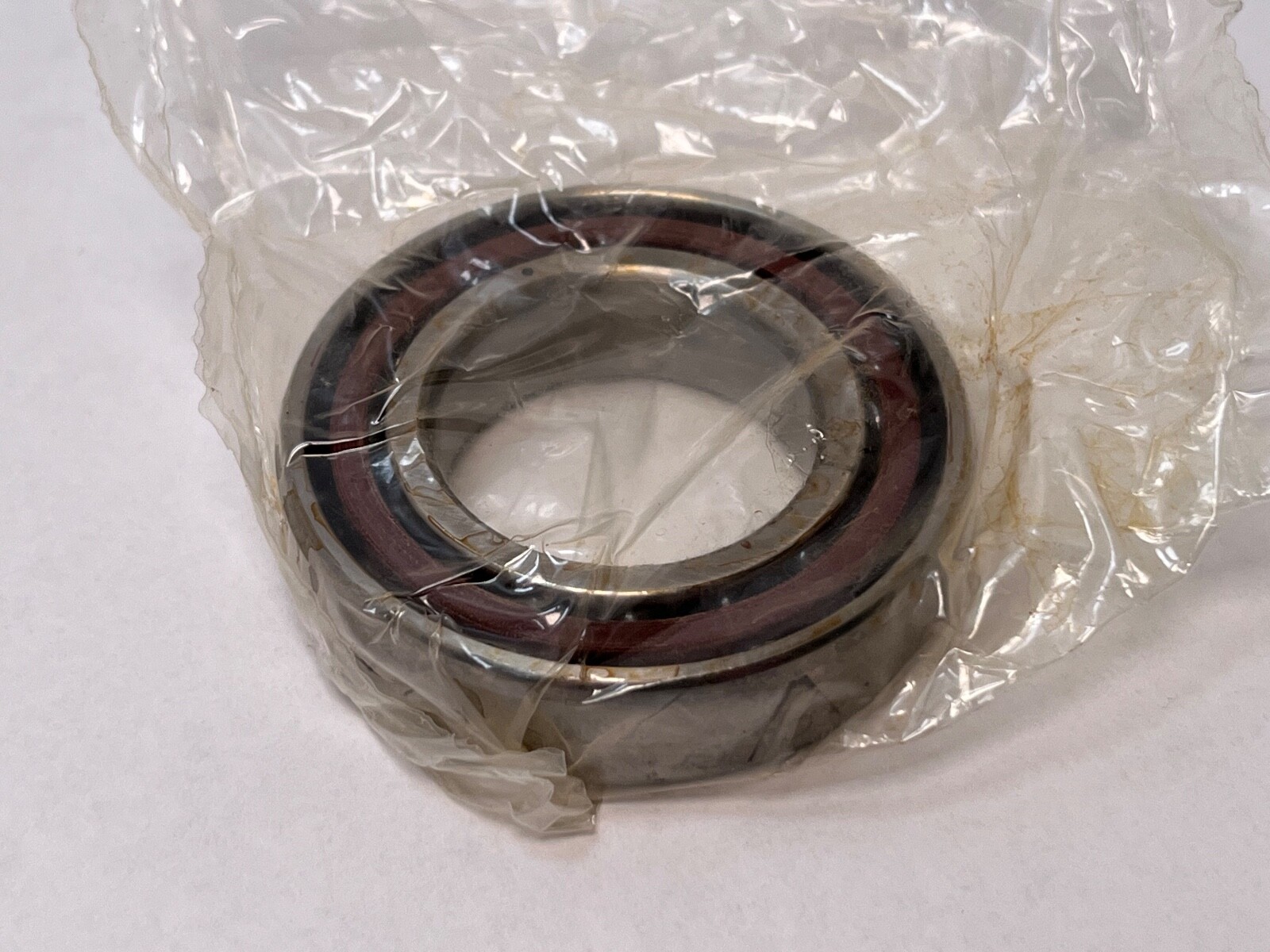

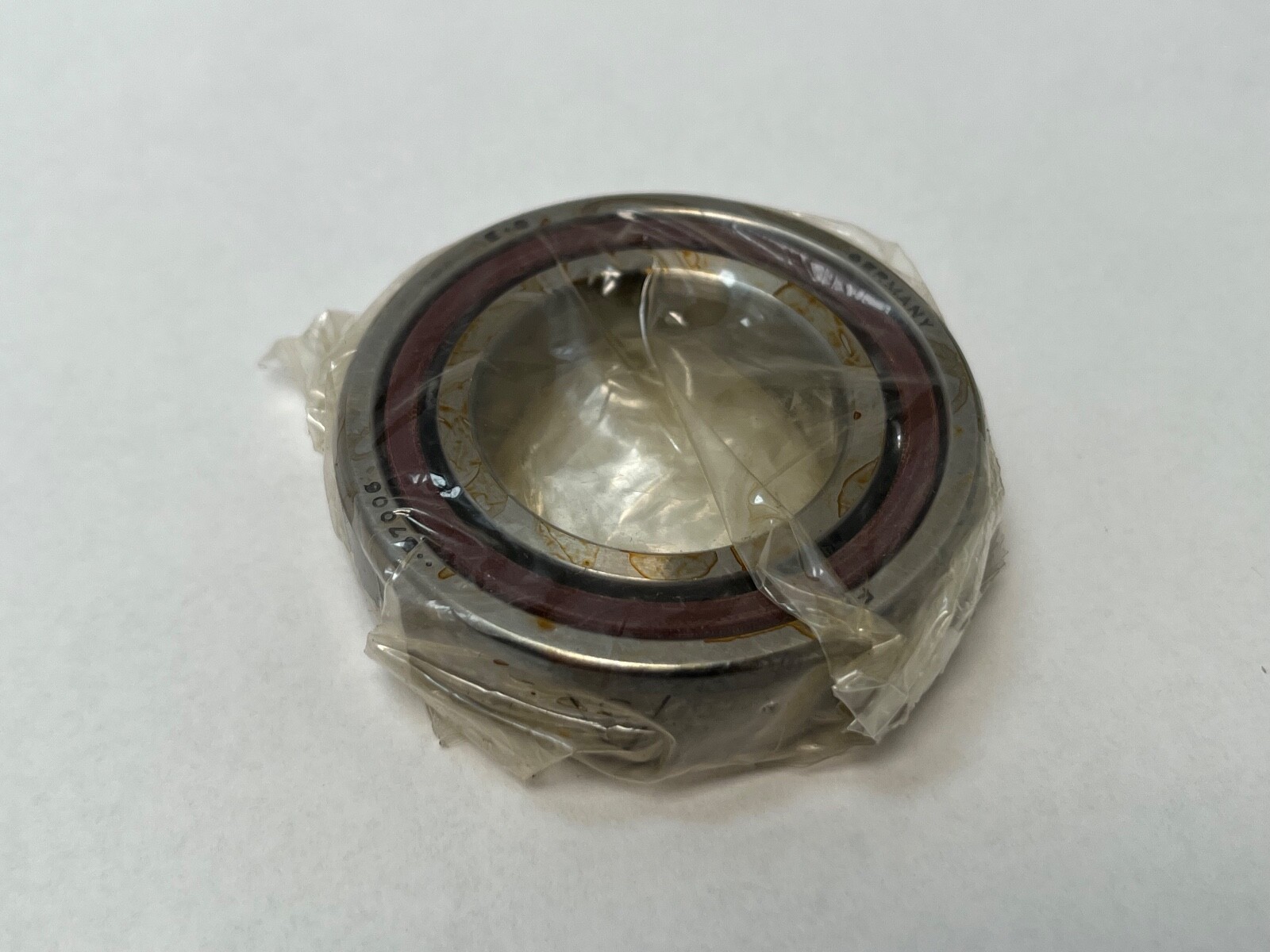

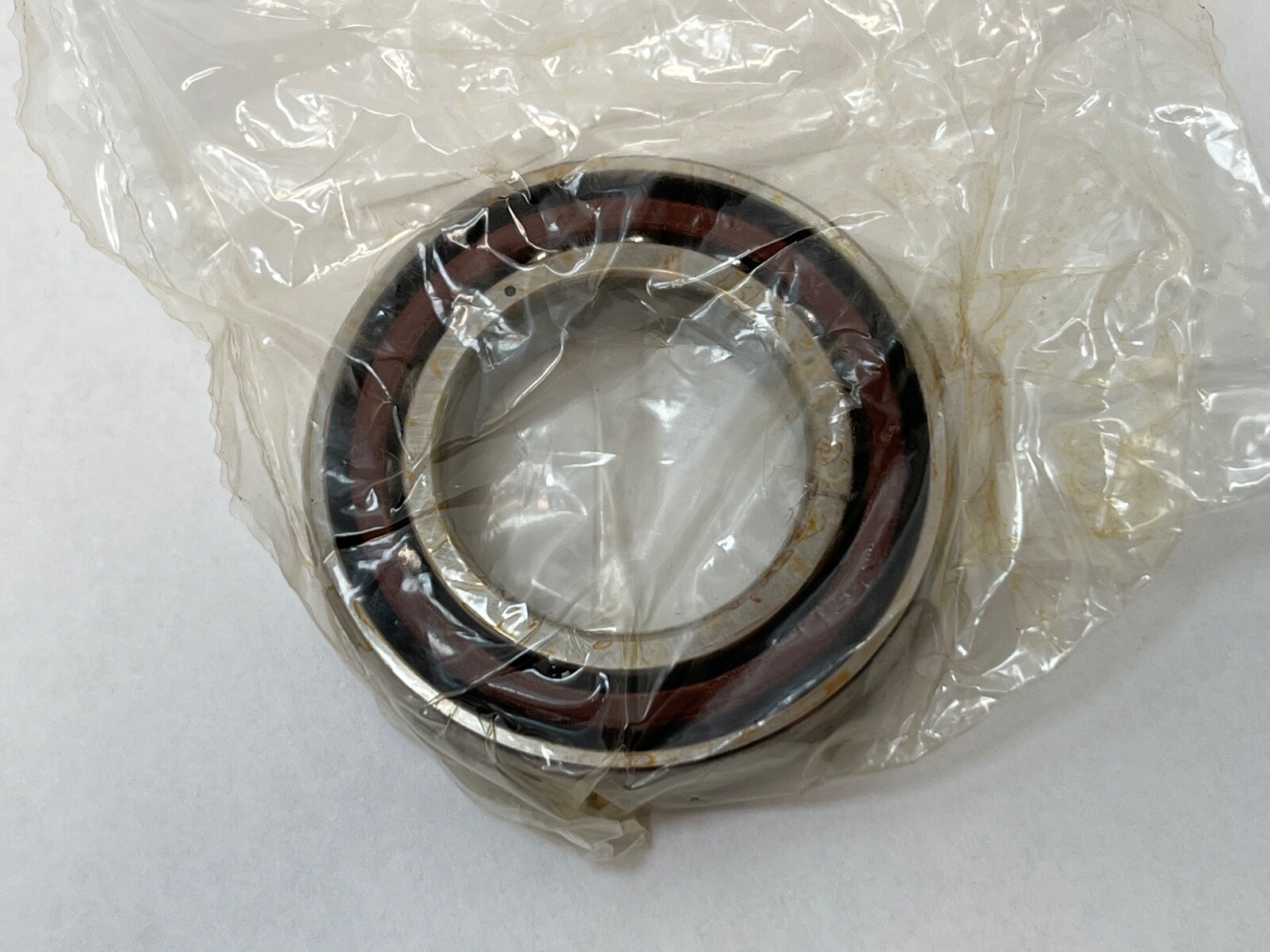

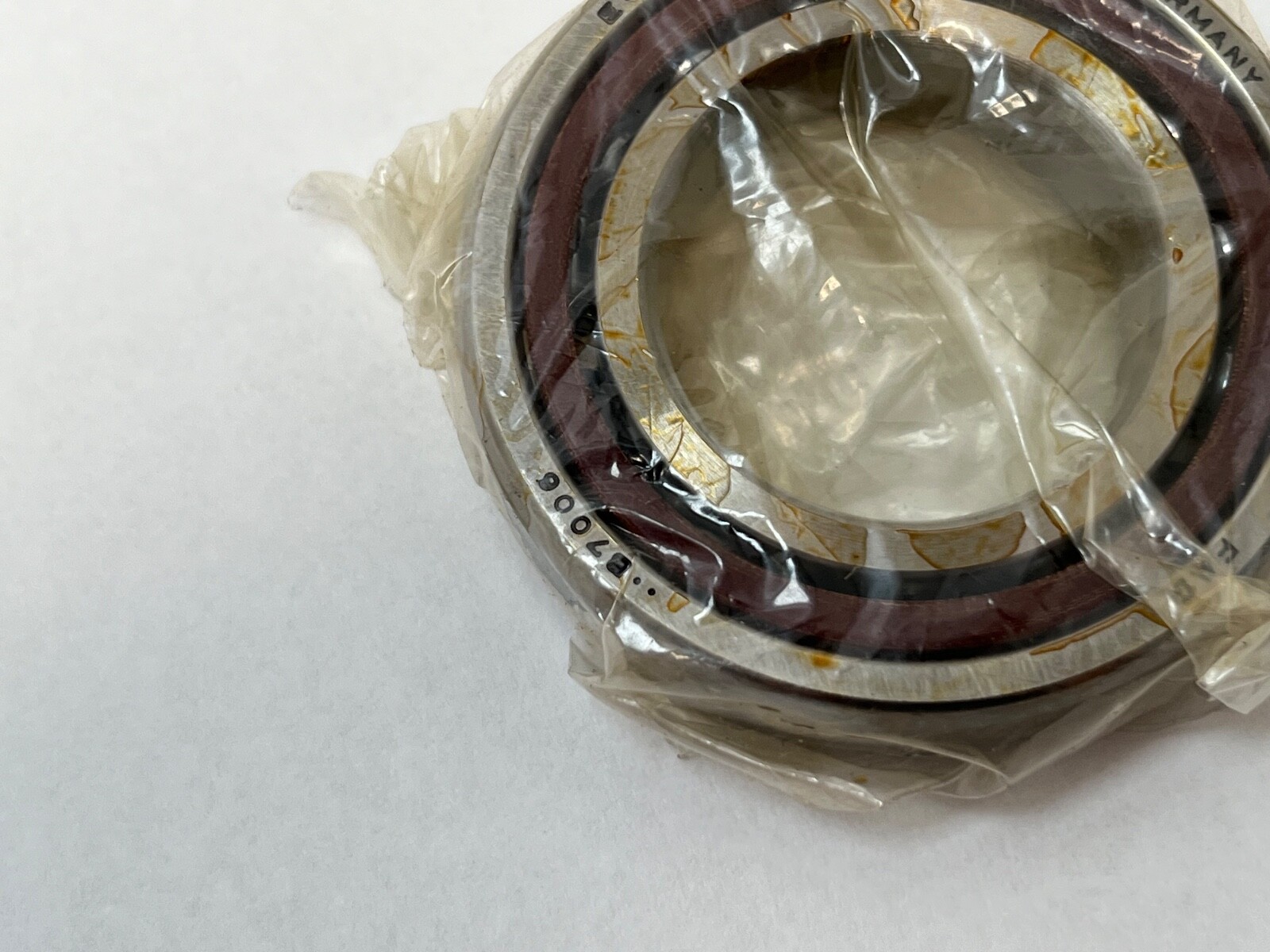

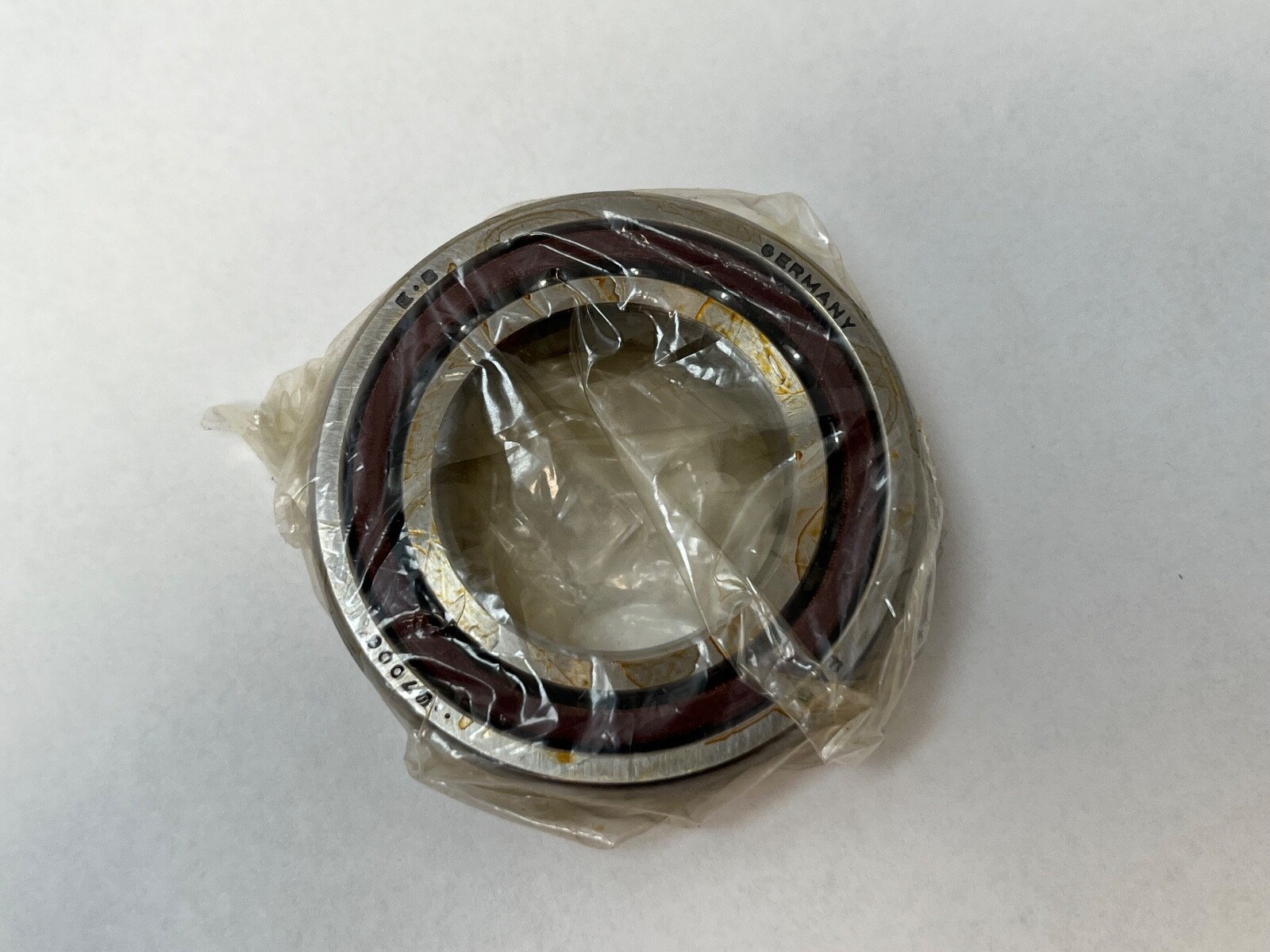

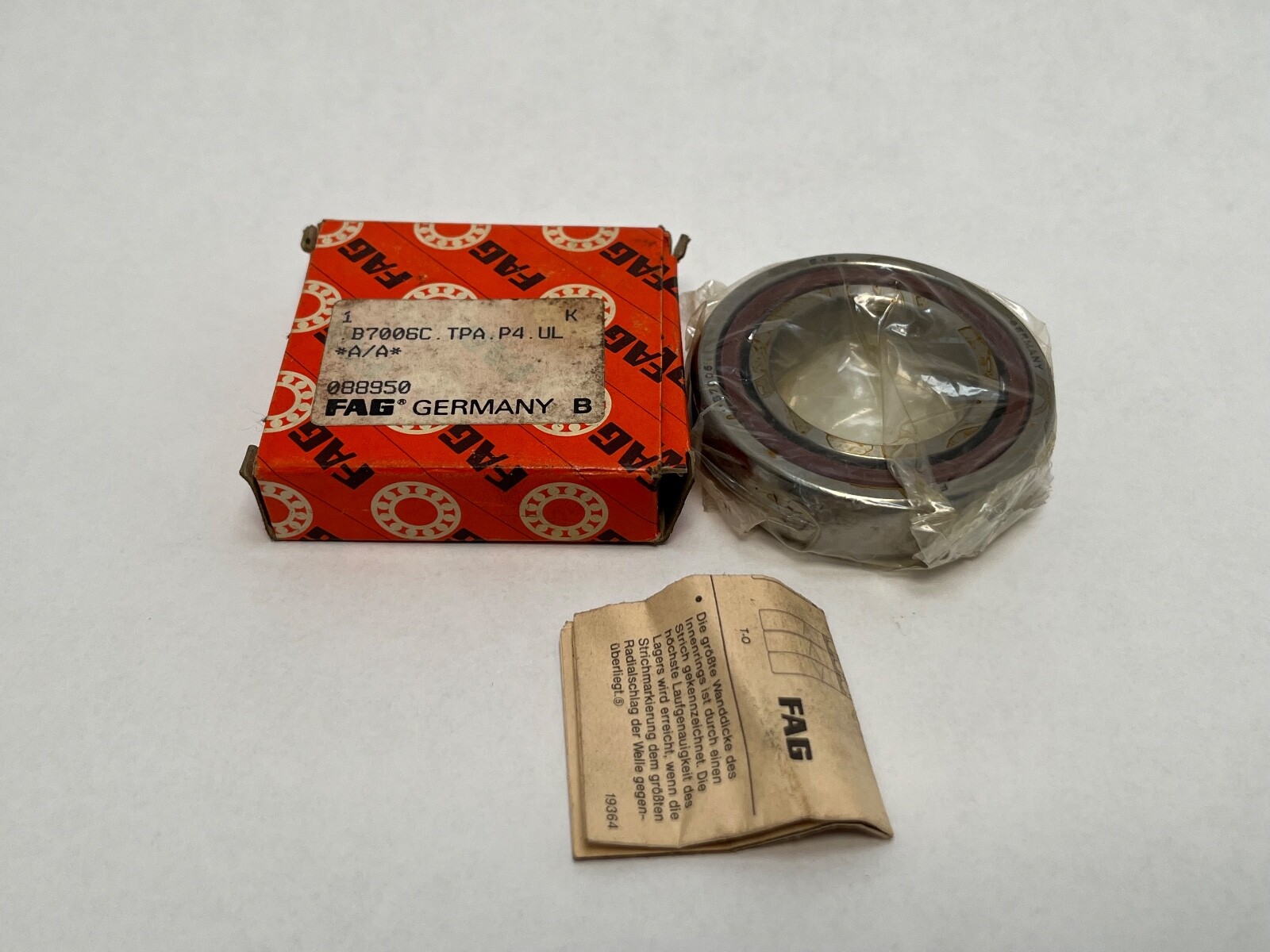

Name: Angular Contact Bearing - 30 mm ID, 55 mm OD, 13 mm Width, Open, 15° Contact Angle
Brand: FAG
SKU: B-AJ1B2#EVUU2K
Price: 65.97 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	FAG
MPN	B7006CTPAP4K5UL
Model	B 7006 C TPA P4 K5 UL / 2MM9106WI CR SUL
Bearing Type	Angular Contact Ball Bearing, Open
ID	30 mm
OD	55 mm
Width	13 mm

Specifications

Advertise	1
Series	7000
Condition	New
Preload	Light
Material	Bearing Steel
Min Temp	-30 °C
Cage Type	Machined
Dynamic Load Rating	15.4 kN / 3460 lbf
Static Load Rating	7.3 kN / 1640 lbf
Precision Rating	ABEC 7 / P4
Rolling Elements	Balls
Max Temp	100 °C
Item Weight	0.25 lbs
Cage Material	Phenolic
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50
Contact Angle	15°
Mounting Arrangement	Universal

Cross-References

Cross Reference 1	SKF 7006 CD/P4ADGA
Cross Reference 2	GMN S6006CTA
Cross Reference 3	NSK 7006CTYNSULP4
