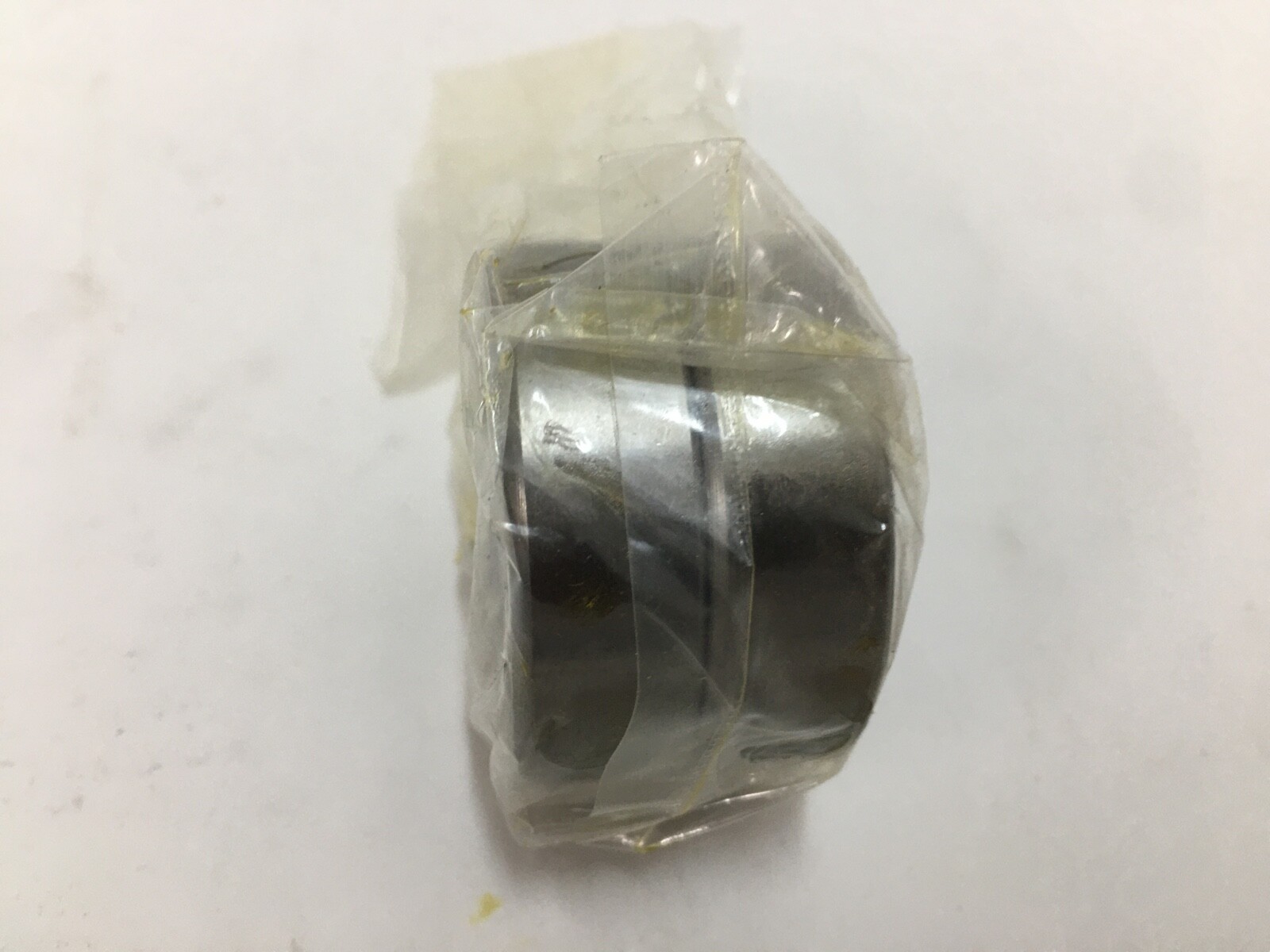

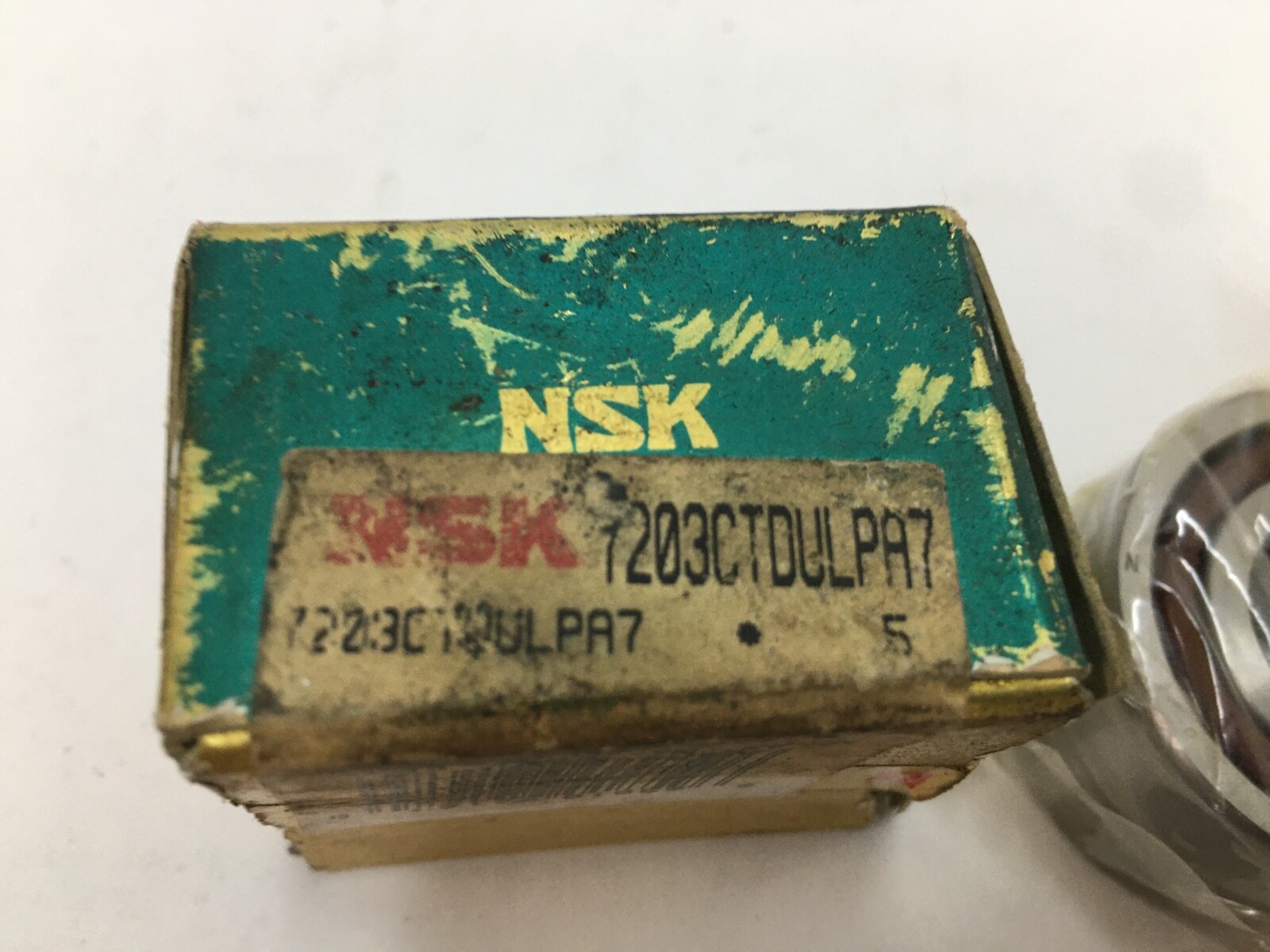

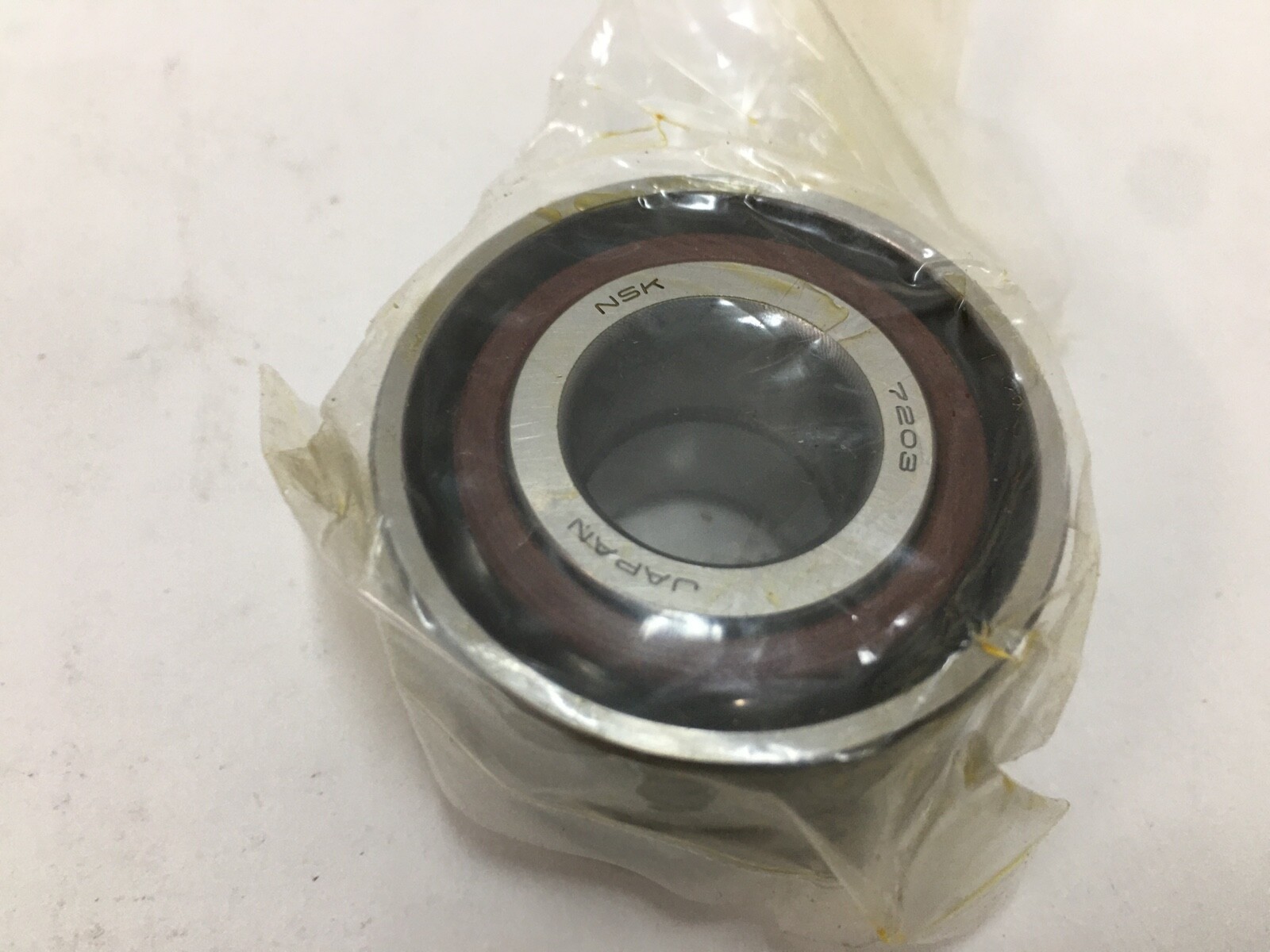

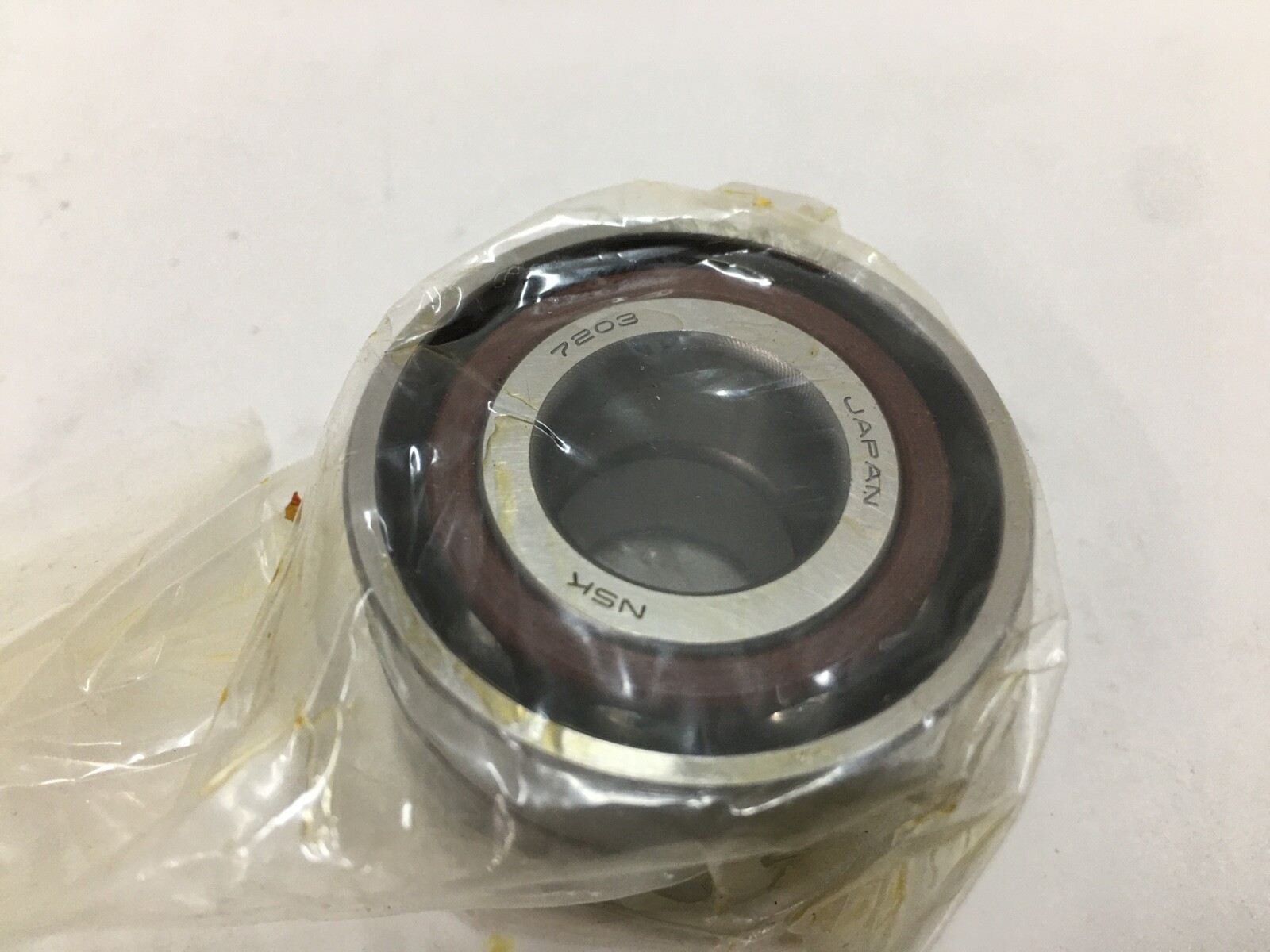

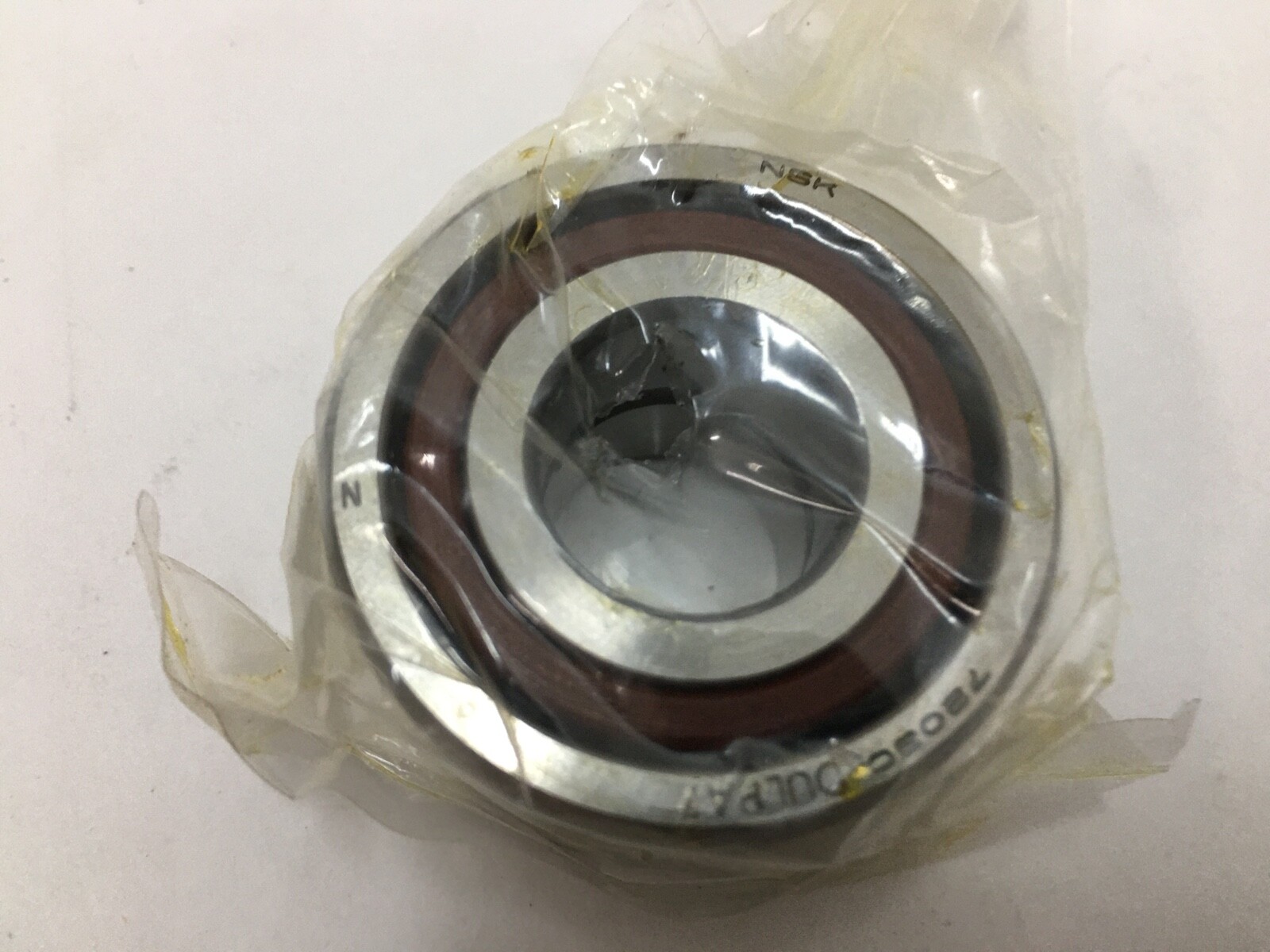

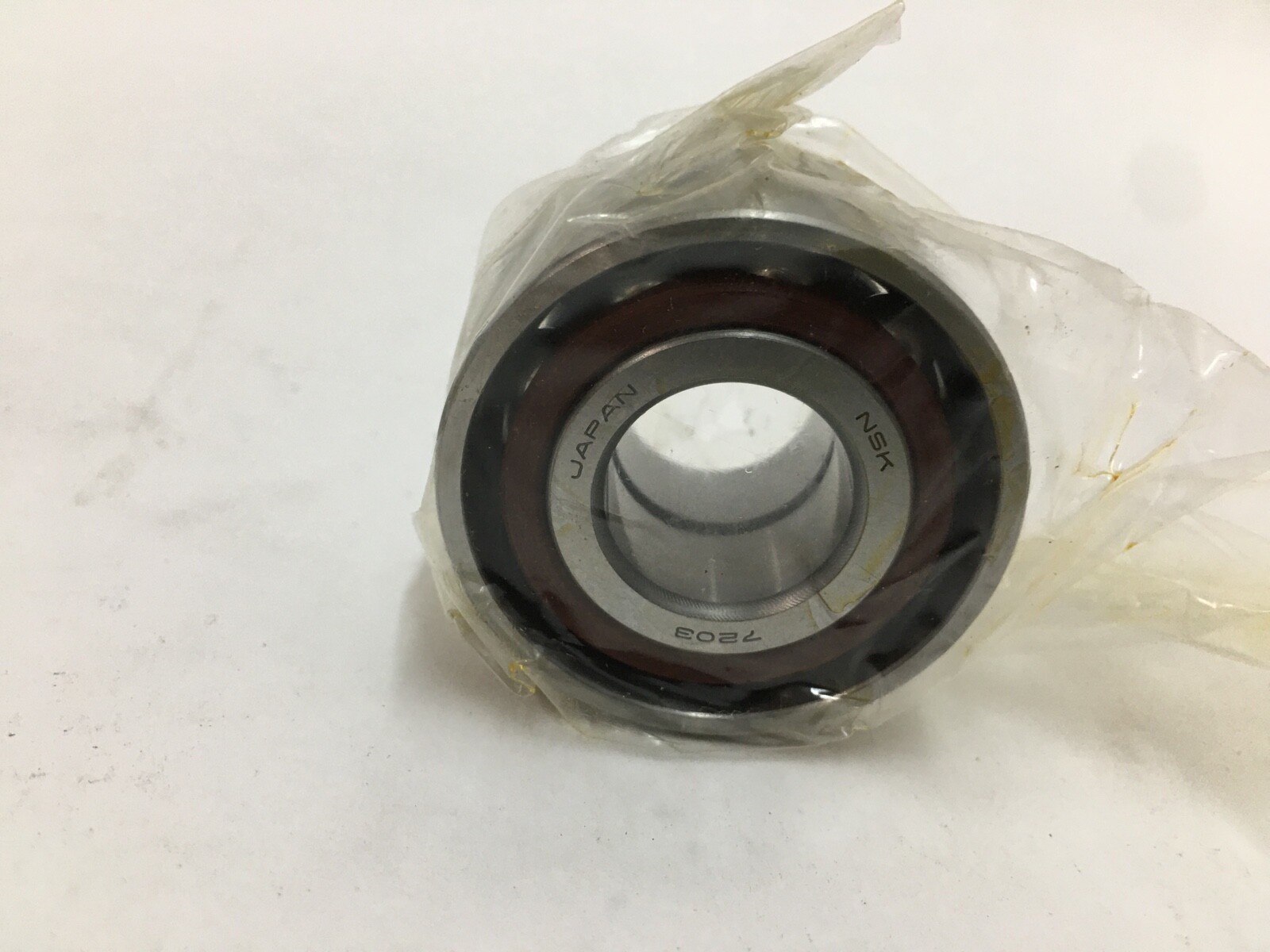

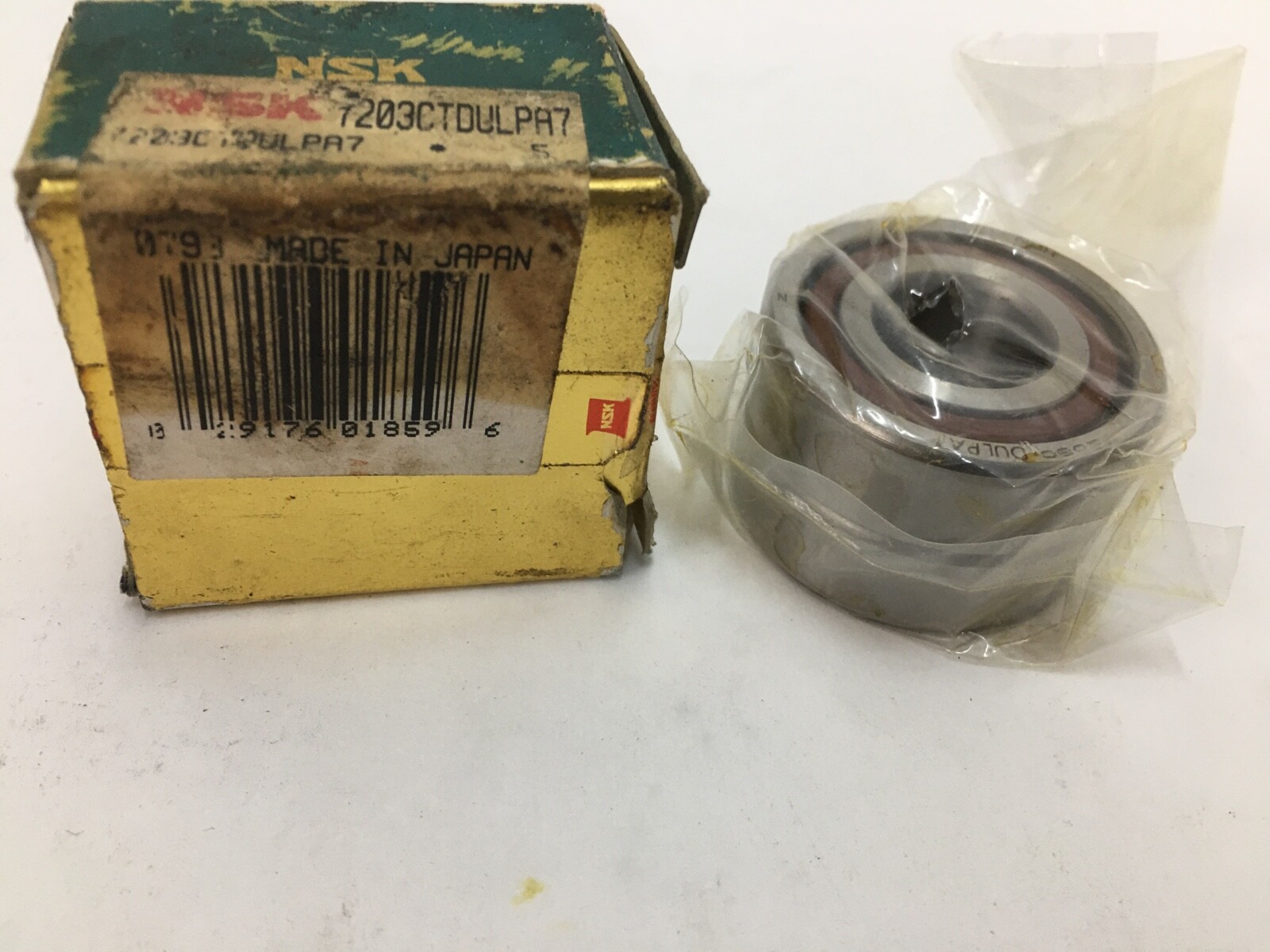

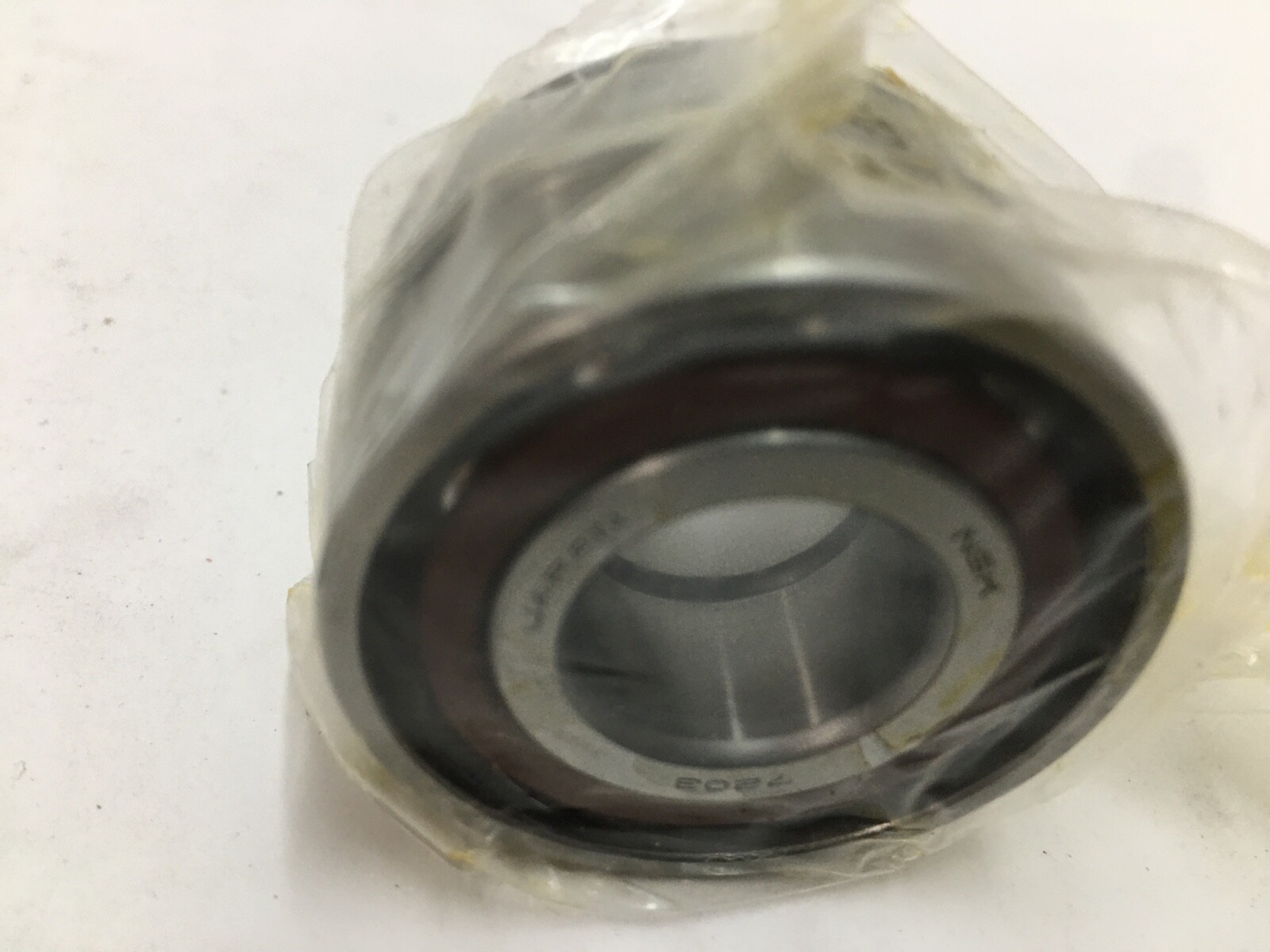

Name: Angular Contact Ball Bearing - Straight Bore, 17 mm ID, 40 mm OD, 12 mm Width, Open, 15° Contact Angle, Light Preload.
Brand: NSK
SKU: B-AI1B4#O5PMBZ
Price: 118.54 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	NSK
MPN	7203CTDULPA7
Model	7203-C-T-DUL-PA-7
Bearing Type	Angular Contact Ball Bearing, Open
ID	17 mm
OD	40 mm
Width	12 mm

Specifications

Advertise	1
Material	Bearing Steel
Series	7200
Condition	New
Preload	Light
Min Temp	-30°C
Cage Type	Phenolic
Dynamic Load Rating	10.1 kN
Static Load Rating	5.3 kN
Precision Rating	ABEC 7 / P4
Rolling Elements	Ball
Max Temp	120°C
Item Weight	0.15 lbs
Cage Material	Polyamide
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50.68
Contact Angle	15°
Mounting Arrangement	Universal

Cross-References

Cross Reference 1	SKF 7203 CD/P4ADGA
Cross Reference 2	FAG B7203-C-T-P4S-DUL
