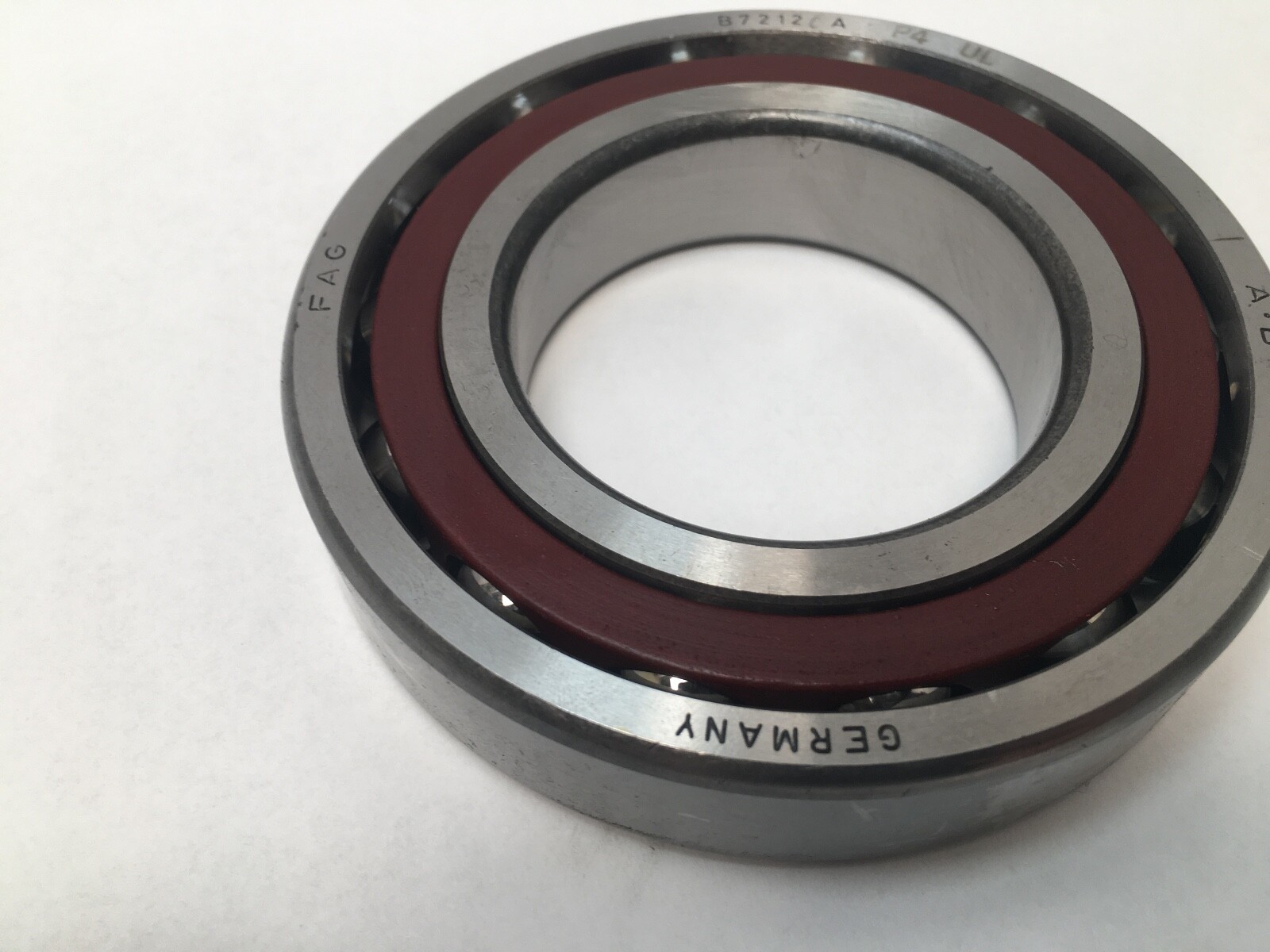

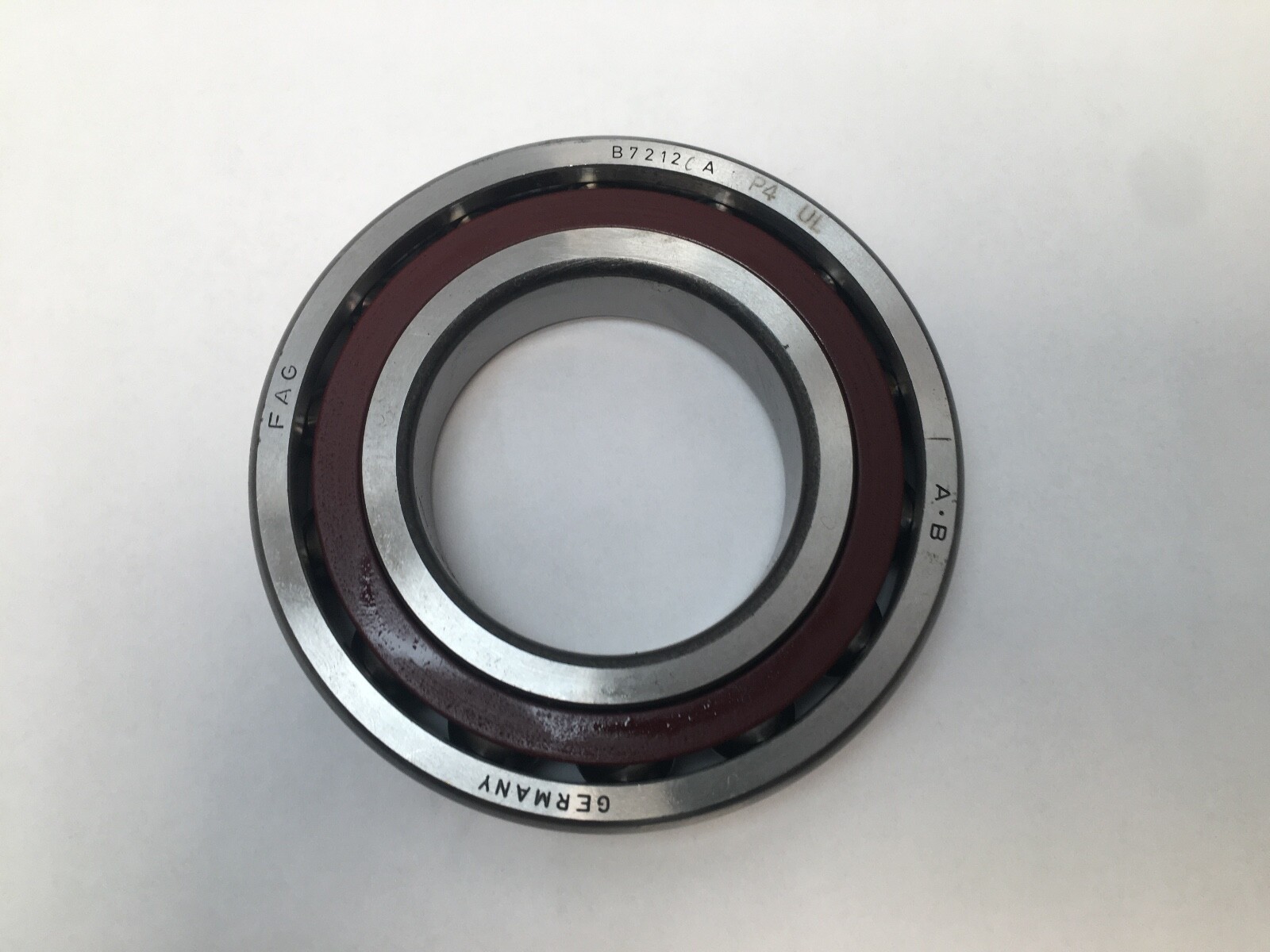

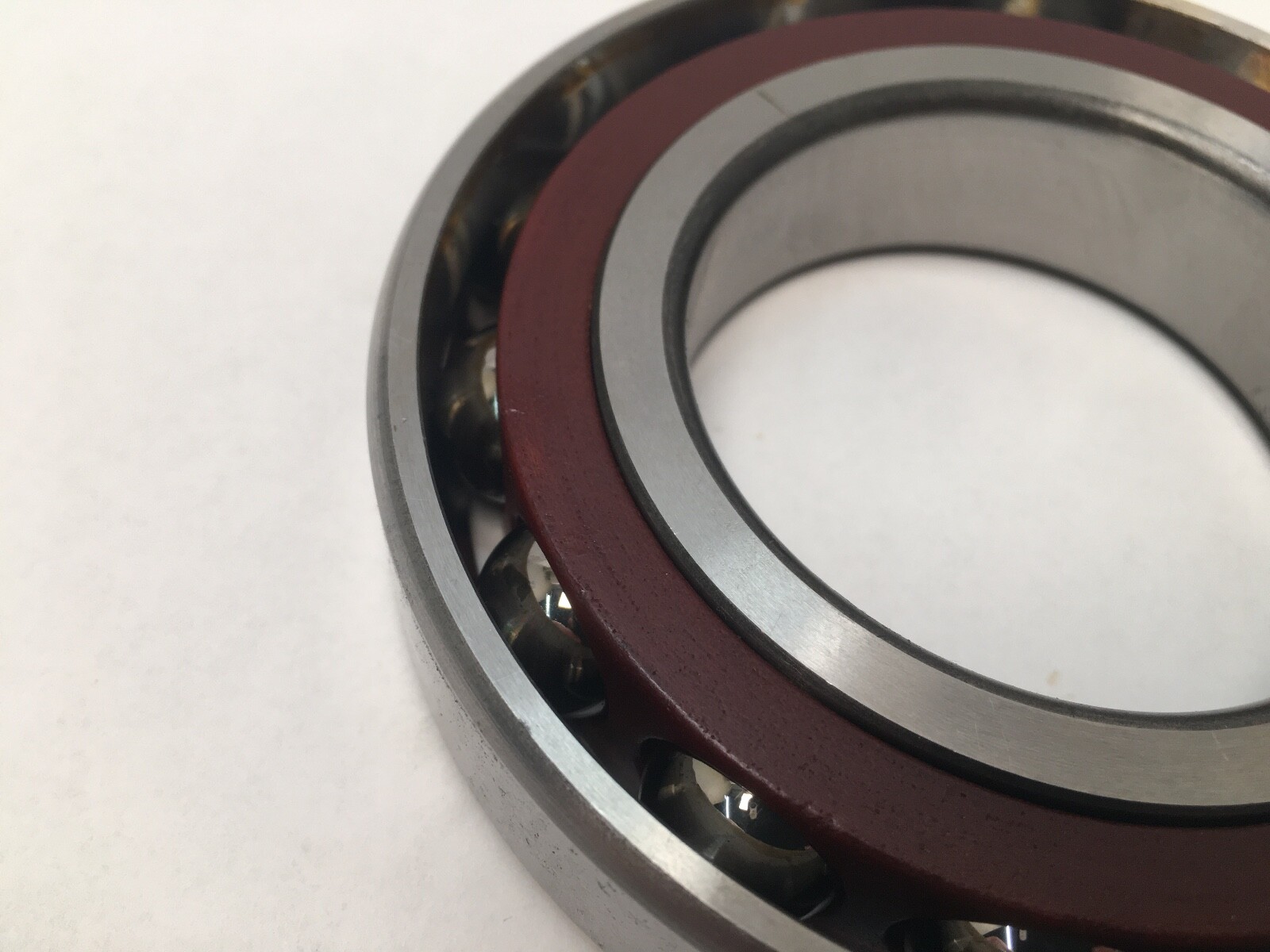

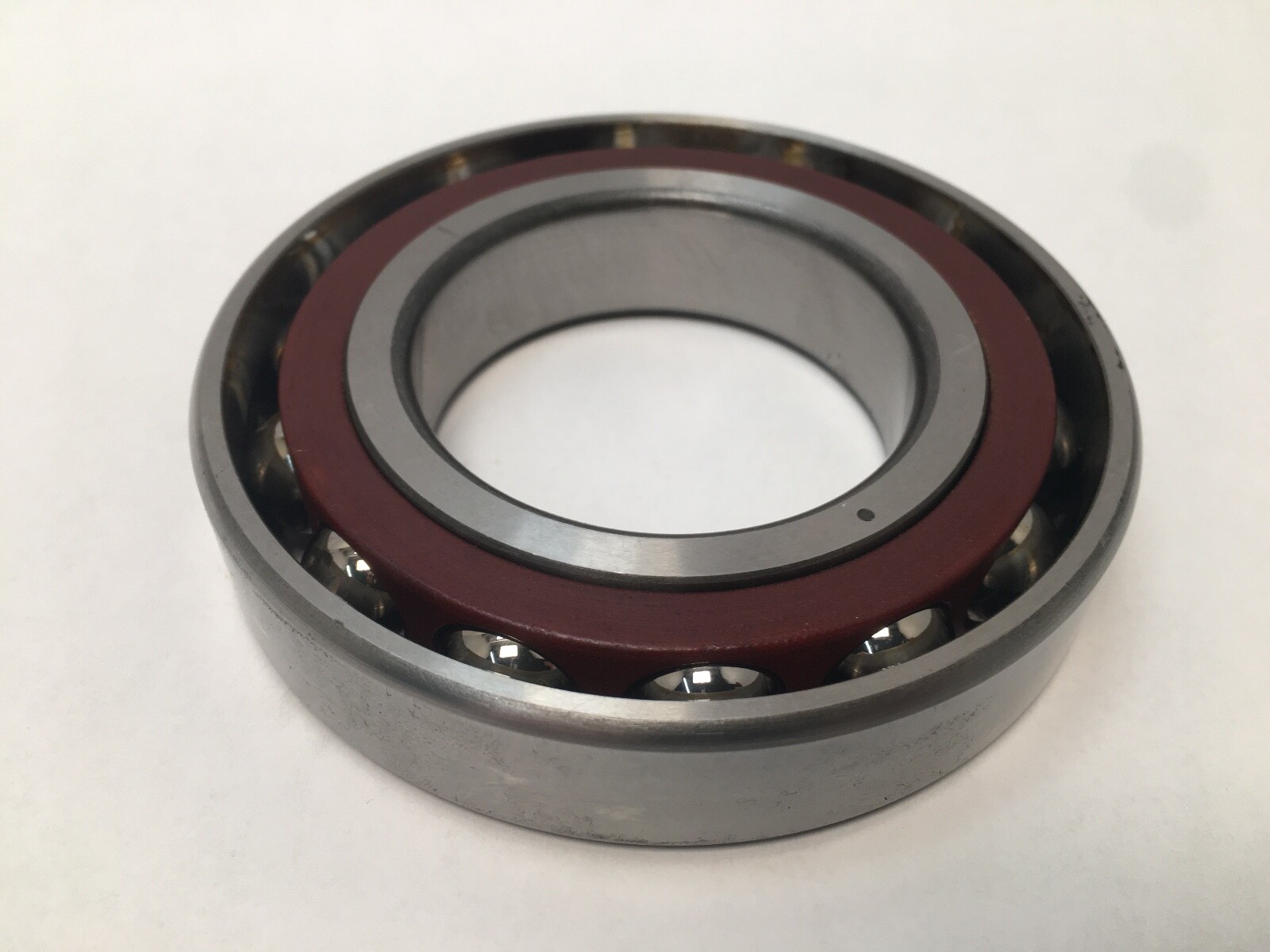

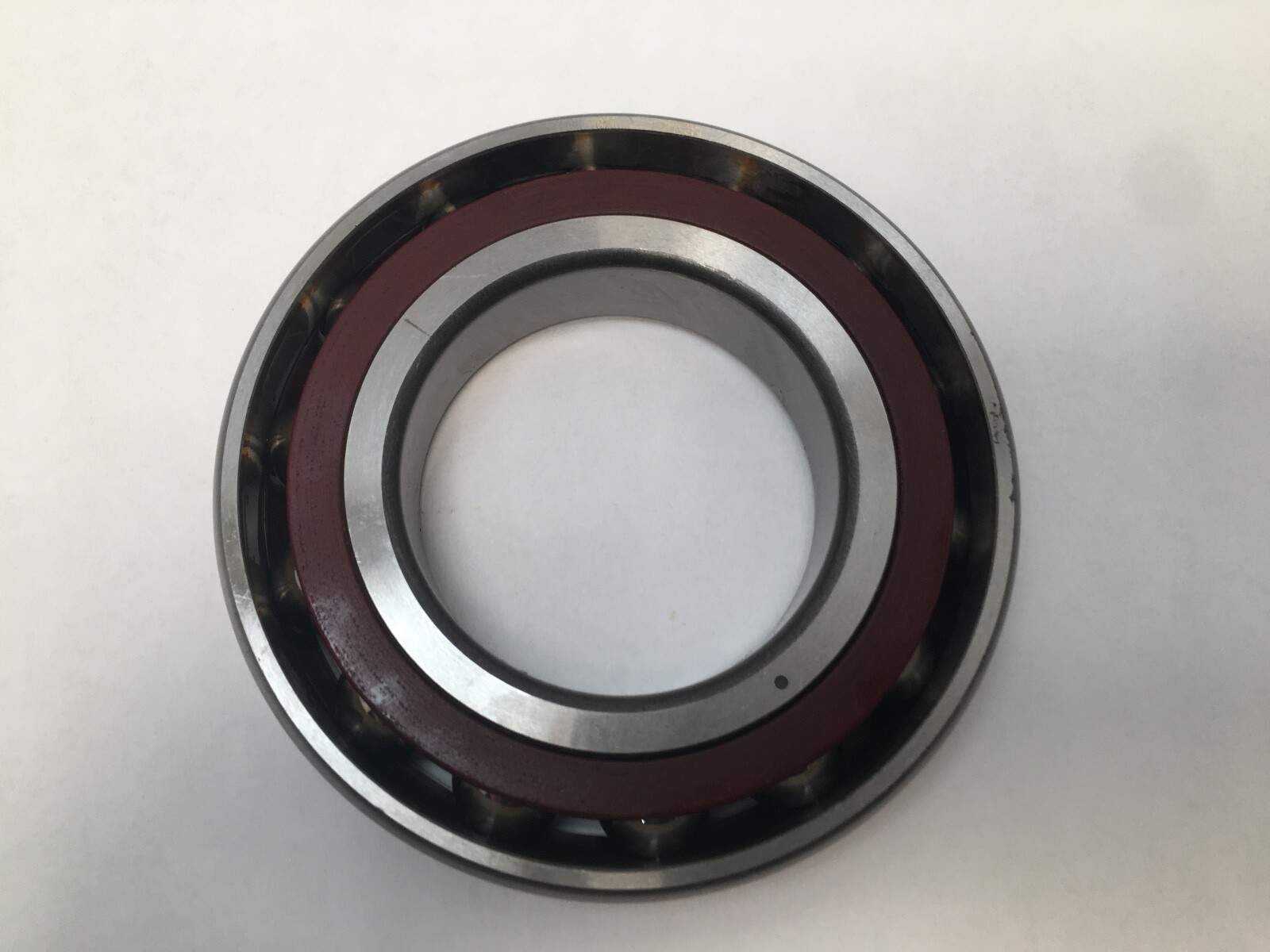

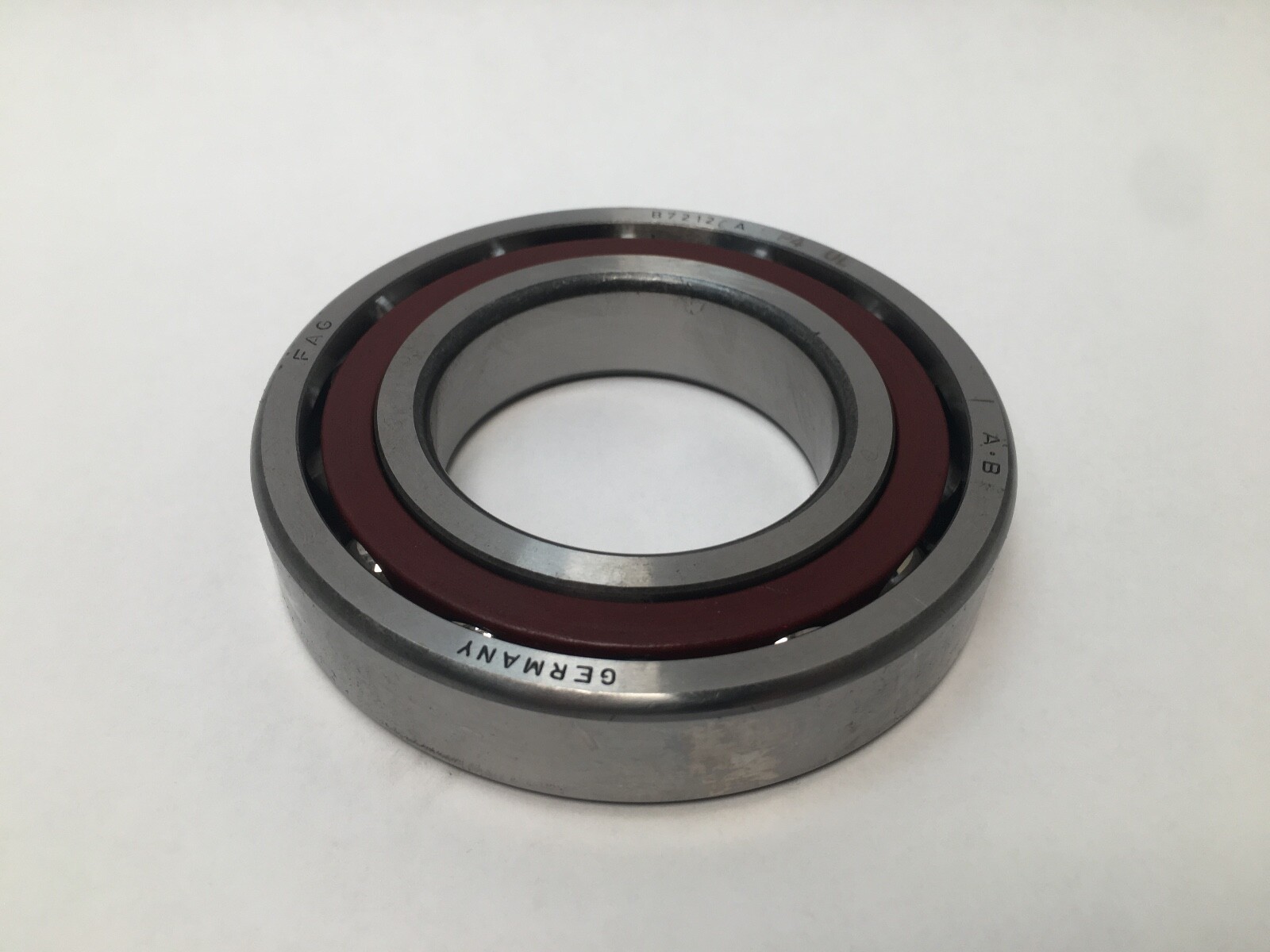

Name: Angular Contact Ball Bearing - 60 mm ID, 110 mm OD, 22 mm Width, Open, 15°, Light preload.
Brand: FAG
SKU: B-AQ5B3#QEOQ4Y
Price: 157.9 USD
Availability: InStock

Additional information

Key Specifications

MFR / Brand	FAG
MPN	B7212CAP4UL

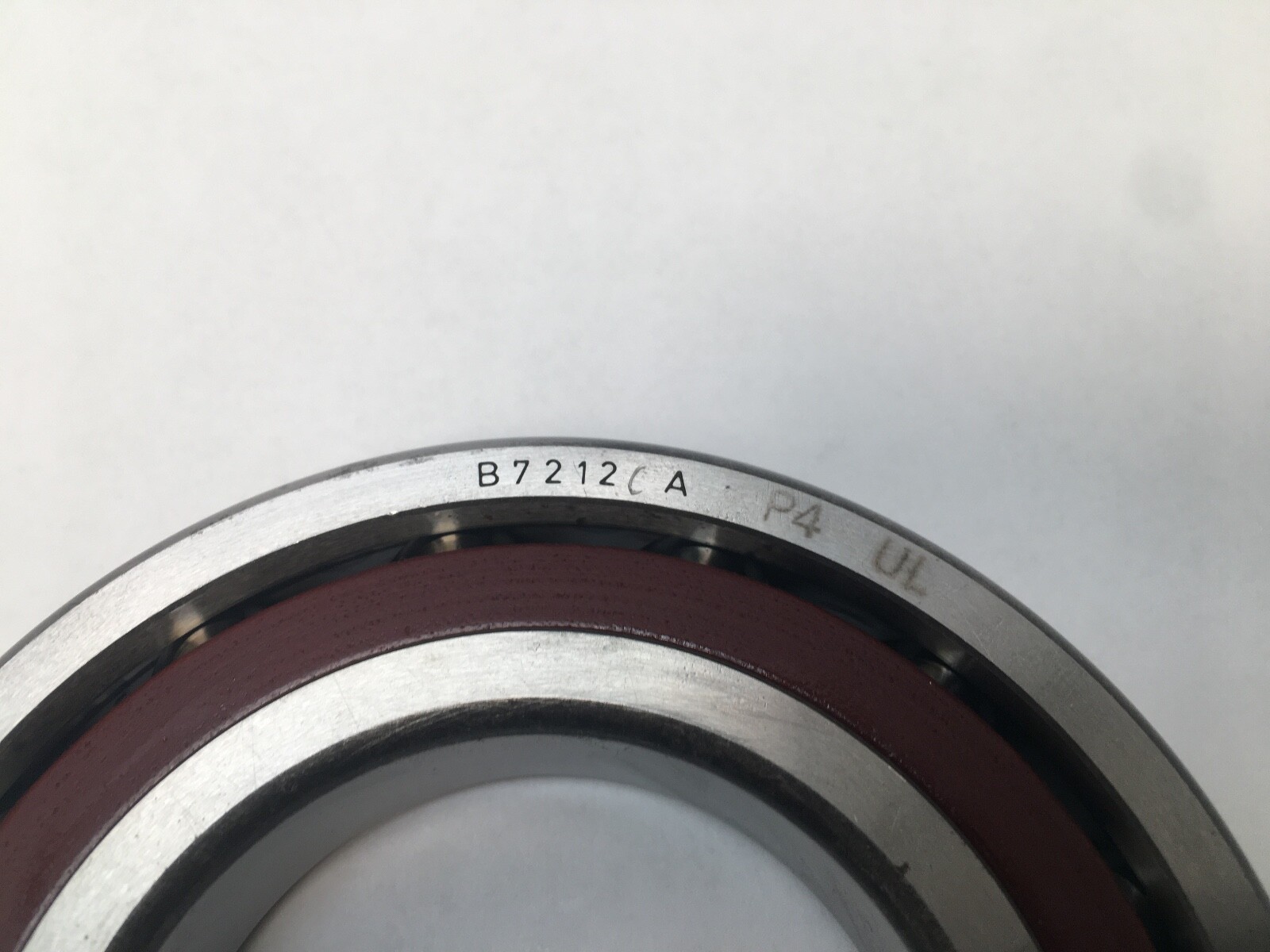

Model	B7212C A P4 UL / 2MM212
Bearing Type	Angular Contact Ball Bearing, Open
ID	60 mm
OD	110 mm
Width	22 mm

Specifications

Advertise	1
Material	Bearing Steel
Series	7200
Condition	New – Open box
Preload	Light Preload
Cage Type	Outer Ring Guided
Dynamic Load Rating	56 kN / 12589 lbf
Static Load Rating	31 kN / 6969 lbf
Precision Rating	ABEC 7 / P4
Rolling Elements	Ball
Item Weight	1.72 lbs
Cage Material	Phenolic Resin
Limiting Speed	20000 rpm
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Harmonization Code	8482.10.50
Contact Angle	15°

Cross-References

Cross Reference 1	SKF 7212 CDGA/P4A
Cross Reference 2	NSK 7212CTRSULP4
