NSK 7205B angular contact ball bearing — 25 mm bore, 52 mm OD, 15 mm width, 40° contact angle, ABEC 5 precision. Matched three-bearing combination set.
List Price
$89.93
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Angular Contact Ball Bearing – 25 mm ID x 52 mm OD x 15 mm, 40° Contact Angle, Maximum Capacity, Pressed Brass Cage$42.31
Angular Contact Ball Bearing – 25 mm ID, 52 mm OD, 15 mm Width, Open, 40° Contact Angle, Polyamide Cage, Universally Matchable$33.14
Angular Contact Bearing - 25 mm ID, 52 mm OD, 15 mm Width, Open, 25° Contact Angle$67.10
Angular Contact Ball Bearing Matched Pair – 25 mm ID, 52 mm OD, 30 mm Total Width, Open, 30° Contact Angle, Back-to-Back$87.03| MFR / Brand | NSK |
|---|---|
| MPN | 7205BTDBDC7P5 |
| Model | 7205 B T DBD C7 P5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 30 mm |
| Material | Bearing Steel |
|---|---|
| Preload | C7 |
| Precision Class | ABEC 5 / P5 |
| Closure Type | Open |
| Dynamic Load Rating | 14,800 N |
| Static Load Rating | 9,400 N |
| Rolling Elements | Balls |
| Item Weight | 0.133 kg (0.29 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 10,000 rpm grease; 14,000 rpm oil |
| Contact Angle | 40° |
| Mounting Arrangement | Triplet Combination (DBD) |
| Cross Reference 1 | SKF 7205 BE/P5 |
|---|---|
| Cross Reference 2 | FAG 7205-B-TVP-P5 |
| Cross Reference 3 | NTN 7205B |
| Cross Reference 4 | Koyo 7205B |
What this part is

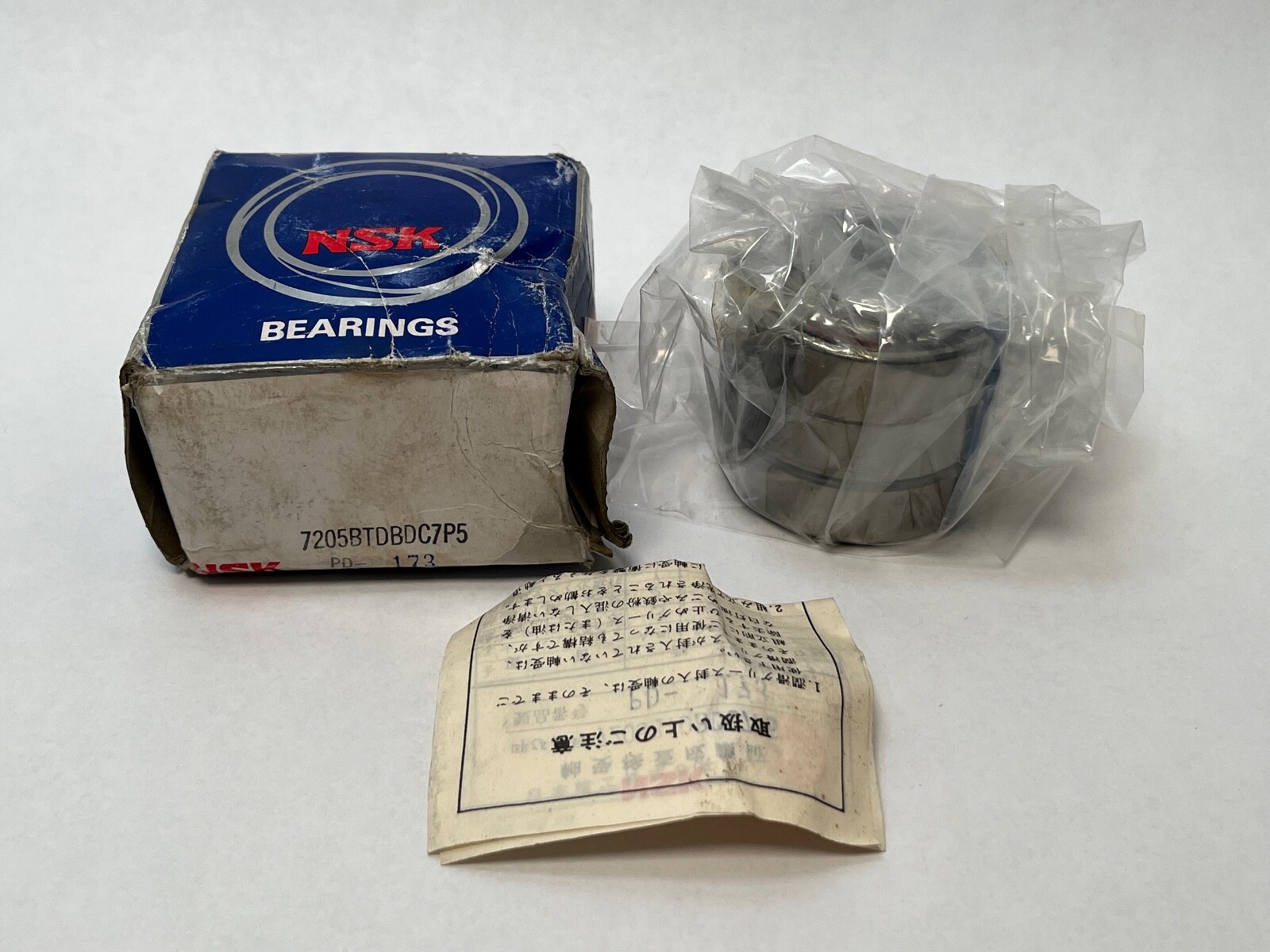

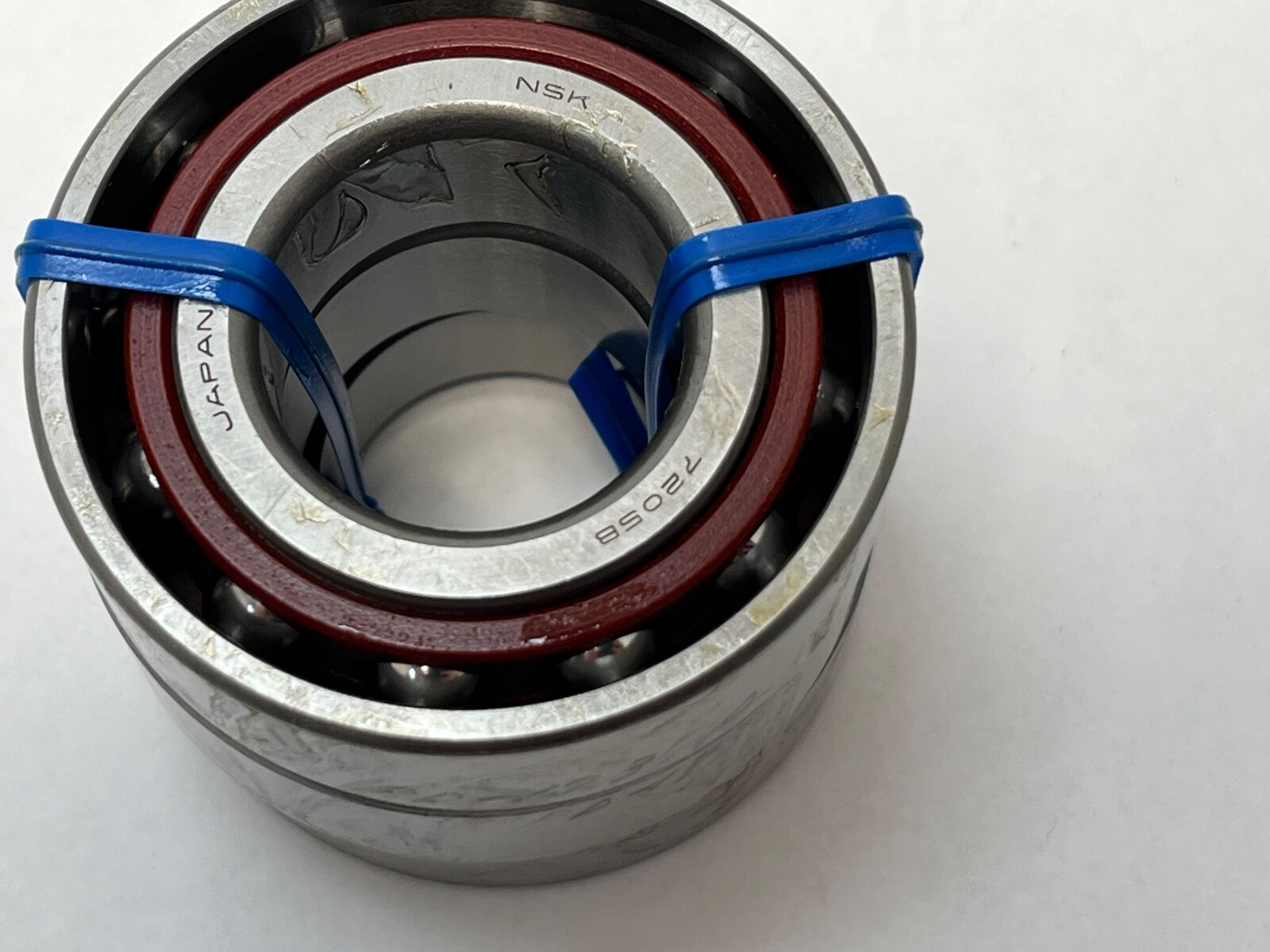

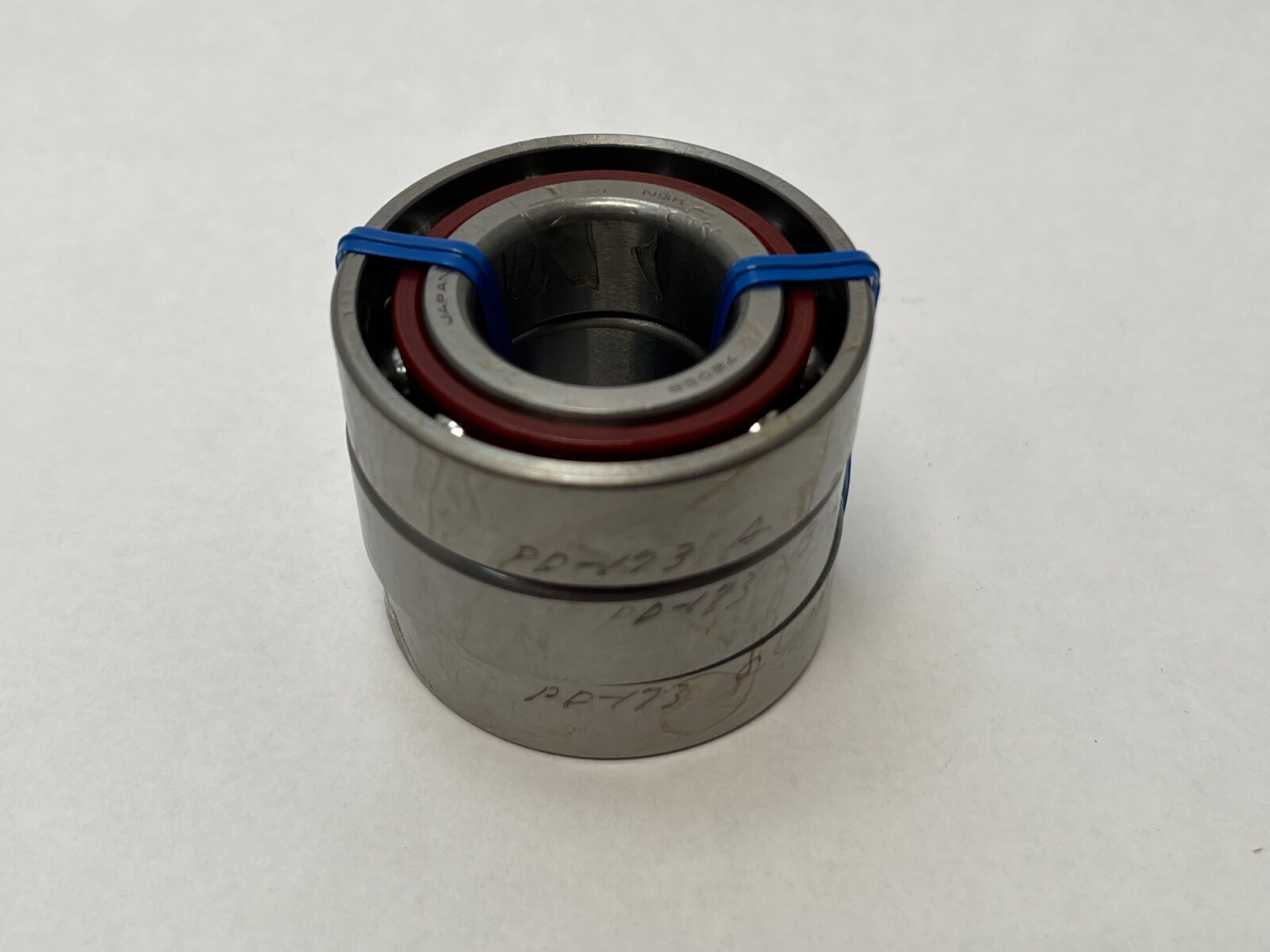

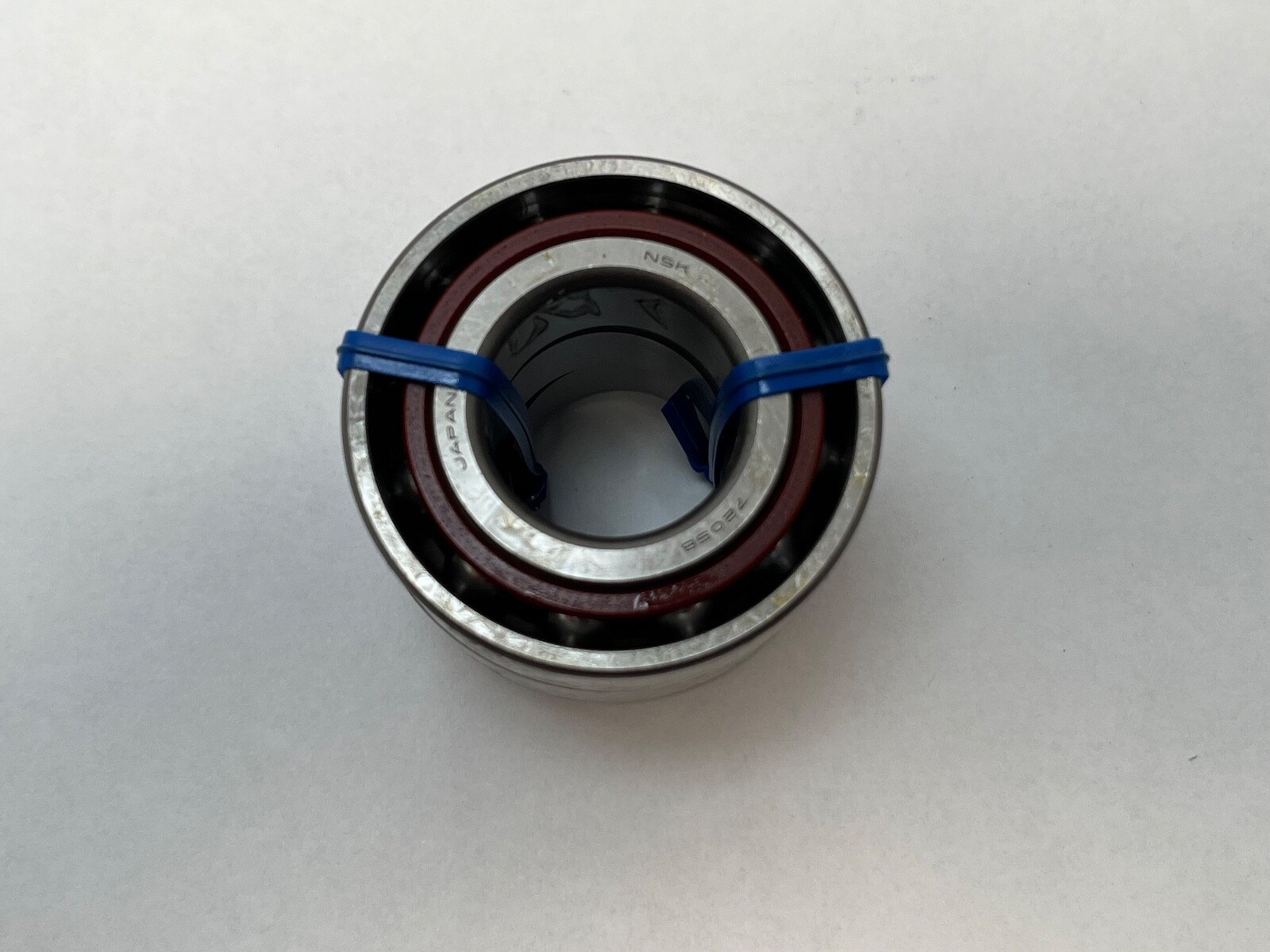

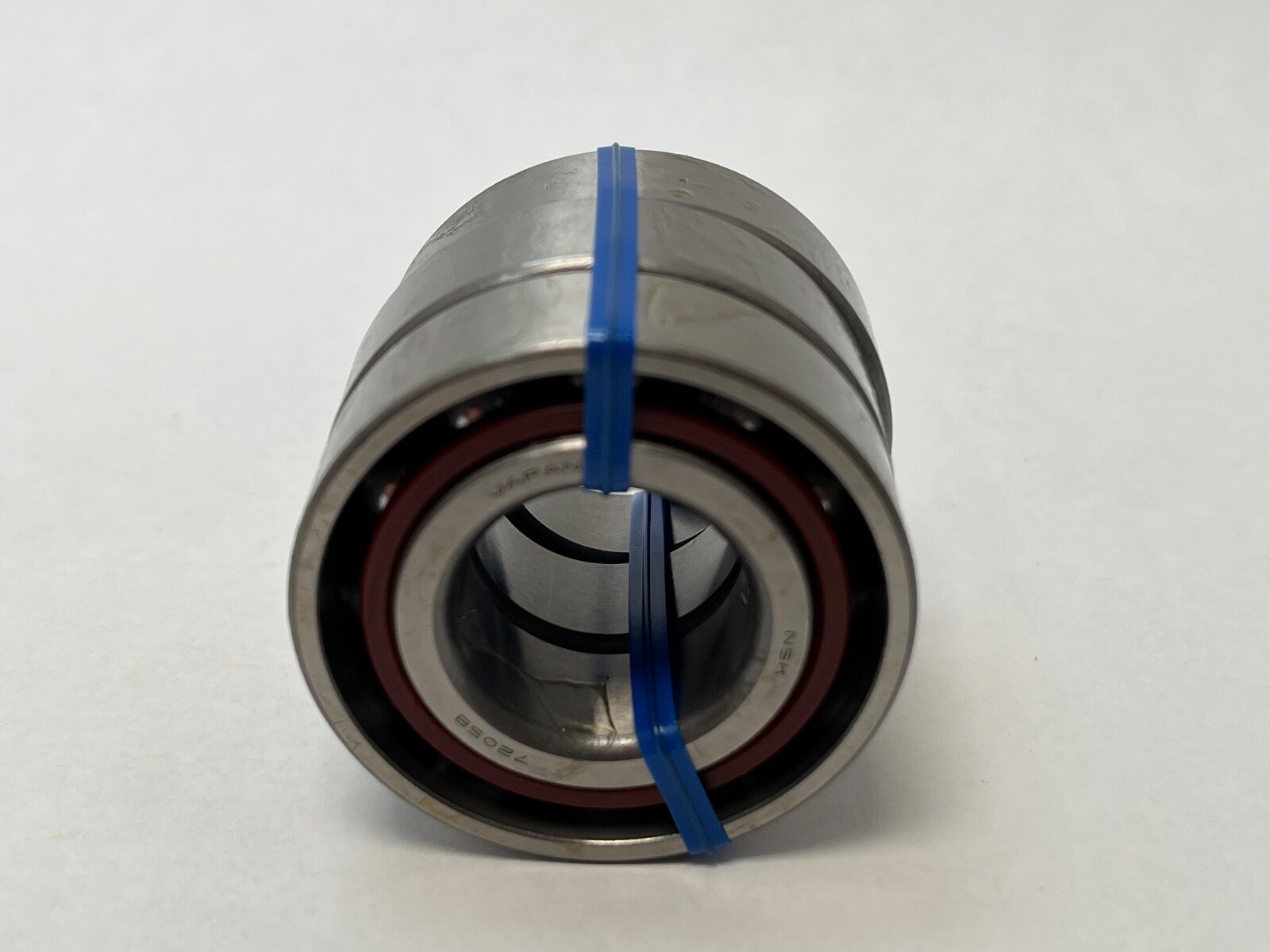

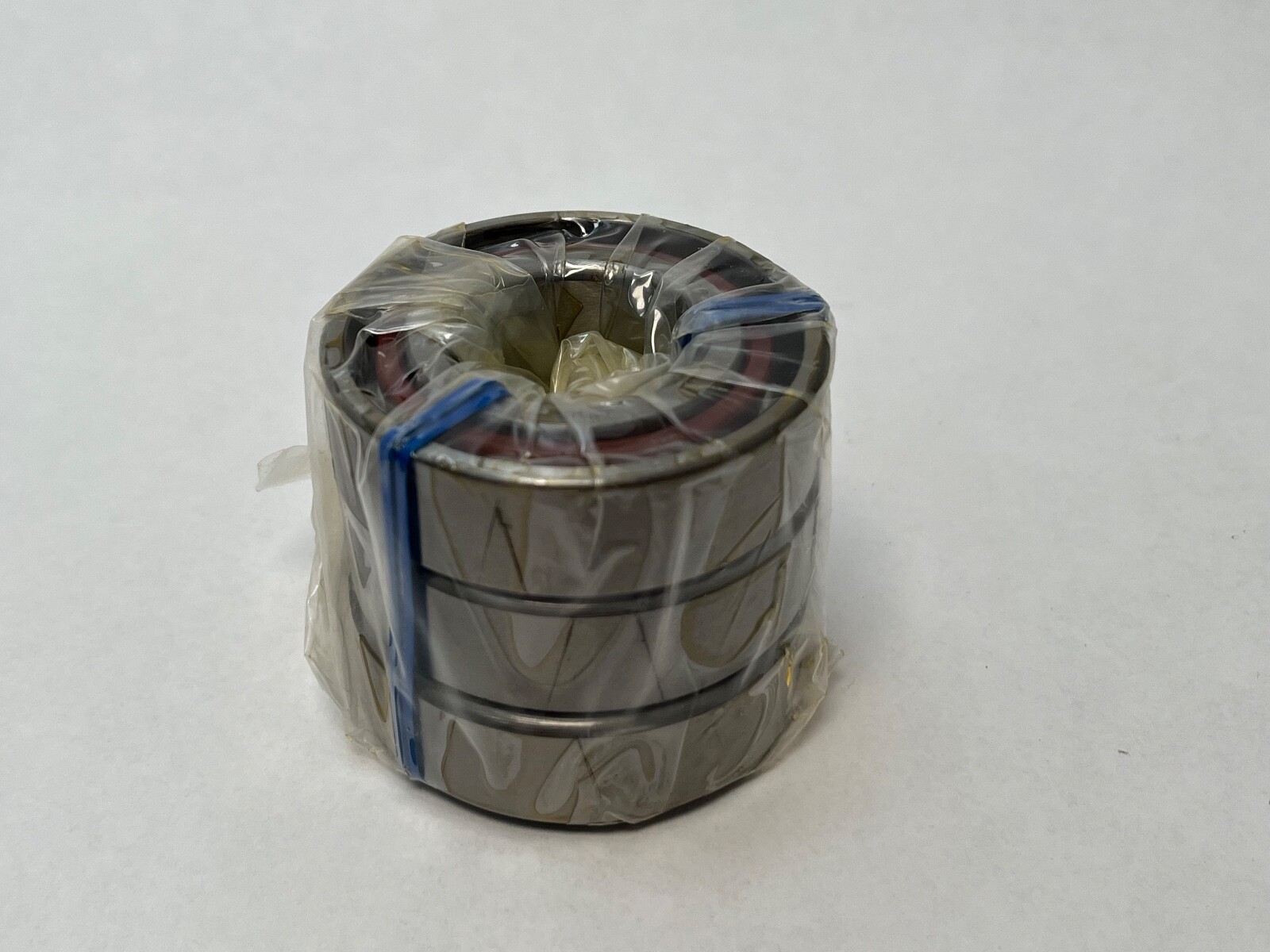

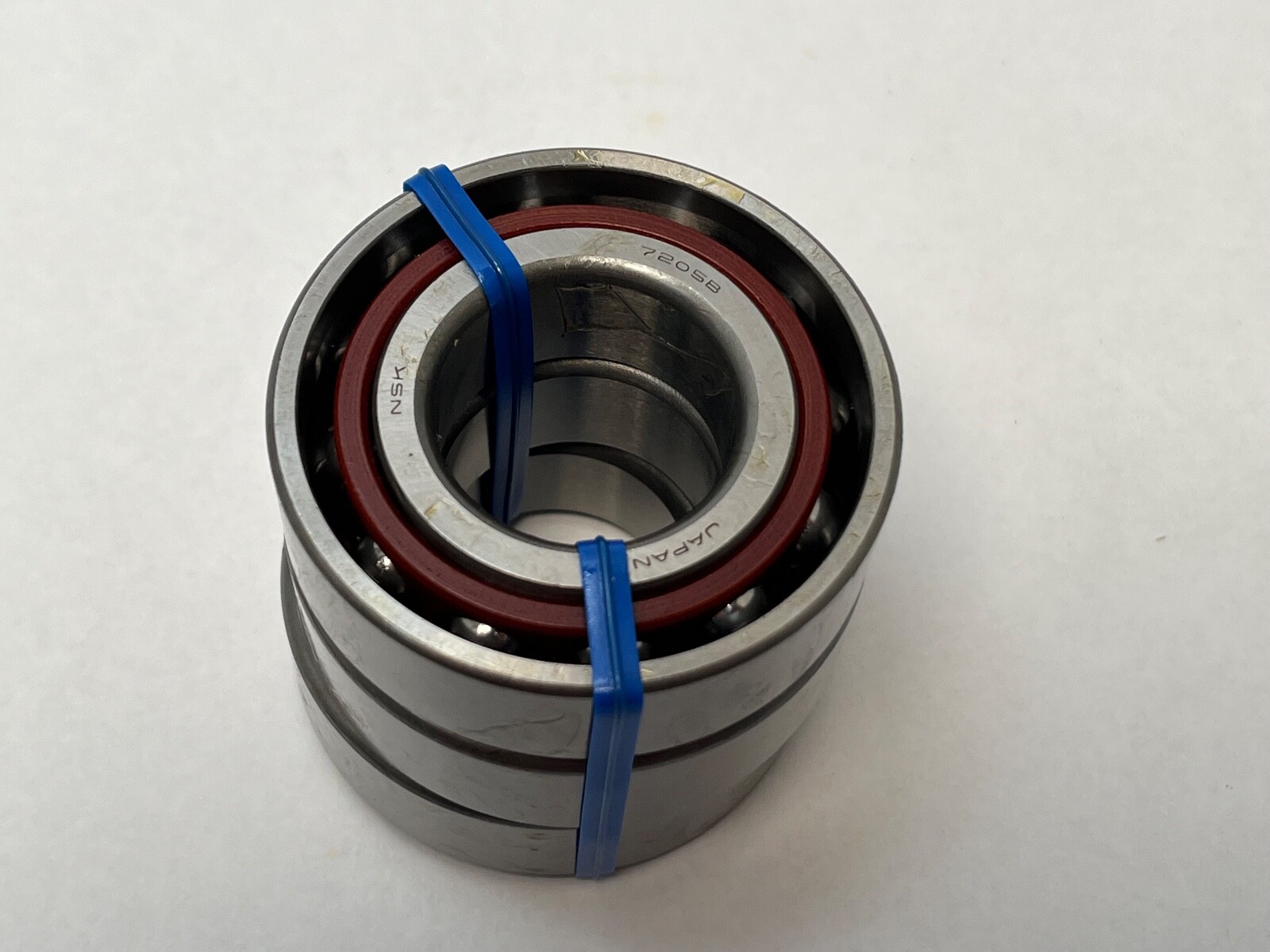

An NSK 7205BTDBDC7P5 single-row angular contact ball bearing, supplied as a matched three-bearing set. Bore 25 mm, outside diameter 52 mm, width 15 mm per bearing. Contact angle 40°, precision class ABEC 5 / P5. Made in Japan.
Decoding the designation
7205 — NSK’s ISO 72-series number for this envelope, 25 x 52 x 15 mm.
B — 40° contact angle.
DBD — a three-bearing combination set, not a simple back-to-back duplex pair.
C7 — NSK preload class C7.
P5 — NSK precision class, equivalent to ABEC 5.
What these specs mean in practice
Dynamic Load Rating: 14,800 N. Static Load Rating: 9,400 N. Limiting Speed: 10,000 rpm grease; 14,000 rpm oil. Item Weight: 0.133 kg (0.29 lb) per bearing.
Quantity and configuration

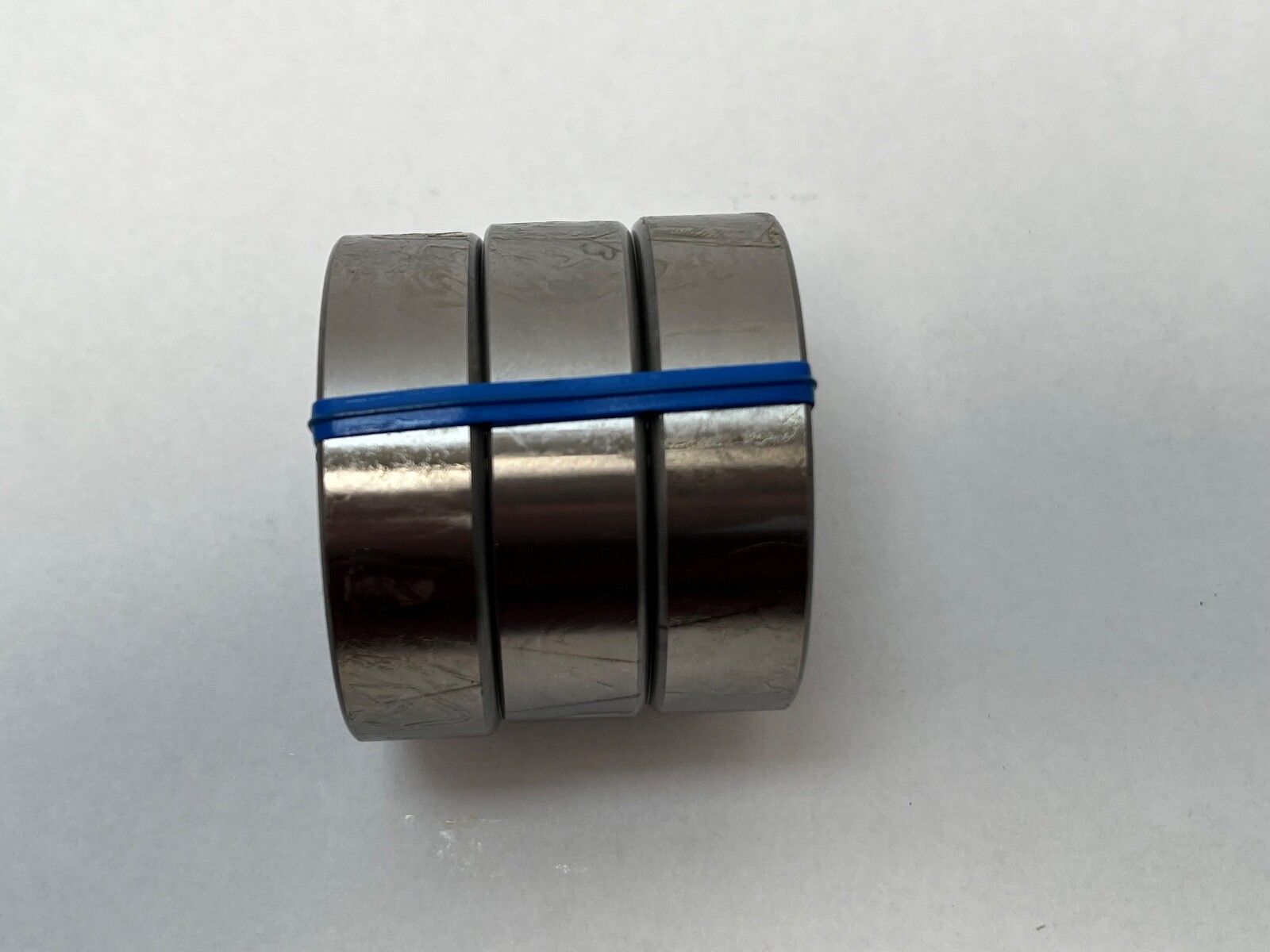

Unit Quantity: 3 Pcs, matched triplet combination set.
Interchange guidance
Same envelope and 40° contact angle: SKF 7205 BE/P5, FAG 7205-B-TVP-P5, NTN 7205B, Koyo 7205B.
