Super precision angular contact ball bearing, 100 x 150 x 24 mm, 25° contact angle, phenolic cage, universal light preload, 8,000 rpm on grease.
List Price
$392.24
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | B7020ETPAT9UL |
| Model | B 7020 E TPA T9 UL / 7020A / 3MMV9120WI CR SUL / 7020ACD 7020A5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Condition | New |
| Lubricant | Oil |
| Preload | Light |
| Base Number | 7020 |
| Industry Terms | Spindle bearing, super precision bearing, machine tool bearing, high speed angular contact bearing |
| Bore Shaft Size | 100 mm |
| Mpn Variants | B7020ETPAT9UL, B7020E.TPA.T9.UL, B-7020-E-TPA-T9-UL, B7020 E TPA T9 UL, B7020E.T.P4S.UL, 7020E, 7020A |
| Additional Attributes | Fatigue load limit Cur 5.2 kN; axial rigidity 242 N/µm light, 385 N/µm medium, 521 N/µm heavy; lift-off force 1,982 N light; shaft shoulder da 110 mm h12; outer ring shoulder Da 141 mm H12; ra max 1.5 mm; ra1 max 0.6 mm; r min 1.5 mm; pressure cone apex distance a 41.1 mm |
| Min Temp | -30 °C |
| Cage Type | Not specified |
| Dynamic Load Rating | 79 kN (Cr, radial) |
| Static Load Rating | 55 kN (C0r, radial) |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 1.24 kg (2.73 lb) |
| Cage Material | Phenolic (laminated fabric) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | N/A - preloaded bearing |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25 ° (degrees of arc) |
| Mounting Arrangement | Universal - matchable in pairs or sets (back-to-back, face-to-face or tandem) |
| Part Number | B7020E.TPA.T9.UL |
| Cross Reference 1 | SKF 7020 ACD/P4A |
|---|---|
| Cross Reference 2 | NSK 7020A5TYNSULP4 |
| Cross Reference 3 | Fafnir 3MMV9120WI |
| Cross Reference 4 | B7020C.T.P4S.UL (related size, same envelope, 15° contact angle) |

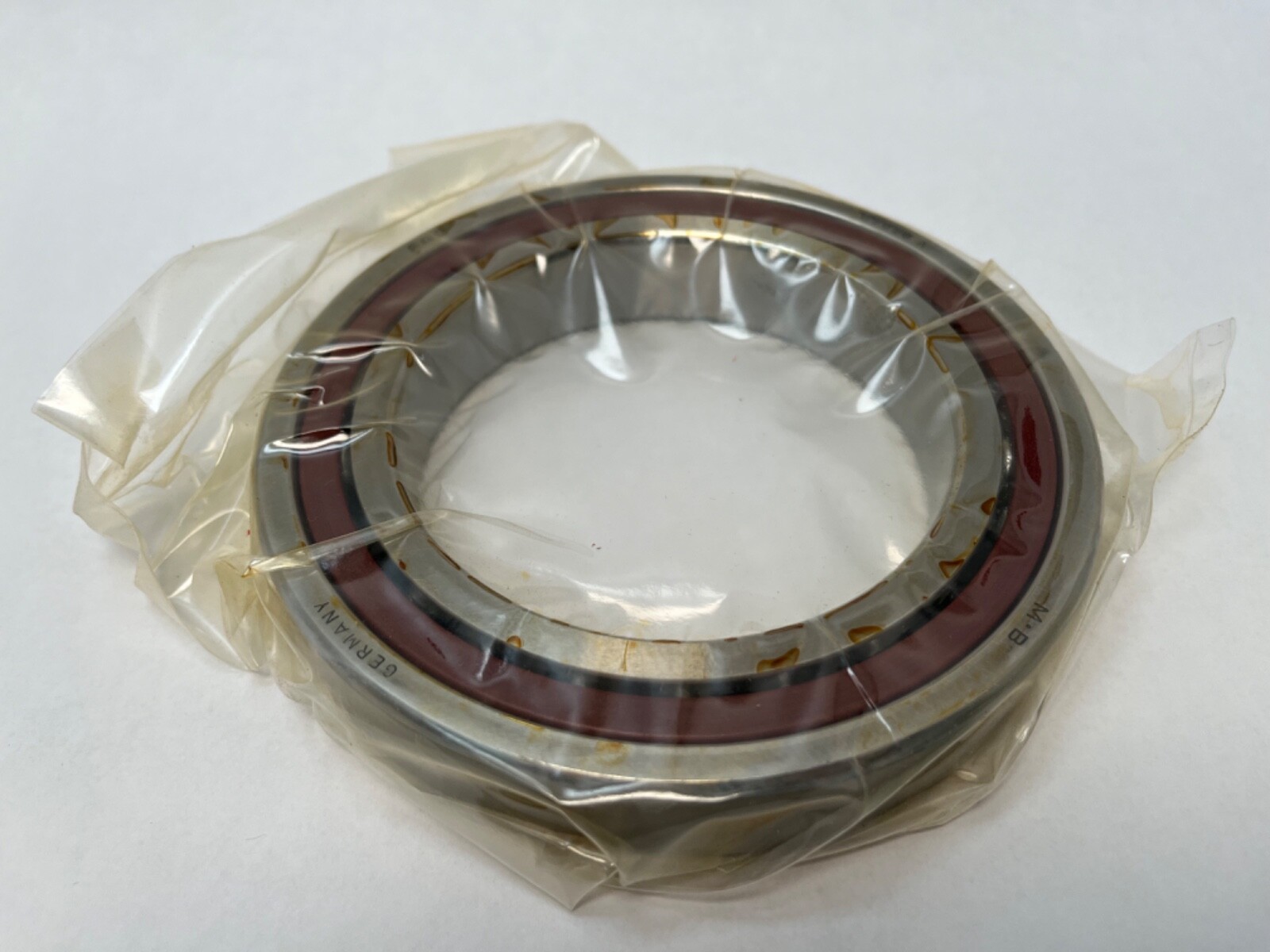

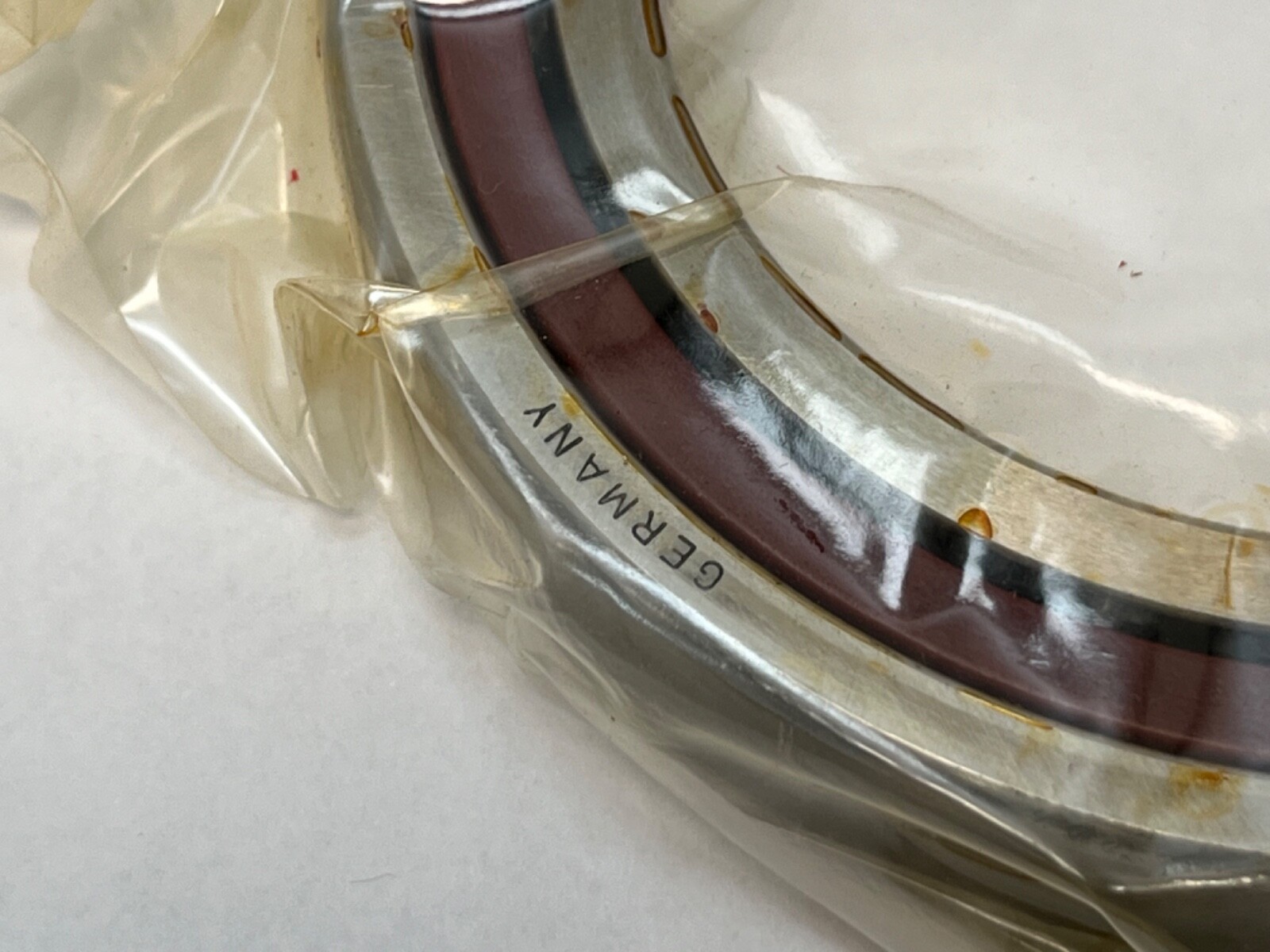

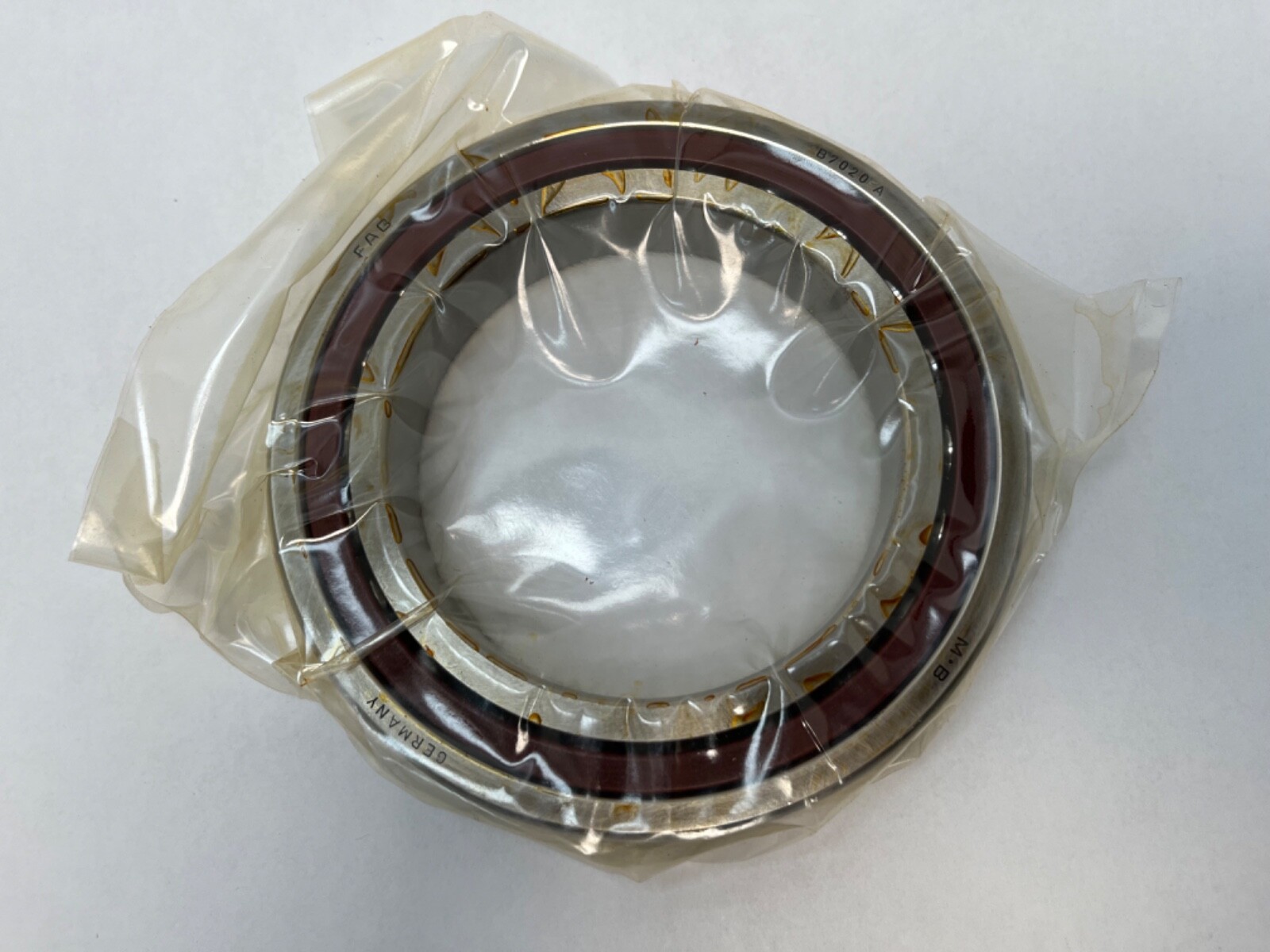

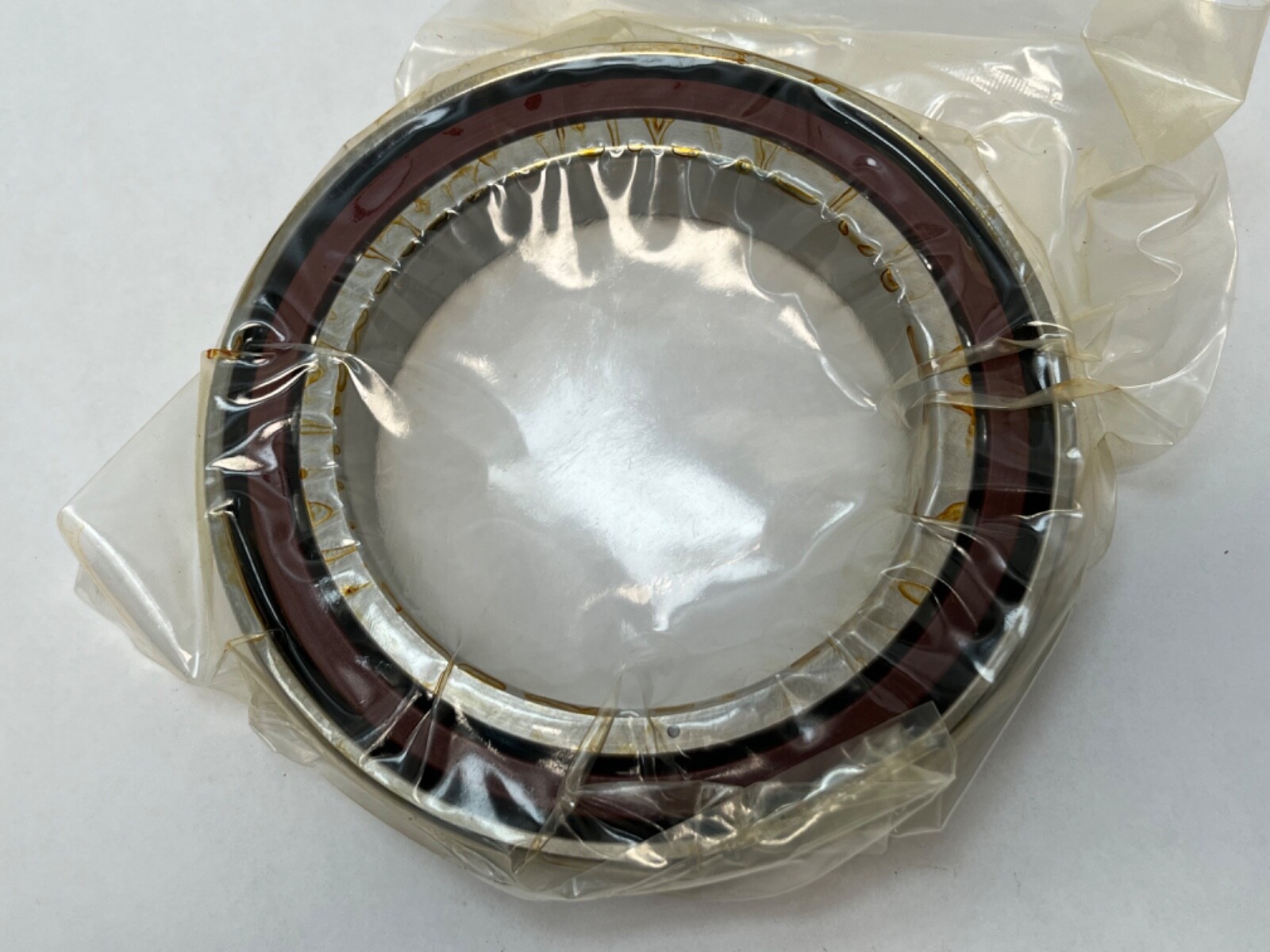

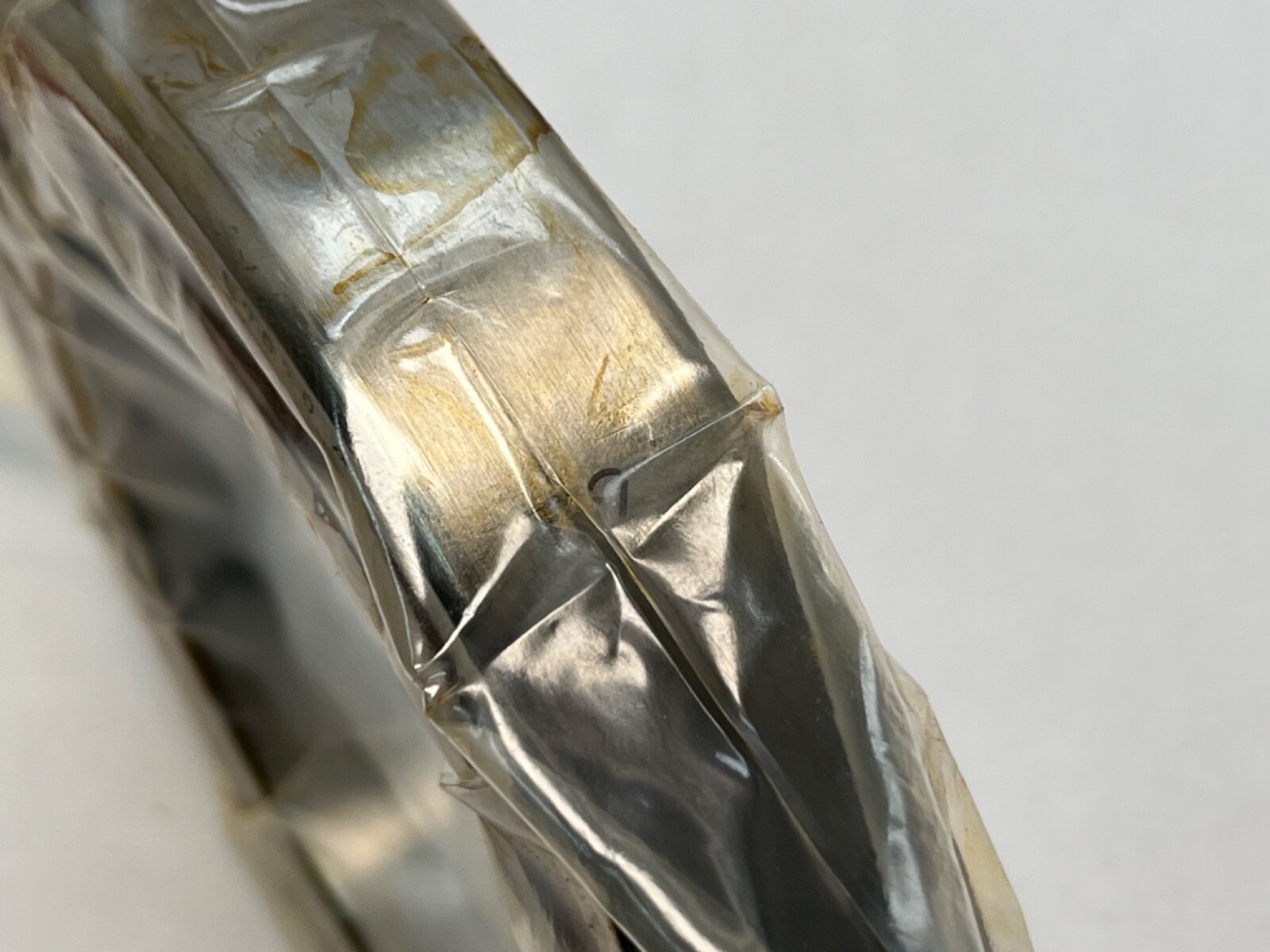

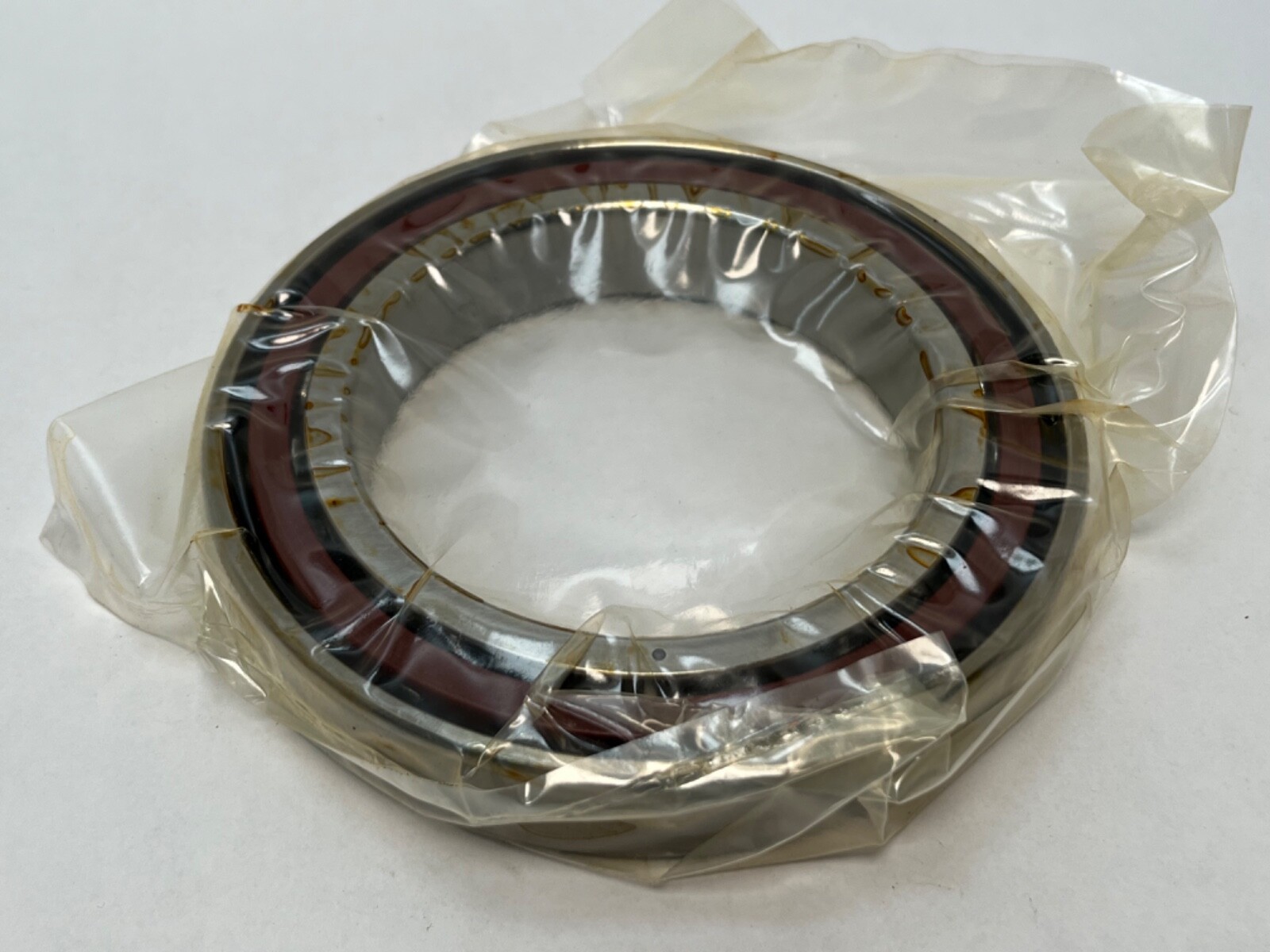

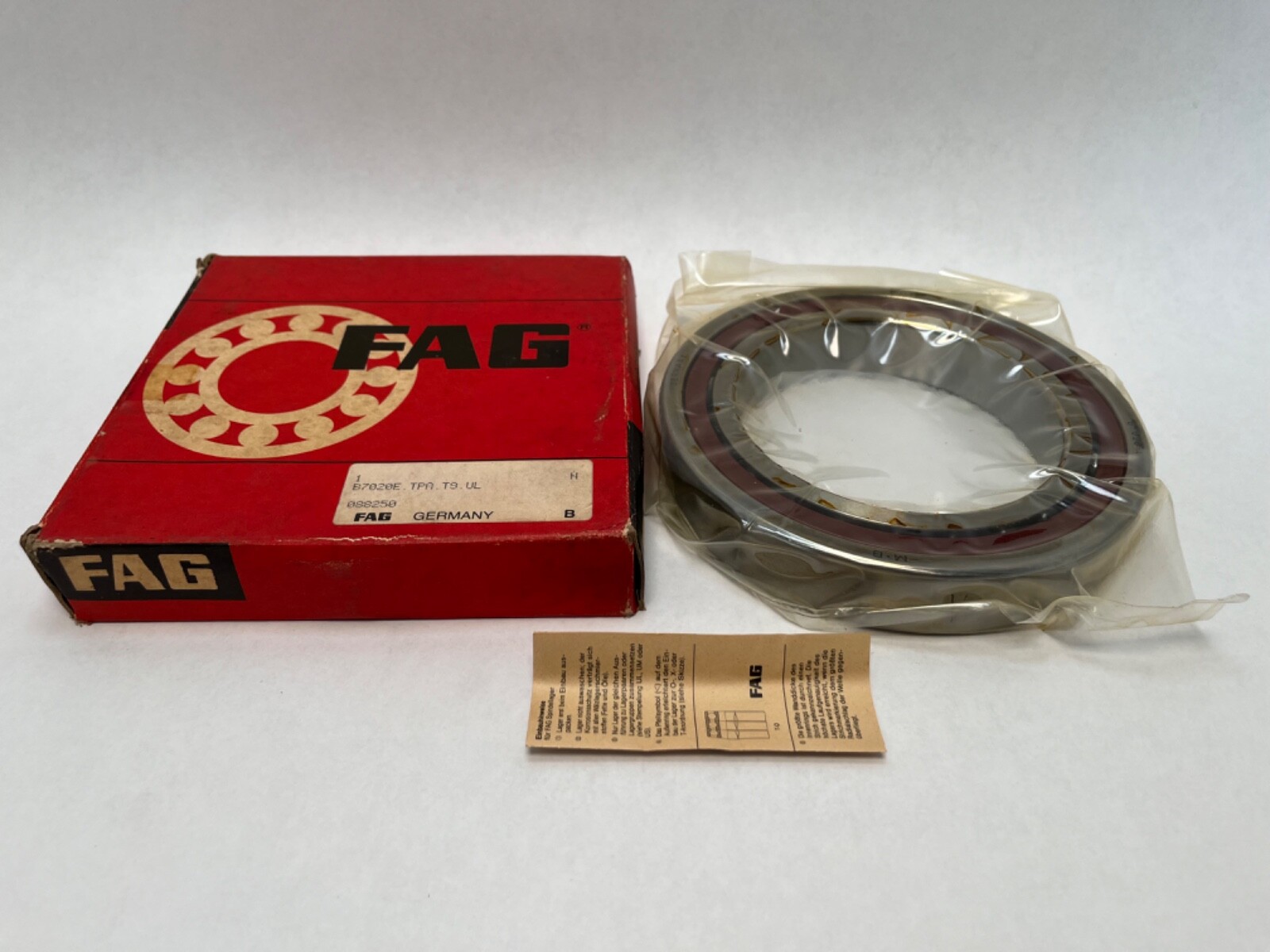

FAG B7020ETPAT9UL super precision angular contact ball bearing, also called a spindle bearing. Series B70, B70..-E design. Bore: 100 mm. Outside diameter: 150 mm. Width: 24 mm. Single row, open, straight bore. Searchable forms: B7020ETPAT9UL, B7020E.TPA.T9.UL, B-7020-E-TPA-T9-UL, B7020 E TPA T9 UL, 7020E.
Contact Angle: 25°. Cage Material: laminated fabric phenolic. Preload: light. Arrangement: universal single bearing, adjusted for mounting in pairs or sets. Preload force in a light-preload pair: 681 N.
A 25° contact angle carries more thrust and gives higher axial rigidity than a 15° bearing on the same envelope, at a lower speed ceiling. Basic dynamic load rating, radial: 79 kN. Basic static load rating, radial: 55 kN. Fatigue load limit, radial: 5.2 kN. Limiting speed: 8,000 rpm on grease, 13,000 rpm on oil. Axial rigidity in light preload: 242 N/µm. A phenolic cage runs quietly at high speed and holds oil in its fabric structure.
One bearing. Universal design: two or more mount together back-to-back, face-to-face or in tandem, and a pair sets light preload without shims or measurement.
Diameter shaft shoulder: 110 mm. Shoulder diameter outer ring: 141 mm. Maximum recess radius: 1.5 mm on the shaft side, 0.6 mm on the housing side. Minimum chamfer dimension: 1.5 mm. Distance between the apexes of the pressure cones: 41.1 mm. Operating temperature range: -30 °C to 100 °C. Weight: 1.24 kg.

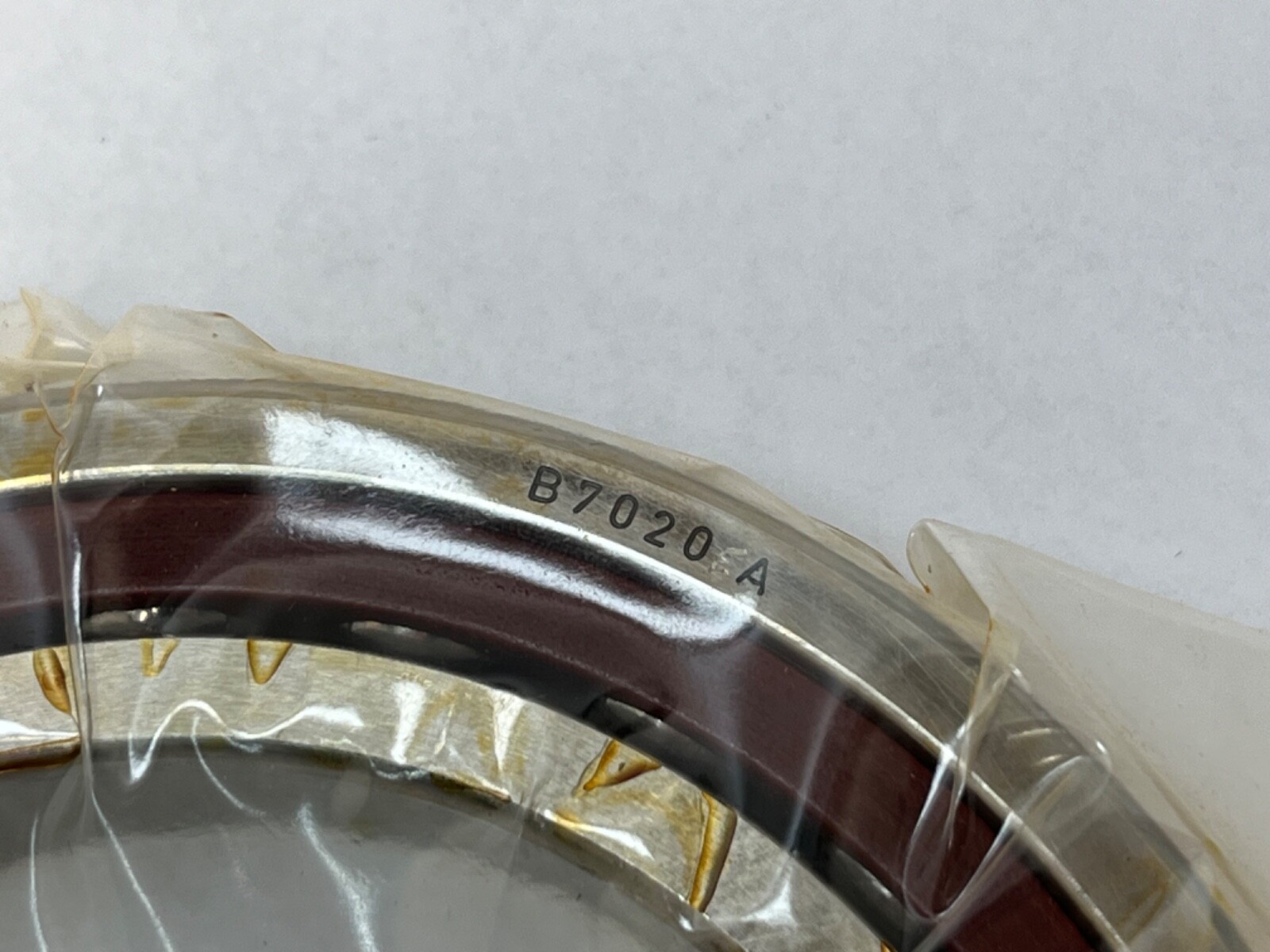

Base designation: B7020E.T.P4S.UL. Equivalents at the same 25° contact angle: SKF 7020 ACD/P4A, NSK 7020A5TYNSULP4, Fafnir 3MMV9120WI. A B7020C on the same envelope carries a 15° contact angle and is a related size.
