Link Belt

22209LBW33C3

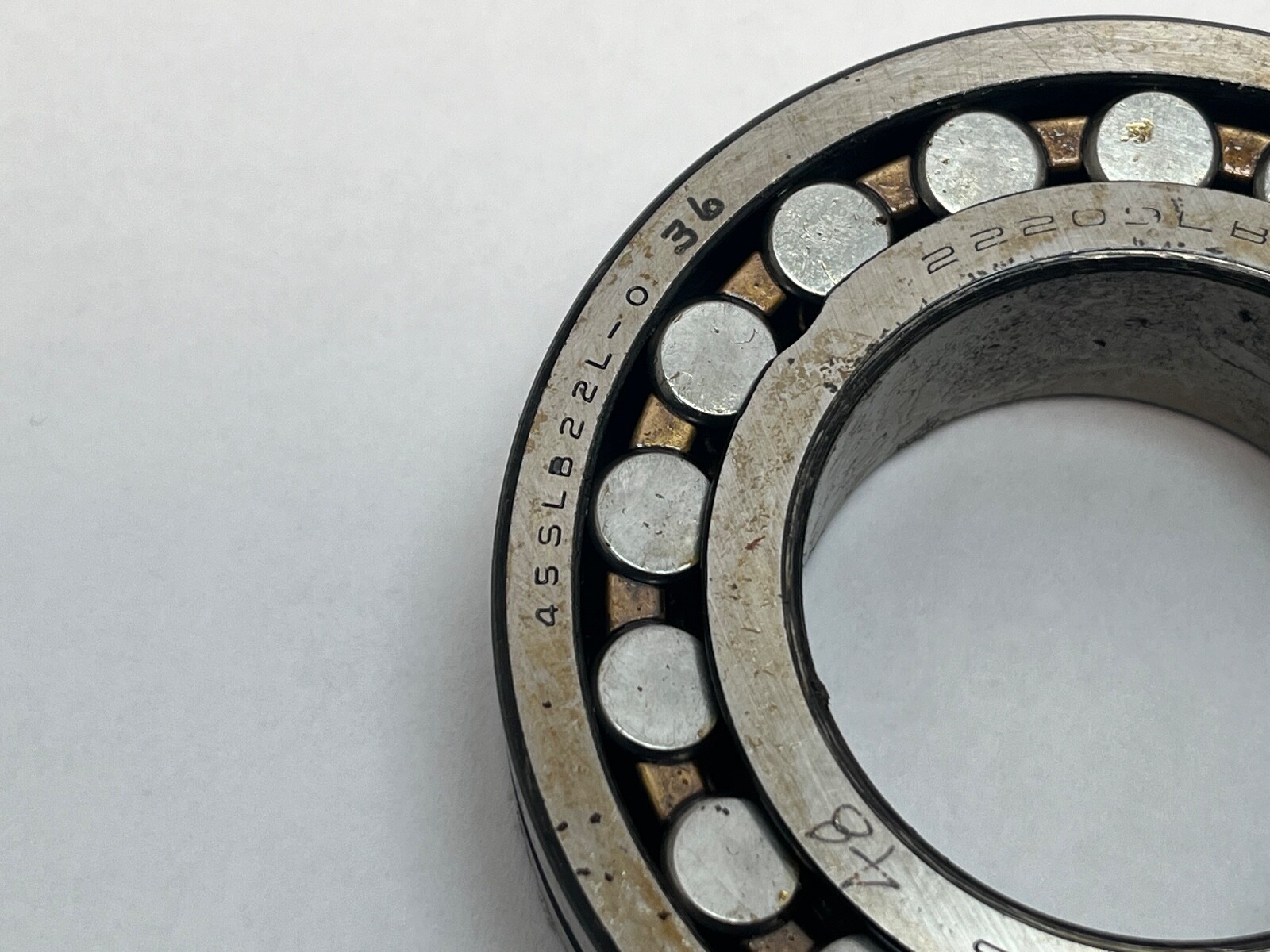

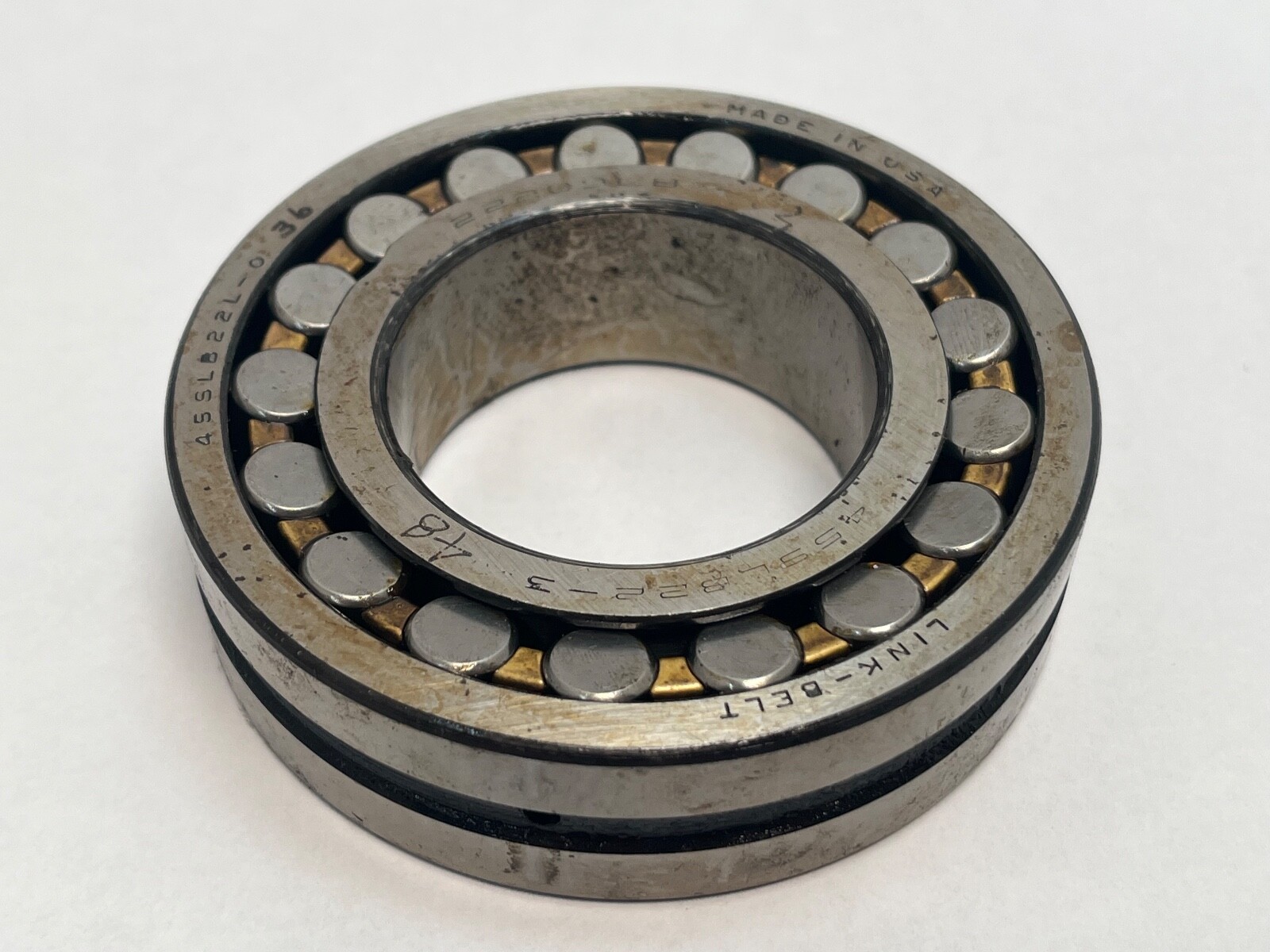

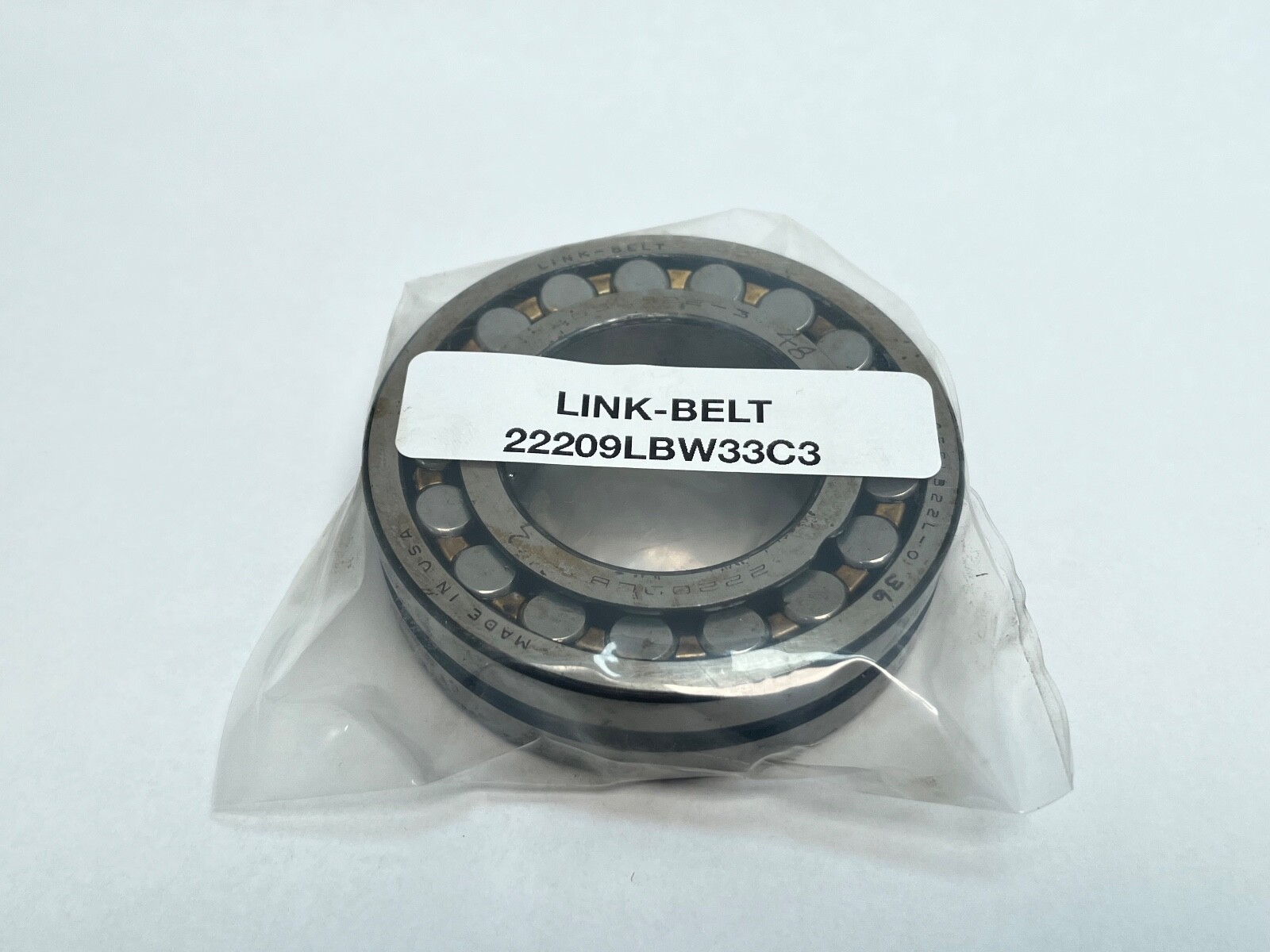

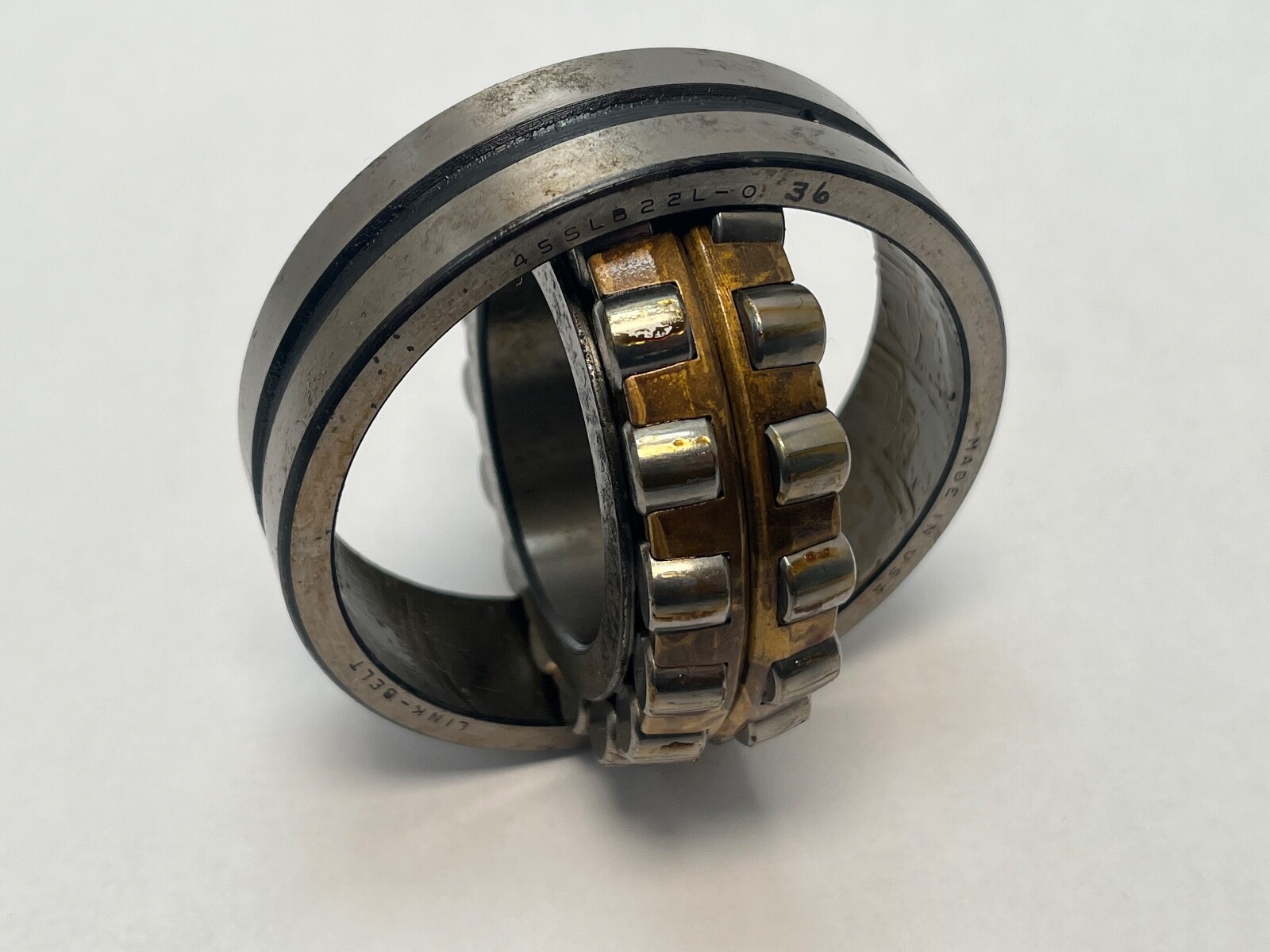

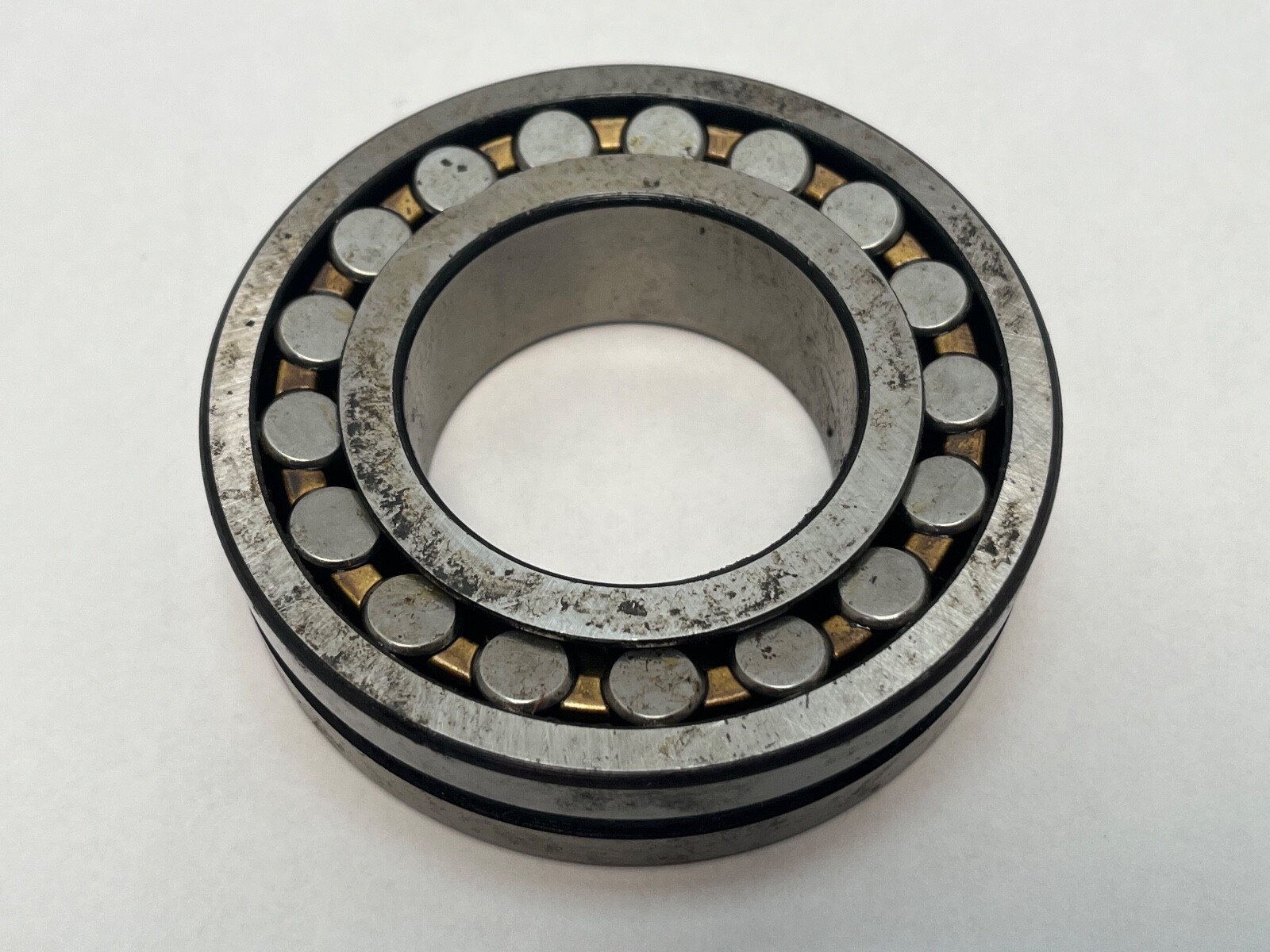

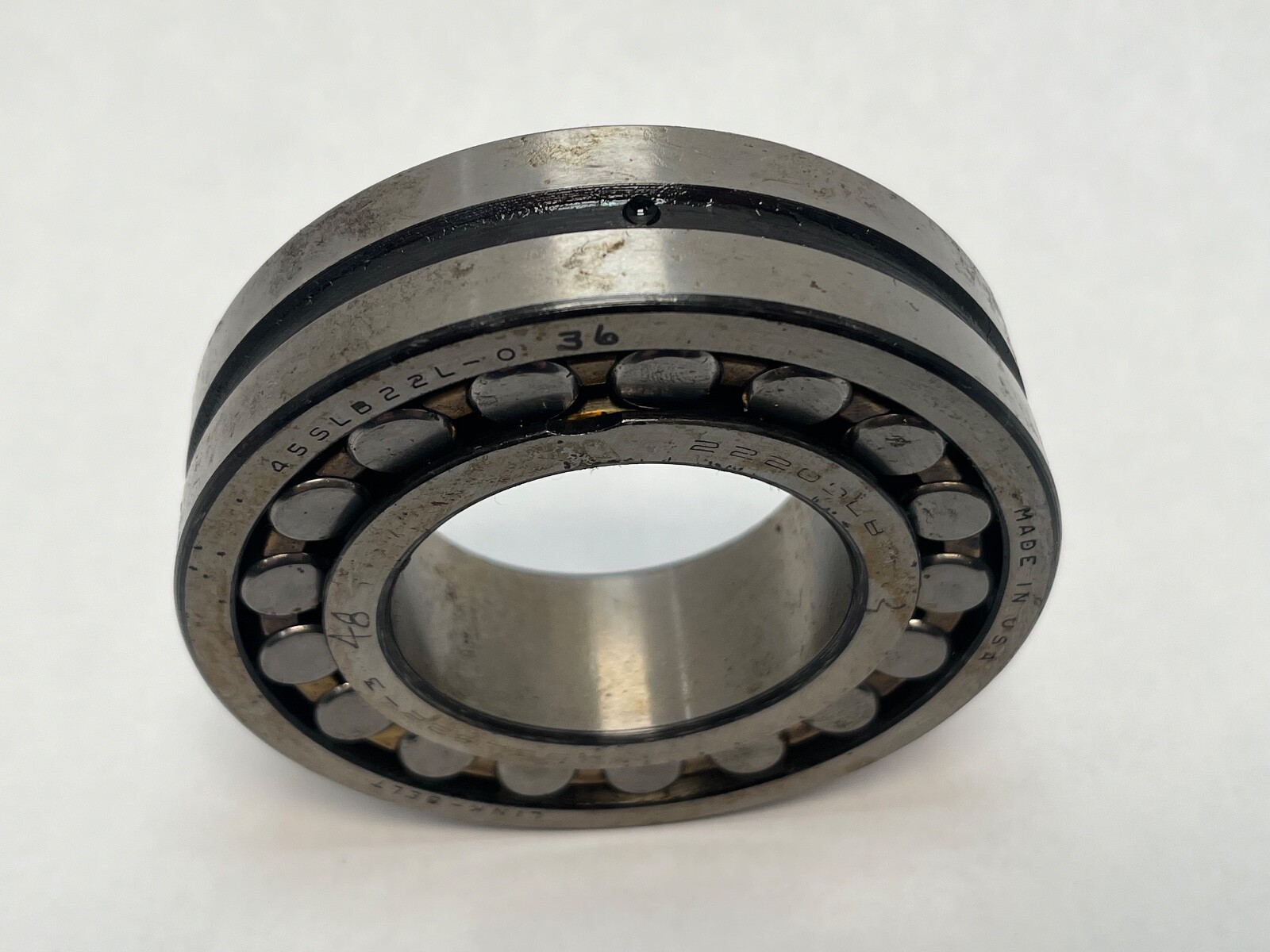

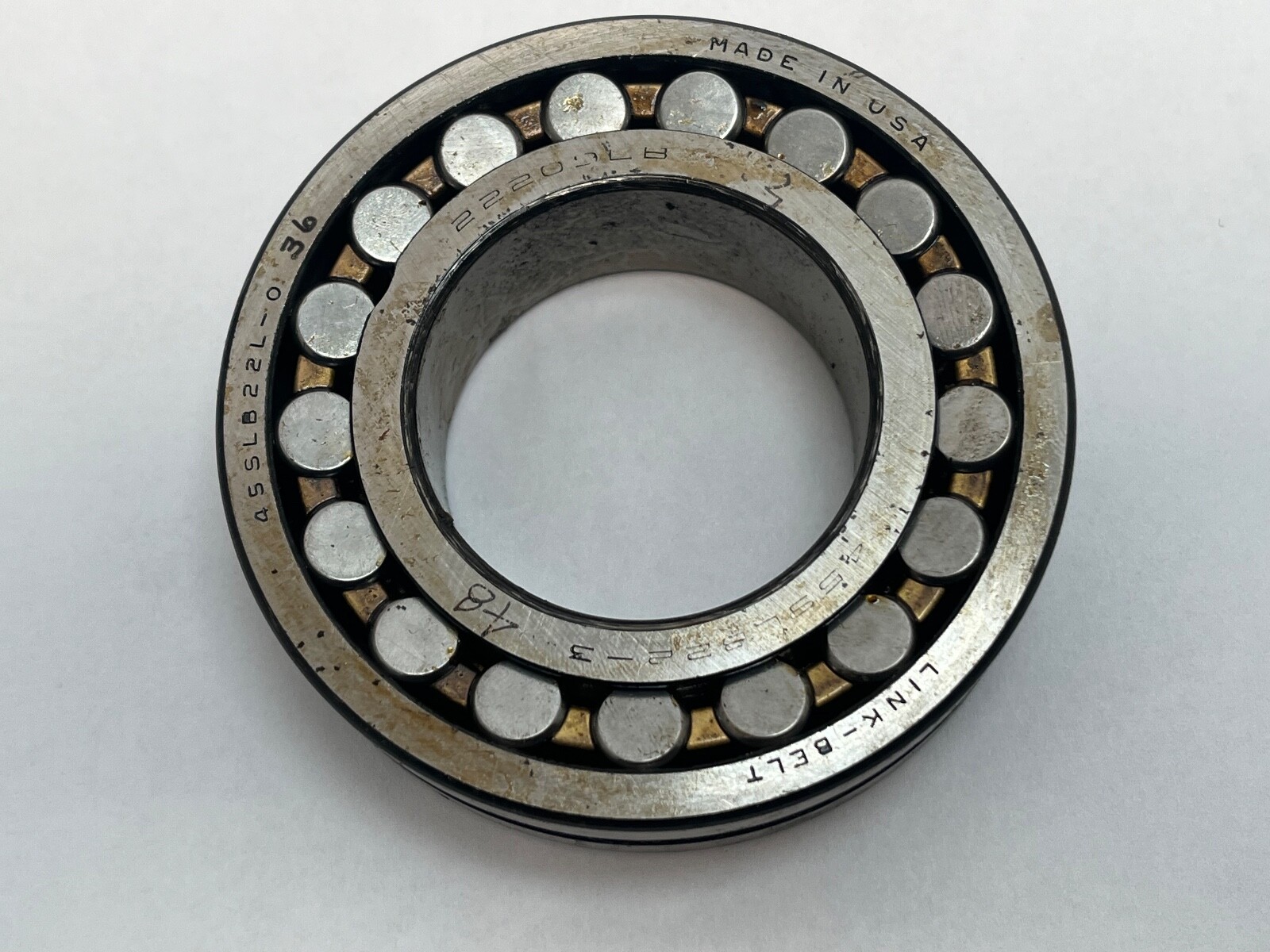

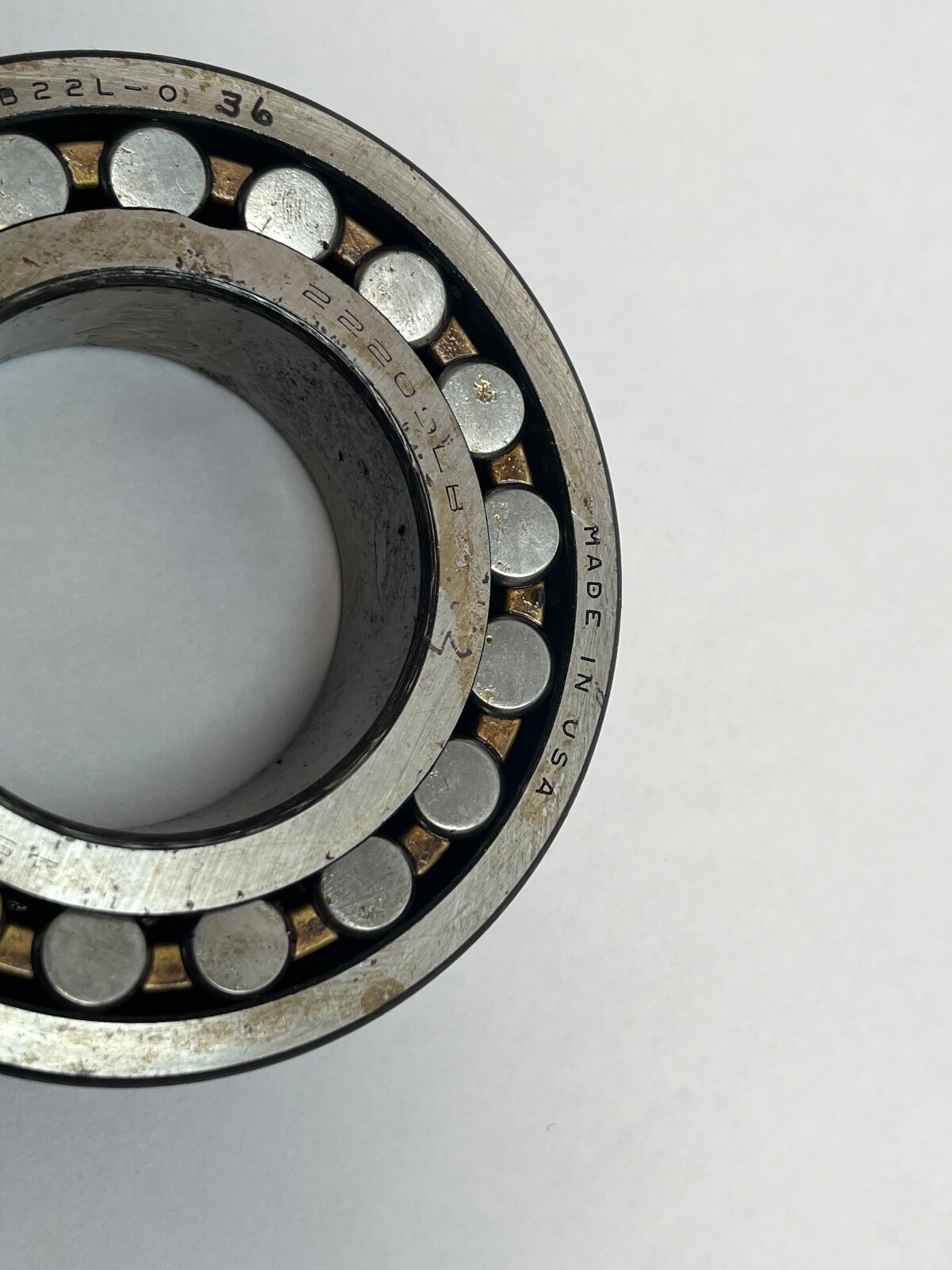

Spherical Roller Bearing – Straight Bore, 45 mm ID, 85 mm OD, 23 mm Width, Open, C3 Internal clearance

Condition: New – Open box

Model #: 22209 LB W33 C3 / 22209 MB

Availability:

2 in stock

Categories: Uncategorized

Product Description

Can’t find a part you’re looking for?

CLICK HERE TO CONTACT US!

-We can get all parts needed at competitive prices

-International shipping is offered on every item and all orders

-Shipping is combined on all orders

-Collect Shipping offered for UPS, FedEx, DHL, Freight

SAME DAY SHIPPING ON ALL ITEMS

NEXT DAY SHIPPING AVAILABLE AT CHECKOUT

List Price

$44.18

2 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Additional information

Key Specifications

MFR / Brand	Link Belt
MPN	22209LBW33C3
Model	22209 LB W33 C3 / 22209 MB
Bearing Type	Spherical Roller Bearing, Open
ID	45 mm
OD	85 mm
Width	23 mm

Specifications

Advertise	1
Material	Chrome Steel
Min Temp	-40°C
Cage Type	Pressed
Dynamic Load Rating	104 kN
Static Load Rating	98 kN
Precision Rating	ABEC 1 / P0
Series	22200
Rolling Elements	Spherical Roller
Max Temp	200°C
Condition	New – Open box
Item Weight	1.20 lbs
Cage Material	Steel
Number Of Rows	2
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Lubricant	Oil
Relubrication Feature	Yes
Harmonization Code	8482.30.00.80
Maximum Permissible Misalignment	1.5°
Internal Clearance	C3

Cross-References

Cross Reference 1	SKF 22209 E/C3
Cross Reference 2	Timken 22209EJW33C3

Seller Part Number: BA5#ZPBU4C
