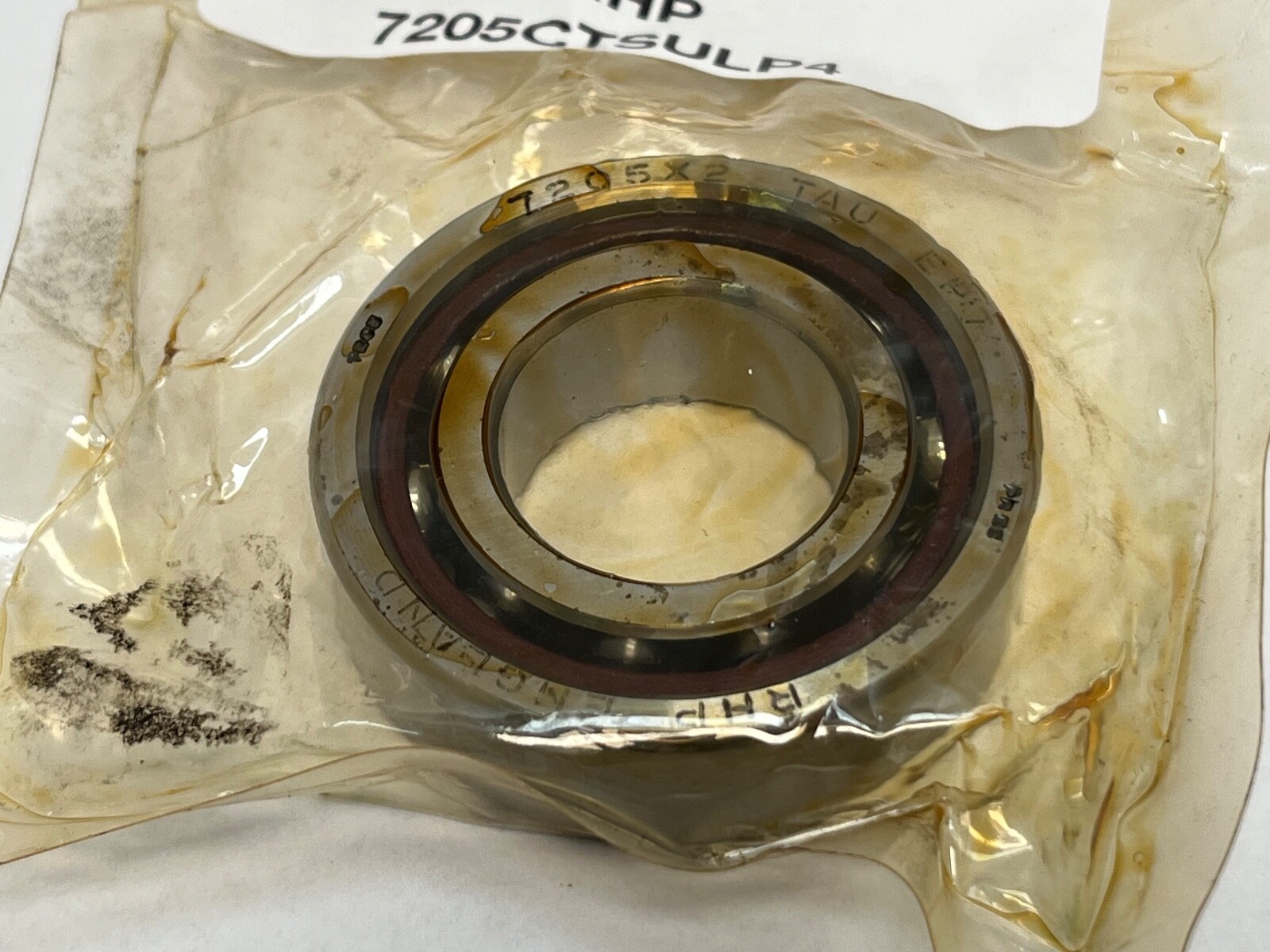

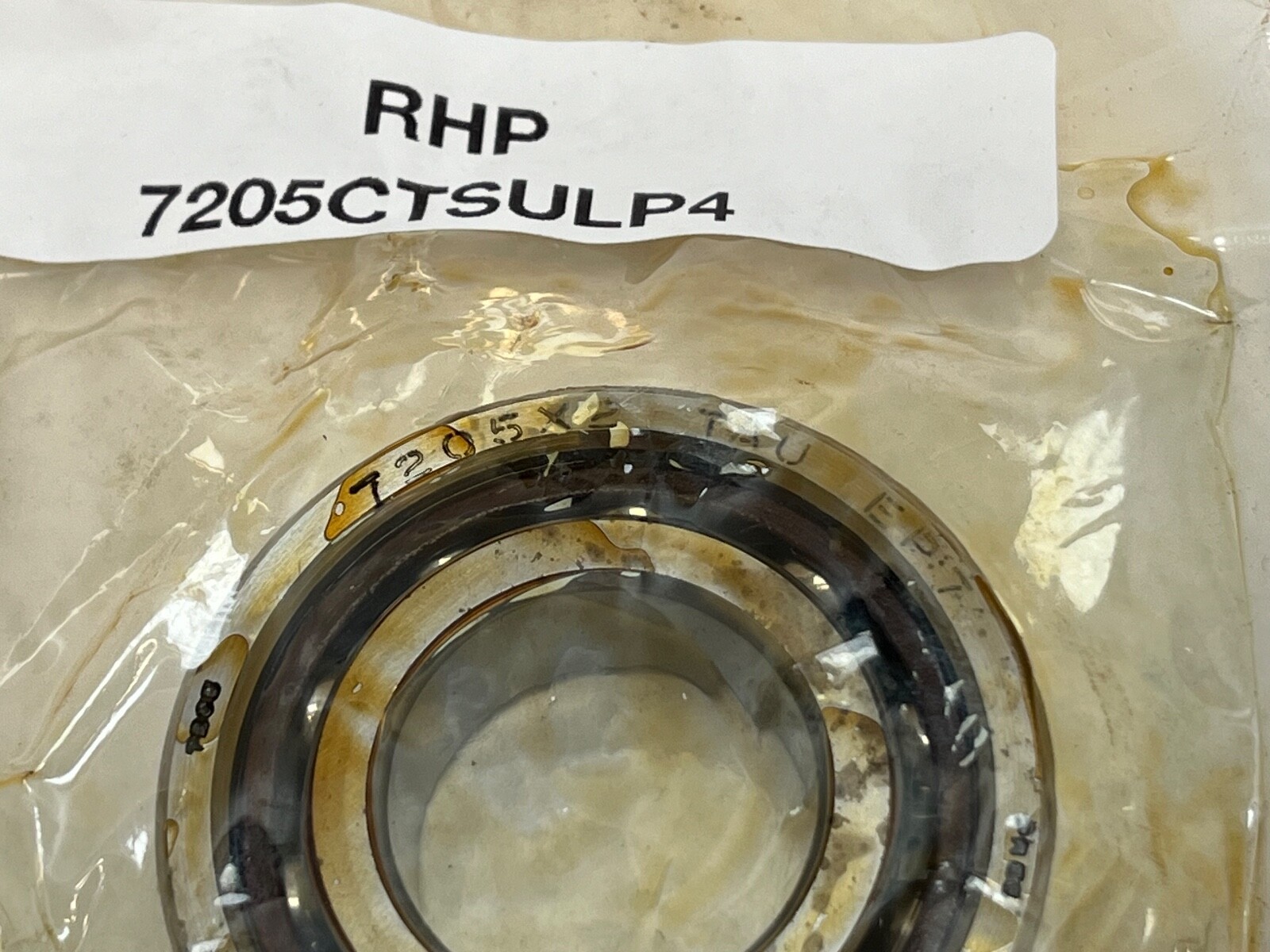

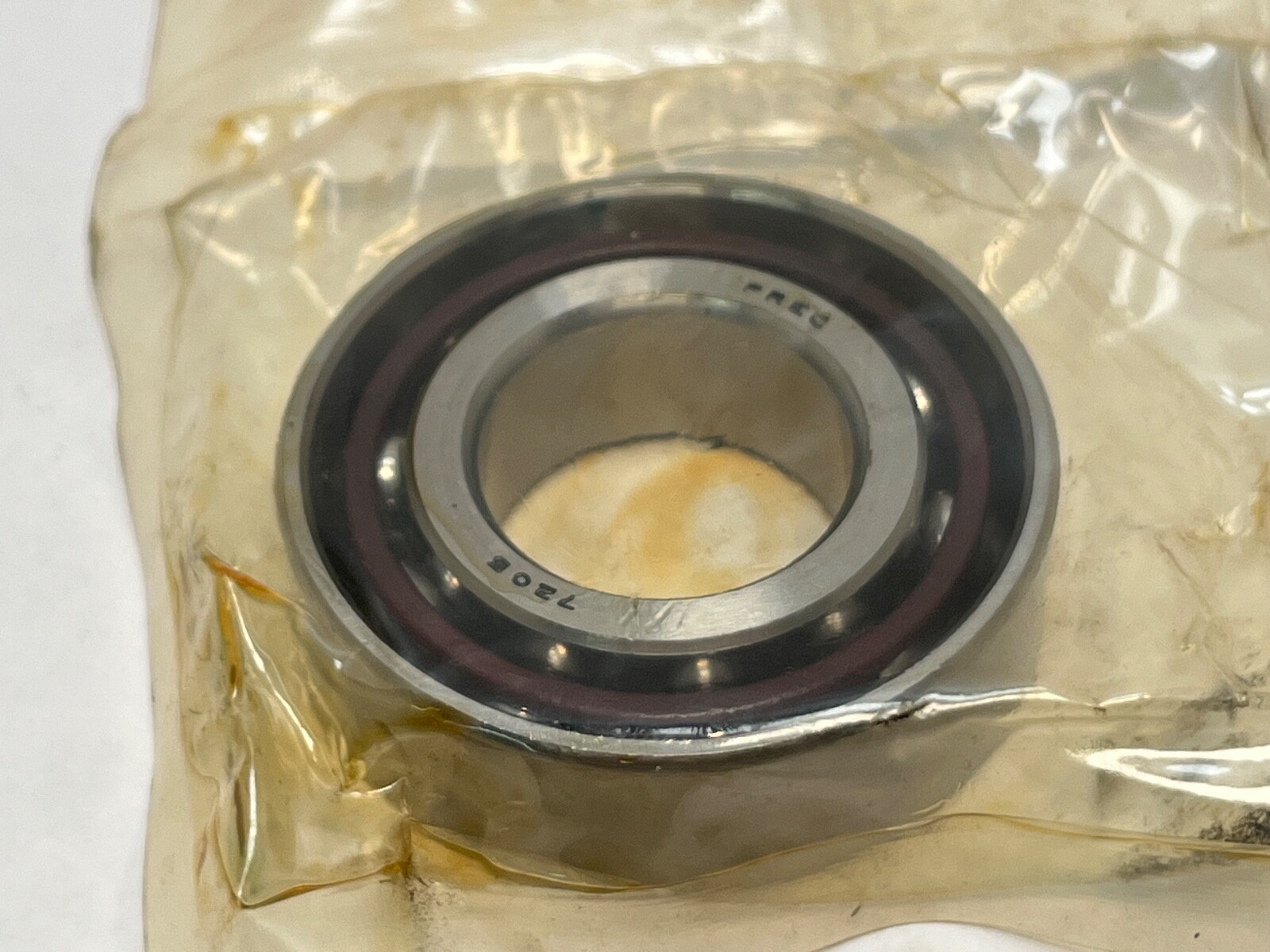

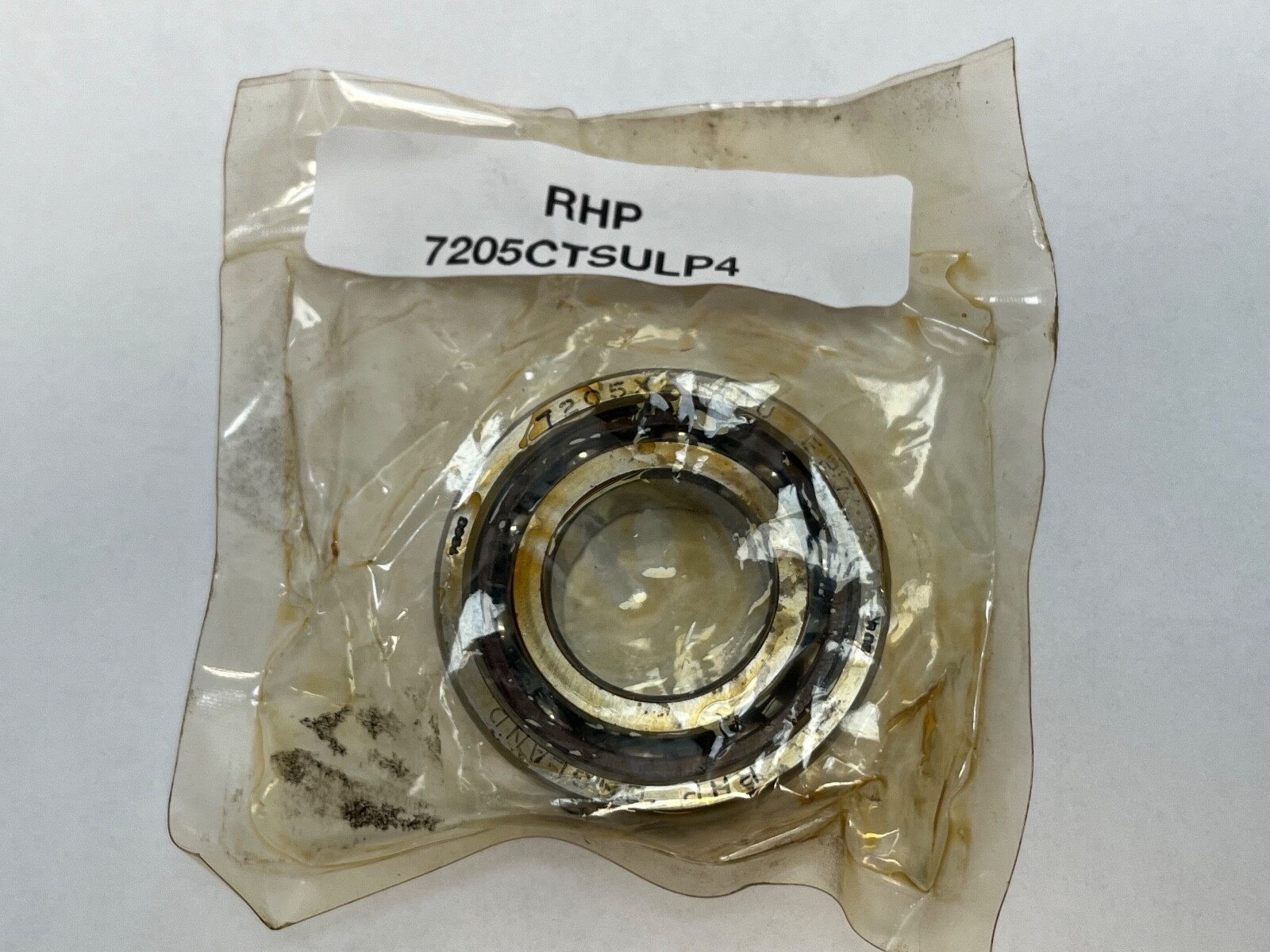

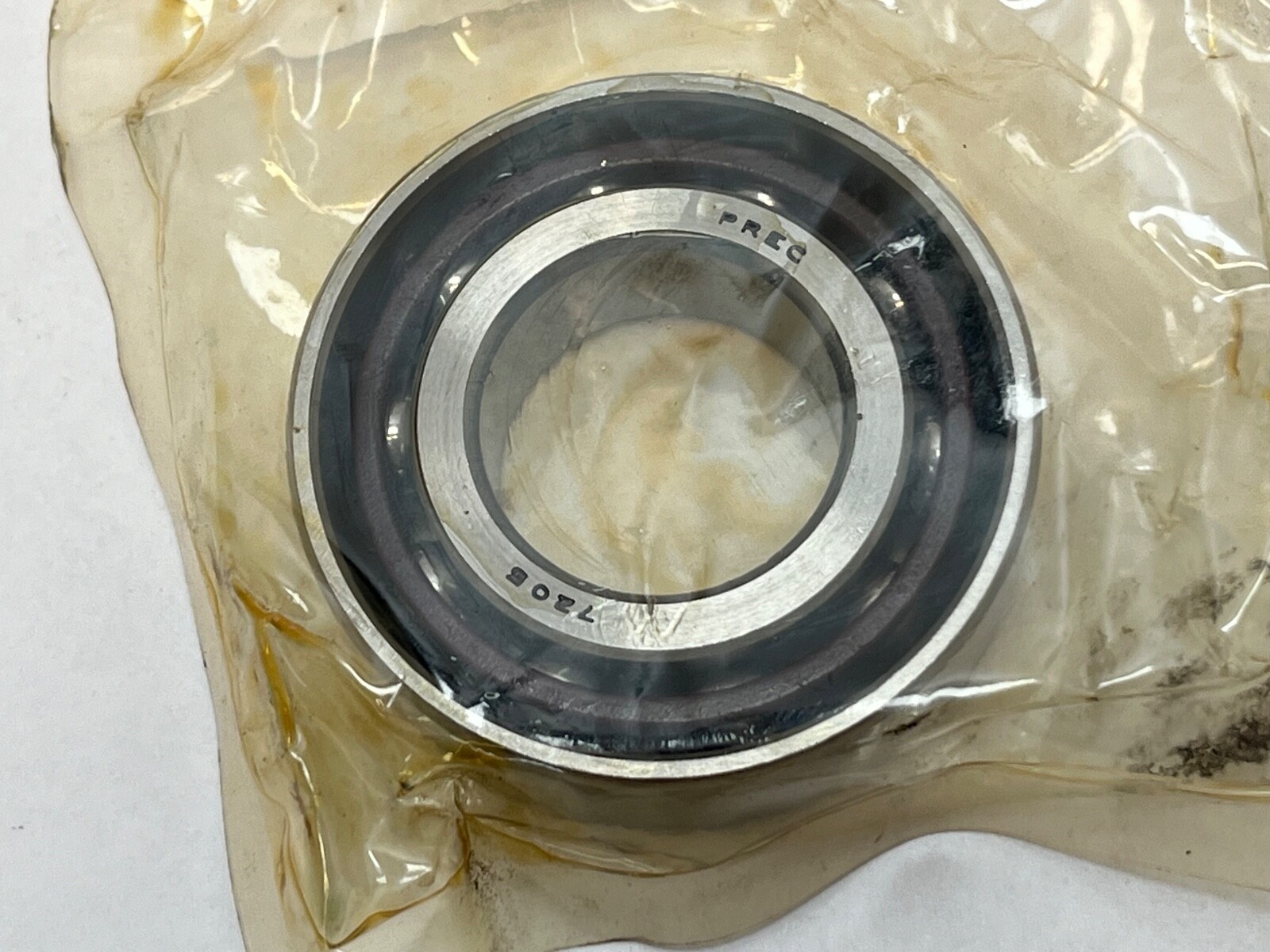

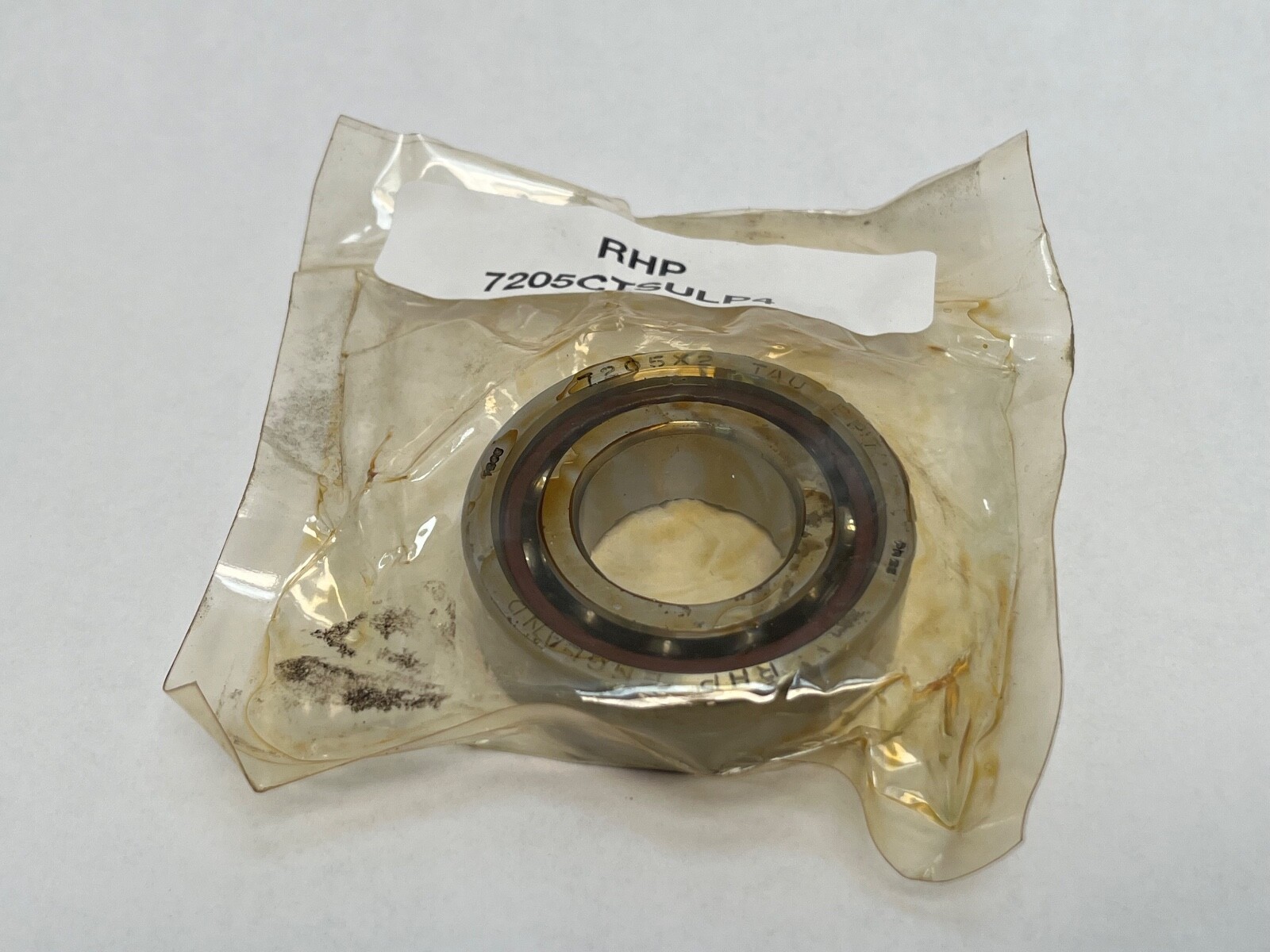

RHP 7205CTDULP4-1/2PR Super Precision Bearing 25x52x15mm. P4 precision, 15° contact angle, phenolic cage. DUL universal set for high-speed spindle pairing.
| MFR / Brand | RHP |
|---|---|
| MPN | 7205CTDULP4 |
| Model | 7205 C T DUL P4 / 7205 X2 TADUL EP7 / 2MM205WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Min Temp | -30°C |
|---|---|
| Cage Type | Phenolic |
| Dynamic Load Rating | 16.5 kN / 3710 lbf |
| Static Load Rating | 8.8 kN / 1980 lbf |
| Precision Rating | ABEC 7 / P4 |
| Series | 7200 |
| Rolling Elements | Ball |
| Max Temp | 120°C |
| Condition | New – Open box |
| Item Weight | 0.28 lbs |
| Cage Material | Phenolic |
| Limiting Speed | 28000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Oil |
| Duty Type | Super Precision |
| Harmonization Code | 8482.1 |
| Contact Angle | 15 ° |
| Preload | Light |
| Mounting Arrangement | Duplex Universal |
| Material | Bearing Steel |
| Internal Clearance | CN |
