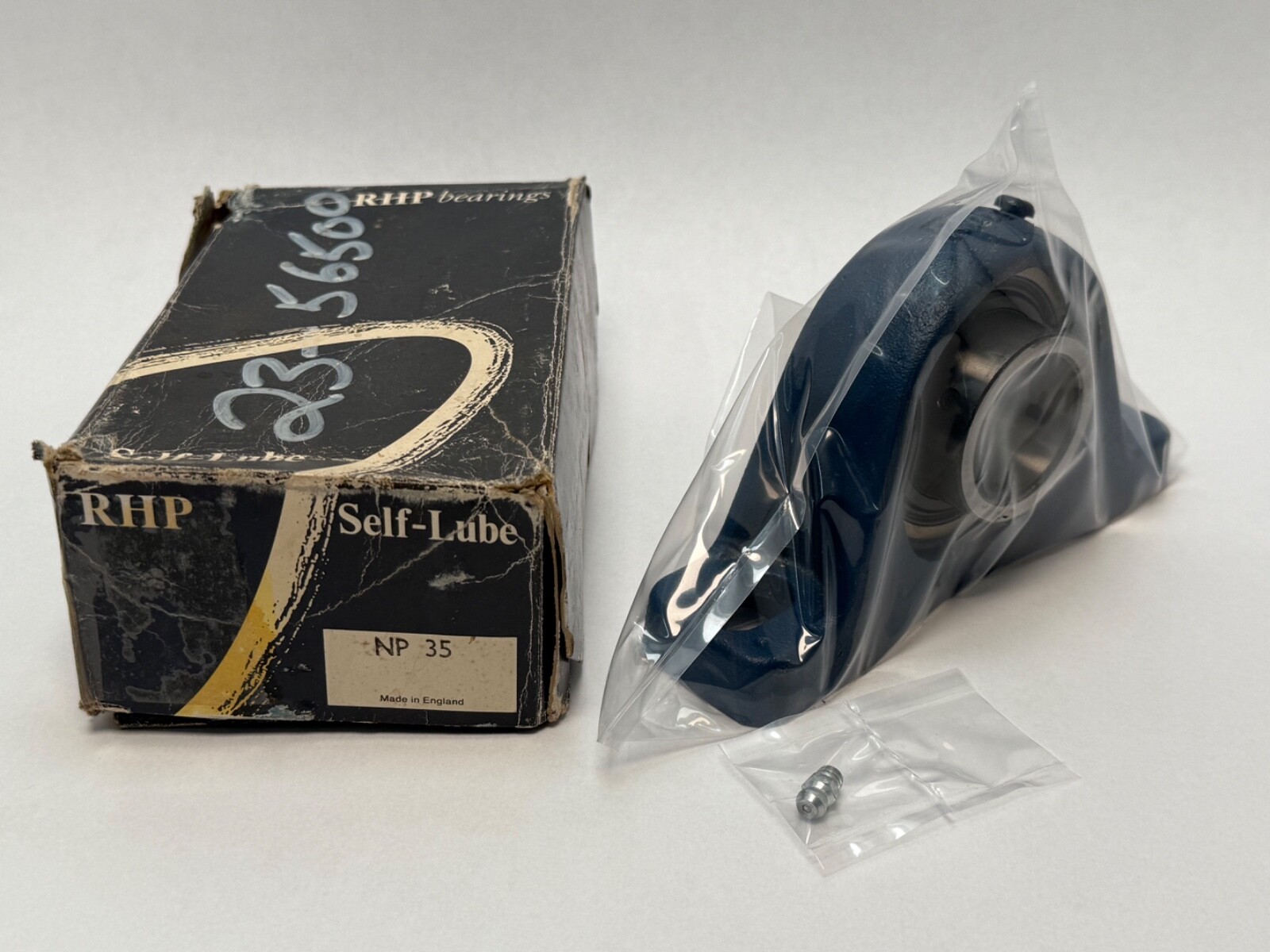

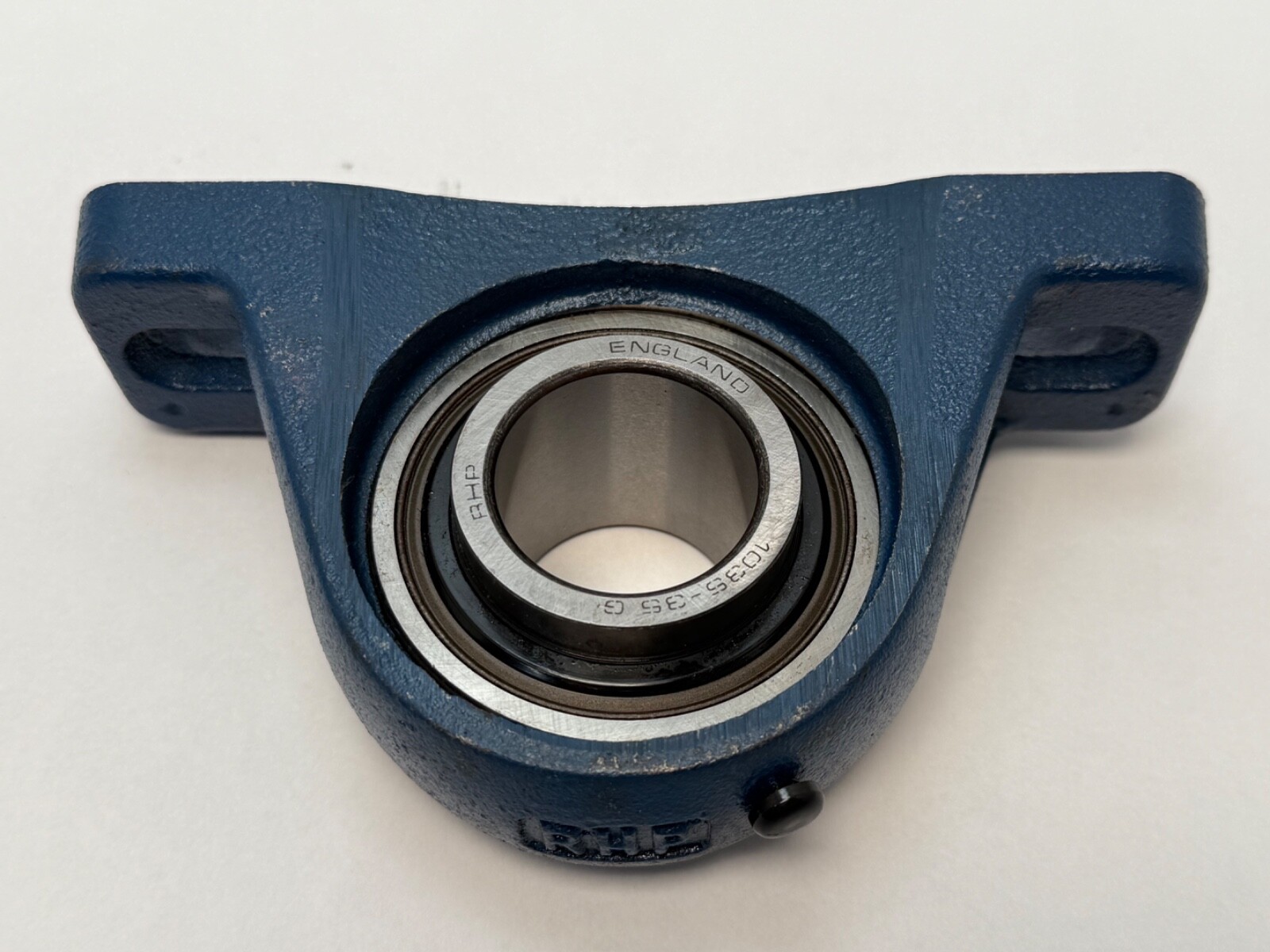

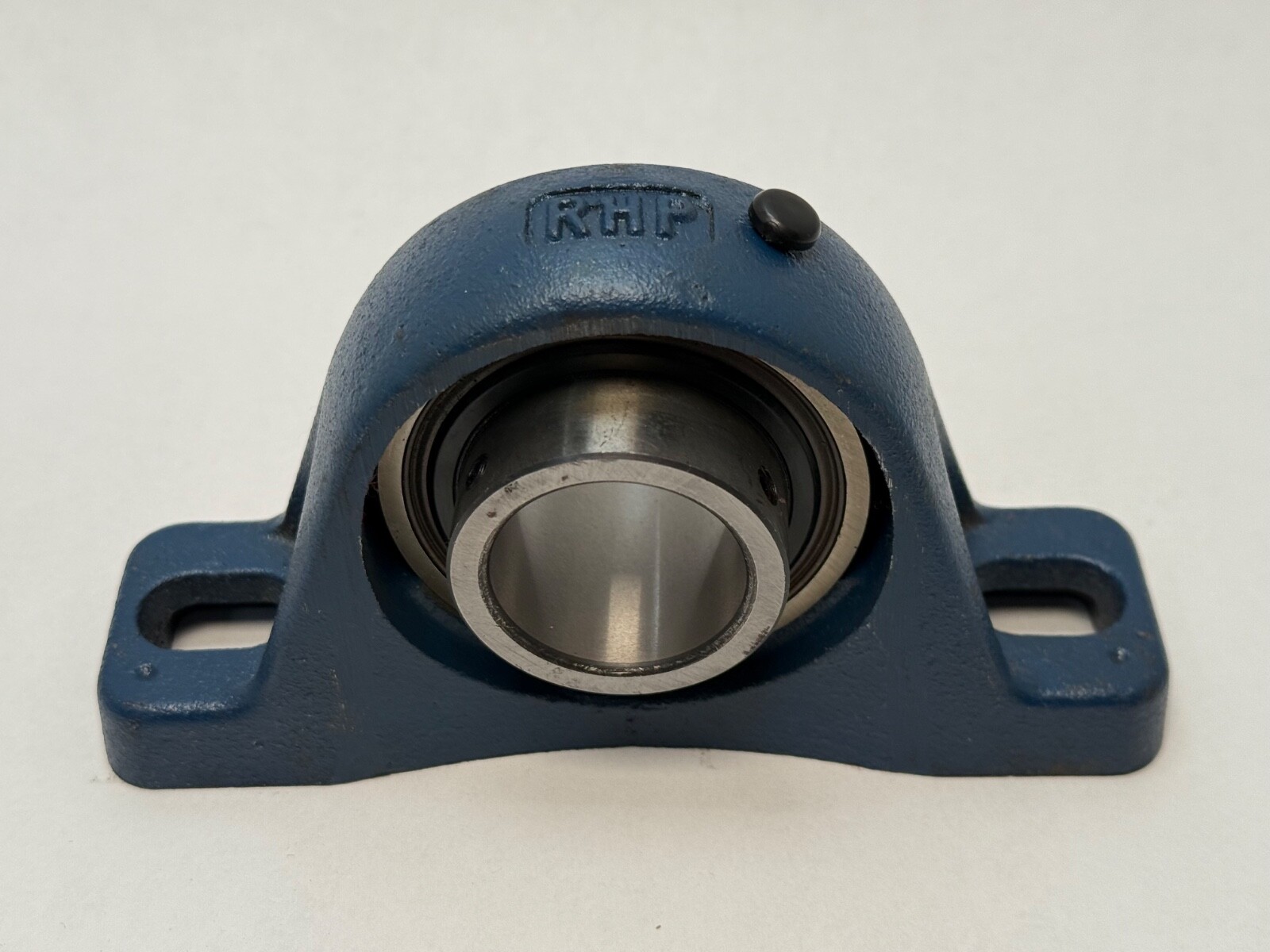

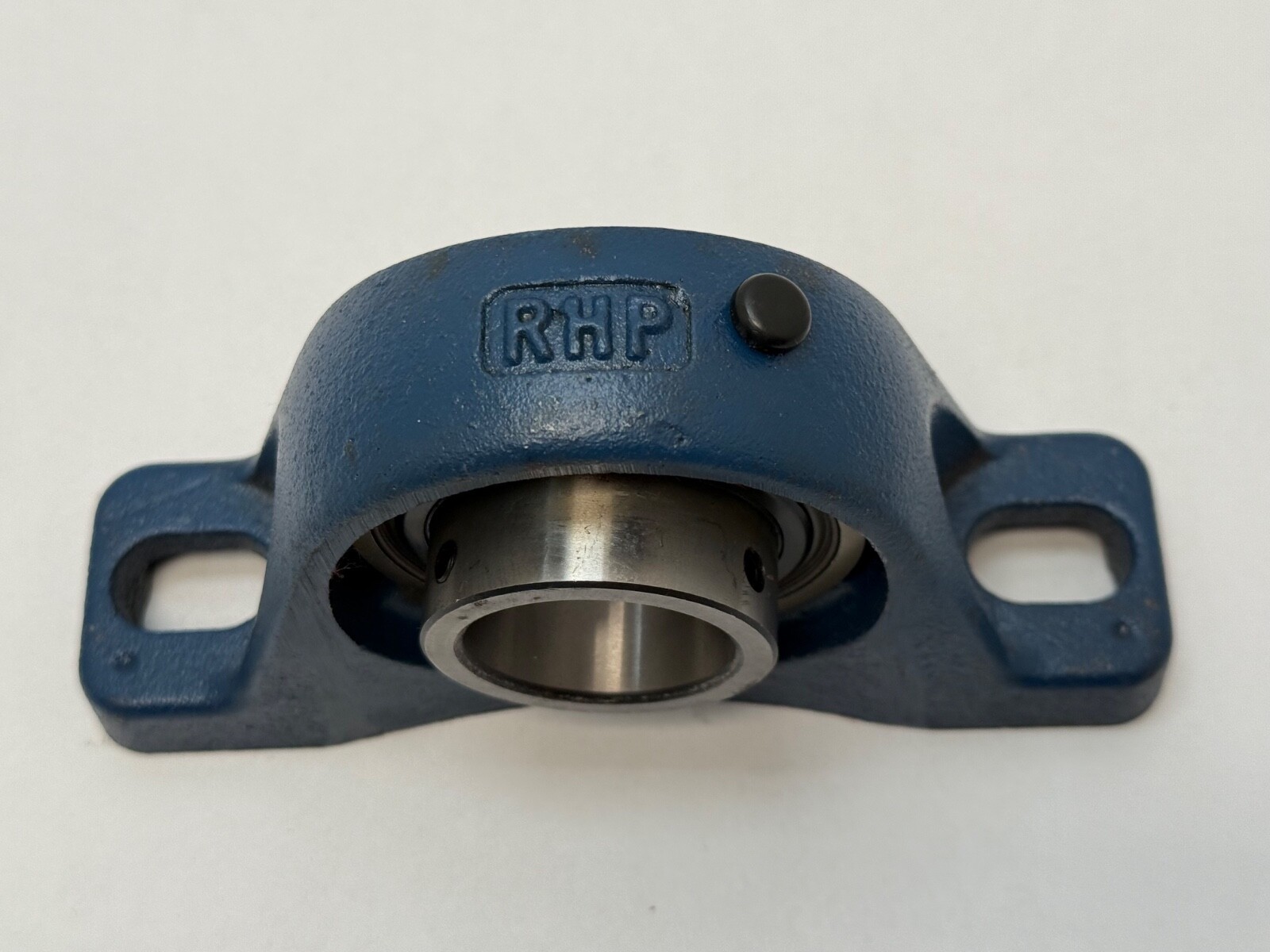

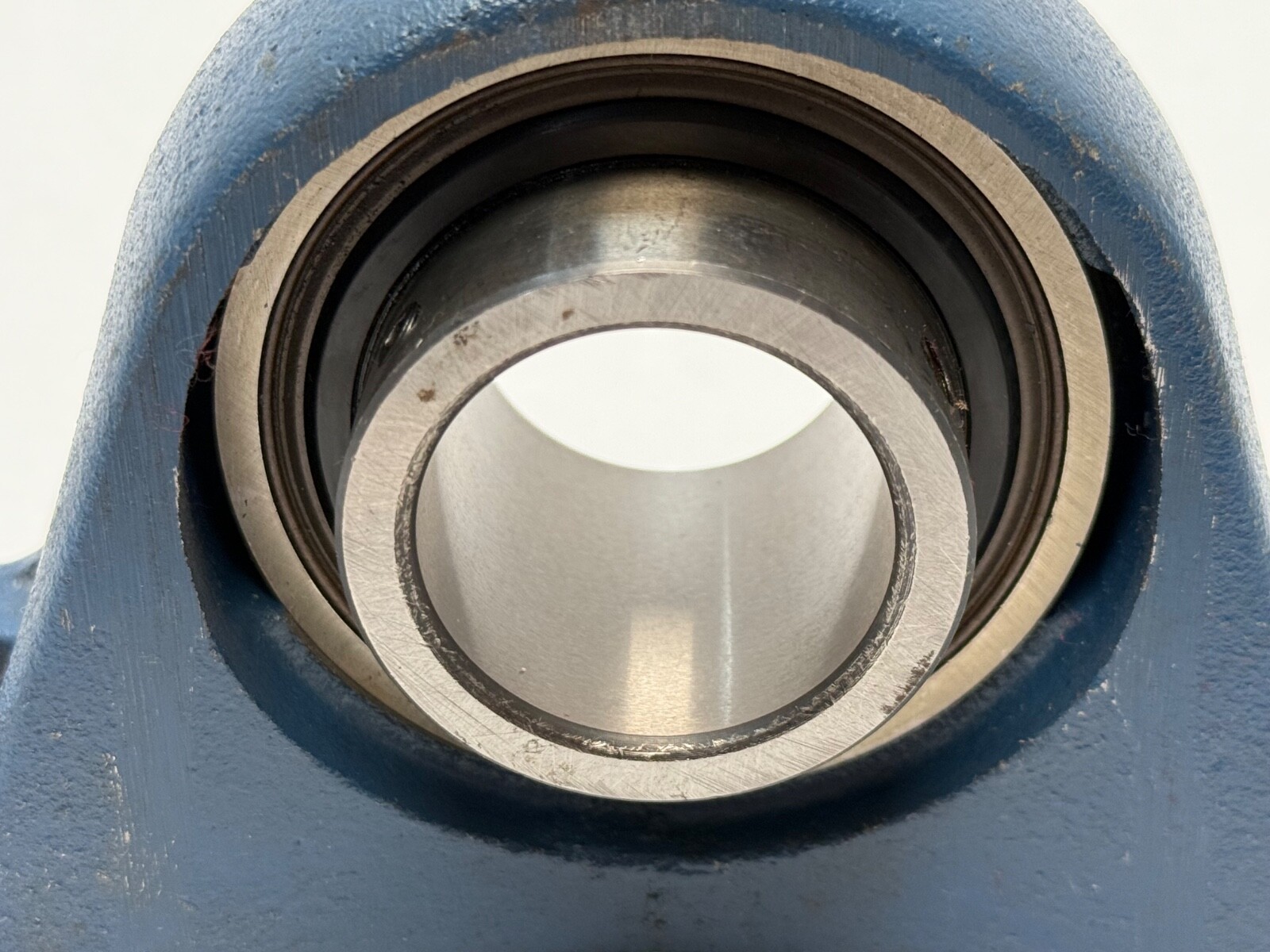

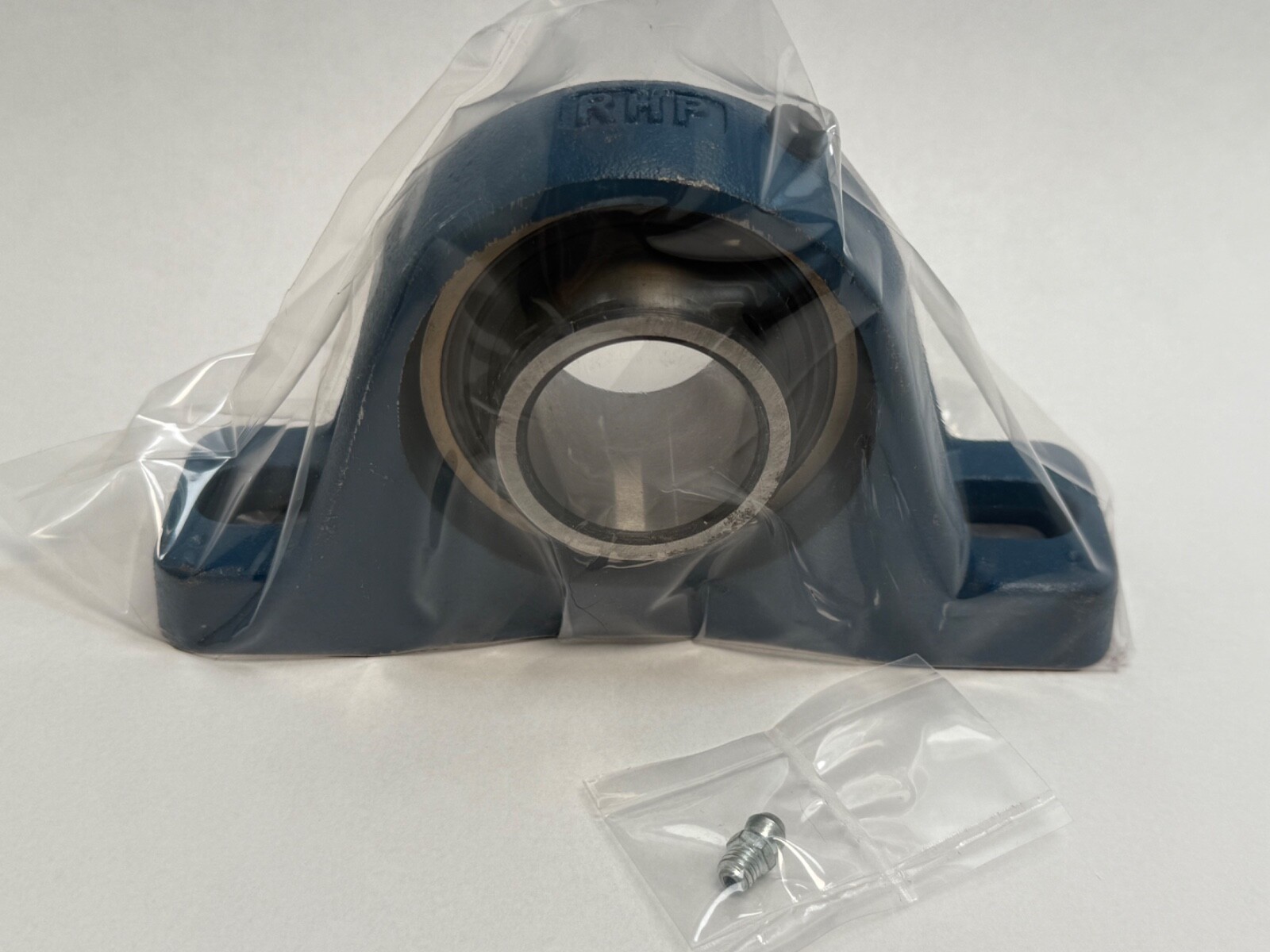

Experience the reliability and precision of Dodge with the RHP NP35 Flange Mount Bearing. Designed with a 35mm inner diameter, this bearing features a robust cast iron construction and a ball bearing insert known for its durability and smooth operation. The flange mount design ensures easy installation and provides a secure, stable fit for your mechanical applications. Crafted in the United Kingdom, the NP-35 model is a testament to the high-quality standards and longstanding heritage of the Dodge brand. Suitable for a wide range of industrial uses, this bearing is built to offer you a seamless blend of performance and longevity. Whether you’re maintaining factory equipment or repairing vehicles, this bearing is engineered to meet your rigorous operational demands.Key Features:Type: Pillow Block Bearing Unit (also known as a Plummer Block)Manufacturer: RHP (now part of NSK)Series: NPMounting: 2-Bolt BaseBore Diameter: 35 mmLocking Device: Typically features set screw locking onto the shaft.Bearing Type: Self-aligning ball bearing insert with a wide inner ring.Seal Type: Usually has nitrile/fabric seals for contamination protection.Relubricatable: Yes, often comes with a grease nipple for re-lubrication.Housing Material: Cast IronSelf-Lube: These units are often referred to as “Self-Lube” bearings as they are pre-greased for easy installation and maintenance.Accommodates initial housing misalignment.Specifications (Typical Values – Check Specific Supplier Data):Bore Diameter (d): 35 mmOverall Length (L): 166 mmOverall Height: 93 mmShaft Height (H): 47.6 mmHousing Width (A): Typically around 44.4 – 44.5 mmBolt Hole Centers (J): Minimum 121.5 mm, Maximum 136.5 mmBolt Hole Size: 12 mmDynamic Load Rating (Cr): 25,700 NStatic Load Rating (C0r): 15,300 NMaximum Speed: 4,500 rpm (grease lubrication)Weight: Approximately 1.7 kgCan’t Find Your Part? Click HERE to contact us! We can source any part, quickly. Choose your shipping speed; next-day and expedited options are available at checkout. International shipping available on all orders. Collect shipping accepted (UPS, FedEx, DHL, Freight). Competitive prices are guaranteed.
List Price
$44.91
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | DODGE |
|---|---|
| MPN | NP35 |
| Model | NP 35 |
| Bearing Type | , Single Rubber Seal |
| ID | 35mm |
| Bolt Center To Center | 6.25 in |
|---|---|
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 6.25 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Ball |
| Centre Height Pillow Block | 47.6mm |
| Centre Height | 47.6mm |
| Material | Cast Iron |
| Min Temp | -20°C |
| Dynamic Load Rating | 25.5 kN / 5730 lbf |
| Static Load Rating | 15.3 kN / 3440 lbf |
| Precision Rating | ABEC 1 / P0 |
| Series | NP |
| Rolling Elements | Ball |
| Max Temp | 100°C |
| Condition | New – Open box |
| Bearing Type | Pillow Block Unit |
| Item Weight | 3.30 lbs |
| Limiting Speed | 4500 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | CN |
| Lubricant | Grease |
| Duty Type | Medium Duty |
| Locking Device | Set Screw |
| Relubrication Feature | Yes |
| Harmonization Code | 84832040 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion |
| Cross Reference 1 | SKF SY 35 TF |
|---|---|
| Cross Reference 2 | NTN UCP207 |
| Cross Reference 3 | FAG P207 |
