THK RSR15ZMUU+150LM miniature linear guide: stainless steel LM block with end seals on a 150 mm rail, 4.41 kN dynamic, 6.57 kN static load rating.
List Price
$48.69
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | THK |
|---|---|
| MPN | RSR15ZMUU+150LM |
| Model | RSR 15 ZM UU + 150L M |
| Type | Linear Bearing |
|---|---|
| Additional Attributes | Stainless steel block, rail and balls; four block mounting holes; MA 23.7 N-m, MB 21.1 N-m, MC 38.8 N-m (one block); block mass 0.05 kg; rail 0.925 kg/m; grease nipple PB107; maximum rail length 1,600 mm |
| Dynamic Load Rating | 4,410 N |
| Static Load Rating | 6,570 N |
| Industry Terms | Miniature LM guide, miniature linear guide, linear guide rail and block, profile rail assembly |
| Mpn Variants | RSR15ZMUU+150LM, RSR15ZMUU+150, RSR-15-ZM-UU 150L-M, RSR 15 ZM UU + 150L M, RSR15ZMUU |
| Material | Stainless steel |
| Series | RSR |
| Common Misspellings | THK RSR 15; TKH RSR15ZMUU; THK RSR15ZMU; THK RSR15ZMUU+150L; THK RSR-15ZM; THK RSR15ZM UU |
| Application Types | Semiconductor equipment; medical and laboratory devices; food processing machinery; cleanroom automation; corrosion-resistant motion axes |

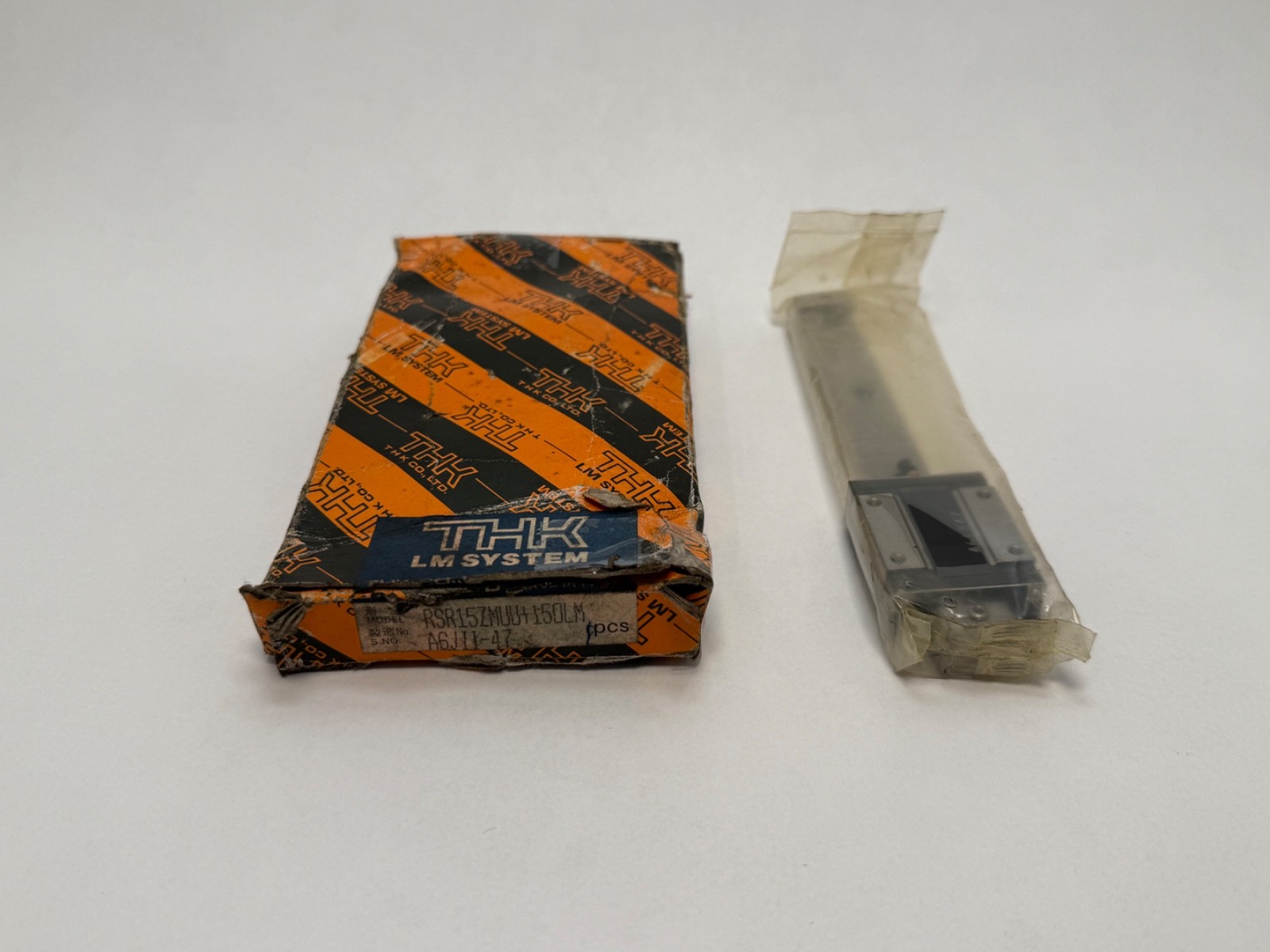

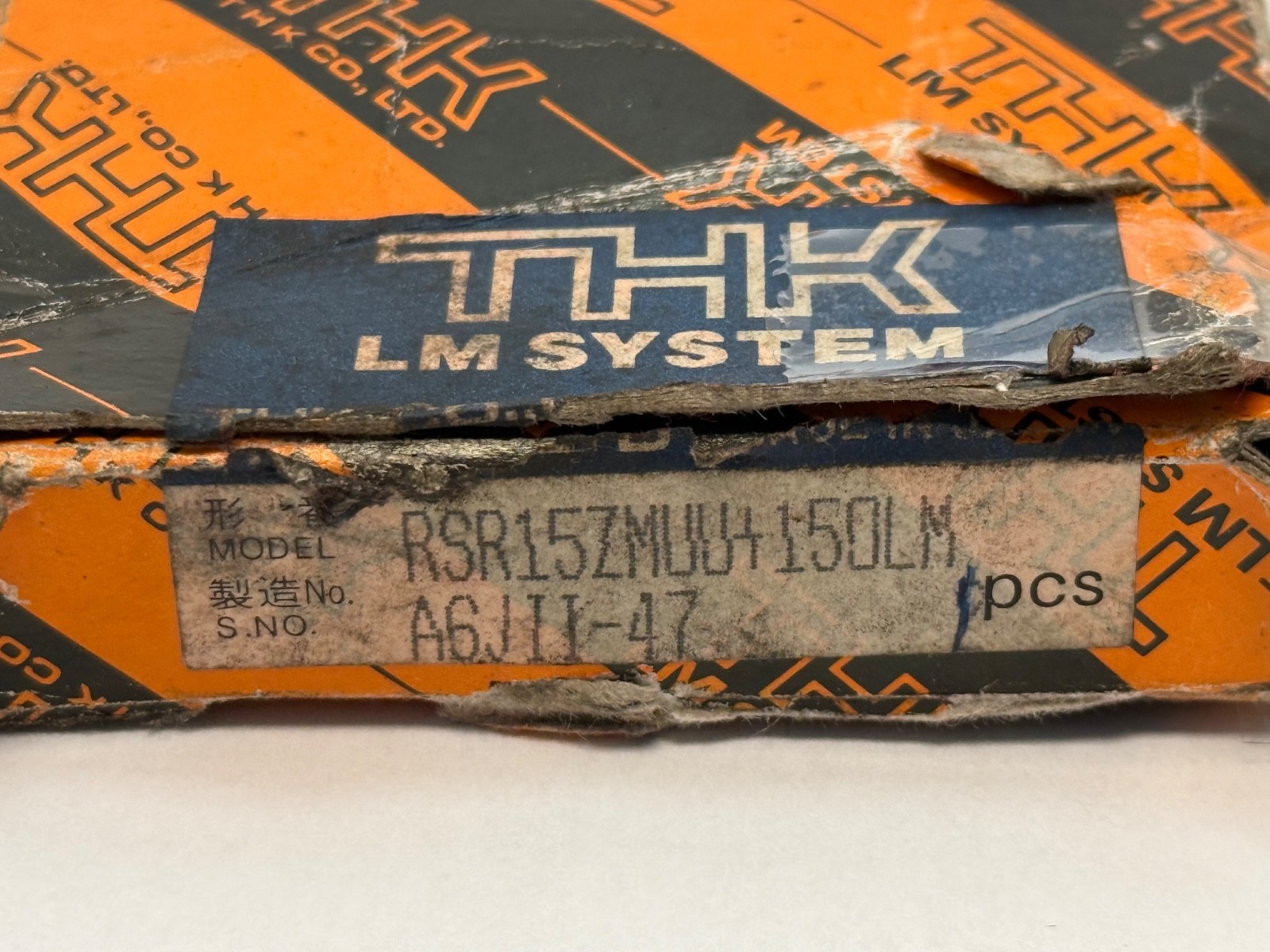

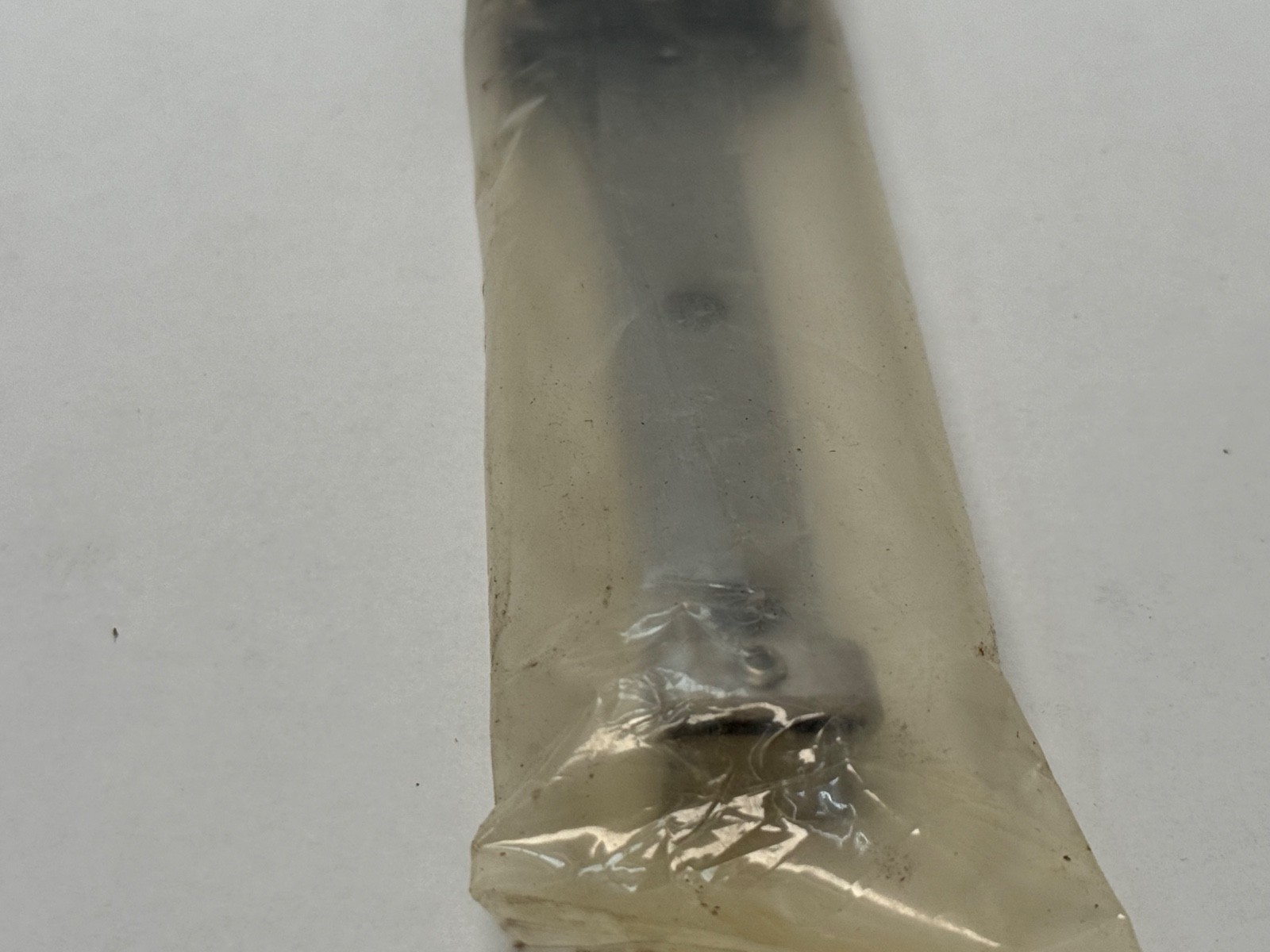

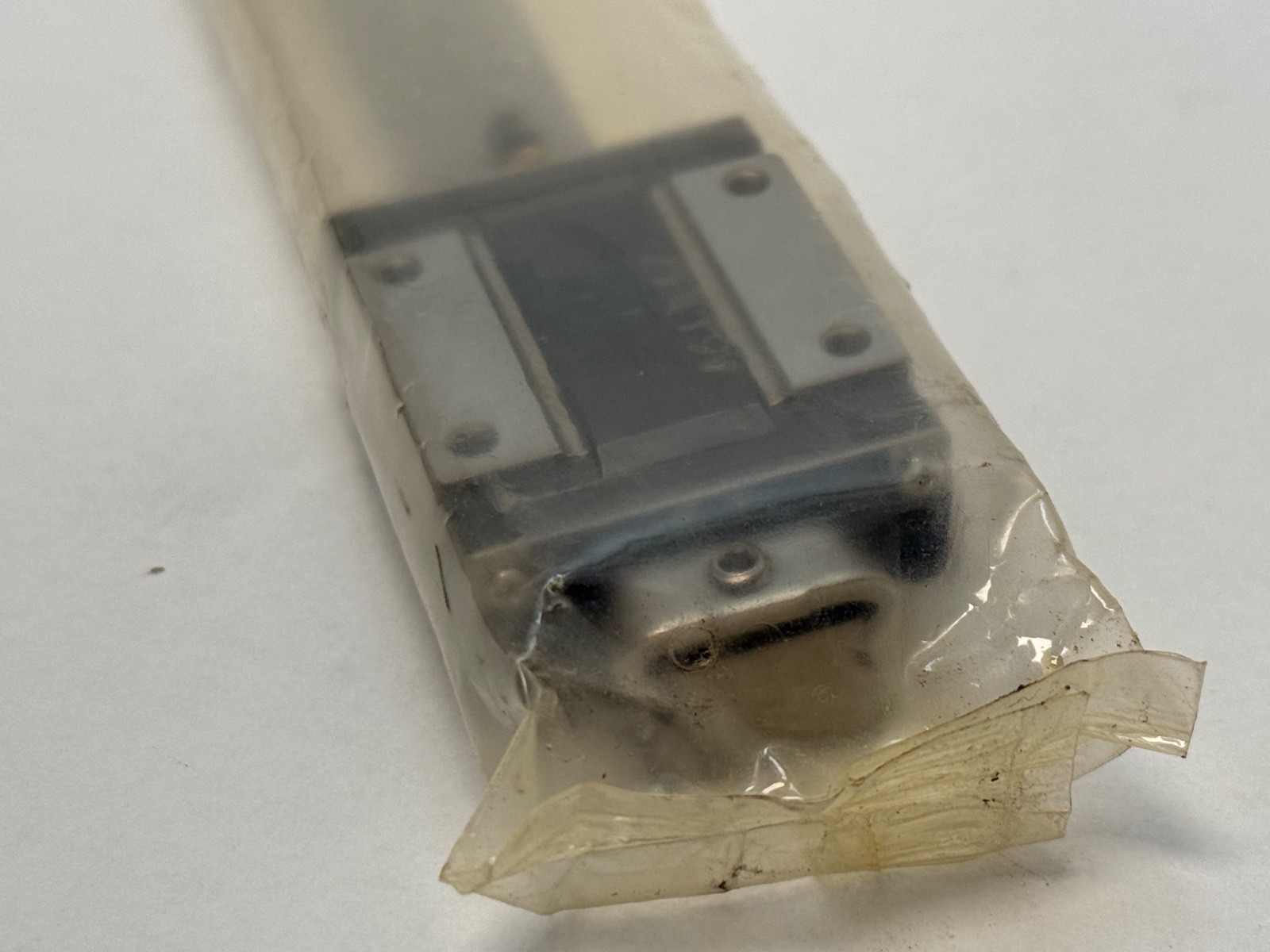

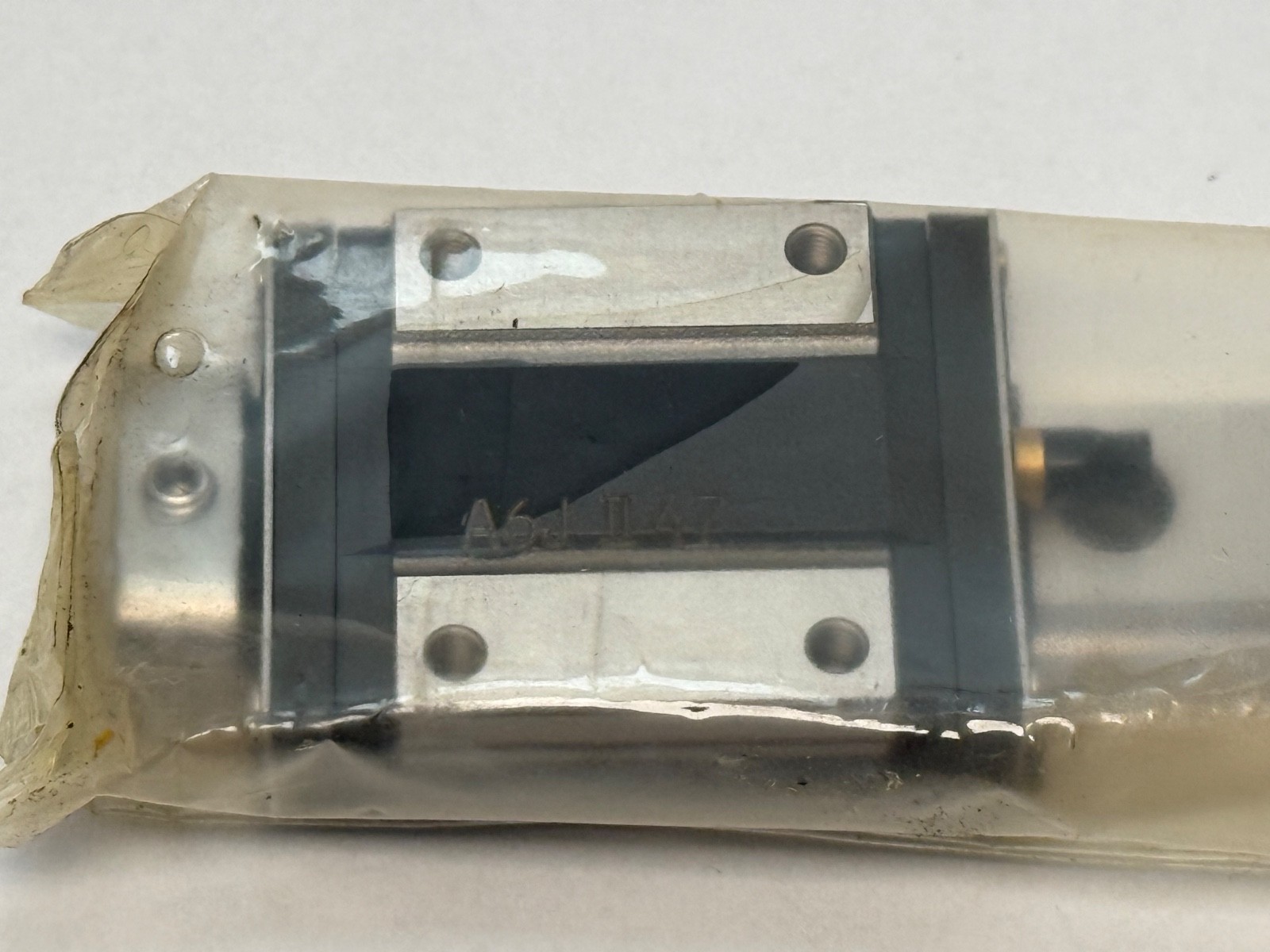

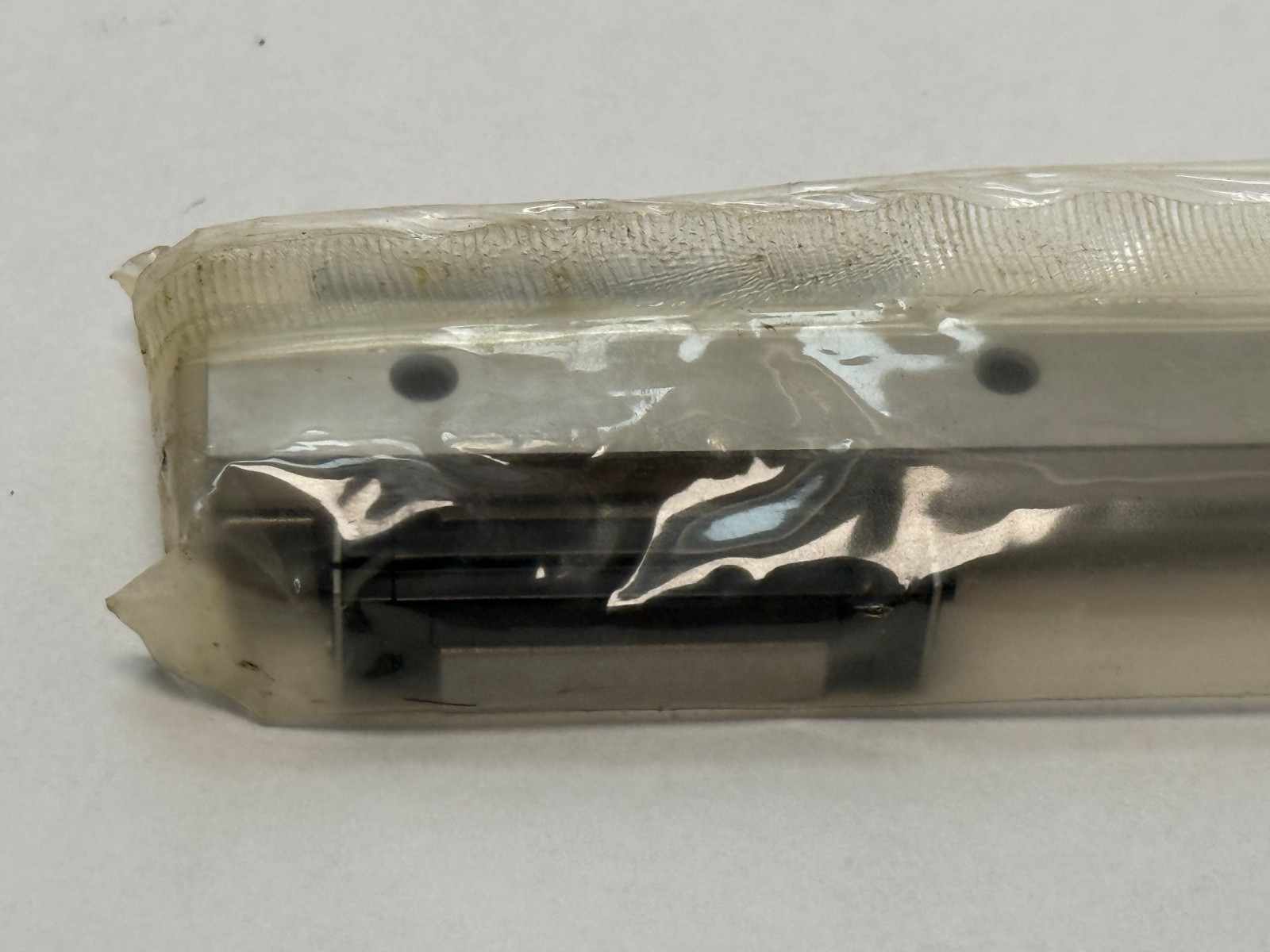

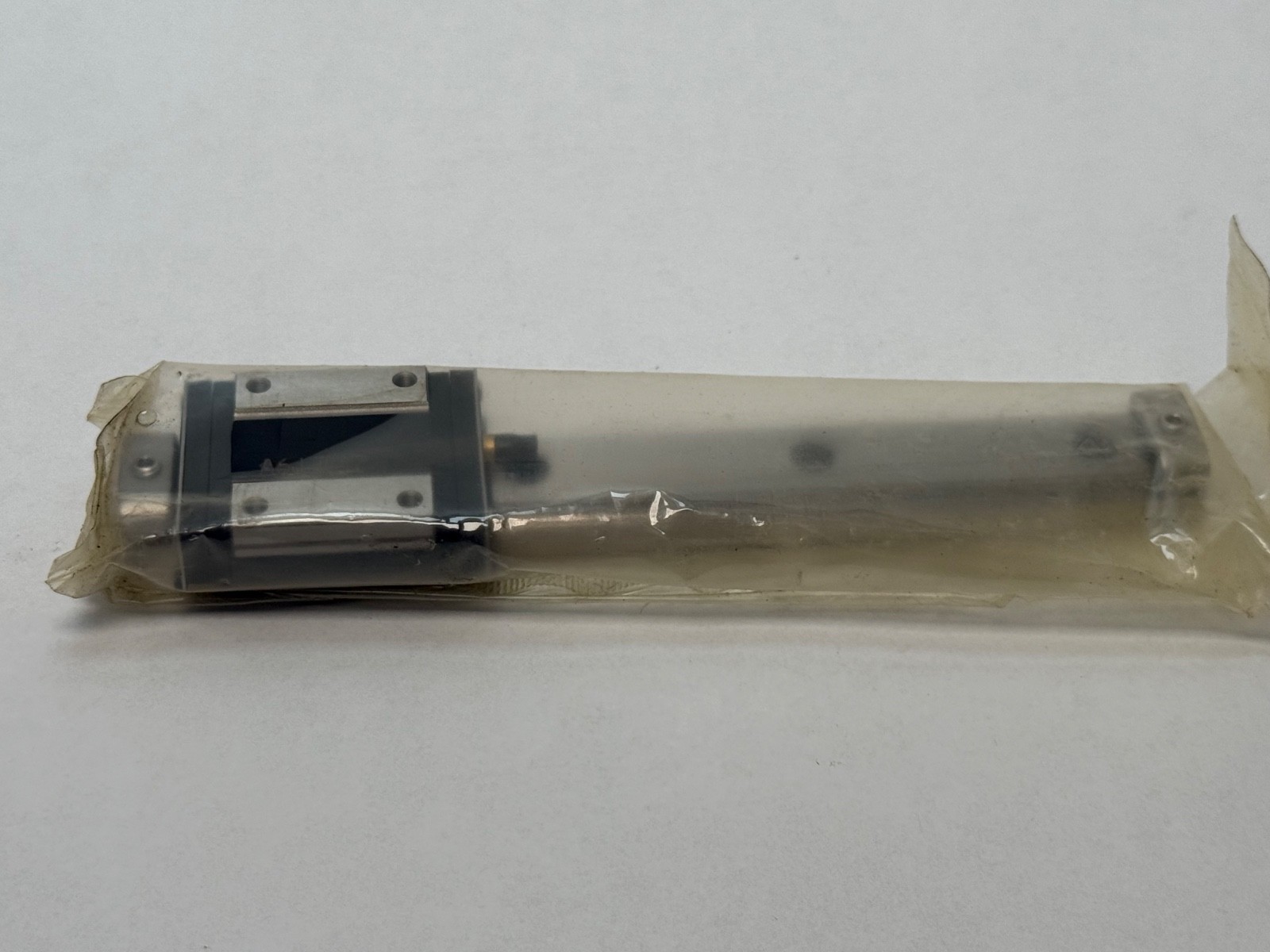

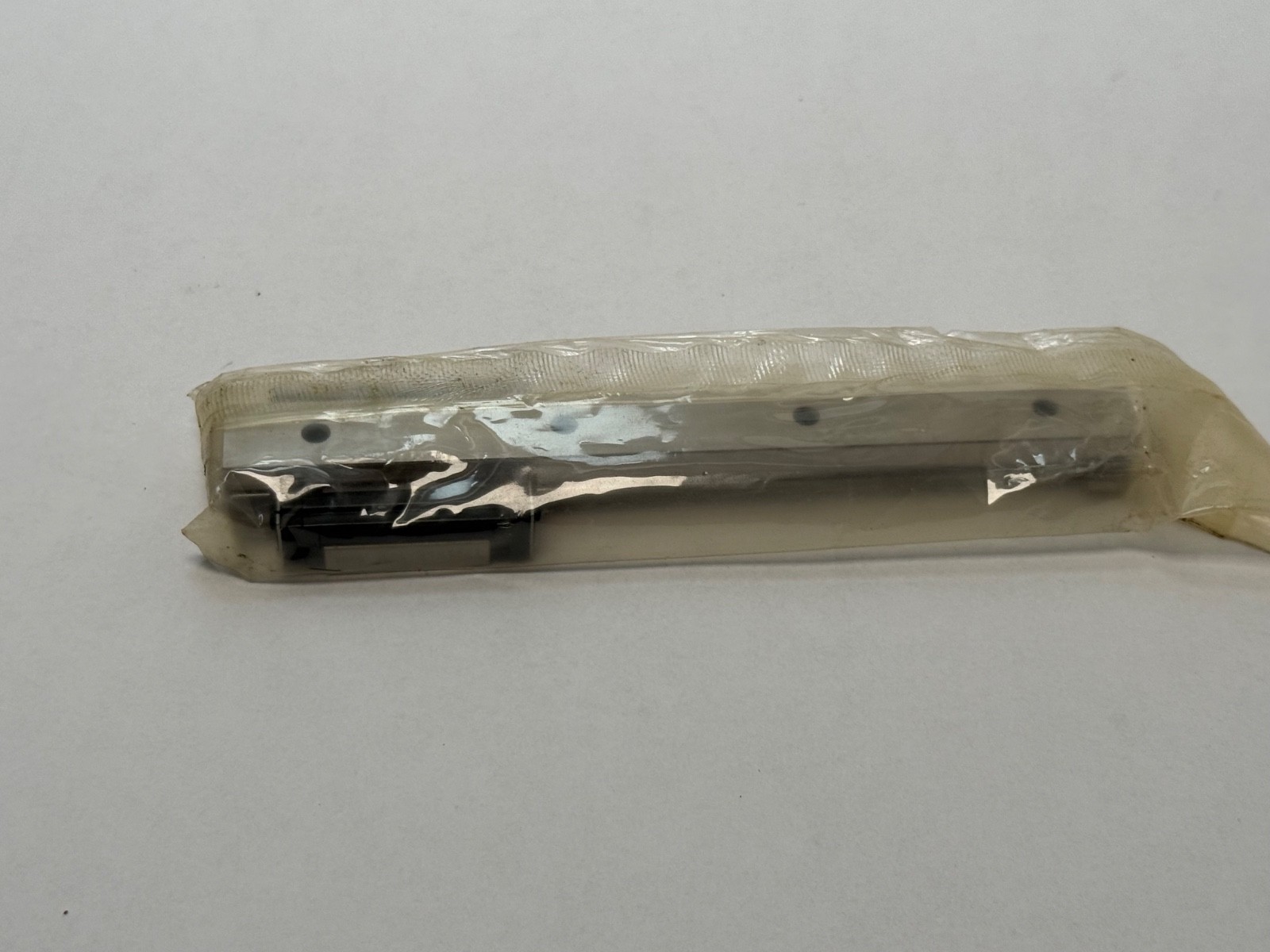

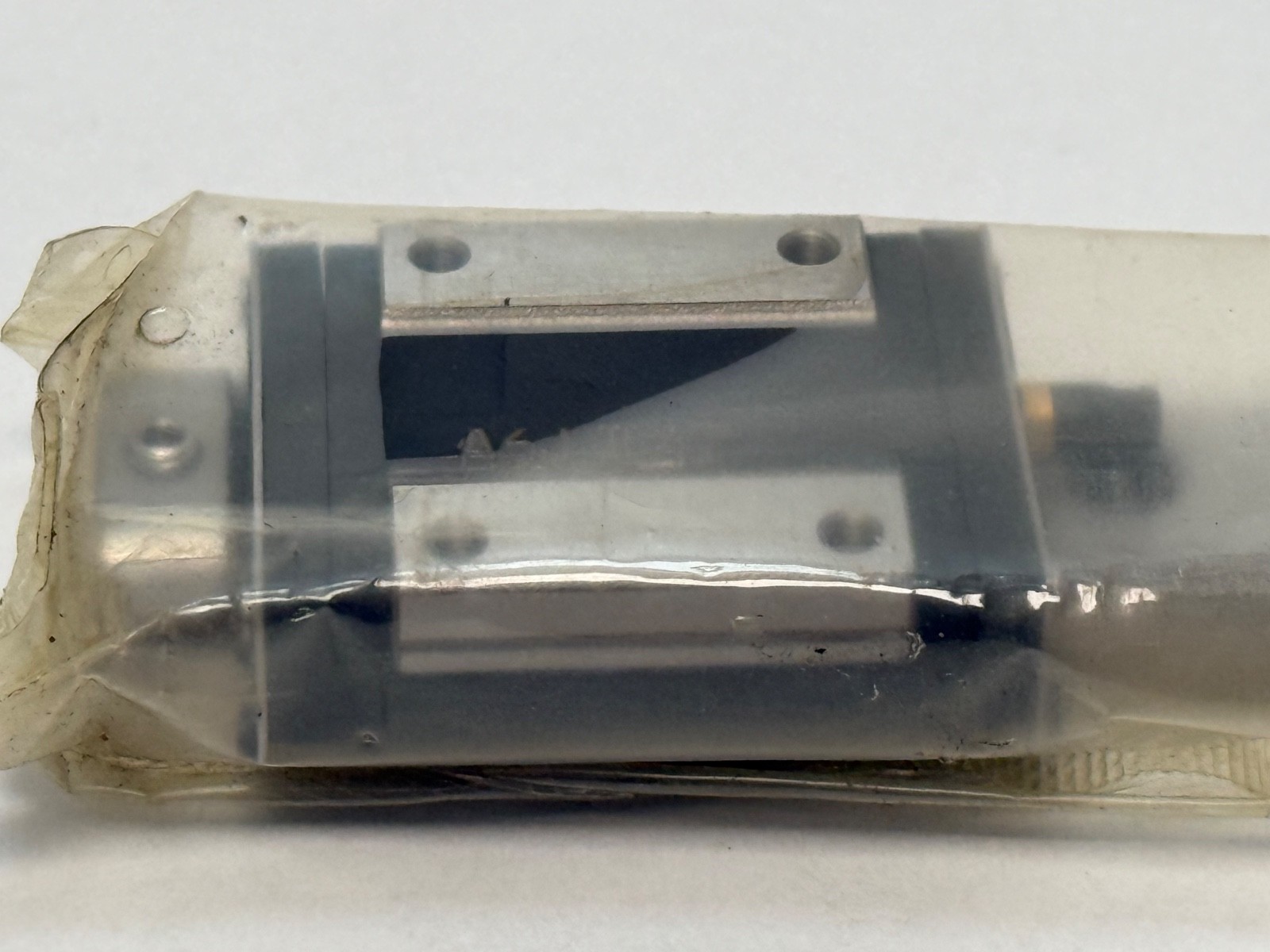

THK RSR15ZM miniature LM guide: one stainless steel LM block with end seals on both ends, mounted on one 150 mm stainless steel LM rail. Unit Quantity: 1 Set. Condition: New, open box.
RSR15ZM — THK RSR-ZM miniature LM guide, model size 15. LM block, LM rail and balls are stainless steel.
UU — contamination protection accessory: end seals on both ends of the LM block.
+150L — LM rail length 150 mm.
M — stainless steel LM rail.
Series: RSR. Model Size: 15. Rail Length: 150 mm. Blocks Per Rail: 1. Material: Stainless steel. Seal Type: UU, end seals both ends. Basic Dynamic Load Rating (C): 4,410 N. Basic Static Load Rating (C0): 6,570 N. Static Permissible Moment, one block: MA 23.7 N-m, MB 21.1 N-m, MC 38.8 N-m. LM Block Mass: 0.05 kg. LM Rail Mass: 0.925 kg/m. Country of Origin: Japan.
LM Block Height (M): 16 mm. LM Block Width (W): 32 mm. LM Block Length (L): 43 mm. Block Mounting Hole Spacing (B x C): 25 mm x 20 mm. Block Mounting Thread (S x l): M3 x 3.5 mm. Rail Width (W1): 15 mm. Rail Height (M1): 9.5 mm. Rail Mounting Hole Pitch (F): 40 mm. Rail Mounting Hole (d1 x d2 x h): 3.5 mm x 6 mm x 4.5 mm. Grease Nipple: PB107.
Additional or replacement blocks for this rail are THK RSR15ZM LM blocks. Rail Compatibility: THK RSR15. MPN Variants: RSR15ZMUU+150LM, RSR15ZMUU+150, RSR-15-ZM-UU 150L-M, RSR 15 ZM UU + 150L M, RSR15ZMUU.
The rail is 150 mm long (+150L in the designation) and the unit has one LM block.
THK publishes a basic dynamic load rating of 4.41 kN and a basic static load rating of 6.57 kN for the RSR15ZM.
THK uses stainless steel for the LM block, the LM rail and the balls of the RSR-ZM models.
