Availability:
1 in stock

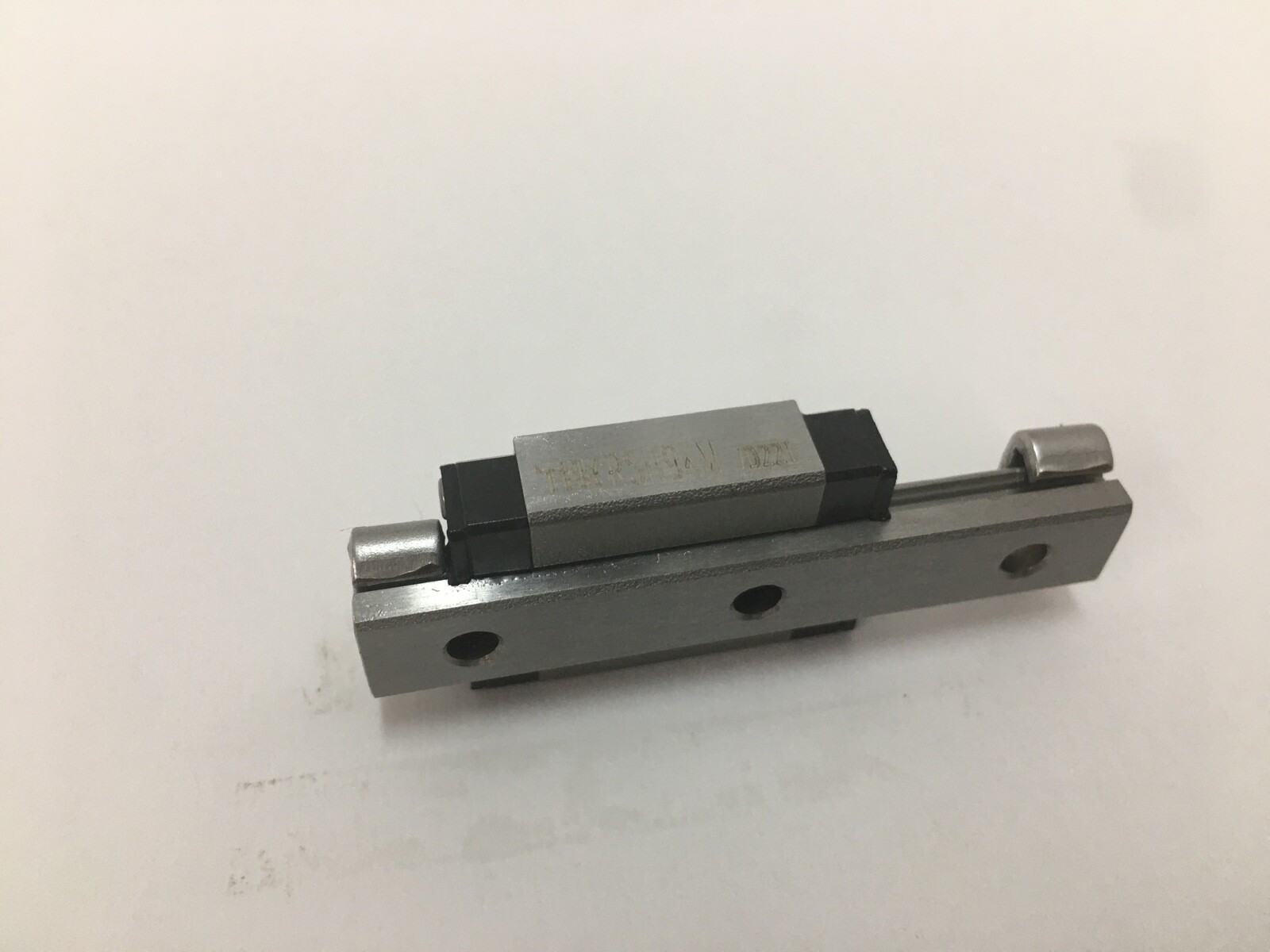

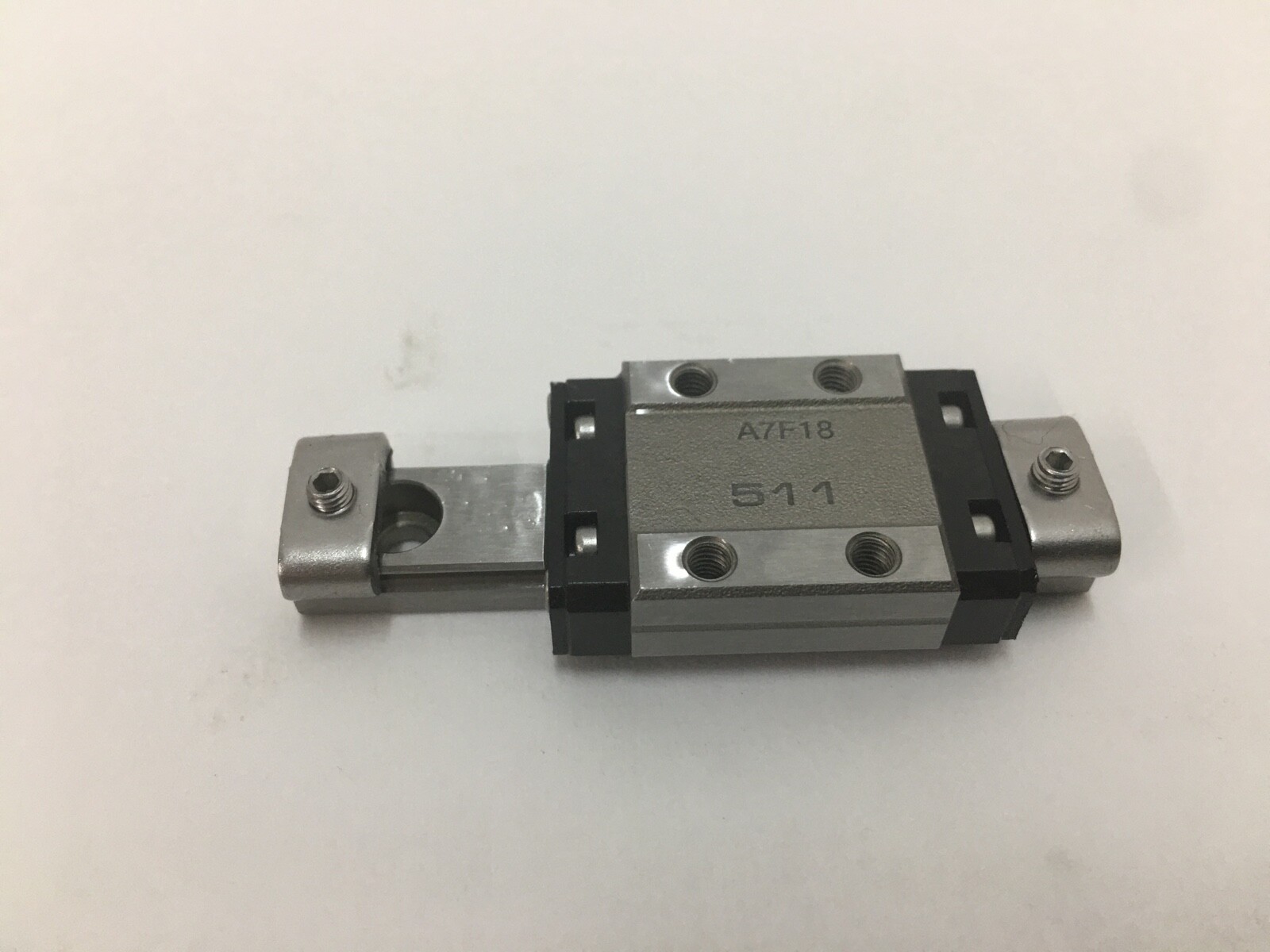

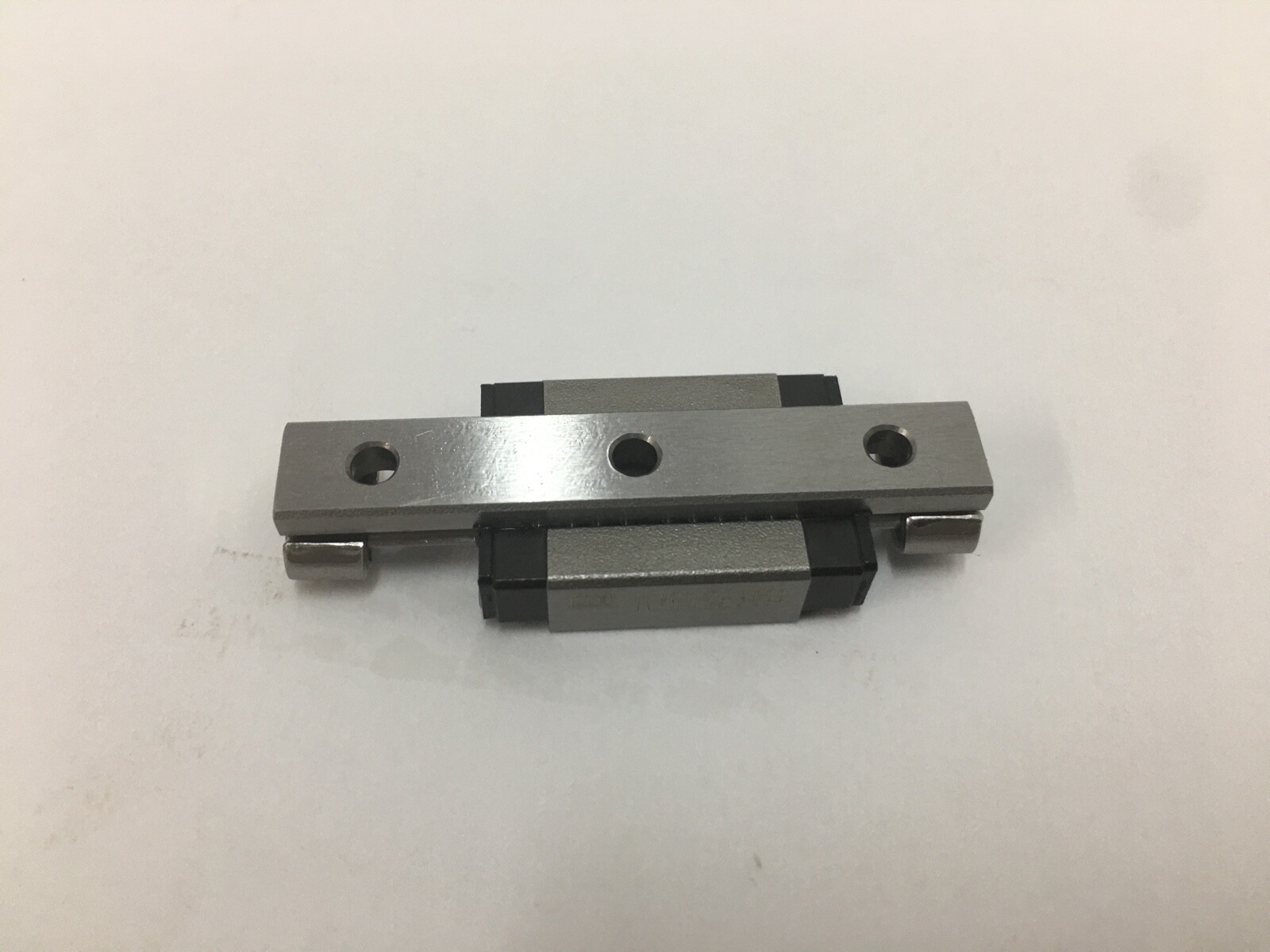

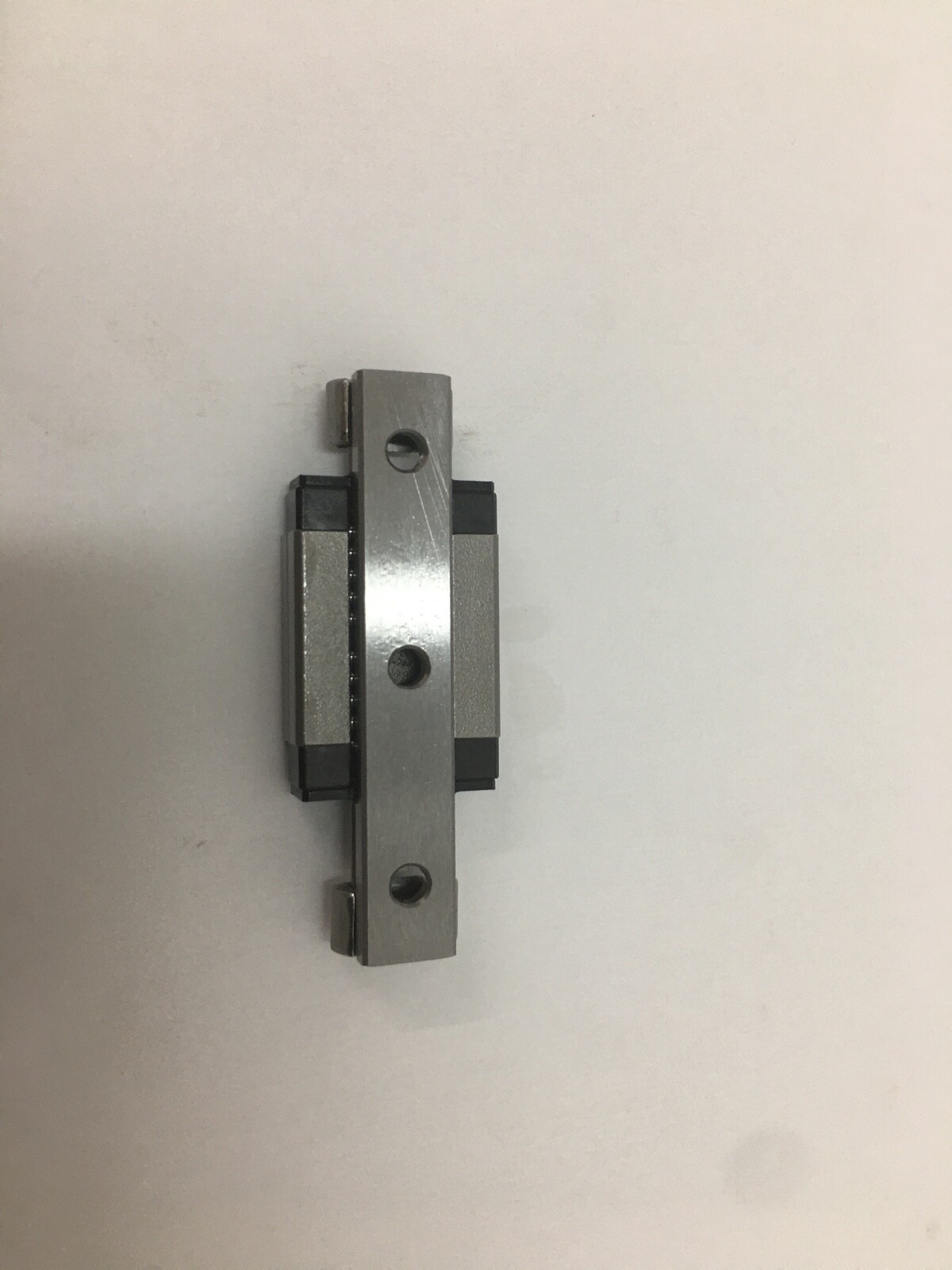

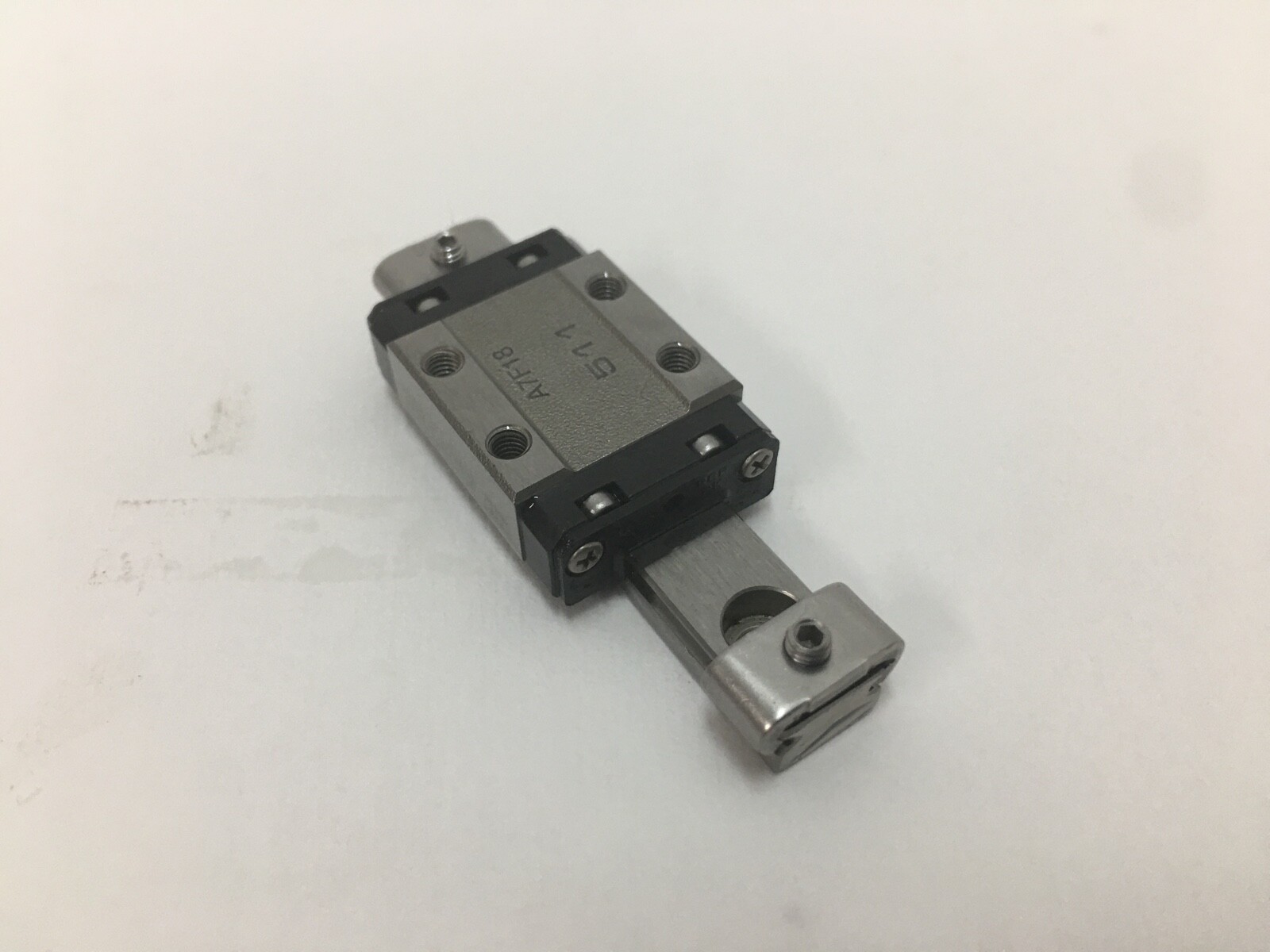

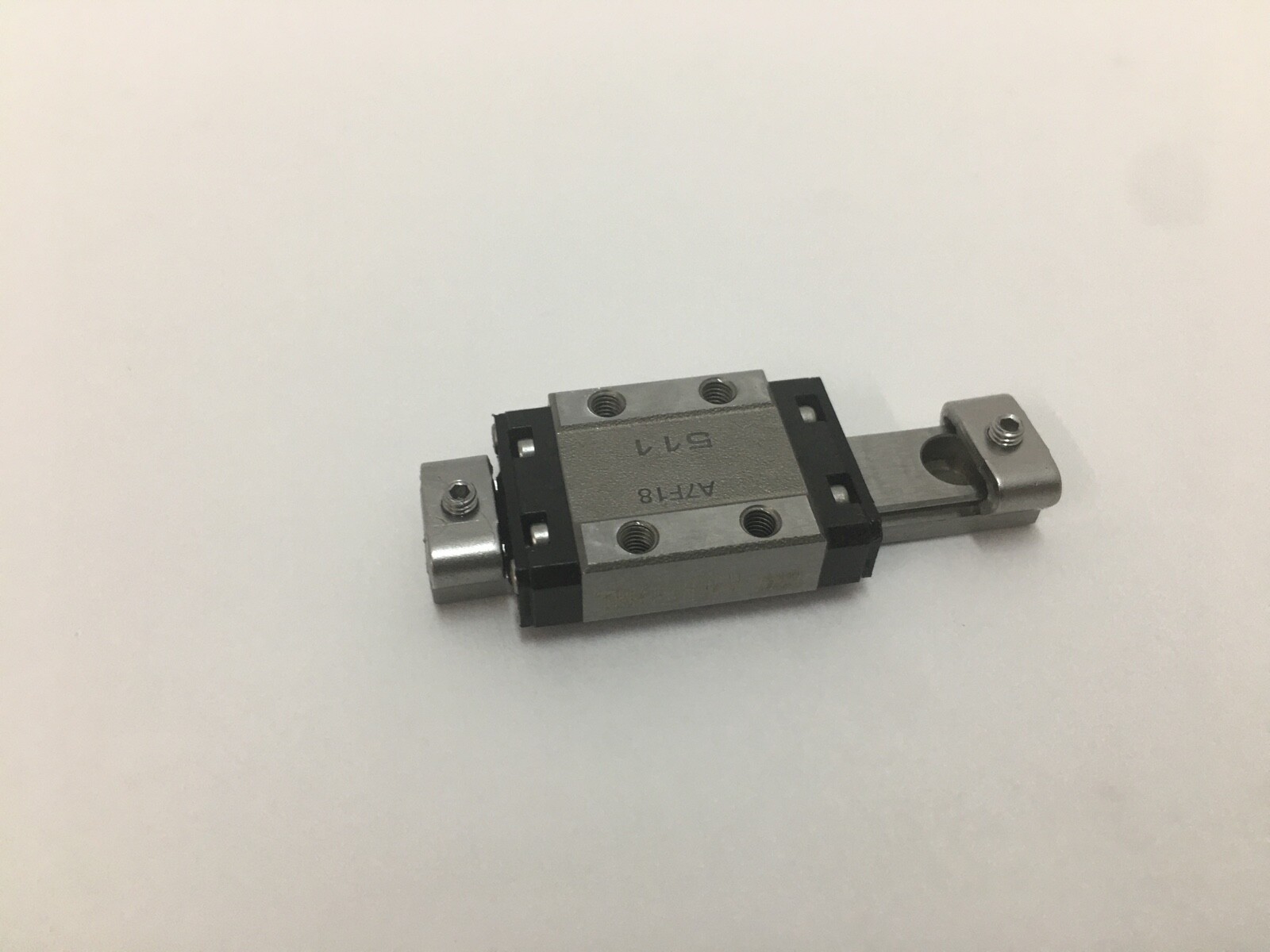

Miniature stainless steel linear guide, 9 mm rail width on a 55 mm rail, wide top-bolted block, UU seals at both ends, two ball rows, four-way equal load.
List Price
$76.42
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | THK |
|---|---|
| MPN | RSH9KMUU + 55LM |
| Model | RSH 9 KMUU + 55LM |
| Type | Linear Bearing |
|---|---|
| Material | Stainless Steel |
| Base Number | RSH9KMUU |
| Industry Terms | Miniature linear guide, LM guide, linear rail and block, miniature LM block, stainless linear rail set |
| Common Misspellings | RSH9KMU, RHS9KMUU, RSH9KUMU, RS H9KMUU |
| Application Types | Compact automation axes, optical and measuring stages, medical and laboratory instruments, semiconductor handling, small pick-and-place |
| Mpn Variants | RSH9KMUU, RSH 9 KMUU, RSH-9-KM-UU, RSH9KM UU 55LM, RSH9KMUU+55L |
| Rolling Elements | Ball |
| Bearing Type | Miniature Linear Motion Guide |
| Number Of Rows | 2 |
| Part Number | RSH9KMUU + 55LM |
THK miniature LM guide, block and rail assembly. Manufacturer: THK. Part Number: RSH9KMUU + 55LM. Size: 9. Rail Width: 9 mm. Rail Length: 55 mm. Block Form: wide block, fixing bolts entering from above. Seal Type: UU, seals fitted at both ends of the block. Material: stainless steel rail, block and balls. Rolling Elements: Ball. Number Of Rows: 2. Raceway Form: Gothic arch. Load Direction: four-way equal load. Design Units: Metric. Unit Quantity: 1 Pc.
9 — size code, rail width 9 mm.
K — block form with fixing bolts entering from above, so the block is bolted down through its own top face.
M — stainless-steel execution.
UU — seals fitted at both ends of the block.
+55LM — LM rail supplied with the block, 55 mm long.
Rail Width: 9 mm. Rail Length: 55 mm. Number Of Rows: 2. Rolling Elements: Ball. Raceway Form: Gothic arch, precision-ground into both rail and block. Load Direction: four-way equal load, so the block carries downward, upward and both lateral loads. Material: stainless steel throughout rail, block and balls. Seal Type: UU, end seals at both ends of the block.
Wide block form with a broader rail and more effective balls, which raises moment rigidity for the same envelope. Fixing bolts enter from above through the block top face. End plates built into the block circulate the balls, so travel is limited only by rail length. Supplied as one block on one 55 mm rail.
Size 9 blocks run on size 9 miniature rail. Rail length is a separate dimension from block size, so a size-9 block transfers onto any size-9 rail of a different length. Searchable variants: RSH9KMUU, RSH9KMUU+55LM, RSH 9 KMUU, RSH-9-KM-UU.
9 mm rail width and 55 mm rail length.
Stainless steel for the rail, block and balls.
UU seals at both ends of the block.
