Availability:
2 in stock
CNC I/O submodule, 64 inputs and 32 outputs, three input connectors, seating on the Sinumerik 810 and 820 rack carrier board in the machine cabinet.
List Price
$458.20
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Siemens |
|---|---|
| MPN | 6FX1124-6AD02 |
| Model | 6FX11246AD02 |
| Base Number | 6FX1124 |
|---|---|
| Industry Terms | I/O module, I/O submodule, 64I/32O module, Sinumerik I/O card, PLC assembly module, Ein-/Ausgabebaugruppe |
| Common Misspellings | 6FX1124 6AD02, 6FX-1124-6AD02, 6FX11246ADO2, Siemsns 6FX1124-6AD02, Sinumeric 810, Sinumerix 820 |
| Application Types | CNC machine tools, machining centres, lathes and grinders running Sinumerik 3, 810 or 820 controls |
| Connector Style | Three input connectors |
| Controller Platform | Siemens Sinumerik 3, 810, 820 |
| Mpn Variants | 6FX11246AD02, 6FX1 124-6AD02, 6FX1124 6AD02 |
| Manufacturer Status | Discontinued |
| Additional Attributes | Inputs: 64, Outputs: 32, Input Connectors: 3, Product Type: I/O submodule, Mounting: Seats on 6FC3984-3RA rack carrier module |
| Series | Sinumerik 3 / 810 / 820 6FX1124 I/O |
| Part Number | 6FX1124-6AD02 |
| Mounting Type | Submodule on 6FC3984-3RA rack carrier |
| Cross Reference 1 | 6FC3984-3RA rack carrier module this submodule seats on |
|---|

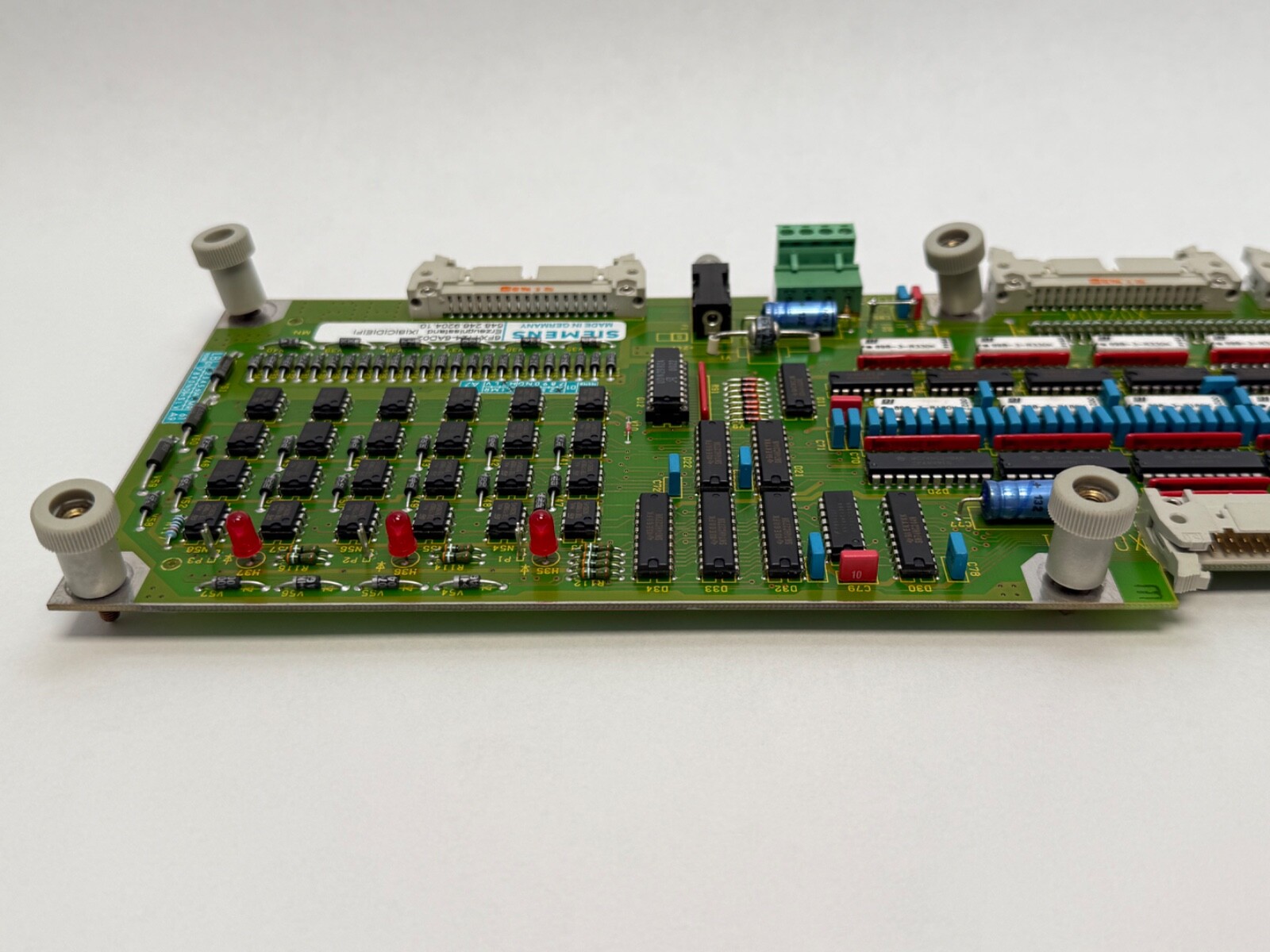

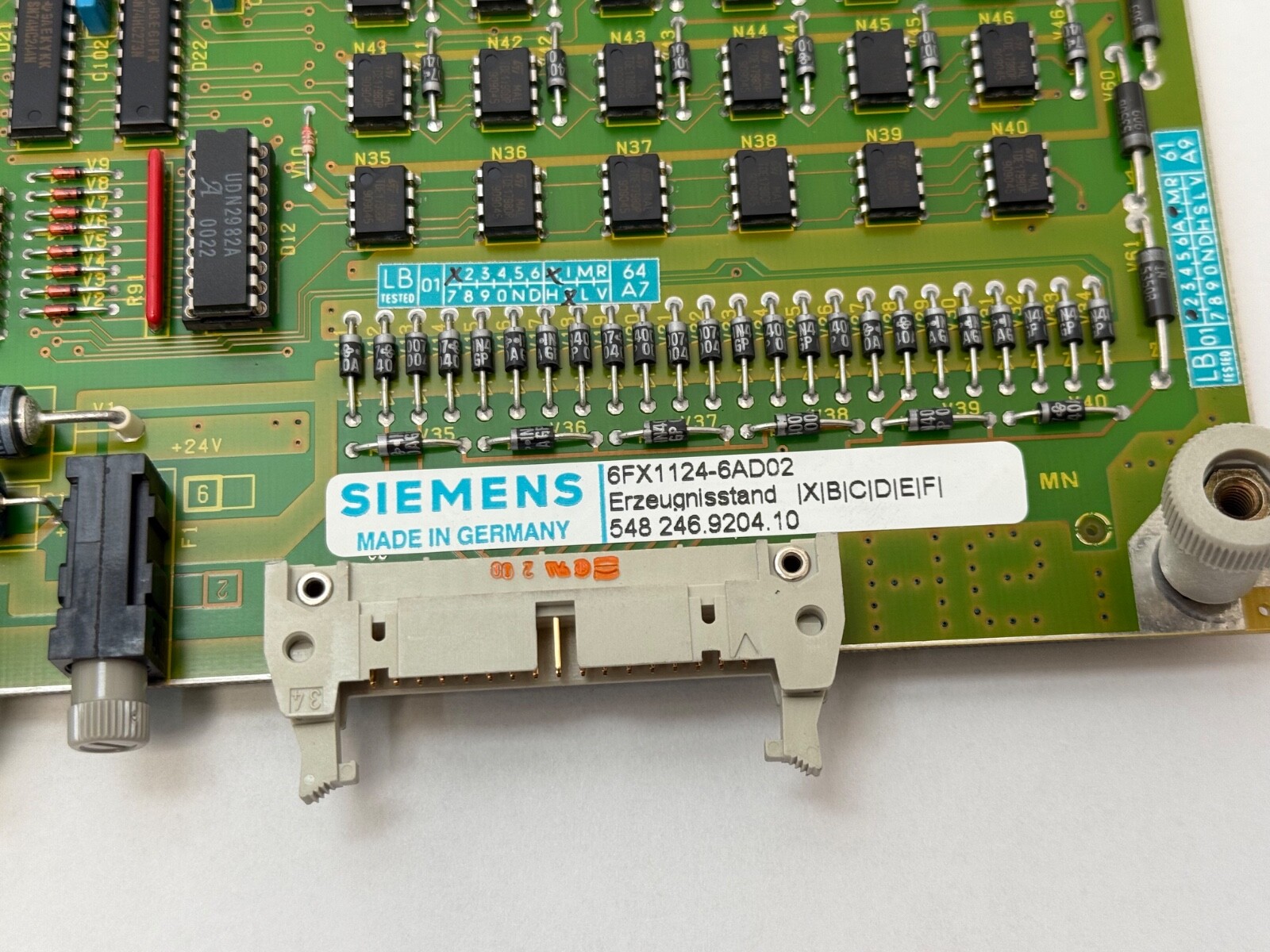

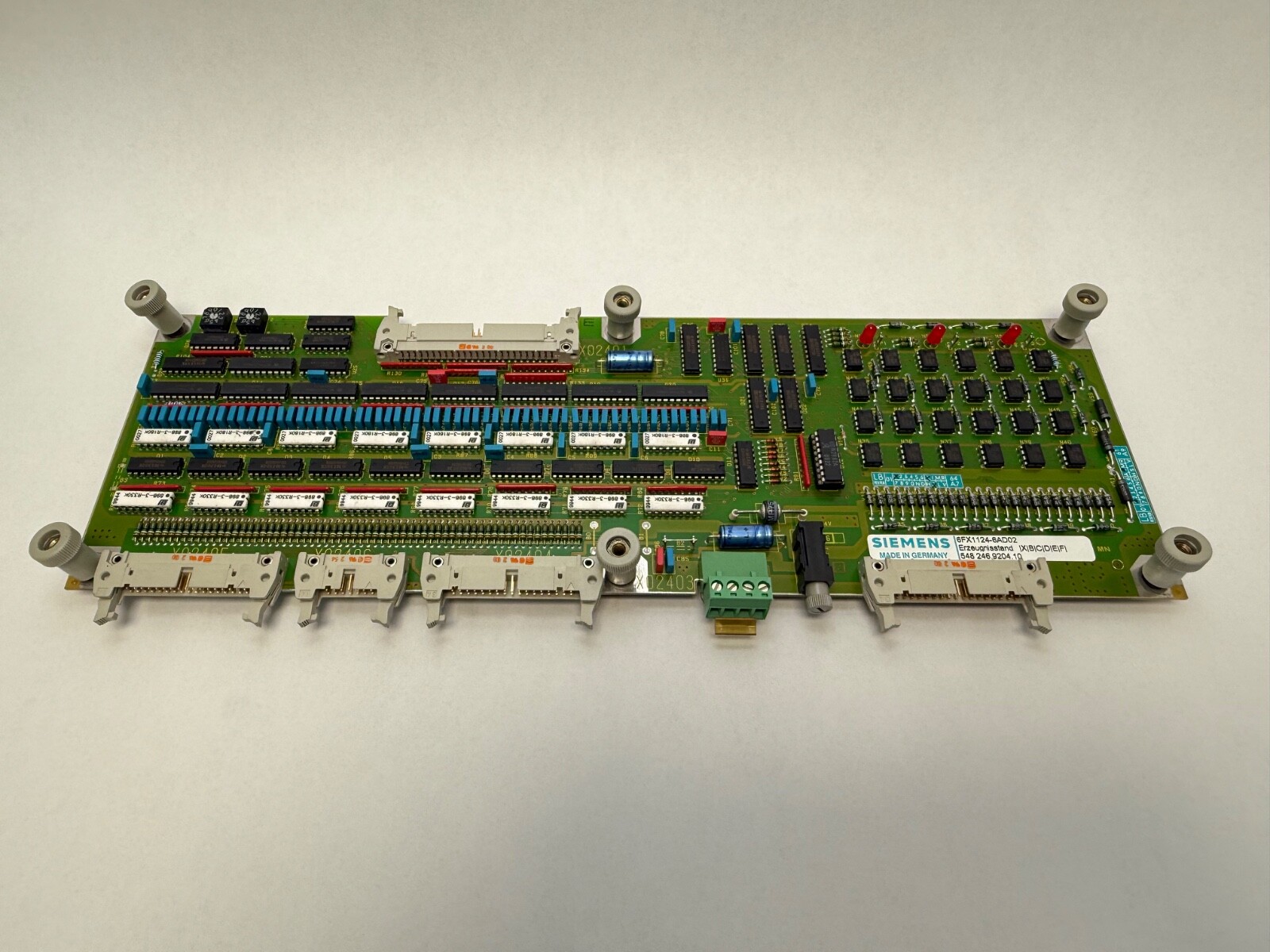

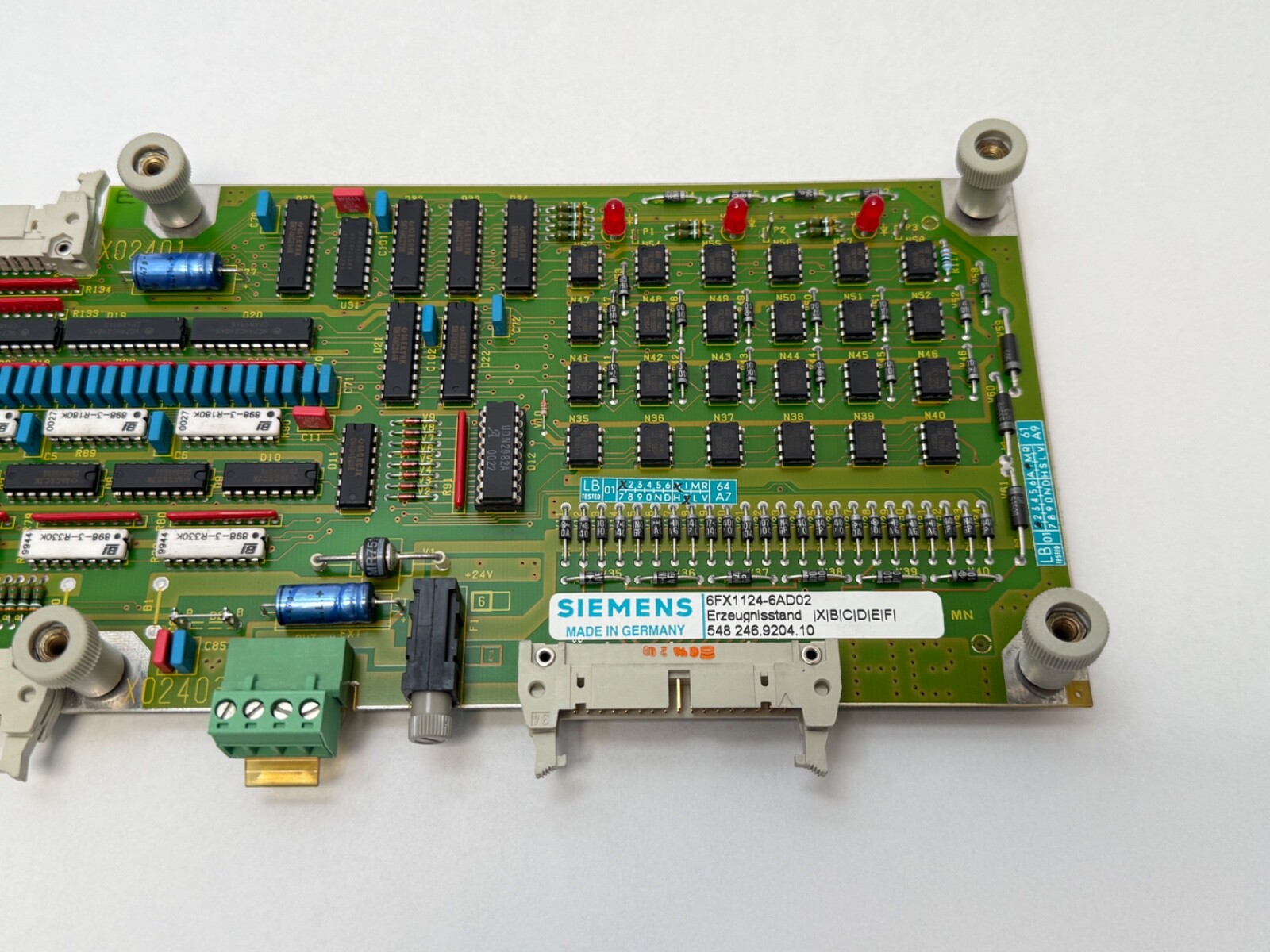

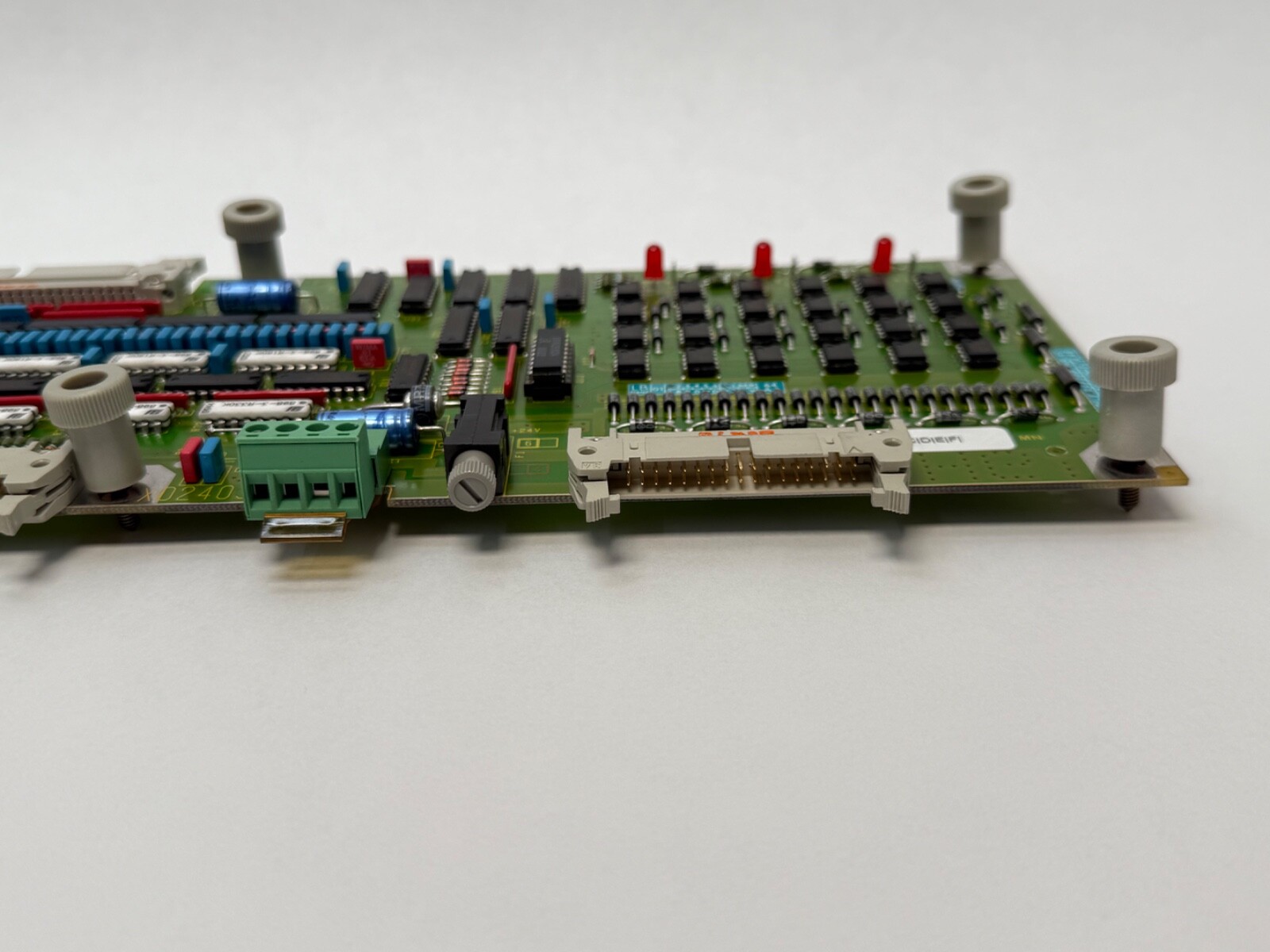

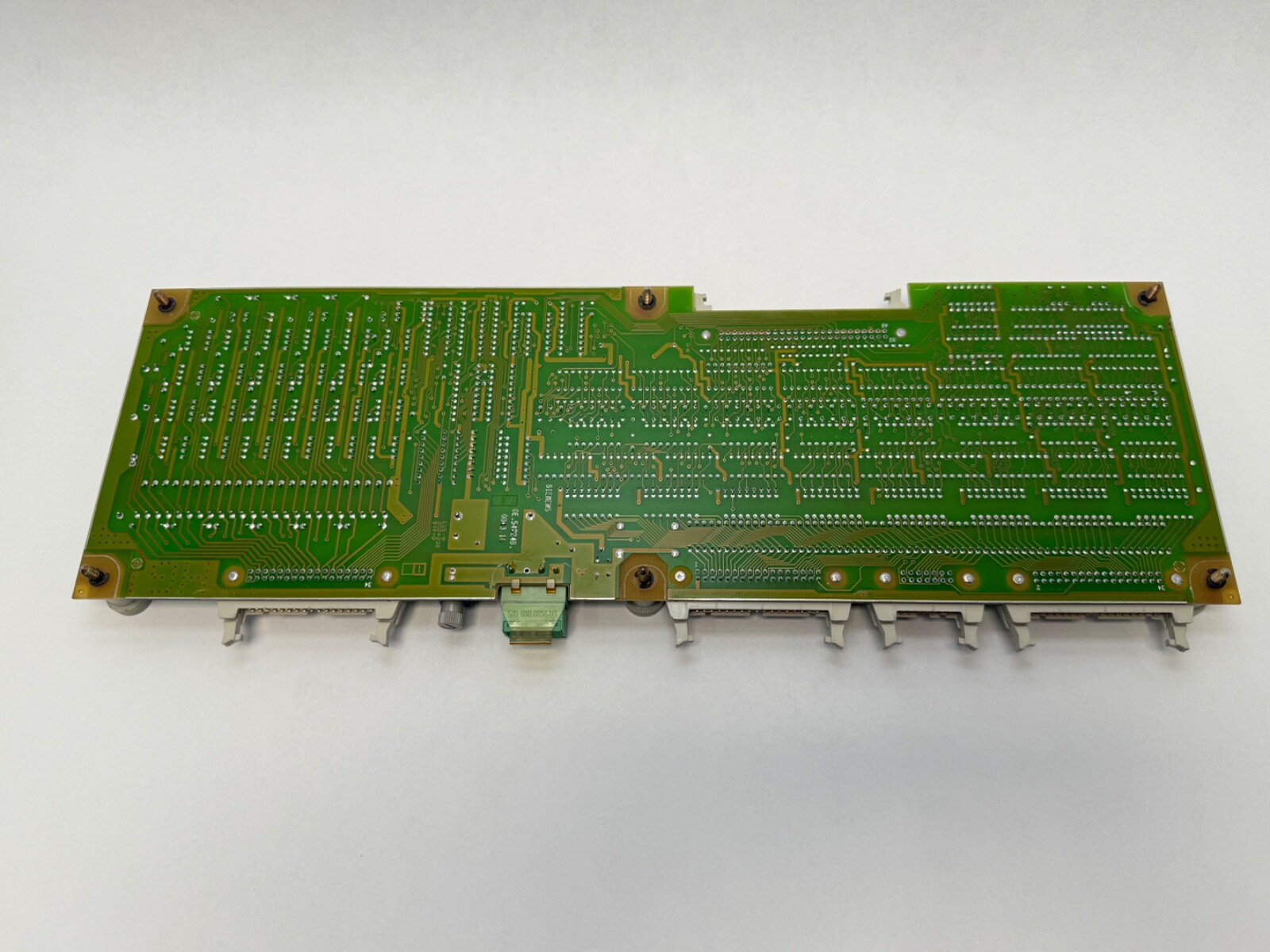

Siemens 6FX1124-6AD02 input/output submodule for Sinumerik CNC controls. Manufacturer: Siemens. Part Number: 6FX1124-6AD02. Product Type: I/O submodule (printed circuit board). Inputs: 64. Outputs: 32. Connector Style: three input connectors. Controller Platform: Sinumerik 3, Sinumerik 810 and Sinumerik 820. Mounting Type: seats on the 6FC3984-3RA rack carrier module in the machine electrical cabinet. Manufacturer Status: discontinued.
6FX — the Siemens order-number group for Sinumerik CNC control electronics and machine-tool interface hardware.
1124 — the I/O submodule family within that group.
6AD02 — the execution code fixing this card as the 64-input, 32-output version.
Inputs: 64. Outputs: 32. One submodule carries 96 machine-side points, so a full block of limit switches, proximity sensors, pushbuttons, solenoid valves and contactor coils is handled by a single card rather than by several.

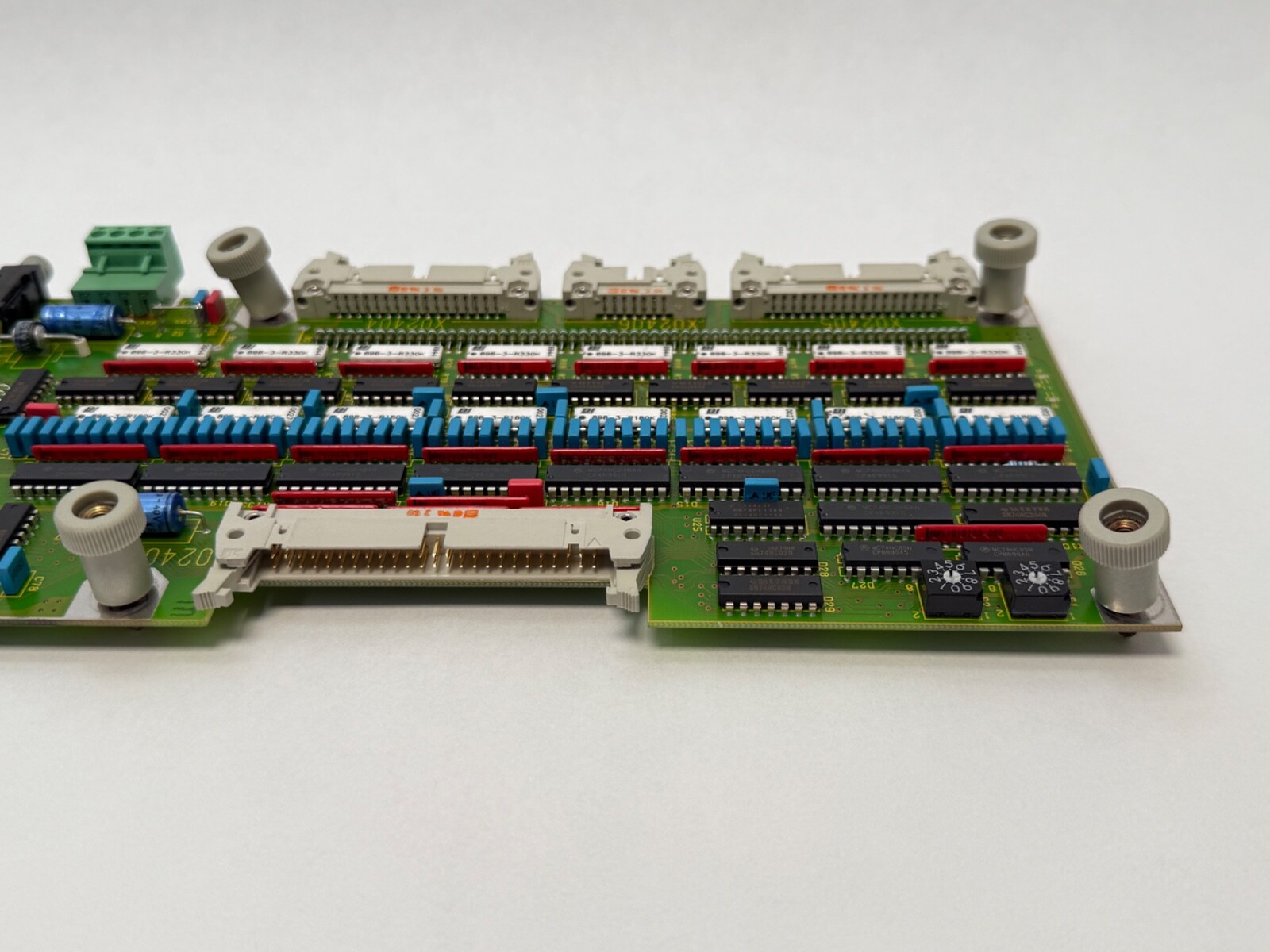

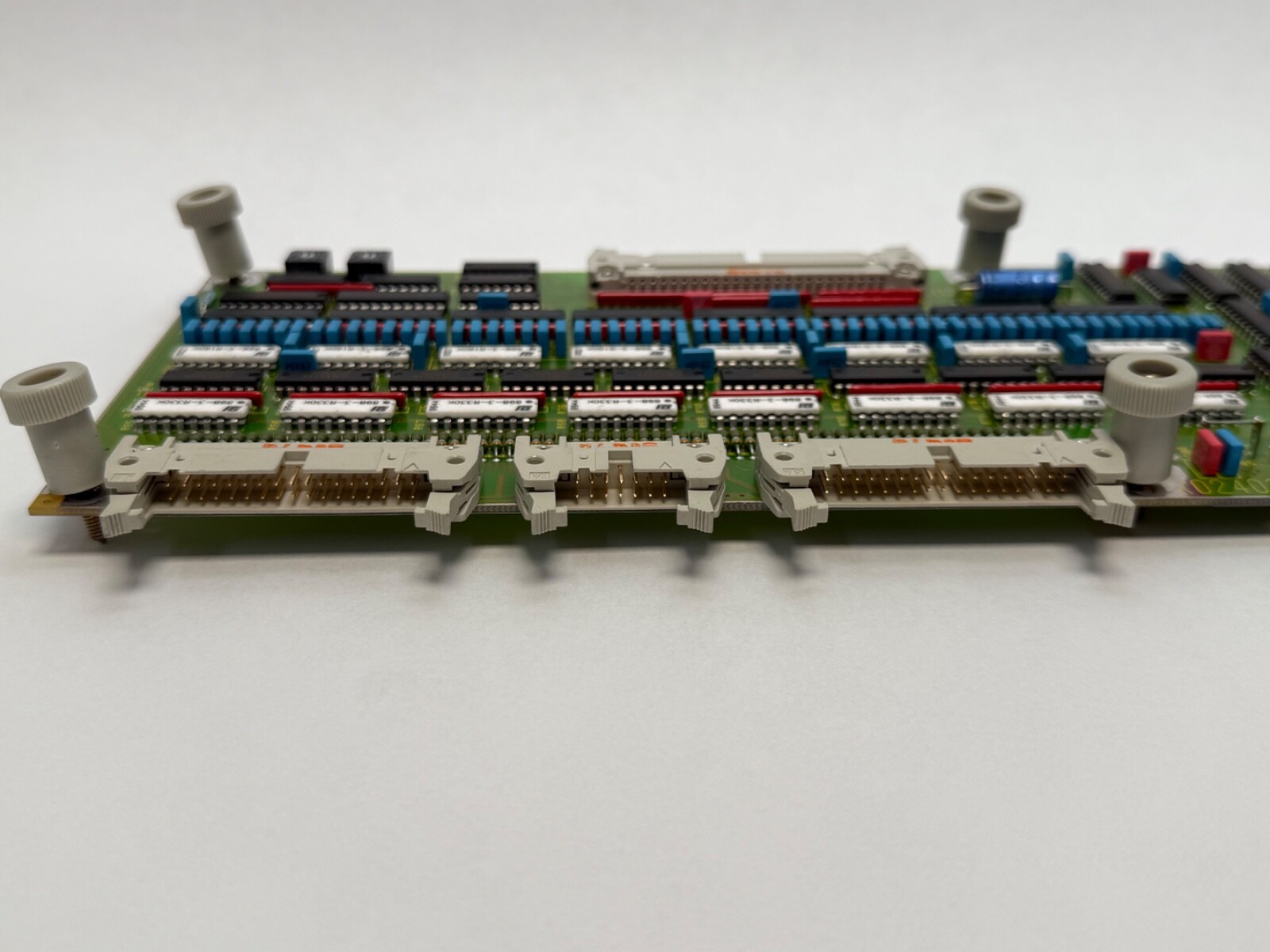

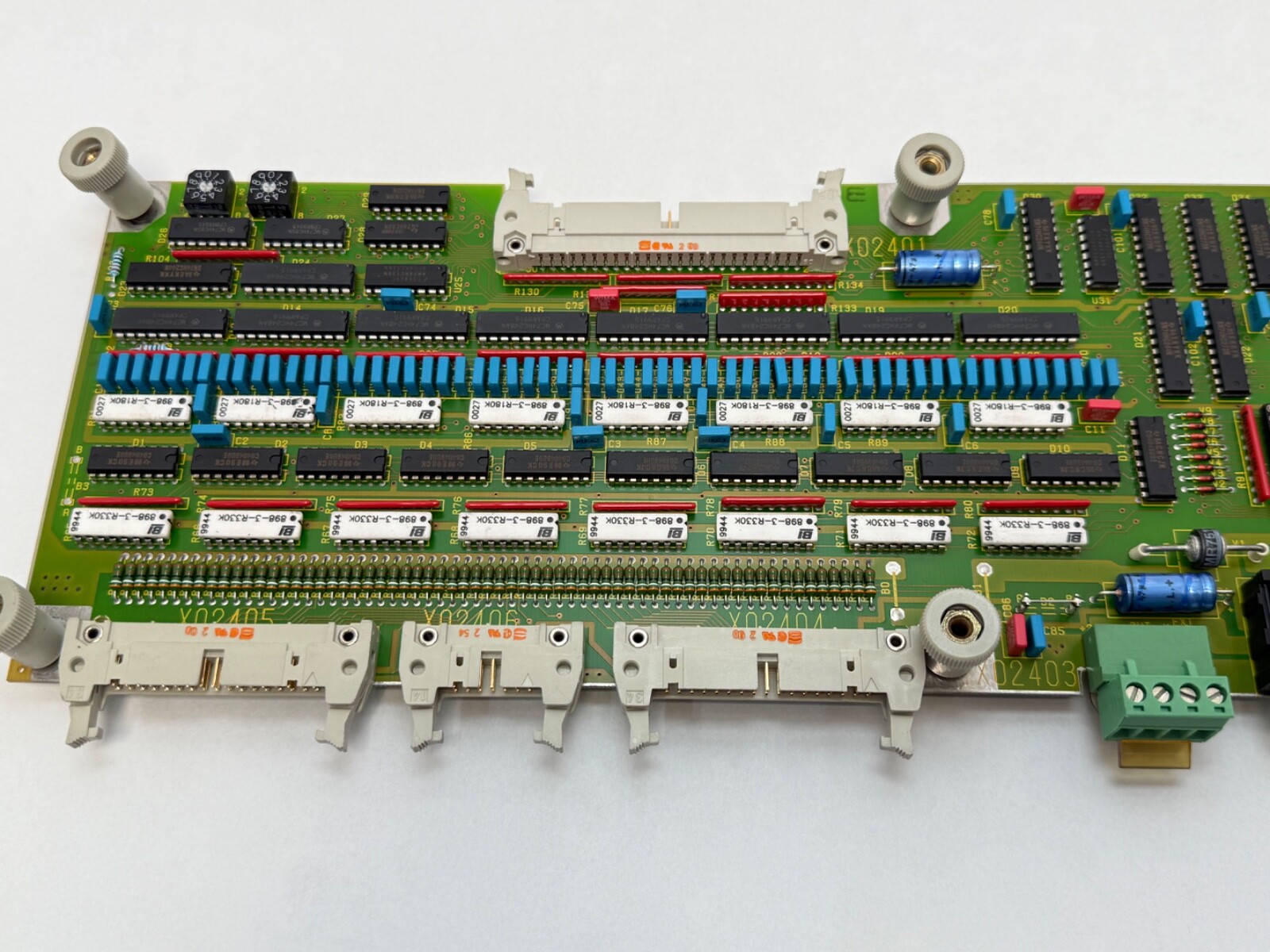

Connector Style: three input connectors. The input field wiring is split across three plugs, which keeps each loom to a manageable core count and lets one section of the machine be unplugged on its own.
Controller Platform: Sinumerik 3, 810 and 820. One card covers three control generations, which widens the machine population a single spare protects.
Mounting Type: carrier-mounted submodule. The card is not a free-standing rack board — it seats on the 6FC3984-3RA carrier module that sits in the machine electrical cabinet, and the carrier makes the bus connection back to the control.
Mounting Type: submodule on the Siemens 6FC3984-3RA rack module, machine electrical cabinet.

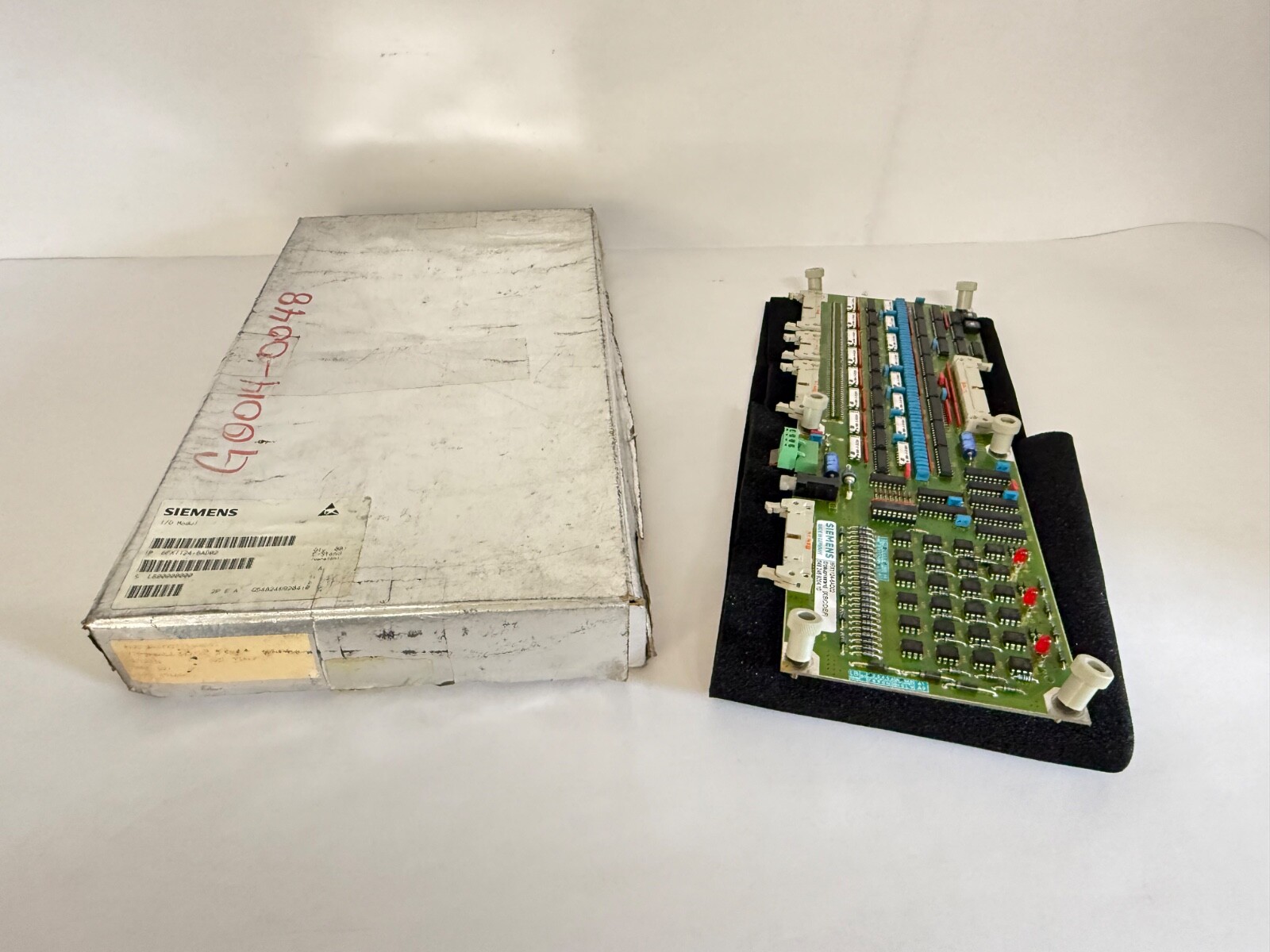

Unit Quantity: 1 Pc. The listing is for one bare submodule.
MPN Variants: 6FX1124-6AD02, 6FX11246AD02, 6FX1 124-6AD02, 6FX1124 6AD02.
Related Part: 6FC3984-3RA, the rack carrier module this submodule seats on.
Within the 6FX1124 family the trailing execution code carries the point count and the connector arrangement, so match on the full order number rather than on the base.
