Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Class 3 tapered roller bearing cone, 1.6250 in (41.275 mm) bore, 1.1142 in cone width, 119,000 N C1 dynamic rating. Mates with Timken 53375 or 53377 cups.
List Price
$40.64
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 53162-3 |
| Model | 53162 #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 1.6250 in (41.275 mm) |
| Series | 53000 |
|---|---|
| Base Number | 53162 |
| Industry Terms | tapered roller bearing cone, TRB cone, cone assembly, inner ring and roller assembly |
| Mpn Variants | 53162-3, 53162 *3, 53162 #3, 531623 |
| Precision Class | Class 3 |
| Dynamic Axial Rating Ca90 | 39,000 N |
| K Factor | 0.79 |
| Dynamic Load Rating | 119,000 N (C1, 1 million revolutions) |
| Static Load Rating | 104,000 N |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Design Units | Inch |
| Bearing Class | Class 3 |
| Cone Part Number | 53162 |
| Cone Width | 1.1142 in (28.301 mm) |
| Effective Center Location | -0.01 in (-0.3 mm) |
| Common Misspellings | Timken 53162 3; Timken 531623; Timkin 53162-3; Timken 53162 #3 |
| Application Types | Tapered roller bearing assemblies; industrial machinery shafts; gearboxes; wheel hubs |
| Cross Reference 1 | Timken 53162 - standard precision, not Class 3 |
|---|

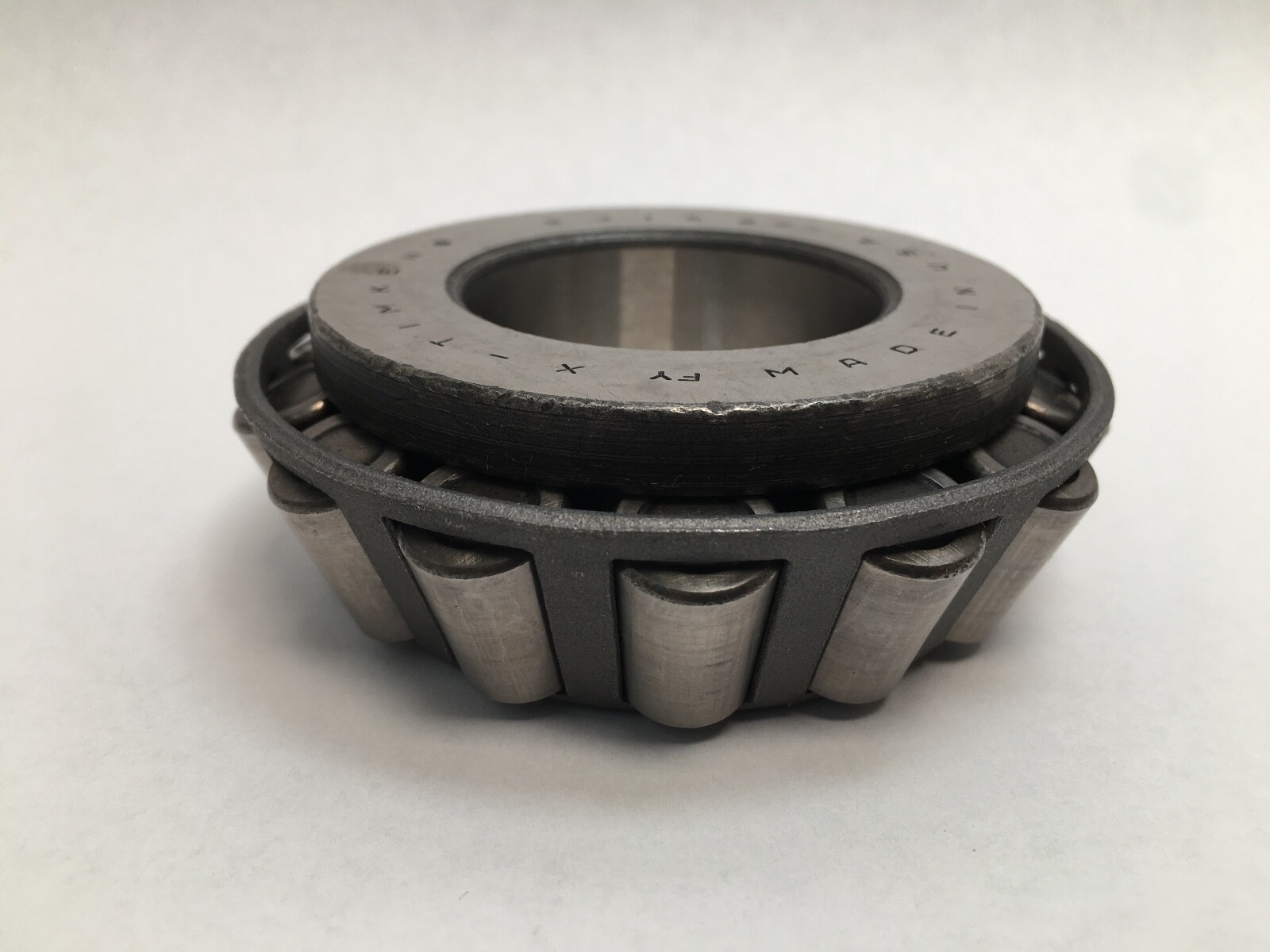

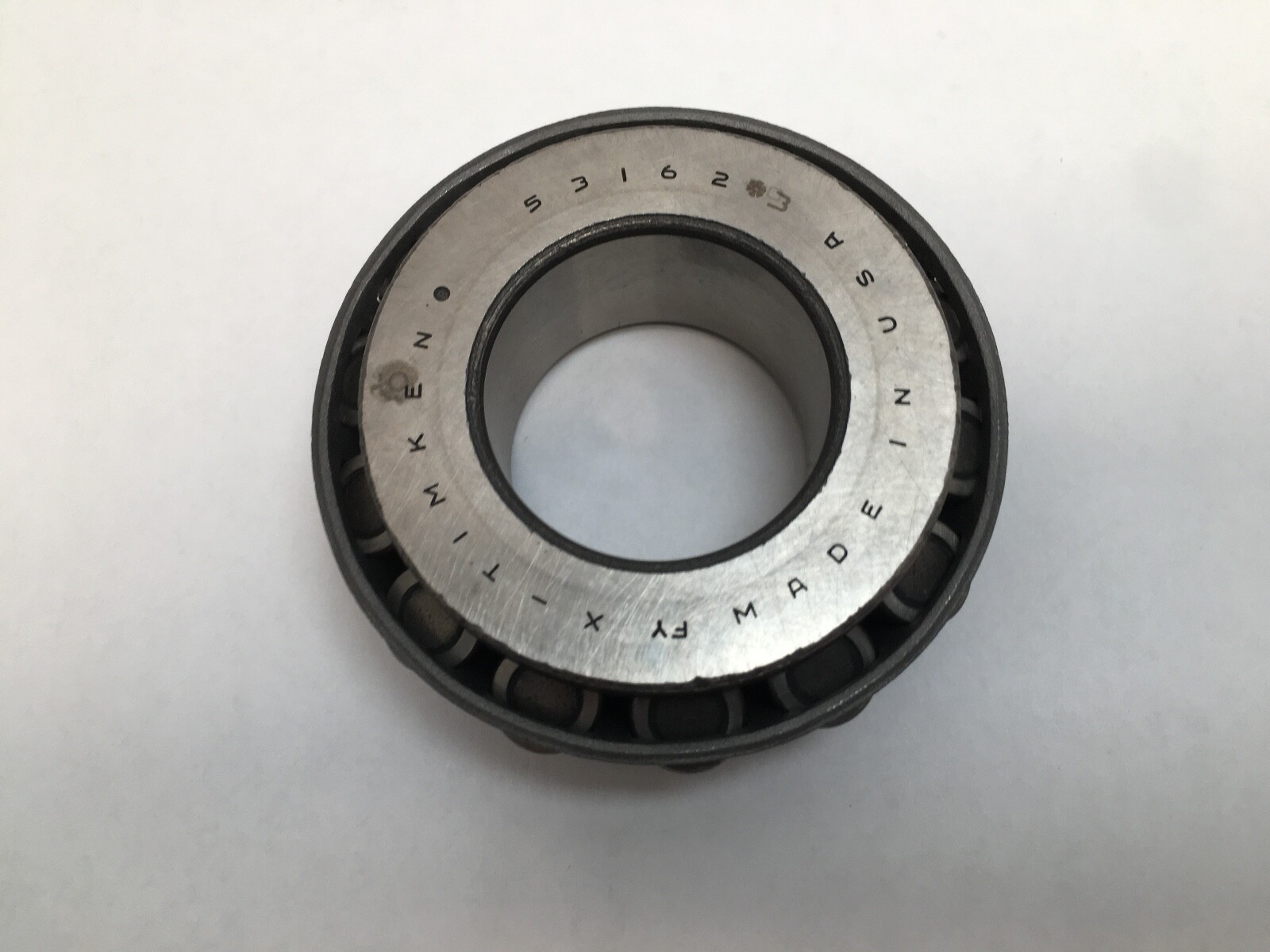

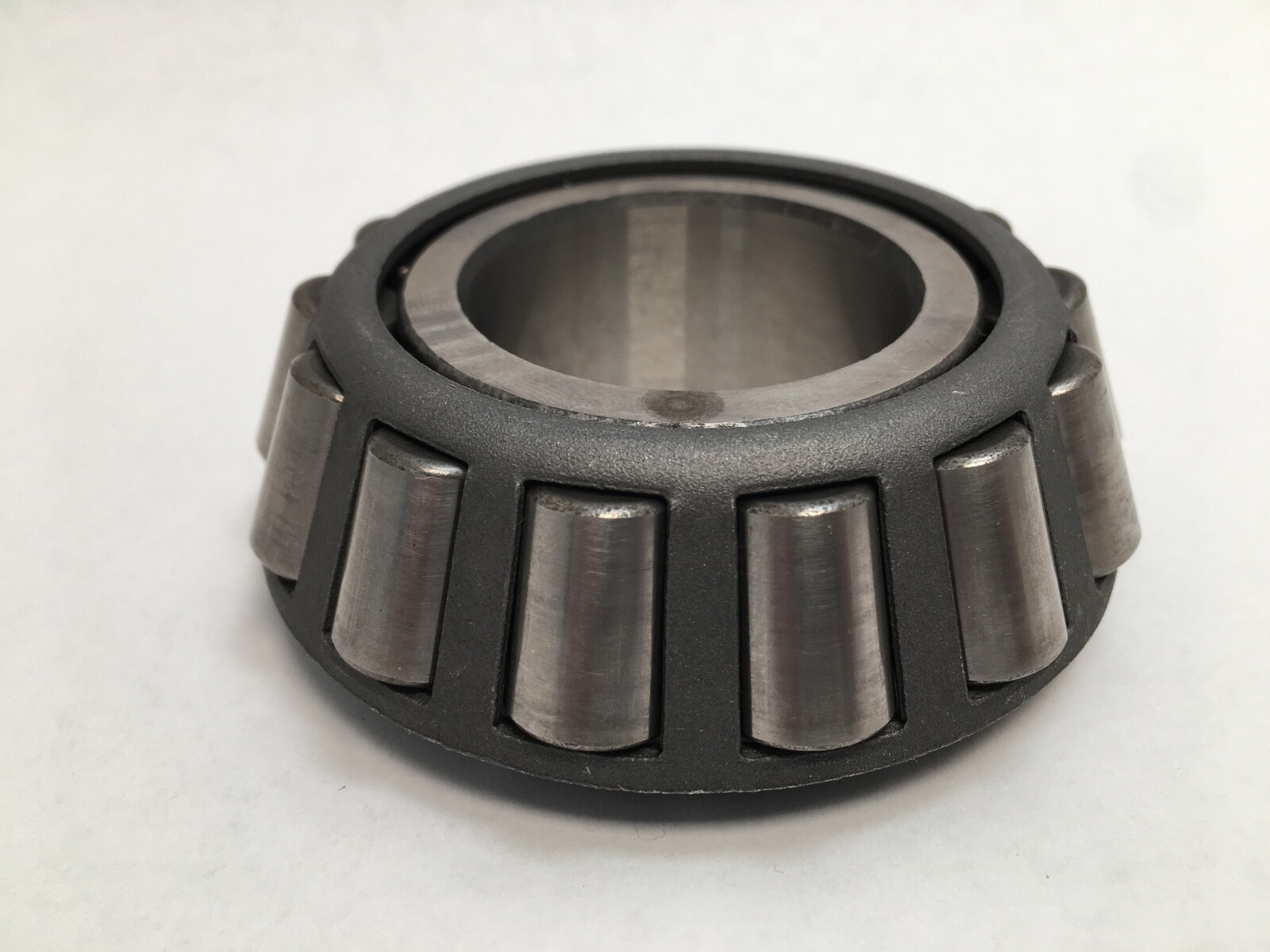

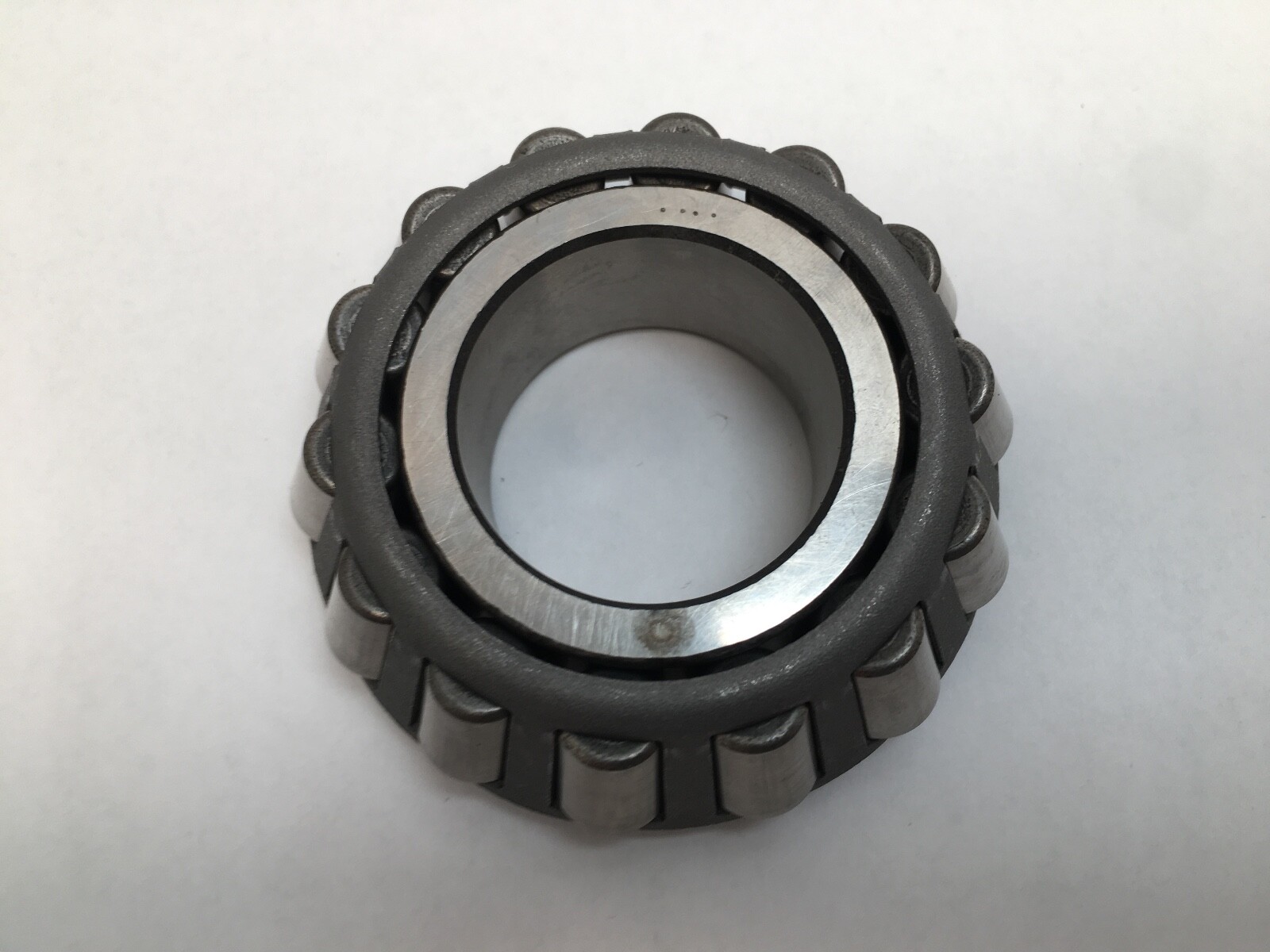

Timken 53162-3 is a single tapered roller bearing cone: the inner ring with its tapered rollers and cage. Cone only. Matching Cup: Timken 53375 or 53377. Bore Diameter: 1.6250 in (41.275 mm). Cone Width: 1.1142 in (28.301 mm). Precision Class: Class 3. Unit Quantity: 1 Pc.
53162 — Timken inch cone number in the 53000 series, 1-5/8 in bore.
-3 — Timken Class 3 precision: tighter tolerance and lower running vibration.
Dynamic Load Rating: 119,000 N (C1, 1 million revolutions). Dynamic Load Rating (C90): 30,800 N (90 million revolutions). Dynamic Axial Rating (Ca90): 39,000 N. Static Load Rating: 104,000 N. K Factor: 0.79. G1 Factor: 26.7. G2 Factor: 9.6. Geometry Factor (Cg): 0.093. Rolling Elements: Tapered Roller. Number Of Rows: 1. Design Units: Inch.
Bore Diameter: 1.6250 in (41.275 mm). Cone Width: 1.1142 in (28.301 mm). Effective Center Location: -0.01 in (-0.3 mm). Max Shaft Fillet Radius: 0.060 in (1.5 mm). Shaft Backing Shoulder Diameter Frontface: 2.07 in (52.7 mm). Shaft Backing Shoulder Diameter Backface: 2.24 in (57 mm). Cage Location Relative To Backface: 0.19 in (4.8 mm). Cage Location Relative To Frontface: 0.12 in (3 mm).
Matching Cup: Timken 53375 or 53377. Assembly Designation: Timken 53162/53375, a single-row TS bearing with Assembly Outside Diameter: 3.7500 in (95.250 mm) and Assembly Width: 1.2188 in (30.958 mm). Cross-reference: Timken 53162 (standard precision, not Class 3).
Matching Cup: Timken 53375 or 53377.
Timken Class 3 precision: tighter tolerance and lower running vibration.
Bore Diameter: 1.6250 in (41.275 mm). Cone Width: 1.1142 in (28.301 mm).
$144.56
12 in stock
