Inch tapered roller bearing cone, 1.7500 in bore, 1.2500 in inner ring width, K factor 1.46, Class 3 precision, mates with 49520 and 49521 cups.
List Price
$61.80
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| Model | 49576 #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 1.7500 in |
| Width | 1.2500 in |
| Condition | New – Open box |
|---|---|
| Series | 49500 |
| Base Number | 49576 |
| Condition Note | Made In USA, Class 3 Precision, New Old Stock |
| Overall Width | 1.2500 in |
| Mpn Variants | 49576, 49576-3, 49576 *3, 49576#3, 49576*3, 49576 3 |
| Compatible With Replaces | Mating cups Timken 49520, Timken 49521, Timken 49520-B (flanged) |
| Precision Class | Class 3 |
| Dynamic Load Rating | 157,000 N |
| Static Load Rating | 155,000 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.30 kg (2.90 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Bearing Material | Steel |
| Cone Part Number | 49576 |
| Cross Reference 1 | SKF 49576 |
|---|---|
| Cross Reference 2 | FAG K-49576 |
| Cross Reference 3 | NSK 49576 |
| Cross Reference 4 | NTN 4T-49576 |
| Cross Reference 5 | Koyo 49576 |
| Cross Reference 6 | Fersa 49576 |
| Cross Reference 7 | BCA/Bower 49576 |
| Cross Reference 8 | PEER 49576 |

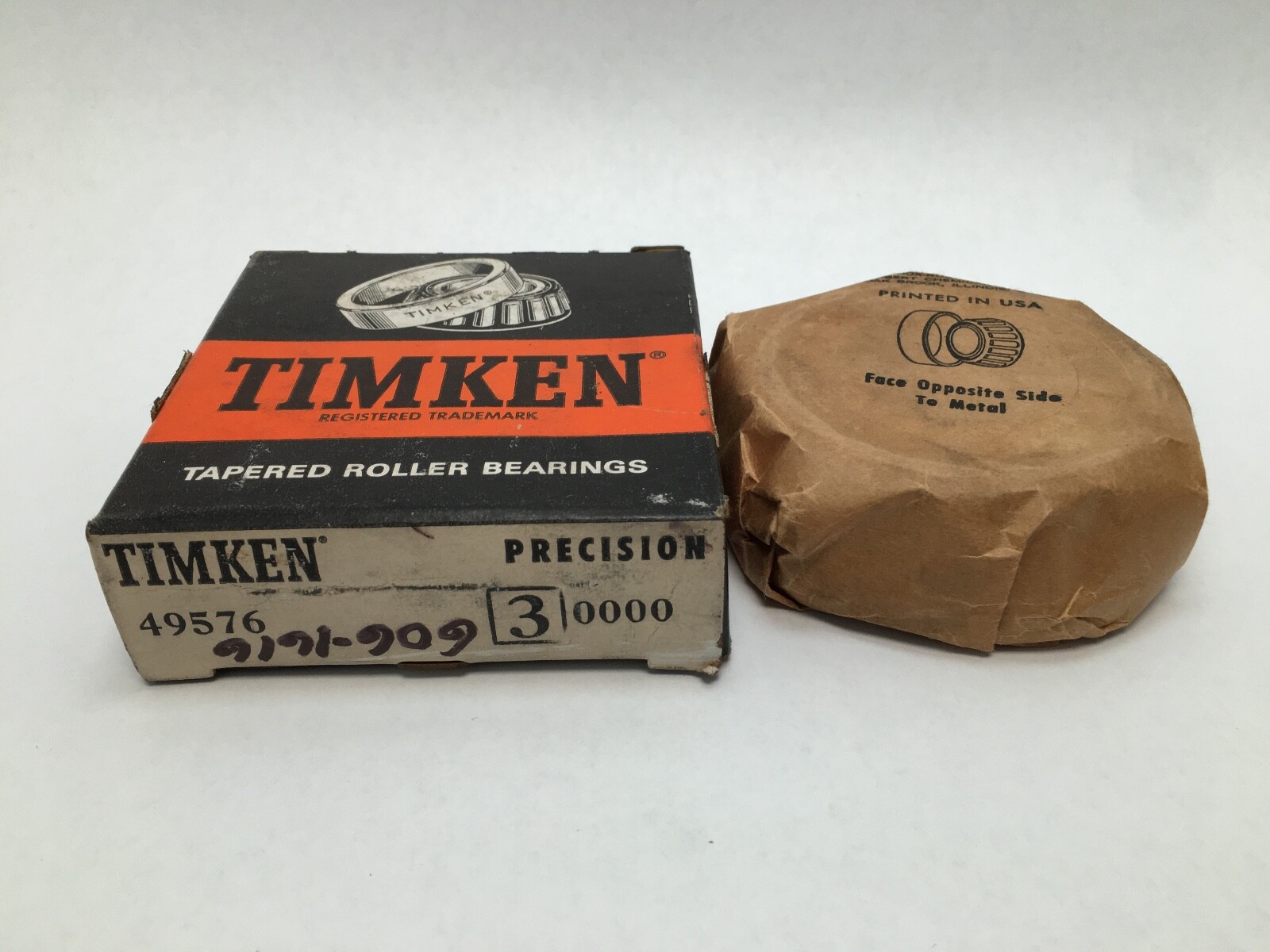

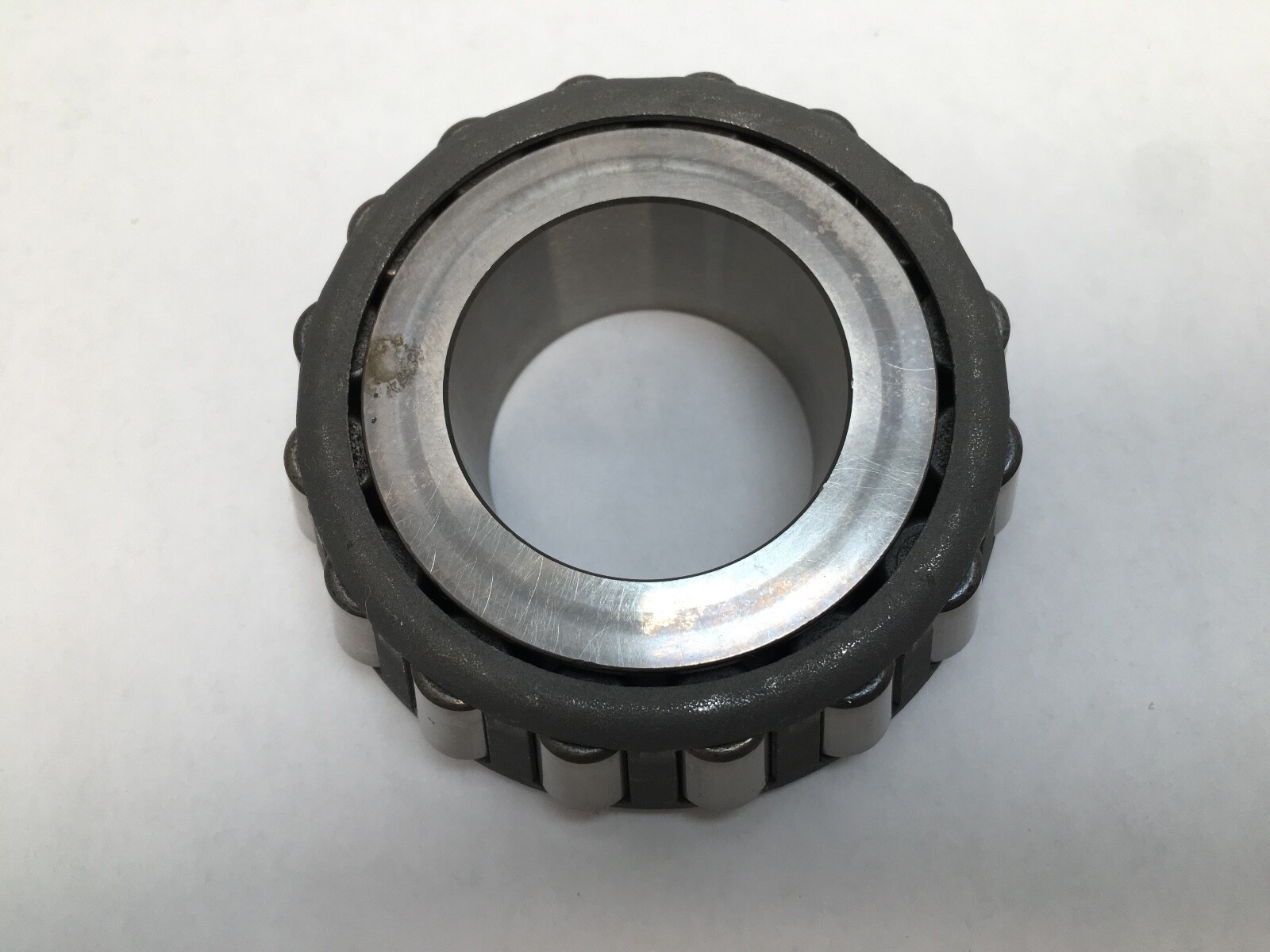

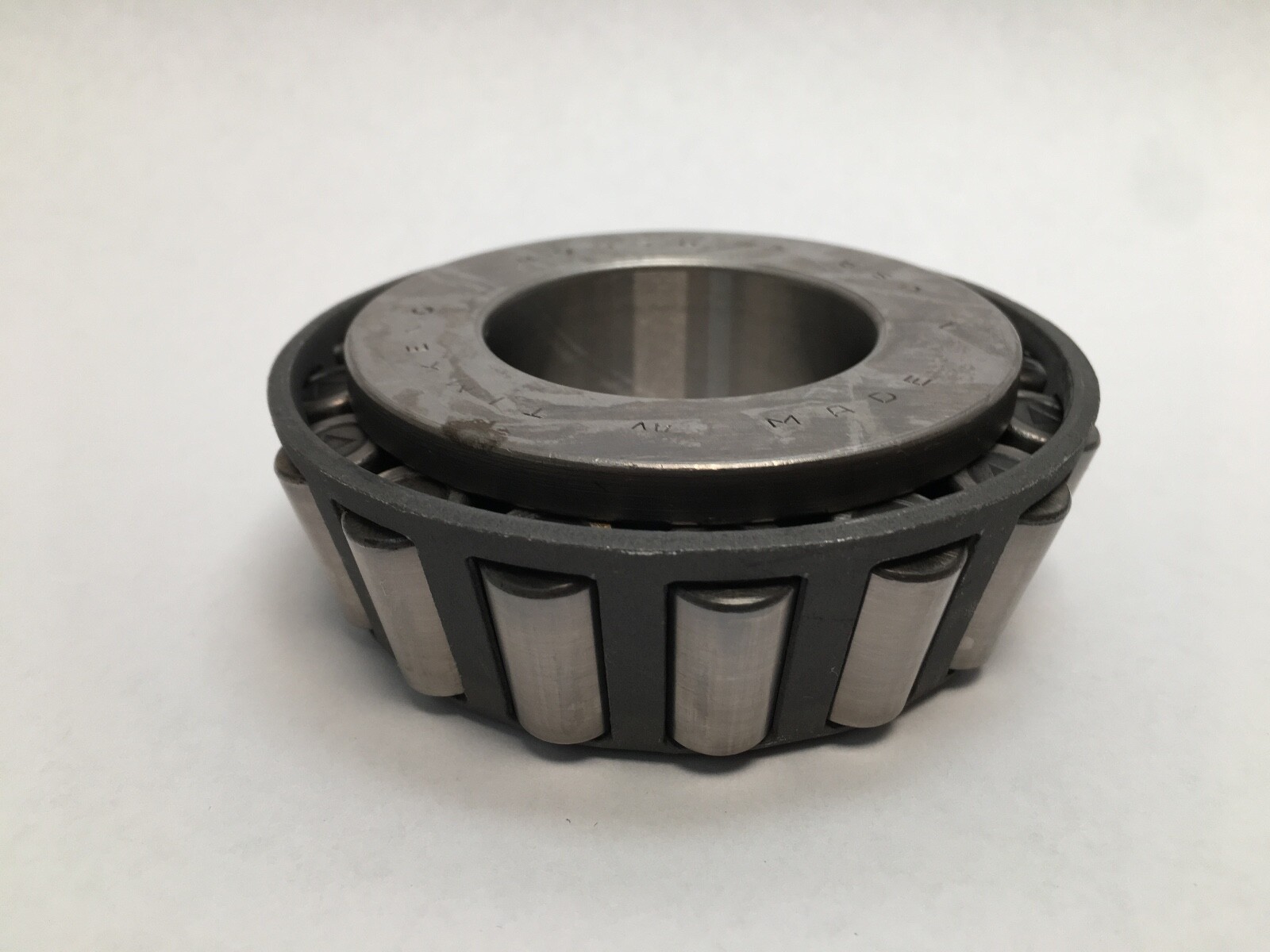

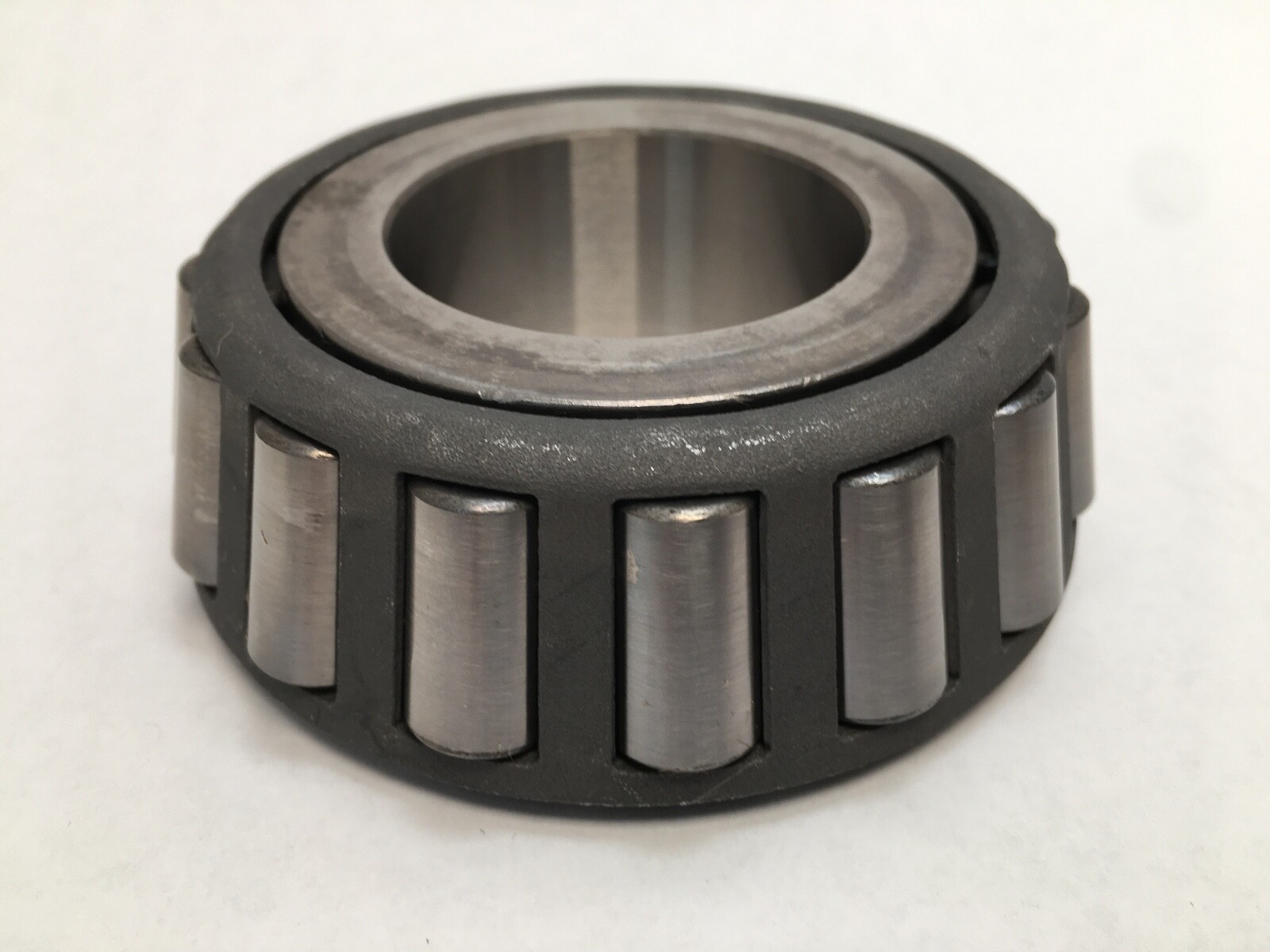

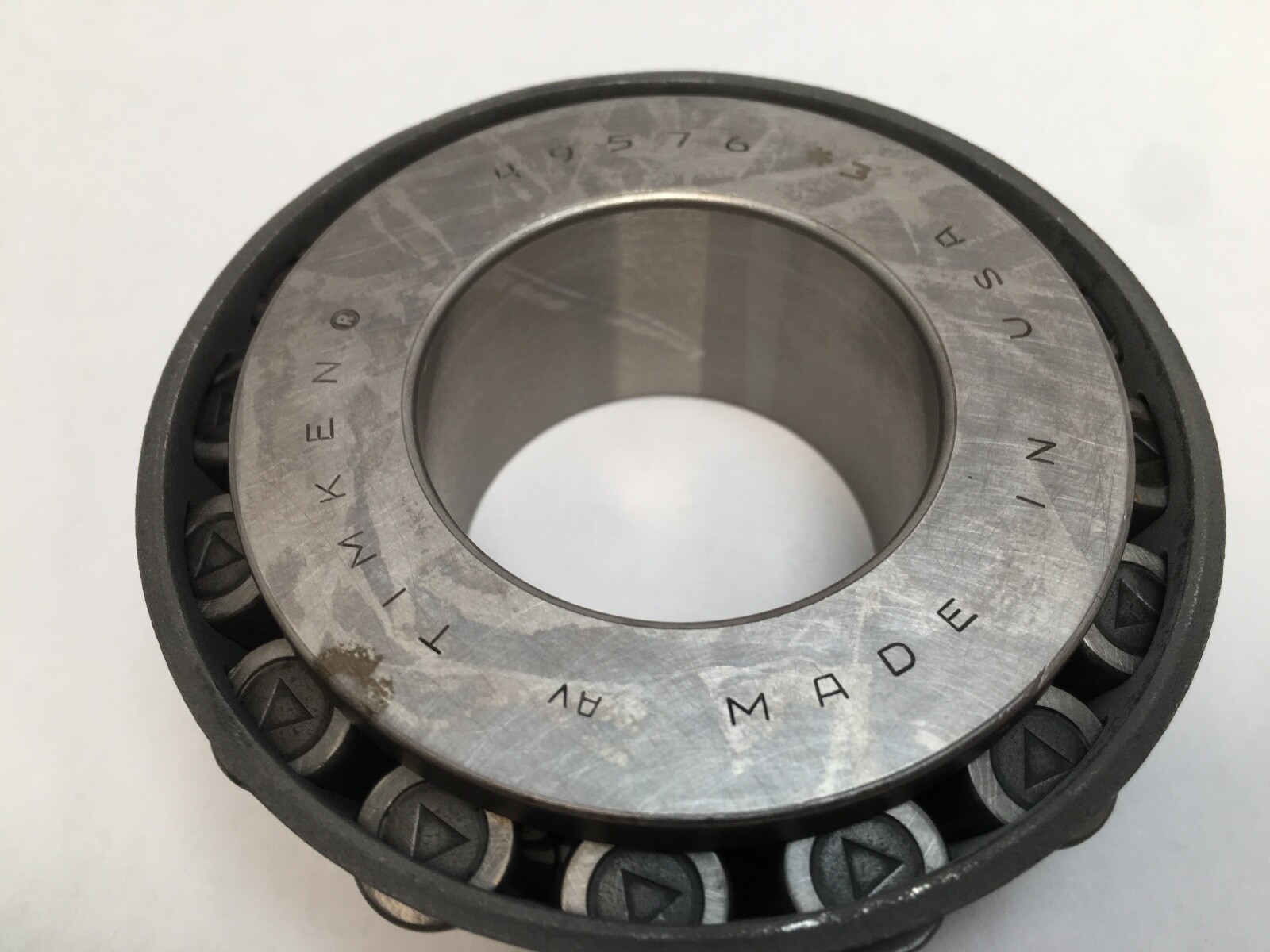

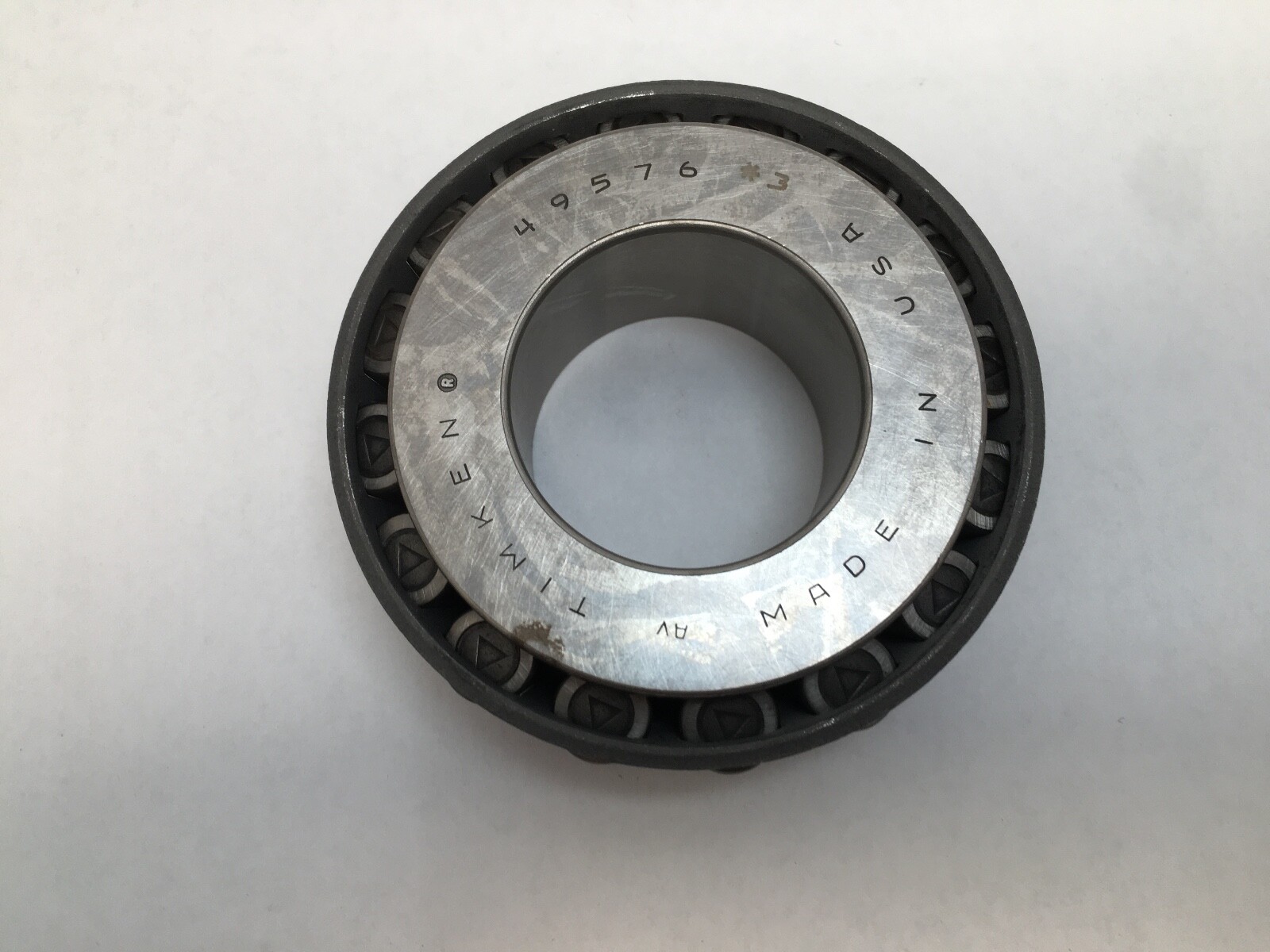

Timken 49576 *3 inch tapered roller bearing cone, the inner ring carrying its tapered rollers and cage. Bore Diameter: 1.7500 in (44.450 mm). Overall Width: 1.2500 in (31.750 mm). Series: 49500. Base Number: 49576. Number Of Rows: 1. Rolling Elements: Tapered Roller. Bore Type: Straight. Bearing Material: Steel. Precision Class: Class 3. Item Weight: 1.30 kg (2.90 lb).
49576 — the cone base number in the Timken 49500 inch tapered series, fixing the bore, the roller path and the cup pairing.

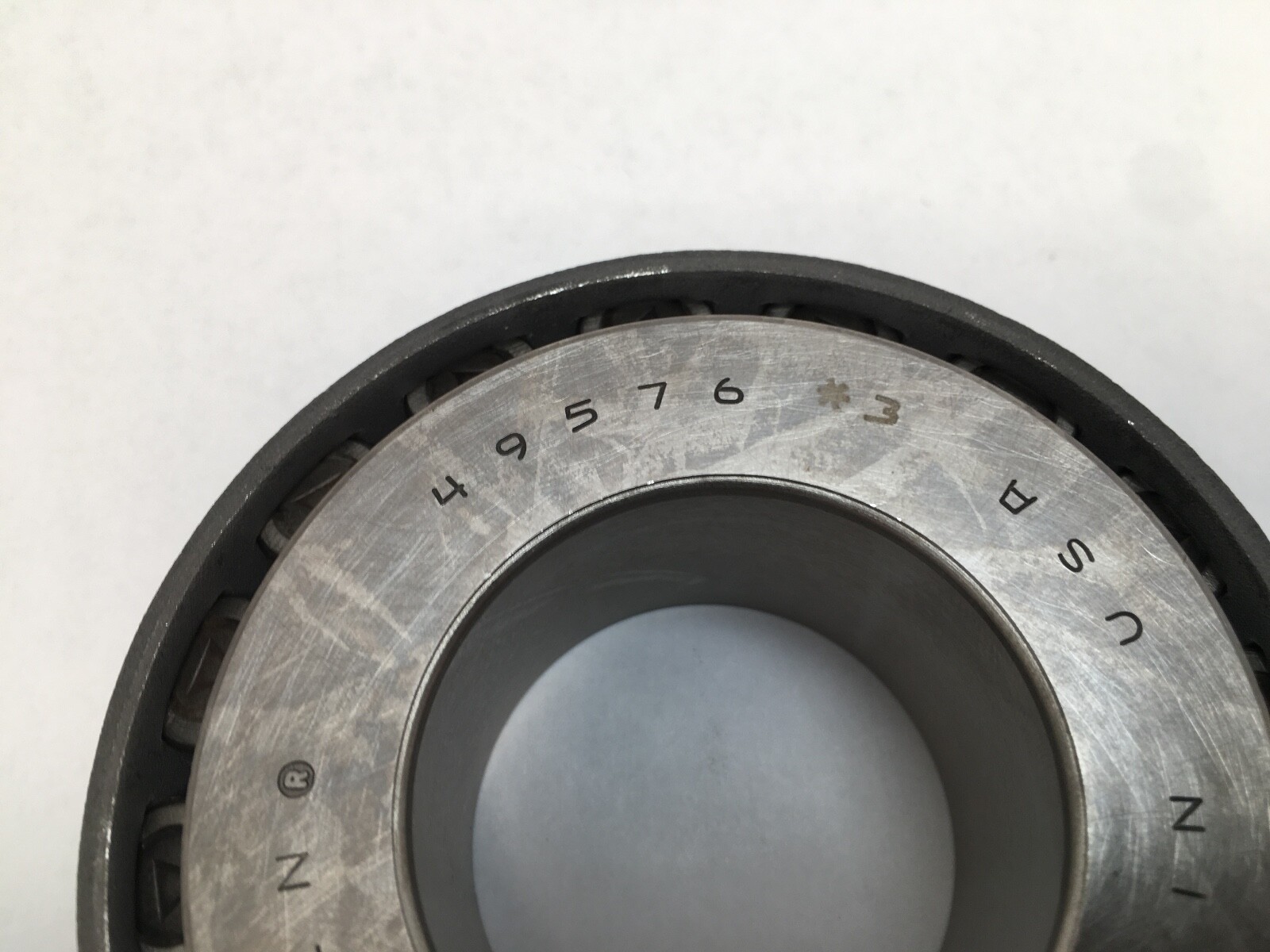

*3 — precision Class 3, written interchangeably as *3, -3 or #3. Class 3 holds tighter bore and running tolerances than standard, giving lower running vibration and closer shaft location.
Dynamic Load Rating: 157,000 N (35,400 lbf) at 1 million revolutions. Static Load Rating: 155,000 N (35,000 lbf). Dynamic Radial Load Rating C90: 40,800 N (9,170 lbf). Dynamic Axial Rating Ca90: 28,000 N (6,290 lbf). K Factor: 1.46. Geometry Factor Cg: 0.0946. G1 Factor: 49.1. G2 Factor: 14.2. A K factor of 1.46 puts this cone in the steeper half of the inch range, so the thrust share it carries alongside a radial load is substantial, and the axial rating of 28,000 N reflects that.
Effective Center Location: -0.28 in (-7.1 mm), inside the cone backface. Max Shaft Fillet Radius: 0.030 in (0.8 mm) on the mating shaft. Shaft Backing Shoulder Diameter Frontface da: 2.13 in (54 mm). Shaft Backing Shoulder Diameter Backface db: 2.17 in (55 mm). Cage Location Relative To Backface Aa: 0.07 in (1.8 mm). Cage Location Relative To Frontface Ab: 0.09 in (2.3 mm).
Unit Quantity: 1 Pc. Cone only. The matching cups are the Timken 49520 and 49521, and the flanged 49520-B seats in a through-bored housing.
The 49576 cone number is also listed by SKF, FAG, NSK, NTN, Koyo, Fersa, BCA/Bower and PEER. Those numbers are the base cone; this unit is the Class 3 precision execution. MPN Variants: 49576, 49576-3, 49576 *3, 49576#3, 49576*3, 49576 3.
