A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Single-row tapered roller bearing cone with 1.5625 in bore, 1.1450 in width, Class 3 precision, case-carburized steel, mating the 412 and 412A cups.
List Price
$44.69
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 422-3 |
| Model | 422 #3 |
| Bearing Type | Tapered Roller Bearing Cone, Not specified |
| ID | 1.5625 in |
| Width | 1.1450 in |
| Series | 400 |
|---|---|
| Lubricant | Not specified |
| Material | Case-Carburized Steel |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.8 kg (1.8 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not specified |
| Harmonization Code | 8482.20.00 |
| Base Number | 422 |
| Overall Width | 1.1450 in |
| Mpn Variants | 422-3, 422*3, 422#3, 422 3 |
| Compatible With Replaces | Mates Timken cups 412, 412A |
| Precision Class | Class 3 |
| Dynamic Load Rating C1 | 116,000 N (26,000 lbf) |
| Dynamic Axial Rating Ca90 | 13,500 N (3,040 lbf) |
| K Factor | 2.22 |
| Dynamic Load Rating | 116,000 N |
| Static Load Rating | 124,000 N |
| Cup Part Number | 412, 412A |
| Design Units | Imperial |
| Bearing Class | Class 3 |
| Bearing Material | Case-Carburized Steel |
| Cone Part Number | 422 |
| Cone Width | 1.1450 in |
| Effective Center Location | -0.38 in (-9.7 mm) |
| Industry Terms | tapered roller bearing cone; inner race and roller assembly; inch taper cone; Class 3 precision cone; single cone |
| Common Misspellings | Timkin 422-3; Timkn 422-3; Timken 422 3; Tymken 422-3 |
| Application Types | Gearboxes; axle and wheel hubs; industrial machinery shafts; pumps; conveyor drives |
| Cross Reference 1 | SKF 422 |
|---|---|
| Cross Reference 2 | FAG K-422 |
| Cross Reference 3 | NSK 422 |
| Cross Reference 4 | NTN 4T-422 |
| Cross Reference 5 | Koyo 422 |
| Cross Reference 6 | Fersa 422 |
| Cross Reference 7 | BCA/Bower 422 |
| Cross Reference 8 | PEER 422 |

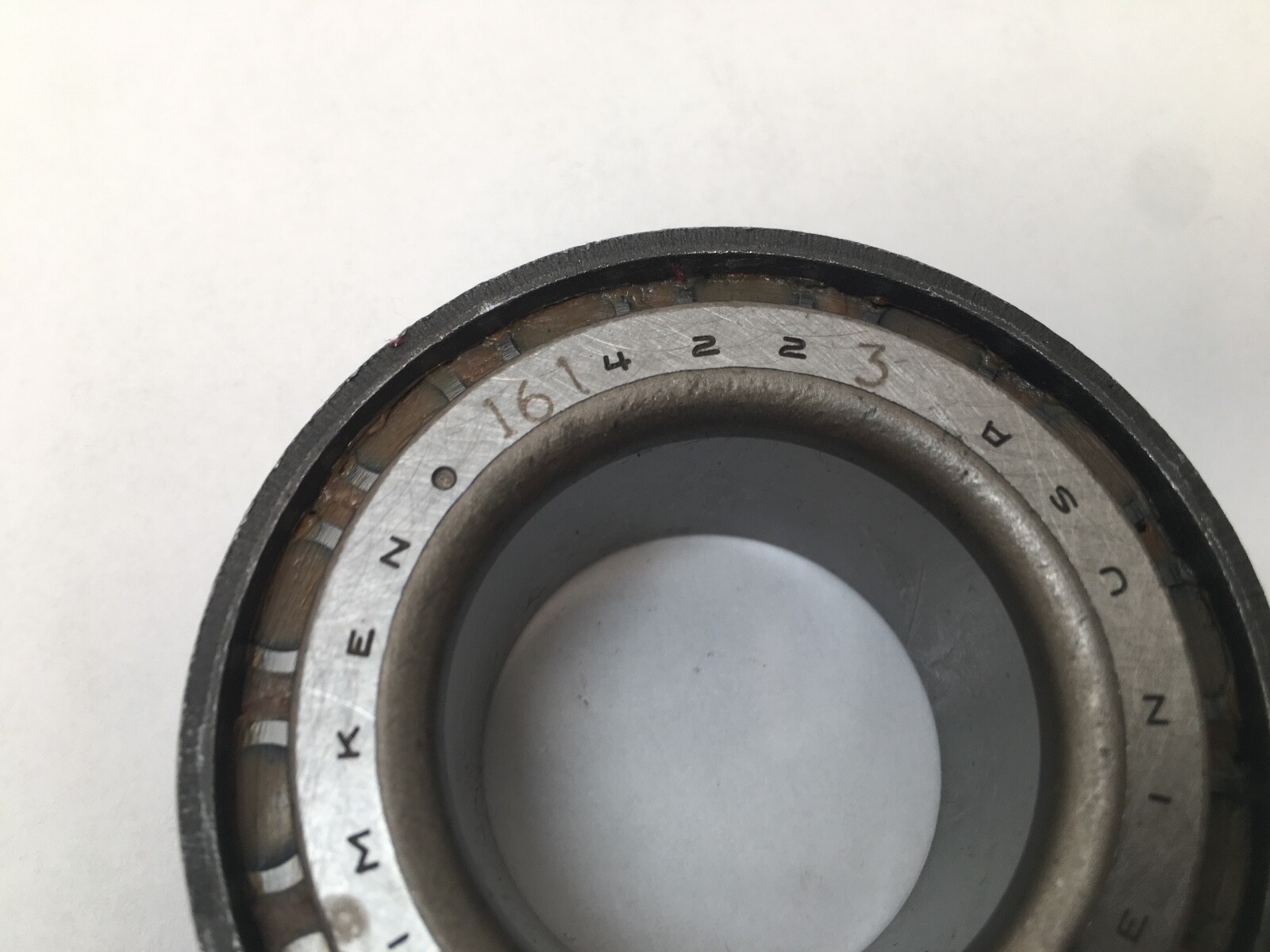

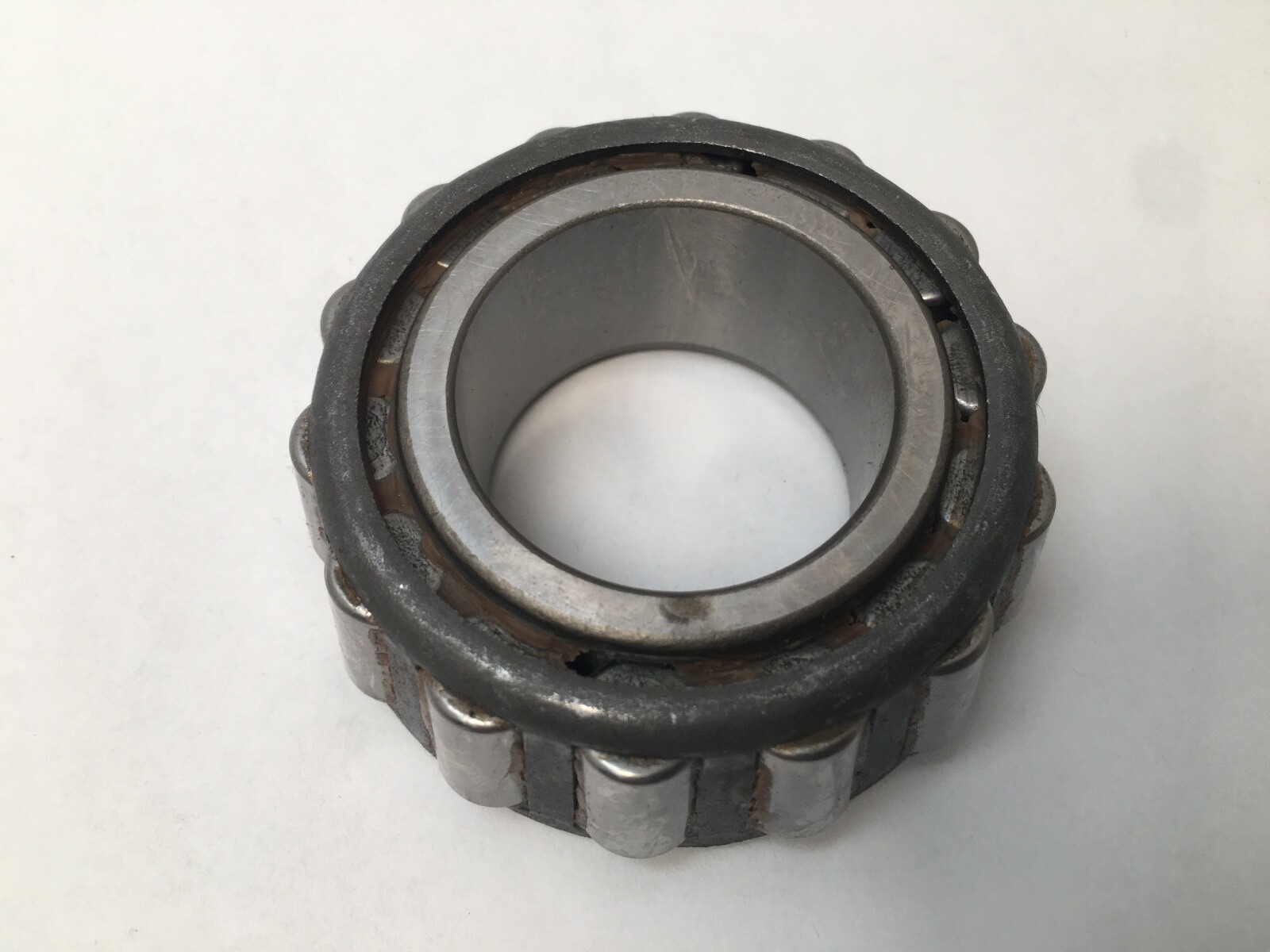

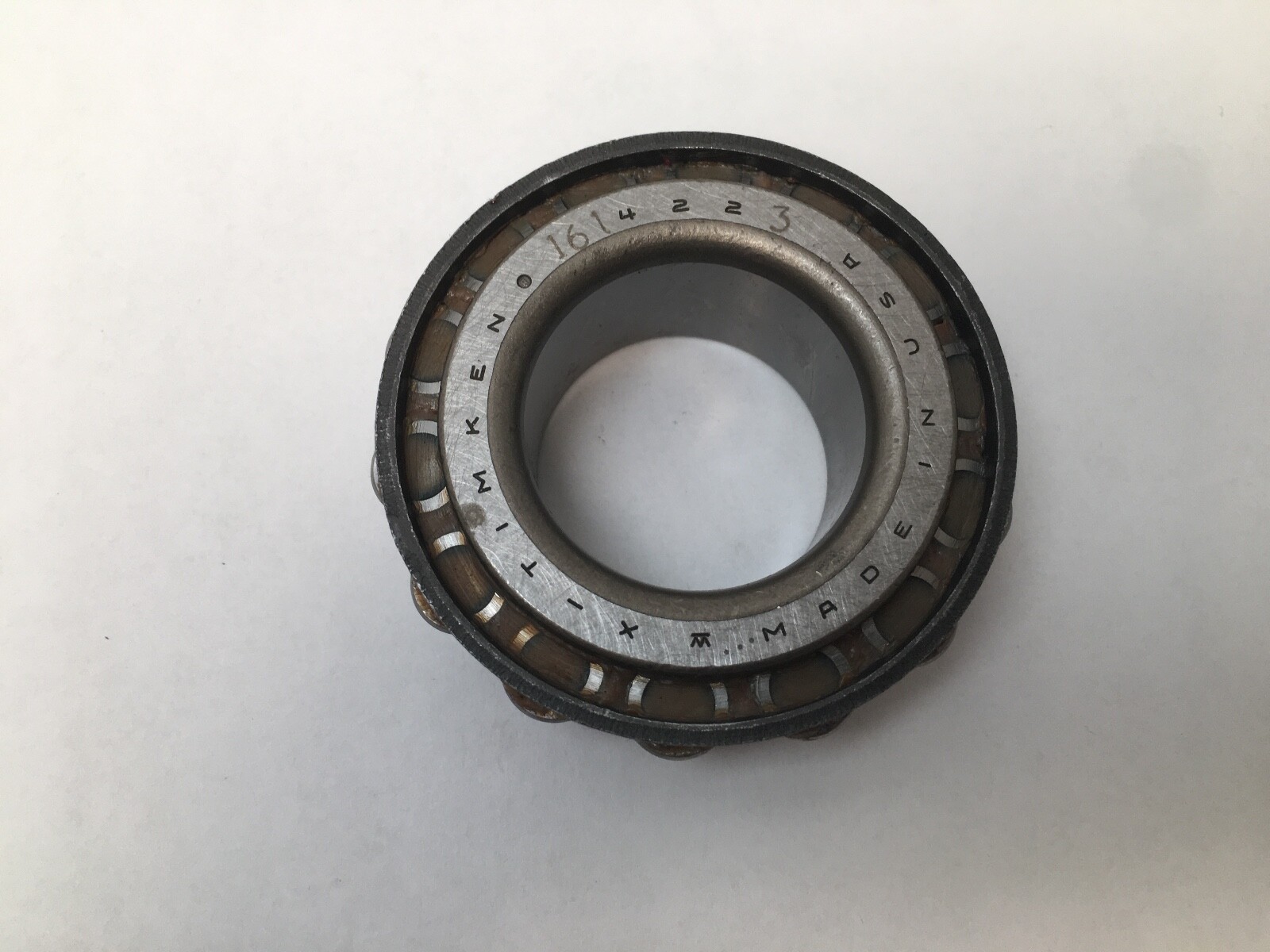

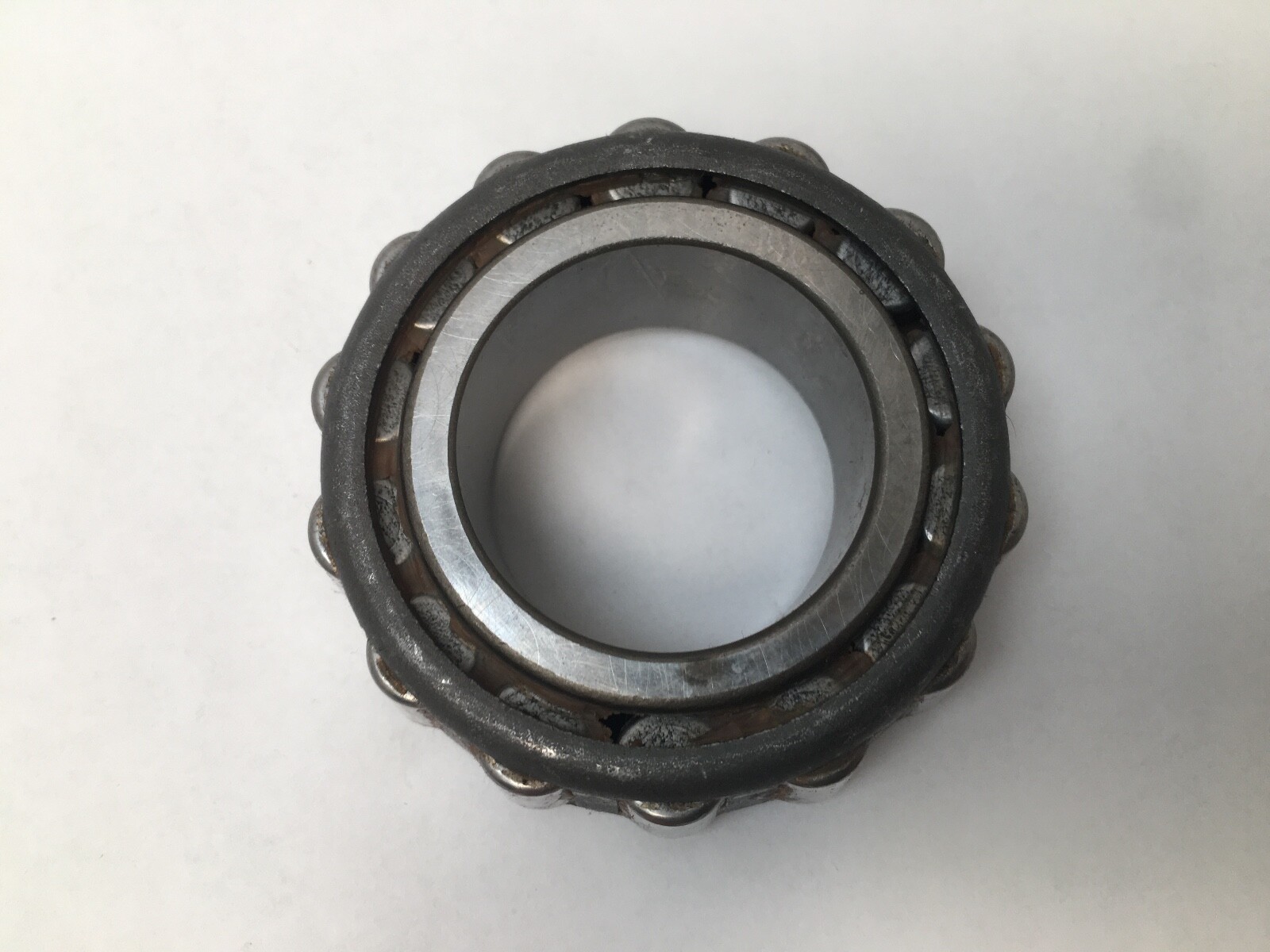

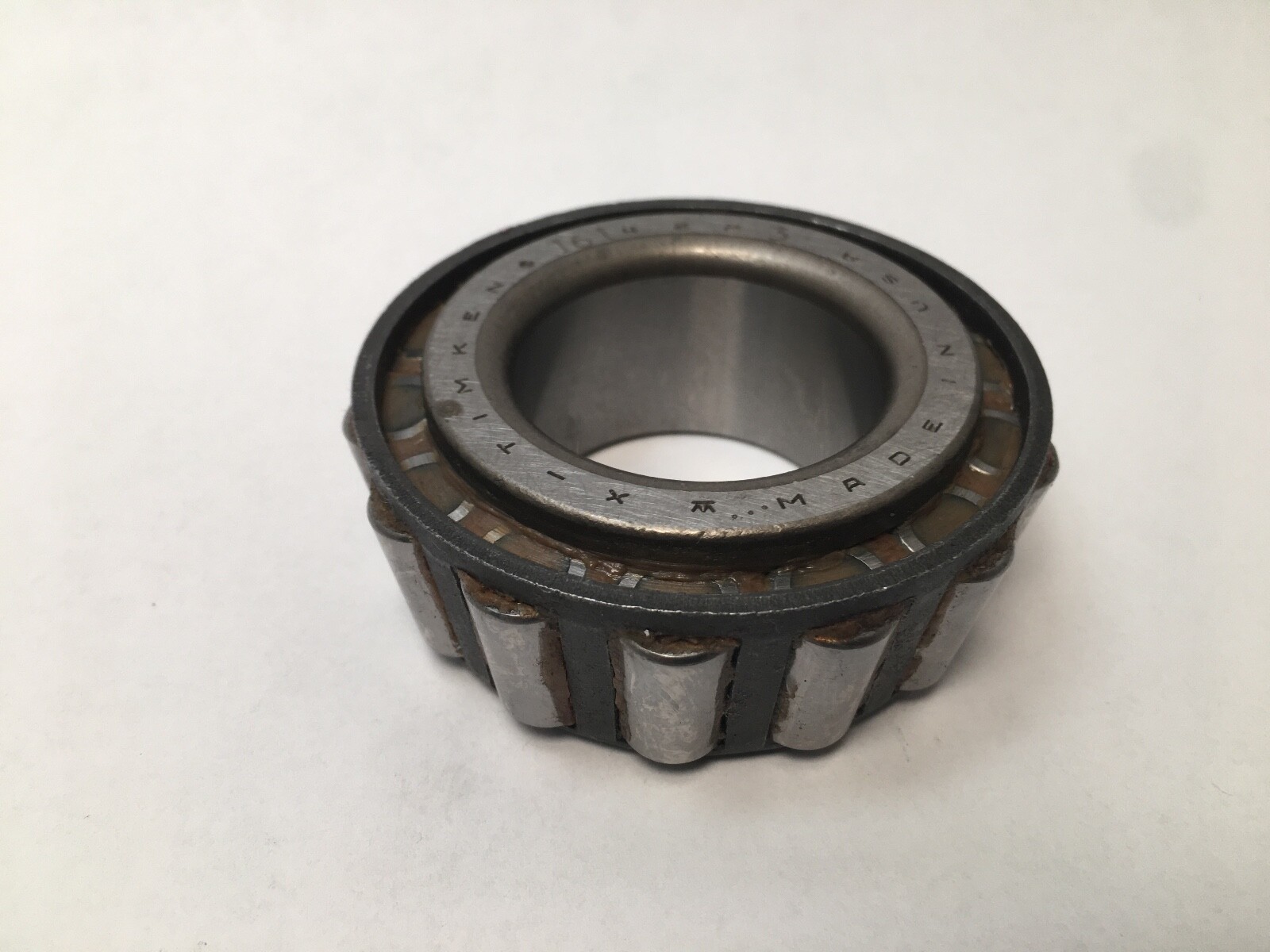

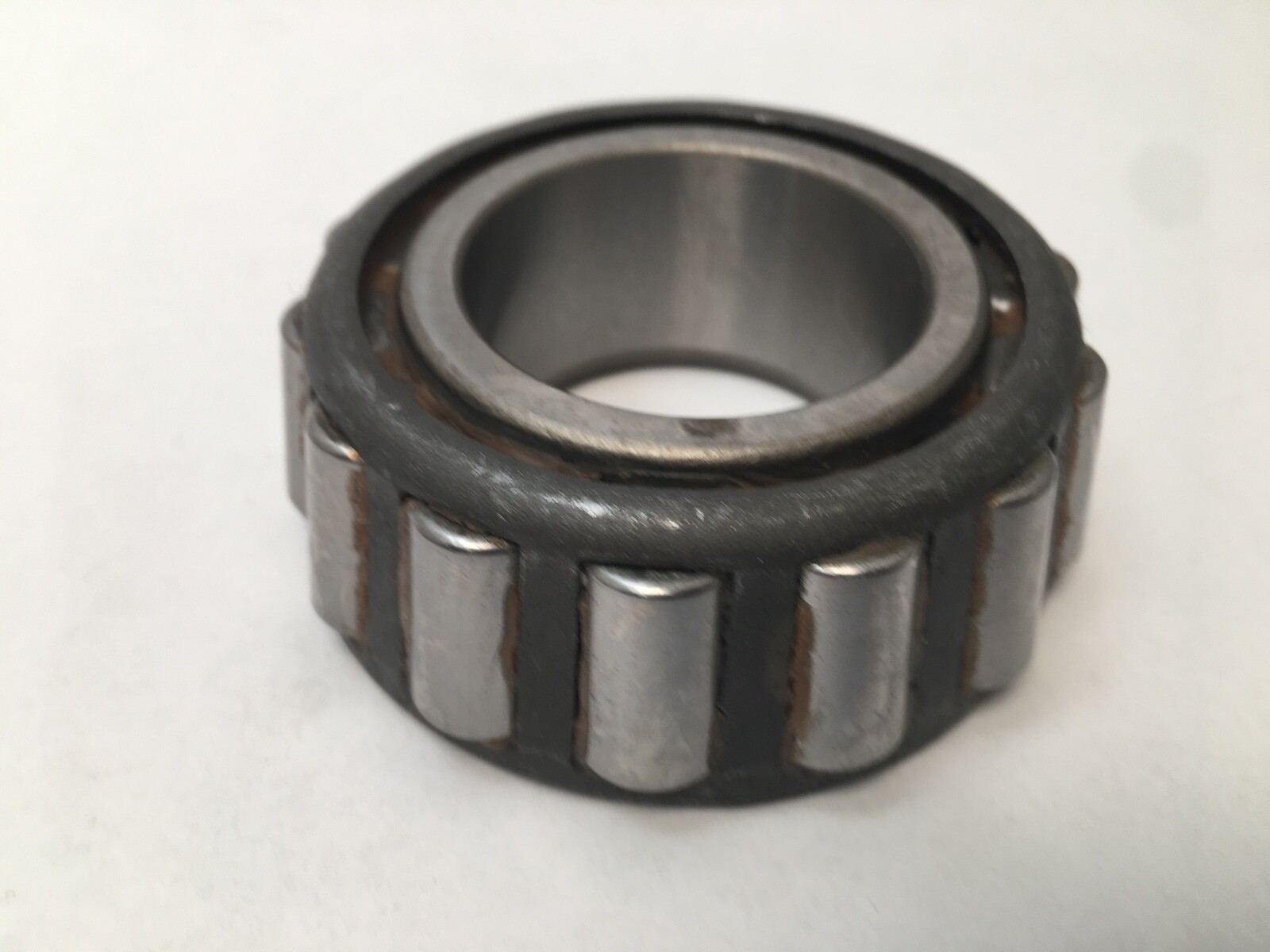

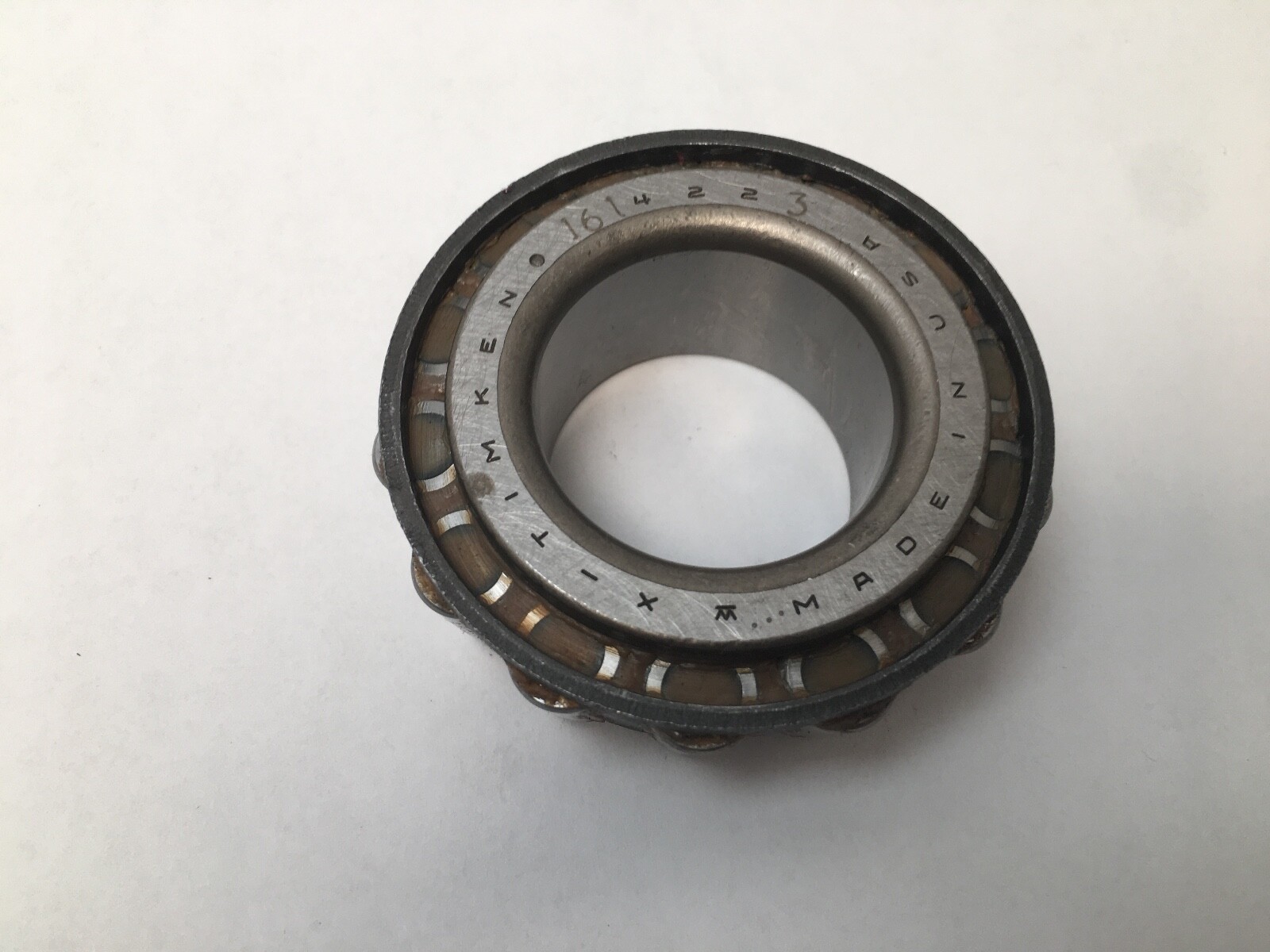

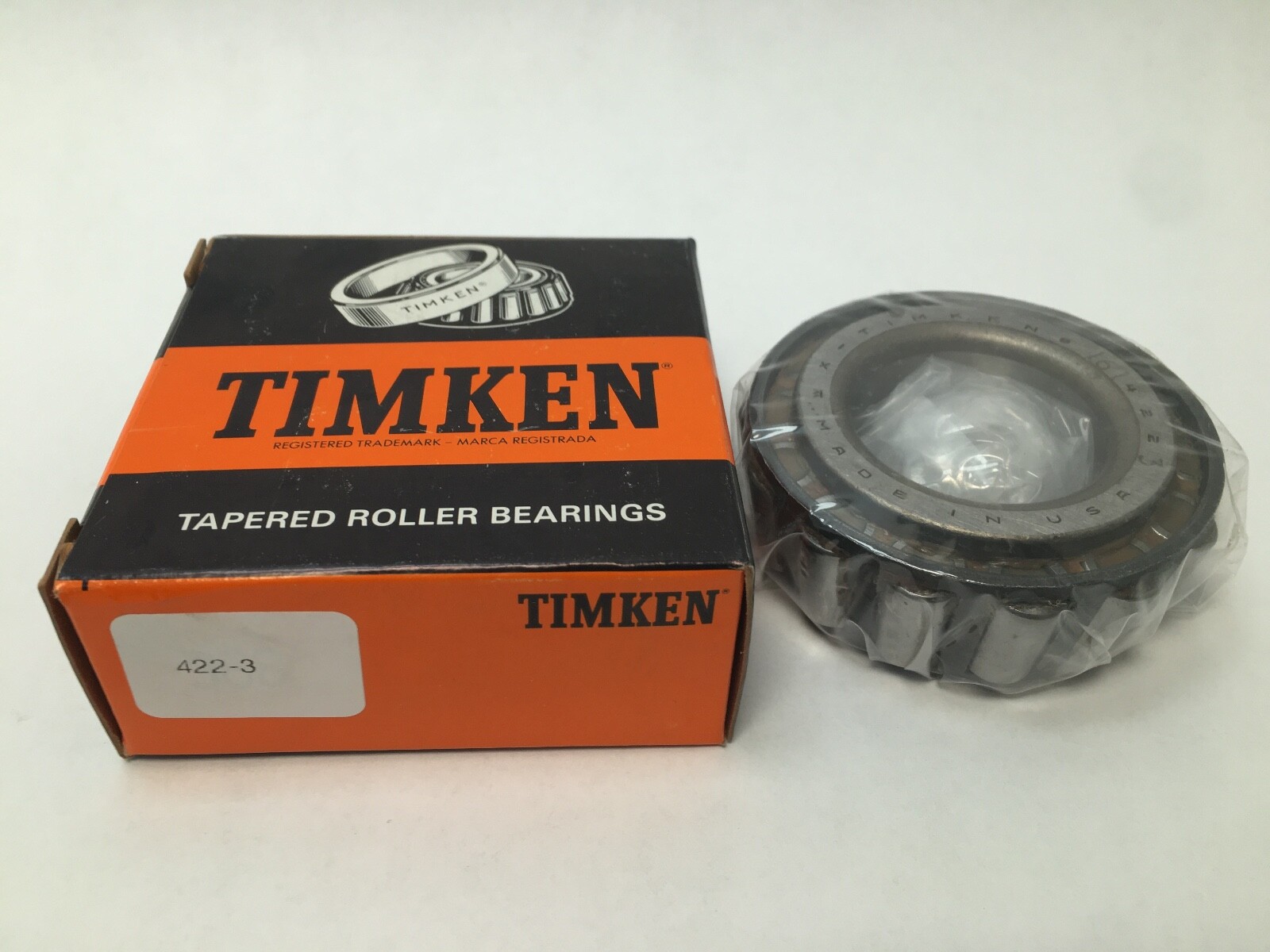

Timken 422-3 is a single-row tapered roller bearing cone (inner ring, tapered rollers and cage as one assembly) in the inch series, precision Class 3. Cone only, supplied without a cup. Unit Quantity: 1 Pc. Mating Timken cups: 412 and 412A.
422 — the Timken base cone number in the inch tapered roller series, fixing the bore, inner ring width, roller complement and cup mating.
-3 — Timken precision Class 3, written on cartons as -3, *3 or #3. Class 3 gives tighter running and mounting tolerance than standard.
Bore Diameter: 1.5625 in (39.688 mm).
Inner Ring Width: 1.1450 in (29.083 mm).
Dynamic Radial Load Rating, 1M revolutions (C1): 116,000 N (26,000 lbf).
Dynamic Radial Load Rating, 90M revolutions (C90): 30,000 N (6,740 lbf).
Dynamic Axial Rating, 90M revolutions (Ca90): 13,500 N (3,040 lbf).
Static Radial Load Rating (C0): 124,000 N (28,000 lbf).
K Factor: 2.22. G1 Factor: 34.4. G2 Factor: 9.9. Geometry Factor (Cg): 0.0731.
Weight: 0.8 kg (1.8 lb). Bearing Material: Case-Carburized Steel. Precision Class: Class 3.
Effective Center Location: -0.38 in (-9.7 mm). Max Shaft Fillet Radius: 0.140 in (3.56 mm).
Shaft Backing Shoulder Diameter, Frontface (da): 1.79 in (45.5 mm). Backface (db): 2.05 in (52 mm).
Cage Location relative to Backface (Aa): 0.03 in (0.8 mm). Cage Location relative to Frontface (Ab): 0.06 in (1.5 mm).
Mating Timken cups: 412 and 412A. Cross-references for the 422 base cone: SKF 422, FAG K-422, NSK 422, NTN 4T-422, Koyo 422, Fersa 422, BCA/Bower 422, PEER 422. The Class 3 tolerance belongs to the 422-3 execution specifically.
Bore Diameter: 1.5625 in (39.688 mm), per Timken.
Timken cups 412 and 412A.
Timken precision Class 3, a tighter tolerance grade than standard.
