Availability:
1 in stock
Tapered roller bearing cone, 1.7717 in bore, 0.8540 in inner ring width, carburized steel. K factor 1.91, 81,800 N dynamic radial load rating, imperial.
List Price
$52.60
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 358A |
| GTIN | 053893011684 |
| Model | 358 A |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 1.7717 in (45.001 mm) |
| Series | 358 |
|---|---|
| Harmonization Code | 8482.20.00 |
| Design Units | Imperial |
| Bearing Material | Carburized Steel |
| Cone Part Number | 358A |
| Cone Width | 0.8540 in (21.692 mm) |
| Cone Backface To Clear Radius | 0.14" |
| Base Number | 358A |
| Overall Width | 0.8540 in (21.692 mm) |
| Mpn Variants | 358A, 358-A, 358 A |
| Compatible With Replaces | Mating cups: Timken 352, Timken 352A |
| Dynamic Load Rating C1 | 81,800 N (18,400 lbf) |
| Dynamic Axial Rating Ca90 | 11,100 N |
| K Factor | 1.91 |
| Dynamic Load Rating | 81,800 N |
| Static Load Rating | 88,800 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.111 kg (2.45 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Cup Part Number | 352, 352A |
| Effective Center Location | -0.19 in (-4.8 mm) |
| Cross Reference 1 | SKF 358A |
|---|---|
| Cross Reference 2 | FAG K-358-A |
| Cross Reference 3 | NSK 358A |
| Cross Reference 4 | NTN 4T-358A |
| Cross Reference 5 | Koyo 358A |
| Cross Reference 6 | Fersa 358A |
| Cross Reference 7 | BCA/Bower 358A |
| Cross Reference 8 | PEER 358A |

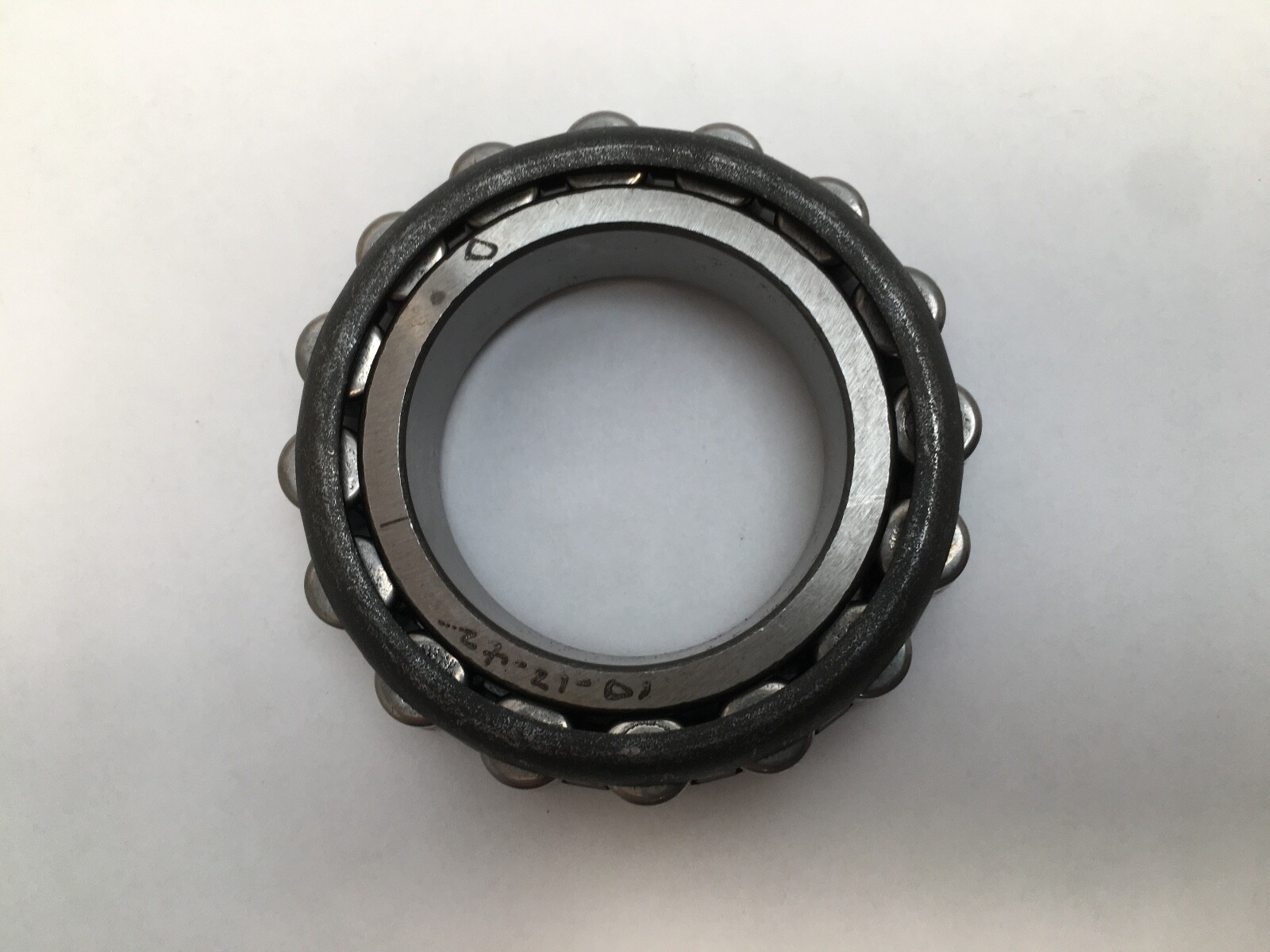

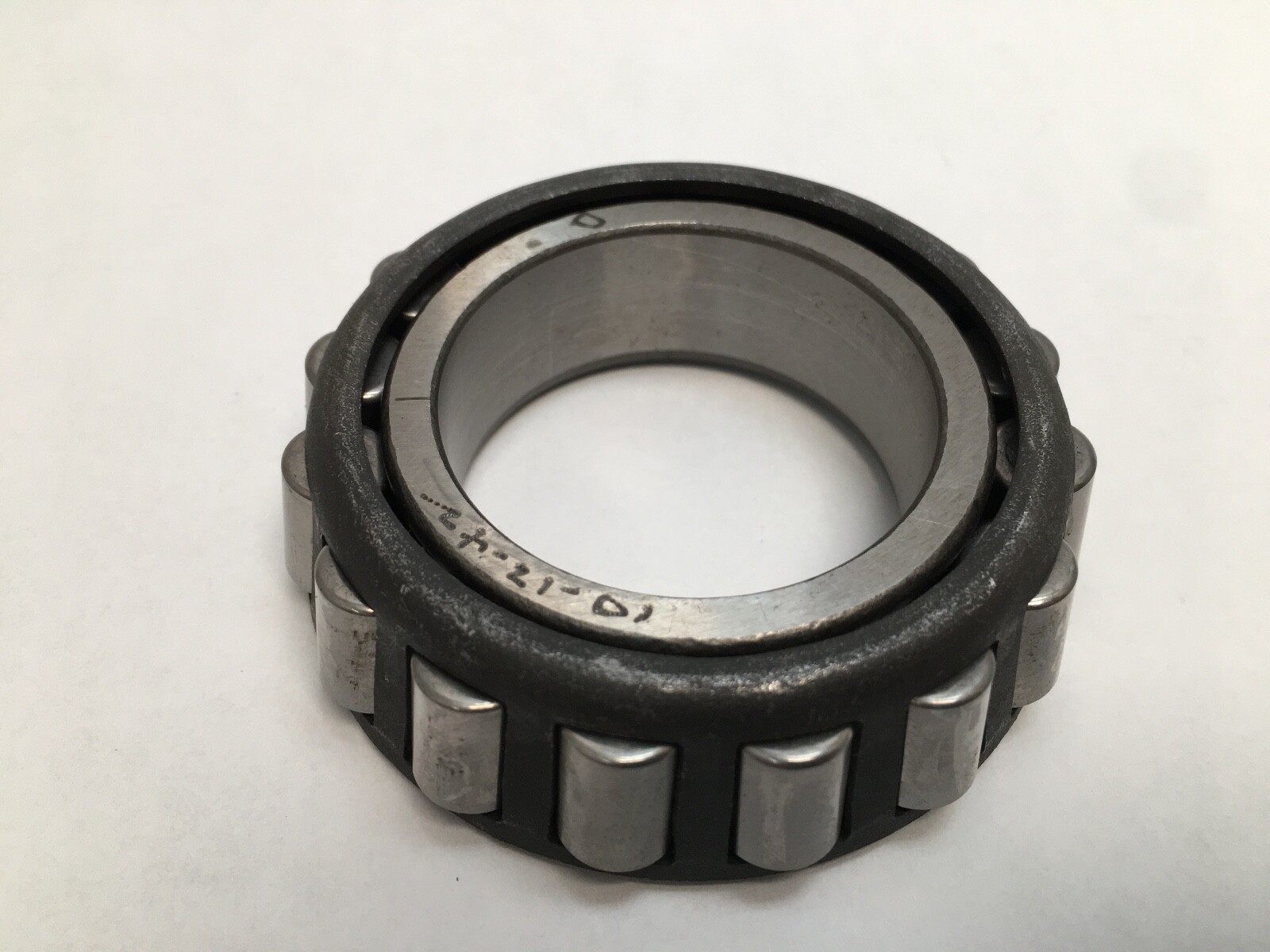

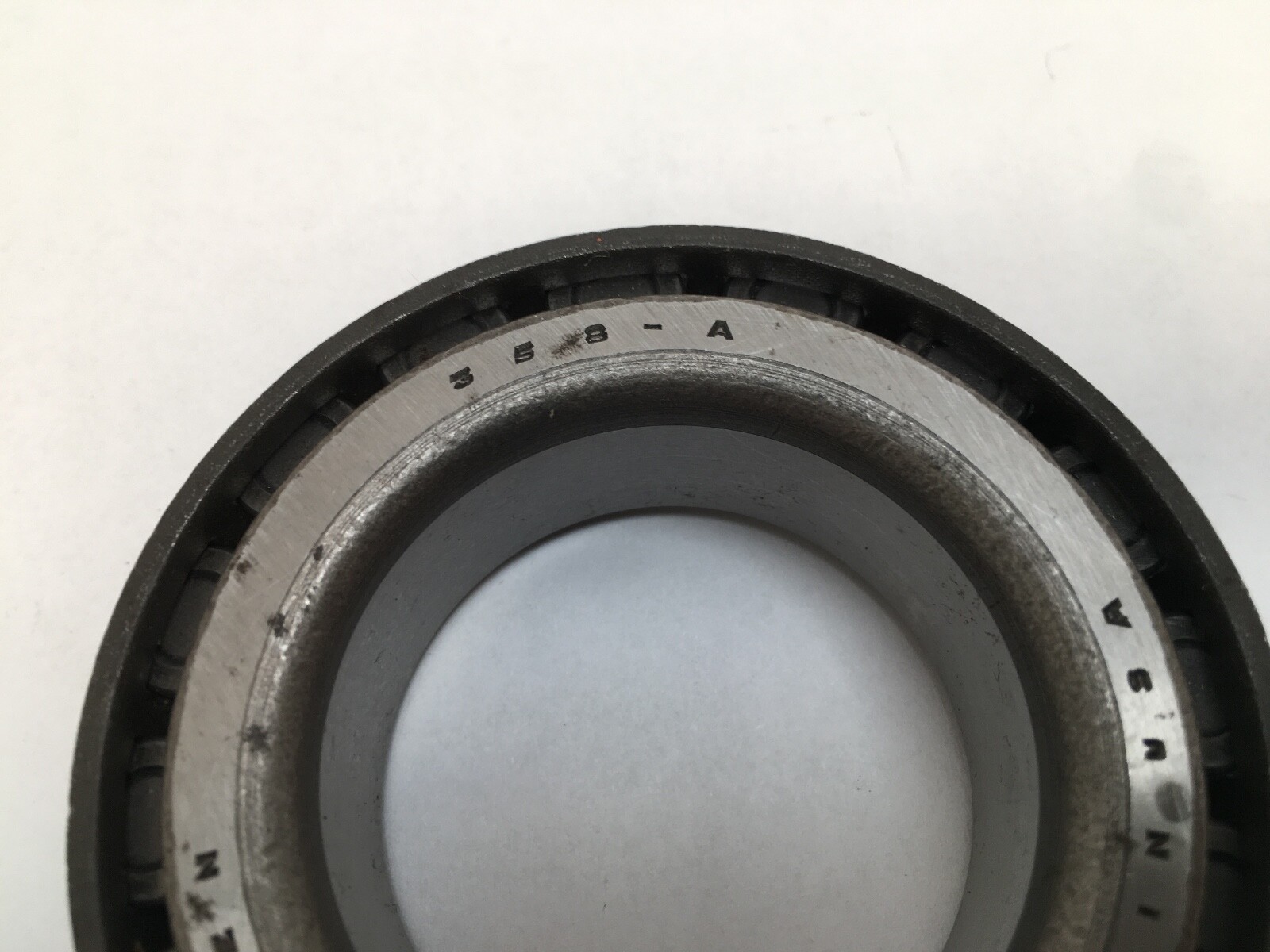

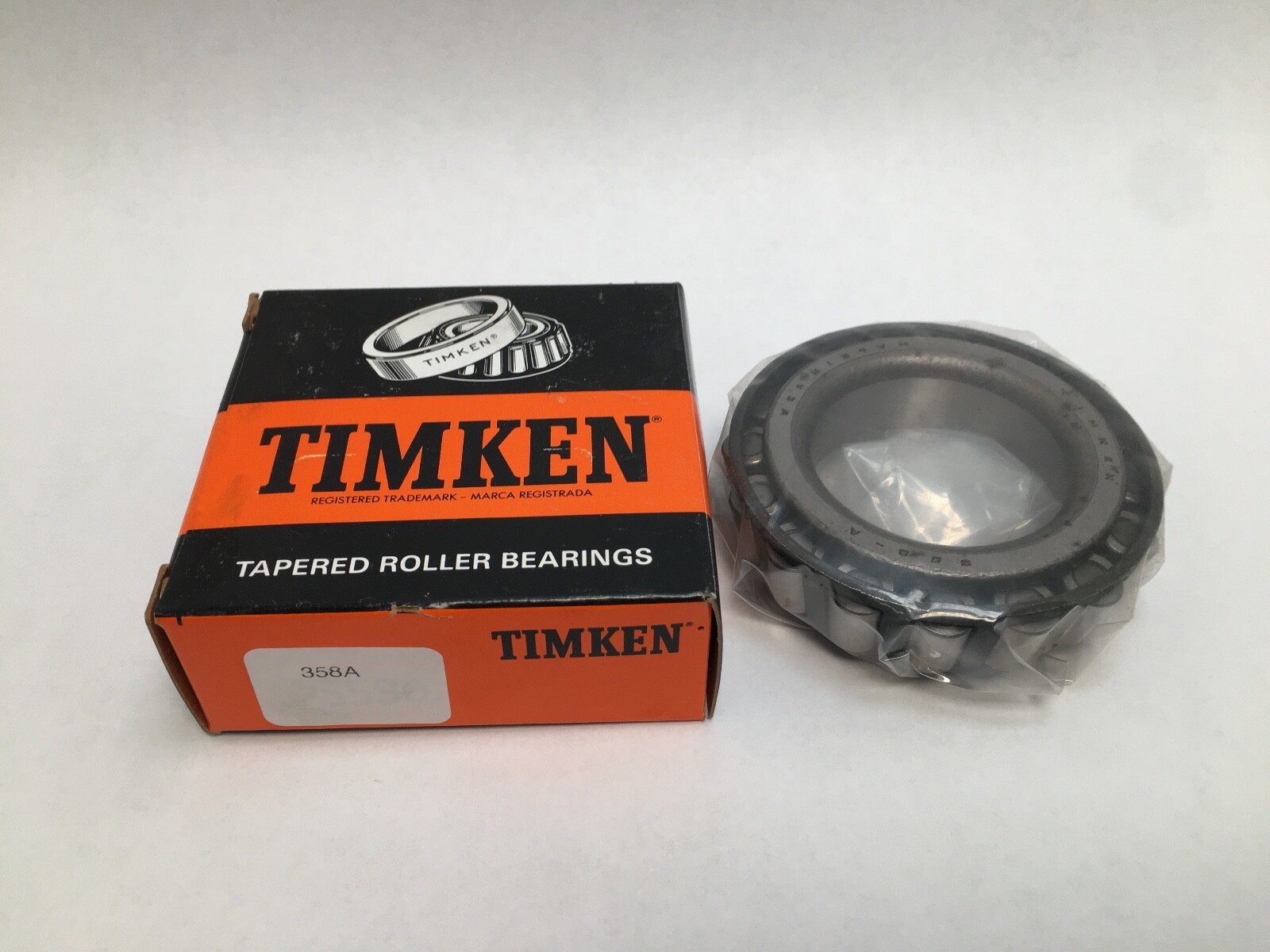

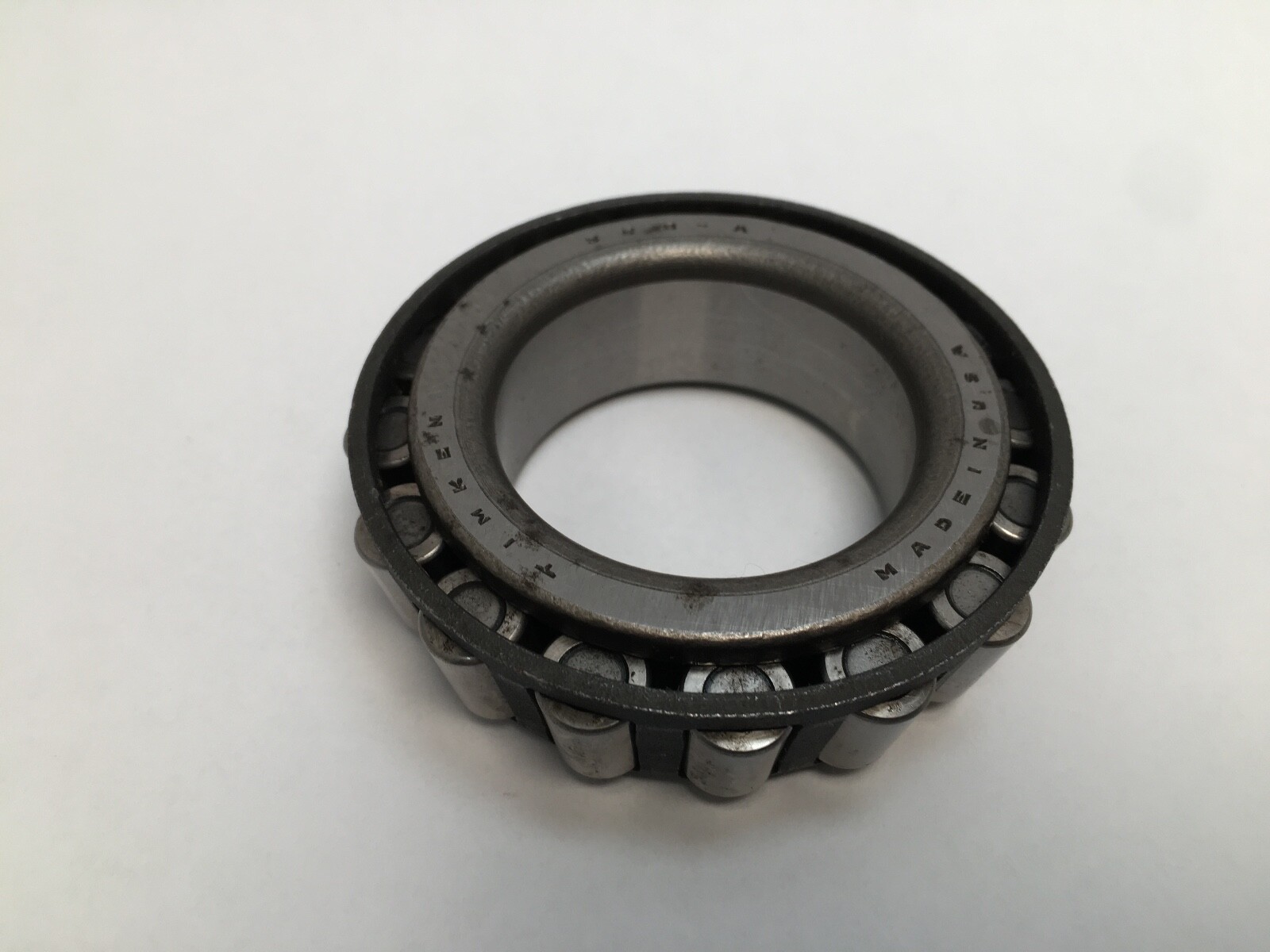

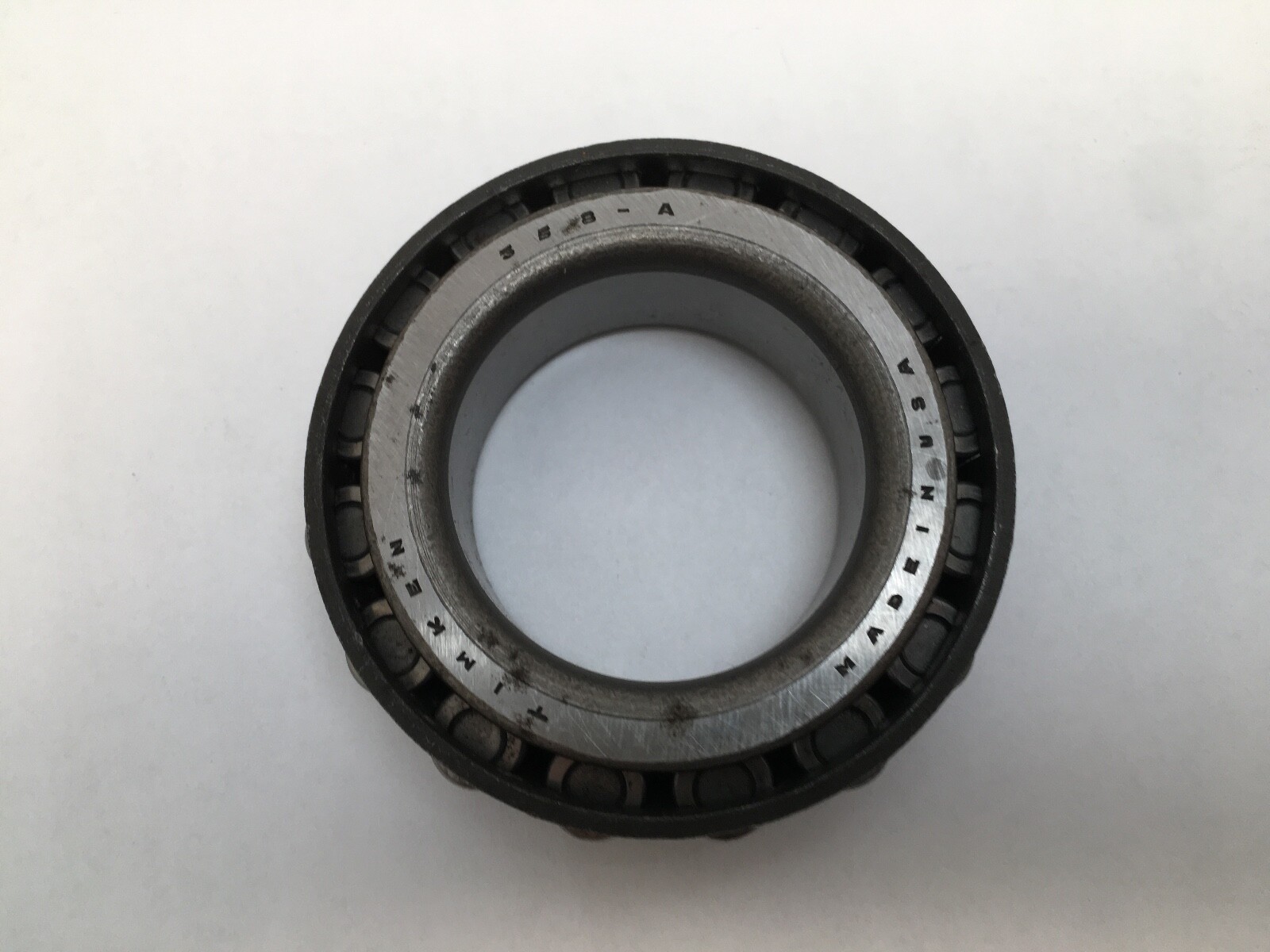

Timken 358-A single tapered roller bearing cone — the inner ring, roller and cage assembly of a TS-design tapered roller bearing. Bore (d): 1.7717 in (45.001 mm). Inner Ring Width (B): 0.8540 in (21.692 mm). Cone only. Unit Quantity: 1 Pc.
358 — the cone number, which fixes the bore, the cone width and the raceway angle.
A — a Timken design revision of the 358 cone, carried as part of the full part number.
Series: 358. Number Of Rows: 1. Rolling Elements: Tapered Roller. Bearing Material: Carburized Steel. Design Units: Imperial. Dynamic Radial Load Rating (C1, 1M revs): 81,800 N (18,400 lbf). Dynamic Radial Load Rating (C90, 90M revs): 21,200 N (4,770 lbf). Dynamic Axial Rating (Ca90): 11,100 N (2,500 lbf). Static Radial Load Rating (C0): 88,800 N (20,000 lbf). K Factor: 1.91. G1 Factor: 30. G2 Factor: 12.2. Geometry Factor (Cg): 0.0732. Item Weight: 1.111 kg (2.45 lb). GTIN: 0053893011684.
Effective Center Location: –0.19 in (–4.8 mm), inside the cone backface. Max Shaft Fillet Radius: 0.140 in (3.600 mm). Shaft Backing Shoulder Diameter – Frontface (da): 1.97 in (50 mm). Shaft Backing Shoulder Diameter – Backface (db): 2.24 in (57 mm). Cage Location relative to Backface (Aa): 0 in (0 mm). Cage Location relative to Frontface (Ab): 0.09 in (2.3 mm). The matching cups are the Timken 352 and the Timken 352A.
The 358A base number is carried by other makers: SKF 358A, FAG K-358-A, NSK 358A, NTN 4T-358A, Koyo 358A, Fersa 358A, BCA/Bower 358A and PEER 358A. Also written 358A, 358-A and 358 A.
1.7717 in (45.001 mm) bore and 0.8540 in (21.692 mm) inner ring width.
The Timken 352 and the Timken 352A.
No, this is the cone only.
