Availability:
1 in stock
Tapered roller bearing cone, 2.4700 in (62.738 mm) bore, 1.0000 in width, Timken Class 0 precision. 106,000 N C1 rating. Mates with 28919 or 28920 cups.
List Price
$36.34
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 28995-0 |
| Model | 28995 #0 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 2.4700 in (62.738 mm) |
| Width | 1.000 in |
| Material | Case Carburized Steel |
|---|---|
| Lubricant | Oil Preservative |
| Series | 28900 |
| Duty Type | Standard |
| Base Number | 28995 |
| Industry Terms | taper bearing cone, tapered roller bearing inner race, cone assembly, TS cone, inch taper cone |
| Overall Width | 1.0000 in (25.400 mm) |
| Mpn Variants | 28995-0, 28995*0, 28995#0, 28995 *0, 28995 #0, 28995 |
| Compatible With Replaces | Timken 28919 cup, Timken 28920 cup |
| Precision Class | Class 0 |
| Dynamic Load Rating C1 | 106,000 N |
| Dynamic Axial Rating Ca90 | 20,000 N |
| K Factor | 1.37 |
| Dynamic Load Rating | 106,000 N |
| Static Load Rating | 149,000 N |
| Precision Rating | Class 0 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Cup Part Number | 28919, 28920 |
| Design Units | Imperial |
| Cone Part Number | 28995 |
| Effective Center Location | -2.5 mm (-0.10 in) |
| Cross Reference 5 | Koyo 28995 |
|---|

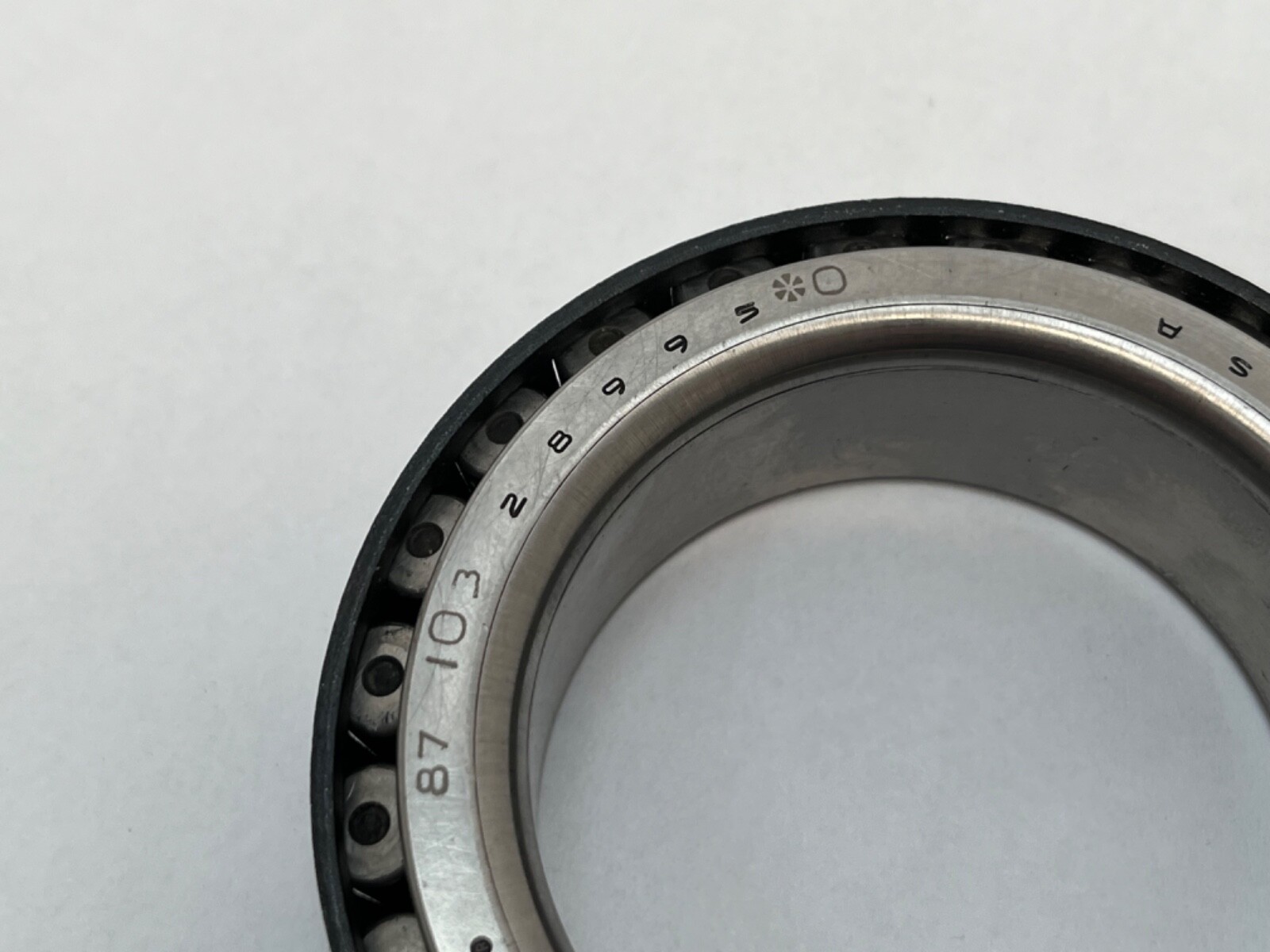

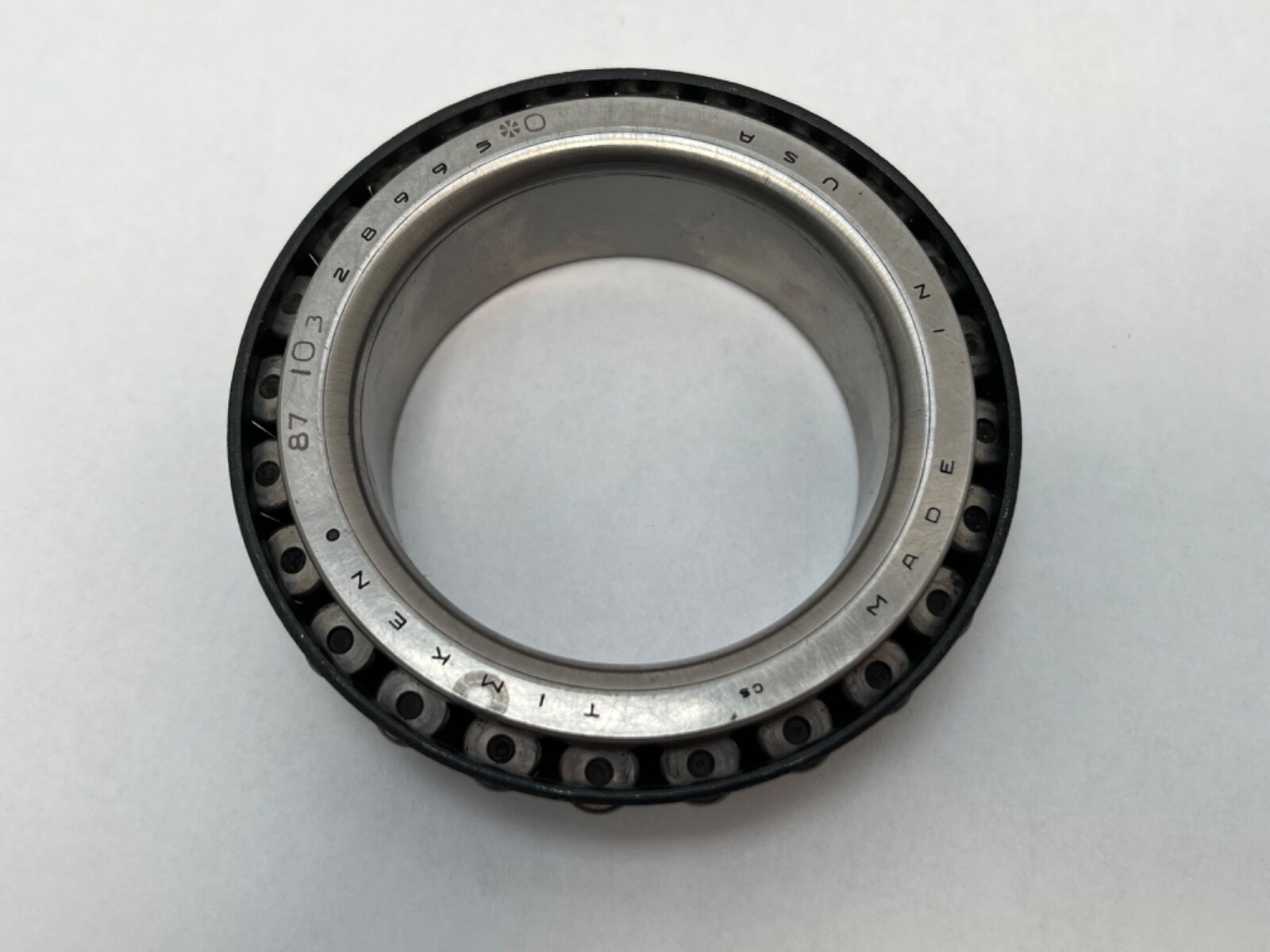

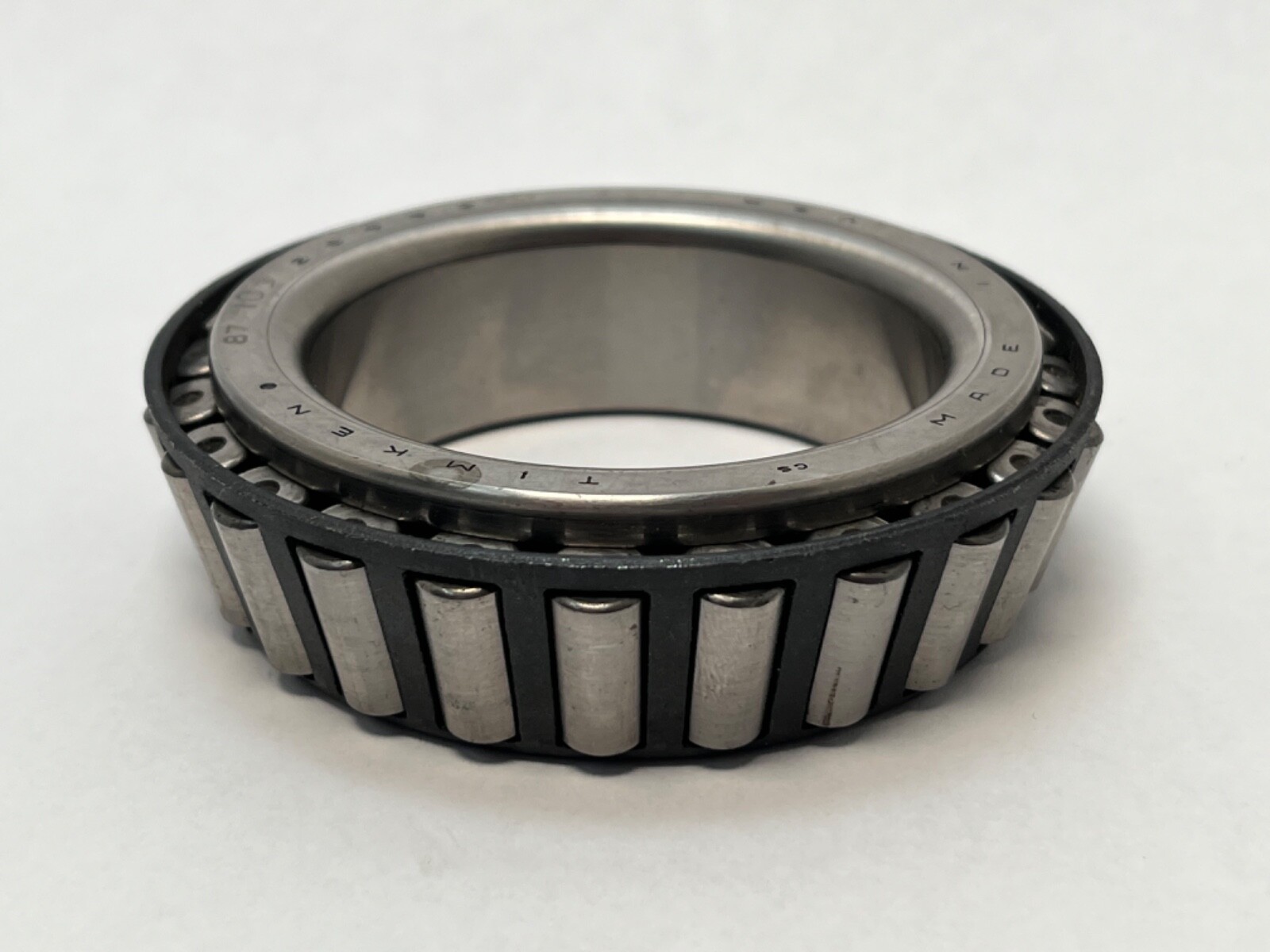

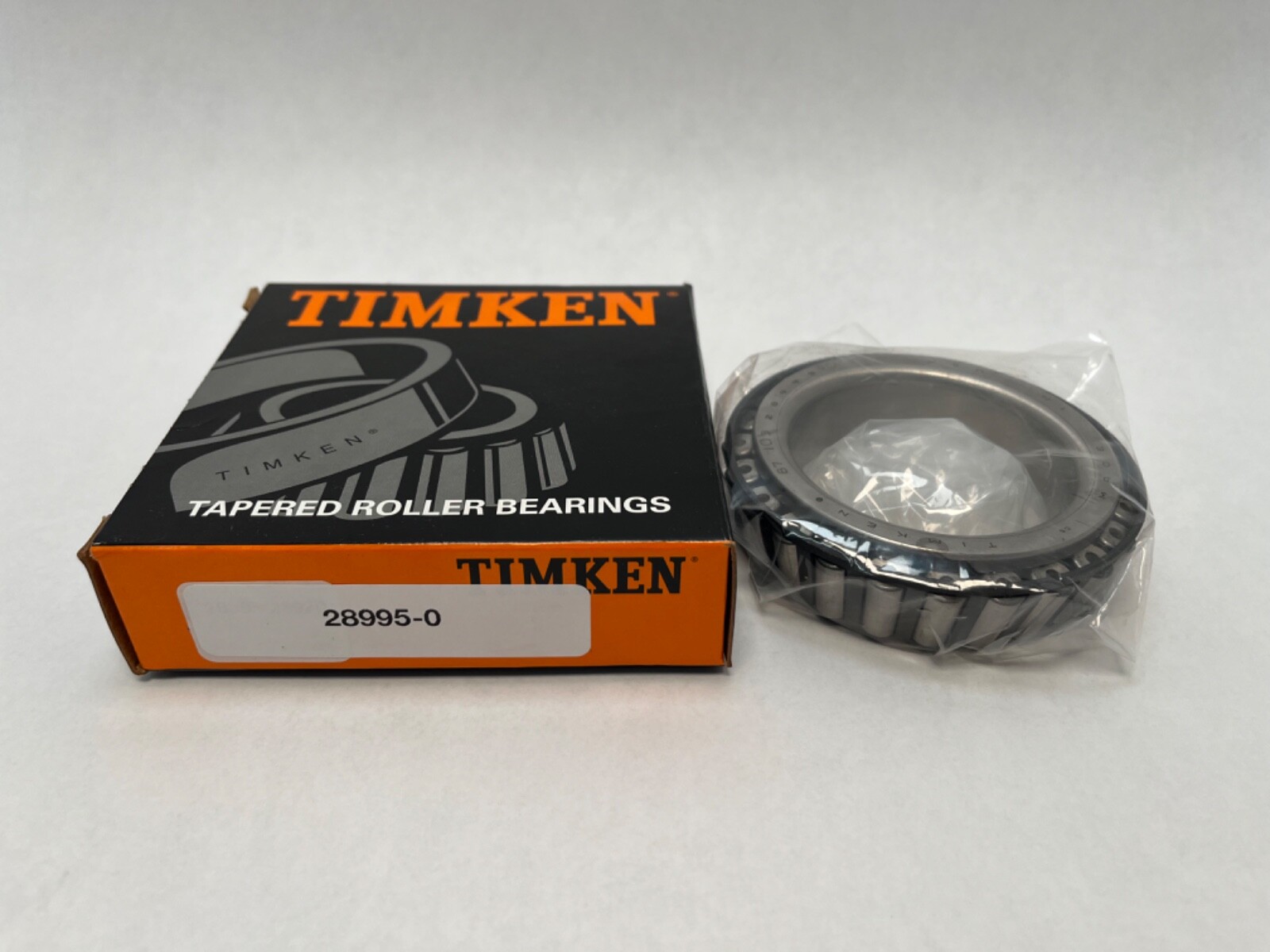

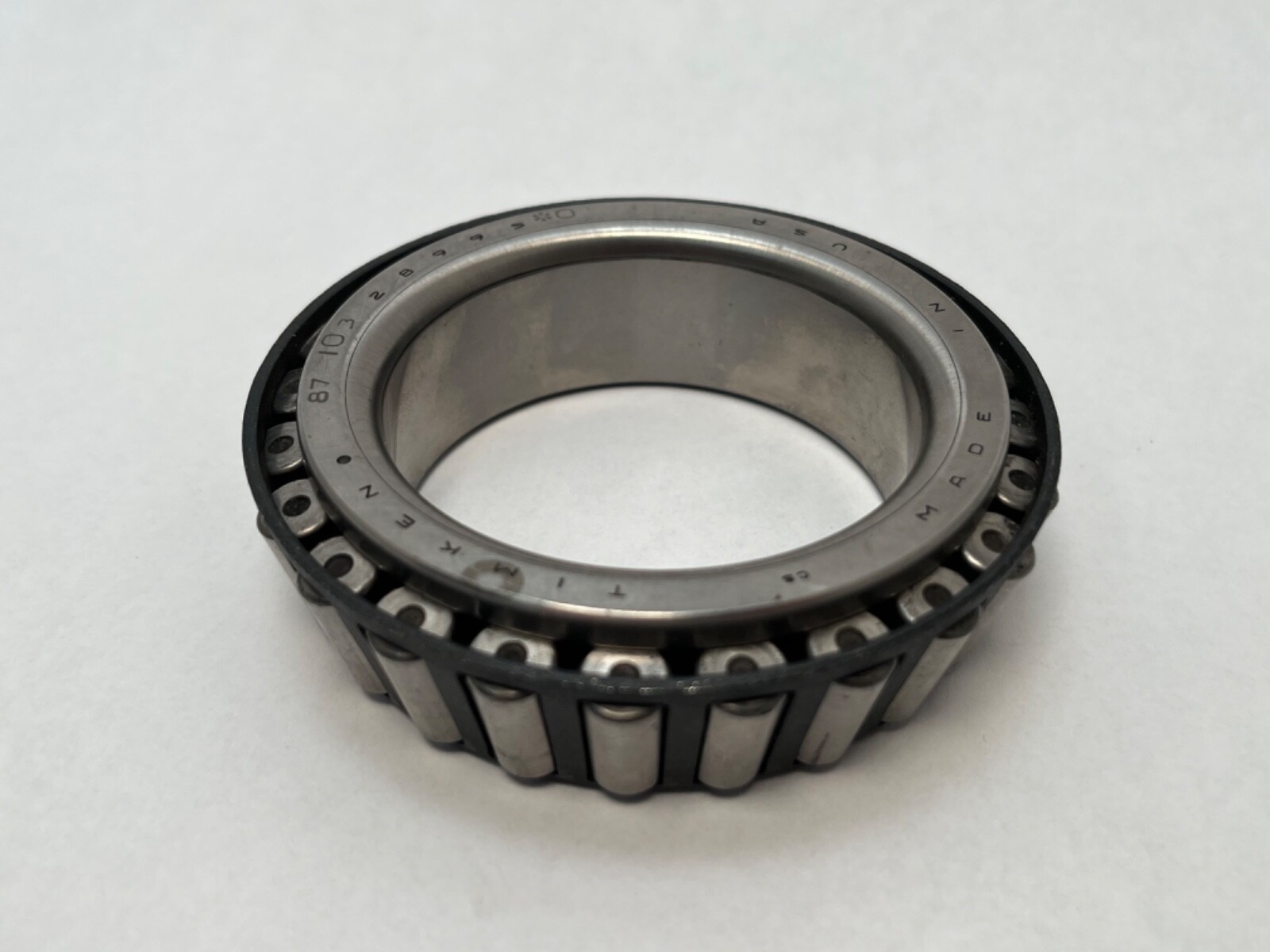

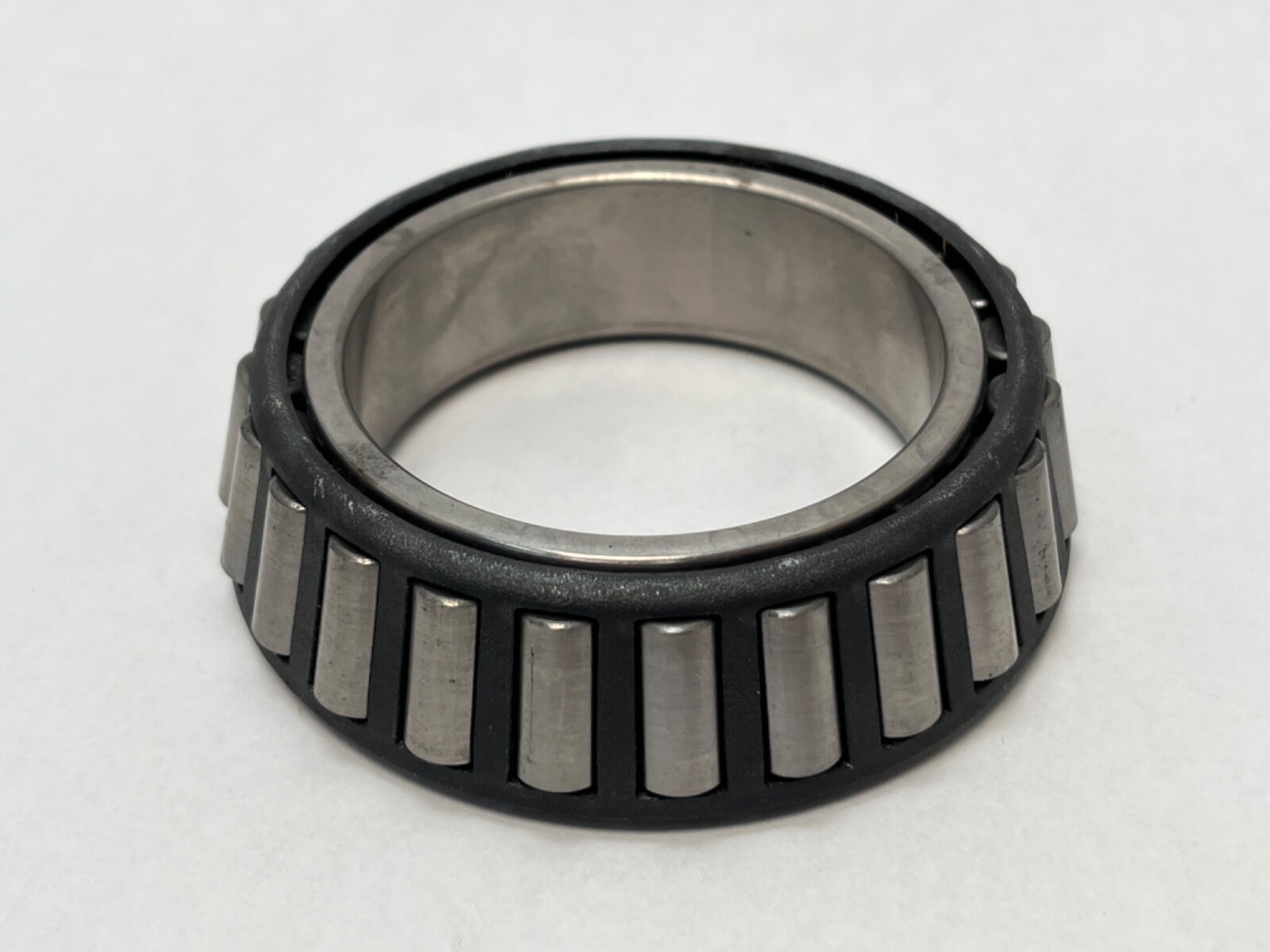

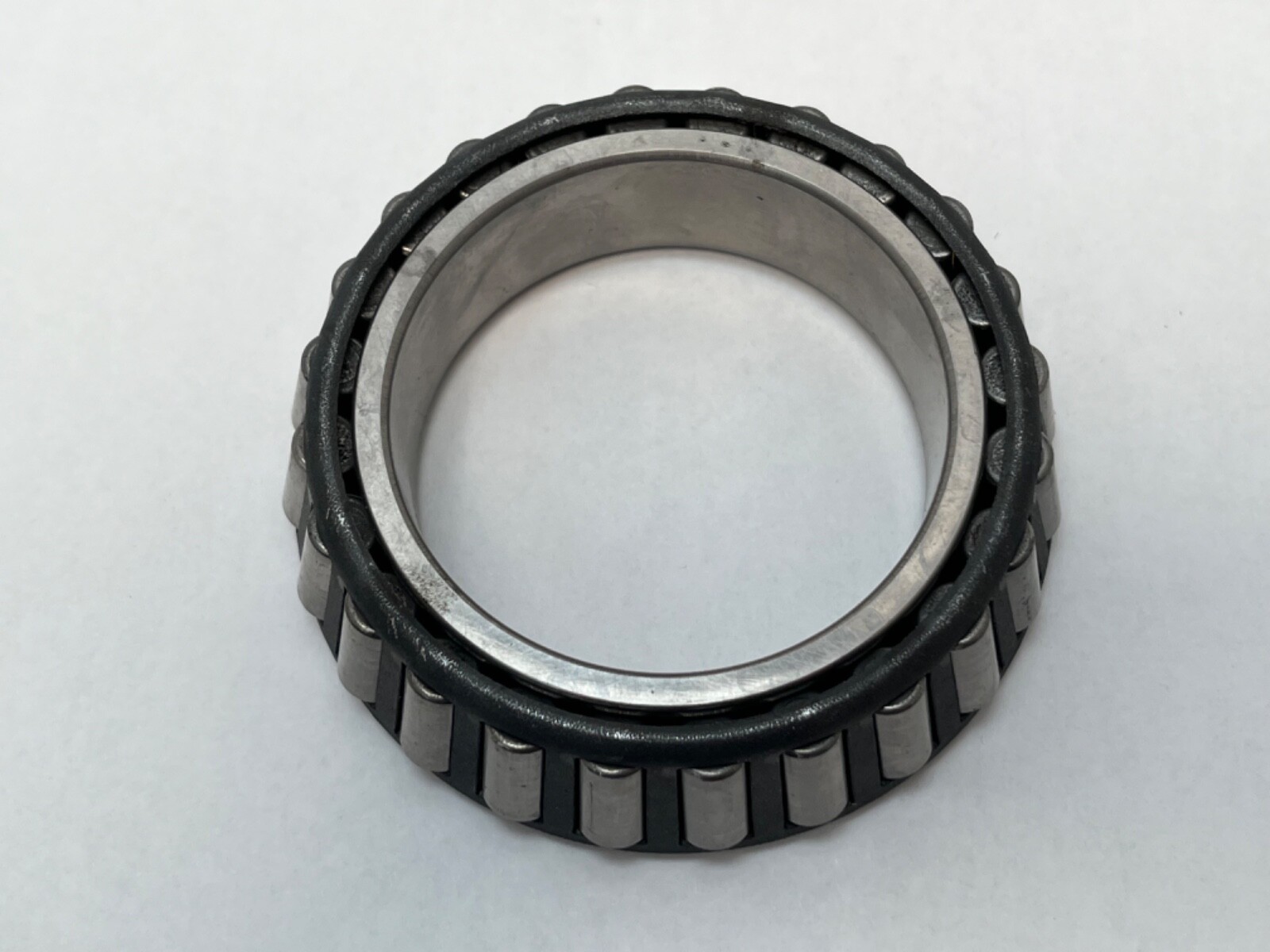

Timken 28995-0 tapered roller bearing cone: the inner ring, tapered rollers and cage of a single-row TS tapered roller bearing, in Timken precision Class 0. Part Number: 28995-0. Base Number: 28995. Series: 28900. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Design Units: Imperial. Country of Origin: United States.
28995 — Timken inch cone, 2.4700 in bore, 1.0000 in cone width, in the 28900 series.
-0 — Timken precision Class 0, also marked *0 or #0. Class 0 is one of Timken’s inch precision classes (3, 0, 00, 000), tighter than Class 3 and well above the standard classes 4 and 2.
Bore Diameter: 2.4700 in (62.738 mm). Overall Width: 1.0000 in (25.400 mm). Precision Class: Class 0.
Dynamic Load Rating (C1, 1 million revolutions): 106,000 N (23,800 lbf). Dynamic Radial Load Rating (C90, 90 million revolutions): 27,500 N (6,180 lbf). Dynamic Axial Rating (Ca90): 20,000 N (4,500 lbf). Static Load Rating (C0): 149,000 N (33,500 lbf). These are Timken’s single-row ratings published for the 28995 cone.
K Factor: 1.37. G1 Factor: 60.1. G2 Factor: 24.5. Geometry Factor (Cg): 0.103.
Effective Center Location: −2.5 mm (−0.10 in). Max Shaft Fillet Radius: 0.140 in (3.600 mm). Shaft Backing Shoulder Diameter, Frontface (da): 2.76 in (70 mm). Shaft Backing Shoulder Diameter, Backface (db): 3.03 in (77 mm). Cage Location relative to Backface (Aa): 0.05 in (1.3 mm). Cage Location relative to Frontface (Ab): 0.09 in (2.3 mm).
Unit Quantity: 1 Pc. Cone only. Matching cups: Timken 28919 or Timken 28920.
Compatible With / Replaces: Timken 28919 cup, Timken 28920 cup. MPN Variants: 28995-0, 28995*0, 28995#0, 28995 *0, 28995 #0, 28995. The Class 0 tolerance is specific to this Timken execution.
$144.56
12 in stock
