Tapered roller bearing cone, 2.3613 in bore, 1.0000 in width, inch series 289. Inner ring with tapered rollers and cage, mates with a 28920 cup.
List Price
$51.98
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 28980B |
| Model | 28980 B |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2.3613 in (59.977 mm) |
| Series | 289 |
|---|---|
| Harmonization Code | 8482.99 |
| Design Units | Imperial |
| Cone Part Number | 28980 |
| Cone Width | 0.9843" |
| Cone Backface To Clear Radius | 0.14" |
| Base Number | 28980 |
| Overall Width | 1.0000 in (25.400 mm) |
| Mpn Variants | 28980B; 28980-B; 28980 B; 28980 |
| Compatible With Replaces | Mates with Timken 28920 and Timken 28919 single cups |
| Precision Class | Not specified |
| Dynamic Load Rating | 106,000 N |
| Static Load Rating | 149,000 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.63 kg (3.60 lb) |
| Number Of Rows | 1 |

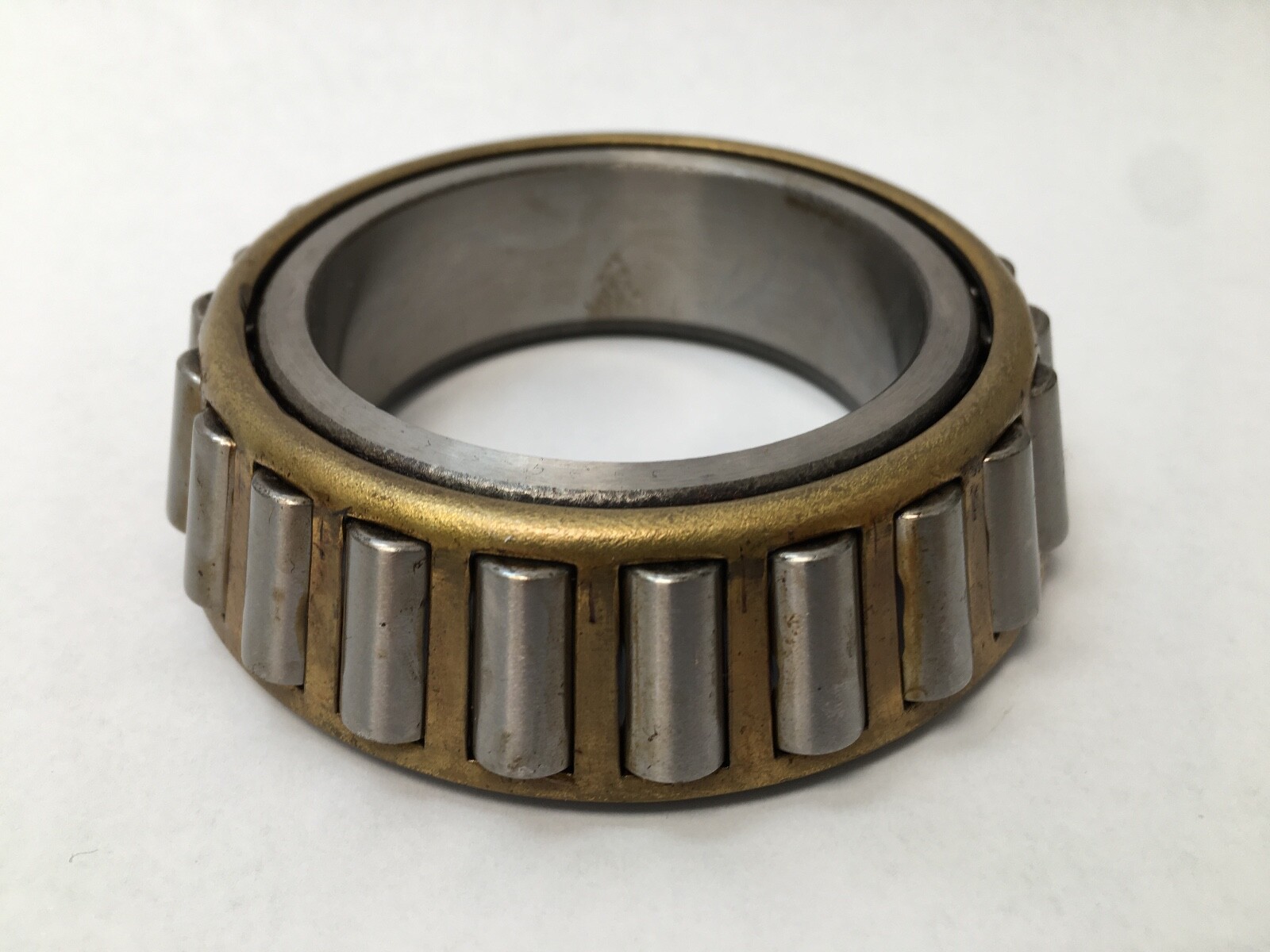

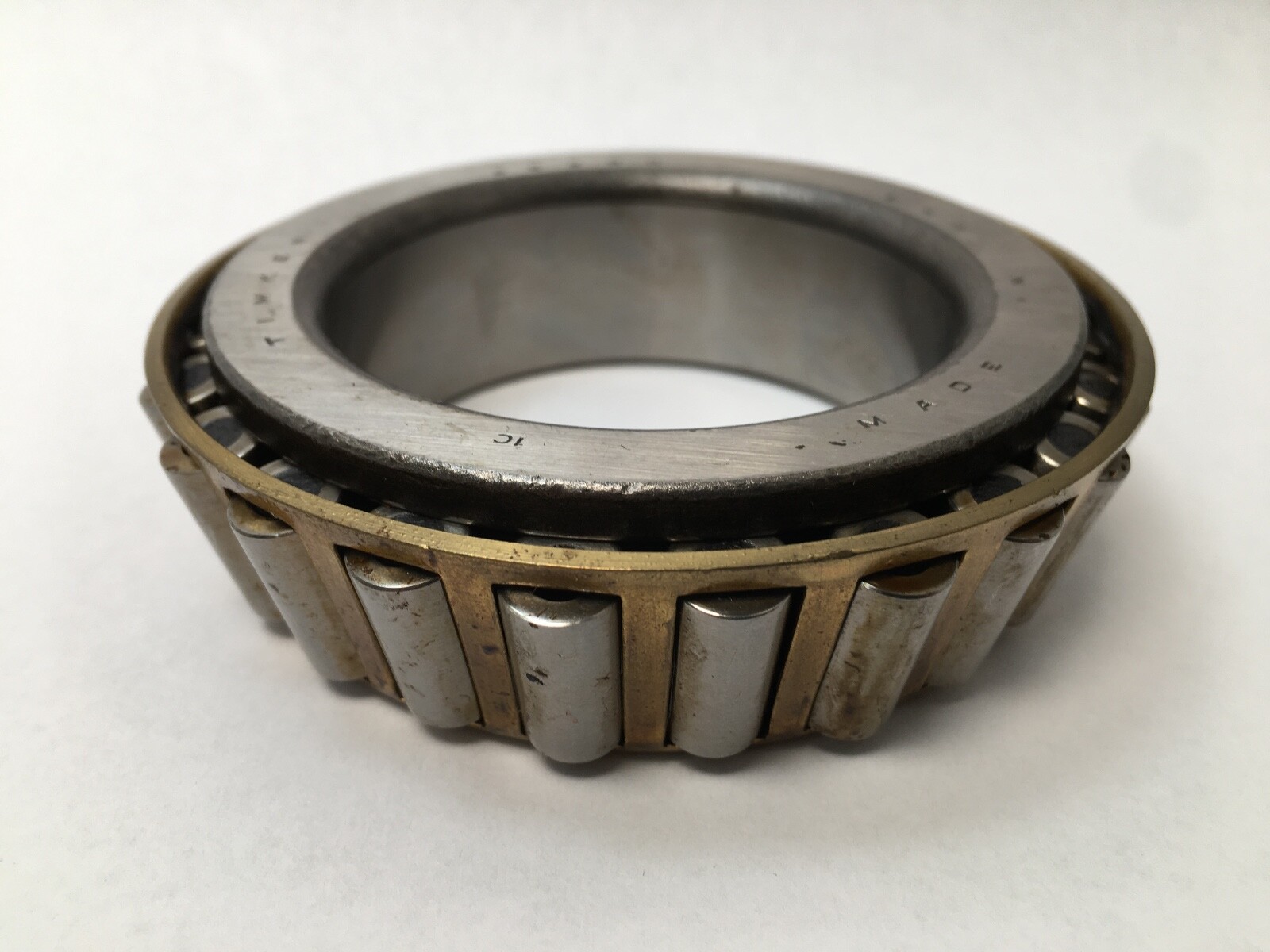

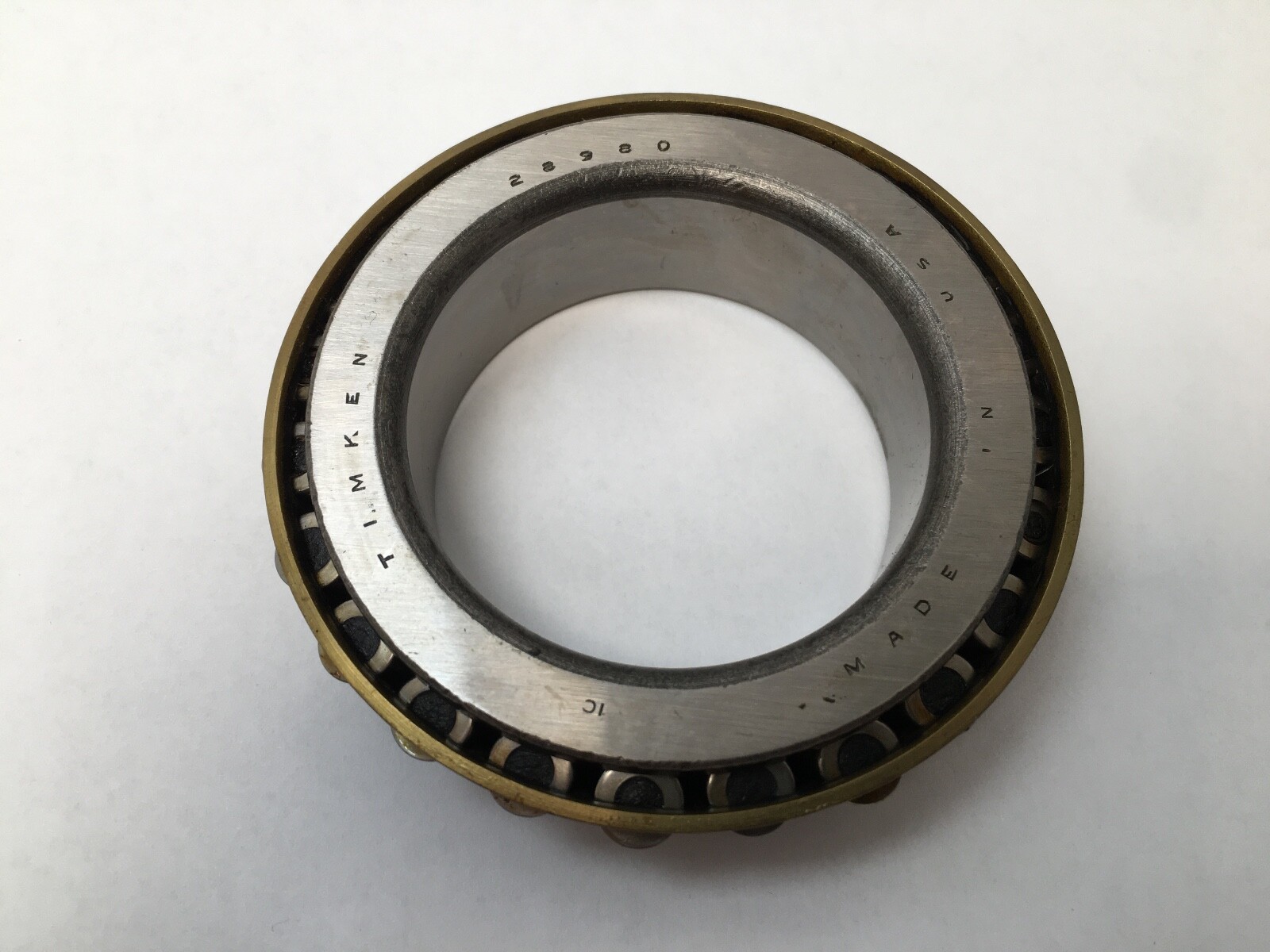

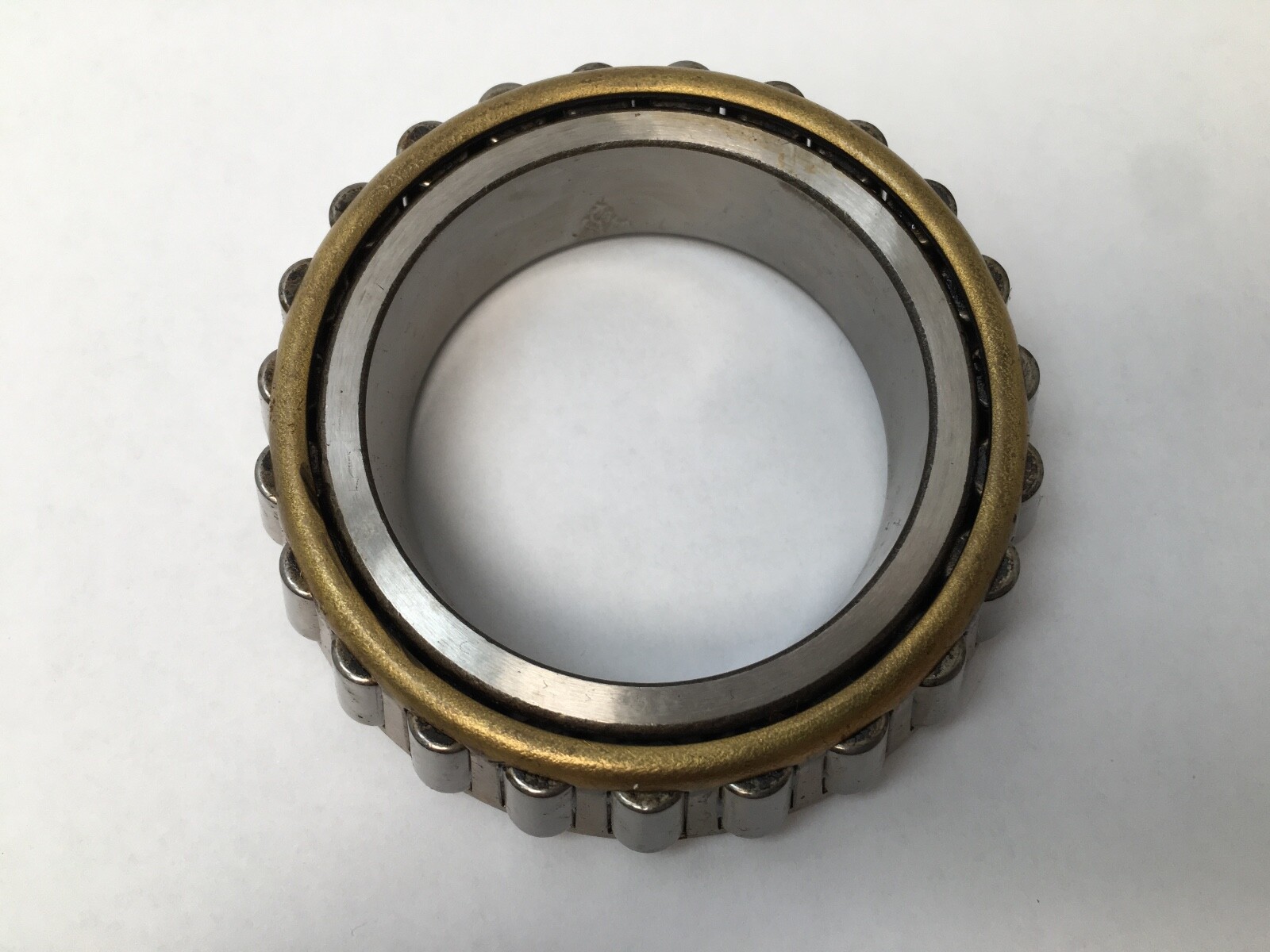

Timken 28980B tapered roller bearing cone. A cone is the inner ring together with its tapered rollers and cage. Bore Diameter: 2.3613 in (59.977 mm). Overall Width: 1.0000 in (25.400 mm). Series: 289. Base Number: 28980. Design Units: Imperial. Number Of Rows: 1. Rolling Elements: Tapered Roller. Item weight: 1.63 kg (3.60 lb).

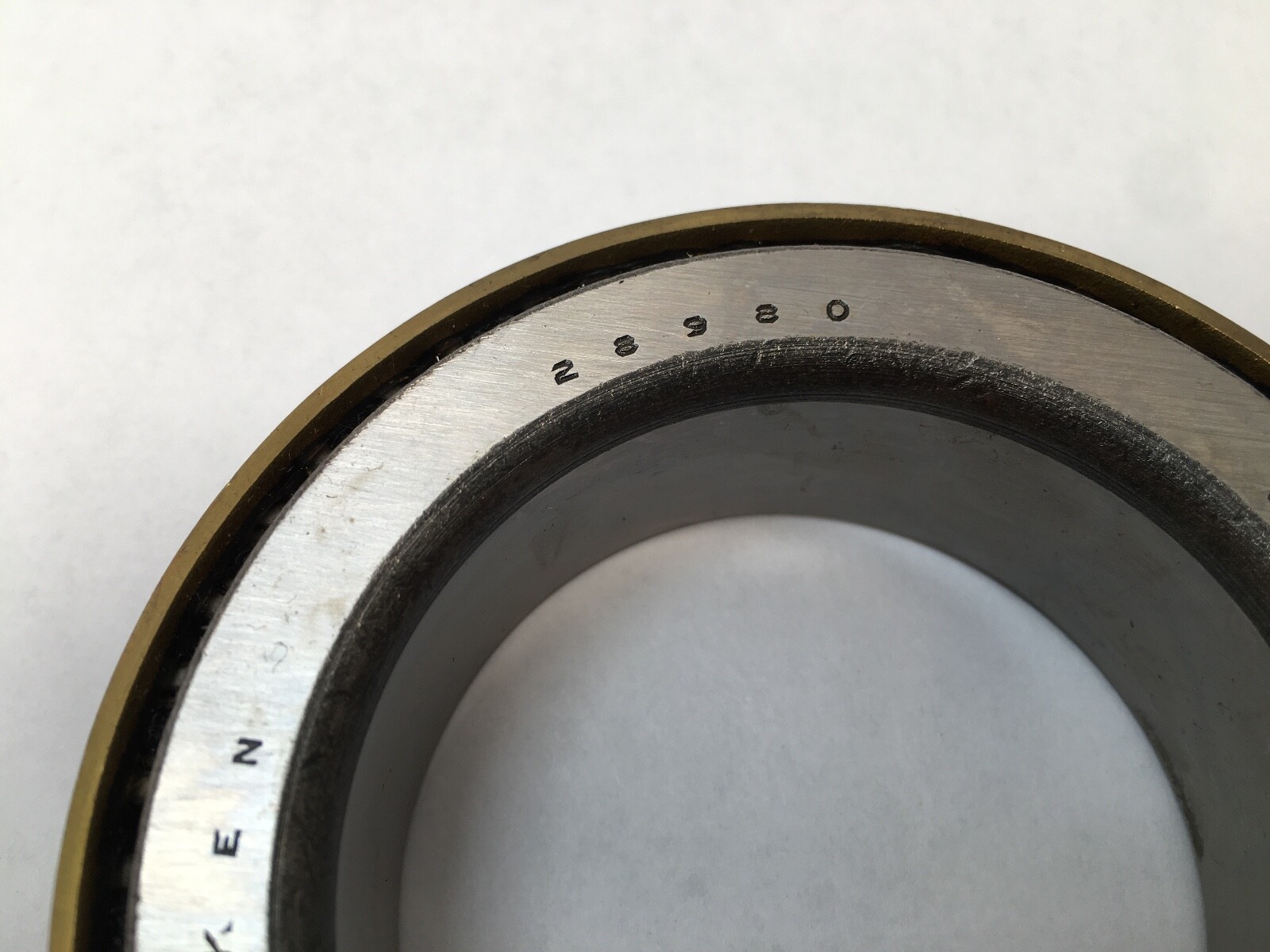

28980 — the Timken base cone number in the 289 inch series, 2.3613 in bore, running against the 28920 and 28919 cups.

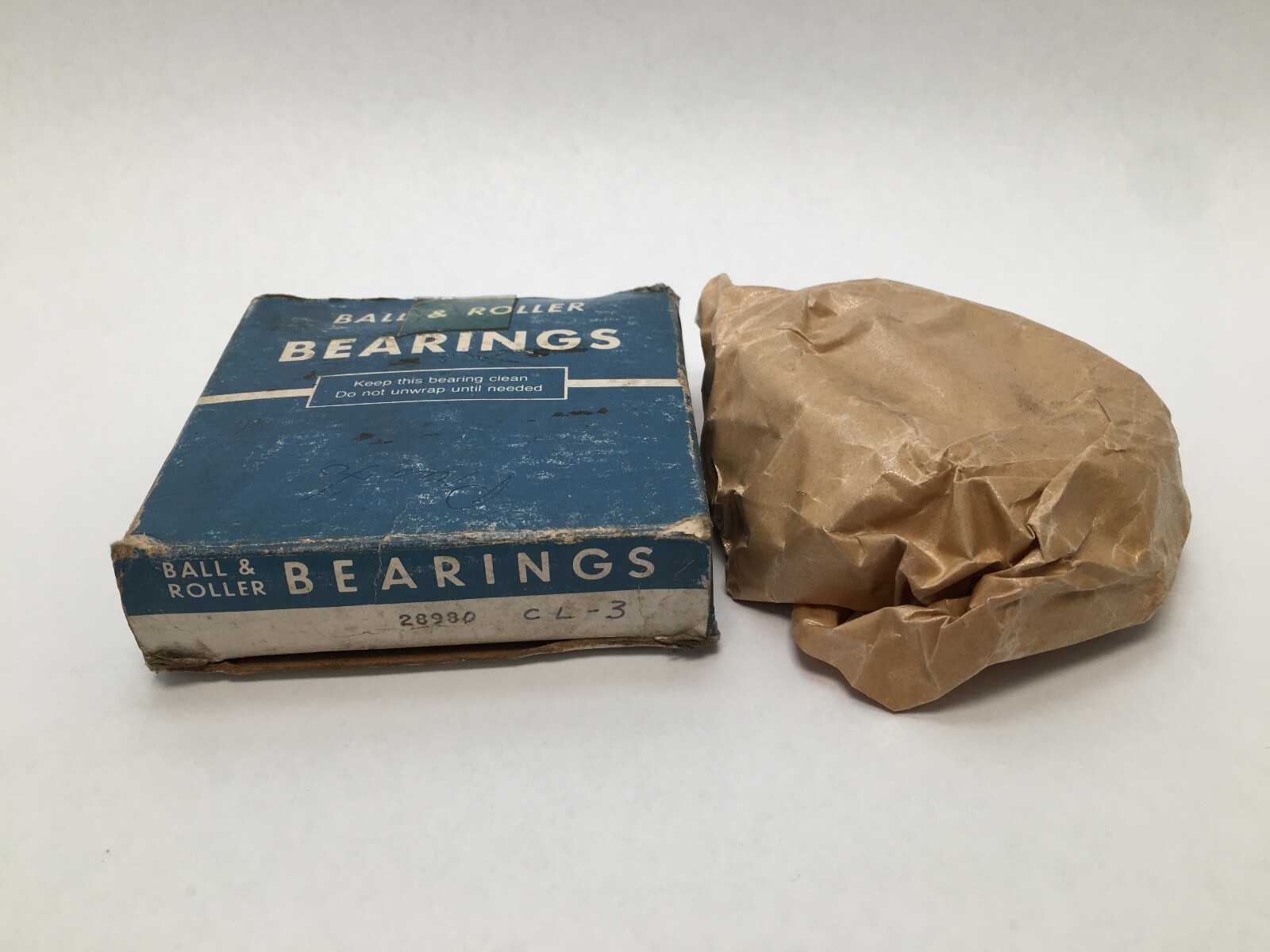

B — a Timken execution letter carried on the carton and the order code, written 28980B and 28980-B. It is an execution marking on the cone, and the boundary dimensions stay those of the 28980.
Dynamic Load Rating: 106,000 N (23,800 lbf), rated at one million revolutions. Static Load Rating: 149,000 N (33,500 lbf). Dynamic radial rating at 90 million revolutions (C90): 27,500 N (6,180 lbf). Dynamic axial rating at 90 million revolutions (Ca90): 20,000 N (4,500 lbf). K Factor: 1.37. A K Factor of 1.37 is a comparatively steep raceway for an inch cone, so a larger share of radial load converts into induced thrust and the bearing carries more axial capacity for its size. Precision Class: Not specified.
Max Shaft Fillet Radius: 0.140 in (3.600 mm). Shaft backing shoulder diameter, frontface (da): 2.64 in (67 mm). Shaft backing shoulder diameter, backface (db): 2.87 in (73 mm). Effective Center Location: –0.1 in (–2.5 mm), inside the cone backface. Cage location relative to backface (Aa): 0.05 in (1.3 mm). Cage location relative to frontface (Ab): 0.09 in (2.3 mm).
Unit Quantity: 1 Pc. Cone only. The matching cups are the Timken 28920 and the Timken 28919.
The designation to match is 28980B, also written 28980-B and 28980 B. The B execution is a Timken marking, so the number to specify is the suffixed one.
