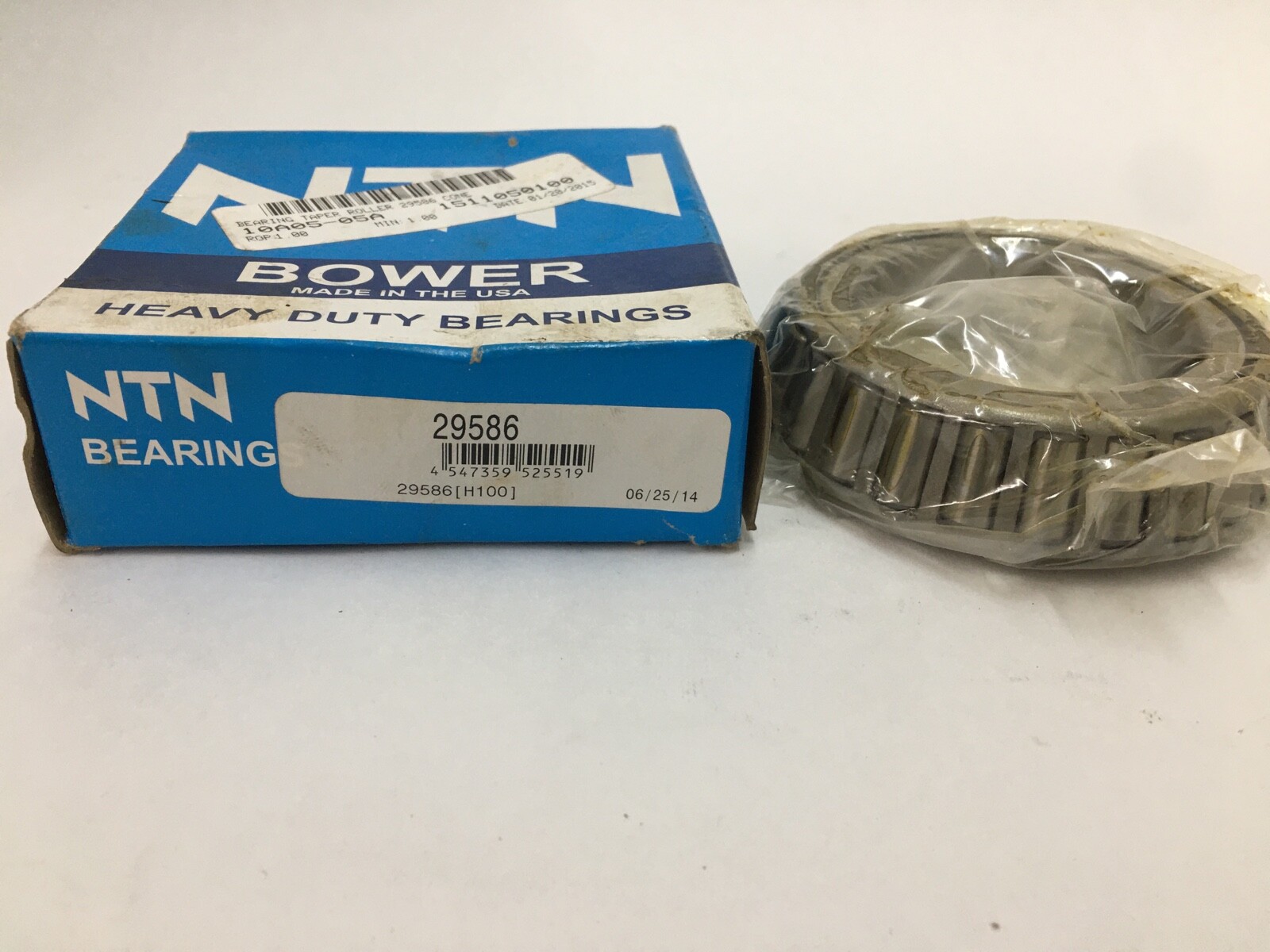

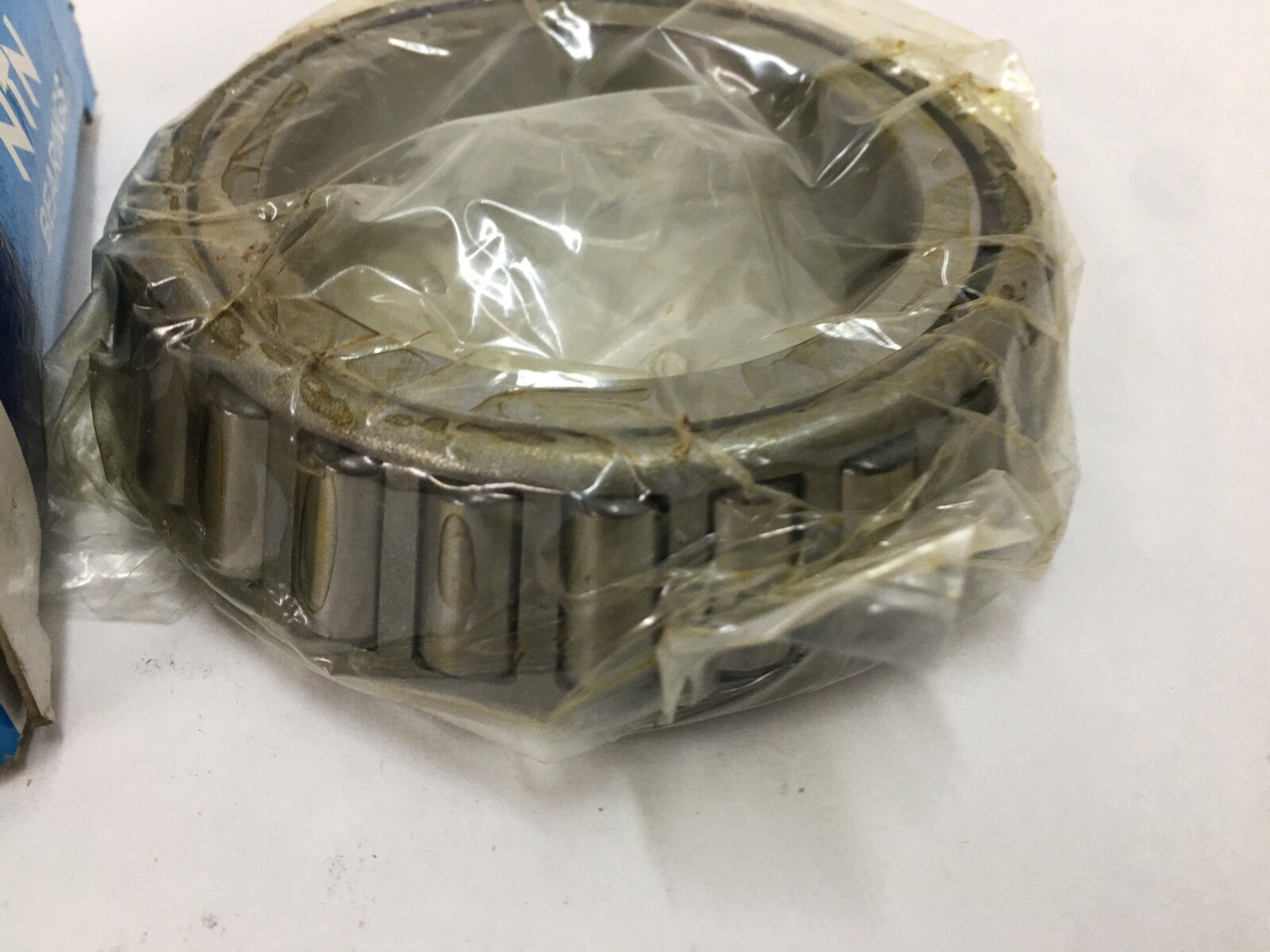

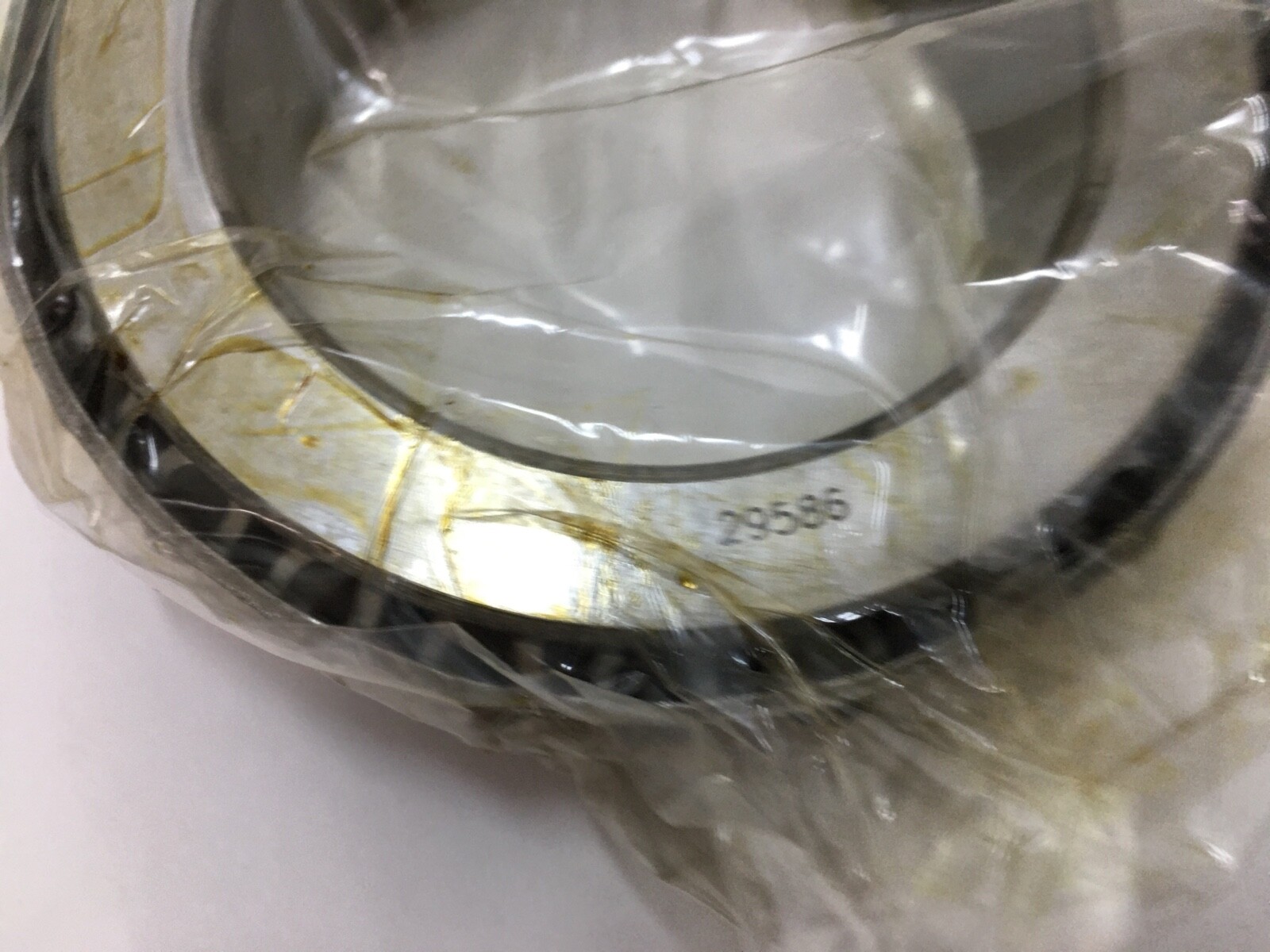

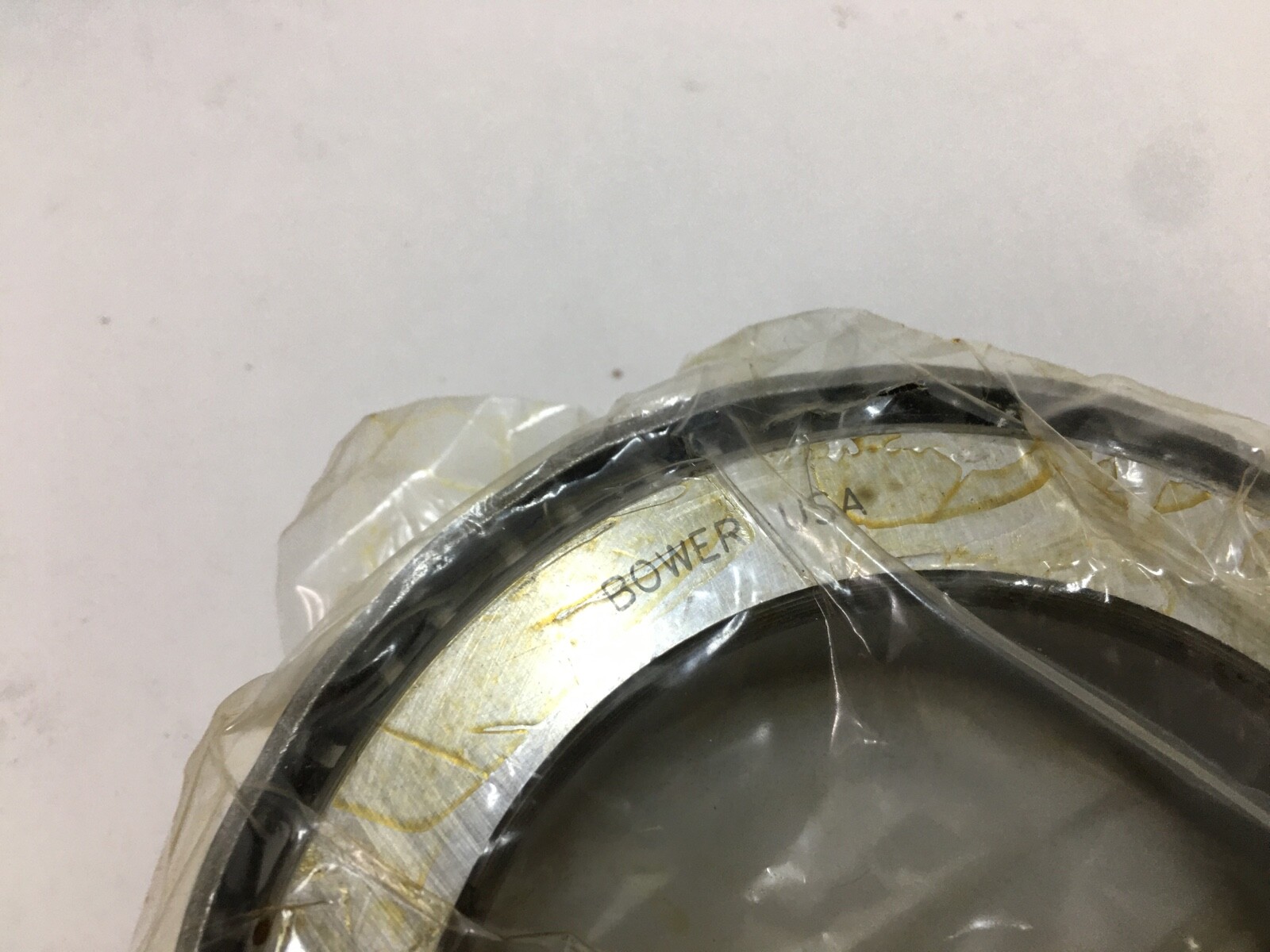

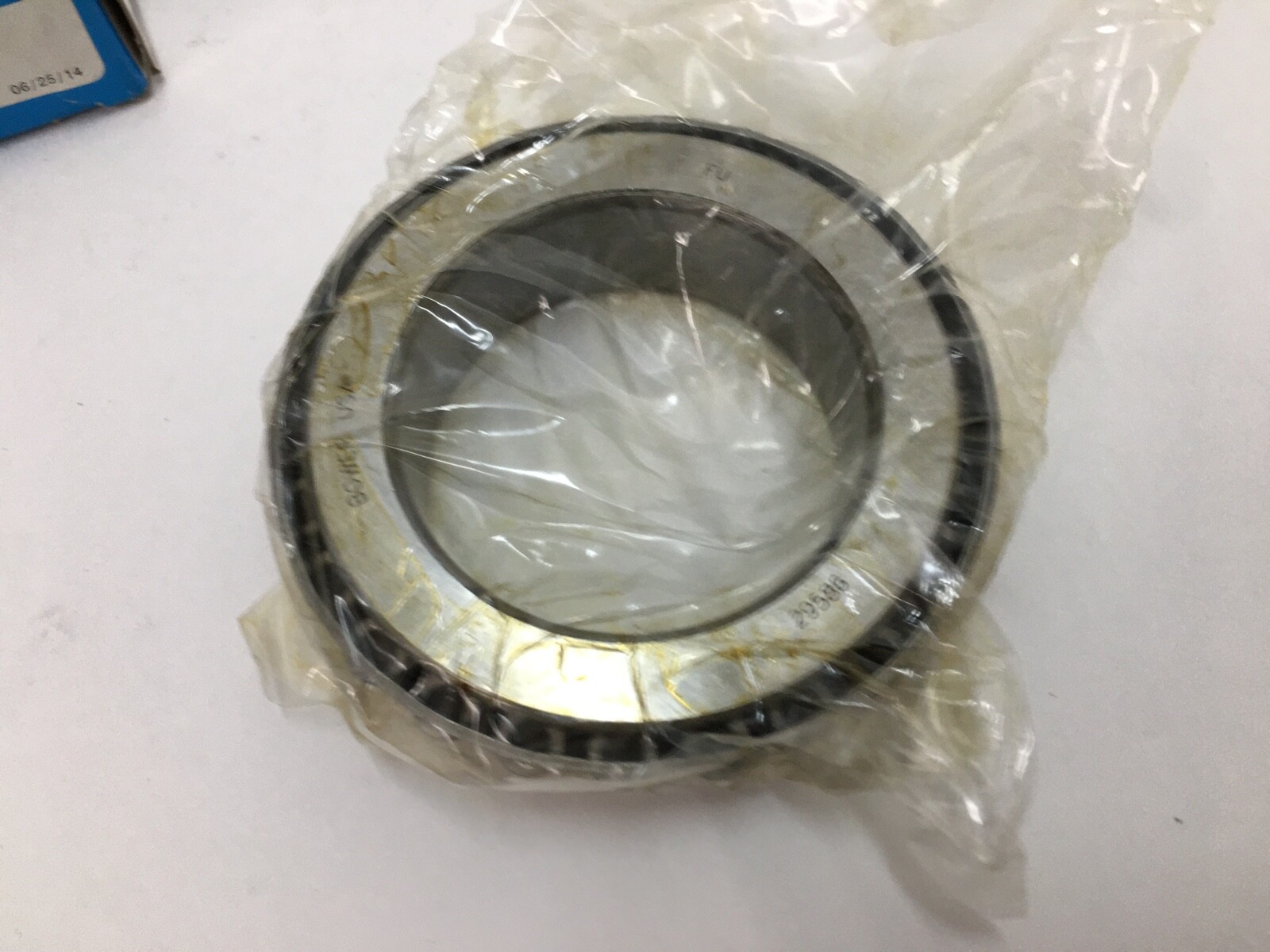

Tapered roller bearing cone, 63.500 mm (2.5000 in) bore, 25.400 mm wide, case carburized steel, 29500 series. NTN 4T-29586 inch-series cone.
List Price
$42.41
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 4T-29586 |
| Model | 4T29586 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 63.5 mm |
| Width | 25.4 mm |
| Series | 29500 |
|---|---|
| Material | Case Carburized Steel |
| Min Temp | -40 °C (-40 °F) |
| Rolling Elements | Tapered Roller |
| Max Temp | 120 °C (250 °F) |
| Item Weight | 0.650 kg (1.429 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Industry Terms | tapered roller bearing cone; inner ring and roller assembly; inch taper cone |
| Common Misspellings | NTN 29586 cone; NNT 4T-29586; NTN 4T29586 |
| Mpn Variants | 4T-29586; 4T29586; 29586; 4T 29586 |
| Cross Reference 1 | Timken 29586 |
|---|---|
| Cross Reference 2 | Koyo 29586 |
NTN 4T-29586 inch-series tapered roller bearing cone: inner ring with roller and cage assembly. Bore Diameter: 63.500 mm (2.5000 in). Cone Width: 25.400 mm (1.0000 in). Rolling Elements: Tapered Roller. Number Of Rows: 1. Unit Quantity: 1 Pc. Cone only; runs in a 29500-series cup.
4T — NTN 4T tapered roller bearing, case hardened steel.
29586 — ABMA inch-series cone number, 29500 series, 2.5000 in bore.
Material: Case carburized steel. Series: 29500. Item Weight: 0.650 kg (1.429 lb). Axial Load Factor e: 0.46. Axial Load Factor Y2: 1.31. Operating Temperature: -40 to 120 °C (-40 to 250 °F).
Bore Diameter: 63.500 mm (2.5000 in). Cone Width: 25.400 mm (1.0000 in). Cone backface fillet R max: 1.5 mm (0.060 in). Effective Load Center a: -0.8 mm (-0.030 in).
Same ABMA cone number: Timken 29586, Koyo 29586.
Bore Diameter: 63.500 mm (2.5000 in).
Cone only: inner ring with roller and cage assembly, for a 29500-series cup.
Timken 29586 and Koyo 29586.
