Availability:
1 in stock

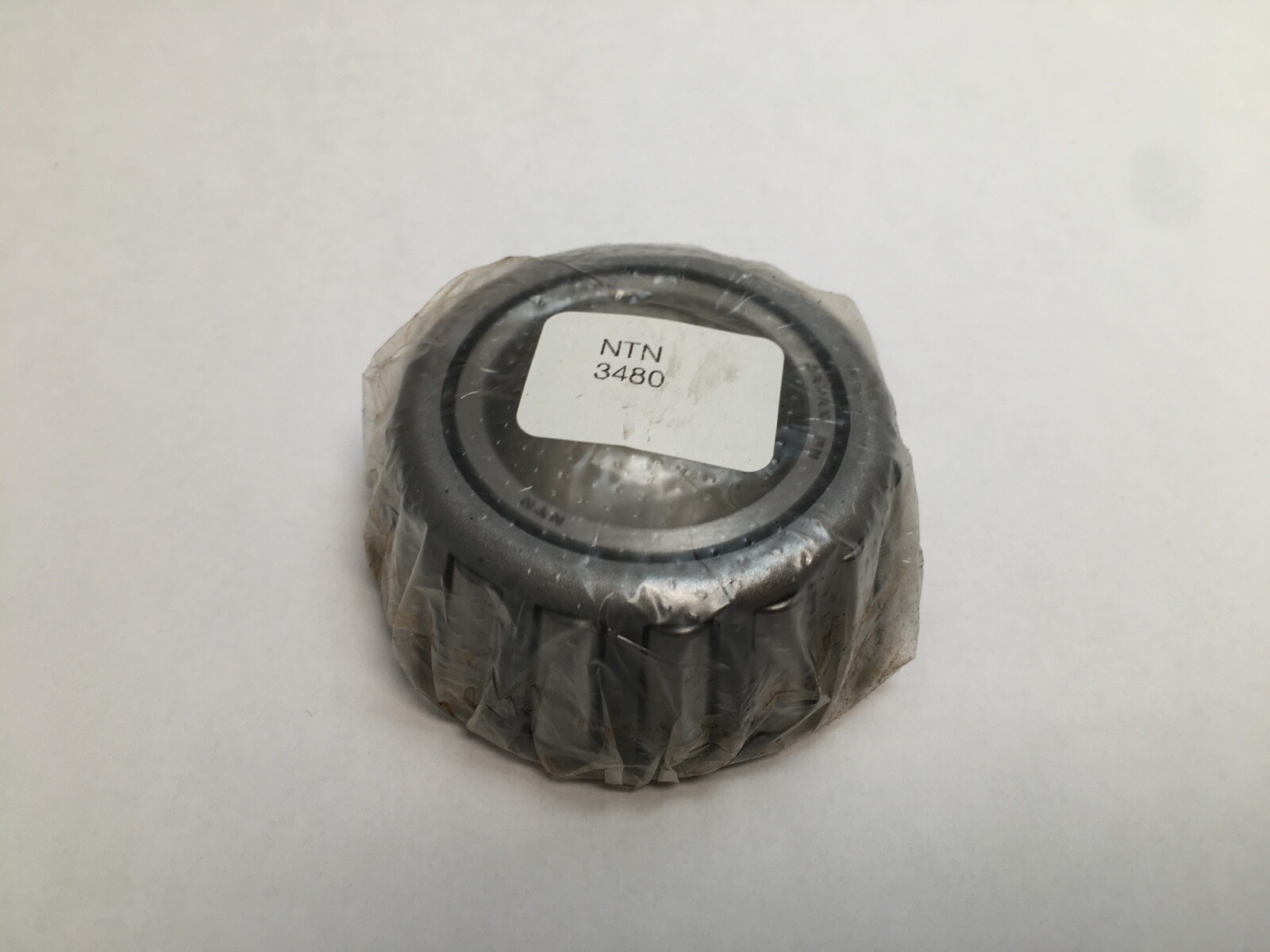

Tapered roller bearing cone, 1.3780 in (35.000 mm) bore, 1.1720 in wide, inch 3400 series. NTN 3480 cone only; mating cup 3420. Sold as 1 Pc.
List Price
$45.05
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 3480 |
| Model | 4T-3480 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 1.3780 in (35.000 mm) |
| Width | 1.1720 in (29.769 mm) |
| Mpn Variants | 3480, 4T-3480 |
|---|---|
| Compatible With Replaces | Mating cup 3420 (assembly 3480/3420) |
| Additional Attributes | Max shaft fillet radius 0.060 in (1.5 mm); cone only, matching cup 3420 |
| Series | 3400 |
| Rolling Elements | Tapered Roller |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Cross Reference 1 | Timken 3480 |
|---|---|
| Cross Reference 2 | Koyo 3480 |
| Cross Reference 3 | SKF 3480 |

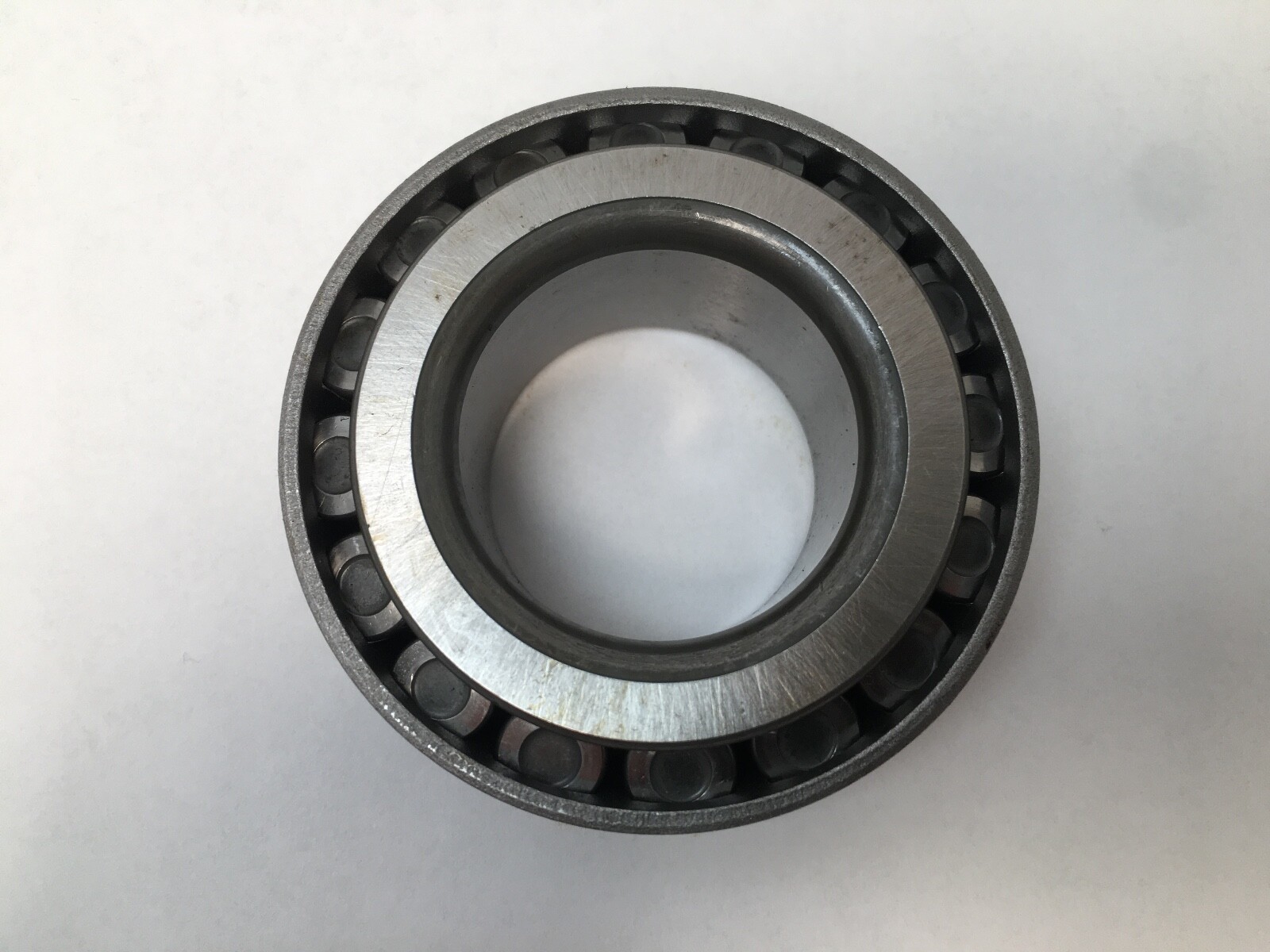

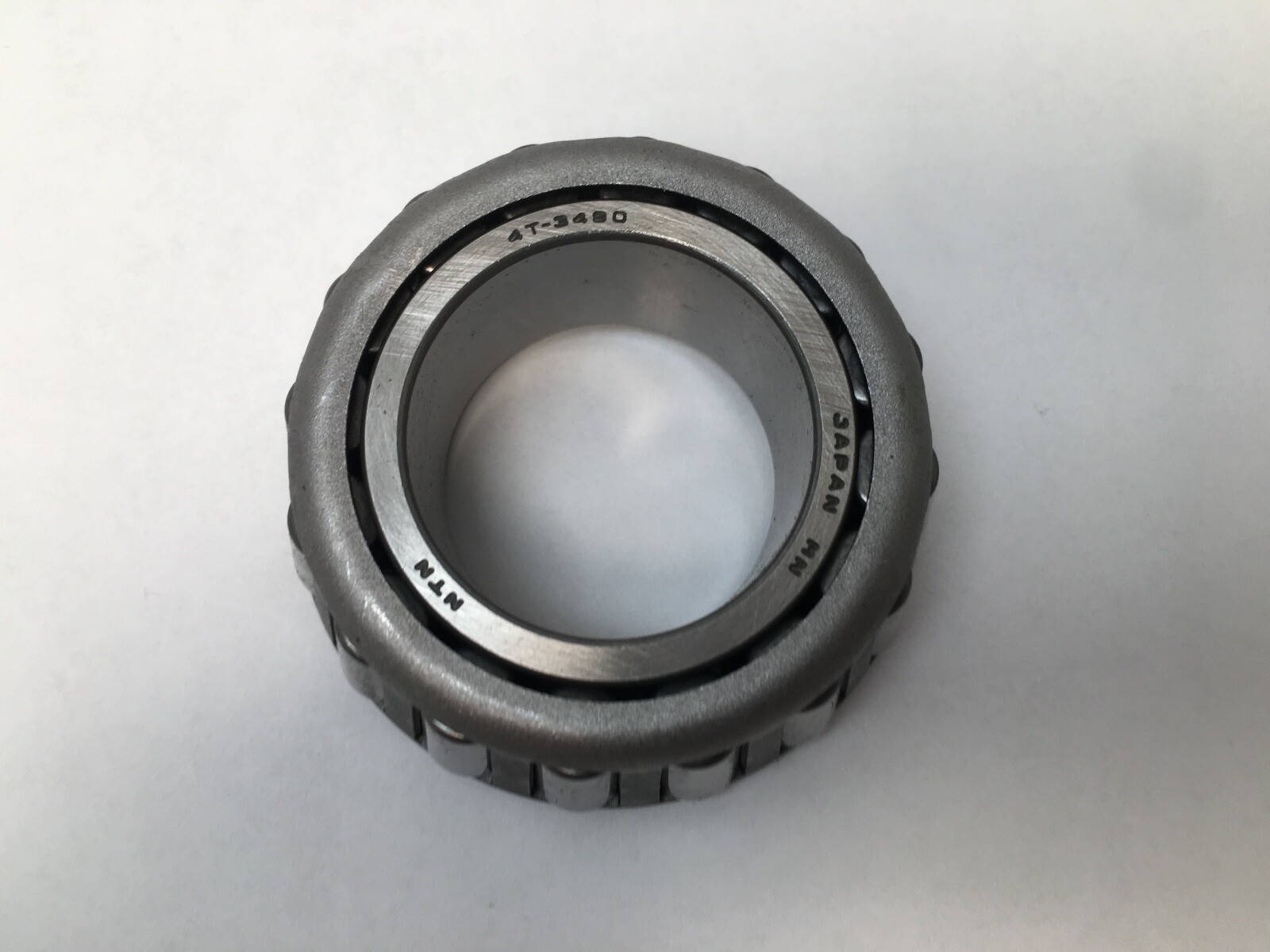

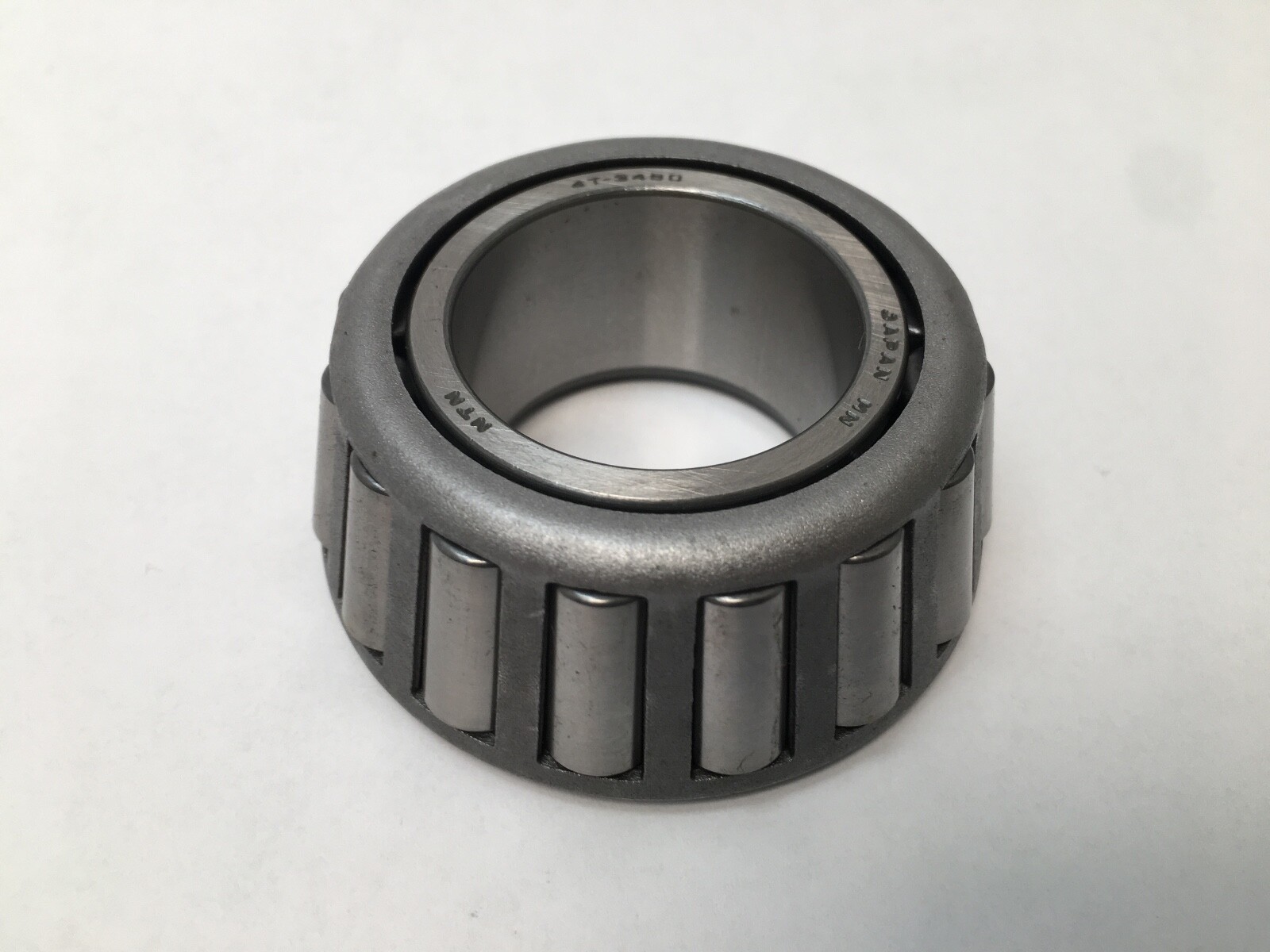

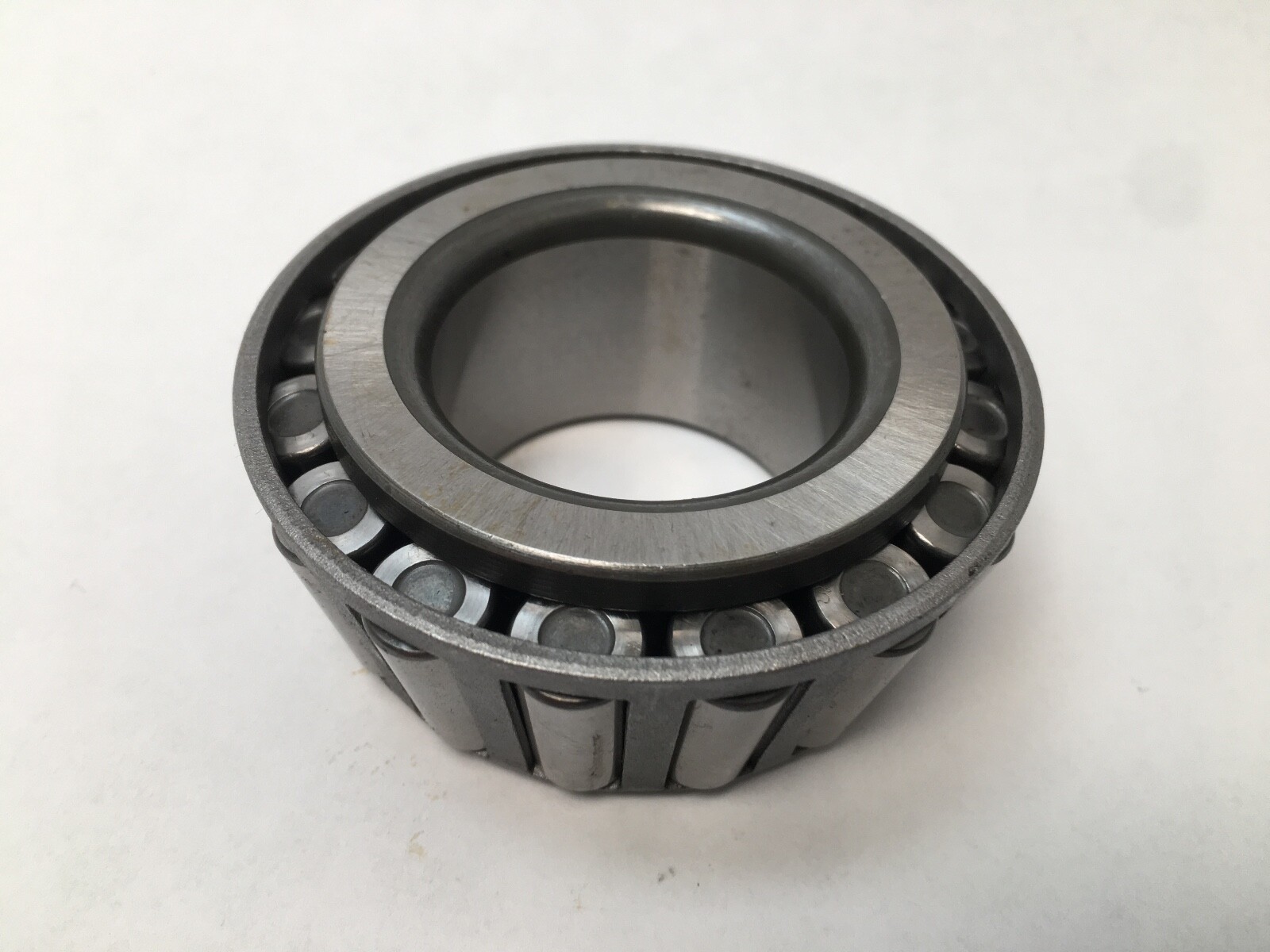

NTN 3480 single tapered roller bearing cone: the inner ring, roller set and cage assembly of an inch-series tapered roller bearing. Cone only. Bore Diameter: 1.3780 in (35.000 mm). Cone Width: 1.1720 in (29.769 mm). Sold as 1 Pc.
3480 — ABMA inch-series cone number in the 3400 series; the matching cup in the series is 3420.

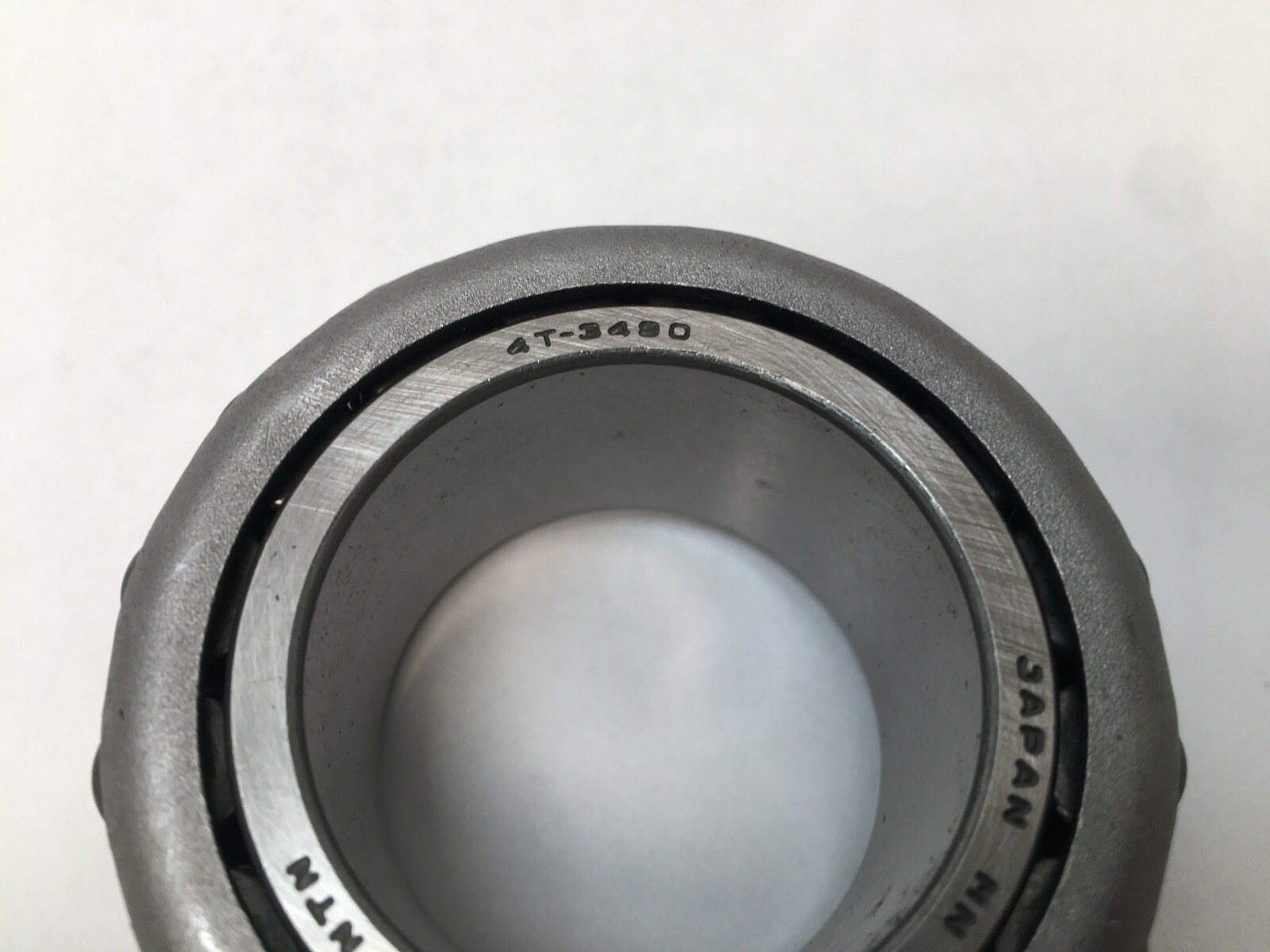

4T-3480 — NTN prefix form of the same cone number.
Bearing Type: Tapered roller bearing cone. Rolling Elements: Tapered roller. Number Of Rows: 1. Series: 3400. Unit Quantity: 1 Pc.
Bore Diameter: 1.3780 in (35.000 mm). Cone Width: 1.1720 in (29.769 mm). Max Shaft Fillet Radius: 0.060 in (1.5 mm). Mating cup: 3420, forming the 3480/3420 assembly.
Same cone number: Timken 3480, Koyo 3480, SKF 3480. Matching cup: 3420.
1.3780 in (35.000 mm) bore and 1.1720 in (29.769 mm) cone width.
Cup 3420, forming the 3480/3420 assembly.
No. It is the cone only: inner ring, rollers and cage.
