Spherical roller bearing, 45 mm straight bore x 85 mm OD x 23 mm wide, machined brass MB cage, S lubrication groove with three holes, normal CN clearance.
List Price
$45.23
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22209SMB |
| Model | 22209 S MB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Lubricant | Oil/Grease |
| Mpn Variants | 22209SMB, 22209-S-MB, 22209S.MB, 22209-S-M, 22209SM |
| Cage Type | Machined, inner-ring guided |
| Rolling Elements | Spherical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | Lubrication groove and three holes (S / W33) |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22209 E |
|---|---|
| Cross Reference 2 | NSK 22209EAE4 |
| Cross Reference 3 | Timken 22209EJW33 |

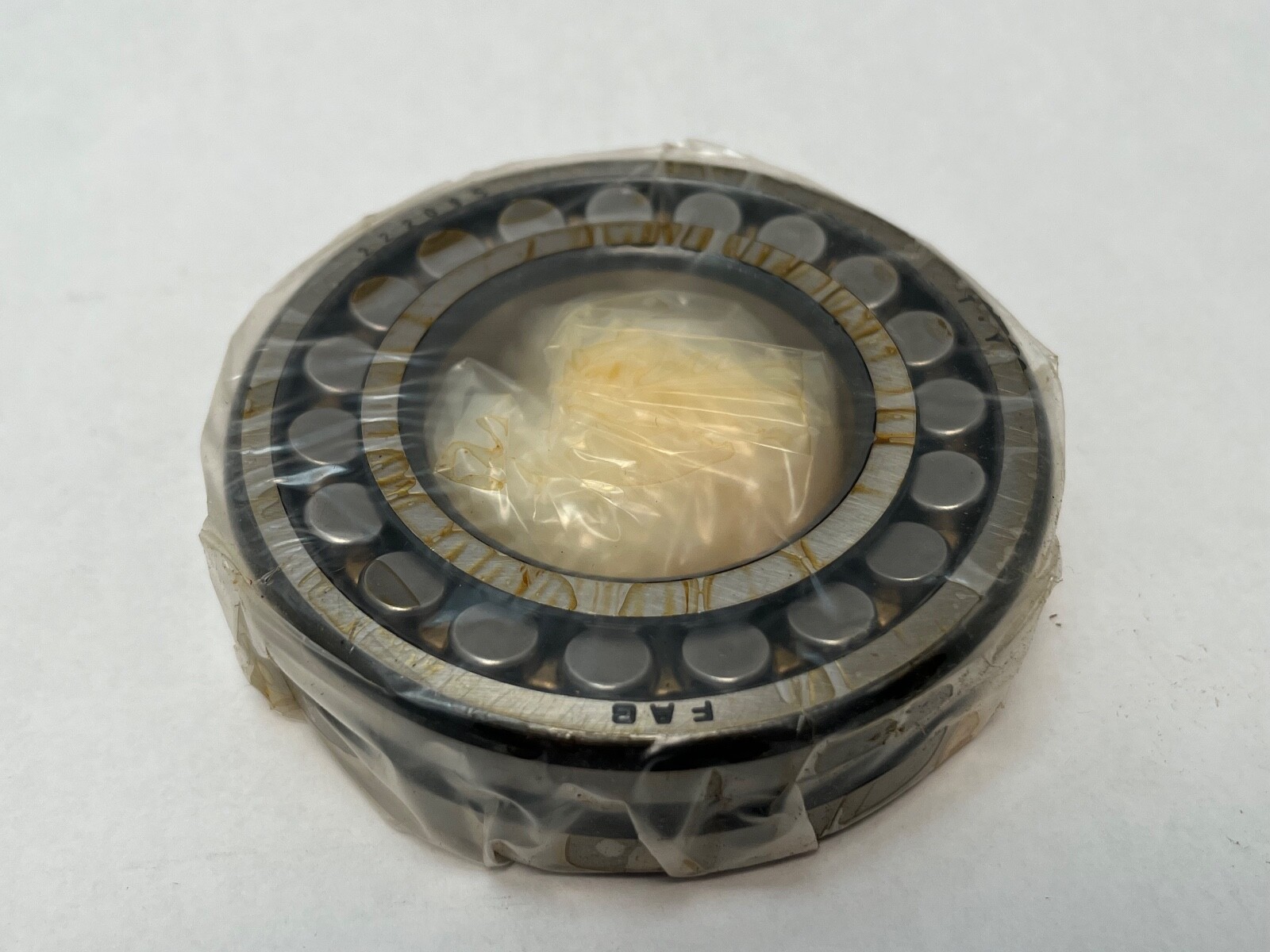

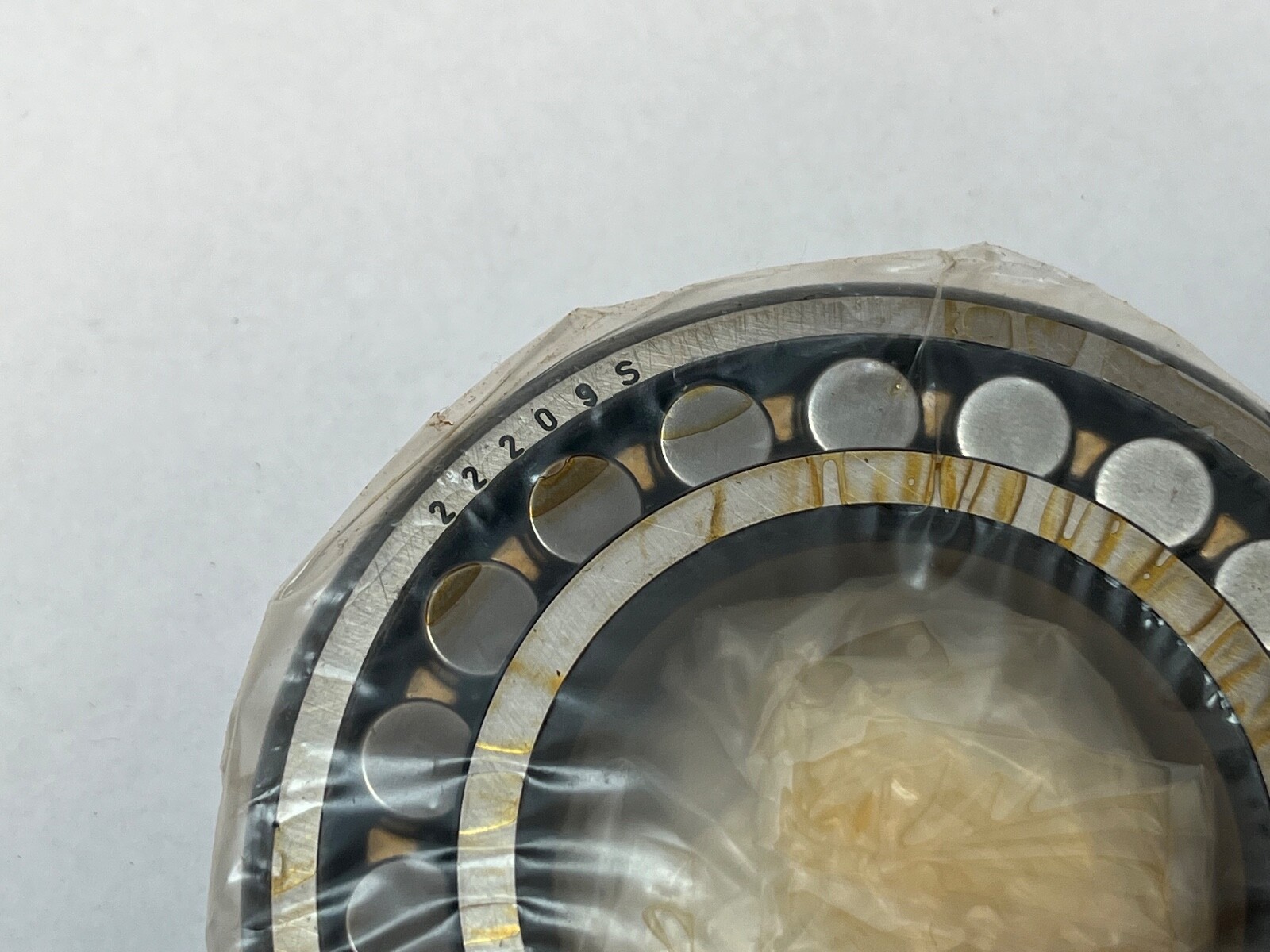

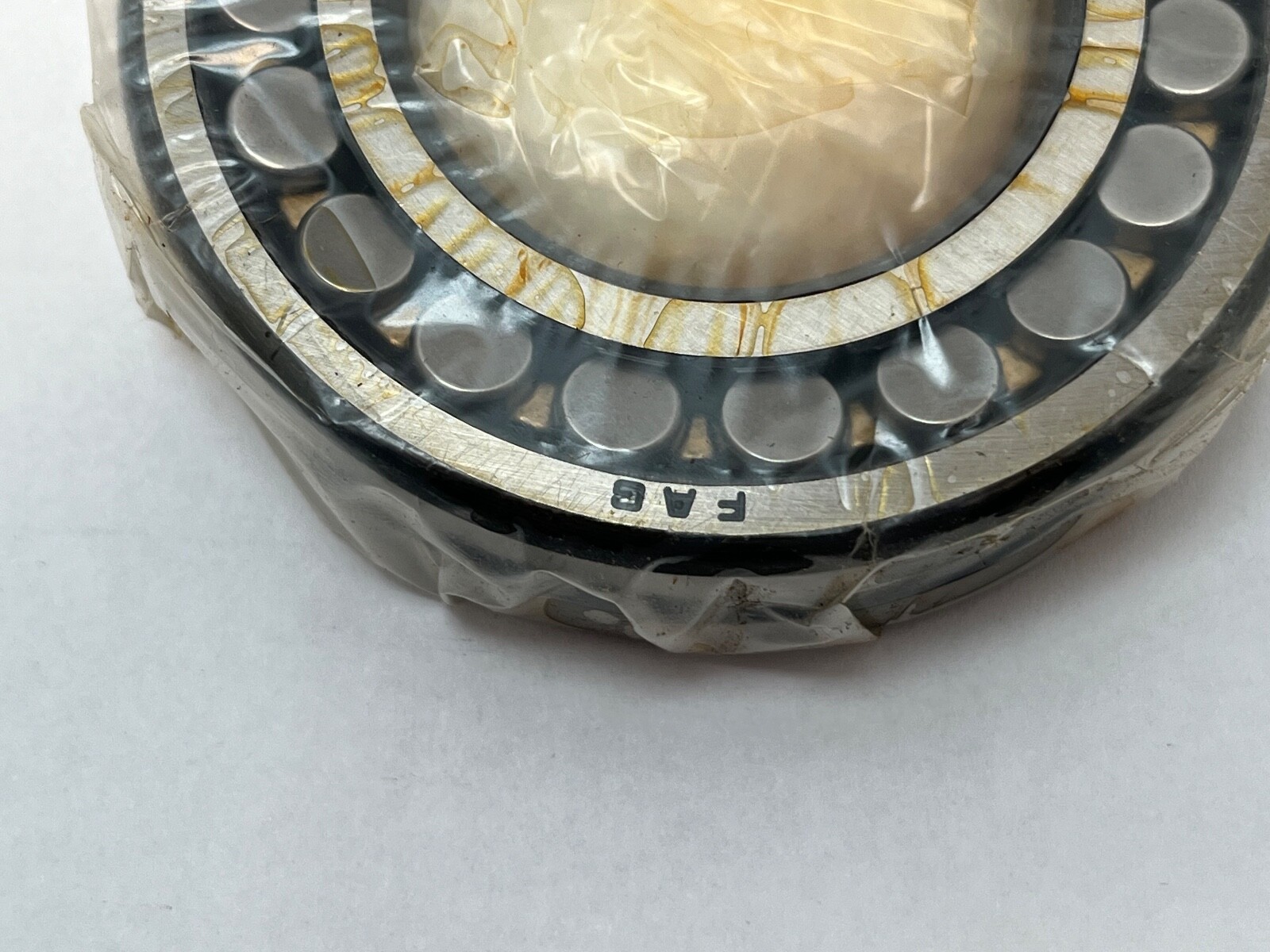

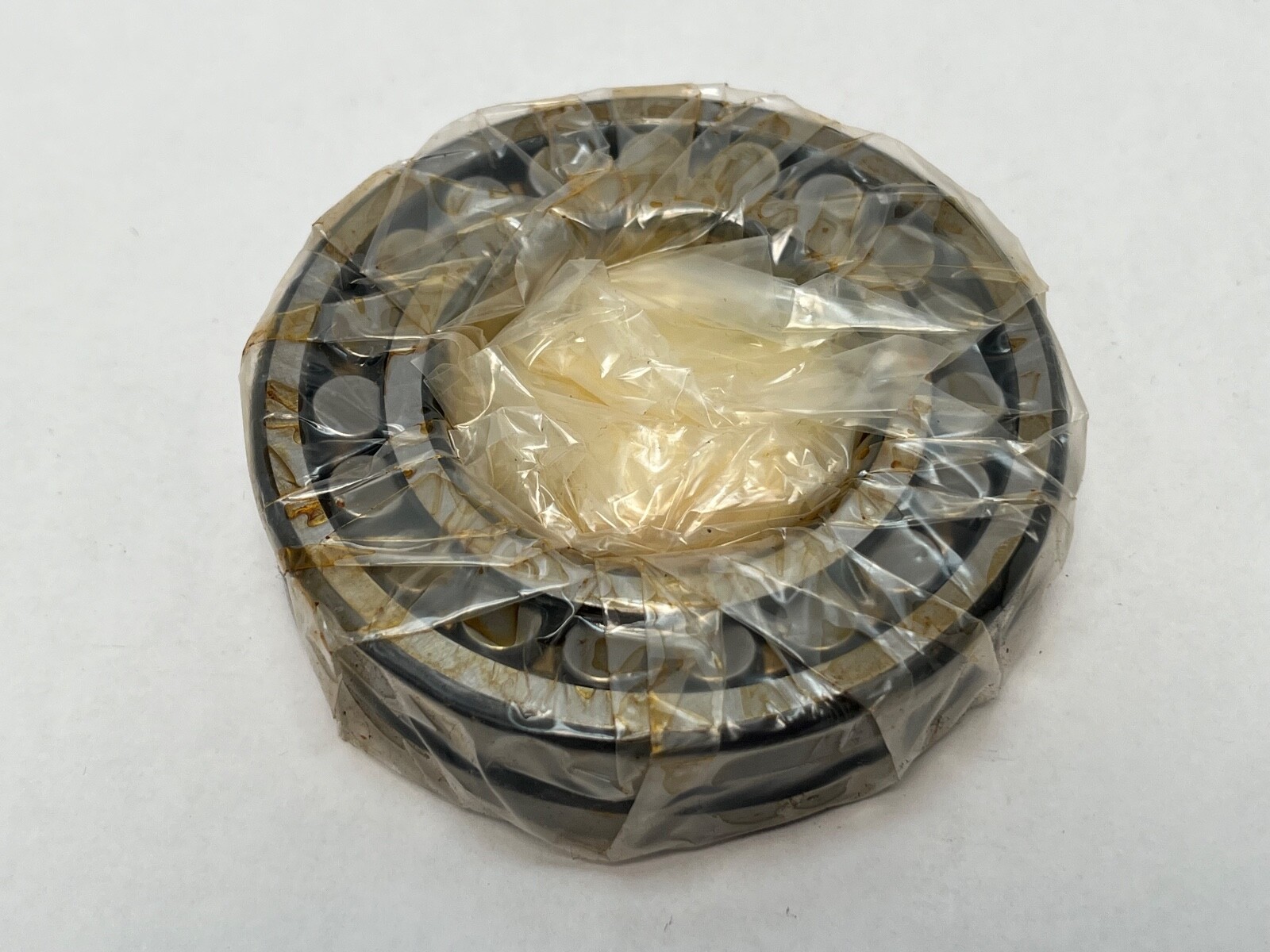

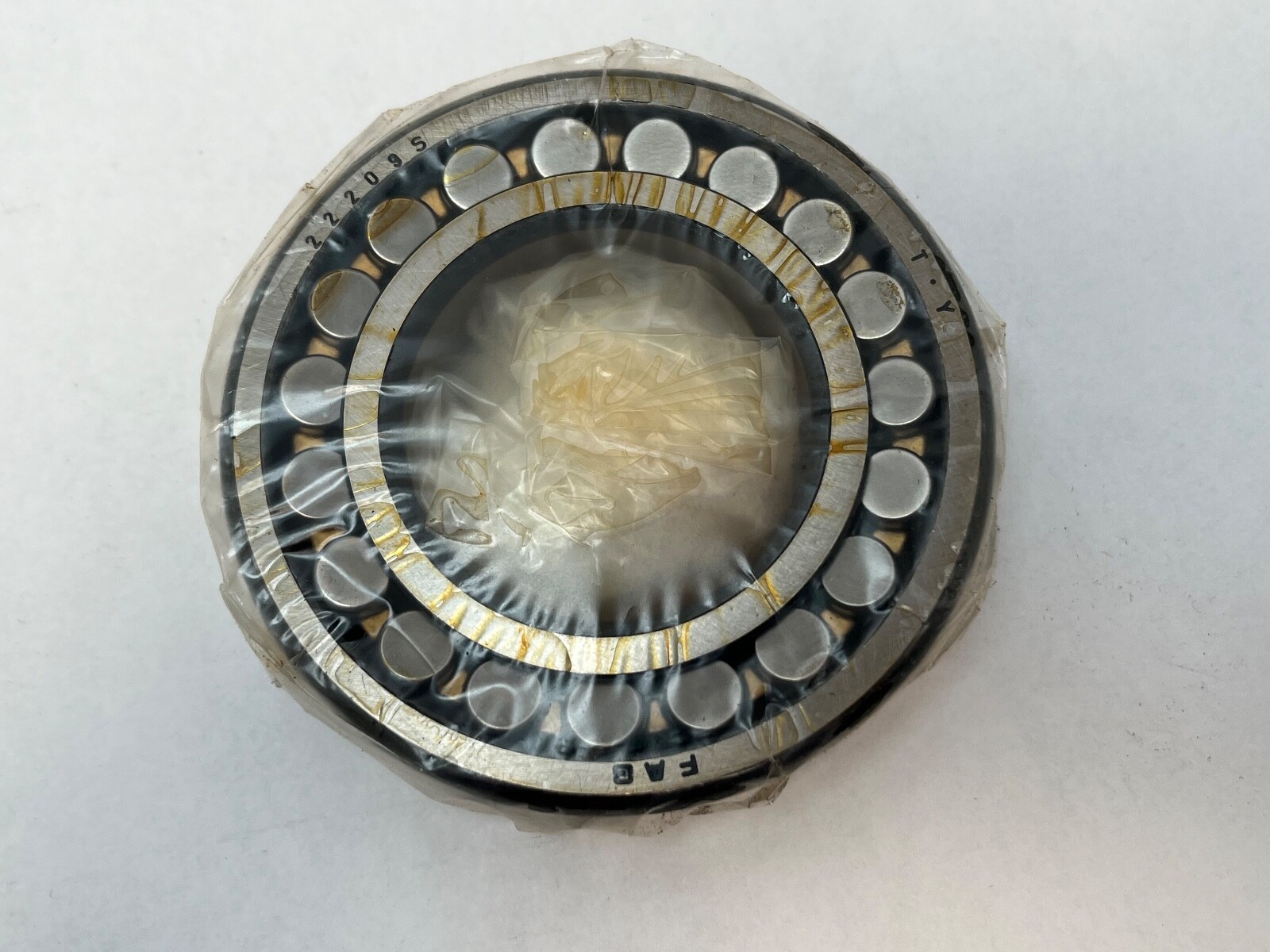

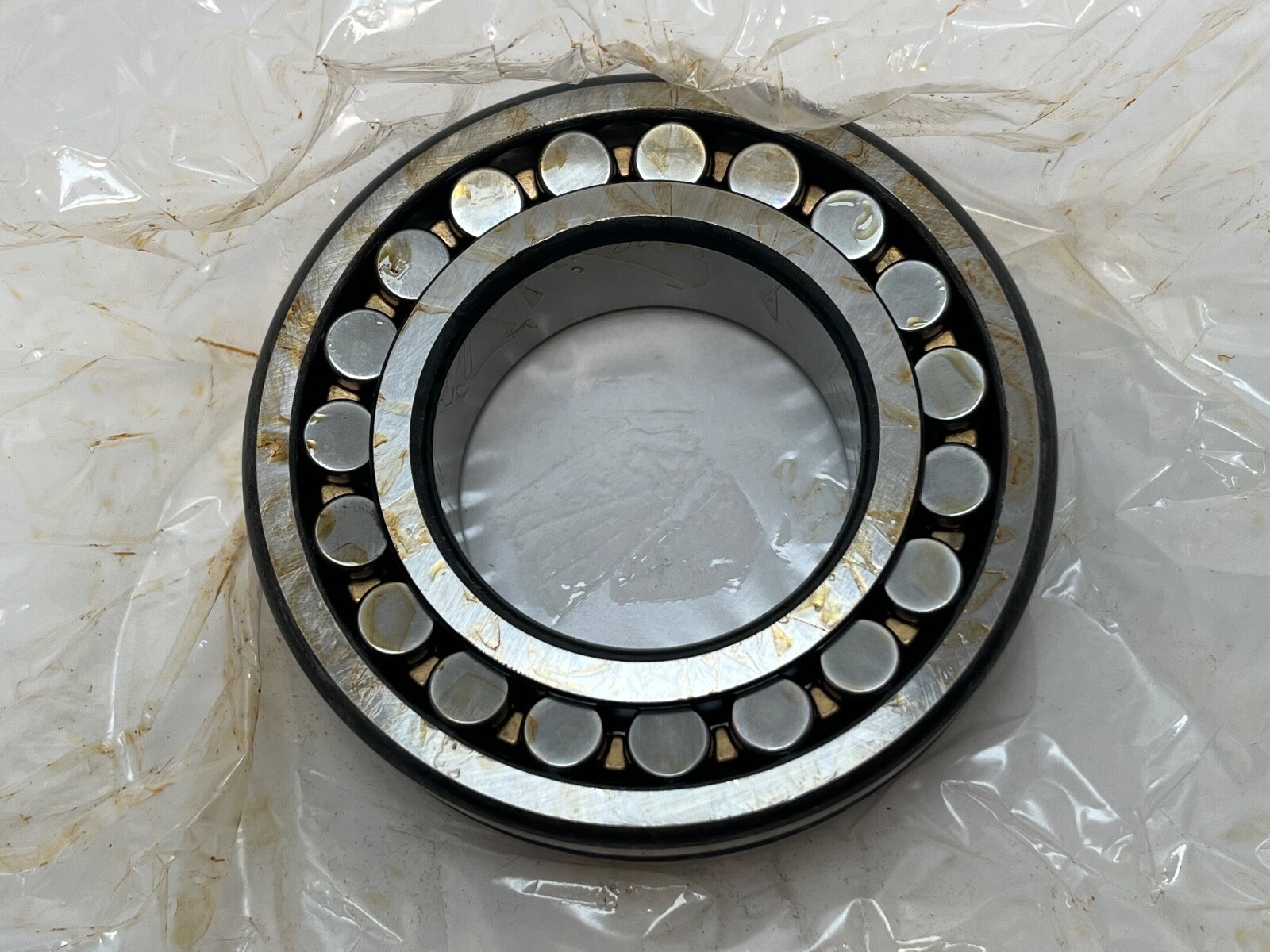

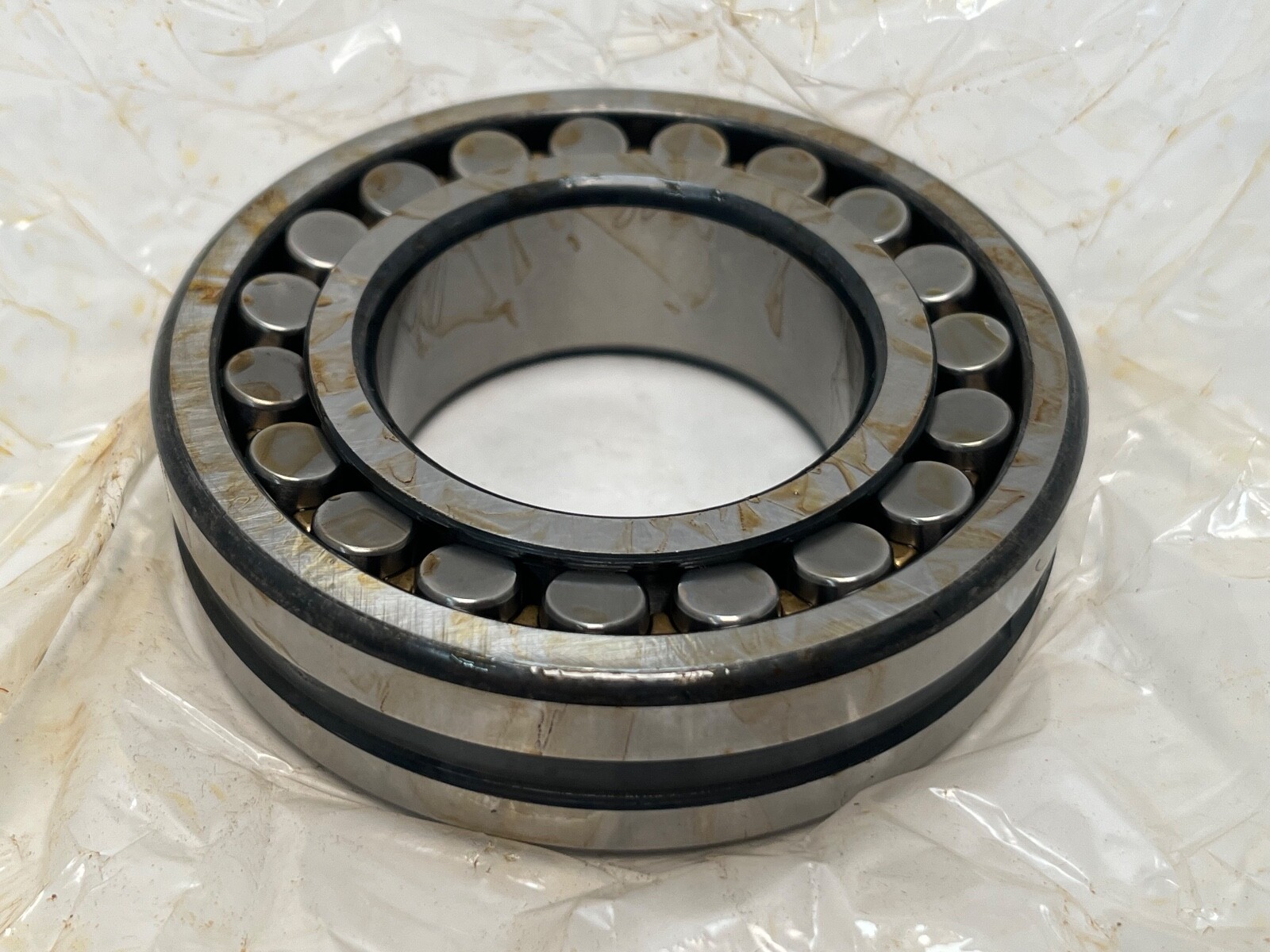

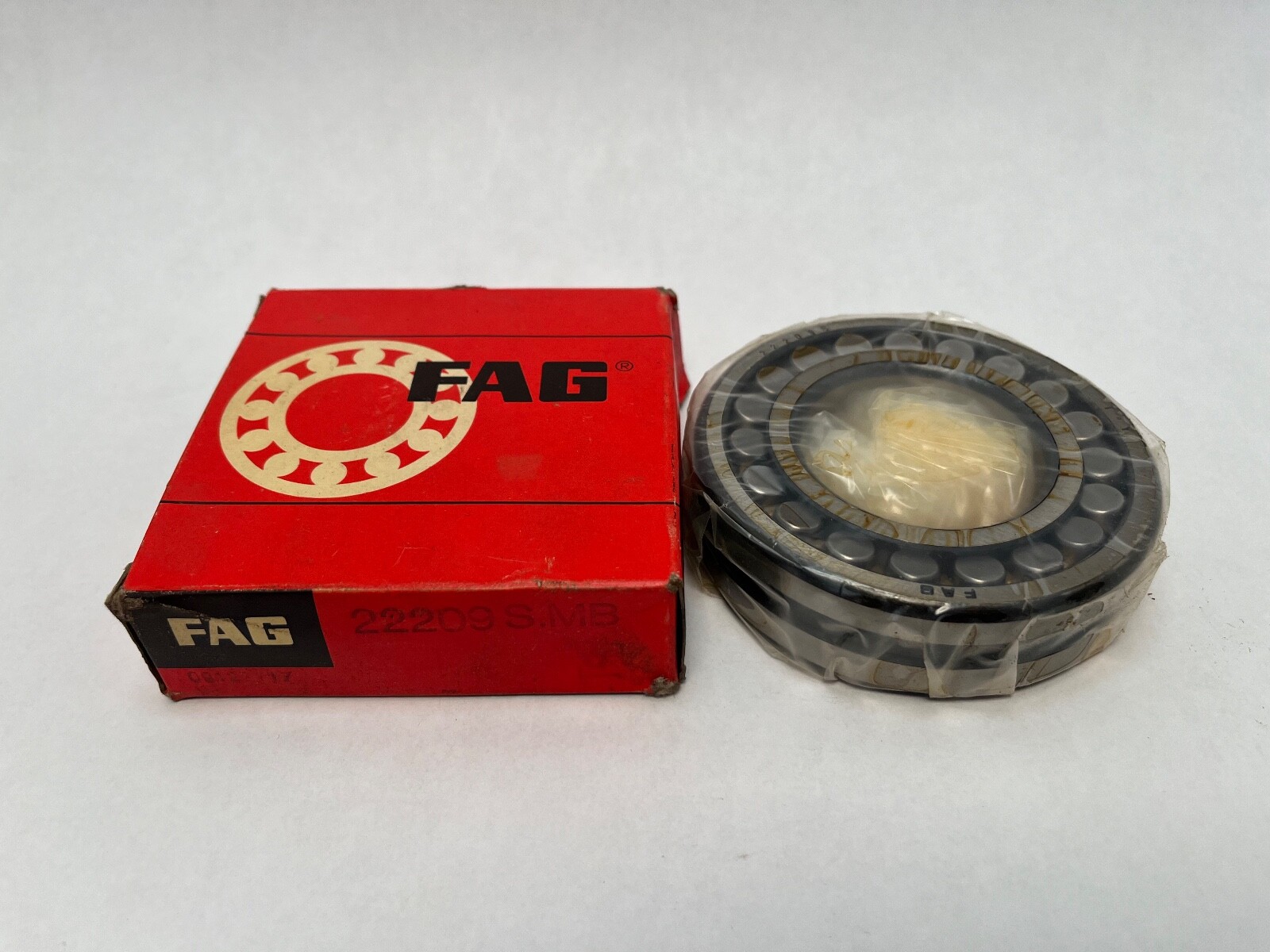

FAG 22209S.MB double-row spherical roller bearing with a straight bore, outer-ring lubrication groove and a machined brass cage. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 23 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2.
222 — FAG 222 series spherical roller bearing, 22 dimension series.
09 — bore code, 9 x 5 = 45 mm bore.
S — lubrication groove and three radial lubrication holes in the outer ring, the FAG equivalent of W33.
MB — machined brass cage, guided on the inner ring.
No clearance suffix — normal radial internal clearance, CN.
Cage Material: Machined brass. Internal Clearance: CN. Bore Type: Straight. Lubricant: grease or oil. The groove and three holes deliver lubricant directly between the roller rows. The brass cage tolerates high temperature and shock load.
Unit Quantity: 1 Pc. Single bearing, open, straight bore.
Same 45 x 85 x 23 mm envelope with outer-ring lubrication groove: SKF 22209 E, NSK 22209EAE4, Timken 22209EJW33. Cage materials differ on these equivalents.
