Single-row barrel roller bearing, 60 mm bore x 110 mm OD x 22 mm wide. 1:12 tapered bore, phenolic resin cage, C3 clearance, radial load with self-alignment. 1 Pc.
List Price
$128.44
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | FAG |
|---|---|
| MPN | 20212KTC3 |
| Model | 20212 K T C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 20200 |
| Condition | New |
| Base Number | 20212 |
| Industry Terms | barrel roller bearing, tapered bore barrel roller, self-aligning roller bearing |
| Bore Shaft Size | 60 mm (2.3622 in), tapered 1:12 |
| Mpn Variants | 20212K.T.C3, 20212-K-T-C3, 20212KTC3, 20212K, 20212 K T C3 |
| Compatible With Replaces | Adapter sleeve H212 (55 mm shaft seat) |
| Min Temp | -30°C |
| Cage Type | Roller Guided |
| Dynamic Load Rating | 88 kN / 19783 lbf |
| Static Load Rating | 108 kN / 24279 lbf |
| Rolling Elements | Roller |
| Max Temp | 120°C |
| Item Weight | 1.83 lbs |
| Cage Material | Glass-fibre reinforced phenolic resin |
| Limiting Speed | 6300 rpm |
| Number Of Rows | 1 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Internal Clearance | C3 |
| Part Number | 20212-K-T-C3 |
| Cross Reference 1 | SKF 20212 K |
|---|---|
| Cross Reference 2 | NSK 20212K |
| Cross Reference 3 | NTN 20212K |

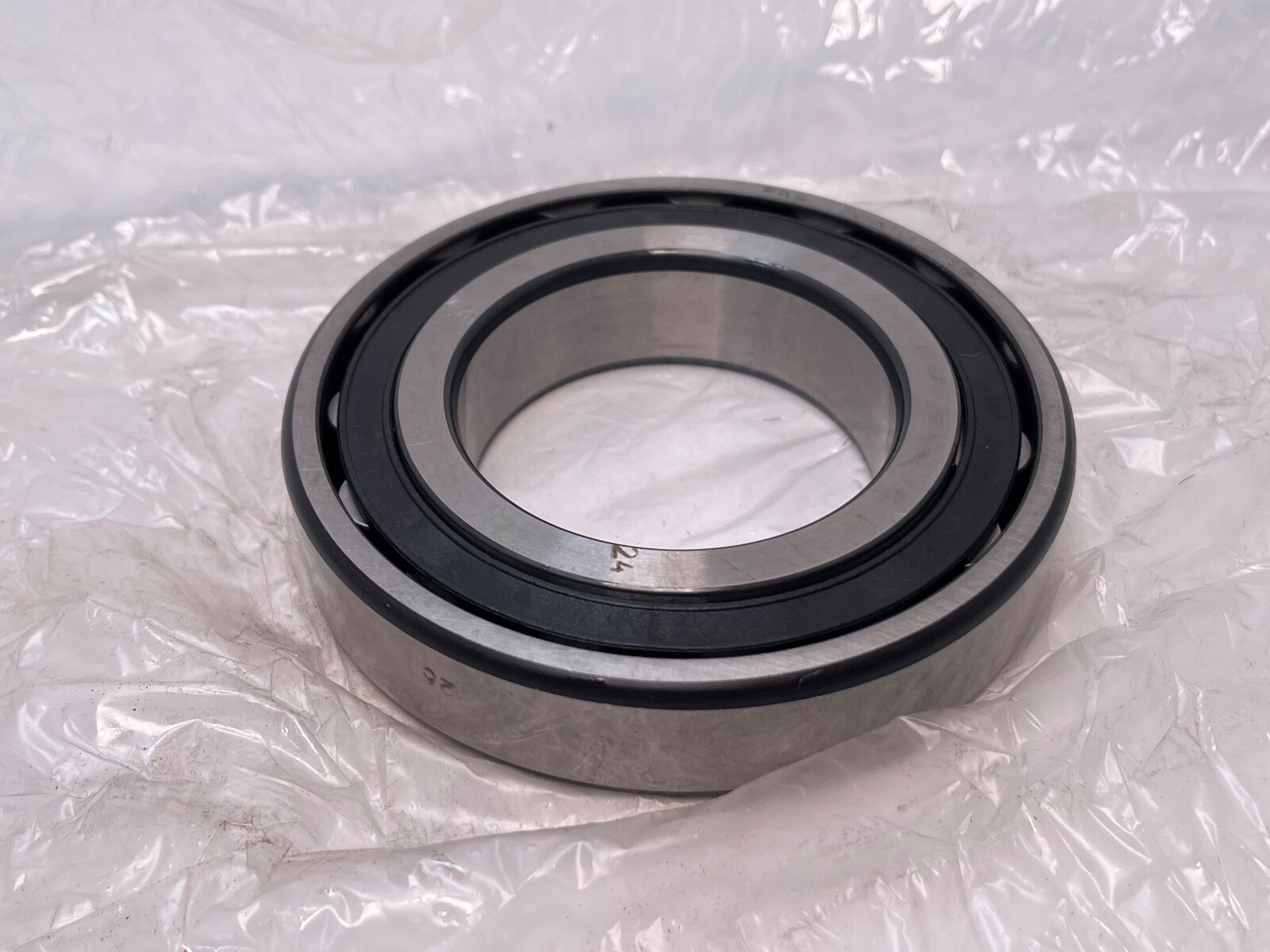

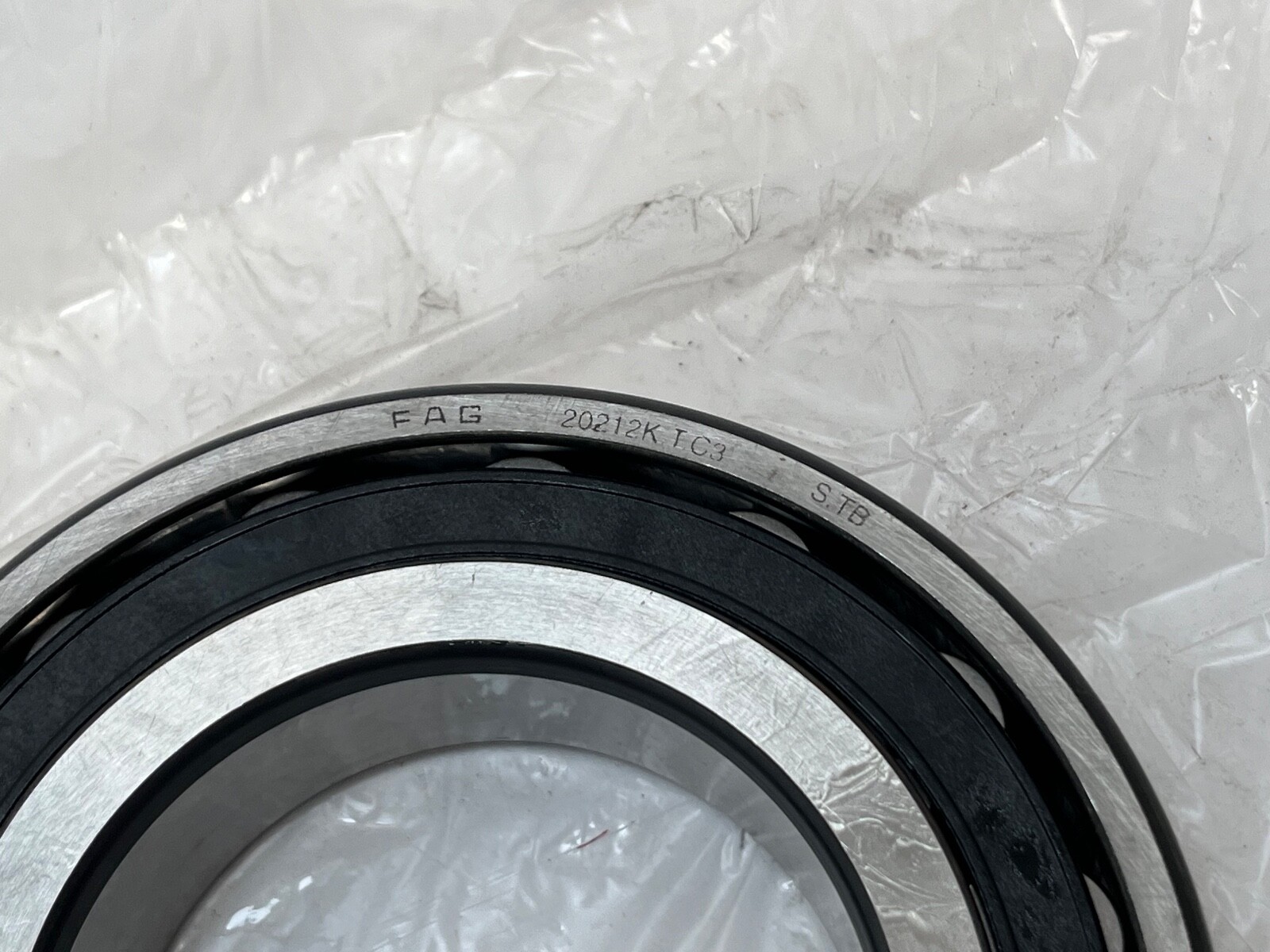

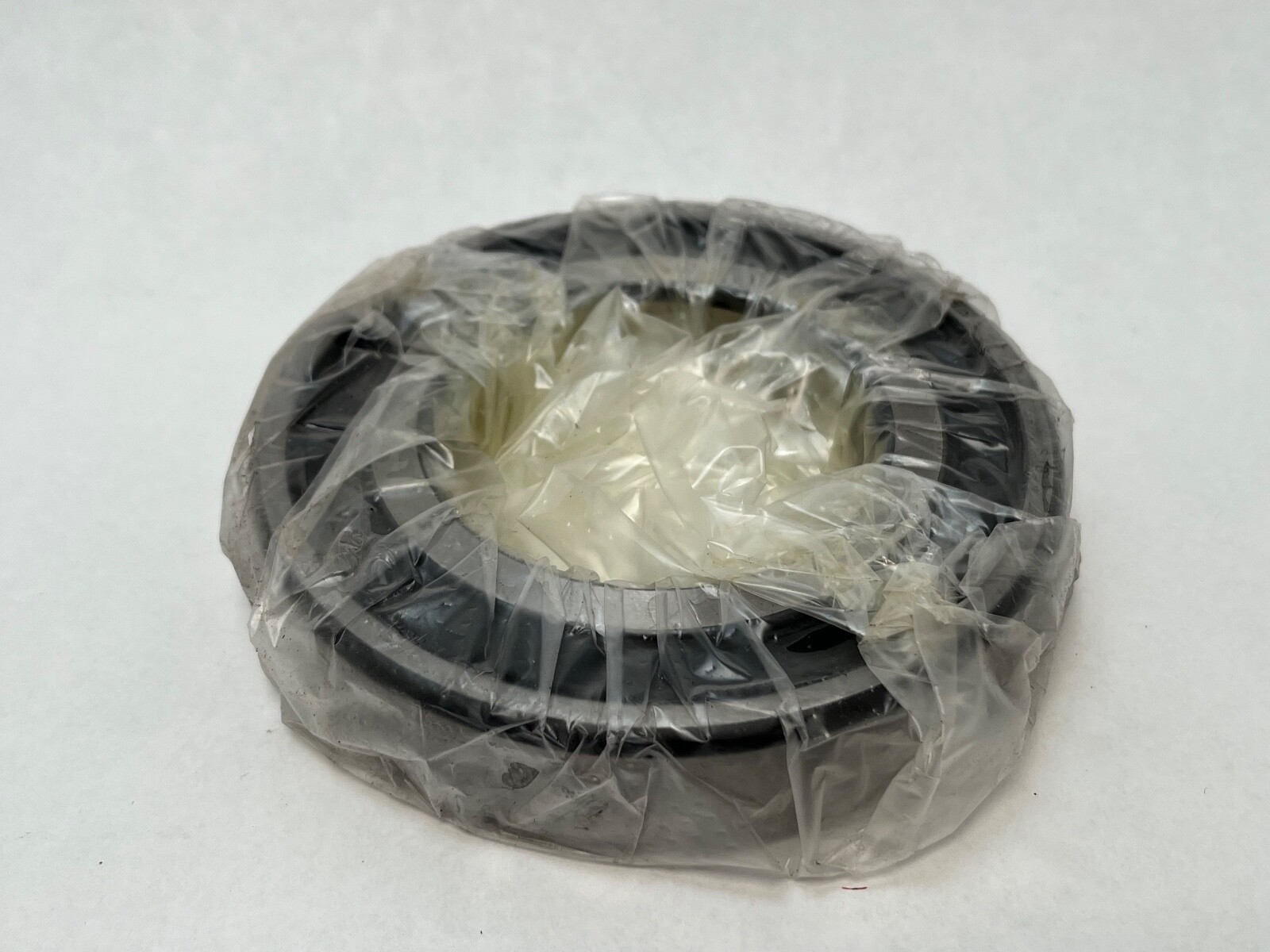

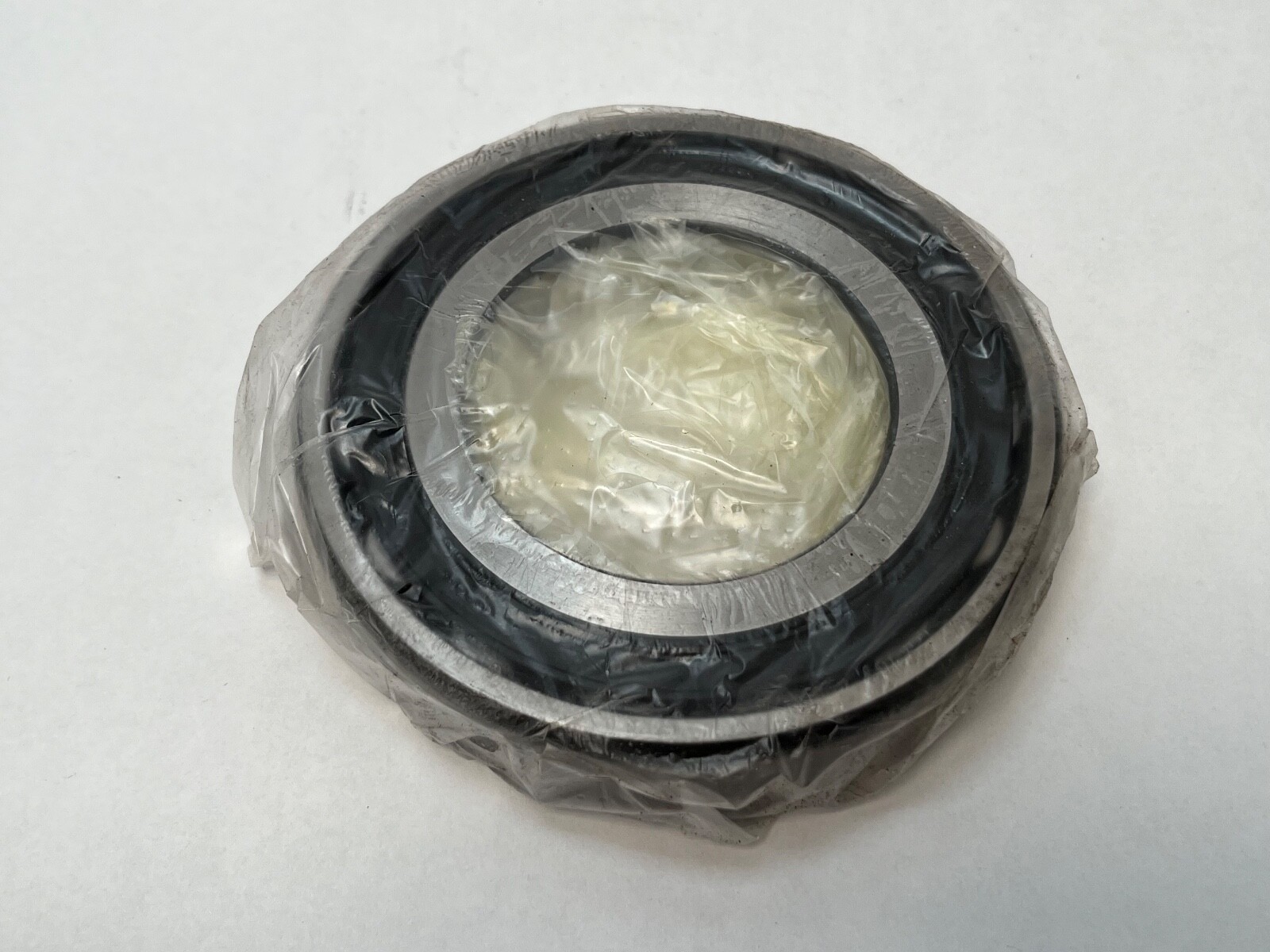

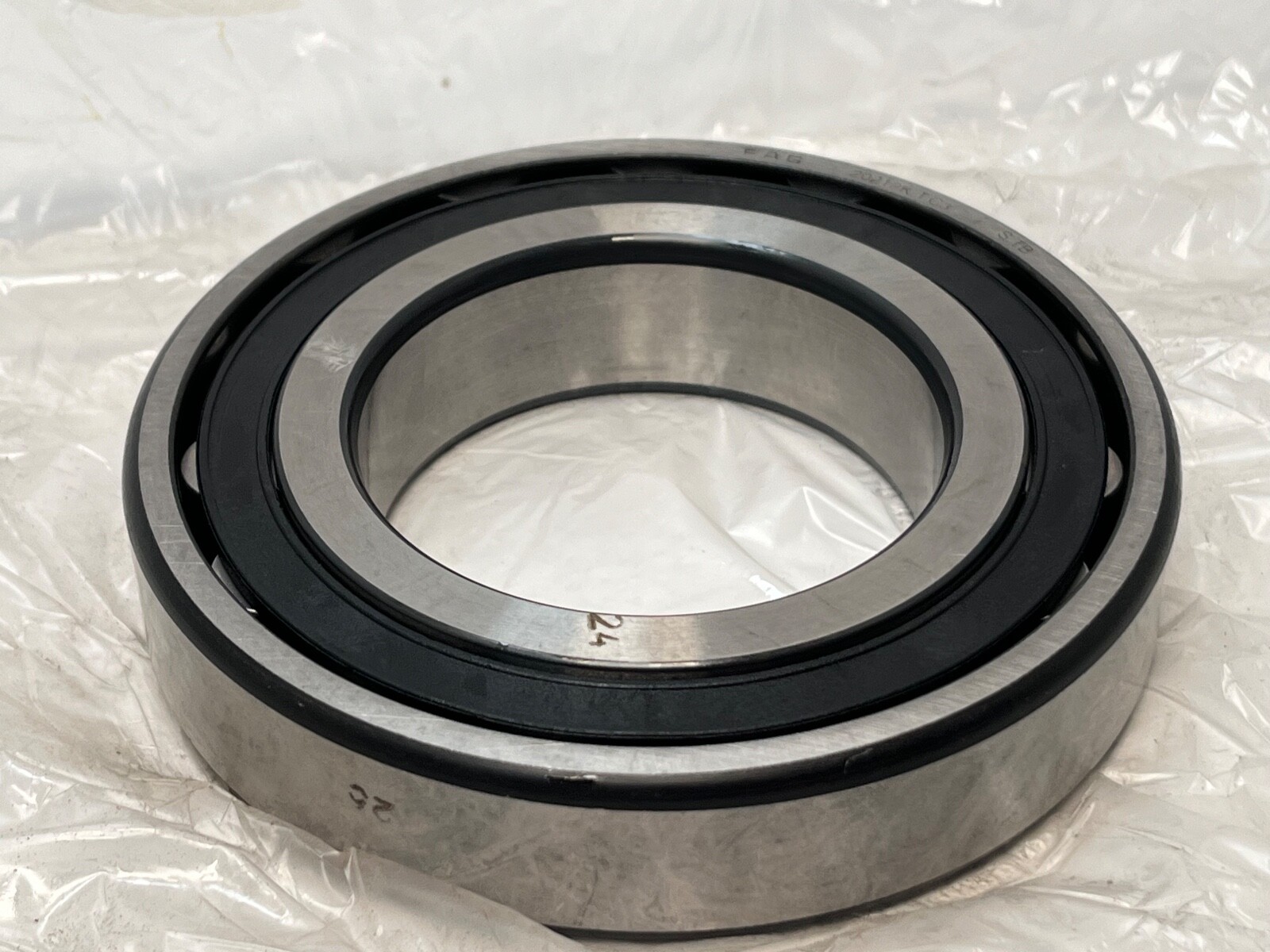

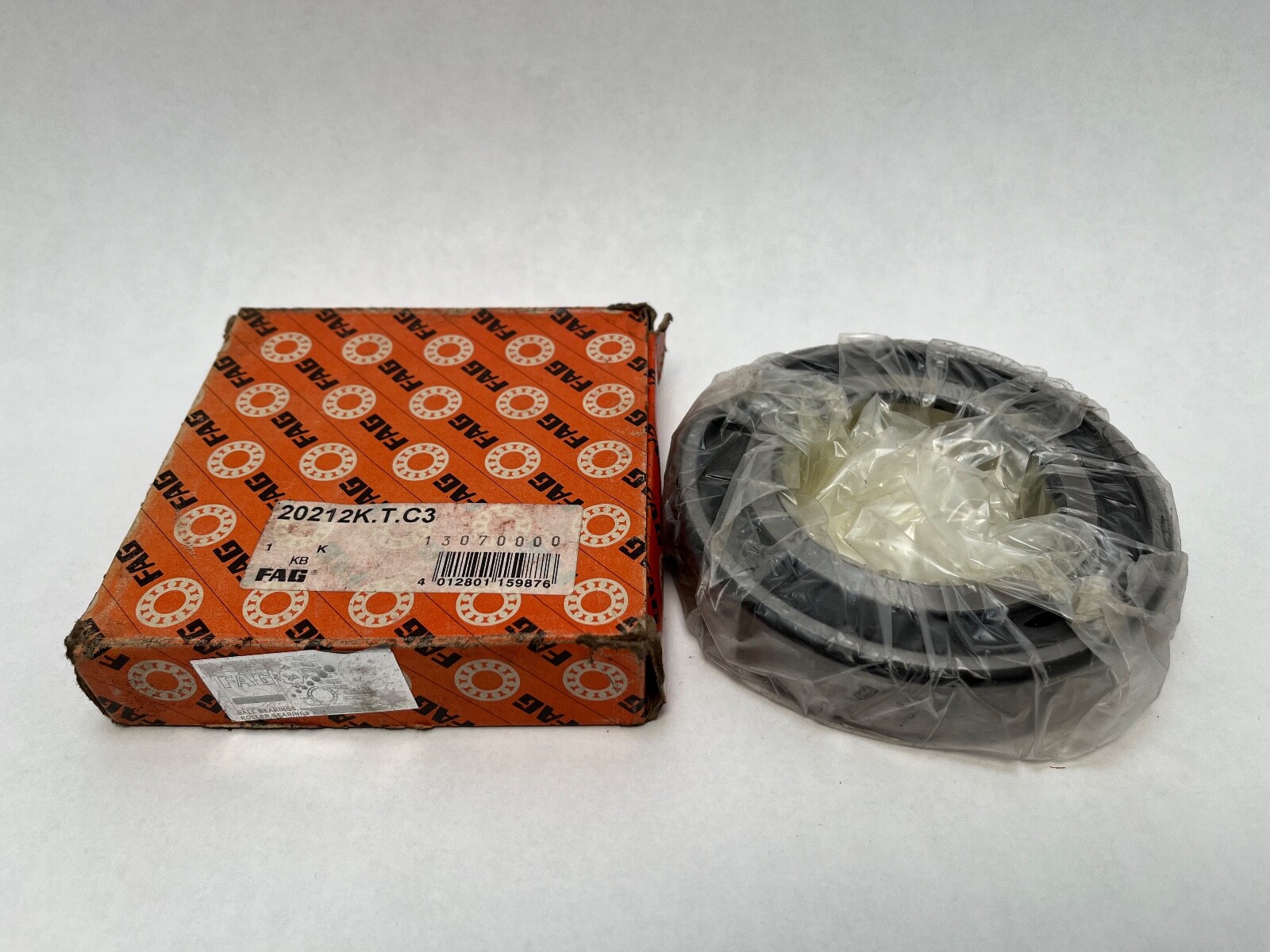

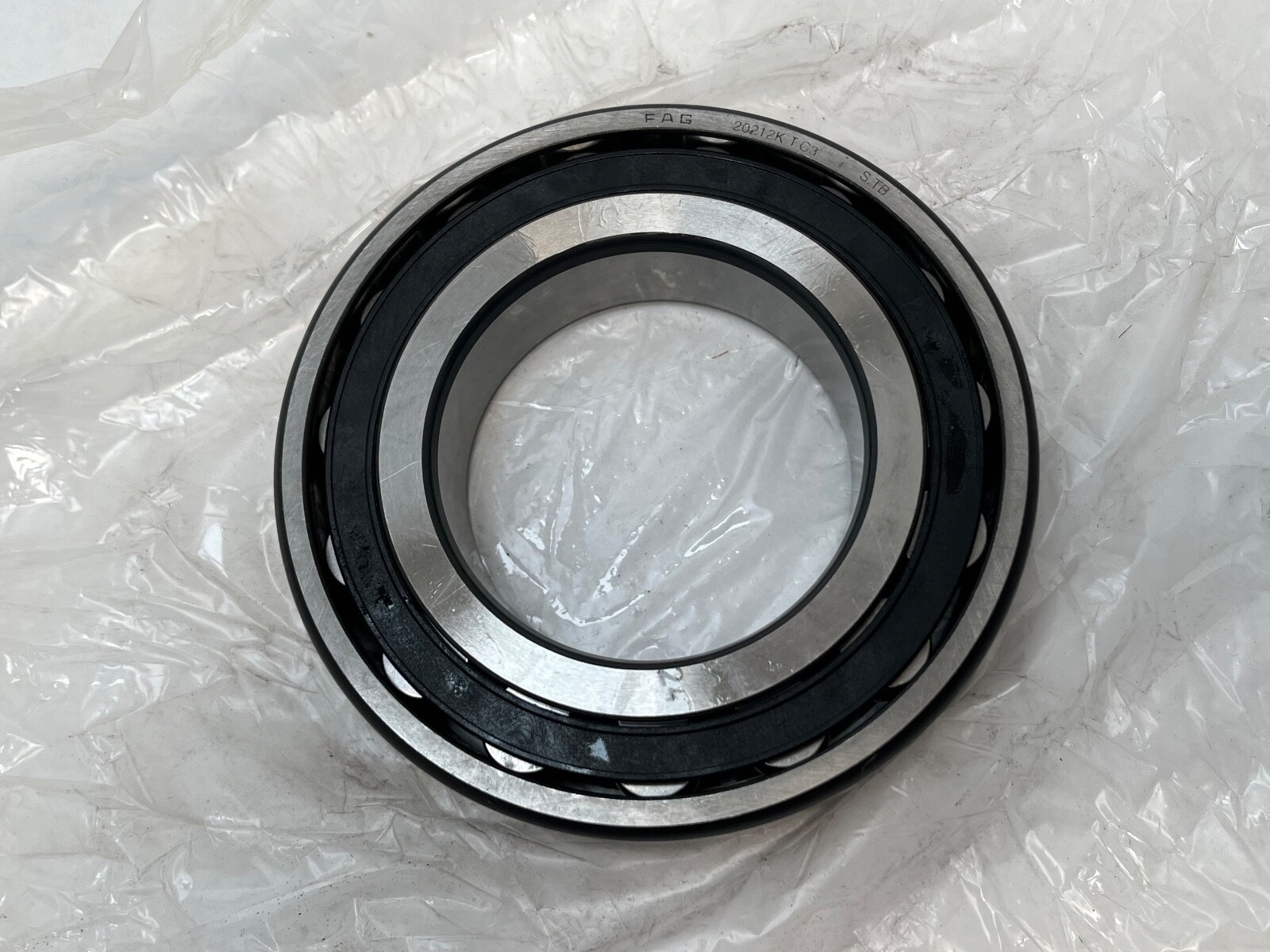

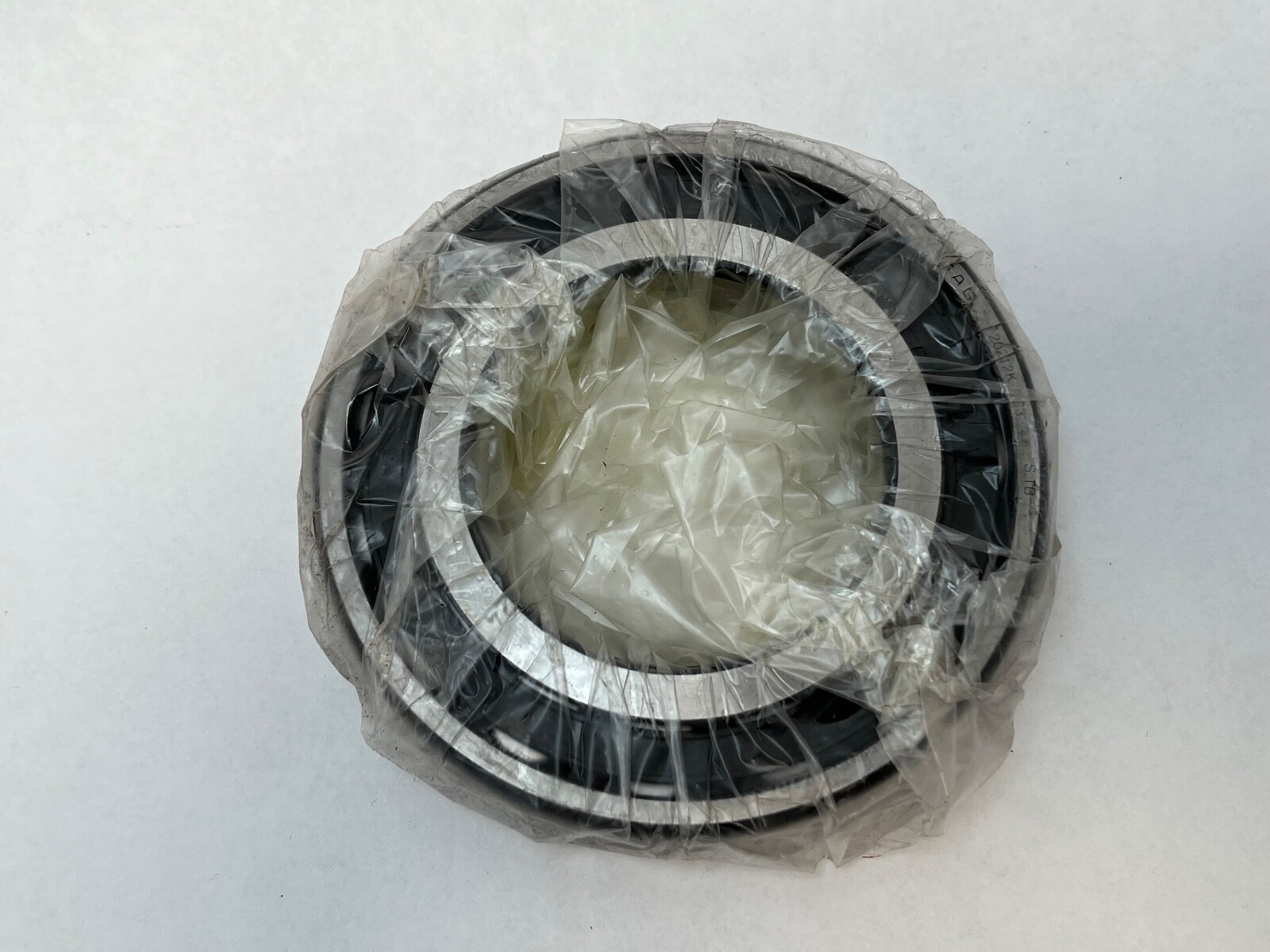

FAG 20212-K-T-C3, a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Boundary dimensions 60 mm bore × 110 mm outside diameter × 22 mm width. Tapered bore, 1:12.
20 – barrel roller, single row2 – ISO dimension series12 – bore code, 12 × 5 = 60 mm boreK – tapered bore, taper 1:12T – cage of glass-fibre reinforced phenolic resinC3 – radial internal clearance greater than normal
The barrel roller carries radial load and self-aligns on its spherical outer raceway, absorbing shaft deflection and housing misalignment without edge loading the rollers. Load is radial only. C3 clearance leaves running room for a press fit on the shaft and for thermal growth of the inner ring in a warm application. The phenolic cage is light and quiet, with a lower temperature ceiling than brass.
Bore: 60 mm (2.3622 in)Outside diameter: 110 mm (4.3307 in)Width: 22 mm (0.8661 in)Rows: 1Bore form: tapered, 1:12Cage: glass-fibre reinforced phenolic resin, TInternal clearance: C3
1 Pc. Bearing only. Supplied without adapter sleeve.
A tapered-bore barrel roller seats on an adapter sleeve when it goes onto a plain cylindrical shaft; the sleeve for a 20212K is an H212, whose shaft seat is 55 mm, one bore-code step below the bearing bore. Drive-up on the taper sets the final radial clearance.
Alternate written forms of the same bearing: 20212-K-T-C3, 20212K.T.C3, 20212KTC3, 20212K. The cylindrical-bore 20212 is a related size on the same envelope with a different bore form. The 22212K is a double-row spherical roller bearing, a different bearing type.
