Double-row spherical roller bearing, 120 mm tapered 1:12 bore x 215 mm OD x 58 mm wide, C3 clearance, W33 lube groove and three holes. 1 Pc.
List Price
$267.72
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | DODGE |
|---|---|
| MPN | 22224KC3W33 |
| Model | 422013 / 22224 K C3 W33 / 22224CC / 22224C / 22224CY |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Lubricant | Oil |
| Relubrication | W33 - outer ring lube groove with three radial holes |
| Base Number | 22224K |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, taper bore bearing, adapter sleeve bearing, SRB, pillow block element |
| Common Misspellings | 422103, 422013, 22224KC3W3, Dodge 422013 22224, spherical rolller bearing |
| Application Types | Conveyor pulleys and drums, plummer blocks, fans and blowers, crushers and screens, gearboxes, pumps |
| Bore Shaft Size | 120 mm (4.7244 in), tapered 1:12 |
| Mpn Variants | 422013, 22224KC3W33, 22224 K C3 W33, 22224-K-C3-W33, 22224KC3, Dodge 422013 |
| Distributor Stock Numbers | Dodge / Baldor 422013 |
| Compatible With Replaces | Adapter sleeve H3124 (110 mm shaft seat) - not included. Replacement element for 120 mm bore Dodge type-E and SAF plummer blocks. |
| Min Temp | -30°C |
| Cage Type | Pressed |
| Dynamic Load Rating | 610 kN / 137130 lbf |
| Static Load Rating | 830 kN / 186600 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Roller |
| Max Temp | 200°C |
| Item Weight | 23.5 lbs |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered Bore |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.80 |
| Design Units | Metric |
| Internal Clearance | C3 |
| Part Number | 422013 |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | SKF 22224 EK/C3 |
|---|---|
| Cross Reference 2 | FAG 22224-E1-XL-K-C3 |
| Cross Reference 3 | NSK 22224EAKE4C3 |
| Cross Reference 4 | Timken 22224EJKW33C3 |
| Cross Reference 6 | 22224CY (related size, pressed-brass cage) |

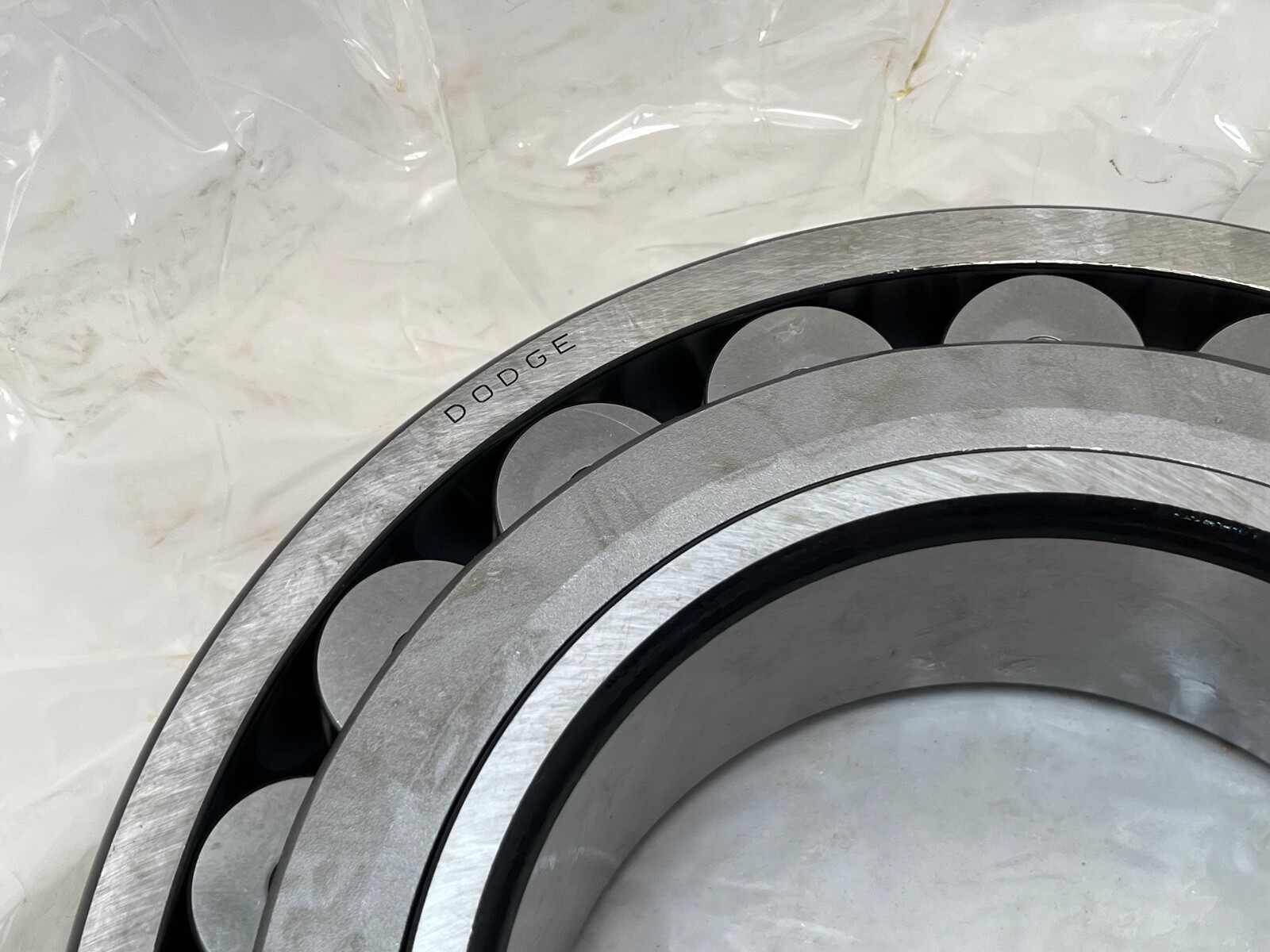

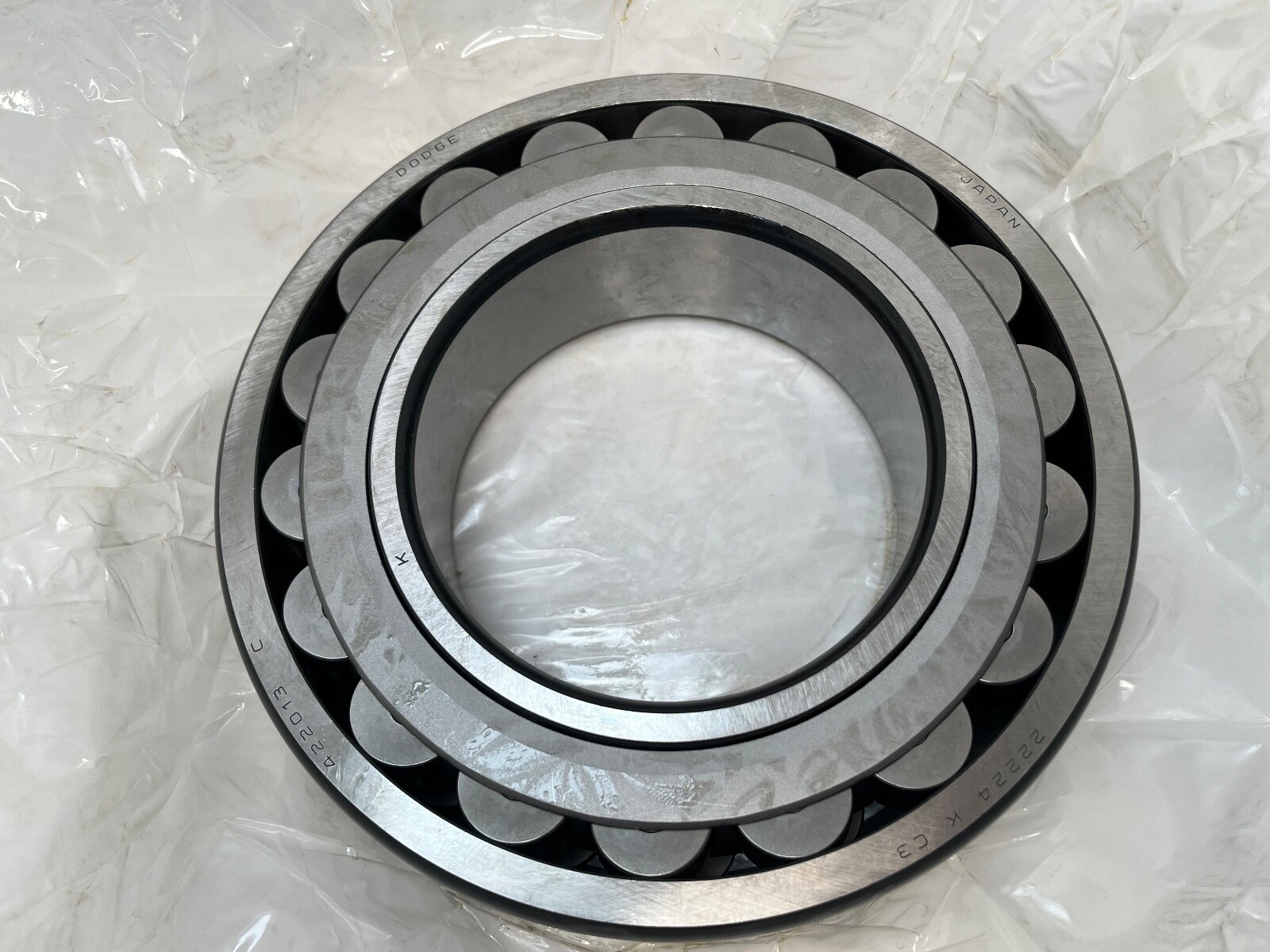

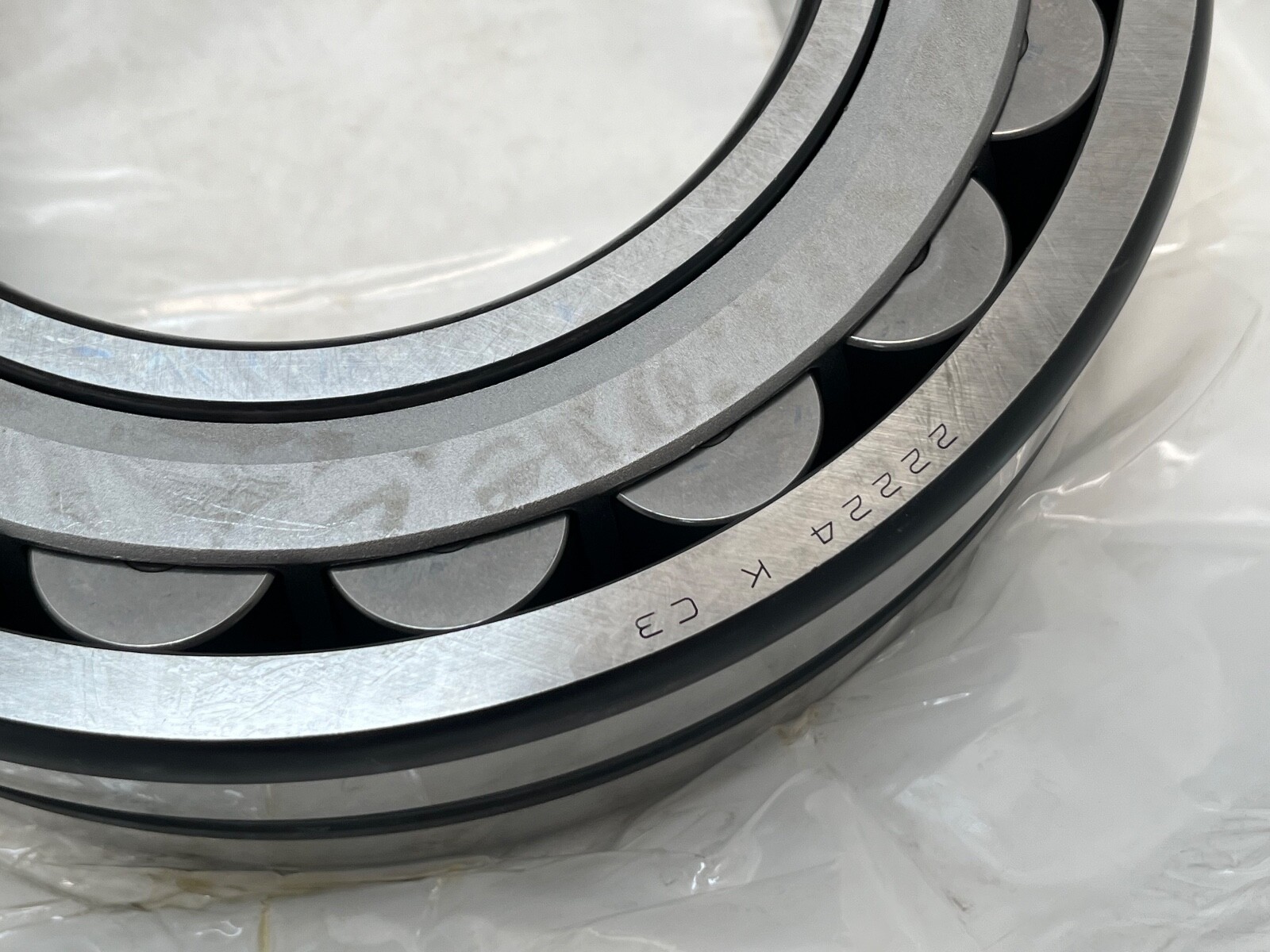

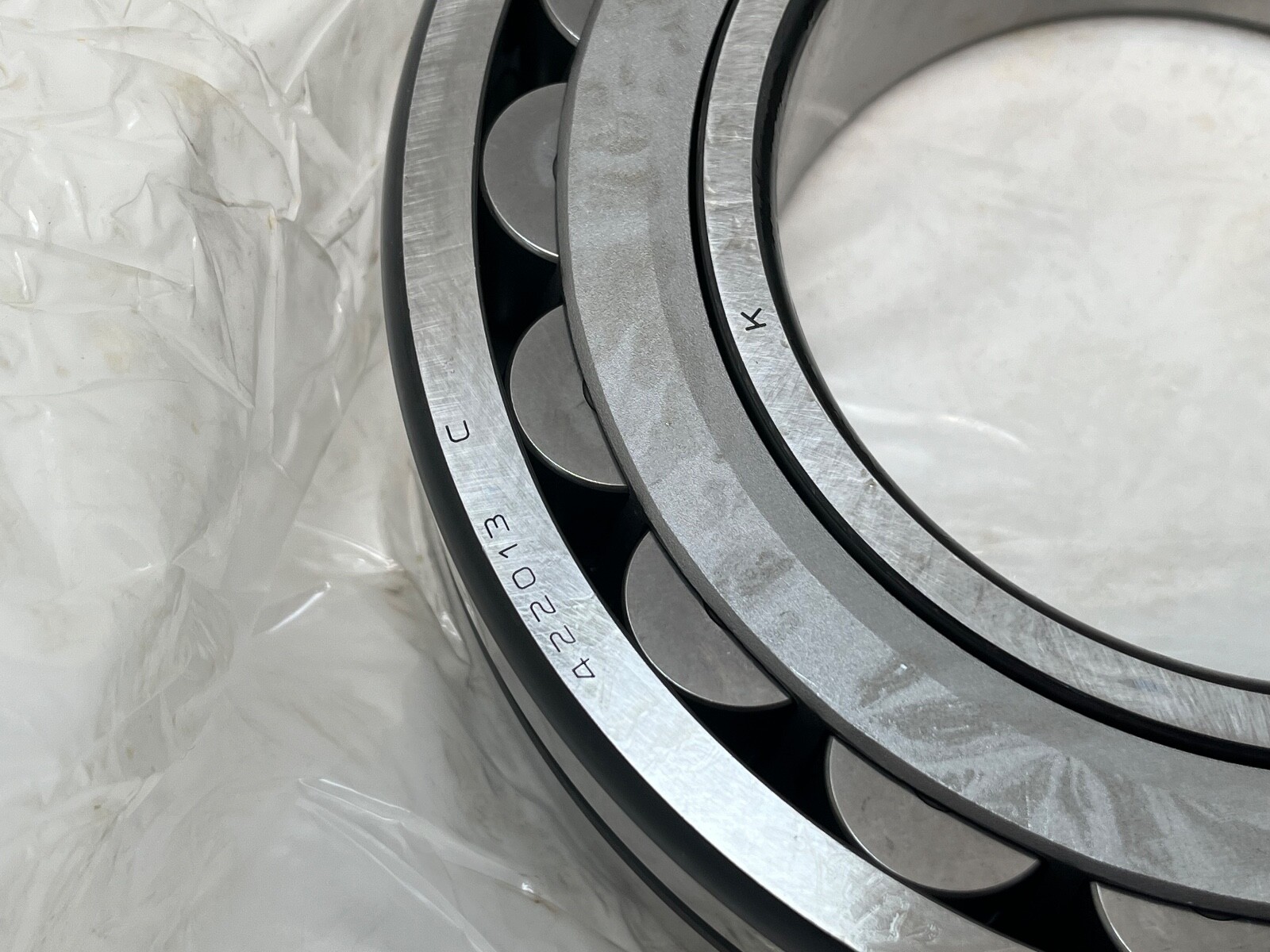

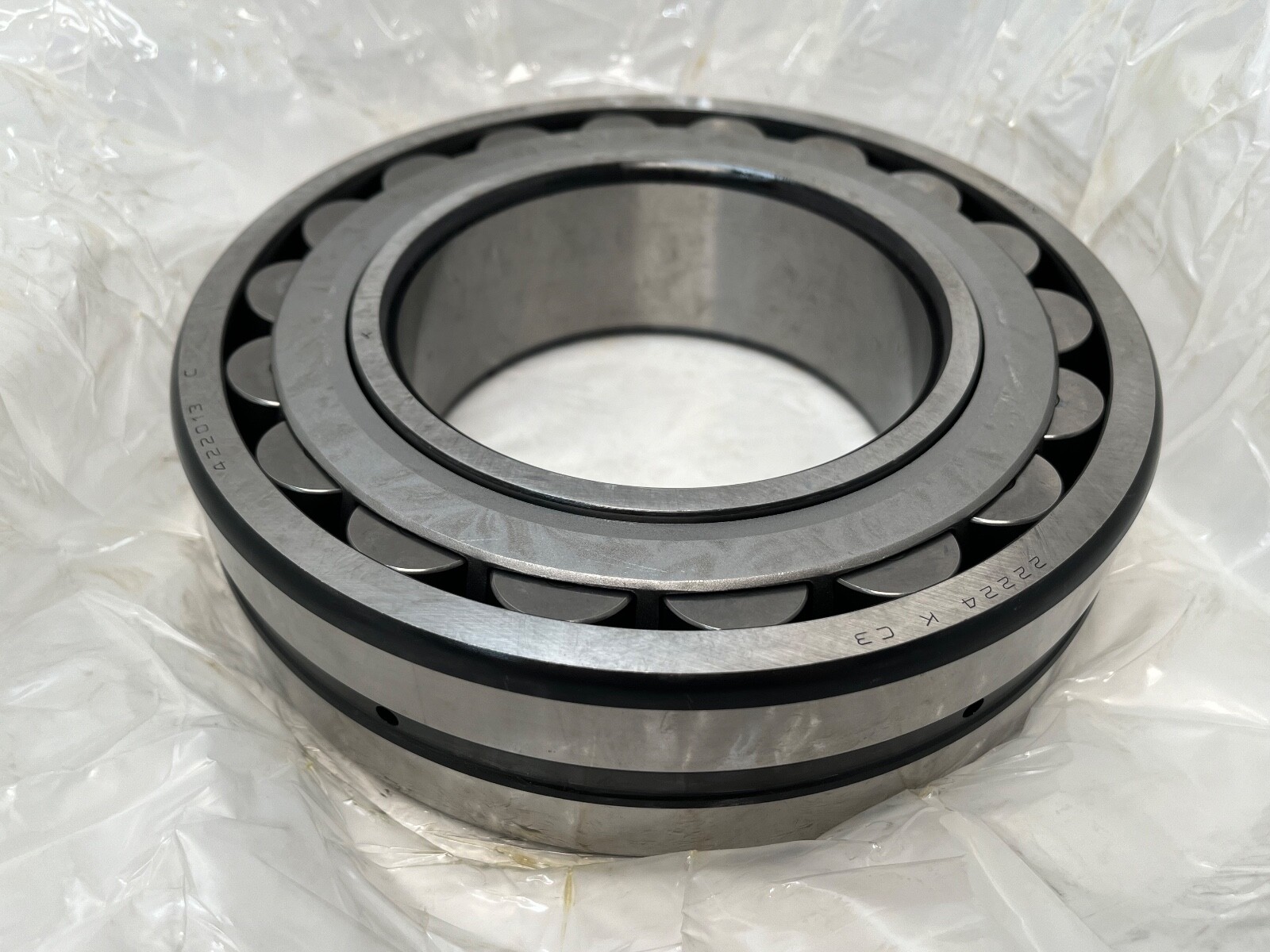

Dodge 422013, a 22224 K C3 W33 double-row spherical roller bearing with a tapered 1:12 bore. Two rows of barrel rollers run on a common spherical outer raceway, so the inner ring and roller set swivel inside the outer ring.
422013 – Dodge stock number for the bearing
222 – double-row spherical roller bearing, dimension series 22
24 – bore code, 24 × 5 = 120 mm bore
K – 1:12 tapered bore
C3 – radial internal clearance greater than normal
W33 – lubrication groove in the outer ring with three radial holes
The spherical outer raceway takes up static and dynamic misalignment between shaft and housing, and the double-row roller set carries radial load plus thrust in both directions. That combination is why this type is the standard replacement element in Dodge type-E and SAF plummer blocks and in conveyor pulley shafts. C3 clearance leaves extra running room for interference-fit mounting and for a shaft that runs hotter than its housing.
Bore: 120 mm (4.7244 in), tapered 1:12
Outside diameter: 215 mm (8.4646 in)
Width: 58 mm (2.2835 in)
Rows: 2
Rolling elements: barrel rollers
Internal clearance: C3
Relubrication: W33 groove and three holes
1 Pc. Bearing only. Supplied without adapter sleeve H3124 and without a housing.
The 1:12 tapered bore seats on a matching tapered shaft journal or on an H3124 adapter sleeve, whose shaft seat is 110 mm. Drive-up distance along the taper sets the residual internal clearance, so mounted clearance follows how far the ring is pressed onto the seat. The W33 groove aligns with the housing lubrication port.
Same-spec tapered-bore C3 equivalents in other schemes: SKF 22224 EK/C3, FAG 22224-E1-XL-K-C3, NSK 22224EAKE4C3, Timken 22224EJKW33C3. Straight-bore 22224 forms, and C4 or CN clearance variants, are related sizes in the same envelope rather than interchanges.
