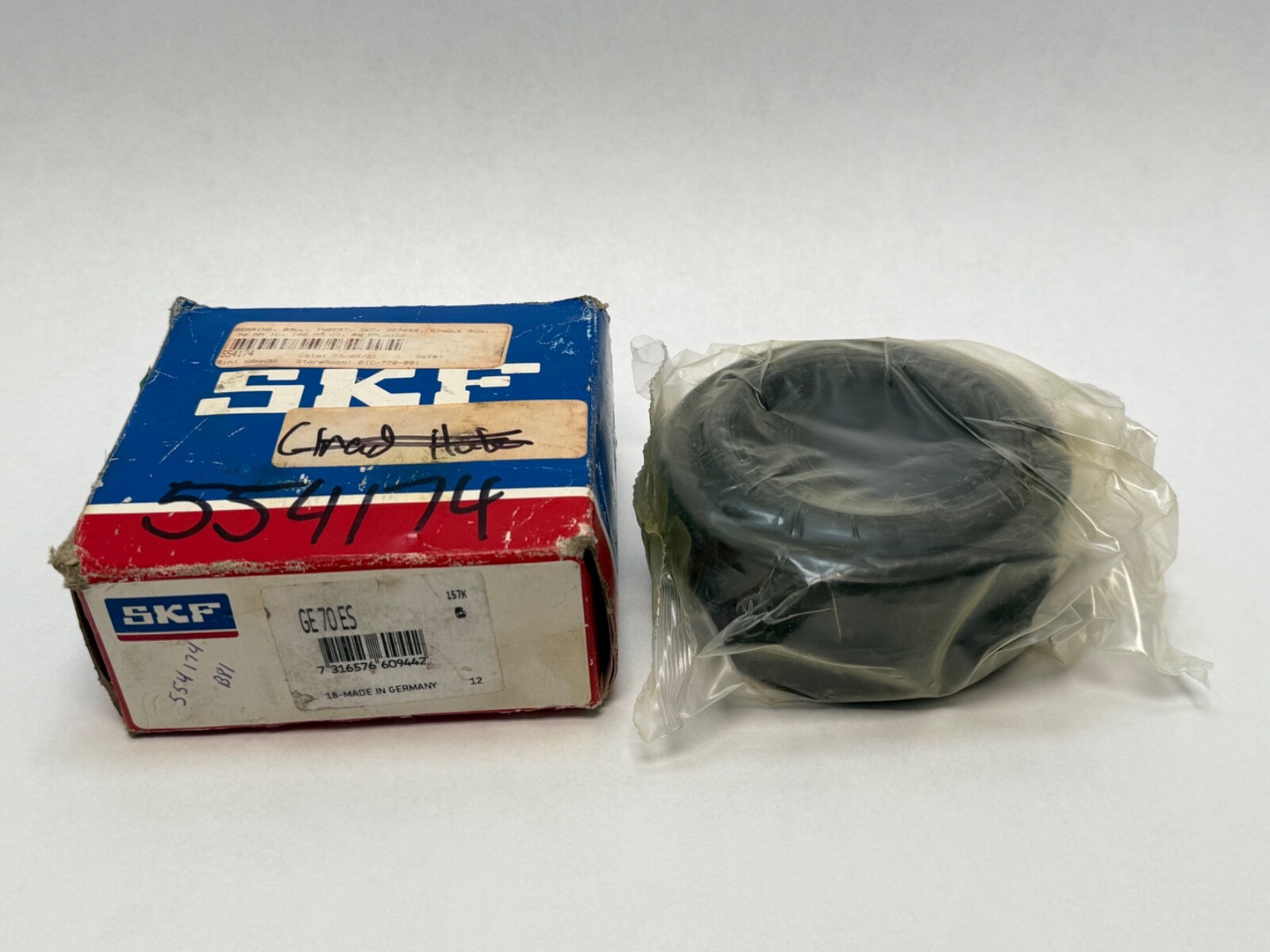

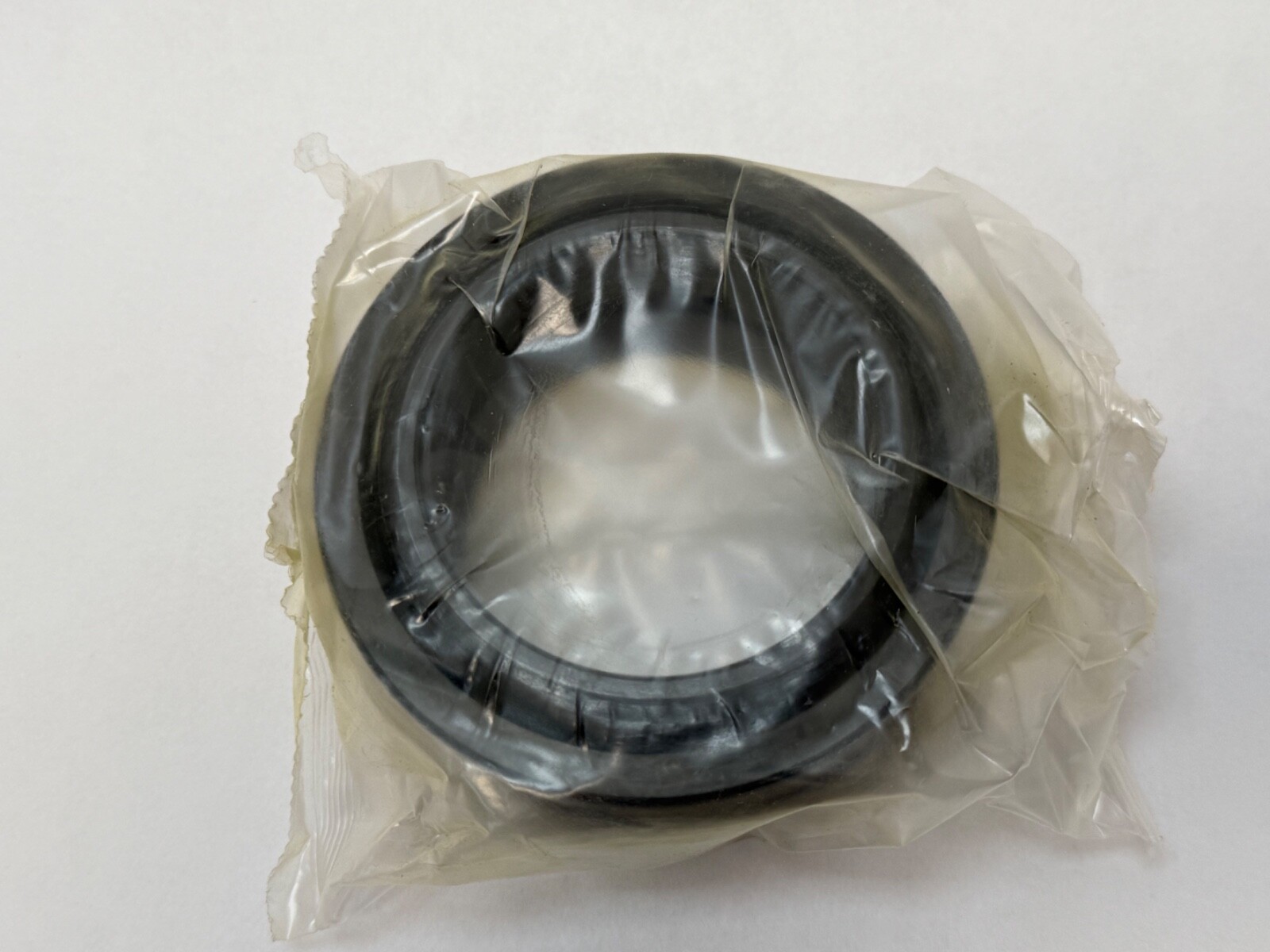

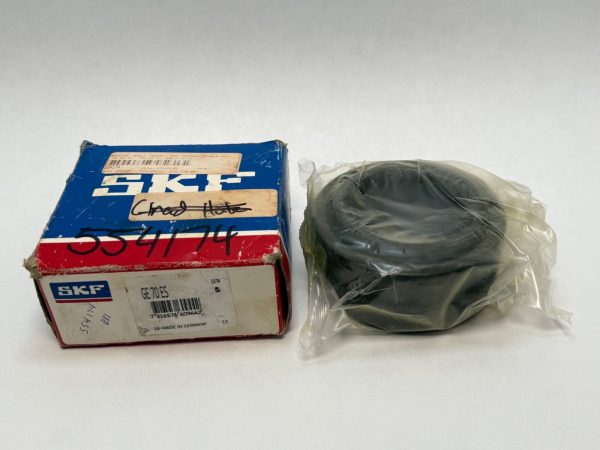

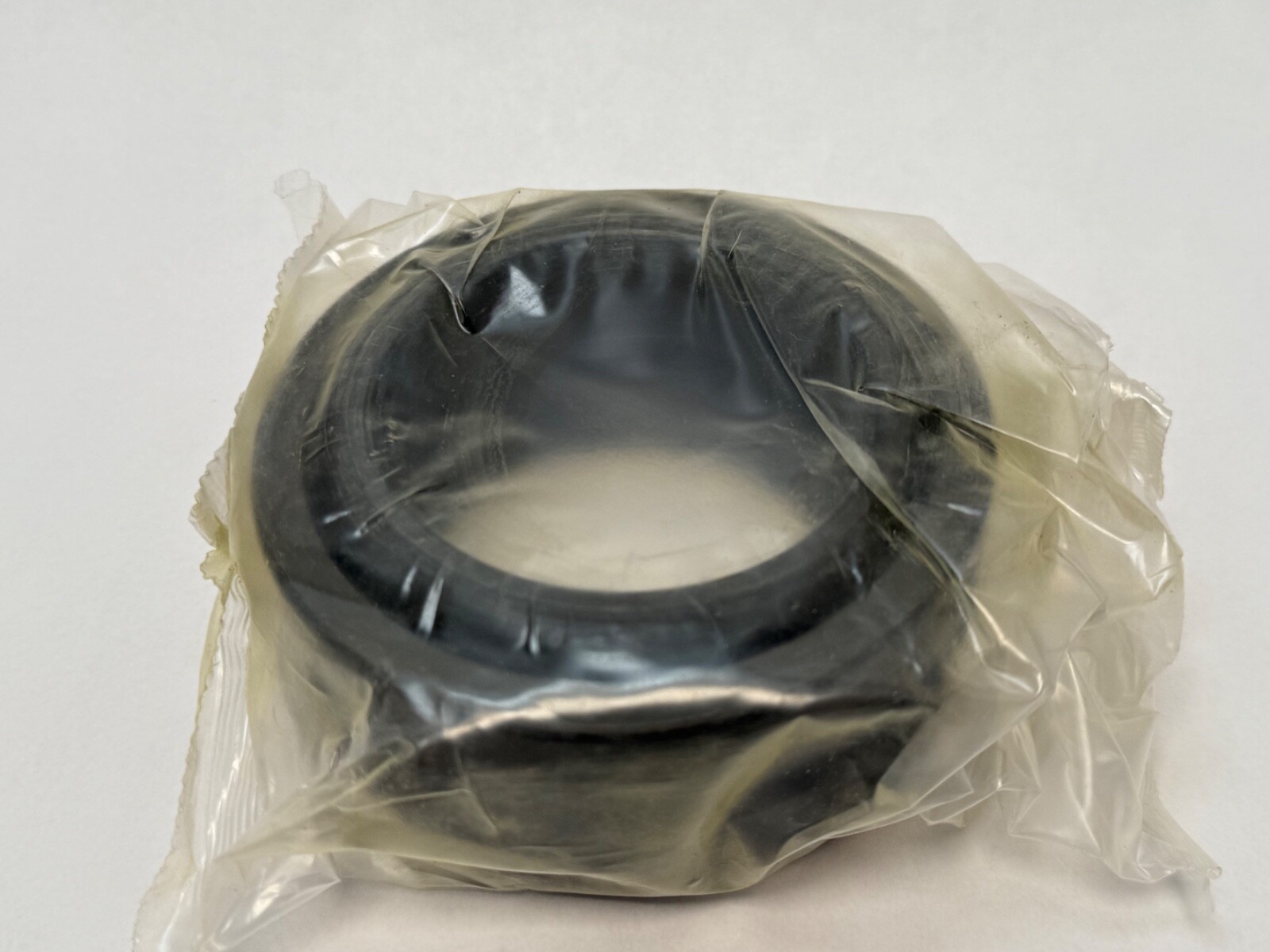

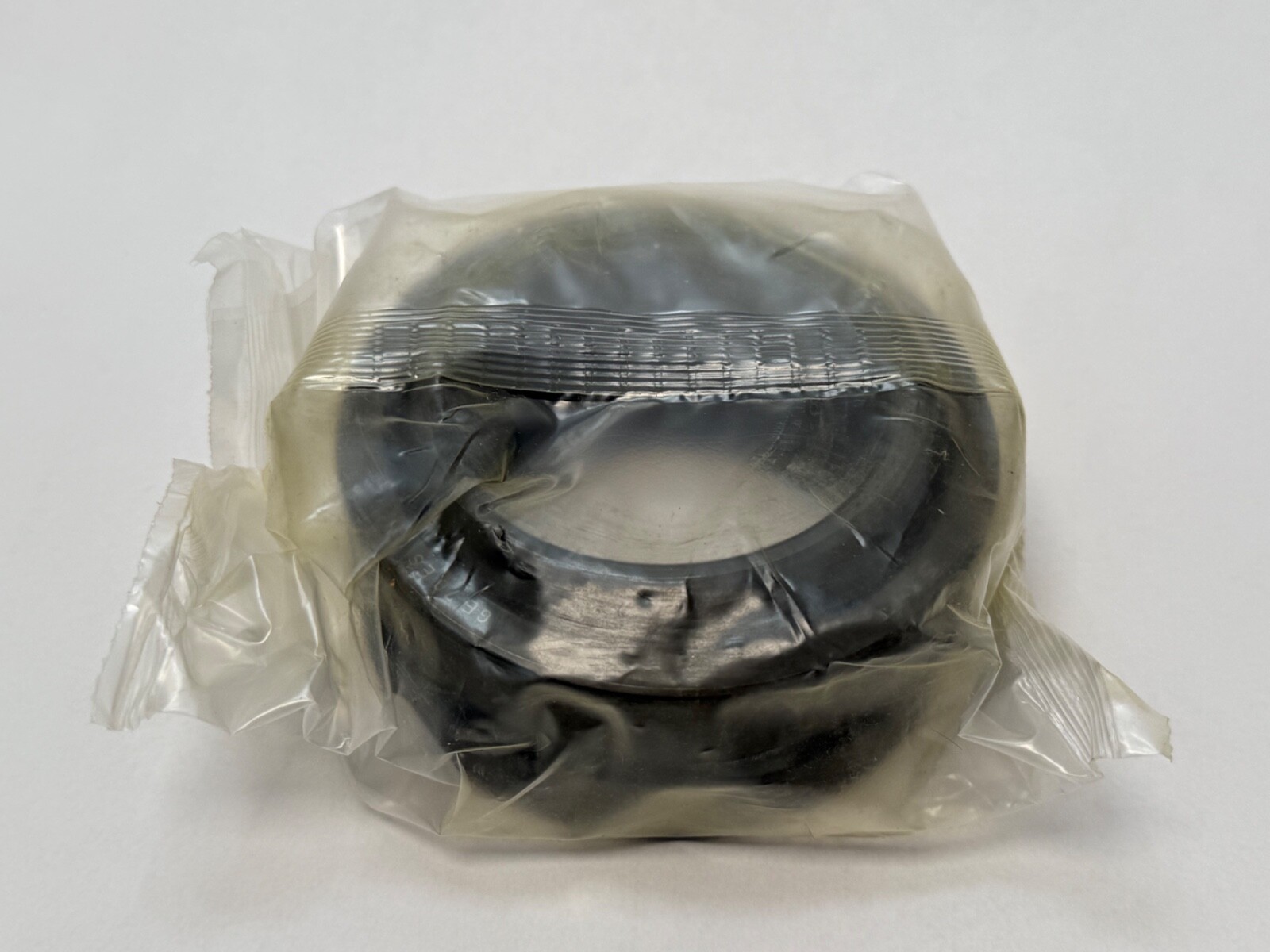

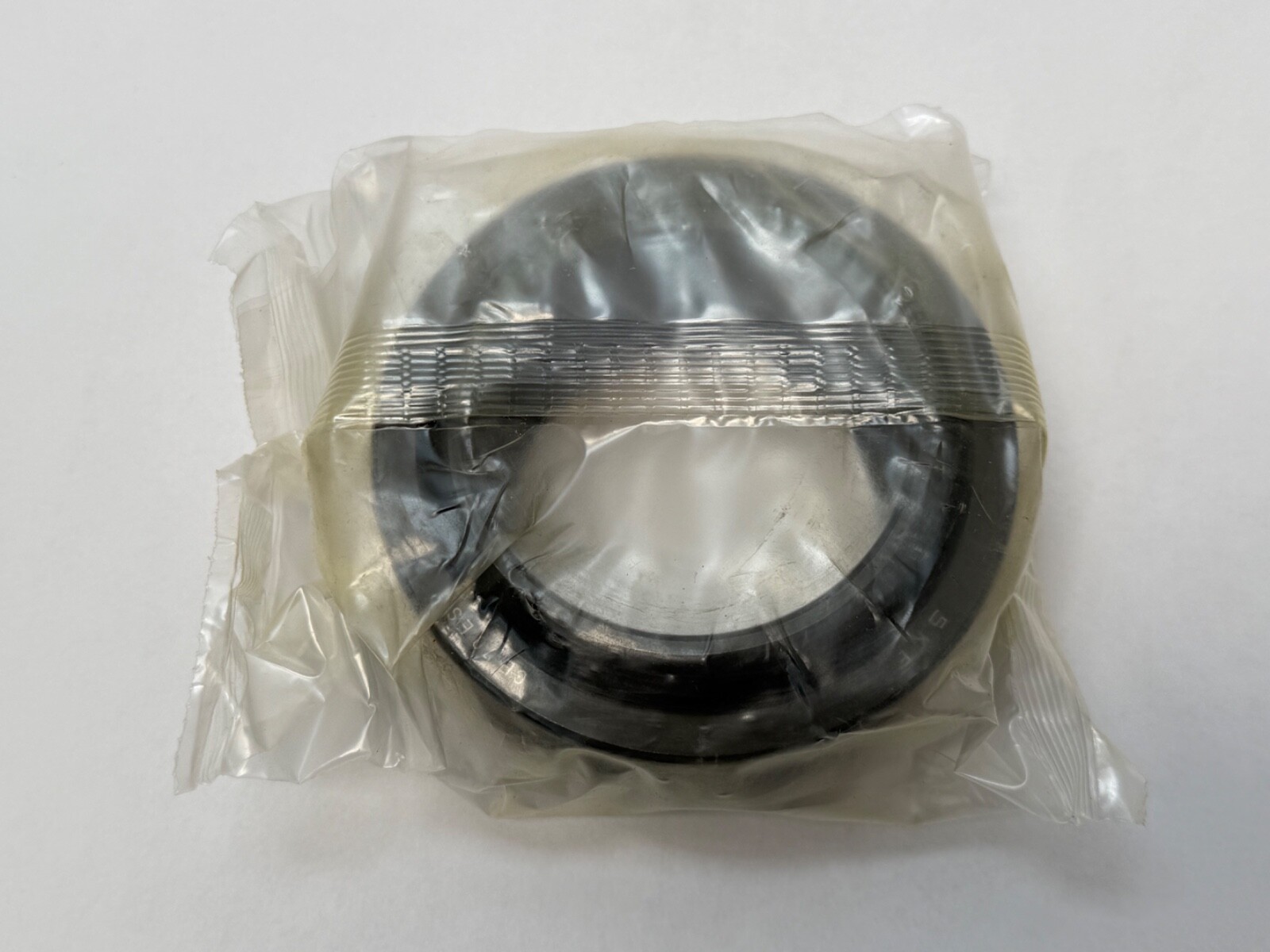

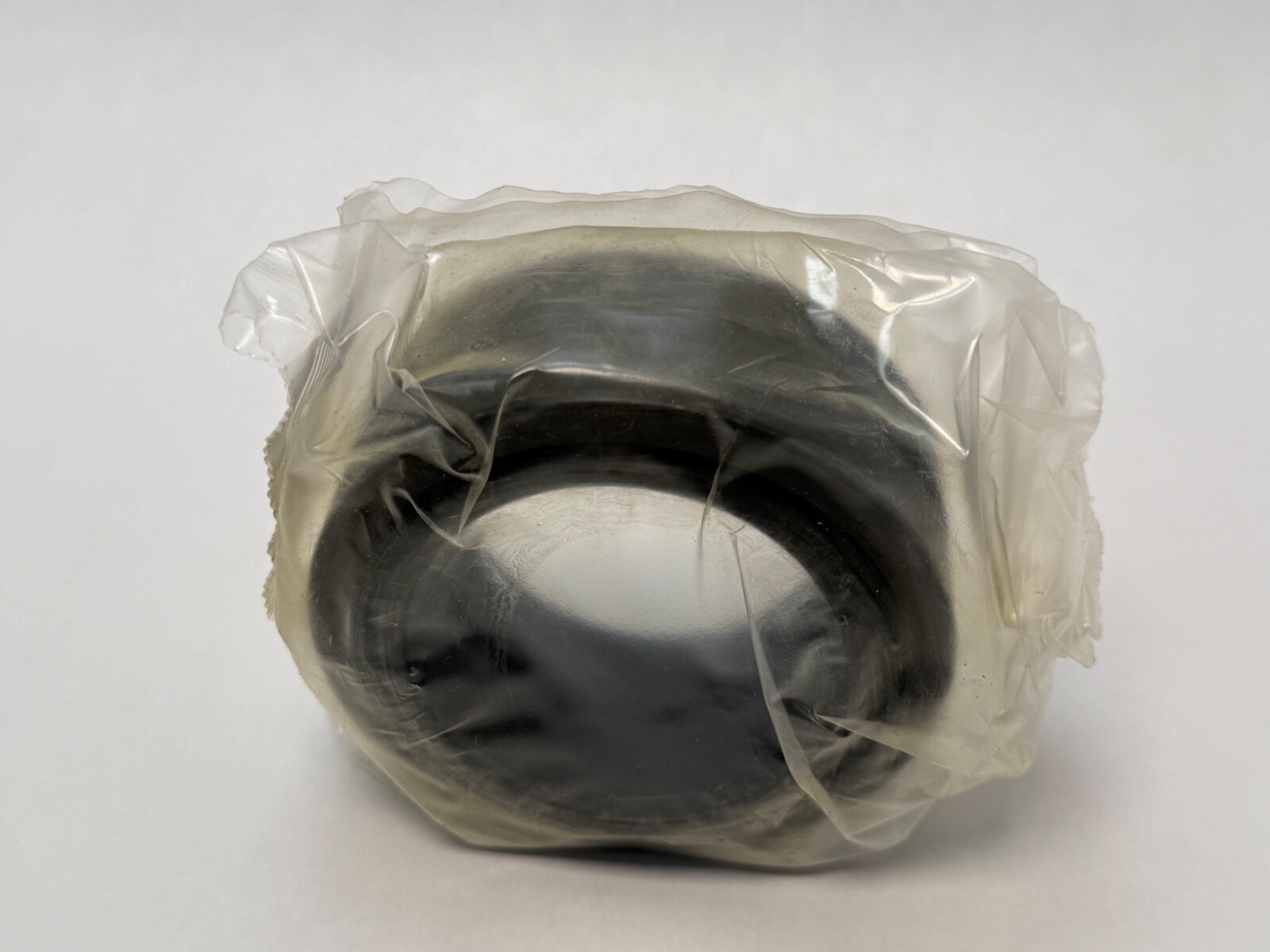

SKF GE 70 ES radial spherical plain bearing, 70 mm bore, 105 mm OD, 49 mm width, steel on steel sliding surfaces. Relubricatable, Cr 315 kN, C0r 1,560 kN.
List Price
$90.22
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | GE 70 ES |
| GTIN | 7316576609442 |
| Model | GE70ES |
| Bearing Type | Plain Bearing, Open |
| ID | 70 mm |
| OD | 105 mm |
| Width | 49 mm |
| Series | GE |
|---|---|
| Material | Steel |
| Dynamic Load Rating | 315,000 N |
| Static Load Rating | 1,560,000 N |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8483.30.80 |
| Maximum Permissible Misalignment | 6° |
| Overall Width | 49 mm |
| Mpn Variants | GE 70 ES, GE70ES, GE-70-ES, GE70 ES |
| Bearing Material | Steel |
| Cross Reference 1 | INA GE70-DO |
|---|
SKF GE 70 ES radial spherical plain bearing. Bore Diameter: 70 mm. Outside Diameter: 105 mm. Width: 49 mm. Sliding Contact Surfaces: Steel on steel. The inner ring has a convex sphere running in a concave outer ring, taking radial loads, combined radial and axial loads, and misalignment.
GE — SKF radial spherical plain bearing.
70 — 70 mm bore.
E — steel/steel sliding contact surfaces, requiring maintenance.
S — lubrication holes and an annular groove in both rings for relubrication.
Dynamic Load Rating: 315,000 N. Static Load Rating: 1,560,000 N. Bearing Material: Steel. Relubrication: Holes and annular groove in inner and outer rings. Seals: Open.
Bore Diameter: 70 mm. Outside Diameter: 105 mm. Width: 49 mm. The very high static rating suits heavy, slow oscillating movements such as hydraulic cylinder eyes, linkages and pivots.
Cross-Reference: INA GE70-DO. Sealed version of the same envelope: SKF GE 70 ES-2RS. CAD model and data sheet: available from SKF (skf.com).
What are the dimensions of the SKF GE 70 ES?
70 mm bore, 105 mm outside diameter, 49 mm width.
Does the GE 70 ES need lubrication?
Yes. It is a steel on steel design with lubrication holes and a groove in both rings for regreasing.
What replaces an SKF GE 70 ES?
INA GE70-DO shares the envelope and steel on steel design.
