Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
1 in stock
Two-bolt plummer block housing unit, 35 mm bore, 47.6 mm centre height, 126 mm bolt spacing, eccentric collar locking. Complete housed unit, 1 Pc.
List Price
$28.85
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | RASE35 |
| GTIN | 035373104079 |
| Model | RASE 35 |
| ID | 35 mm |
| Series | RASE |
|---|---|
| Type | Pillow Block |
| Lubricant | Grease |
| Material | Cast Iron Housing |
| Relubrication | Relubricatable through the M6 lubrication thread |
| Base Number | RASE35 |
| Industry Terms | Two-bolt pillow block, plummer block housing unit, radial insert ball bearing unit, eccentric collar pillow block, foot-mounted bearing unit, long base plummer block |
| Common Misspellings | RASE 35 INA, RASE3S, RSAE35, RASEY35, RASE-35N, INA RAS35, RASE035 |
| Application Types | Conveyors, fans and blowers, agricultural machinery, material handling, packaging equipment, general power transmission |
| Bolt Center To Center | 126 mm |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 126 mm |
| Number Of Bolt Holes For Fasteners | 2 |
| Centre Height Pillow Block | 47.6 mm |
| Centre Height | 47.6 mm |
| Bore Shaft Size | 35 mm / 1.3780 in |
| Housing Style | Two-bolt plummer block (pillow block) housing unit, cast iron long base, elongated mounting slots |
| Locking Method | Eccentric locking collar |
| Replacement Insert | GE35-KRR-B |
| Mpn Variants | RASE35, RASE-35, RASE 35, RASE35-N, RASE35-XL-N, RASE35-XL-N-I, ASE07, GE35-KRR-B, KASK07 |
| Manufacturer Status | Active - current Schaeffler designation RASE35-XL-N / RASE35-XL-N-I; plain RASE35 is the legacy form |
| Arrangement Configuration | Complete housed unit: ASE07 cast iron plummer block housing, GE35-KRR-B radial insert ball bearing, eccentric locking collar, KASK07 protecting cap |
| Rolling Elements | Ball |
| Bearing Type | Radial insert ball bearing housing unit |
| Item Weight | 1.6 kg (3.53 lb) |
| Number Of Rows | 1 |
| Bore Type | straight |
| Locking Device | Eccentric Locking Collar |
| Relubrication Feature | M6 lubrication thread in the housing |
| Housing Material | Cast Iron |
| Expansion Type | Fixed (non-expansion) |
| Design Units | Metric |
| Part Number | RASE35 |
| Cross Reference 1 | INA RASE35-XL-N - current designation |
|---|---|
| Cross Reference 2 | PTI SW 35 U |

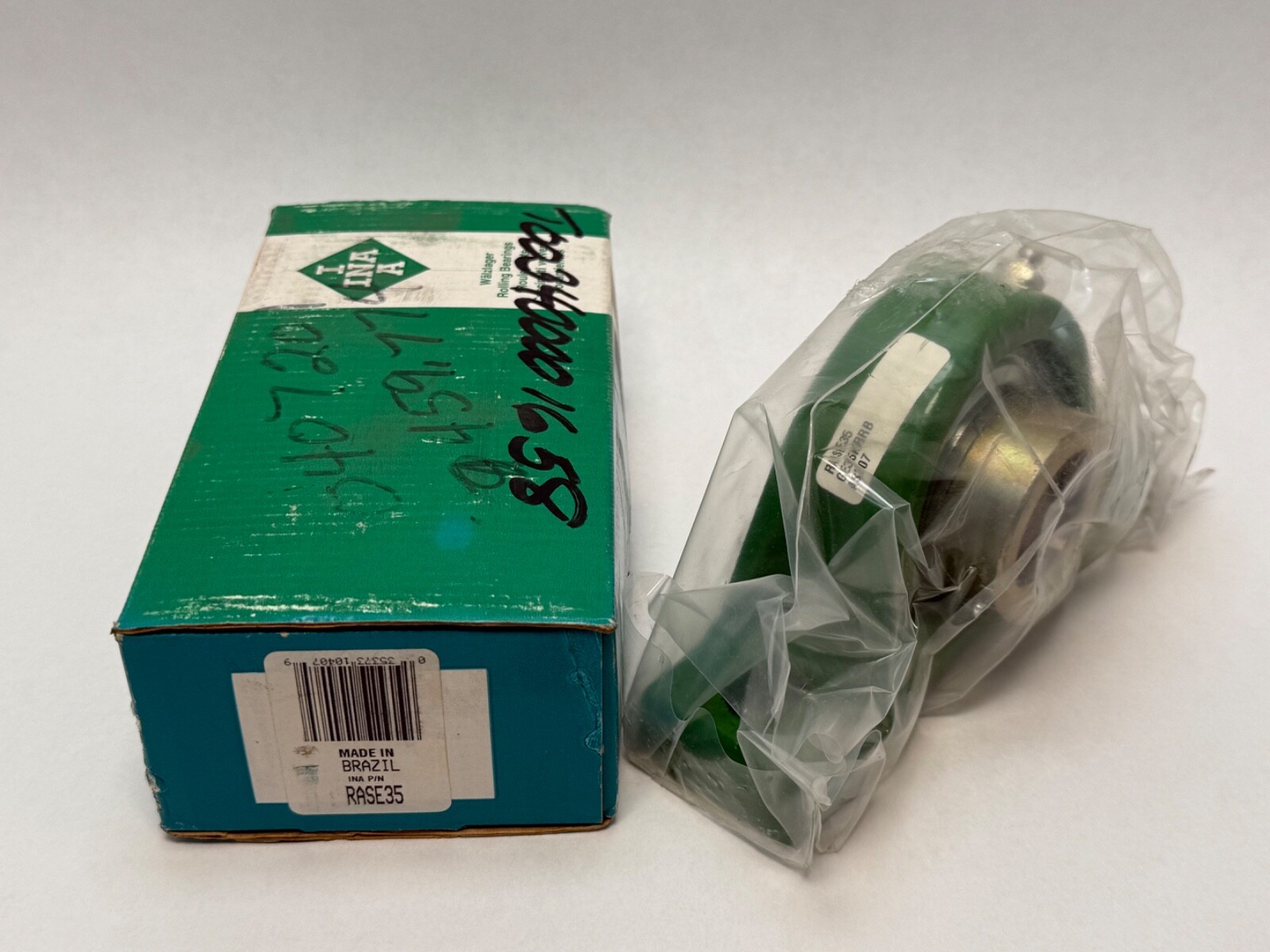

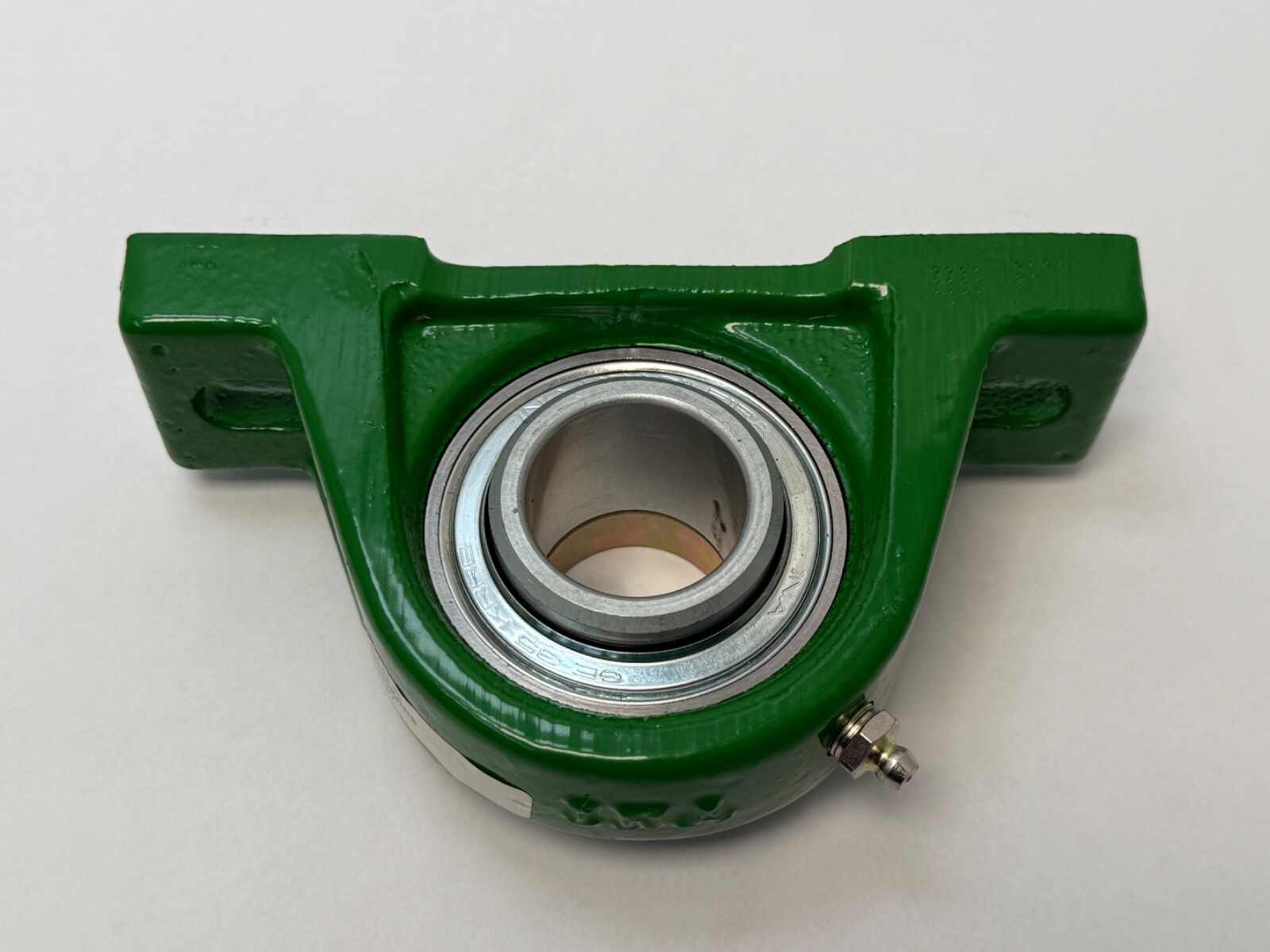

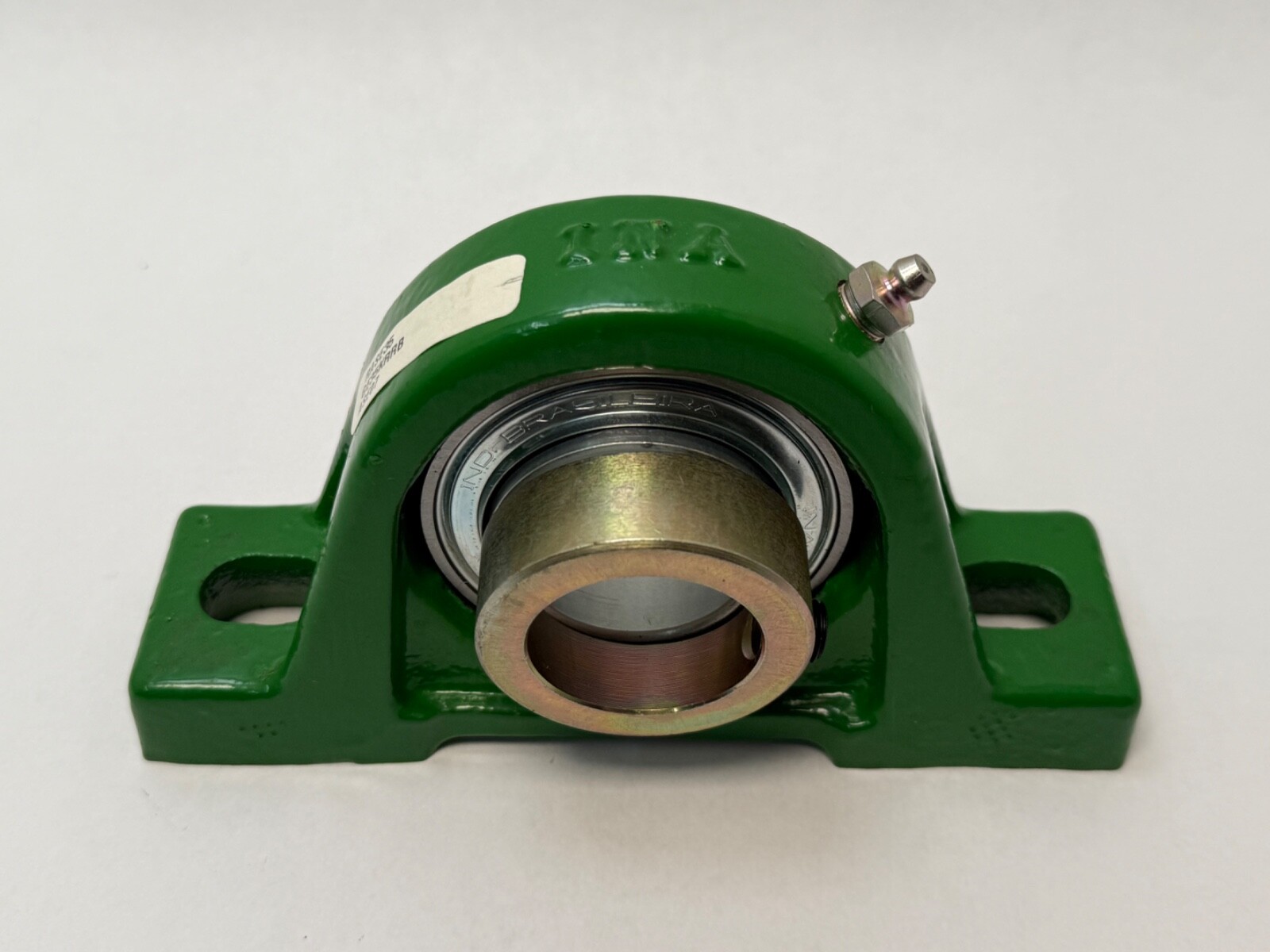

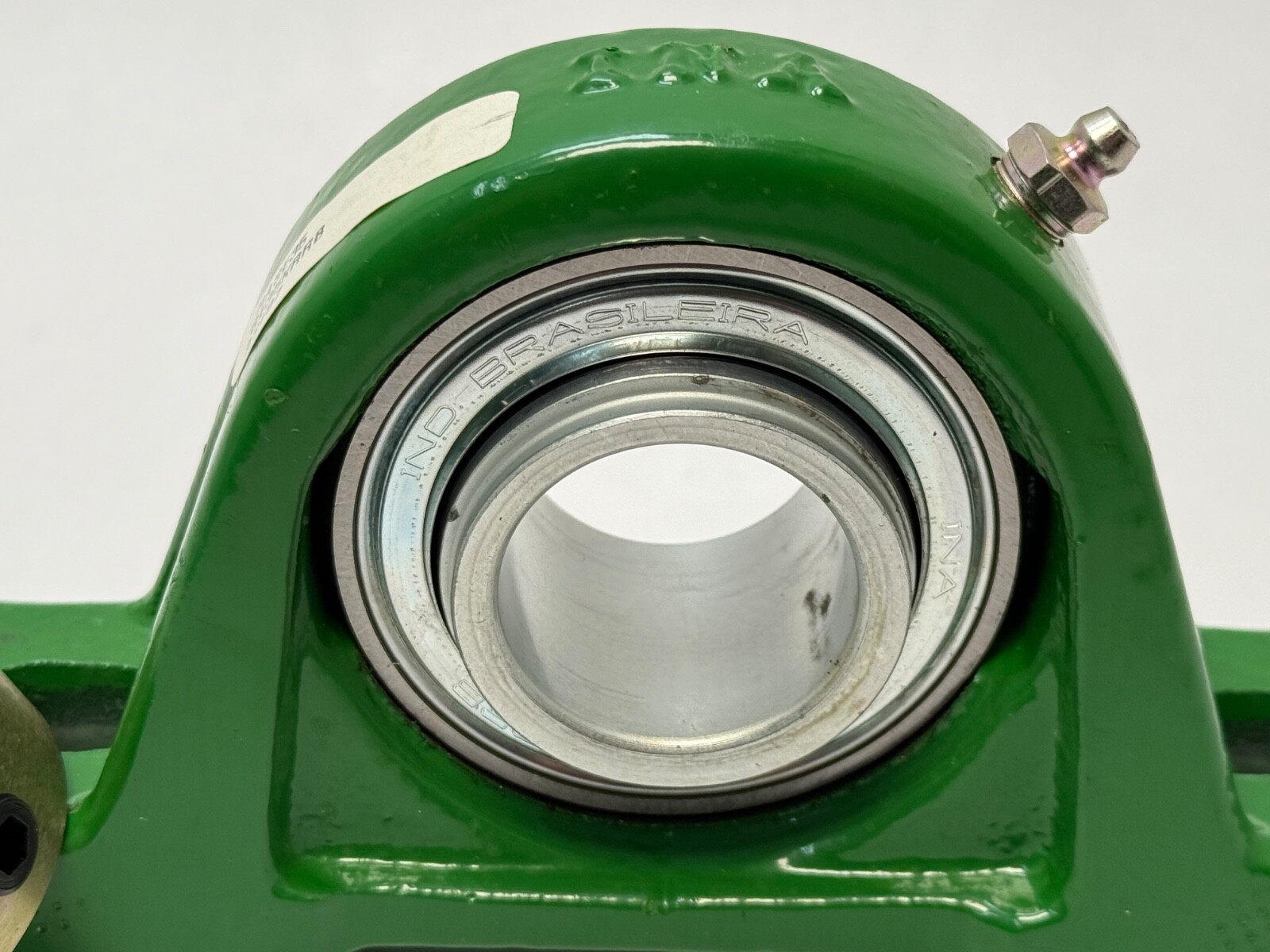

INA RASE35 two-bolt plummer block (pillow block) housing unit with a 35 mm bore, from Schaeffler’s INA mounted unit range. Complete housed unit: cast iron ASE07 long-base housing, GE35-KRR-B radial insert ball bearing locked by an eccentric collar, and KASK07 protecting cap. Unit Quantity: 1 Pc.

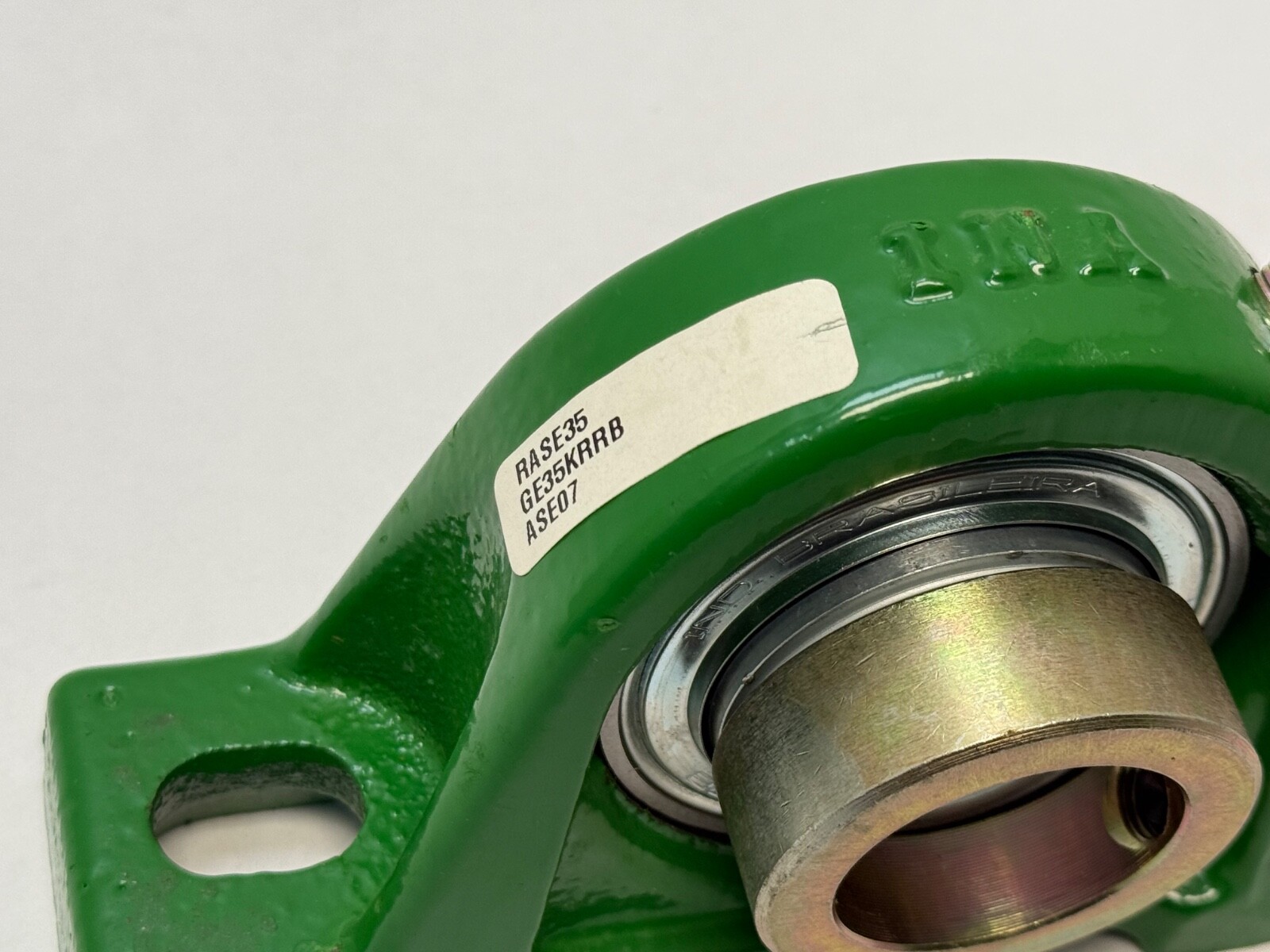

RASE — plummer block housing unit with an eccentric locking collar insert.
35 — 35 mm bore.
ASE07 — cast iron plummer block housing.

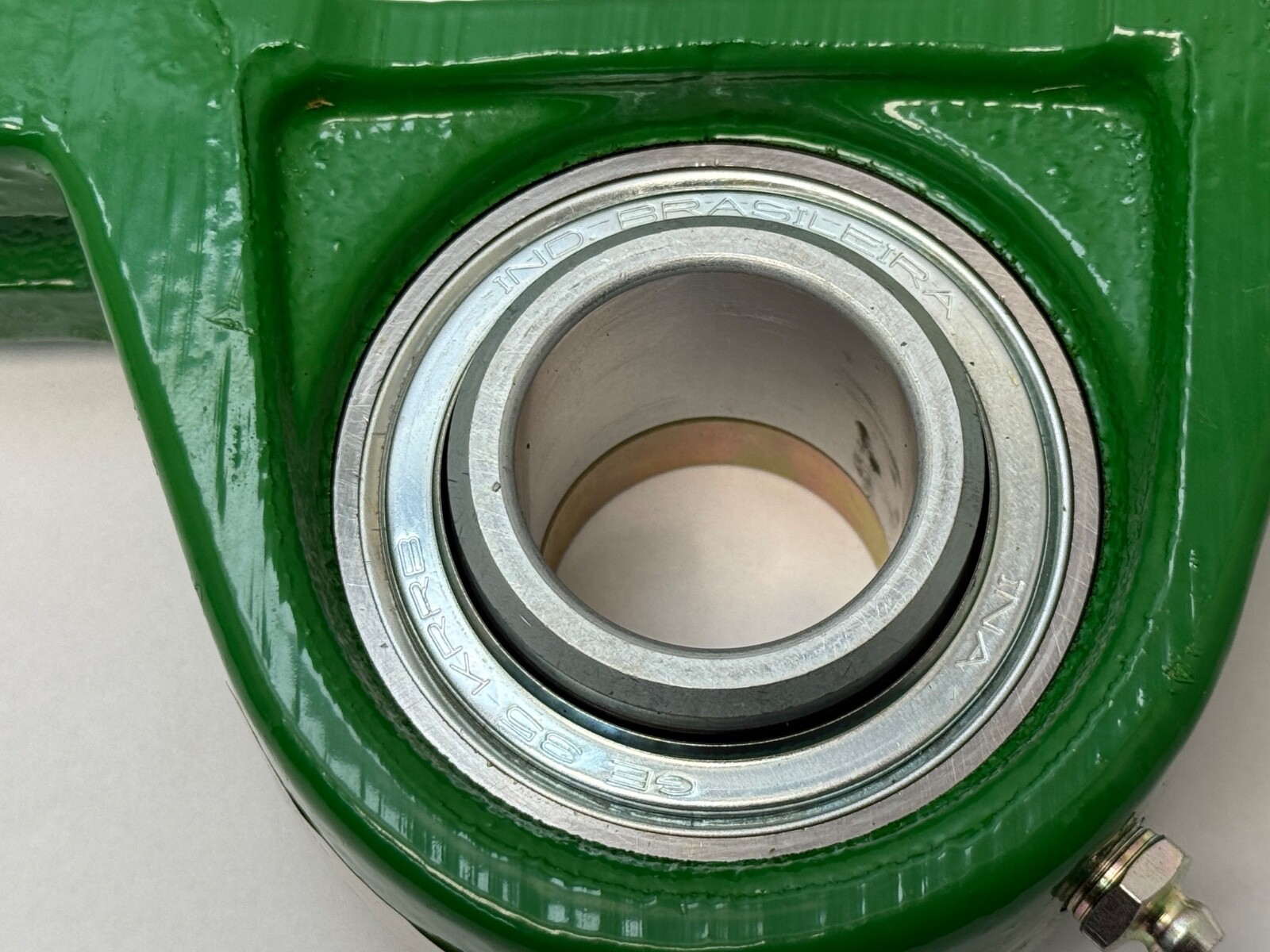

GE35-KRR-B — radial insert ball bearing with R seals.
KASK07 — protecting cap.
Bore Diameter: 35 mm (1.3780 in). Locking Method: eccentric locking collar. Housing Material: cast iron. Closure Type: R seals, both sides. Expansion Type: fixed (non-expansion). Number Of Bolt Holes: 2. Lubricant: Grease. Relubrication: through the M6 lubrication thread. Item Weight: 1.6 kg (3.53 lb).
Base to shaft axis (H): 47.6 mm. Base height (H1): 19 mm. Total height (H2): 93 mm. Bolt centre-to-centre (J): 126 mm. Mounting slot width (N): 14 mm. Mounting slot length (N1): 21 mm. Overall length (L): 163 mm. Base width (A): 45 mm. Head width (A1): 27 mm. Insert bearing width (B): 42.9 mm. Raceway to collar face (S1): 25.4 mm. Lubrication thread (Q): M6.
Cross-references: INA RASE35-XL-N (current Schaeffler designation); PTI SW 35 U. RASE35-XL-N-I and RASE35-XL-N-FA125 (Corrotect coated) are further current variants. RASEY35 (grub-screw locking), RAK35 and RAKY35 (low-height housing) share the 35 mm bore with a different locking method or housing height.

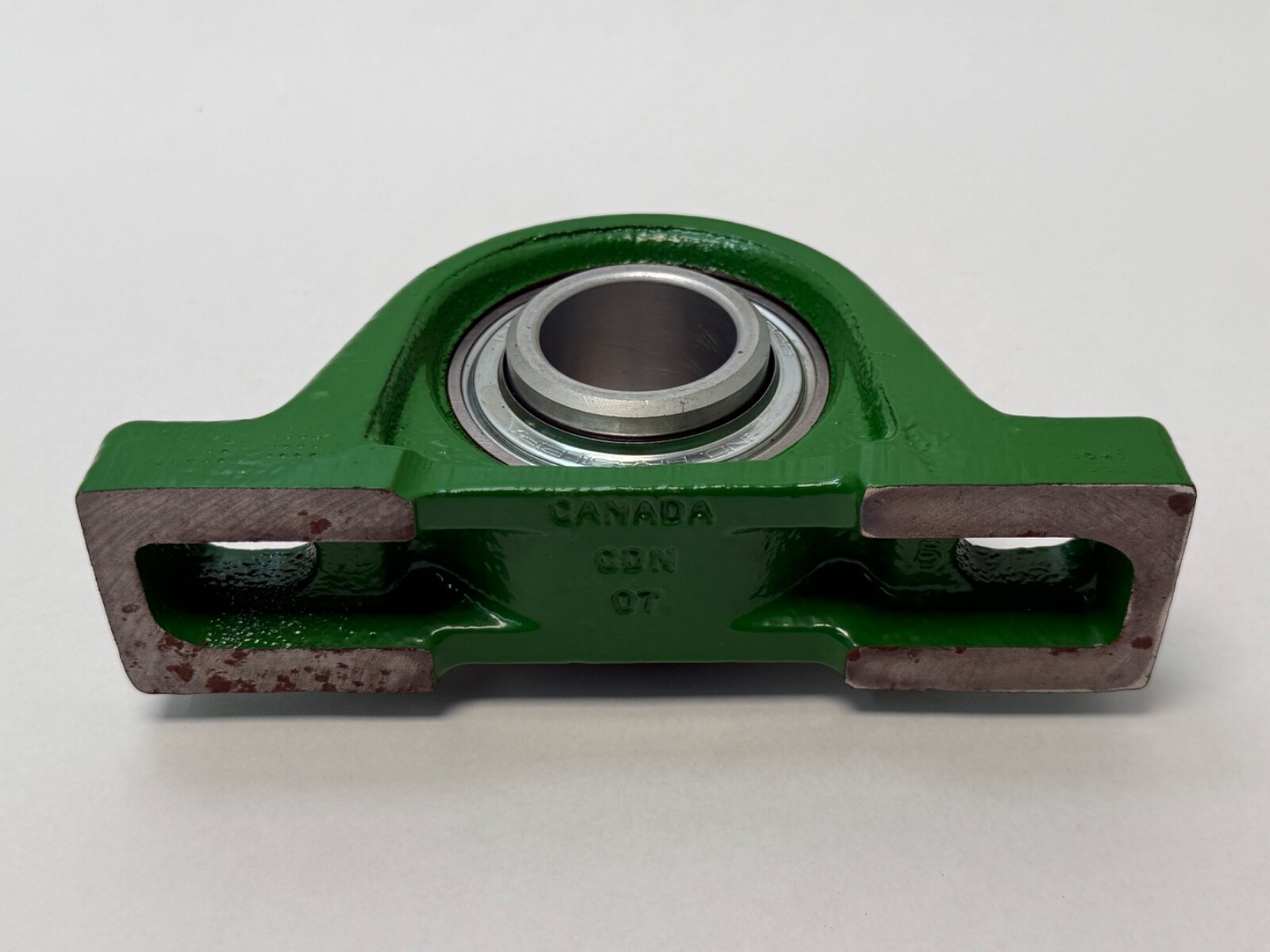

Bolt centre-to-centre is 126 mm through 14 mm by 21 mm slots.

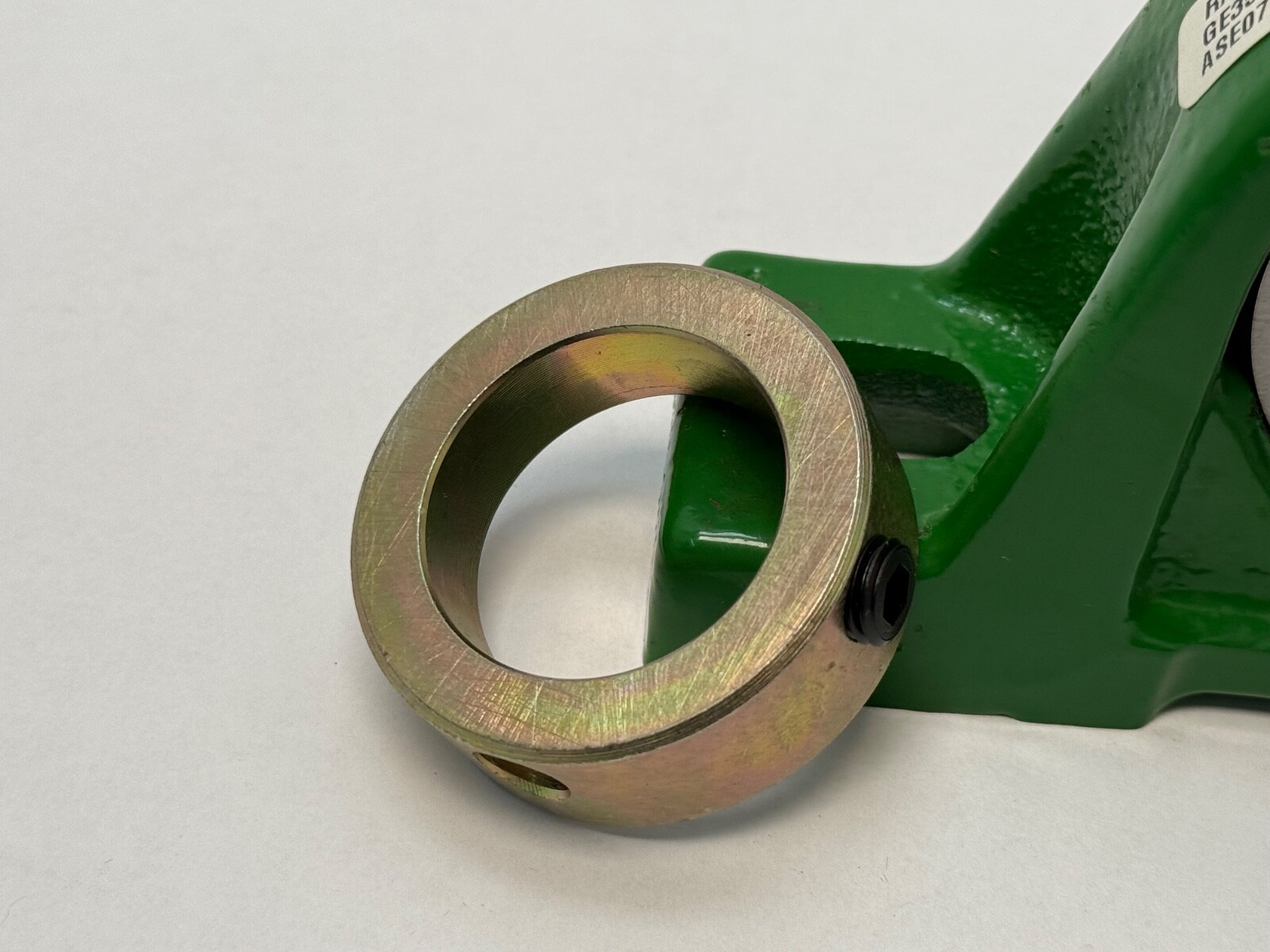

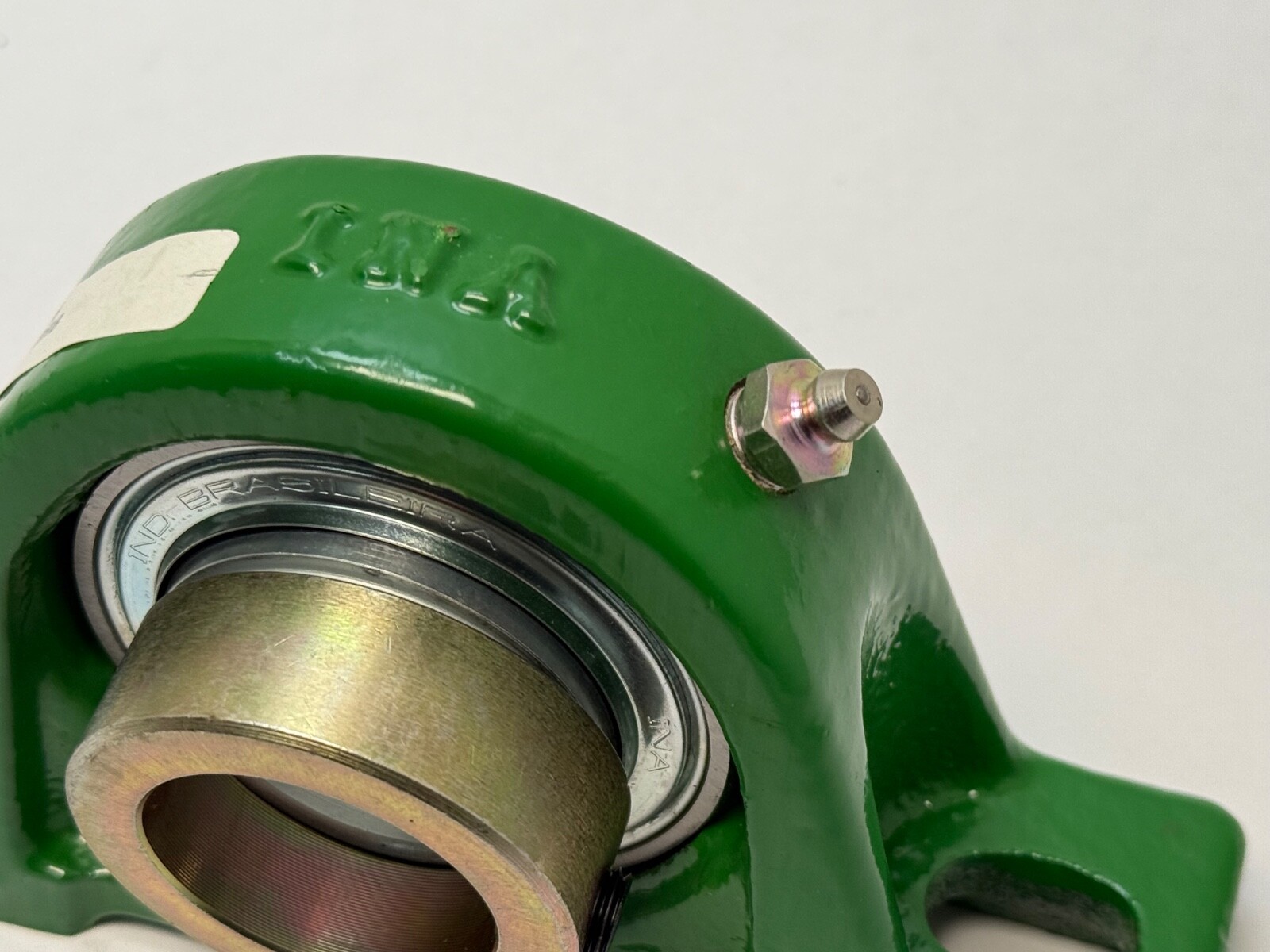

An eccentric locking collar on the GE35-KRR-B insert.

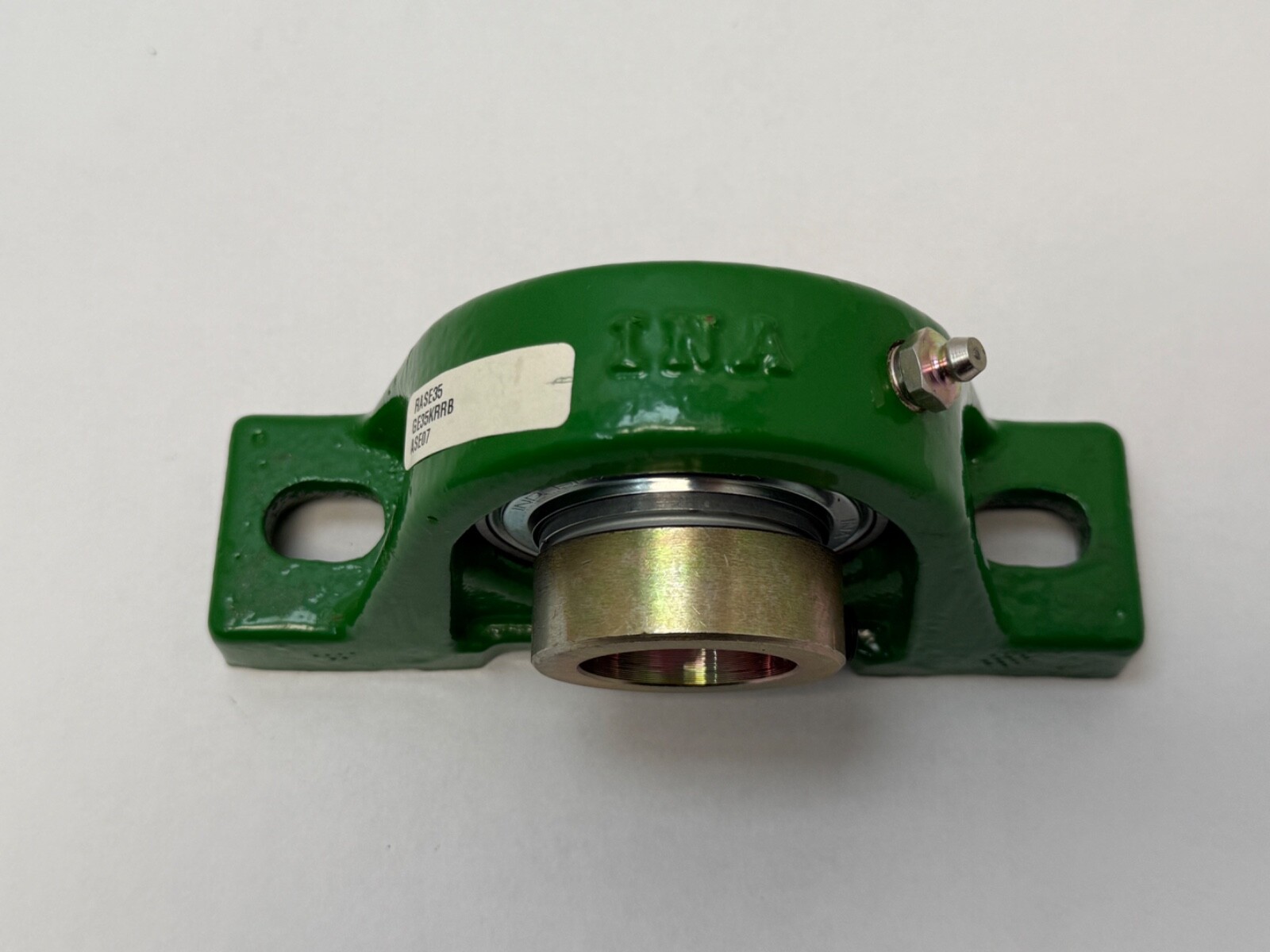

47.6 mm from the base to the shaft axis.
