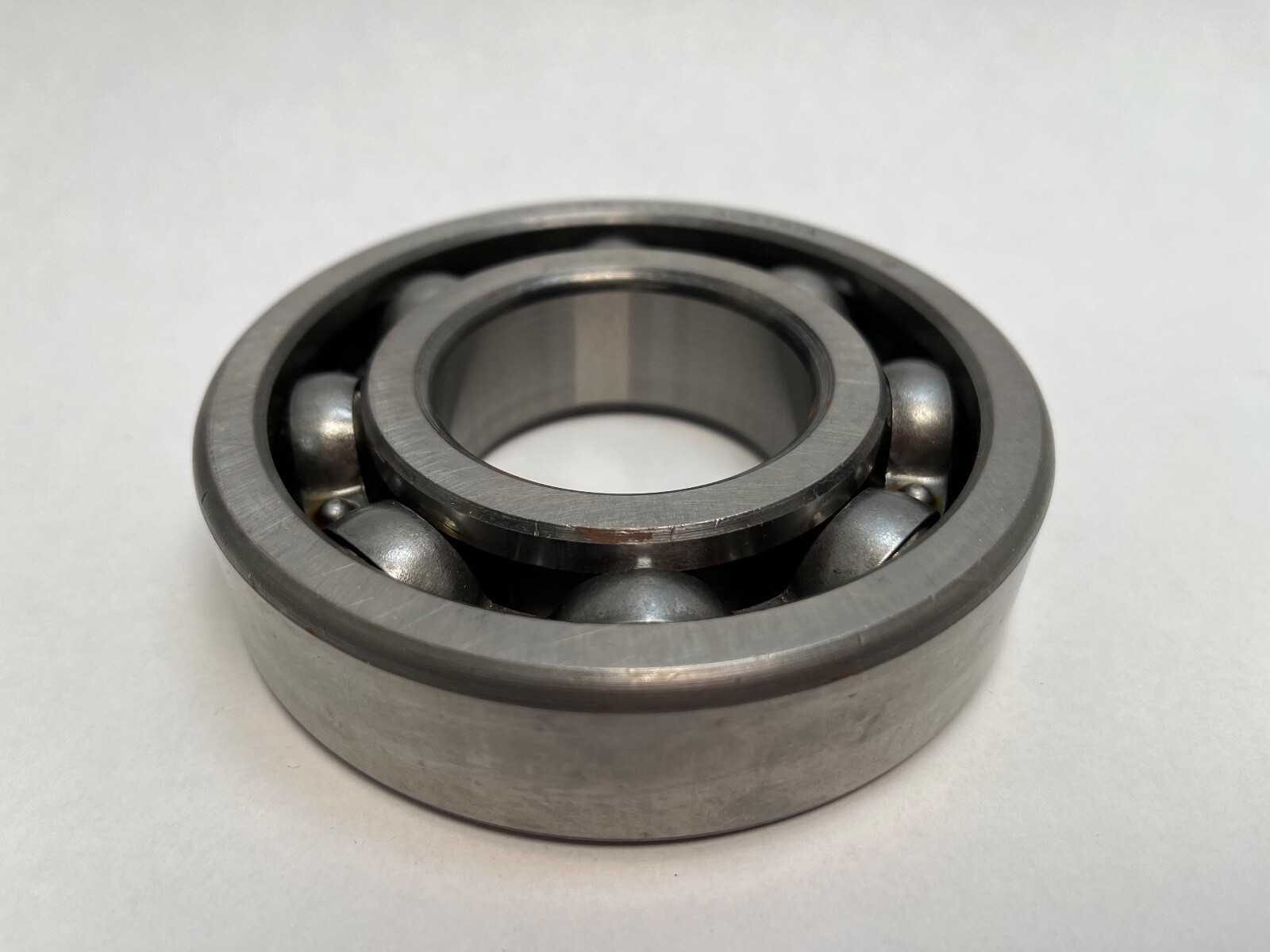

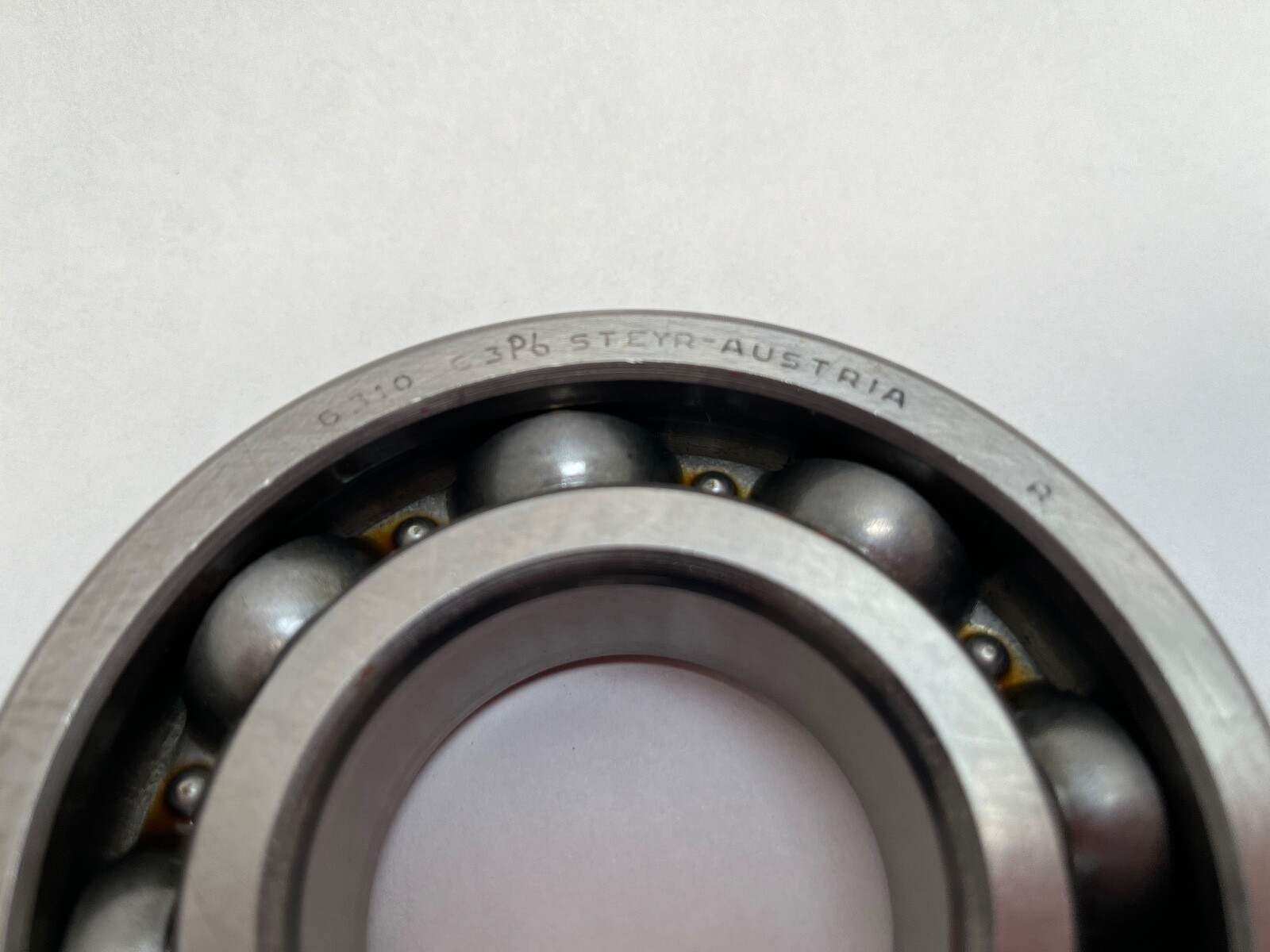

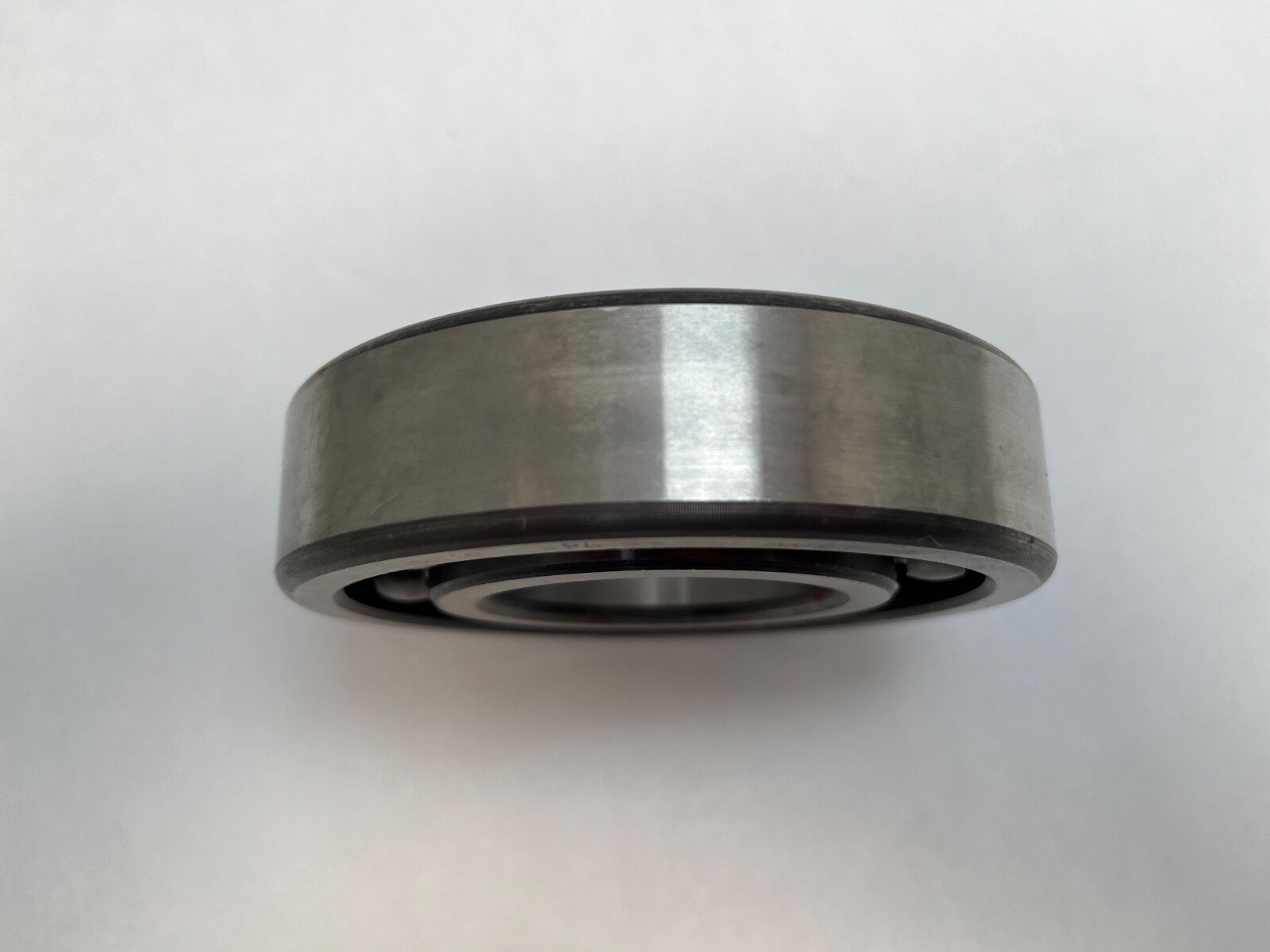

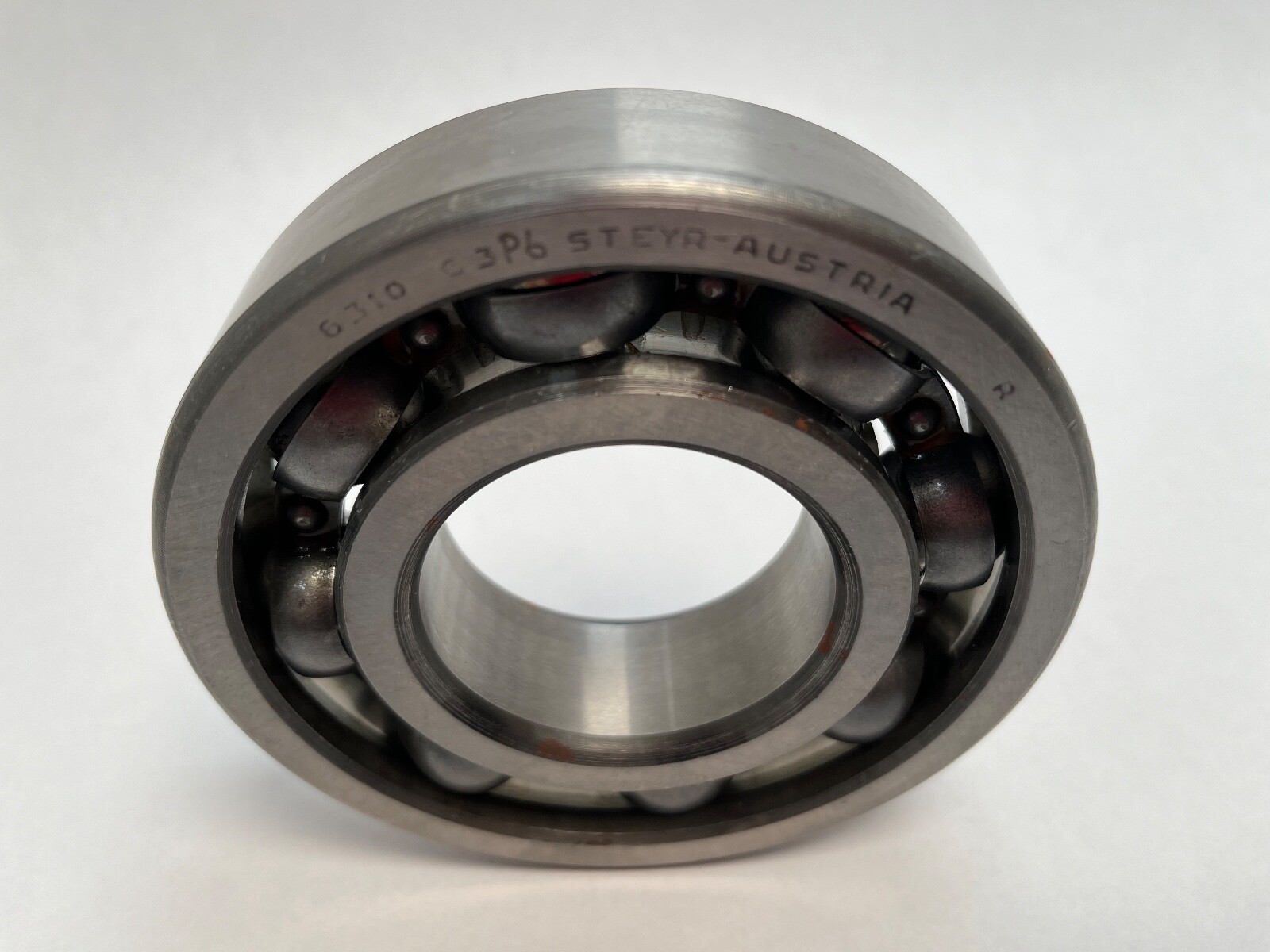

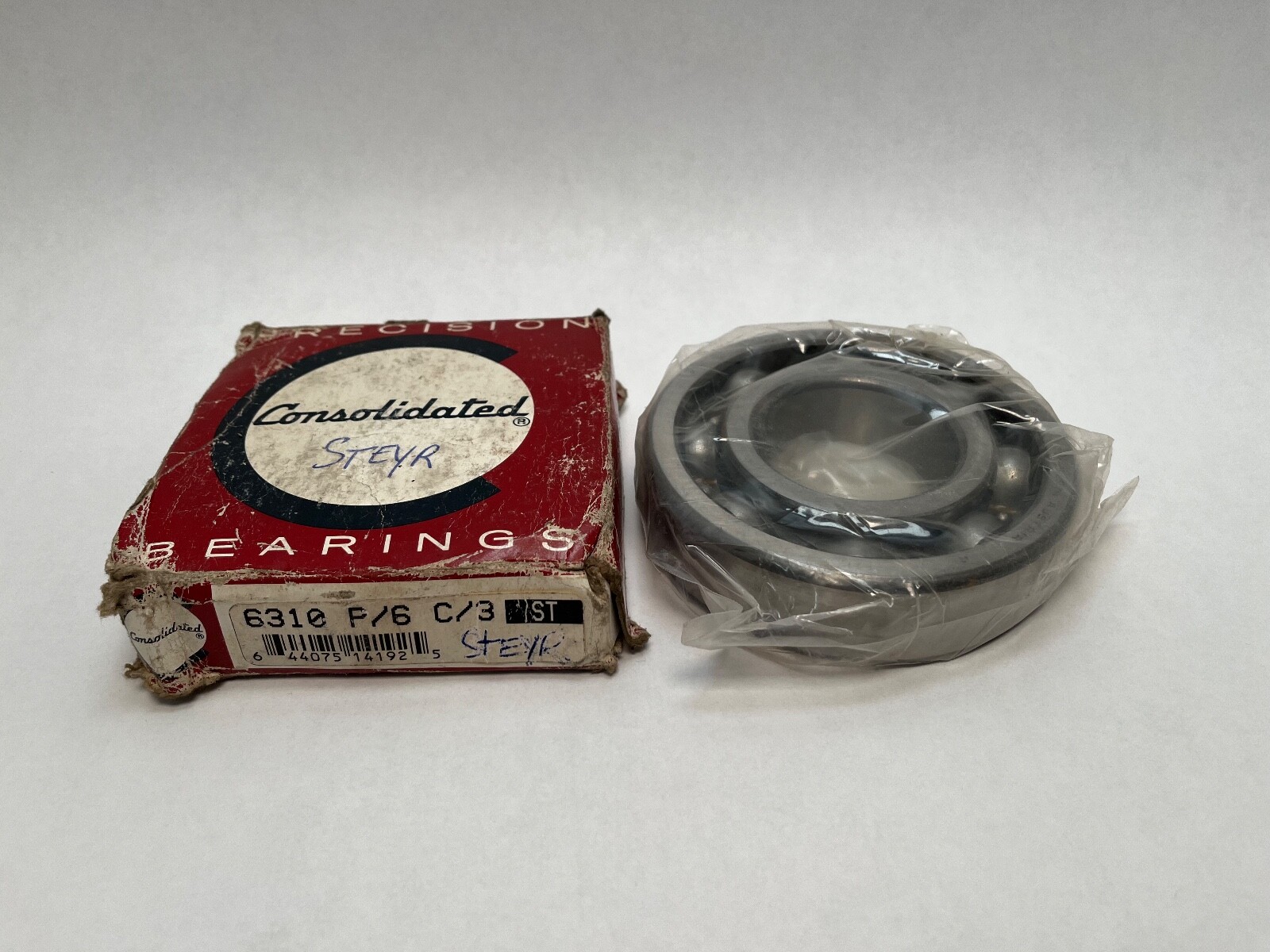

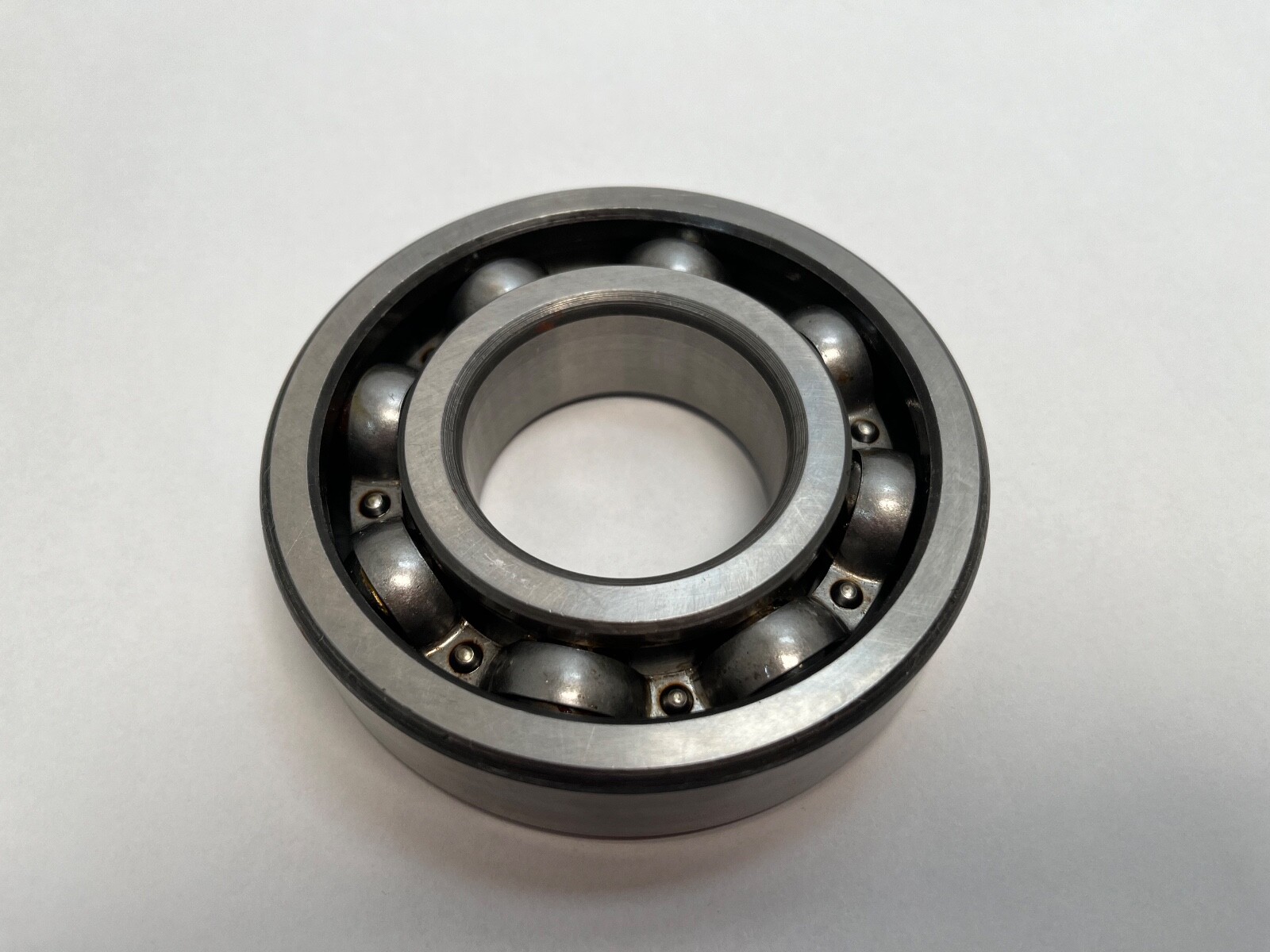

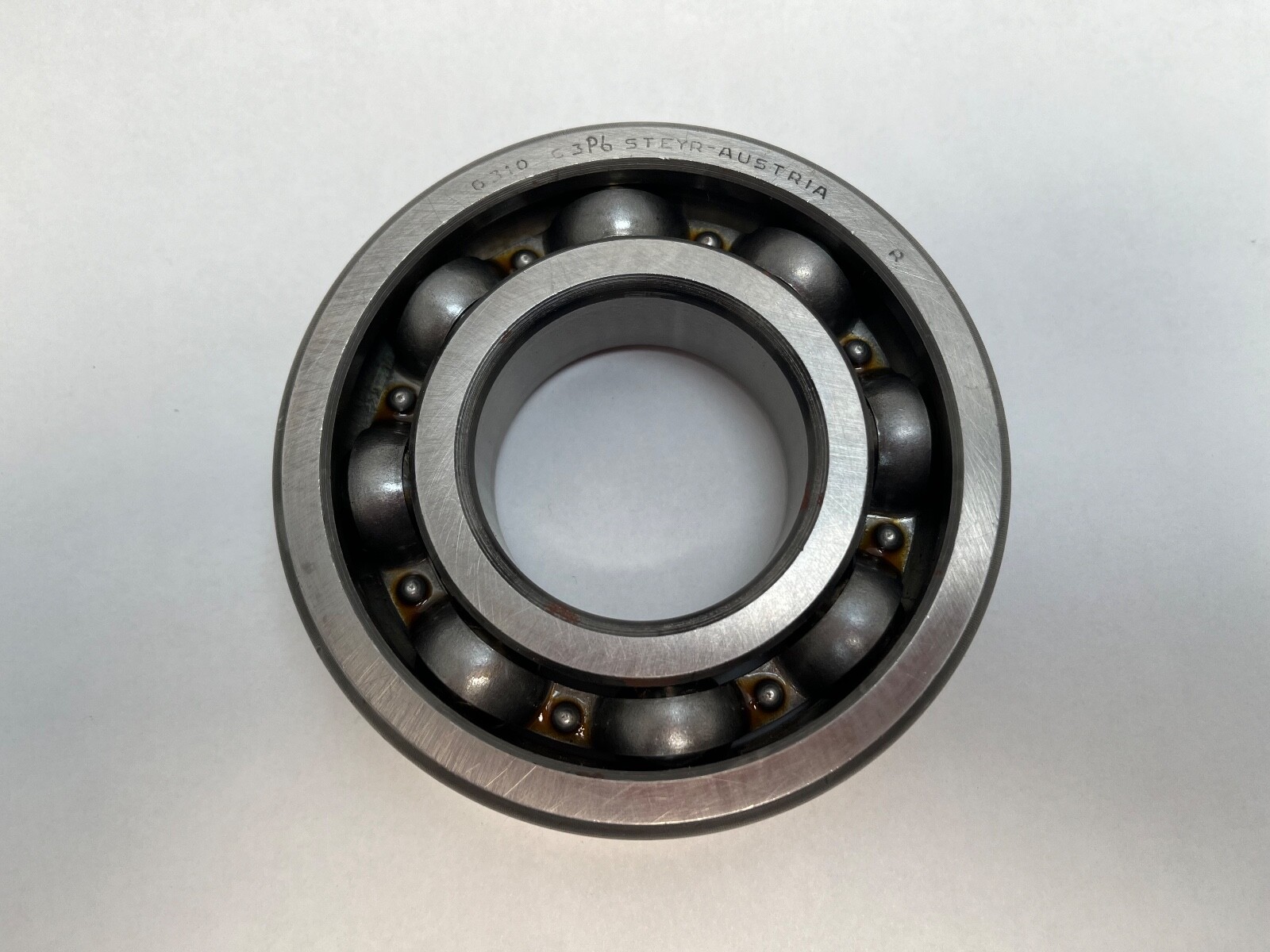

Consolidated 6310-P6-C3 deep groove ball bearing, 50 mm bore, 110 mm OD, 27 mm wide, ABEC 3 / P6, C3 clearance, open. Crosses SKF 6310/C3, FAG 6310-C3.
List Price
$40.59
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Consolidated |
|---|---|
| MPN | 6310-P6-C3 |
| GTIN | 644075141925 |
| Model | 6310 P6 C3 |
| Bearing Type | Ball Bearing, Open |
| ID | 50 mm |
| OD | 110 mm |
| Width | 27 mm |
| Material | Chrome Steel |
|---|---|
| Series | 63 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Internal Clearance | C3 |
| Overall Width | 27 mm |
| Mpn Variants | 6310-P6-C3, 6310P6C3, 6310 P6 C3, 6310C3, 6310 |
| Precision Class | ABEC 3 / P6 |
| Industry Terms | Deep groove ball bearing; radial ball bearing; open ball bearing; single row ball bearing; 6310 bearing; P6 ball bearing |
| Common Misspellings | Consolodated 6310; Consolidated 6310 P6 C3; 6310P6C3; 6310 P6C3 |
| Application Types | Electric motors; pumps; gearboxes; industrial machinery; conveyors |
| Cross Reference 1 | SKF 6310/C3 - P0 tolerance vs P6 |
|---|---|
| Cross Reference 2 | FAG 6310-C3 - P0 tolerance vs P6 |
| Cross Reference 3 | NSK 6310C3 - P0 tolerance vs P6 |
| Cross Reference 4 | NTN 6310C3 - P0 tolerance vs P6 |
| Cross Reference 5 | Koyo 6310C3 - P0 tolerance vs P6 |
| Cross Reference 6 | Fafnir 310K - no C3 suffix |
The Consolidated 6310-P6-C3 is a single-row deep groove ball bearing in the ISO 63 medium series. Bore Diameter: 50 mm. Outside Diameter: 110 mm. Width: 27 mm. Precision Class: ABEC 3 / P6. Internal Clearance: C3. Closure Type: Open.
63 — deep groove ball bearing, ISO medium 03 series.
10 — bore code, 10 x 5 = 50 mm bore.
P6 — ISO tolerance class 6, equivalent to ABEC 3.
C3 — radial internal clearance greater than normal.
Bearing Type: Deep Groove Ball Bearing. Number Of Rows: 1. Rolling Elements: Ball. Bore Diameter: 50 mm. Outside Diameter: 110 mm. Width: 27 mm. Closure Type: Open. Precision Class: ABEC 3 / P6. Internal Clearance: C3. Brand: Consolidated. Unit Quantity: 1 Pc.
Envelope: 50 x 110 x 27 mm, ISO 6310 size.
Cross-references with C3 clearance and Normal (P0) tolerance, against P6 on this part: SKF 6310/C3, FAG 6310-C3, NSK 6310C3, NTN 6310C3, Koyo 6310C3. Fafnir 310K is the 50 x 110 x 27 mm open bearing with no C3 suffix.
Bore Diameter: 50 mm. Outside Diameter: 110 mm. Width: 27 mm.
P6 is ISO tolerance class 6 (ABEC 3). C3 is radial internal clearance greater than normal.
No. Closure Type: Open.
