Availability:
1 in stock
Matched duplex pair of super-precision angular contact ball bearings, 80 mm bore x 125 mm OD x 22 mm wide each, 15° contact angle, light preload, ABEC 7/9. Sold as 2 Pcs.
List Price
$445.22
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| Model | 7016C T DUL P4 / 2MM 9116 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 9100 |
| Lubricant | Oil |
| Base Number | 2MM9116WI |
| Industry Terms | super precision spindle bearing set, matched pair angular contact, machine tool bearing, ABEC 9 duplex |
| Common Misspellings | 2MM9116WIDUL, 2MM 9116 WI DUL, Fafner, Faffnir, 2MM9116W1-DUL |
| Application Types | Machine tool spindles, grinding spindles, precision gearboxes, rotary tables |
| Bore Shaft Size | 80 mm (3.150 in) |
| Mpn Variants | 2MM9116WI-DUL, 2MM-9116-WI-DUL, 2MM9116WIDUL, 2MM 9116 WI DUL, 2MM9116WI-CR-DUL, 7016C |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Part Number | 2MM9116WI-DUL |
| Cross Reference 1 | RHP 7016CTDULP4 |
|---|---|
| Cross Reference 2 | NSK 7016CTRDULP4 |
| Cross Reference 3 | SKF 7016 CD/P4ADGB |
| Cross Reference 4 | FAG B7016-C-T-P4S-UL |
| Cross Reference 5 | SNFA EX80-9CE1DUL |
| Cross Reference 6 | Timken 3MM9116WI – 25° contact angle, not 15° |

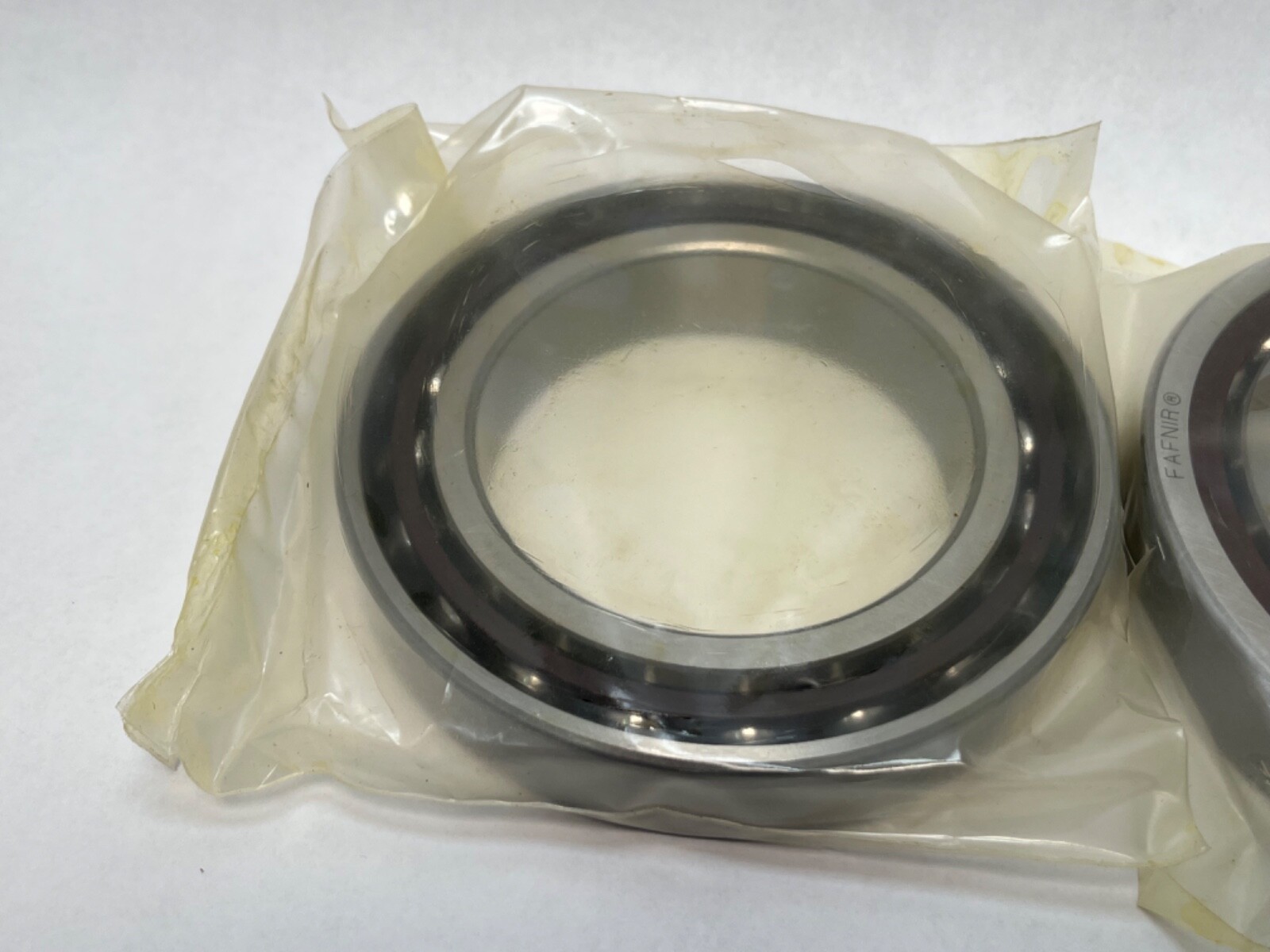

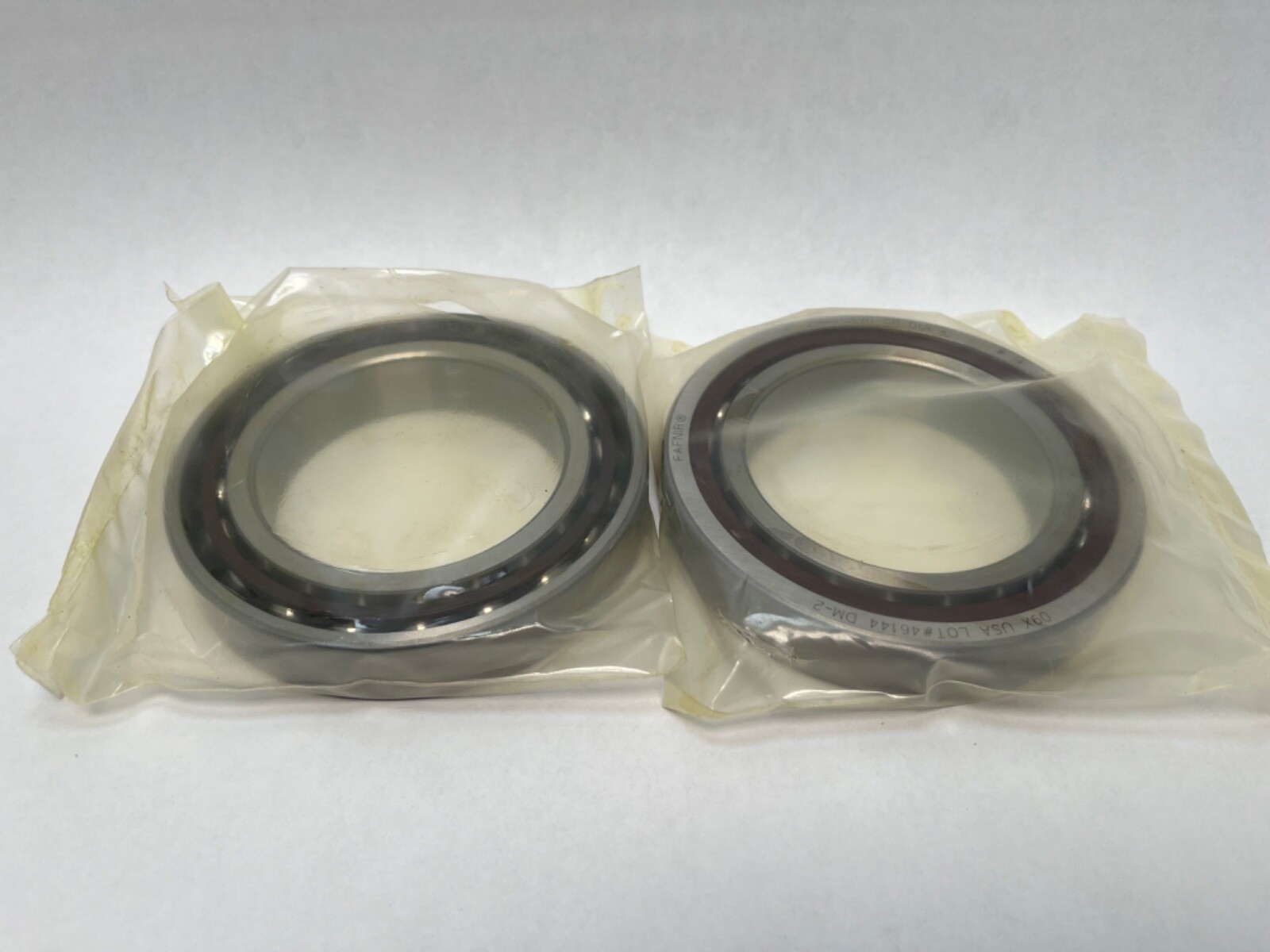

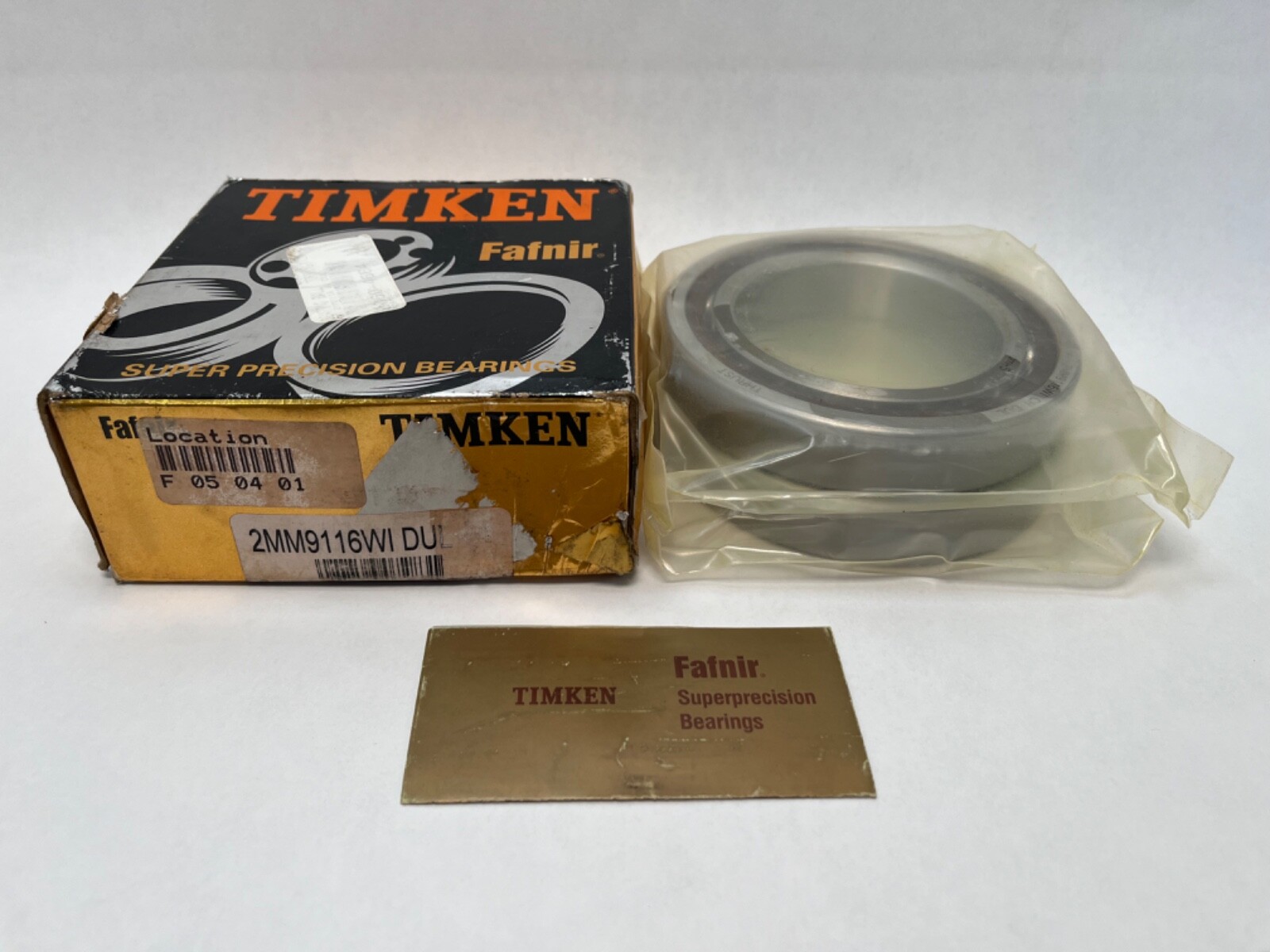

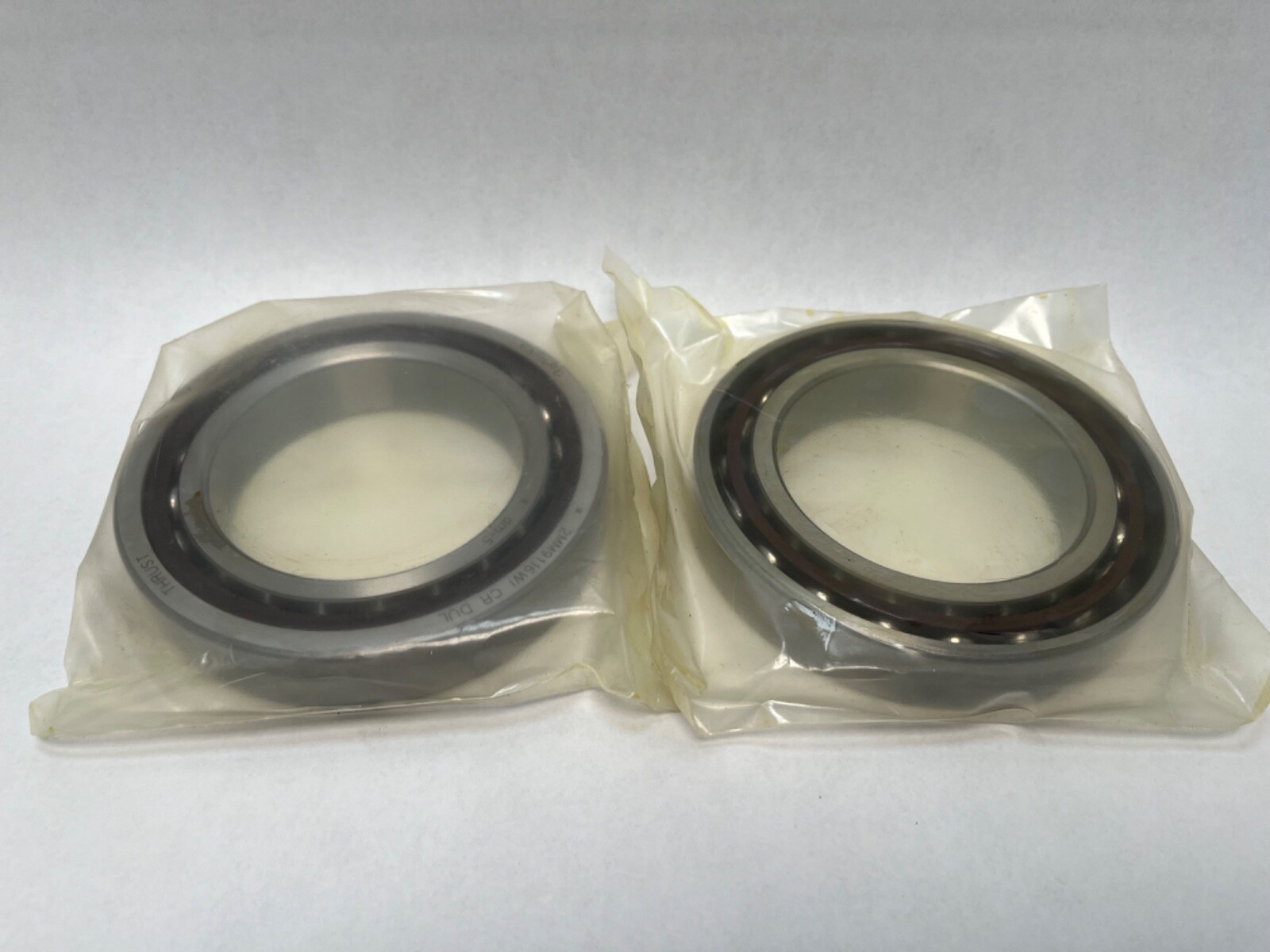

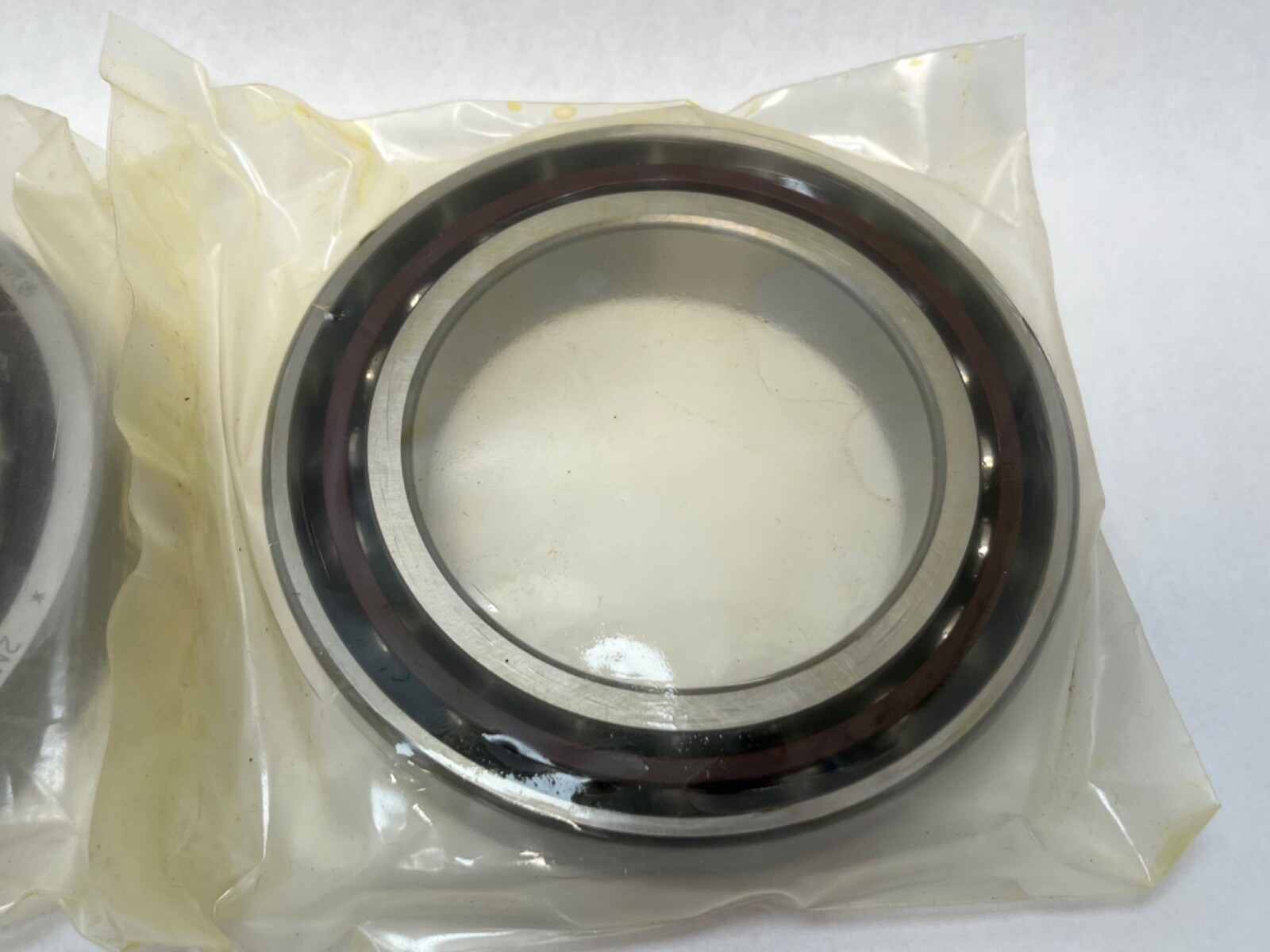

A Timken Fafnir 2MM9116WI-DUL matched duplex pair of super-precision single-row angular contact ball bearings. Each bearing is 80 mm bore, 125 mm outside diameter, 22 mm wide, giving 44 mm total stack width. Open on both faces, universally ground as a set.

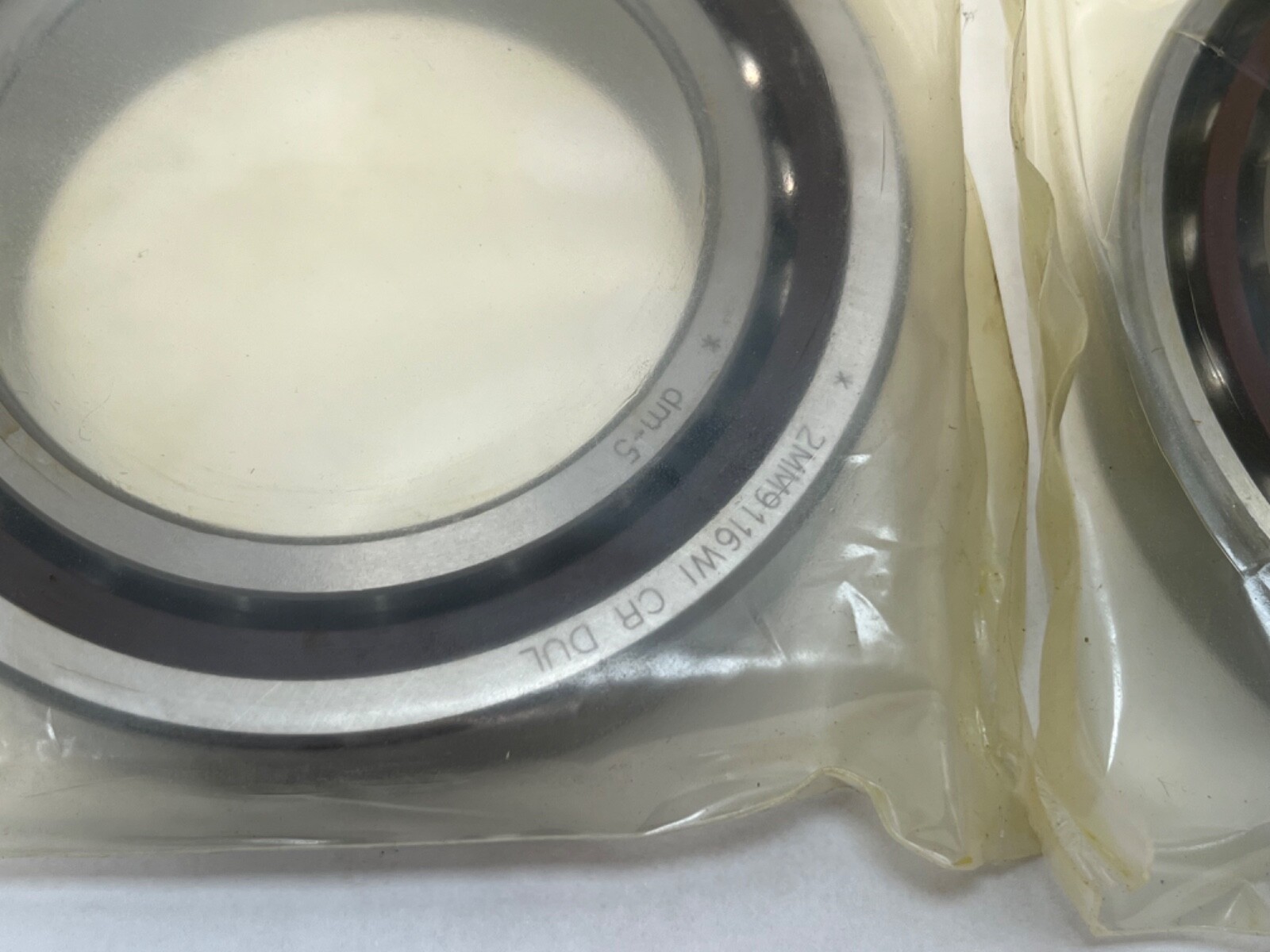

2MM — 15° contact angle in the Fafnir scheme; the MM prefix carries the P4S build9116 — leading 9 marks the ISO 70 light series, 80 mm bore, so the ISO designation is 7016-CWI — super-precision spindle bearing seriesDU — duplex, ground as a matched setL — light preload
P4S covers ABEC 7 dimensional tolerance with ABEC 9 running accuracy, which is the grade machine-tool spindles are built around. The 15° angle favours speed and radial stiffness over thrust. A duplex pair sets its own light preload once both rings are clamped, so no shim stack or spacer grinding is involved.
Bore: 80 mmOutside diameter: 125 mmWidth: 22 mm per bearing, 44 mm stackedContact angle: 15°Precision: P4S — ABEC 7 / ABEC 9Preload: light, factory matchedRows: 1 per bearingClosure: open
Matched duplex pair. 2 Pcs per sale unit.

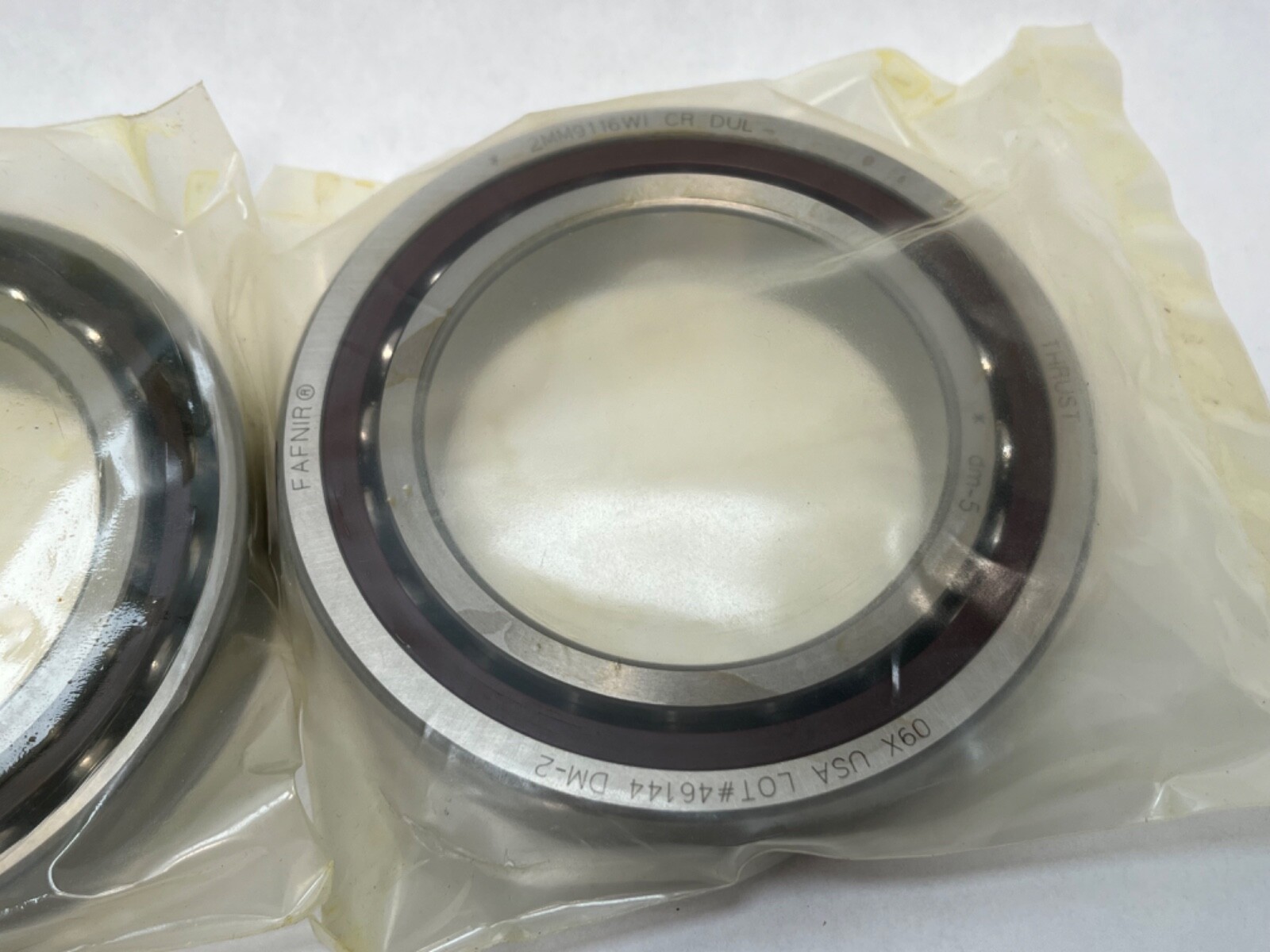

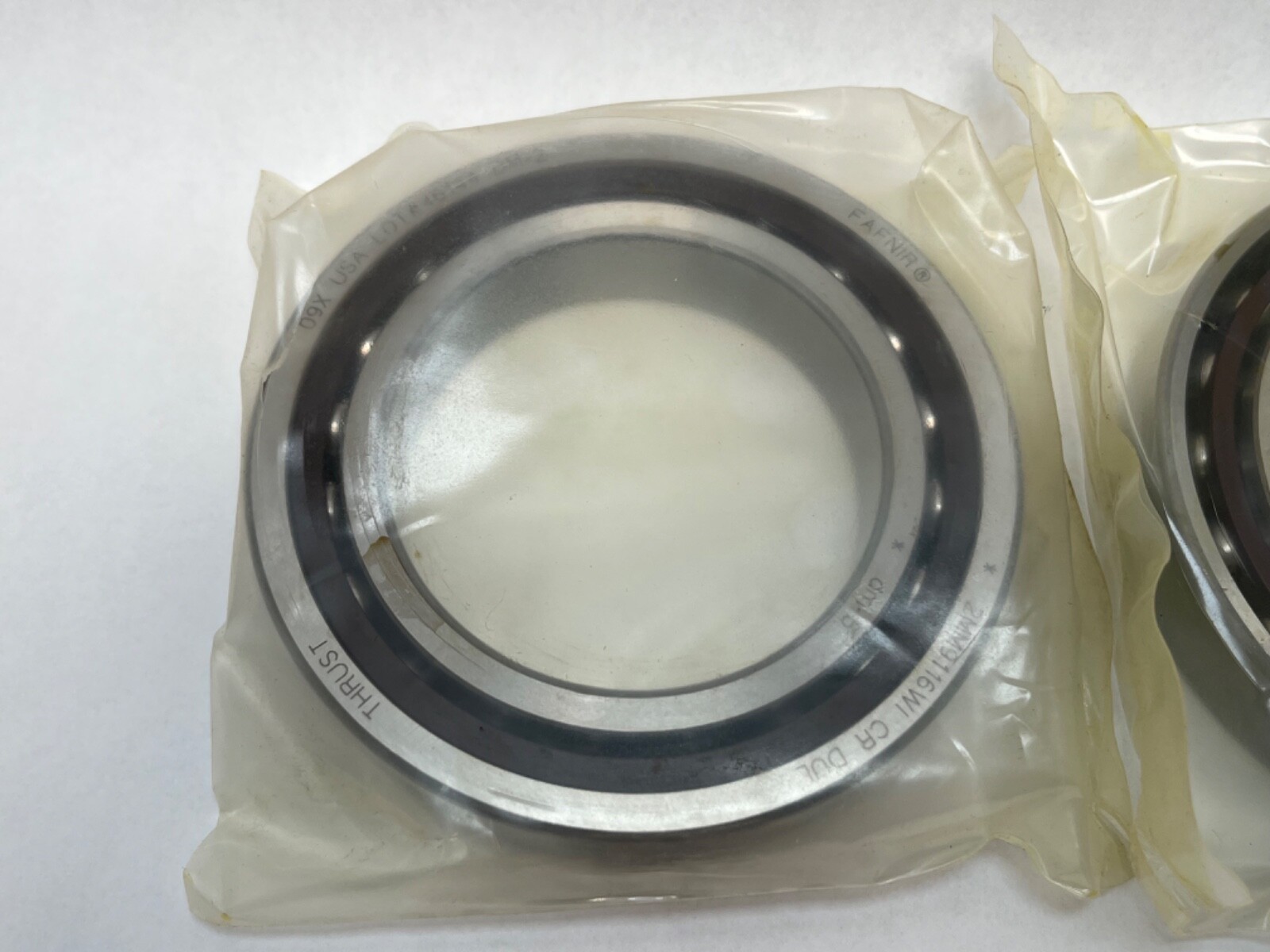

Each bearing carries thrust in one direction; the pair mounted back-to-back or face-to-face covers both. The etched marks on the outer rings align to hold the matched offset as ground.
Matching 15°, super-precision, light-preload duplex pairs: RHP 7016CTDULP4, NSK 7016CTRDULP4, SKF 7016 CD/P4ADGB, FAG B7016-C-T-P4S-UL and SNFA EX80-9CE1DUL. The Fafnir 3MM9116WI shares the envelope but runs a 25° contact angle, so it is a different bearing.
