Availability:
1 in stock

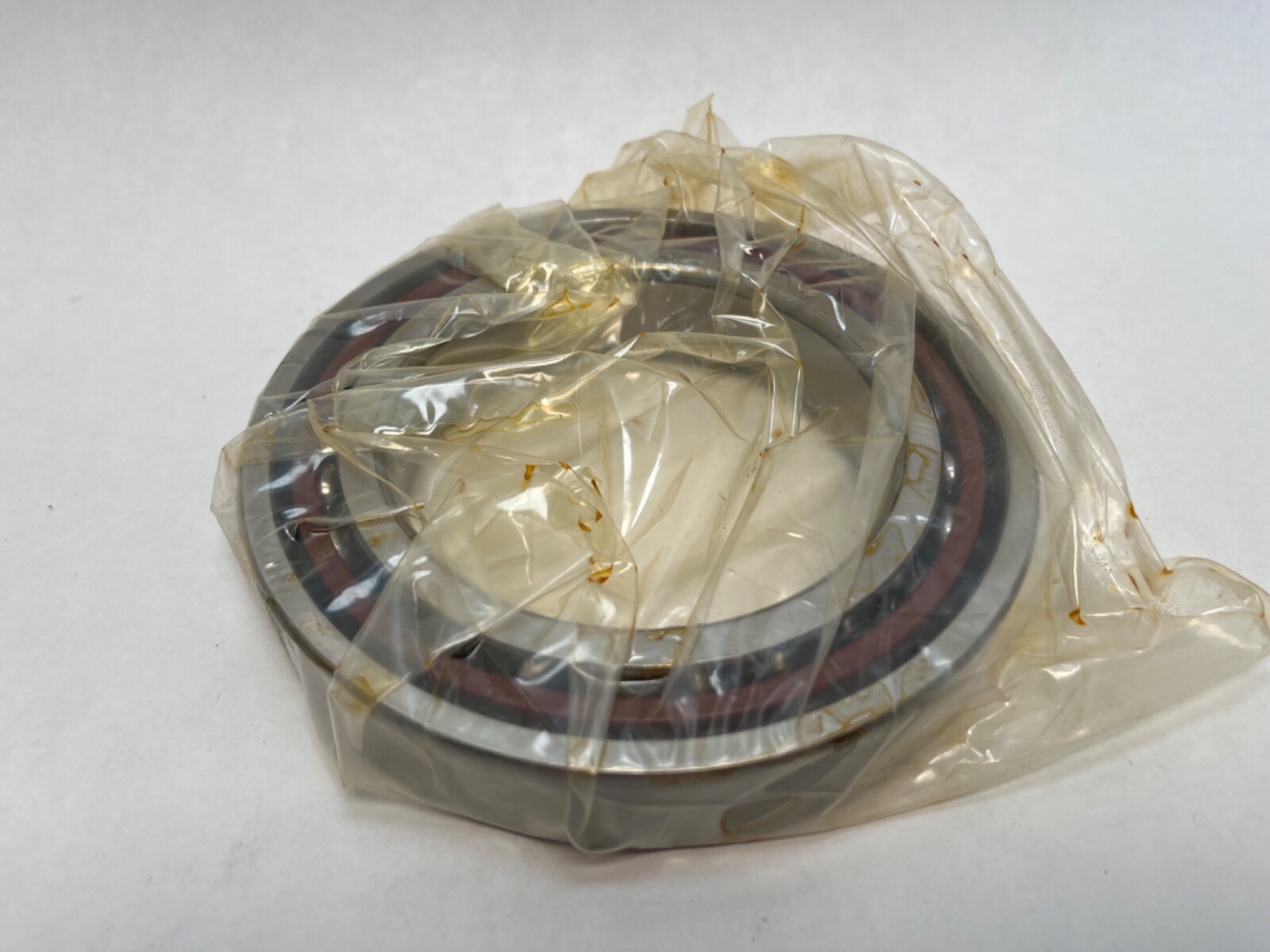

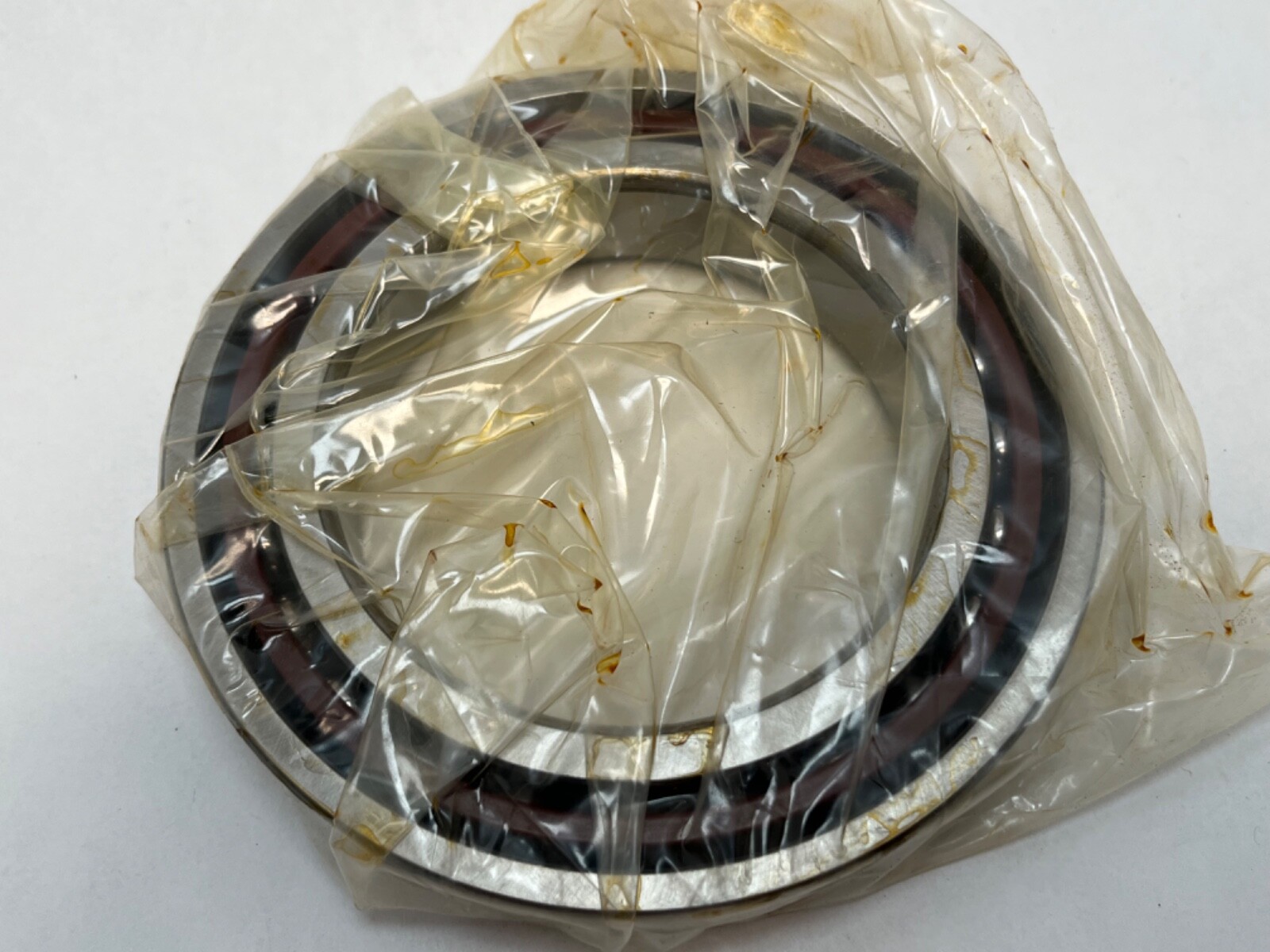

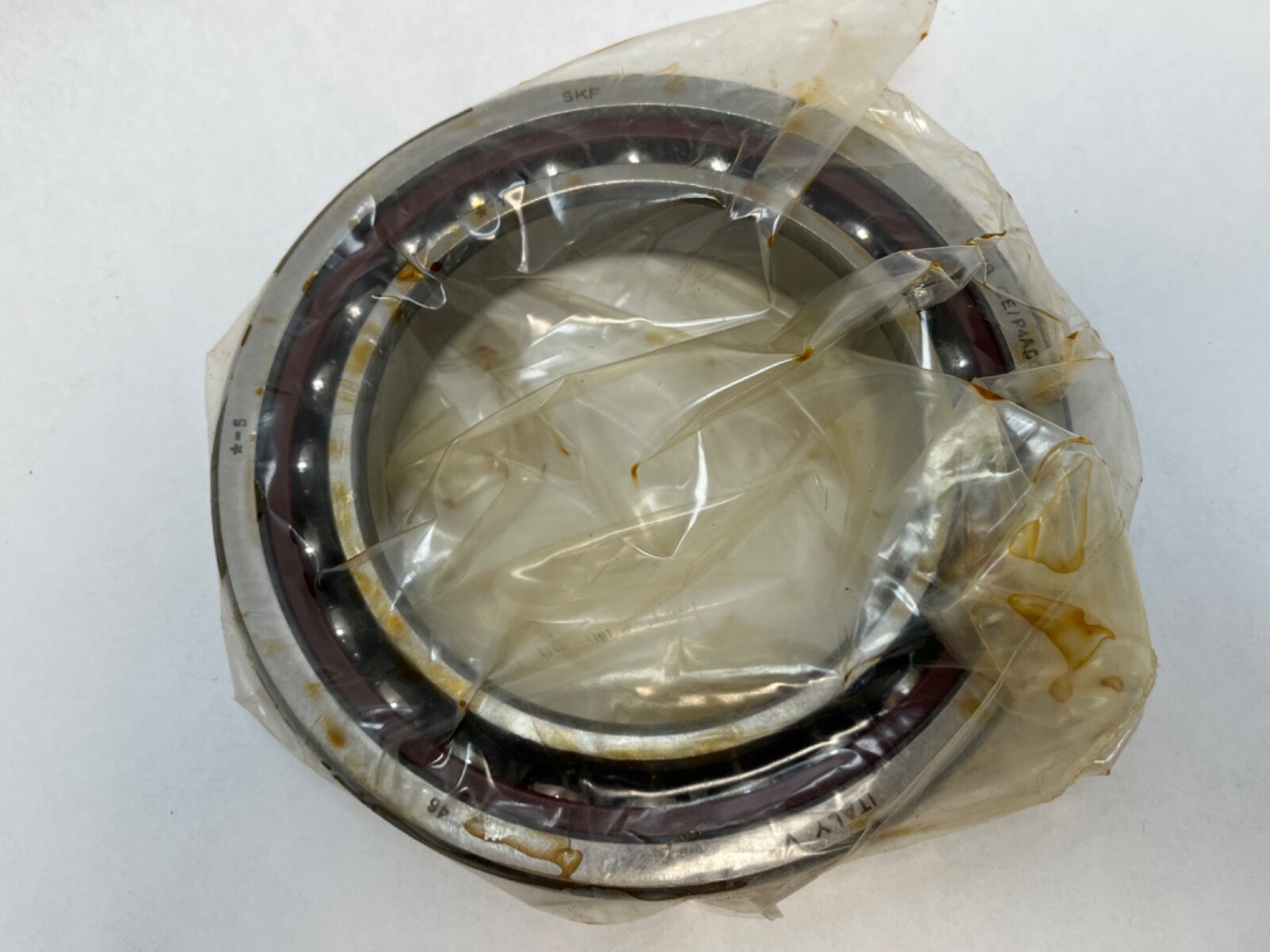

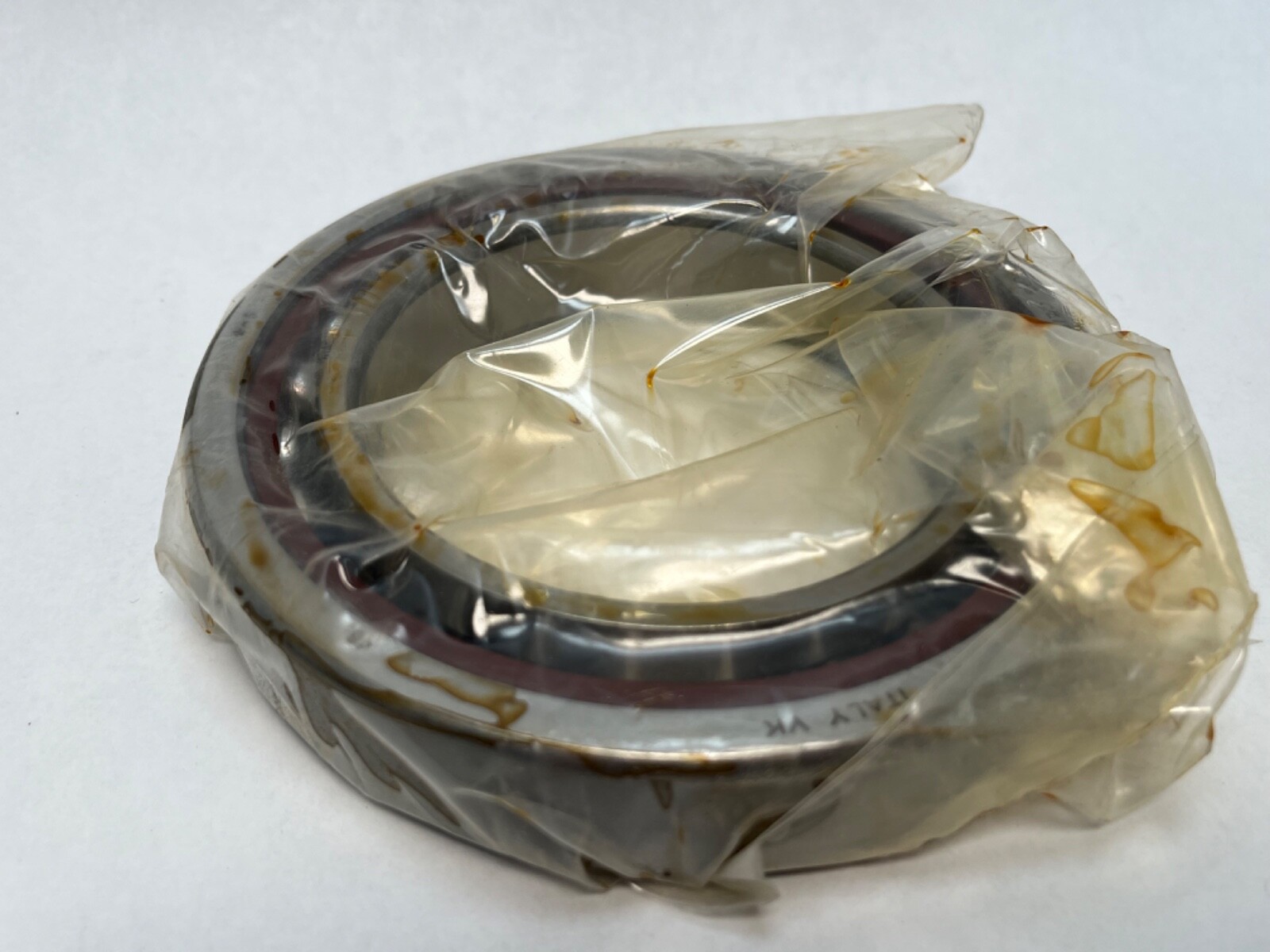

Super-precision angular contact ball bearing, 90 x 140 x 24 mm, 15° contact angle, extra light preload, P4A. SKF high-speed E design, universally matchable.
List Price
$318.15
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7018CEP4ADGA |
| Model | 7018-CE-GA-P4A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 140 mm |
| Width | 24 mm |
| Series | 7000 |
|---|---|
| Lubricant | Oil/Grease |
| Preload | Extra light (paired back-to-back or face-to-face) |
| Mpn Variants | 7018 CEGA/P4A, 7018-CEGA/P4A, 7018CEGAP4A, 7018-CE-GA-P4A, 7018CEP4ADGA |
| Precision Class | ABEC 7 / P4A |
| Dynamic Load Rating | 35,800 N |
| Static Load Rating | 32,000 N |
| Item Weight | 1.15 kg (2.54 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 13,300 rpm grease; 21,000 rpm oil-air |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable (back-to-back, face-to-face or tandem) |

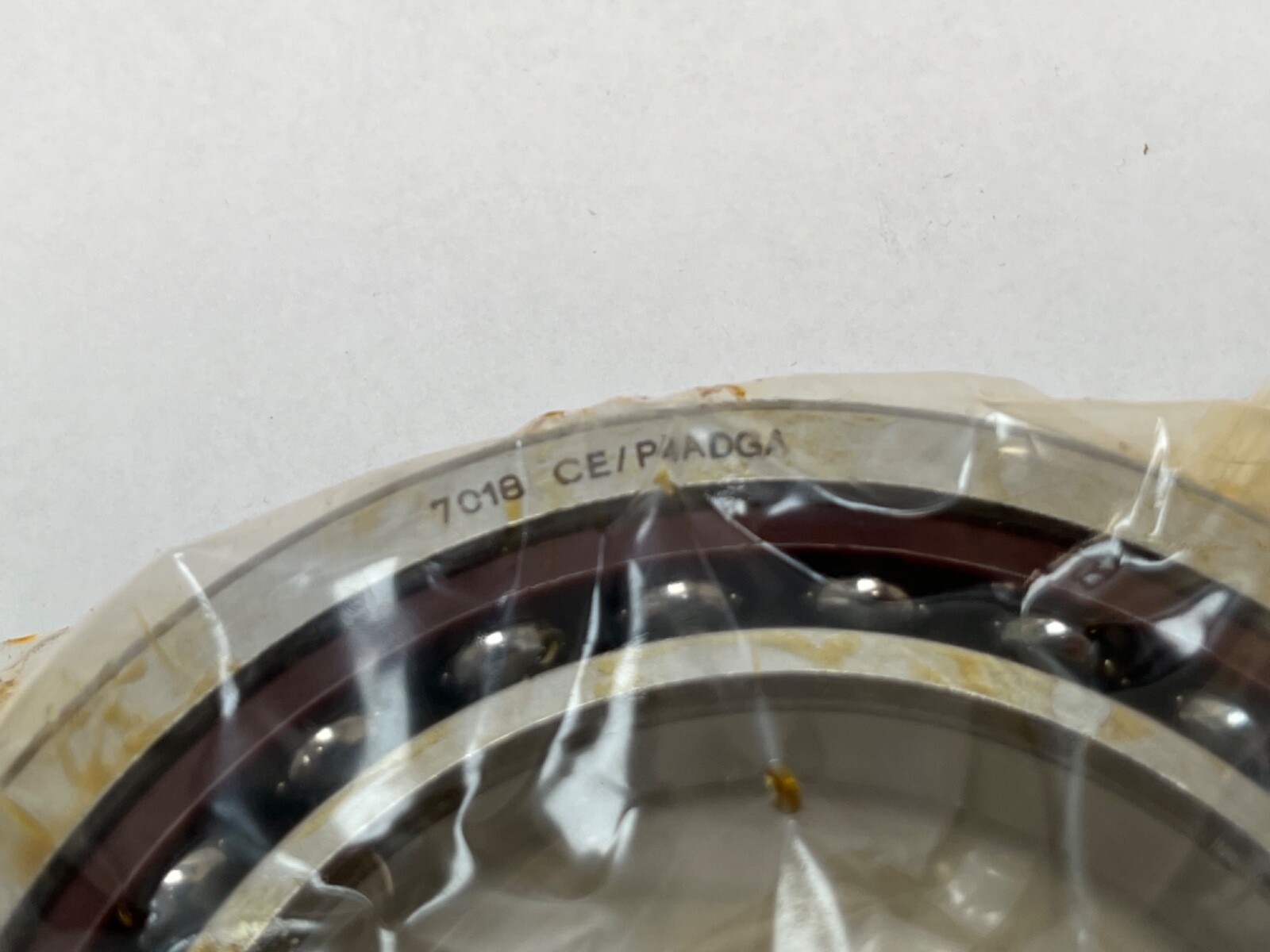

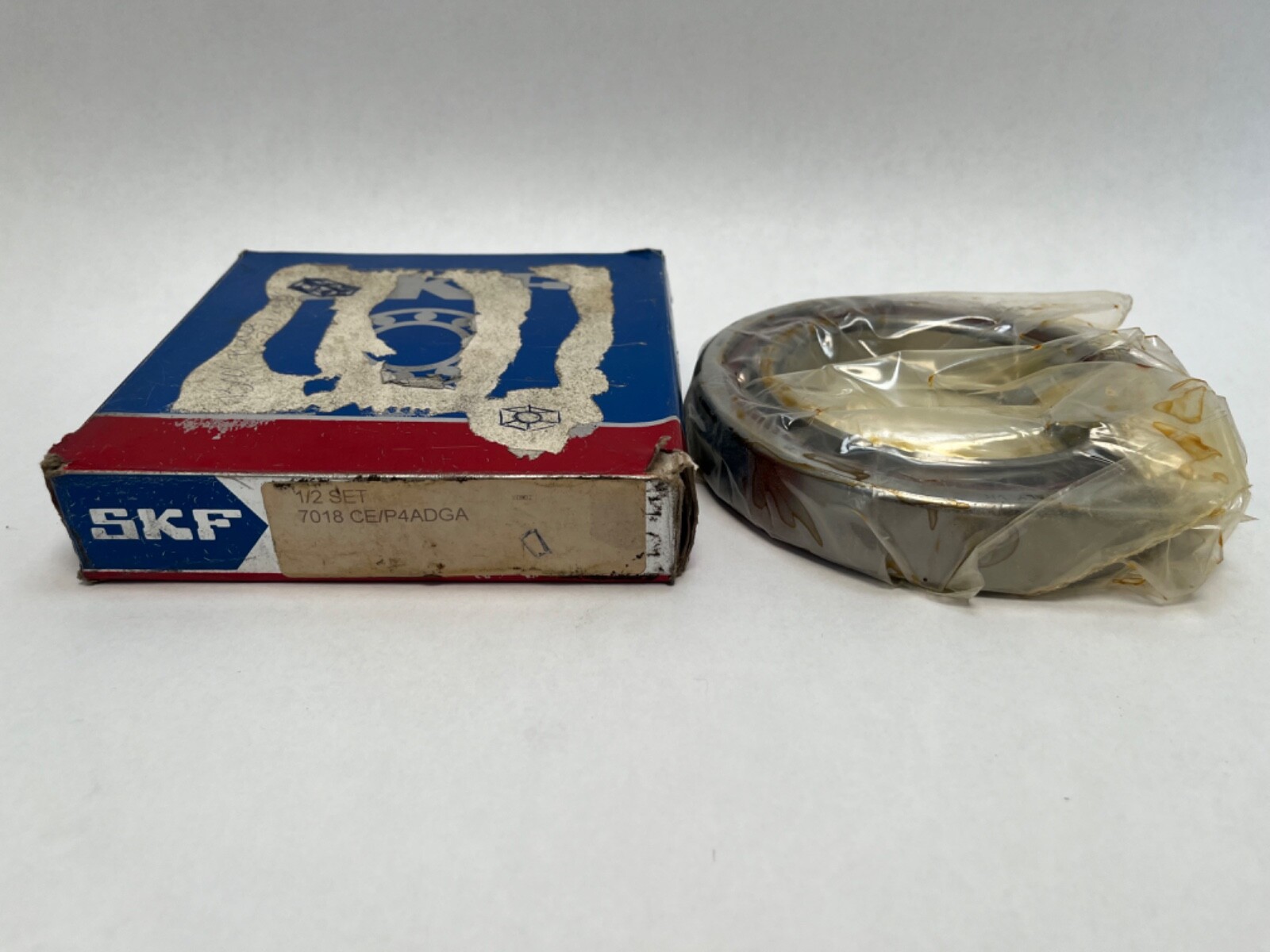

| Cross Reference 1 | SKF 7018 CE/P4ADGA – matched set, extra light |
|---|---|
| Cross Reference 2 | FAG HS7018-C-T-P4S-UL – light preload |
| Cross Reference 3 | NSK 7018CTRSULP4 – light preload |
SKF 7018 CEGA/P4A super-precision, high-speed E design single row angular contact ball bearing, universally matchable for back-to-back, face-to-face or tandem sets. Bore Diameter: 90 mm. Outside Diameter: 140 mm. Width: 24 mm. Contact Angle: 15°. Item Weight: 1.15 kg (2.54 lb).
7018 — ISO 70 light series, 90 mm bore.
CE — 15° contact angle, SKF high-speed E internal design with smaller, more numerous balls.
GA — universally matchable single bearing, extra light preload.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with P2 running accuracy.
Dynamic Load Rating: 35,800 N. Static Load Rating: 32,000 N. Attainable Speed: 13,300 rpm grease; 21,000 rpm oil-air (single bearing, before the matched-set reduction factor). Preload: Extra light, when paired back-to-back or face-to-face. Axial Stiffness: 79 N/µm (pair, back-to-back). Precision Class: ABEC 7 / P4A. Ball Diameter: 11.112 mm. Number of Balls: 28.
Shaft Abutment Diameter (da min): 97 mm. Housing Abutment Diameter (Da max): 133 mm. Fillet Radius (ra max): 1.5 mm. Chamfer (r1,2 min): 1.5 mm. Oil Nozzle Position (dn): 111 mm. Reference Grease Quantity: 14 cm³.
Unit Quantity: 1 Pc. Mounting Arrangement: universally matchable, back-to-back, face-to-face or tandem.
SKF 7018 CE/P4ADGA is the matched set of this bearing at extra light preload. FAG HS7018-C-T-P4S-UL and NSK 7018CTRSULP4 share the 90 x 140 x 24 mm envelope, 15° contact angle and high-speed internal design, but are light preload rather than extra light.
